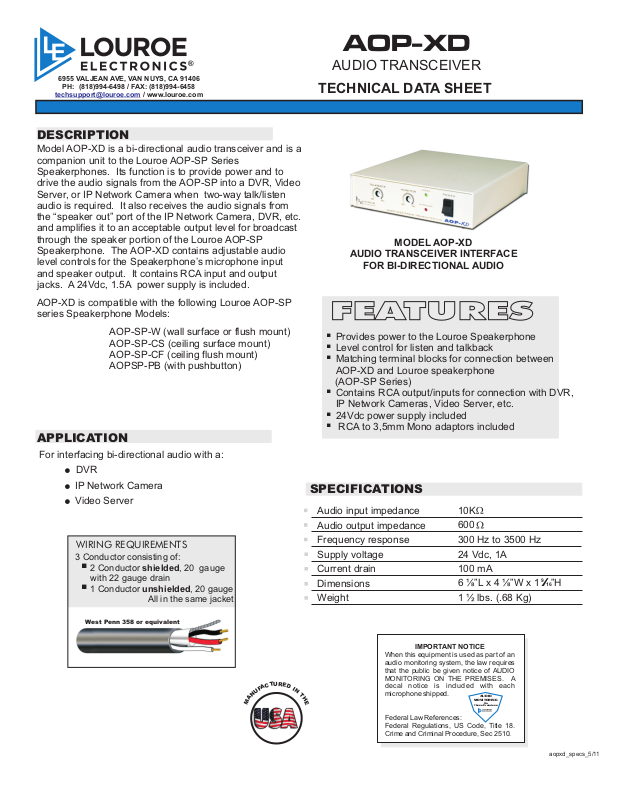

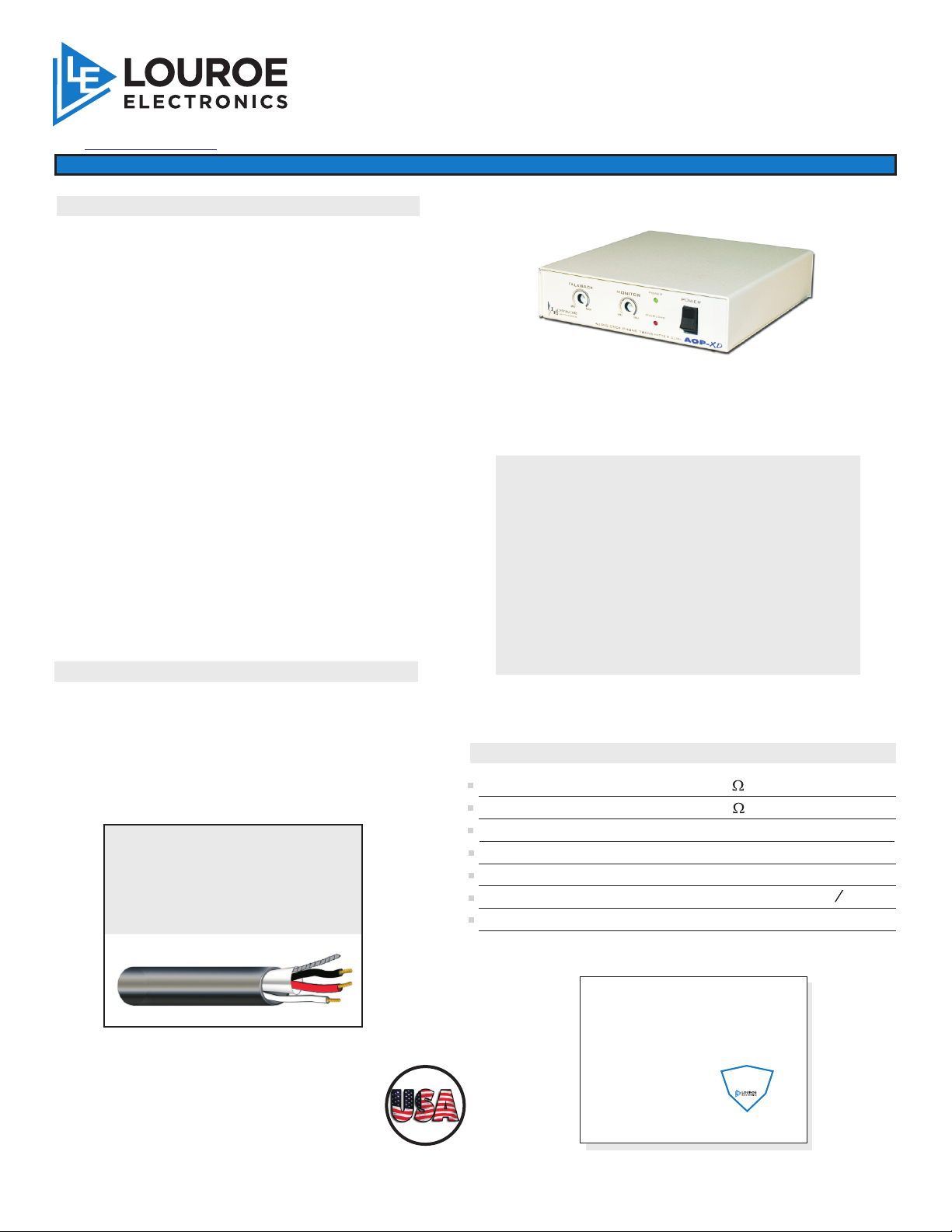

DESCRIPTION
Model AOP-XD is a bi-directional audio transceiver and is a
companion unit to the Louroe AOP-SP Series
Speakerphones. Its function is to provide power and to
drive the audio signals from the AOP-SP into a DVR, Video
Server, when two-way talk/listen
or IP Network Camera
audio is required. It also receives the audio signals from
the “speaker out” port of the IP Network Camera, DVR, etc.
and amplifies it to an acceptable output level for broadcast
through the speaker portion of the Louroe AOP-SP
Speakerphone. The AOP-XD contains adjustable audio
level controls for the Speakerphone’s microphone input
and speaker output. It contains RCA input and output
jacks. A 24Vdc, 1.5A power supply is included.
AOP-XD is compatible with the following Louroe AOP-SP
series Speakerphone Models:
AOP-SP-W (wall surface or flush mount)
AOP-SP-CS (ceiling surface mount)
AOP-SP-CF (ceiling flush mount)
AOPSP-PB (with pushbutton)
APPLICATION
For interfacing bi-directional audio with a:
! DVR
! IP Network Camera
! Video Server
WIRING REQUIREMENTS
3 Conductor consisting of:
+
2 Conductor shielded, 20 gauge
with 22 gauge drain
+
1 Conductor unshielded, 20 gauge
All in the same jacket
AOP-XD
AUDIO TRANSCEIVER
TECHNICAL DATA SHEET
MODEL AOP-XD
AUDIO TRANSCEIVER INTERFACE
FOR BI-DIRECTIONAL AUDIO
FEATURES
+
Provides power to the Louroe Speakerphone
+
Level control for listen and talkback
+
Matching terminal blocks for connection between
AOP-XD and Louroe speakerphone
(AOP-SP Series)
+
Contains RCA output/inputs for connection with DVR,
IP Network Cameras, Video Server, etc.
+
24Vdc power supply included
+
RCA to 3,5mm Mono adaptors included
SPECIFICATIONS
Audio input impedance
Audio output impedance
Frequency response
Supply voltage
Current drain 100 mA
Dimensions
Weight
10K
600
300 Hz to 3500 Hz
24 Vdc, 1A
6 ? ”L x 4 ? ”W x 1 ”H
1 ½ lbs. (.68 Kg)
9
16
West Penn 358 or equivalent
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
R
U
E
T
D
C
A
F
U
N
A
M
I
N
T
H
E
MONITORING ON THE PREMISES. A
deca l noti ce is includ ed wit h each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
