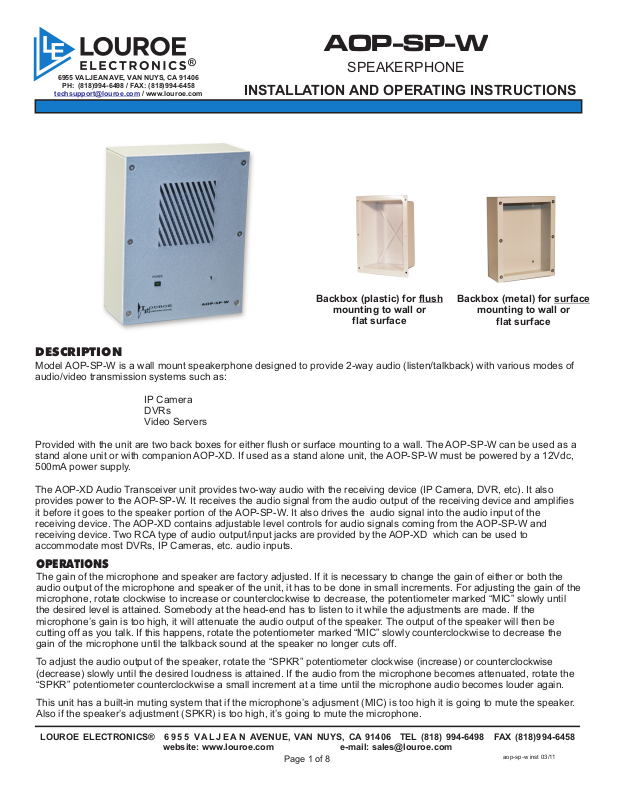

AOP-SP-W

SPEAKERPHONE

INSTALLATION AND OPERATING INSTRUCTIONS

Backbox (plastic) for flush

mounting to wall or

flat surface

Backbox (metal) for surface

mounting to wall or

flat surface

DESCRIPTION

Model AOP-SP-W is a wall mount speakerphone designed to provide 2-way audio (listen/talkback) with various modes of
audio/video transmission systems such as:

IP Camera
DVRs
Video Servers

Provided with the unit are two back boxes for either flush or surface mounting to a wall. The AOP-SP-W can be used as a
stand alone unit or with companion AOP-XD. If used as a stand alone unit, the AOP-SP-W must be powered by a 12Vdc,
500mA power supply.

The AOP-XD Audio Transceiver unit provides two-way audio with the receiving device (IP Camera, DVR, etc). It also
provides power to the AOP-SP-W. It receives the audio signal from the audio output of the receiving device and amplifies
it before it goes to the speaker portion of the AOP-SP-W. It also drives the audio signal into the audio input of the
receiving device. The AOP-XD contains adjustable level controls for audio signals coming from the AOP-SP-W and
receiving device. Two RCA type of audio output/input jacks are provided by the AOP-XD which can be used to
accommodate most DVRs, IP Cameras, etc. audio inputs.

OPERATIONS

The gain of the microphone and speaker are factory adjusted. If it is necessary to change the gain of either or both the
audio output of the microphone and speaker of the unit, it has to be done in small increments. For adjusting the gain of the
microphone, rotate clockwise to increase or counterclockwise to decrease, the potentiometer marked “MIC” slowly until
the desired level is attained. Somebody at the head-end has to listen to it while the adjustments are made. If the
microphone’s gain is too high, it will attenuate the audio output of the speaker. The output of the speaker will then be
cutting off as you talk. If this happens, rotate the potentiometer marked “MIC” slowly counterclockwise to decrease the
gain of the microphone until the talkback sound at the speaker no longer cuts off.

To adjust the audio output of the speaker, rotate the “SPKR” potentiometer clockwise (increase) or counterclockwise
(decrease) slowly until the desired loudness is attained. If the audio from the microphone becomes attenuated, rotate the
“SPKR” potentiometer counterclockwise a small increment at a time until the microphone audio becomes louder again.

This unit has a built-in muting system that if the microphone’s adjusment (MIC) is too high it is going to mute the speaker.
Also if the speaker’s adjustment (SPKR) is too high, it’s going to mute the microphone.

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 1 of 8

(818)

aop-sp-w inst 03/11

INSTALLATION AND OPERATING INSTRUCTIONS

WIRING CONNECTION TO SPEAKER AND MICROPHONE OF AOP-SP-W

Color Code of recommended wiring is:

RED - 12Vdc power to microphone
BLACK - Audio Output
BARE - Ground (microphone and speaker)
WHITE - Speaker

Color Code may vary among wire manufacturers

WIRING CONNECTION TO AOP-SP-W

Located on the bottom right side of PC board is a 4-pin terminal
block marked A, B, C, SP

A = +12Vdc power (red wire)
B = Audio output of microphone
C = Ground (microphone and speaker
SP = Speaker input

Bring one end of recommended cable and connect as follows:

WIRING REQUIREMENTS

3 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain

+

1 Conductor unshielded, 20 gauge

All in the same jacket

West Penn 358 or
equivalent

1) Connect RED wire to terminal marked “A”

2) Connect BLA CK wire to terminal marked “B”

3) Connect BARE wire to terminal marked “C“

4) Connect WHITE wire to terminal marked “SP“

Drill an opening top, bottom or back side
of backbox for passing wiring or for
connecting conduit.

WIRING CONNECTION FROM AOP-SP-W TO COMPANION AOP-XD
AUDIO INTERFACE UNIT

The rear panel of AOP-XD has a 4 pin terminal block marked A, B, C, SP

Bring in other end and connect as follows:

1) Red wire to terminal A

2) Black wire to terminal B

3) Bare wire to terminal C

4) White wire to terminal SP

This completes the wiring between the AOP-SP-W and AOP-XD. For operation instructions and functions
regarding Model AOP-XD Transceiver Interface unit, refer to the AOP-XD instructions that accompany the unit.

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 2 of 8

(818)

aop-sp-w inst 03/11

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

BETWEEN LOUROE™ MODEL AOP-SP-W

AND

AOP-XD AUDIO TRANSCEIVER INTERFACE

MIC

ADJUST

of AOP Series

Speakerphones

TALKBACK
ADJUST

PC Board

B

A

+12Vdc

C

SP

WIRING REQUIREMENTS

3 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain

+

1 Conductor unshielded, 20 gauge

All in the same jacket

ELECTRET

CONDENSER

MICROPHONE

Terminal Block Identifier
A = 12Vdc power
B = Audio Output
C = Ground

Microphone
Connection

}

SP = Speaker Connection

+24 Vdc, 1A
POWER SUPPLY
(INCLUDED)

RED (A)
BLACK (B)
BARE (C)

WHITE (SP)

+24Vdc, 1A

Color Code of recommended wiring is:

RED - 12Vdc power to microphone
BLACK - Audio Output
BARE - Ground (microphone)
WHITE - Speaker

MODEL AOP-XD

RED

BLACK

BARE

WHITE

OUTPUT

A

C

B

SP

A

U

D

I

O

P

A

T

H

AUDIO INTERFACE UNIT
(rear panel)

AUDIO

INPUT

I

NP

U

T

A

U

D

I

O

P

A

T

H

RCA Plug

To “Audio In” of
DVR, Video
Server, etc.

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

To “Audio Out” of
DVR, Video
Server, etc.

website: www.louroe.com e-mail: [e-mail]

Page 3 of 8

aop-sp-w inst 03/11

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

CONNECTING LOUROE™ MODEL AOP-SP-W

DIRECTLY TO AN IP CAMERA, DVR,

VIDEO SERVER, ETC. USING 3-COND. SHIELDED CABLE

4-PIN TERMINAL BLOCK IDENTIFIER OF AOP-SP-W (A,B,C,SP)

A = not used with this application

red

( ) B = Audio Output

bare

( ) C = Ground (audio) and Ground (speaker) (black wire)

white

( ) SP = Speaker output

ASPB

C

West Penn 358
or equivalent

ELECTRET

CONDENSER

MICROPHONE

LOUROE™ MODEL AOP-SP-W

MIC

ADJUST

TALKBACK
ADJUST

EXT
MIC

SPKR

AUDIO

AUDIO

IN

IN

ASPB

(B) RED

AUDIO

AUDIO

OUT

OUT

C

(C) BARE

+12Vdc

+12Vdc

GND

WHITE (SP)

+

BLACK (C)

WHITE (SP)

AOP-XD is not used for this application.

12 Vdc power is required to connect the AOP-SP-W directly to
an IP camera or DVR such as AD-1 power supply.
Positive 12Vdc connects to terminal marked “+”
Negative 12 Vdc or ground

connects to terminal marked “GND”

+12Vdc,500mA power required
(AD-1 power supply included)

WIRING REQUIREMENTS

3 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain

+

1 Conductor unshielded, 20 gauge

(wire with white stripes)

All in the same jacket

TO AUDIO IN OF IP CAMERA, DVR, ETC.

NOTE: BLACK AND BARE WIRES ARE COMMON GROUND

3.5mm STEREO CONNECTION

Black Wire

Red Wire

Bare Wire

S

White Wire

3.5mm MONO CONNECTION

Bare Wire

Red Wire

T
E
R
E

O

Audio In

Audio Out

Audio In

LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

TO AUDIO OUT OF IP CAMERA, DVR, ETC.

Black Wire

White Wire

Red Wire

M

O
N
O

Audio Out

(818)

RCA CONNECTION

Bare Wire

Black Wire

Audio In

White Wire

Audio Out

website: www.louroe.com e-mail: [e-mail]

Page 4 of 8

aop-sp-w inst 03/11

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS (Microphone)

Type

Microphone output

Microphone element sensitivity
Frequency response
Output Impedance
Supply voltage 12 Vdc, 500mA

SPECIFICATIONS (Speaker)

Electret Condenser

line level (0 dB @ 1kΩ)

-45dB
40 Hz to 15 kHz 1 dB
600Ω unbalanced

Speaker Power output
Speaker Impedance
Speaker magnet
Speaker size

Weight, net

2W
8Ω
3 oz. ceramic
4” (10cm)

3 Lbs. (1.4 Kg)

SPECIFICATIONS (Mechanical)

Dimensions (Face Plate) 6 1/4"H x 8"W

metric (158mm H x 203mm W)

Backbox for AOP-SP-W

Surface Mount Box (metal) 6 1/4"H x 8"W x 2 3/4”D

metric (158mm H x 203mm W x 70mm D)

Flush Mount Box (plastic)

Backbox Portion 5"H x 6 7/8"W x 2 5/8”D

metric (127mm H x 175mm W x 67mm D)

Total including flange 6 1/4"H x 8"W x 2 5/8”D

metric (158mm H x 203mm W x 67mm D)

When this equipment is used as part of an audio
monitoring system, the law requires that the public be
given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18. Crime and
Criminal Procedure, Sec 2510.

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

IMPORTANT NOTICE

AUDIO

MONITORING

These Premises

On

TM

(818)

website: www.louroe.com e-mail: [e-mail]

Page 5 of 8

aop-sp-w inst 03/11

INSTALLATION AND OPERATING INSTRUCTIONS

NOTES

LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS® to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS® will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS®.

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS®.

Returned shipments to LOUROE ELECTRONICS® shall be at customer’s expense. LOUROE ELECTRONICS® will return the equipment prepaid via best way.
