6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com

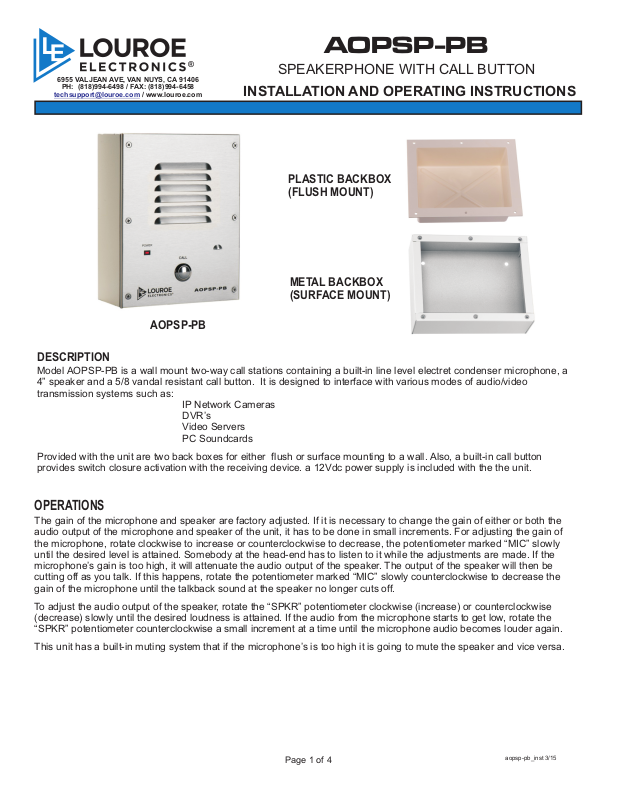

AOPSP-PB
AOPSP-PB
SPEAKERPHONE WITH CALL BUTTON
INSTALLATION AND OPERATING INSTRUCTIONS
PLASTIC BACKBOX
(FLUSH MOUNT)
METAL BACKBOX
(SURFACE MOUNT)
DESCRIPTION
Model AOPSP-PB is a wall mount two-way call stations containing a built-in line level electret condenser microphone, a
4” speaker and a 5/8 vandal resistant call button. It is designed to interface with various modes of audio/video
transmission systems such as:
IP Network Cameras
DVR’s
Video Servers
PC Soundcards
Provided with the unit are two back boxes for either flush or surface mounting to a wall. Also, a built-in call button
provides switch closure activation with the receiving device. a 12Vdc power supply is included with the the unit.
OPERATIONS
The gain of the microphone and speaker are factory adjusted. If it is necessary to change the gain of either or both the
audio output of the microphone and speaker of the unit, it has to be done in small increments. For adjusting the gain of
the microphone, rotate clockwise to increase or counterclockwise to decrease, the potentiometer marked “MIC” slowly
until the desired level is attained. Somebody at the head-end has to listen to it while the adjustments are made. If the
microphone’s gain is too high, it will attenuate the audio output of the speaker. The output of the speaker will then be
cutting off as you talk. If this happens, rotate the potentiometer marked “MIC” slowly counterclockwise to decrease the
gain of the microphone until the talkback sound at the speaker no longer cuts off.
To adjust the audio output of the speaker, rotate the “SPKR” potentiometer clockwise (increase) or counterclockwise
(decrease) slowly until the desired loudness is attained. If the audio from the microphone starts to get low, rotate the
“SPKR” potentiometer counterclockwise a small increment at a time until the microphone audio becomes louder again.
This unit has a built-in muting system that if the microphone’s is too high it is going to mute the speaker and vice versa.
Page 1 of 4
aopsp-pb_inst 3/15
INSTALLATION AND OPERATING INSTRUCTIONS
WIRING CONNECTION TO SPEAKER AND MICROPHONE OF AOPSP-PB
WIRING REQUIREMENTS
3 Conductor consisting of:
+
2 Conductor shielded, 20 gauge
with 22 gauge drain
+
1 Conductor unshielded, 20 gauge
All in the same jacket
WIRING CONNECTION TO AOP-SP-PB
See connections on the next page
Located on the bottom right side of PC board is a 4-pin terminal
block marked A, B, C, SP
A = 12Vdc power
B = Audio output
C = Ground (bare wire)
SP = Speaker Connection
Drill an opening top, bottom or back side
of backbox for passing wiring or for
connecting conduit.
Bring one end of recommended cable and connect as follows:
1) Connect RED wire to terminal marked “B”
2) Connect BLACK wire to terminal marked “C” (together with bare wire)
3) Connect BARE wire to terminal marked “C“
4) Connect WHITE wire to terminal marked “SP“
5) No connection on terminal “A”
WIRING CONNECTION TO IP CAMERA OR DVR
Bring the other end of the cable to connector that matches the audio input
and outputs of the receiving devices
1) RED (positive audio) and BARE (ground) are soldered to the audio
connector (RCA, 3.5mm Mono or Stereo plugs). This connector goes
to the Audio input of the receiving device (IP Camera, DVR, etc)
2) WHITE (positive audio) and BLACK (ground) are soldered to the another
audio connector (RCA, 3.5mm Mono or Stereo plugs. This connector
goes to the Audio output of the receiving device (IP Camera, DVR,
etc).
WIRING CONNECTION TO AOPSP-PB CALL BUTTON
Connect the two wires (black and green) attached to Call Button Switch to the contacts of the
receiving device, using wire nuts and 22 gauge stranded wire. Refer to the receiving device
manufacturers instructions for proper connection.
POWER CONNECTION
The unit has a 2-pin terminal block for power connections marked 12Vdc
1) Connect the positive 12Vdc of the power supply (AD-1) to the terminal
marked +
2) Connect the negative or ground of the power supply to terminal marked
GRD
LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
website: www.louroe.com e-mail: sales@louroe.com
Page 2 of 4
(818)
aopsp-pb_inst 3/15
INSTALLATION AND OPERATING INSTRUCTIONS
INTERCONNECTION DIAGRAM
CONNECTING LOUROE MODEL AOPSP-PB
DIRECTLY TO AN IP CAMERA, DVR,
VIDEO SERVER, ETC. USING 3-COND. SHIELDED CABLE
4-PIN TERMINAL BLOCK IDENTIFIER OF AOPSP-PB (A,B,C,SP)
A = not used with this application
red
( ) B = Audio Output
bare
( ) C = Ground (audio) and Ground (speaker) (black wire)
white
( ) SP = Speaker output
ASPB
C
West Penn 358
or equivalent
ELECTRET
CONDENSER
MICROPHONE
TO SWITCH CLOSURE OF
AUDIO RECEIVING DEVICE
(refer to manufacturer’s
instructions for connection)
LOUROE MODEL AOPSP-PB
MIC
ADJUST
TALKBACK
ADJUST
EXT
EXT
MIC
MIC
CALL
BUTTON
WIRE
NUT
SPKR
SPKR
AUDIO
C
A B
AUDIO
IN
RED (B)
BLACK (C)
BARE (C)
IN
ASPB
WIRE
NUT
(B) RED
AUDIO
AUDIO
OUT
OUT
C
(C) BARE
+12Vdc
+12Vdc
GND
WHITE (SP)
+
BLACK (C)
WHITE (SP)
AOP-XD is not used for this application.
12 Vdc power is required to connect the AOP-SP-E directly to
an IP camera or DVR such as AD-1 power supply.
Positive 12Vdc connects to terminal marked “+”
Negative 12 Vdc or ground
connects to terminal marked “GND”
+12Vdc,500mA power required
(AD-1 power supply included)
Connect to this 2-pin terminal block
WIRING REQUIREMENTS
3 Conductor consisting of:
+
2 Conductor shielded, 20 gauge
with 22 gauge drain
+
1 Conductor unshielded, 20 gauge
(wire with white stripes)
All in the same jacket
TO AUDIO IN OF IP CAMERA, DVR, ETC.
NOTE: BLACK AND BARE WIRES ARE COMMON GROUND
3.5mm STEREO CONNECTION
Black Wire
Red Wire
Bare Wire
S
White Wire
3.5mm MONO CONNECTION
Bare Wire
Red Wire
T
E
R
E
O
Audio In
Audio Out
Audio In
LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
TO AUDIO OUT OF IP CAMERA, DVR, ETC.
Black Wire
White Wire
Red Wire
M
O
N
O
Audio Out
(818)
RCA CONNECTION
Bare Wire
Black Wire
Audio In
White Wire
Audio Out
website: www.louroe.com e-mail: sales@louroe.com
Page 3 of 4
aopsp-pb_inst 3/15
INSTALLATION AND OPERATING INSTRUCTIONS
SPECIFICATIONS (Microphone)
Type
Audio output
Microphone element sensitivity
Frequency response
Audio Input Impedance
SPECIFICATIONS (Speaker)
Speaker power output
Speaker impedance
Speaker magnet
Speaker size
Current Drain
Supply Voltage
Dimensions
Weight
Shipping Weight
Faceplate
Metal Backbox
Plastic Backbox
Electret Condenser
Line level (0 dB @ 600W)
unbalanced
-45 dB
40 Hz - 15 kHz
600W
1W
8W
1.73 oz ceramic
4”
200mA
12Vdc
8” H x 6 1/4” W
8” H x 6 1/4” W x 2 3/4” D
8” H x 6 1/4” W x 2 5/8” D
1lb 7 oz
6 lbs
When this equipment is used as part of an audio
monitoring system, the law requires that the public be
given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18. Crime and
Criminal Procedure, Sec 2510.
LOUROE ELECTRONICS® warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS® to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS® will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS®.
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS®.
Returned shipments to LOUROE ELECTRONICS® shall be at customer’s expense. LOUROE ELECTRONICS® will return the equipment prepaid via best way.
LOUROE ELECTRONICS® 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
IMPORTANT NOTICE
AUDIO
MONITORING
These Premises
WARRANTY
On
®
(818)
website: www.louroe.com e-mail: sales@louroe.com
Page 4 of 4
aopsp-pb_inst 3/15
