DESCRIPTION
®

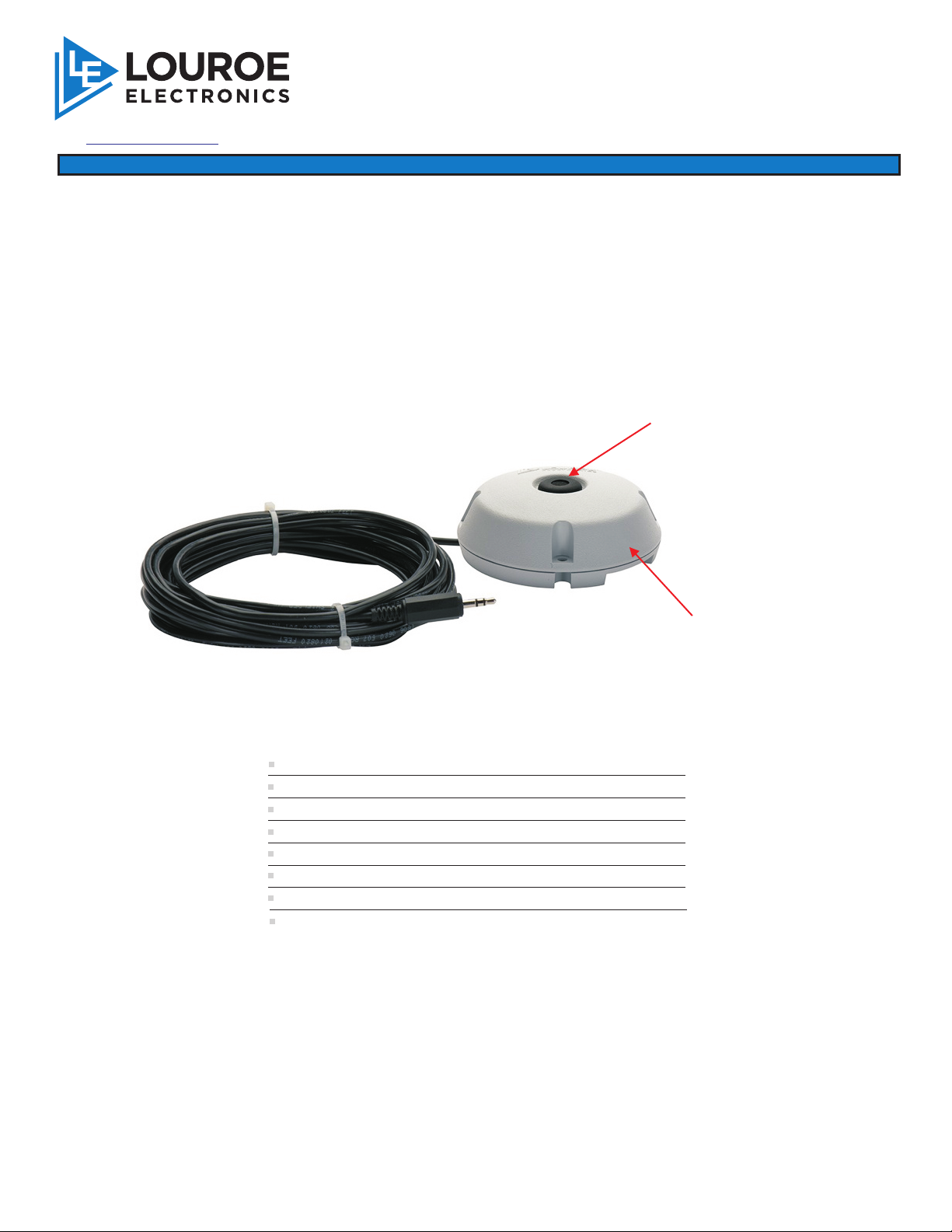

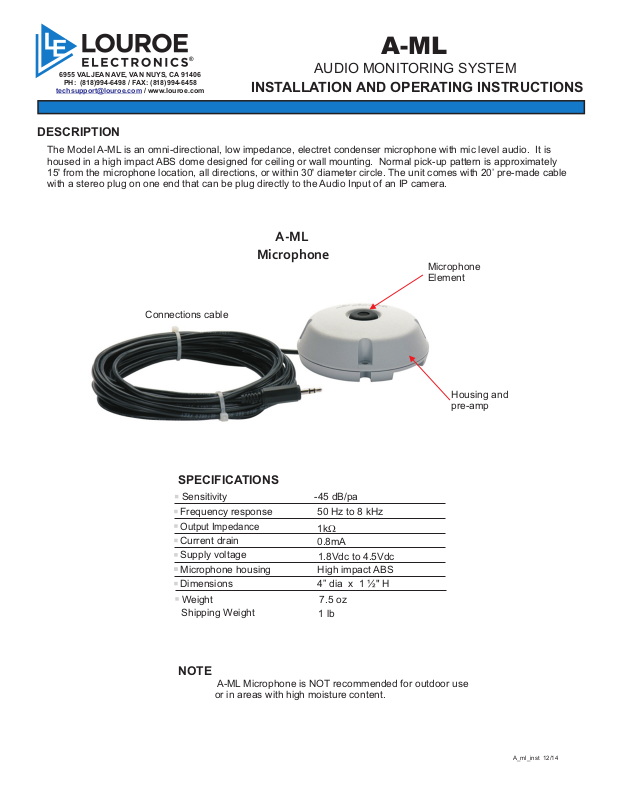

A-ML
AUDIO MONITORING SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
The Model A-ML is an omni-directional, low impedance, electret condenser microphone with level audio. It is
housed in a high impact ABS dome designed for ceiling or wall mounting. Normal pick-up pattern is approximately
15' from the microphone location, all directions, or within 30' diameter circle. The unit comes with 20’ pre-made cable
with a stereo plug on one end that can be plug directly to the Audio Input of an IP camera.
mic
A-ML
Microphone
Microphone
Element
Connections cable
Housing and
pre-amp
SPECIFICATIONS
Sensitivity
Frequency response
Output Impedance
Current drain
Supply voltage
Microphone housing High impact ABS
Dimensions
Weight
Shipping Weight
-45 dB/pa
50 Hz to 8 kHz
1kW
0.8mA
1.8Vdc to 4.5Vdc
4” " dia x 1 ½ H
7.5 oz
1 lb
NOTE
A-ML Microphone is NOT recommended for outdoor use
or in areas with high moisture content.
A_ml_inst 12/14
INSTALLATION AND OPERATING INSTRUCTIONS
MOUNTING INFORMATION
The Model A-ML is cylindrical, 4” dia. x 1½” H, and has four mounting holes for surface mounting to a
ceiling or other flat surface. It should be positioned so that the microphone is 4’ to 8’ from the area of
desired coverage.
MICROPHONE CONNECTION
Connect the other end of the cable with a 3.5mm Stereo
Plug to the Audio Input of the IP camera.The camera
has to be configured to Mic level settings.
IMPORTANT NOTICE
BACK SIDE OF A-ML
N
L
A
B
C
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l n otice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
These Premises
On
®
TO IP CAMERA AUDIO INPUT
IP CAMERA
MANUFACTURED
IN THE
