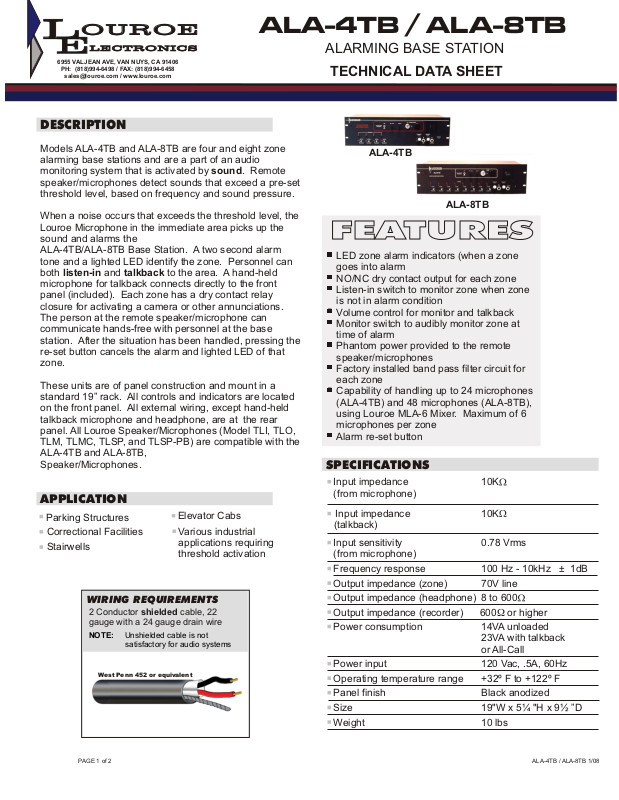

Louroe Electronics ALA-4TB, ALA-8TB Specsheet

LL

OUROEOUROE

EE

6955 VALJEAN AVE, VAN NUYS, CA 91406

LEC TRON ICSLEC TRON ICS

PH: [phone] / FAX: [phone]

[e-mail] / www.louroe.com

DESCRIPTION

ALA-4TB / ALA-8TB

ALARMING BASE STATION

TECHNICAL DATA SHEET

Models ALA-4TB and ALA-8TB are four and eight zone
alarming base stations and are a part of an audio
monitoring system that is activated by sound. Remote
speaker/microphones detect sounds that exceed a pre-set
threshold level, based on frequency and sound pressure.

When a noise occurs that exceeds the threshold level, the
Louroe Microphone in the immediate area picks up the
sound and alarms the
ALA-4TB/ALA-8TB Base Station. A two second alarm
tone and a lighted LED identify the zone. Personnel can
both listen-in and talkback to the area. A hand-held
microphone for talkback connects directly to the front
panel (included). Each zone has a dry contact relay
closure for activating a camera or other annunciations.
The person at the remote speaker/microphone can
communicate hands-free with personnel at the base
station. After the situation has been handled, pressing the
re-set button cancels the alarm and lighted LED of that
zone.

These units are of panel construction and mount in a
standard 19” rack. All controls and indicators are located
on the front panel. All external wiring, except hand-held
talkback microphone and headphone, are at the rear
panel. All Louroe Speaker/Microphones (Model TLI, TLO,
TLM, TLMC, TLSP, and TLSP-PB) are compatible with the
ALA-4TB and ALA-8TB,
Speaker/Microphones.

APPLICATION

Parking Structures
Correctional Facilities

Stairwells

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

Elevator Cabs

Various industrial
applications requiring
threshold activation

ALA-4TB

ALA-8TB

FEATURESFEATURES

+

LED zone alarm indicators (when a zone
goes into alarm

+

NO/NC dry contact output for each zone

+

Listen-in switch to monitor zone when zone
is not in alarm condition

+

Volume control for monitor and talkback

+

Monitor switch to audibly monitor zone at
time of alarm

+

Phantom power provided to the remote
speaker/microphones

+

Factory installed band pass filter circuit for
each zone

+

Capability of handling up to 24 microphones
(ALA-4TB) and 48 microphones (ALA-8TB),
using Louroe MLA-6 Mixer. Maximum of 6
microphones per zone

+

Alarm re-set button

SPECIFICATIONS

Input impedance
(from microphone)

Input impedance

(talkback)

Input sensitivity
(from microphone)

Frequency response
Output impedance (zone)
Output impedance (headphone)
Output impedance (recorder)
Power consumption 14VA unloaded

Power input
Operating temperature range
Panel finish Black anodized

Size
Weight

10K

10K

0.78 Vrms

100 Hz - 10kHz ± 1dB
70V line
8 to 600

600W or higher

23VA with talkback
or All-Call

120 Vac, .5A, 60Hz
+32º F to +122º F

19"W x 5¼ "H x 9½ ”D
10 lbs

PAGE 1 of 2 ALA-4TB / ALA-8TB 1/08

LL

OUROEOUROE

EE

LECTRO NIC SLECTRO NIC S

ARCHITECTS AND CONSULTING ENGINEERS SPECIFICATIONS

The installation shall include a modularly constructed audio alarm system, which shall be capable of
going into an audio and visual alarm state when specified frequency characteristics and pre­determined sound level pressures occur.

The base station shall be completely self-contained, with monitoring and alarm facilities and power
supplies included.

The base station shall be a LOUROE Model ALA-4TB or ALA-8TB and provide the following features
and functions:

+

The system shall be continuously listening for duress sounds in all audio
zones. Scanning equipment is not acceptable

+

The monitored zones will use high quality electret condenser VERIFACT
Microphones with 8W, 70V Speakers for providing bi-directional audio with
the ALA-4TB/ALA-8TB. Speakers that serve as microphones are not

acceptable

+

Base station shall have ability to monitor more than one zone at a time

+

Base station shall be capable of listening-in to a zone when not in an alarm
state

+

The base station shall be capable of handling a minimum of 4 zones (ALA-4TB),
with up to 6 speaker/microphones per zone using an MLA-6 Mixer, and have a
maximum capability of 8 zones (ALA-8TB)

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice is incl uded w ith ea ch
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

R

U

E

T

D

C

A

F

U

N

A

M

I

N

T

H

E

AUDIO

MONITORING

On

These Premises

OUROE

L

LECTRONICS

E

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

PAGE 2 of 2

Website: www.louroe.com Email: [e-mail]

ALA-4TB / ALA-8TB 1/08
