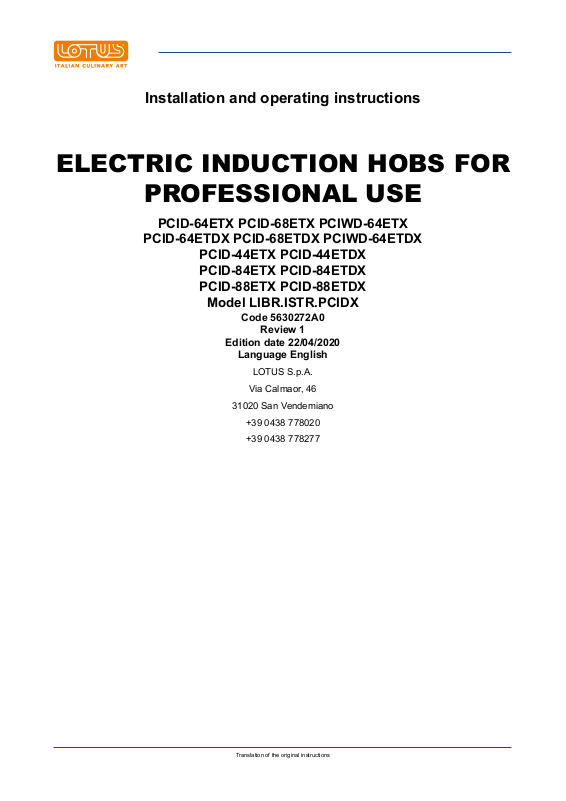

Page 1
Installation and operating instructions
ELECTRIC INDUCTION HOBS FOR
PROFESSIONAL USE
PCID-64ETX PCID-68ETX PCIWD-64ETX
PCID-64ETDX PCID-68ETDX PCIWD-64ETDX
PCID-44ETX PCID-44ETDX
PCID-84ETX PCID-84ETDX
PCID-88ETX PCID-88ETDX
Model LIBR.ISTR.PCIDX
Code 5630272A0
Review 1
Edition date 22/04/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Page 2
Contents
Contents
1 INTRODUCTION......................................................................................................................... 5
1.1 Installation drawing...................................................................................................................... 5
1.2 Connections ................................................................................................................................ 13
2 GENERAL INFORMATION......................................................................................................... 14
2.1 Declaration of compliance............................................................................................................ 14
2.2 User information, RAEE Directive on waste electrical and electronic equipment ........................ 15
2.3 Technical data table..................................................................................................................... 15
3 INSTALLATION........................................................................................................................... 17
3.1 Delivery checks ............................................................................................................................ 17
3.2 Removing the packaging ............................................................................................................. 17
3.3 Mechanical installation ................................................................................................................. 17
3.4 Electrical/gas connections ........................................................................................................... 17
4 INSTRUCTIONS FOR USE......................................................................................................... 20
4.1 General information ..................................................................................................................... 20
4.2 Induction cooker hobs .................................................................................................................. 20
4.2.1 Induction generator ...................................................................................................................... 21
4.3 Lighting and adjusting the open rings.......................................................................................... 22
4.3.1 Pans ............................................................................................................................................. 22
4.3.2 Function checks .......................................................................................................................... 24
4.3.3 Shut-off ........................................................................................................................................ 24
4.3.4 Lin Knob ....................................................................................................................................... 24
4.3.5 Flex touch .................................................................................................................................... 27
4.3.6 Normal mode ............................................................................................................................... 27
4.3.7 Function keys ............................................................................................................................... 27
4.3.8 Pot detection ............................................................................................................................... 28
4.3.9 Parameter table ........................................................................................................................... 28
4.3.10Residual heat symbol h................................................................................................................ 28
4.3.11 Troubleshooting ........................................................................................................................... 29
4.3.12Error signals ................................................................................................................................. 29
4.3.13Lin knob error messages ............................................................................................................ 30
5 MAINTENANCE.......................................................................................................................... 33
5.1 Routine......................................................................................................................................... 33
5.2 Spare parts .................................................................................................................................. 34
6 CLEANING.................................................................................................................................. 35
6.1 Routine cleaning.......................................................................................................................... 35
6.2 Cleaning the glass ....................................................................................................................... 35
6.3 Maintenance suggestions............................................................................................................ 36
Translation of the original instructions
2
Page 3
Contents
6.4 How to achieve a brilliant result in three simple steps:................................................................ 37
6.5 How to your SCHOTT CERAN® hob bright and shining for a long time...................................... 38
3
Translation of the original instructions
Page 4
Contents
4
Translation of the original instructions
Page 5
INTRODUCTION
1 INTRODUCTION
1.1 Installation drawing

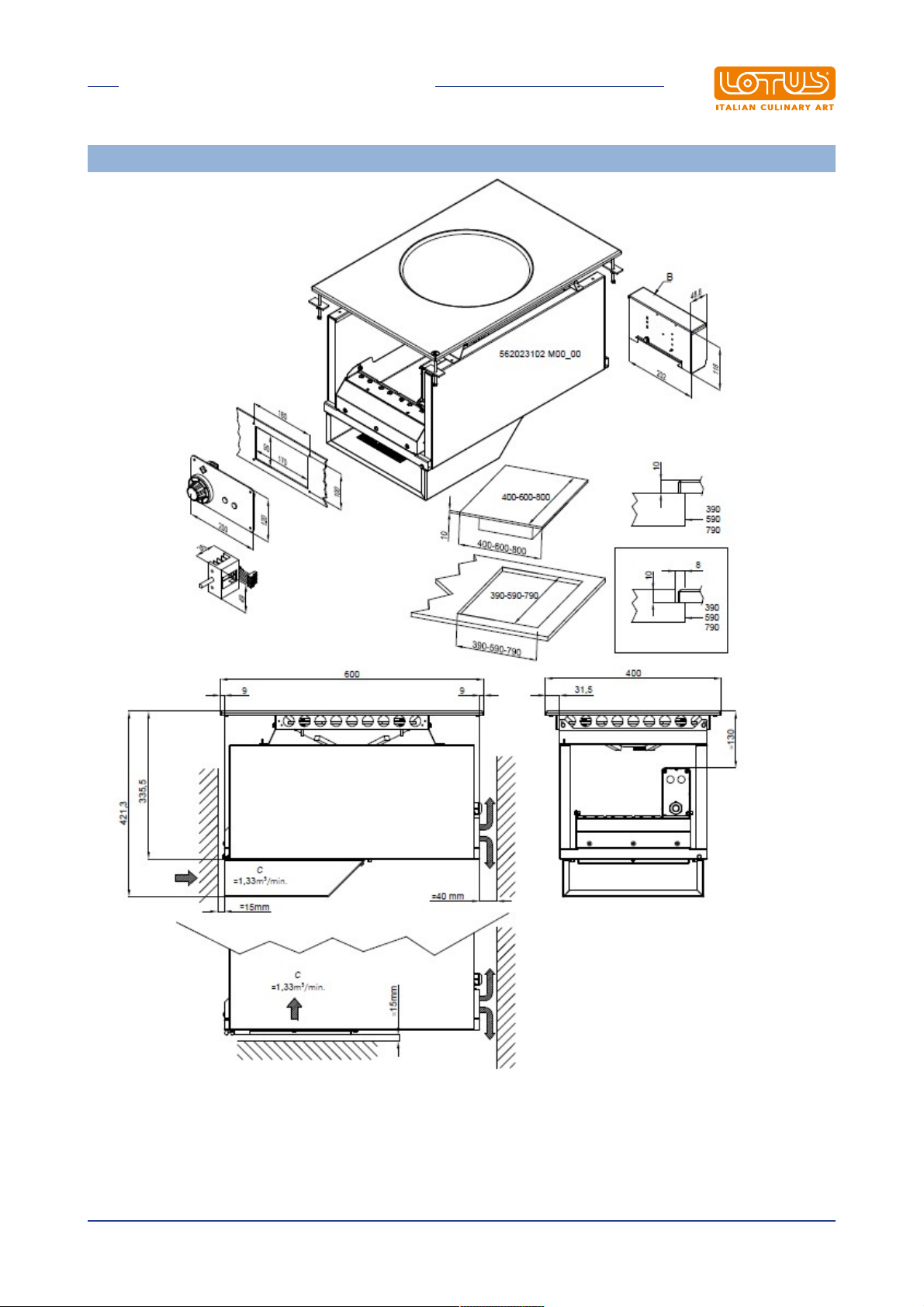

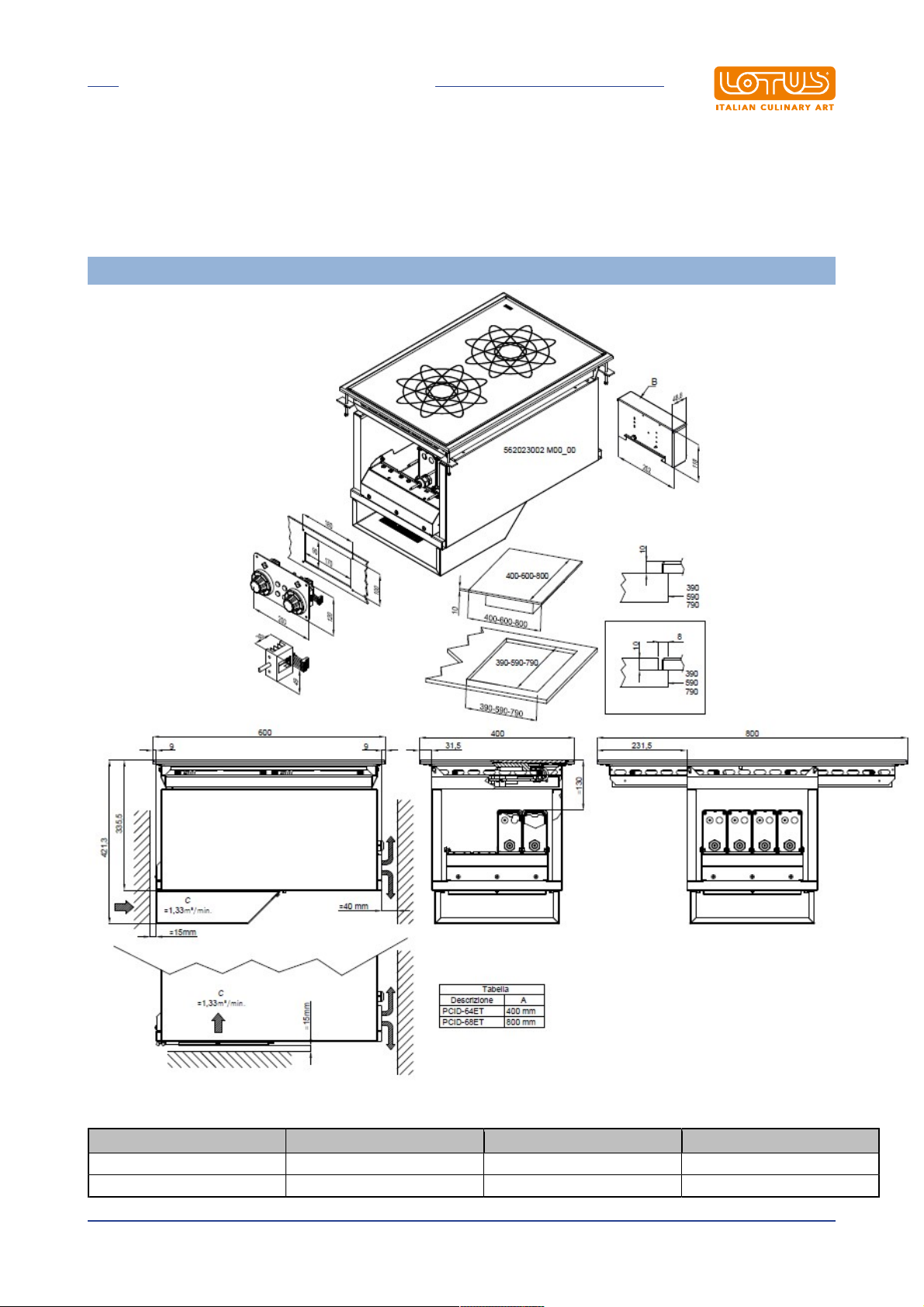

FIG. 1 PCID-6... (ANALOGIC)
B Electrical connection
C Air inlet
MODEL A (mm) C D
PCID-64ET 400 ≥100 cm² ≥150 cm²
PCID-68ET 800 ≥165 cm² ≥200 cm²
Translation of the original instructions
5
Page 6

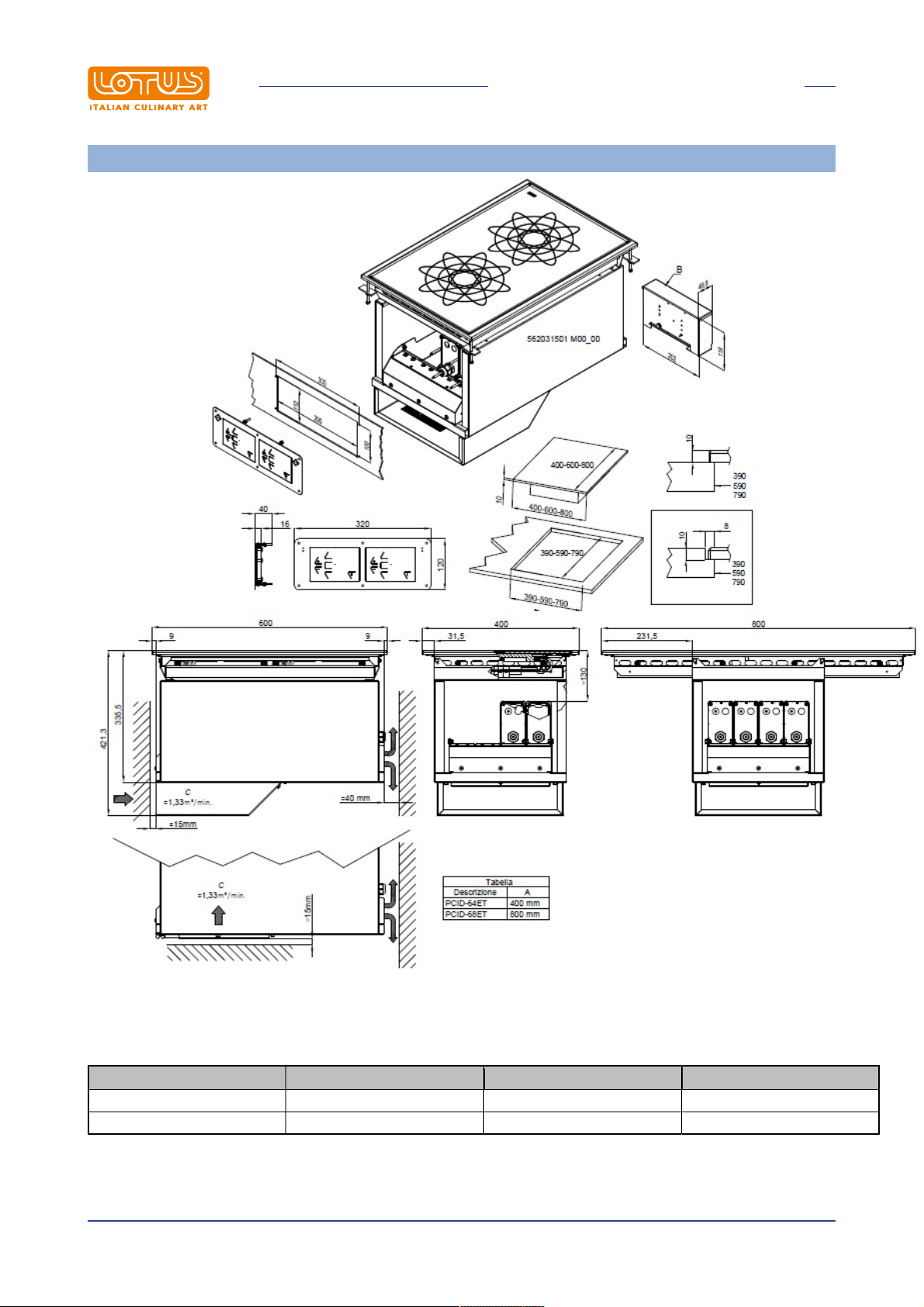

FIG. 2 PCID-6...D (FLEX TOUCH)
INTRODUCTION
B Electrical connection
C Air inlet
MODEL A (mm) C D
PCID-64ETD 400 ≥100 cm² ≥150 cm²
PCID-68ETD 800 ≥165 cm² ≥200 cm²
Translation of the original instructions
6
Page 7
INTRODUCTION

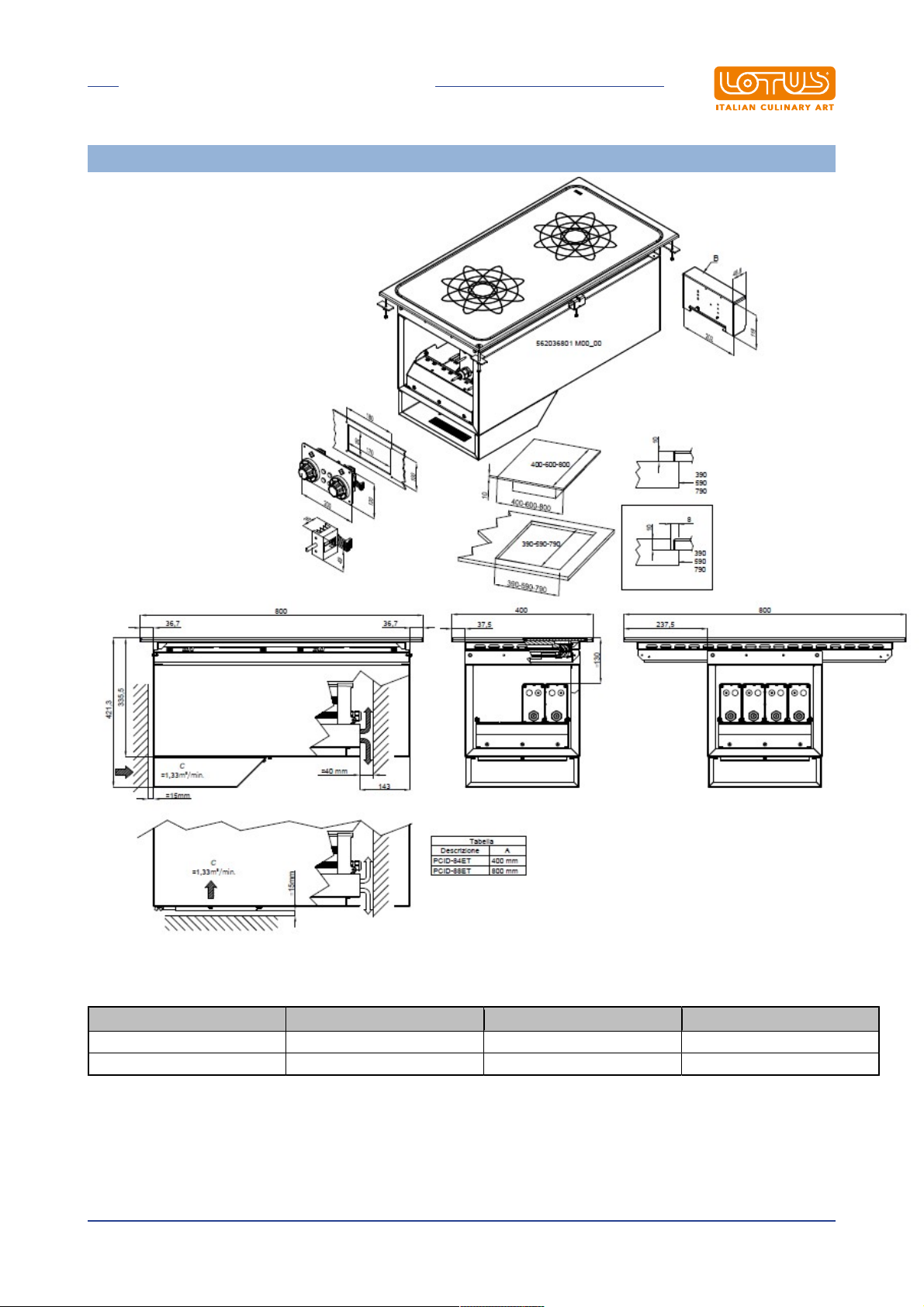

FIG. 3 PCIWD-64ET (ANALOGIC)
B Electrical connection
C Air inlet
7
Translation of the original instructions
Page 8

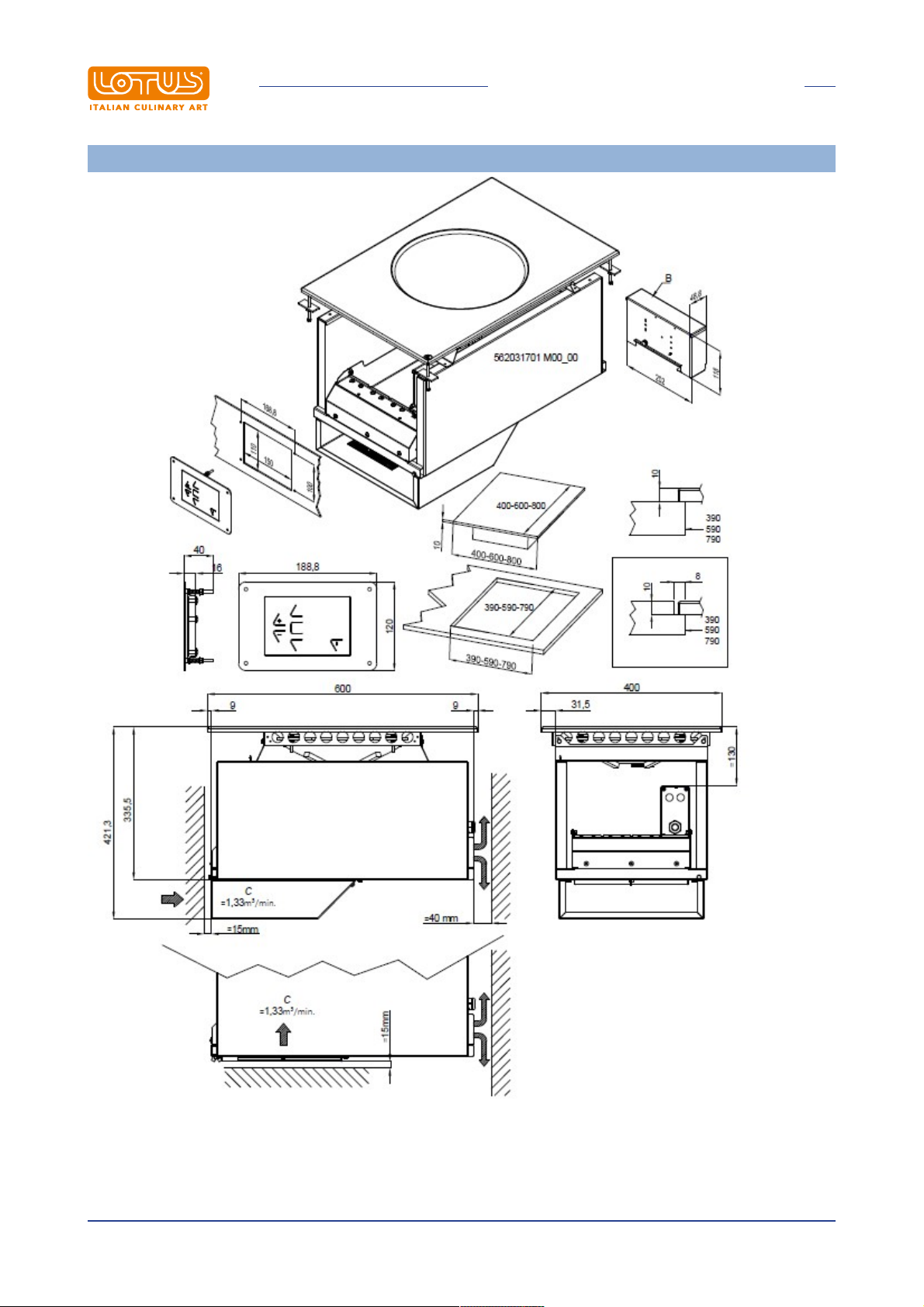

FIG. 4 PCIWD-64ETD (FLEX TOUCH)
INTRODUCTION
B Electrical connection
C Air inlet
8
Translation of the original instructions
Page 9
INTRODUCTION

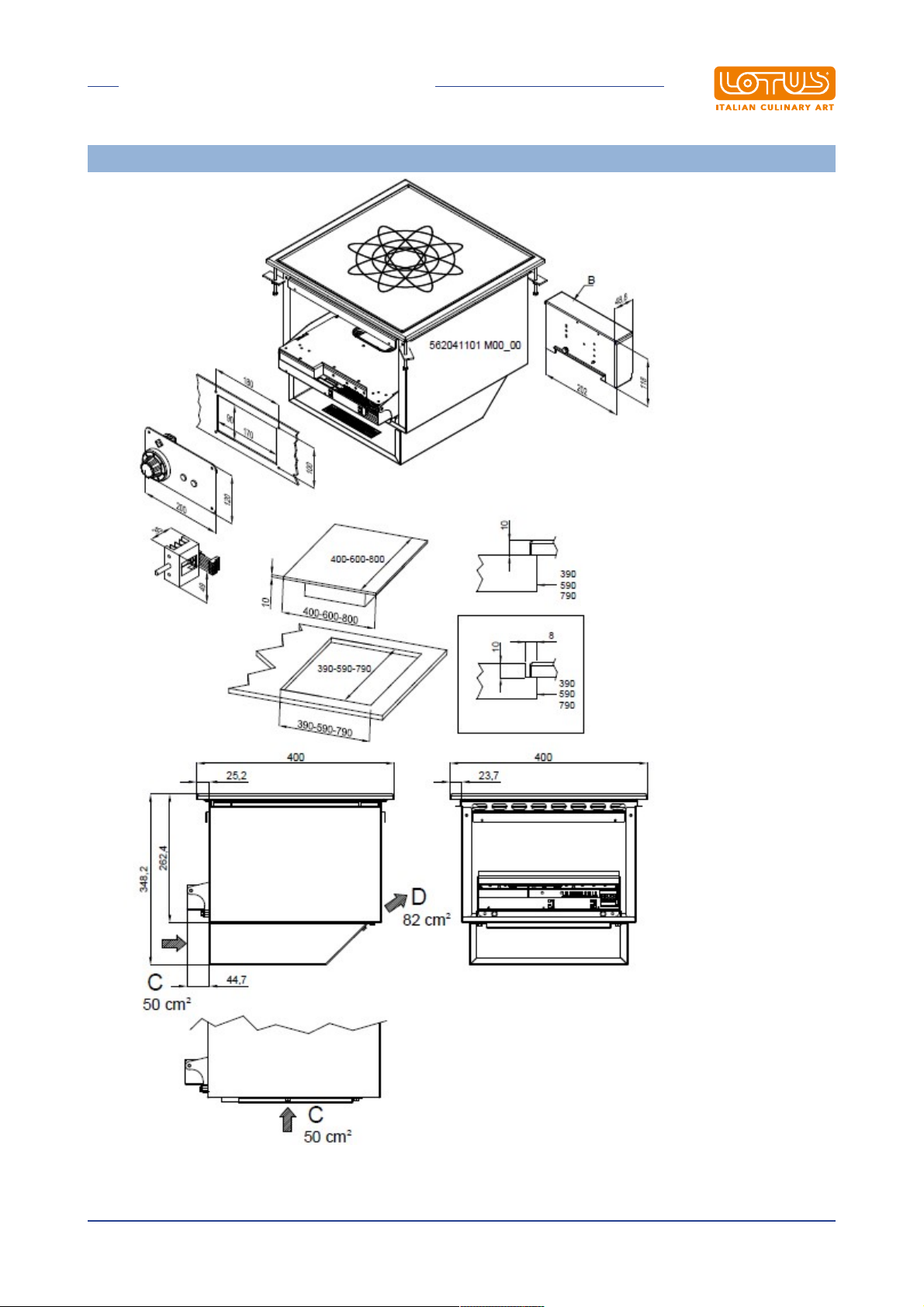

FIG. 5 PCID-44ET (ANALOGIC)
B Electrical connection
C Air inlet
D Air outlet
9
Translation of the original instructions
Page 10

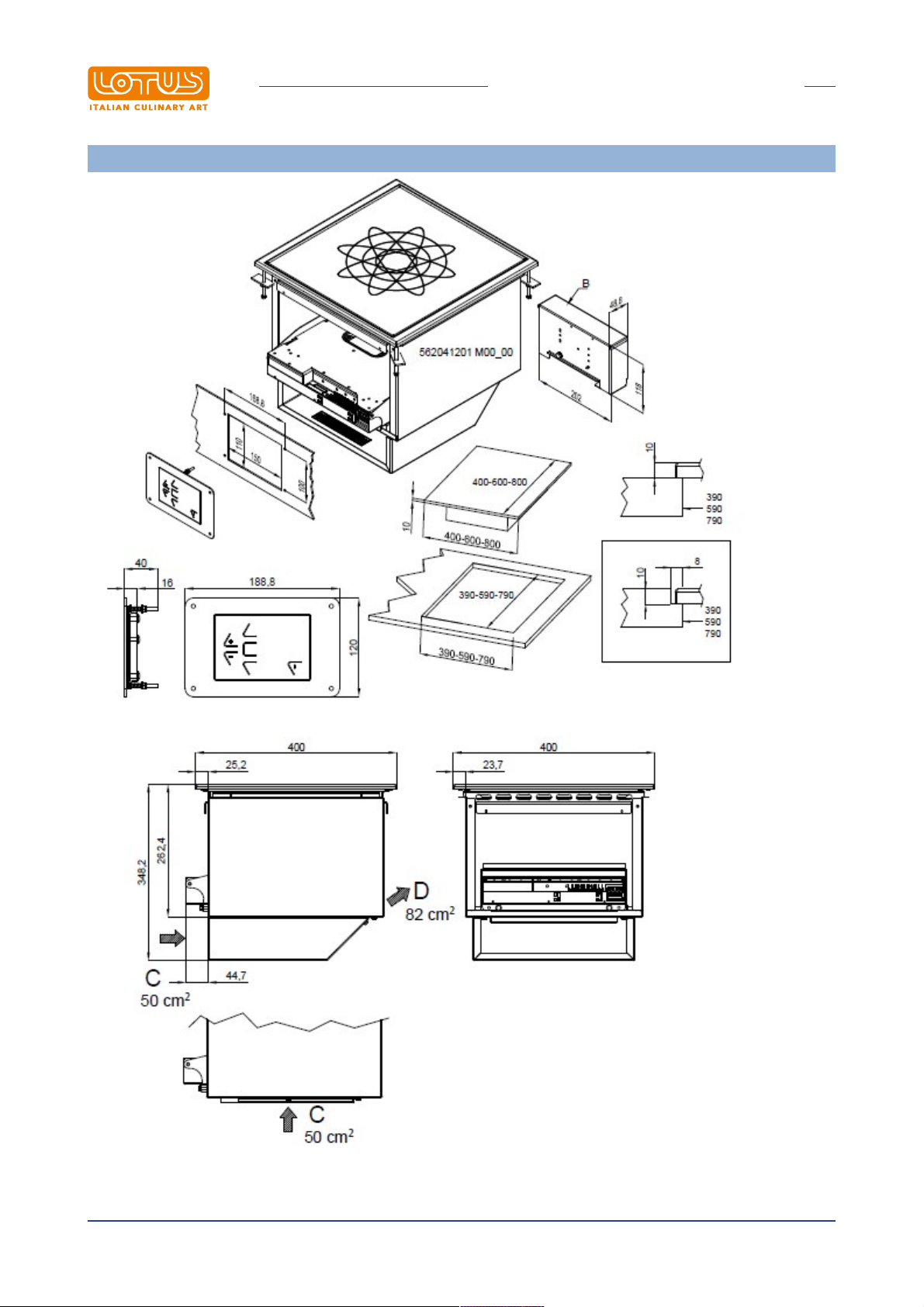

FIG. 6 PCID-44ETD (FLEX TOUCH)
INTRODUCTION
B Electrical connection
C Air inlet
D Air outlet
10
Translation of the original instructions
Page 11
INTRODUCTION

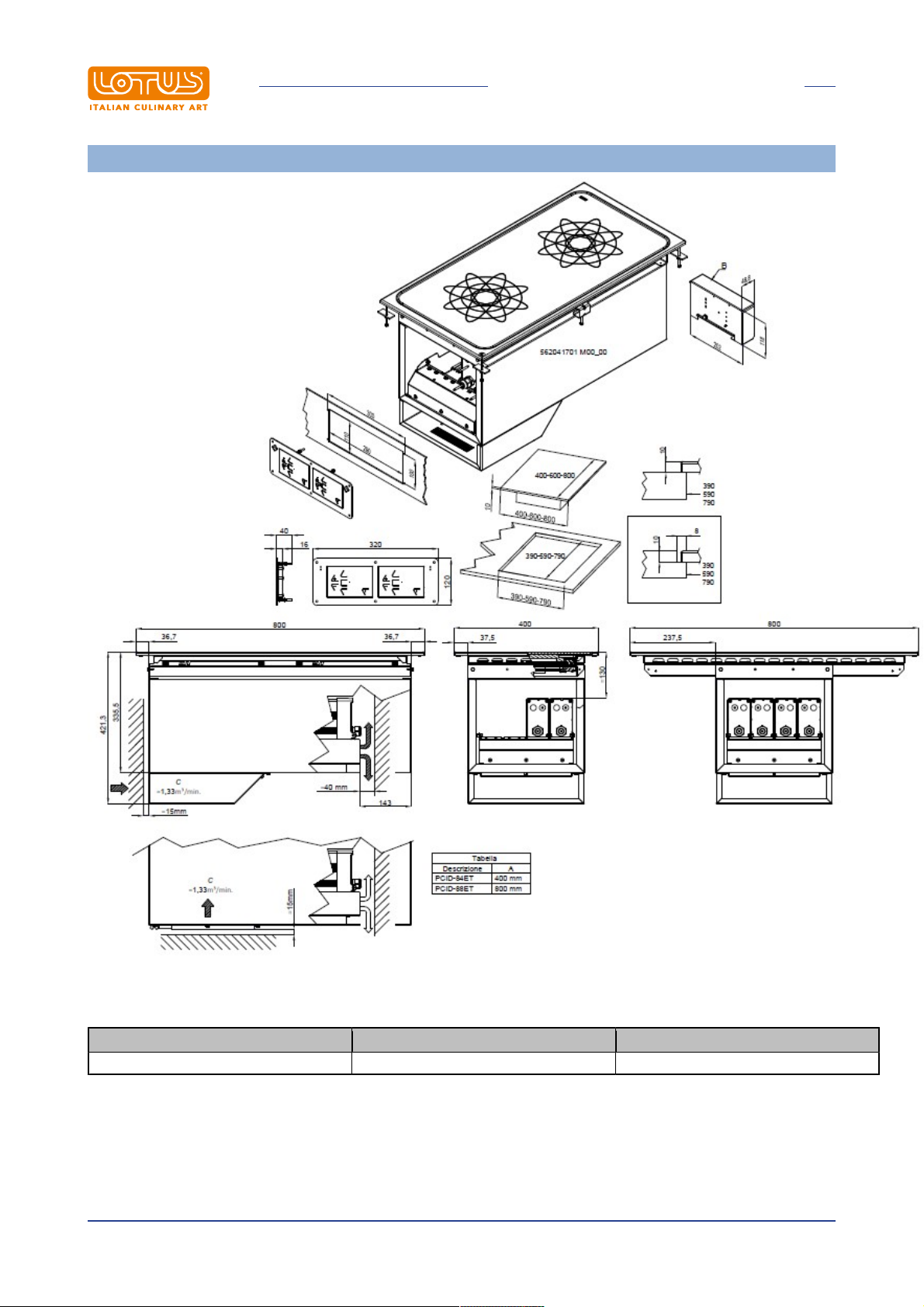

FIG. 7 PCID-8…ET (ANALOGIC)
B Electrical connection
C Air inlet
MODEL A (mm) C D
PCID-84ET 400 ≥100 cm² ≥150 cm²
PCID-88ET 800 ≥165 cm² ≥200 cm²
Translation of the original instructions
11
Page 12
FIG. 8 PCID-84ETD (FLEX TOUCH)
INTRODUCTION
B Electrical connection
C Air inlet
MODELL C D
PCID-84ETD ≥100 cm² ≥150 cm²
Translation of the original instructions
12
Page 13
INTRODUCTION

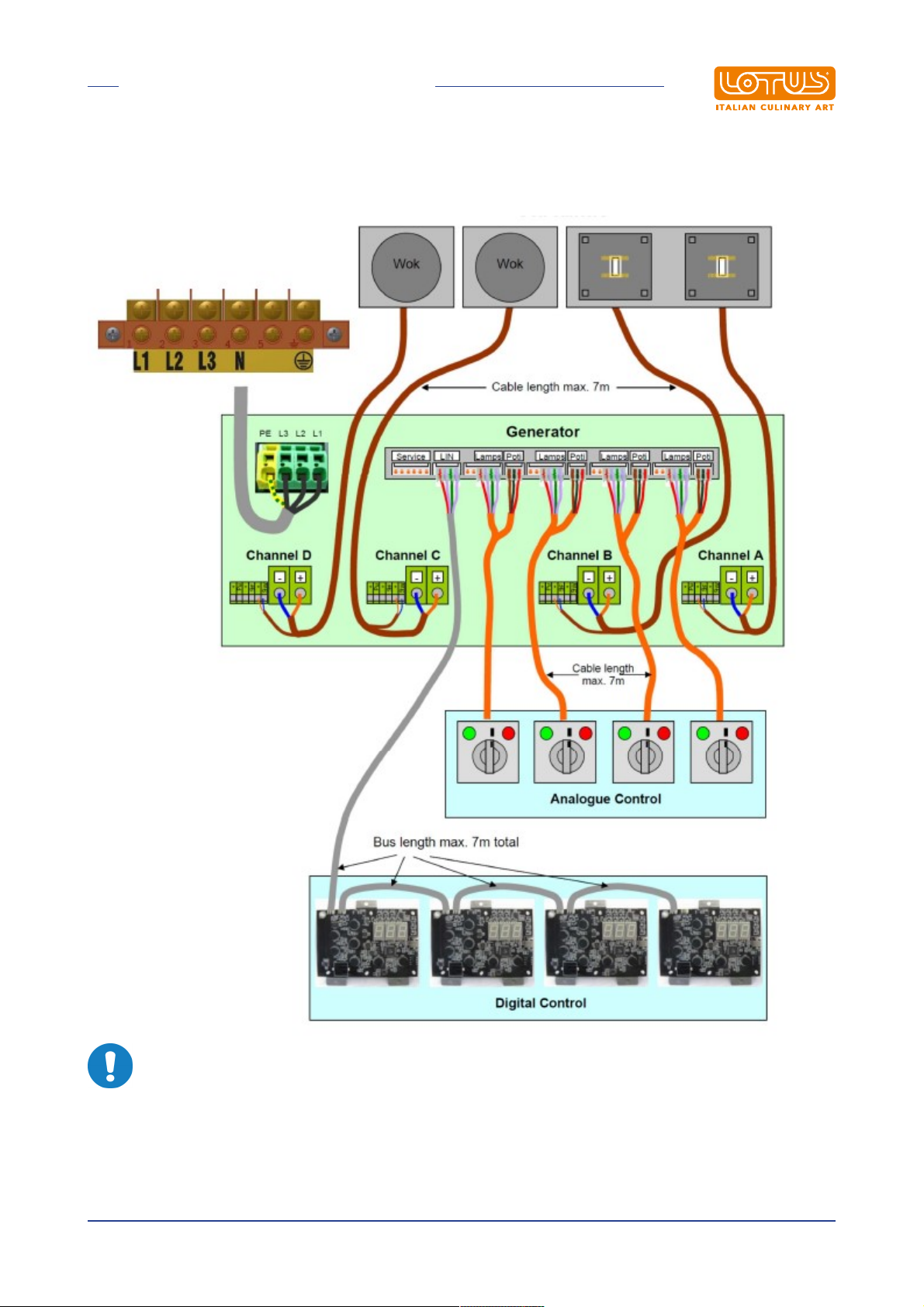

1.2 Connections
13
Warning
In this type of luminaire NEUTRAL is not present
Translation of the original instructions
Page 14
GENERAL INFORMATION
2 GENERAL INFORMATION
2.1 Declaration of compliance
The manufacturer declares that the appliances comply with the requirements of the regulation GAR
2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be
performed in compliance with current regulations, especially with regard to ventilation of the premises and
the exhaust gas evacuation system.
· Read the warnings in this manual carefully. They provide important information about safe installation,
use and maintenance.
· The instruction manual must be kept for the entire duration of the equipment and made available to users
for every possible consultation. The manual should be consulted for any information concerning
installation, use and maintenance of the appliance.
· After removing the packaging, check the integrity of the equipment.
· All packaging materials (plastic bags, polystyrene, staples, etc.) must be disposed of in compliance with
current regulations.
· Before connecting the appliance, make sure that the information on the data plate matches the electricity
and gas mains where the appliance is installed. The manufacturer accepts no liability if the
equipment is not connected in accordance with current regulations.
· Always keep all parts of the equipment clean to avoid the risk of oxidation/rust and/or aggression by
chemical agents.
· The equipment must only be used by personnel trained for the purpose.
· The installation must be implemented by professionally qualified personnel in accordance with
the manufacturer's instructions and current reference standards.
· The electrical safety of this equipment is only ensured when it is correctly connected to an effective
ground/earth system as required by current electrical safety standards. The manufacturer cannot be held
liable for any damage caused if the system is not connected to ground/earth.
· Before carrying out any cleaning or maintenance tasks on the equipment, unplug it from the electricity
mains. In the event of faults or malfunctions, always deactivate the appliance.
· Repair work of any kind must only be performed by qualified personnel.
· This appliance must only be used for its expressly intended purpose for cooking or heating food. Any
other use is considered improper.
· The appliance is intended for professional use and must be used by trained personnel.
· The installation and possible transformation to another power supply voltage (if envisaged), or
transformation for operation with another type of gas, must be implemented exclusively by qualified and
authorised professional personnel.
· Before using the appliance, carefully clean all surfaces intended to come into contact with food.
· The manufacturer declines any and all liability for any direct or indirect damage resulting from improper
use of the equipment. The manufacturer declines any and all liability for damage caused by incorrect
installation, tampering, poor maintenance and unskilled use. Moreover, the manufacturer declines any
liability for possible inaccuracies that may be contained in this booklet attributable to errors in
transcription or printing and equally reserves the right to make any changes to the product it deems
useful and/or necessary without compromising its essential characteristics.
· The manufacturer cannot be held liable for any damage caused by failure to comply with these
basic standards and all other use and maintenance standards contained in this booklet.
14
Translation of the original instructions
Page 15
GENERAL INFORMATION
2.2 User information, RAEE Directive on waste electrical and
electronic equipment
With regard to the regulatory framework of reference of the European Community, we remind the user of the
following:
· Used AAE (Electrical and Electronic Equipment) products must be collected separately
· The user can carry out this collection in the RAEE collection systems and return the equipment to the
distributor when purchasing a new one
· Plus being RoHS compatible, (in accordance with Directive 2011/65/EU on the restriction of the use of
certain hazardous substances in electrical and electronic equipment) the potential effects on the
environment and human health may be due to the misuse of the same equipment or parts of it
· The symbol next to the rating plate indicates the obligation of separate collection
· The penalties provided for in the event of improper disposal of RAEE (Waste Electrical and Electronic
Equipment) are those provided for by the national transpositions of European Directives 2012/19/EU
2.3 Technical data table
Technical data table PCIDX
MODEL POWER SUPPLY MAXIMUM INPUT (A)
PCID-64ETX 400V~3 50/60 Hz 14,43 10 4 x 1,5 mm²
PCID-64ETX 440V~3 60 Hz 13,12 10 4 x 1,5 mm²
PCID-68ETX 400V~3 50/60 Hz 28,87 20 4 x 4 mm²
PCID-68ETX 440V~3 60 Hz 26,24 20 4 x 4 mm²
PCIWD-64ETX 400V~3 50/60 Hz 7,22 5 4 x 1,5 mm²
PCIWD-64ETX 440V~3 60 Hz 6,56 5 4 x 1,5 mm²
PCID-64ETDX 400V~3 50/60 Hz 14,43 10 4 x 1,5 mm²
PCID-64ETDX 440V~3 60 Hz 13,12 10 4 x 1,5 mm²
PCID-68ETDX 400V~3 50/60 Hz 28,87 20 4 x 4 mm²
PCID-68ETDX 440V~3 60 Hz 26,24 20 4 x 4 mm²
PCIWD-64ETDX 400V~3 50/60 Hz 7,22 5 4 x 1,5 mm²
PCIWD-64ETDX 440V~3 60 Hz 6,56 5 4 x 1,5 mm²
PCID-44ETX 400V~3 50/60 Hz 7,22 5 4 x 1,5 mm²
PCID-44ETX 440V~3 60 Hz 6,56 5 4 x 1,5 mm²
PCID-44ETDX 400V~3 50/60 Hz 7,22 5 4 x 1,5 mm²
PCID-44ETDX 440V~3 60 Hz 6,56 5 4 x 1,5 mm²
PCID-84ETX 400V~3 50/60 Hz 14,43 10 4 x 1,5 mm²
PCID-84ETX 440V~3 60 Hz 13,12 10 4 x 1,5 mm²
PCID-84ETDX 400V~3 50/60 Hz 14,43 10 4 x 1,5 mm²
PCID-84ETDX 440V~3 60 Hz 13,12 10 4 x 1,5 mm²
PCID-88ETX 400V~3 50/60 Hz 28,87 20 4 x 4 mm²
PCID-88ETX 440V~3 60 Hz 26,24 20 4 x 4 mm²
PCID-88ETDX 400V~3 50/60 Hz 28,87 20 4 x 4 mm²
PCID-88ETDX 440V~3 60 Hz 26,24 20 4 x 4 mm²
MAXIMUM POWER
(kW)
Silicon POWER
SUPPLY CABLE
15
Translation of the original instructions
Page 16
Caution
The ambient temperature of the generator housing must not exceed 35°C
General technical data for induction hobs
Minimum pot diameter: 120 mm
Relative humidity: 10% ÷ 90% no condensation
GENERAL INFORMATION
Temperature in work area: 0°C ÷ 40°C
Power Supply Voltage Tolerance: -10% ÷ +6%
Power Supply Frequency: 50 – 60 Hz
16
Translation of the original instructions
Page 17
INSTALLATION
3 INSTALLATION
3.1 Delivery checks
On delivery, it is important to check the following:
· External conditions of the packaging
· The general status of the equipment
· The conformity of the model with the information in the technical data plate and the instruction manual
· The conformity of the equipment and components to the order form
3.2 Removing the packaging
While removing the packaging, take care not to damage the appliance. Remove the protective film from the
stainless steel and eliminate any traces of glue. Do not smoke. Perform this operation away from sources of
heat and wear protective gloves. Do not disperse packaging material in the environment, keep it out of the
reach of children and dispose in compliance with current legislation.
3.3 Mechanical installation
Place the appliance on a flat base. Adjust and stabilise the appliance by acting on the support feet. Make
sure that the surrounding walls and/or equipment are capable of withstanding the heat emitted by this
appliance. Connect the water supply (if necessary).
Caution
Do not install the appliance near equipment/machines used in cold processes. If the appliance
has to be installed close to cold process equipment, it is advisable to install non-combustible
thermal insulating material and/or neutral elements between them.
3.4 Electrical/gas connections
Before being offered for sale on the market, the appliance was subjected to gas and electrical testing (as
required). The appliance is supplied without a power cable. The installation technician must connect the
equipment in compliance with current safety regulations on the basis of the power of the appliance.
Caution
Our drop-in units are to be considered as semi-finished products. The completion and
securing of the finished product is the responsibility of the installer, in accordance with the
applicable regulations Installation, commissioning and maintenance of the appliance must be
carried out by qualified personnel. All work necessary for installation must be carried out in
accordance with the regulations in force. The manufacturer accepts no liability in the event of
malfunctions due to incorrect or improper installation
17
Translation of the original instructions
Page 18
INSTALLATION
Note
The ID plate is located in the compartment inside the door for appliances with compartments, or on
Gas systems, electrical connections and premises where the appliances are installed must comply with
current regulations in the country of installation; in particular, the appliance must be installed in a room with
good ventilation, if possible under a suction hood to ensure complete evacuation of the exhaust gases
formed during combustion. The air required for combustion is 2 m3/h per kW of installed power. The
appliance can be installed alone or in series with other appliances in our production range. A minimum
distance of 10 cm between appliances must be respected to prevent contact with any walls made of
flammable material; furthermore, appropriate measures should also be adopted to ensure the thermal
insulation of flammable parts, such as the installation of heat shields; take special care to ensure that
appliances are installed in an appropriate and safe manner. The support feet can be adjustable in height and
any unevenness can therefore be eliminated.
the left side for appliances with an oven or a top. A second plate with the model and serial number is
located inside the dashboard and a third is included with the certificate of conformity. The serial
number can also be tracked from the sales document (after 2008). The plate has all the data needed
for correct electrical installation. The installation and possible conversion to another power supply
voltage (if envisaged) must be implemented exclusively by professionally qualified and authorized
personnel. Before using the appliance, carefully clean all surfaces intended to come into contact with
food.
Warning
Installation operations, any conversion to other types of gas and start-up must only be
performed by qualified personnel, in accordance with current regulations.
ELECTRICAL CONNECTION
Caution
For direct connection to the grid, a device must be provided to ensure disconnection from the
The connection terminal is located behind the rear wall. Proceed as follows to install the power supply cable:
· Remove the rear panel.
· Pass the new connection cable through the cable gland, connect the leads to the corresponding terminal
· Lock the cable with the cable gland and refit the panel. The earth/ground lead must be longer than the
grid, with a contact opening distance that allows complete disconnection under overvoltage
category III conditions, in accordance with the installation rules
on the terminal block and fasten them securely.
others so that if the cable gland breaks it is disconnected after the power cables.
Note
Make sure that the mains voltage complies with the data on the appliance's ID plate and that there is
good conductivity to earth/ground. Pay attention when inserting leads to ensure they do not obstruct
the normal course of work and routine appliance cleaning operations. Also make sure that the power
cable is never pulled taut and is not placed in contact with sources of heat.
18
Translation of the original instructions
Page 19
INSTALLATION
Note
The connection cable must have the following characteristics: it must be silicone type (to
The appliance must be connected to an equipotential system. The connecting screw is located on the rear of
the appliance and is marked by the yellow symbol above it.
withstand temperatures of 180 °C), and must have an appropriate cross-section for the power
of the appliance (see technical data table).
EQUIPOTENTIAL
Warning
The manufacturer is not liable for and does not indemnify damages caused by incorrect
inadequate installations that do not comply with these instructions.
19
Translation of the original instructions
Page 20
INSTRUCTIONS FOR USE
4 INSTRUCTIONS FOR USE
4.1 General information
This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other
use is considered improper. The appliance is also intended for industrial use and must only be used by
personnel trained for use and aware of the risks that the hot element entails.
Warning
The appliance operates at high temperatures, so the following is necessary:
· Pay attention to the areas surrounding the hot surface during routine normal operation
(danger of scalding);
· RISK OF BURNS Do not touch hot surfaces floor with your hands or other parts of the body
to avoid burns caused by high temperatures;
· After switching off the appliance, wait for a sufficient time for it to cool before carrying out
any cleaning or maintenance operation.
4.2 Induction cooker hobs
What is induction cooking?

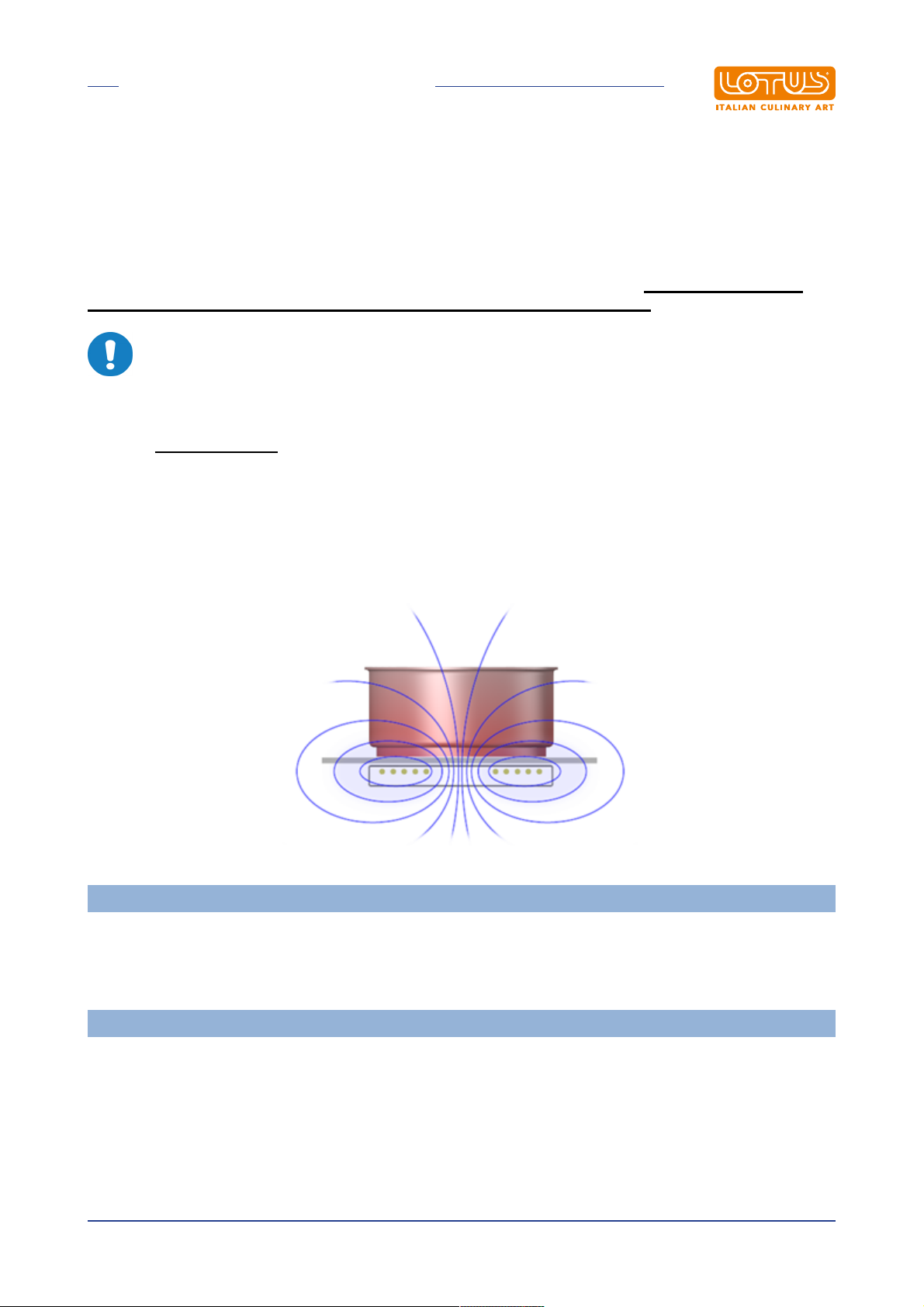

The basic principle of induction cooking is very simple. When the pan is placed on the glass ceramic surface
of the hob, it enters in a magnetic field generated by an induction system. The iron base of the pot heats up
quickly as the molecules are "rubbed" together, which creates heat. The speed and intensity of the heat are
regulated by controlling the magnetic field
Why select induction?
· For the safety, there are no flames or sources of heat that can create hazards when the pot is removed
from the cooking hob. The hob turns off automatically as soon as the pot is removed
· For the speed, the heat is generated inside the pot itself, which makes it heat up immediately. For the
same reason, the temperature is adjusted immediately in comparison to cooking with gas
· For the efficiency, in comparison with other types of cooking, induction has a very high energy yield,
around 85%. This cooking system also makes the surrounding environment healthy and fresh as the heat
is not dispersed as for other types of cooking appliances
Translation of the original instructions
20
Page 21
INSTRUCTIONS FOR USE
4.2.1 Induction generator
Note
INDUCTION GENERATORS ARE A COMPONENT AND NOT A FINISHED AND COMPLETE
Possible uses: The induction generators can be installed in the cooking hobs of countertop cookers and
ovens and are used for cooking, heating, keeping food warm and roasting
· Hazards due to electric current must be excluded. The induction generator must be used by qualified
· The area in glass ceramic is heated by the heat of the pot. To avoid burns, do not touch the heated area.
· The pots must always have some distance from each other. They must not touch. When you remove the
· Do not place other material (paper, cardboard, fabric etc…) between the pot and the cooking area as it
· Metal objects heat up very quickly if positioned in the area that is heated, therefore do not place other
· Persons with pacemakers must consult their doctor to check if they can stay near a cooker hob with an
· Never place credit cards, telephone cards, cassettes or other magnetic objects on the glass ceramic plate
· The induction generator has an internal cooling system. Make sure that the air inlet and outlet holes are
· Do not allow liquids to enter the induction generator (water, oil or other)
· The induction appliance must not be placed near or above hot surfaces
· The appliance has a filter. Even though the appliance has this filter, always make sure that the grease
· The temperature of the input air must be less than +35°C
· Never clean it with a water jet
MACHINE
Caution
The improper use and handling of the generators cause hazards to people, objects or
animated or non-animated items. It is dangerous not to read and study this installation and
user manual
Safety for personnel assigned to use
personnel and it must be installed by an authorised professional with respect to the applicable
international, national and regional regulations concerning electrical and electronic equipment for
collective use and civil and industrial electrical systems
To avoid excessive overheating, do not leave the pot empty or heat it without a reason. In cooking with
multiple pots at the same time, make sure that the handles do not cross and that they are outside the
induction field. Depending on the type of material, the handles can heat up considerably
Warning
Risk of burns
pot, it is recommended to turn off the cooking area to avoid that if it is put back on the hub inadvertently
the heating system does not turn back on if not required.
could catch on fire.
objects on the cooker hob (tins, closed cans, aluminium foil, cutlery, rings, keys, watches, etc…) except
for the pots.
induction generator.
with induction system
not obstructed by objects (paper, rags or other. This could cause excessive heating and cause the
induction to shut off
created by other activities does not deposit on the induction appliance (e.g. next to a fryer or plate)
21
Translation of the original instructions
Page 22
INSTRUCTIONS FOR USE
Caution
If the glass ceramic hob is cracked or broken, turn off the induction cooking job and
disconnect the electrical power supply
Caution
Do not touch any part inside the induction generator
4.3 Lighting and adjusting the open rings
On the front panel, a plate is indicated above the knob to which it corresponds, marked by the index
· Turn on the switch located upstream of the appliance. Turn the control knob that corresponds to the plate
from "O" to the desired heating level, between 1 and 6
Note
· Each plate is connected to a power regulator, which makes it possible to select from among 6
different temperatures. Higher temperatures are recommended at the start of cooking
· Each plate has a temperature limiter that is triggered when the temperature that was reached could
damage the glass
4.3.1 Pans

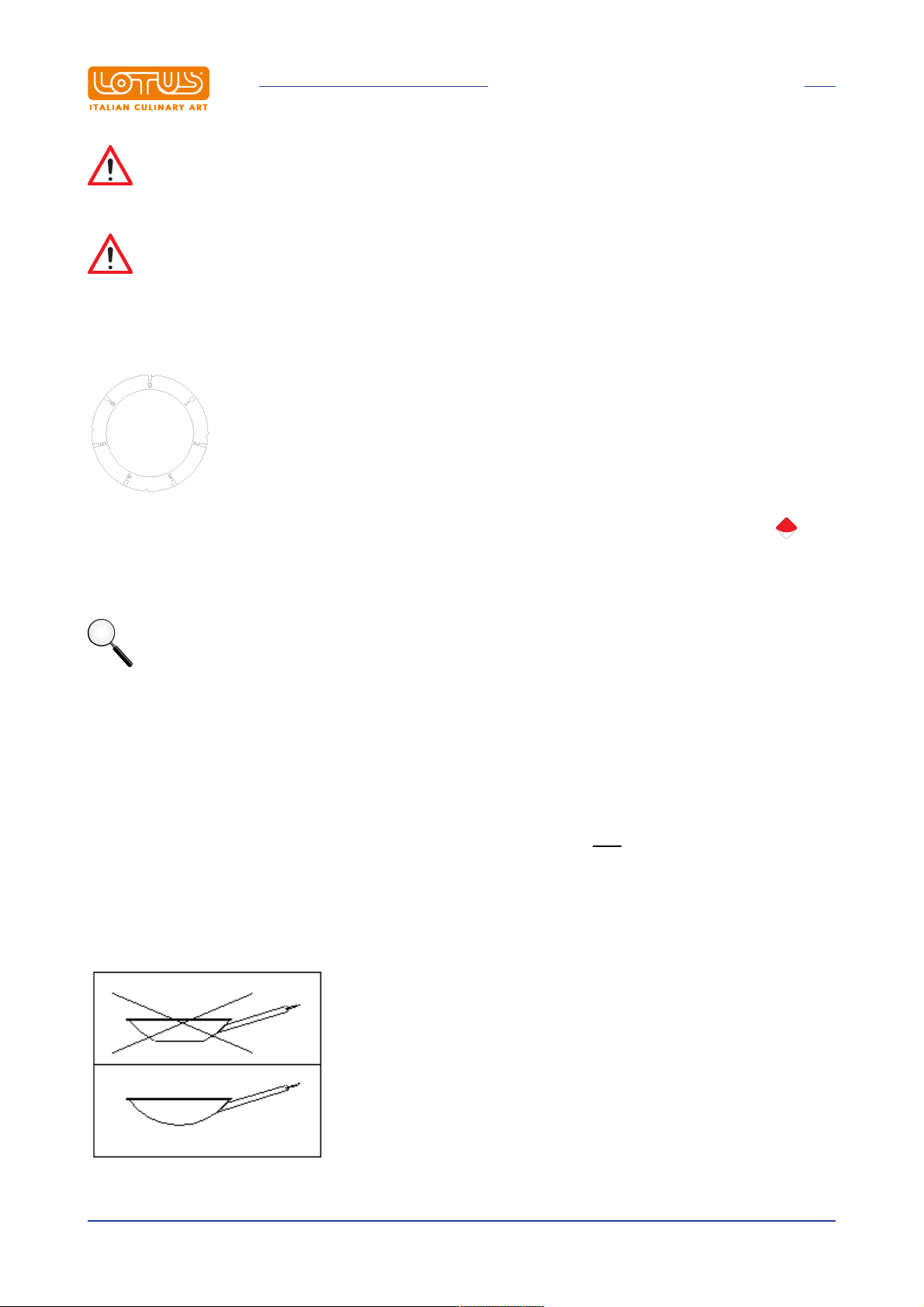

The induction generators only function correctly when using pans with an iron bottom (recommended
brands: Spring, Demeyere, Noser)
PCI The pan diameters must be between 120 mm and 260 mm. The bottom must be flat
PCIW The pot must have a concave shape that adapts to standard glass Ø 311 (see image)
22
Translation of the original instructions
Page 23
INSTRUCTIONS FOR USE
The generator does not accept unsuitable pots. Any other product not mentioned in this paragraph is to
be considered automatically excluded and unsuitable for the correct operation of the induction generators
23
Translation of the original instructions
Page 24
INSTRUCTIONS FOR USE
4.3.2 Function checks
After all connections are made, check the functionality of the appliance:
· Remove the pot from the cooking area
· Adjust the cooking level to zero
· Turn on the mains power supply
· The green and red indicator lights must not turn on or flash
· For appliances with an electronic control, the display must only show the cooking level 0
· Increase the cooking level to the desired number

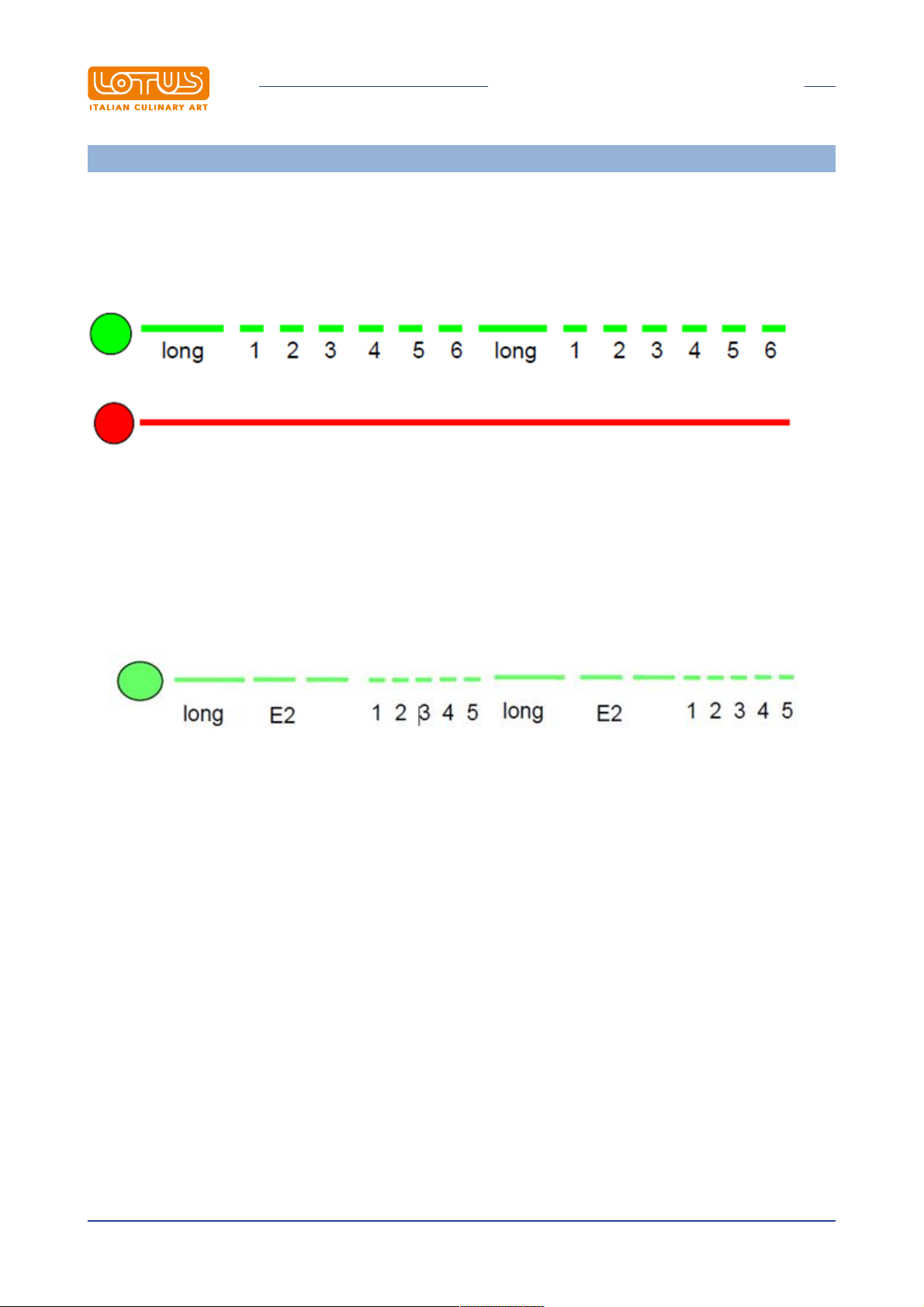

· The green lamp must flash regularly each second (pot detection mode)
· For appliances with electronic control, the pot detection symbol must flash
· There may not be any faults
· The red indicator light must not turn on / For appliances with an electronic control, no error code must be
shown on the display
· Place a specific induction pot that is filled with water in the cooking area. This pot diameter must be
minimum 12 cm
· The green warning light or the display must be on continuously
· Adjust to the maximum power
· The fan must turn on after a few minutes
If an error occurs, refer to the "troubleshooting" paragraph
Caution
· Do not heat empty pots if they are unsupervised
· The pots must always be placed in the centre of an inductor area
· The pots must not be heated above 300°C
4.3.3 Shut-off
· Turn the switch/potentiometer clockwise or anticlockwise to the [OFF] position
· Certain parts of the generator remain energised even when the stove is off. Therefore, when performing
maintenance, first disconnect the equipment from the mains
· Make sure that no liquid arrives inside the induction generator during normal use or during cleaning or
maintenance of the component
4.3.4 Lin Knob
24
Translation of the original instructions
Page 25
INSTRUCTIONS FOR USE

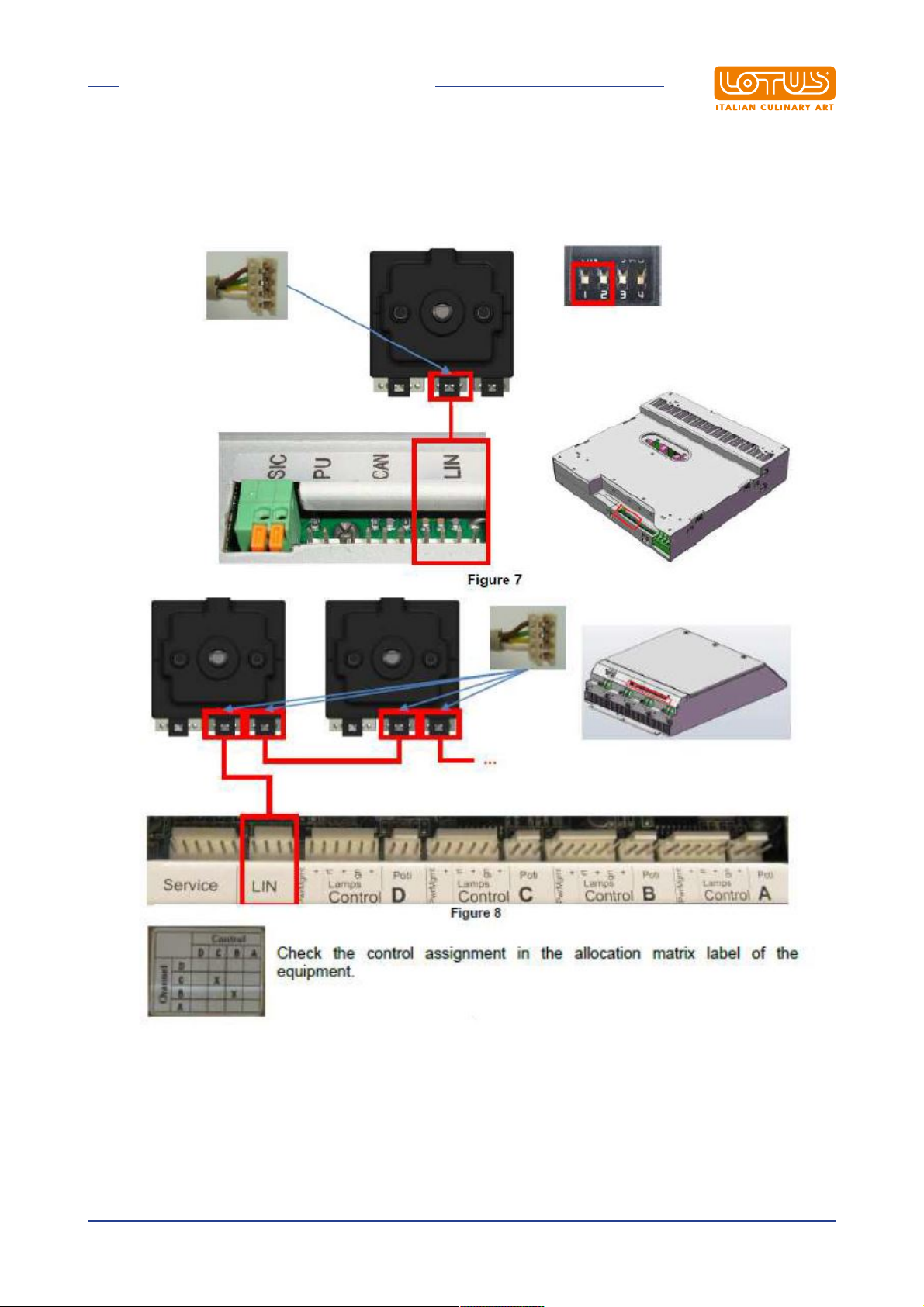

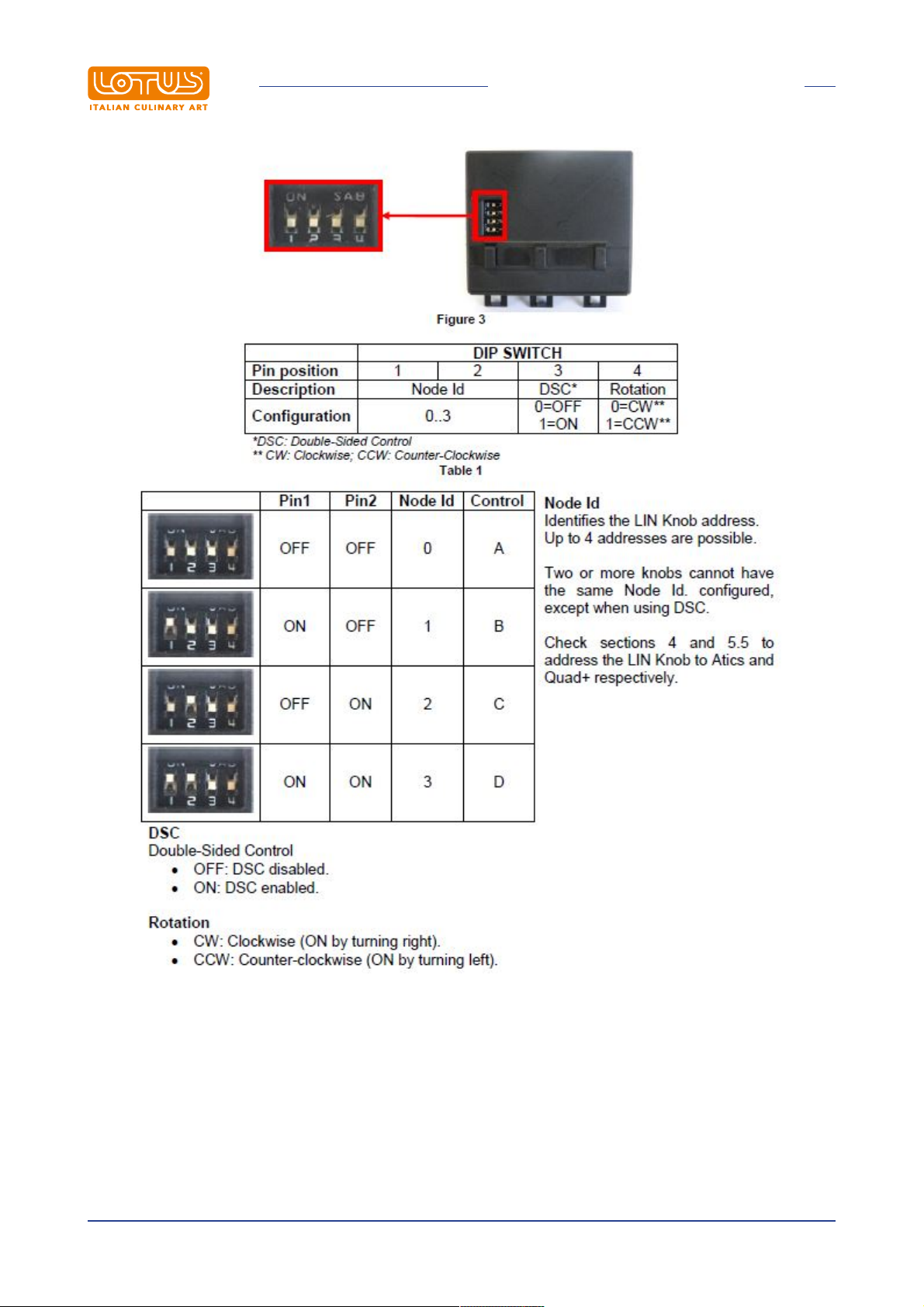

The configuration of the LIN knob can be set using the DIP Switch on the back. The DIP Switch can be set
using a small screwdriver.
Before changing DIP switch settings, the corresponding generator must be disconnected from the mains
voltage.
25
Translation of the original instructions
Page 26
INSTRUCTIONS FOR USE
26
Translation of the original instructions
Page 27
INSTRUCTIONS FOR USE

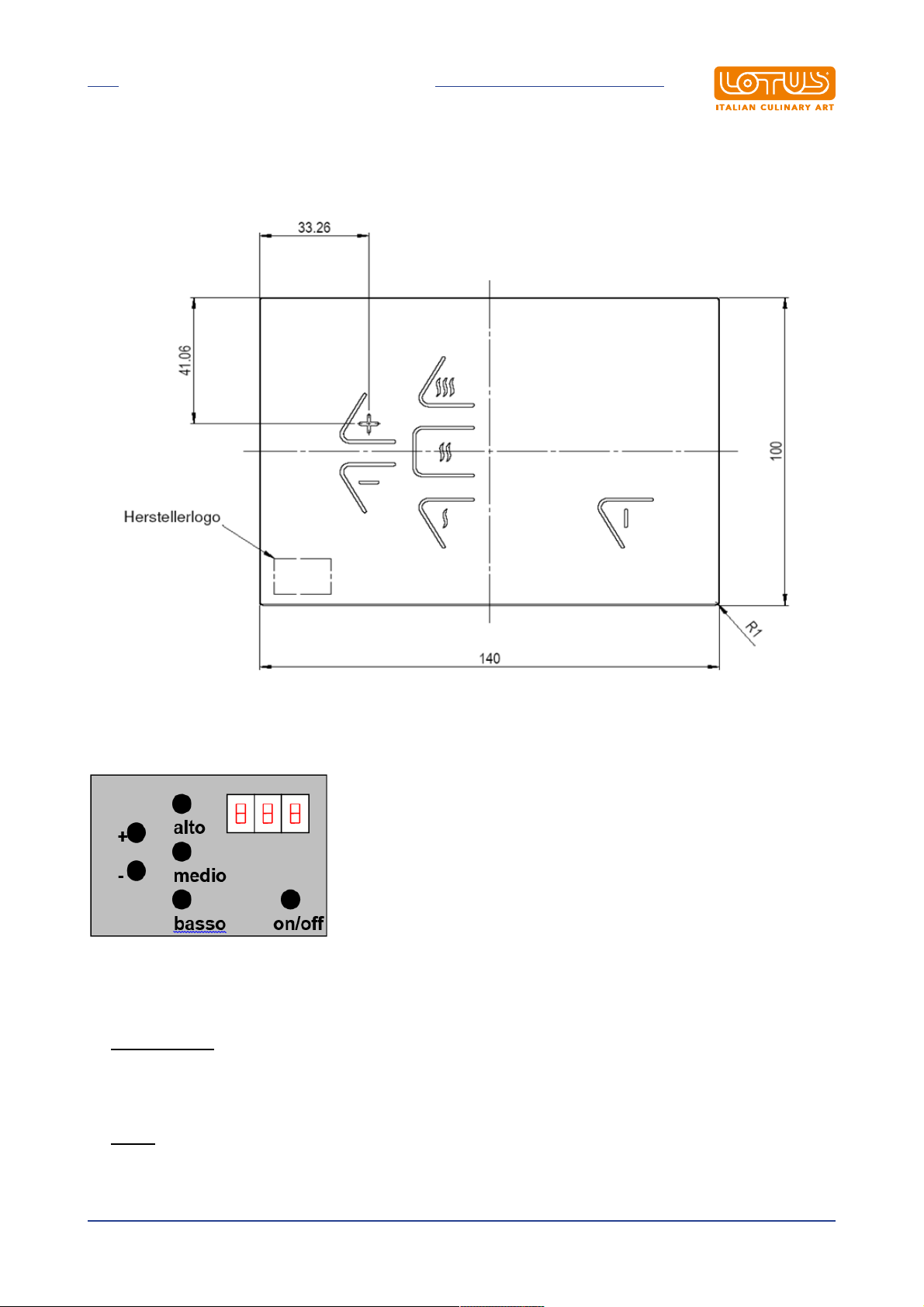

4.3.5 Flex touch
4.3.6 Normal mode
4.3.7 Function keys

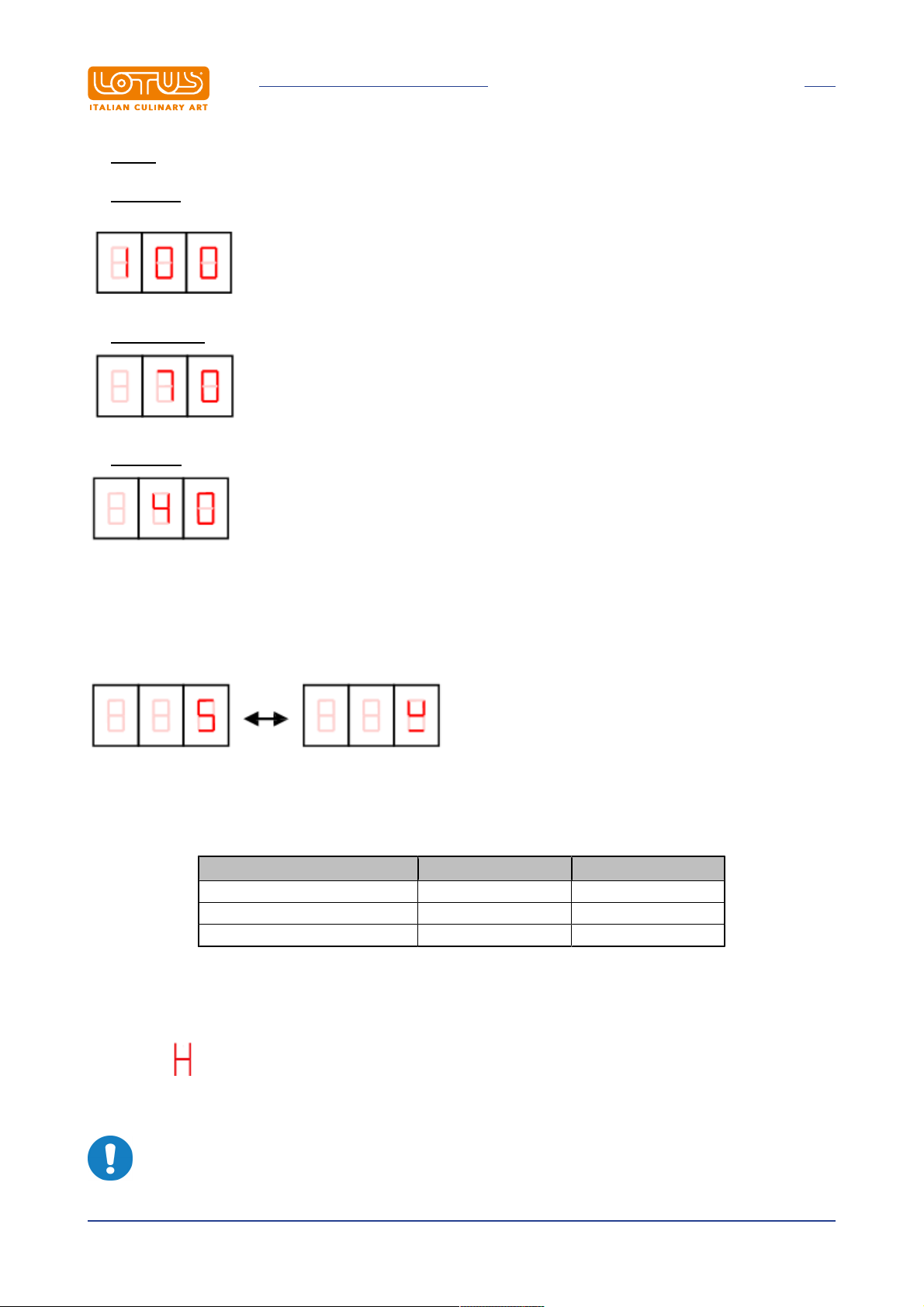

· On/off button: The on/off button turns the Flex Touch control on and off. 0 appears on the 3-digit display
if Flex Touch is ON. After turning on, if no key is pressed, Flex Touch turns off automatically. The display
turns off
· + key: The + key allows to gradually increase the cooking level. The current cooking level is shown on
the display
27
Translation of the original instructions
Page 28
INSTRUCTIONS FOR USE
· - key : The - key allows to gradually decrease the cooking level. The current cooking level is shown on
the display
· High key: The high key allows to set the maximum cooking level possible. The preset cooking level is
100
· Medium key: The medium key allows to set a medium cooking level. The preset cooking level is 70
· Low key: The low key allows to set a low cooking level. The preset cooking level is 40
4.3.8 Pot detection
If a pot is not present in the cooking area, the display switches between the pot symbol and the preset
cooking level
4.3.9 Parameter table
Description Range Default
High preset cooking level 1 – 100 100
Medium preset cooking level 1 – 100 70
Low preset cooking level 1 – 100 40
4.3.10 Residual heat symbol h
The symbol appears on the display when the temperature of the glass-ceramic exceeds 65° C. The
cooker hob must not be touched as there is a risk of burns. The symbol turns on when the appliance is off.
However, in case of a power failure it does not turn on
Warning
Translation of the original instructions
28
Page 29
INSTRUCTIONS FOR USE
NEVER perform any type of work on the induction generators before disconnecting them from
the electrical mains
4.3.11 Troubleshooting
FAULT CAUSE CORRECTIVE ACTION
Insufficient heating of the cooking
area
Continued heating of the cooking
area at maximum power
Heating of the cooking area
without pots
Heating in the cooking area of
small metal objects
Lack of heating in the cooking
area
Entire appliance does not function Power supply interrupted Check the status of the electrical connection
Activation of the differential circuit
breaker upstream of the appliance
Short circuit in the generator / dispersion
Use of unsuitable pots
Defective knob control Control/repair the knob control
Pot detection sensor defective Replace the generator/have it repaired
Pot detection sensor defective Replace the generator/have it repaired
Pot base smaller than Ø 12 cm /
Generator defective
towards the ground
Use pots with a ferritic base specific for
induction cooking
Use pots with a base greater than Ø 12
cm/Replace the generator / have it repaired
Check the status of the electrical connection /
replace the generator/have it repaired
4.3.12 Error signals
There are two types of signalled errors:
· (E1) Errors due to the generator
· (E2) Errors due to the digital control (only for appliances with digital control)
29
Translation of the original instructions
Page 30
INSTRUCTIONS FOR USE
Errors due to the generator
These are faults detected by the generator and transmitted to the control. For appliances with digital control,
"E1" appears on the display. For appliances with analogue control, the faults are detected based on the
duration and frequency of the flashing green indicator light. The green indicator light turns on once for longer
and then with brief regular flashes. The number of these brief flashes corresponds to the error number. This
scheme is repeated constantly.
For example: Generator error code E1 06
4.3.13 Lin knob error messages
When indicator lights are used, the error message is displayed on the basis of the duration and frequency of
the green indicator flashing. The green indicator light comes ON only once, with one medium flash (E1) or
two medium flashes (E2) and then short and regular flashes. The number of these short flashes indicates the
error number. This pattern is constantly repeated.
Example: error code E2 05 for digital control:
30
Translation of the original instructions
Page 31
INSTRUCTIONS FOR USE
TABLE OF ERRORS DUE TO THE GENERATOR (E1)
ERROR NO. DESCRIPTION CAUSE CORRECTIVE ACTION
E1 1
E1 2 No current on the inductor Connection interrupted Reconnect the inductor
E1 3
E1 4
E1 5 Control unit not functioning
E1 6
E1 7 Winding temperature
E1 8 No mains phase
E1 10 Communication error
E1 11 Initialisation error
E1 13
E1 14 Mains adaptor error
E1 15 Empty pot protection
Too much current on the
hardware
Temperature on the IGBT
too high
Temperature in the cooking
area too high or too low
Temperature in the
electronics too high
Power supply mains
connection error
1 - Use of unsuitable pots
2 - Inductance broken or defective
Ventilation ducts obstructed, fan
clogged, IGBT sensor defective
1 - Pot empty
2 - Temperature sensor defective
3 - Power supply board defective
1- Defective wiring
2 - The ID of the digital control is
defective
3 - Control unit defective
Ventilation ducts obstructed, fan
clogged, temperature sensor
defective
1 - Winding temperature too high
2 - Temperature sensor defective
Insufficient quality of mains phase
distribution
No LIN or CAN-Bus, no connection
between the keyboard and generator
1 - No control unit connected
2 - The ID of the digital control is
defective
3 - Error during hardware initialisation
The mains voltage is too high or too
low
The mains voltage is too high or too
low
1 - Mains error
2 - Pot empty
3 - Inductor temperature sensor
defective
1 - Use a suitable pot
2 - Check the inductance
Clean the ventilation ducts, clean the
fan, check that the fan rotates
correctly
1 - Remove the pot, turn off the
appliance and wait a few minutes until
the cooking area has cooled down
2 - Replace the temperature sensor
3 - Replace the generator
1 - Check the wiring of the control unit
2 - Turn off the generator, adjust the
DIP switch correctly
3 - Replace the control unit
Clean the ventilation ducts, clean the
fan, check that the fan rotates
correctly
1 - Remove the pot, turn off the
appliance and wait a few minutes until
the cooking area has cooled down
2 - Replace the temperature sensor
Control the main power supply
Disconnect the power supply mains
and check the connections
1 - Correctly connect the control unit
2 - Turn off the generator, correctly
regulate the DIP switch
3 - Wait, the device is reset every 30
sec. approx.
Check the mains connection
Check the mains connection
1 - Turn off the appliance, wait a few
seconds and turn it back on
2 - Remove the pot, turn off the
appliance and wait a few minutes until
the cooking area has cooled down
3 - Replace the inductor temperature
sensor
31
Translation of the original instructions
Page 32
INSTRUCTIONS FOR USE
Errors due to the digital control (only for appliances with digital control)
These are errors due to the digital control system and are signalled by the "E2" on the display followed by
the error number
TABLE OF ERRORS DUE TO THE DIGITAL CONTROL (E2)
ERROR NO. DESCRIPTION CAUSE CORRECTIVE ACTION
E2 3 Keypad permanently ON
E2 5 LIN bus open No connection detected LIN bus control
E2 10
E2 11 Self-diagnostics error Self-diagnostics software
E2 13 Invalid configuration data
E2 14 Power supply voltage
E2 20 LIN version compatibility LIN version not compatible Contact customer service
E2 FF Unknown error Cause unknown Contact customer service
1 - Wiring interruption
2 - Defective ID
1 - Water or pot in the cooking area
2 - Keys defective
1 - Check the connection between the
keypad and the generator
2 - The control unit has a defective ID
The device found invalid configuration
data
Keypad power supply voltage
problems
1 - Clean the control area
2 -Replace the control unit
1 - Make the connection correctly
2 - Turn off the generator, adjust the
DIP switch correctly
Turn the appliance off and back on, if
the problem persists contact
customer service
Contact customer service
Automatic reset
32
Translation of the original instructions
Page 33
MAINTENANCE
5 MAINTENANCE
5.1 Routine
When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation.
We therefore recommend stipulating a service contract.
Caution
Maintenance must only be performed by specialist personnel in compliance with current
Before carrying out any maintenance and/or cleaning operation:
· Disconnect the appliance from the mains power supply and/or close the gas.
· Wait for a sufficient time for the appliance to cool down.
· Do not wash the appliance with direct or high-pressure jets of water, since any infiltration of water into the
Replacing parts must exclusively be performed by authorised and/or qualified personnel. When replacing the
electrical components of the machine and the electrical panels, scrupulously follow the technical
characteristics for the replacement component indicated on the component itself. The appliance does not
require any special maintenance but during the use of the equipment it is advisable to check the following at
least once a year (possibly increasing the frequency depending on the degree of use):
· The status of connections especially on the terminal board and the power supply cable, as well as the
· The operating condition of the various components (perform a functional test);
· For appliances fitted with rotary resistances, remove the hub, grease it and replace the three o-ring seals
regulations and our own instructions.
electrical components could jeopardise correct operation of the appliance and its safety systems.
Warning
For maintenance/replacement of components, order and use only original spare parts.
status of the gas connections;
to avoid possible leaks.
Warning
The manufacturer does not accept any responsibility if NON ORIGINAL components are used
33
Translation of the original instructions
Page 34
MAINTENANCE
5.2 Spare parts
It is possible to replace parts such as the valve, the piezoelectric or the ignition control unit (depending on
the type of appliance) or the gas pipes easily and quickly.
To replace such parts, proceed as follows:
· POWER REGULATOR or SWITCH: Remove the knob and open the panel, unscrew the two screws that
fasten the switch/regulator to the panel, remove all the electrical connections and proceed with
replacement
· GENERATOR ; remove the panel and the rear spacer and disconnect all the cables. From the front,
unscrew the two screws that fasten the generator and remove it. Then remove the protective enclosure,
apply it on the new generator and proceed with replacement.
Caution
WHAT TO DO IN THE EVENT OF FAULTS:
Close the gas connection cock and/or switch off the power using the up-line device. Notify
customer service.
Warning
MEASURES TO BE TAKEN IF THE APPLIANCE IS NOT TO BE USED FOR A LONG TIME:
Close the gas cock and/or disconnect the power supply. Clean the system as specified above.
Note
The induction generators must be opened only by authorised and qualified personnel. No
reproductions and/or modifications on the generator are permitted
34
Translation of the original instructions
Page 35
CLEANING
6 CLEANING
6.1 Routine cleaning
Caution
The use of flammable fluids to clean the appliance is forbidden
To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking
care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the
appliance from the power supply. Parts in steel can be washed with warm water and a neutral detergent:
Rinse them thoroughly to eliminate all traces of detergent and then dry with a dry cloth. Do not use abrasive
and corrosive detergents. Enamelled parts must be washed with soapy water. For appliances that included
an oven, cleaning it is made easier by removing the support grid. Thorough, daily cleaning prevents faults
and accumulated deposits of fat and/or food. The steels used in the manufacture of professional equipment
are tried and tested materials of the highest quality. Thanks to their characteristics, they are ideal materials
for use with food substances.
Consequently, when using stainless steel appliances, the following suggestions must be observed:
· Stainless steel surfaces must always be kept clean, also ensuring contact with the air. The lack of oxygen
under layers of scale, starch, egg white or other deposits means that surfaces can be affected by
corrosion
· Do not use products containing salt or sulphuric acid to remove scale. Suitable products are available
commercially but a diluted solution of acetic acid can also be used
· To clean STAINLESS STEEL appliances, it is advisable to use detergents specifically formulated for this
material. For "minor cleaning", a mild washing up liquid solution may also be used
· Do not wash the appliance with jets of water under pressure
· Avoid using detergents containing abrasive powders or bleaches of any kind
· Lockable stainless steel appliances, during periods of inactivity, must be left uncovered so that air can
freely access internal metal surfaces
· Stainless steel must not remain in contact for long periods with concentrated acids or with aromatised
concentrates such as salt solutions, mustard, spice mixtures or the like. At certain temperatures and
concentrations, these substances can damage the passive layer. Contact surfaces must therefore be
immediately rinsed with clean water and then dried
· It is inadvisable to use stainless steel pots exclusively to cook foods in salt water (pasta, rice, potatoes,
etc.). From time to time, these pots must also be used to cook foods containing fats or vegetables. This
helps to prevent damage caused by corrosion
· After cooking foods in salt water, rinse the tanks with fresh water since salt water residues from cooking
form layers of highly concentrated saline solution that can cause spotting corrosion
· To prevent so-called secondary corrosion, prolonged contact of stainless steel with ferritic steels should
be avoided
· Any secondary corrosion spots must be eliminated immediately
· Do not use sharp objects that may scratch stainless steel parts and consequently give rise to
deterioration
6.2 Cleaning the glass
The glass must be washed with liquid degreasers, vinegar and lemon based acids that are suitable for
cleaning ceramic and glass. It is recommended to perform cleaning when the glass is not completely cold, as
residual food, burnt grease or other items can be softened with a moist cloth and removed while hot using a
common scraper to prevent the glass surface from being tainted.
Translation of the original instructions
35
Page 36
SCHOTT CERAN® HOB
CLEANING
This is an original SCHOTT product, the largest international glass
ceramic manufactuer and consequently an assurance of the highest
quality and durability. To ensure that your hob retains all its good looks
over time, we are pleased to provide some important maintenance
suggestions.
CERAN® is a registered trademark of SCHOTT AG, an international
leader in the manufacture of special glass products. CERAN® from
SCHOTT is synonymous with the highest quality - Made in Germany.
6.3 Maintenance suggestions
We recommend that you clean your SCHOTT CERAN® hob regularly, preferably every time it is used. Do
not use abrasive sponges or abrasive detergents. Also avoid harsh chemicals, such as oven cleaning sprays
and stain removers, as well as bathroom or universal cleaners.
36
Translation of the original instructions
Page 37
CLEANING
6.4 How to achieve a brilliant result in three simple steps:

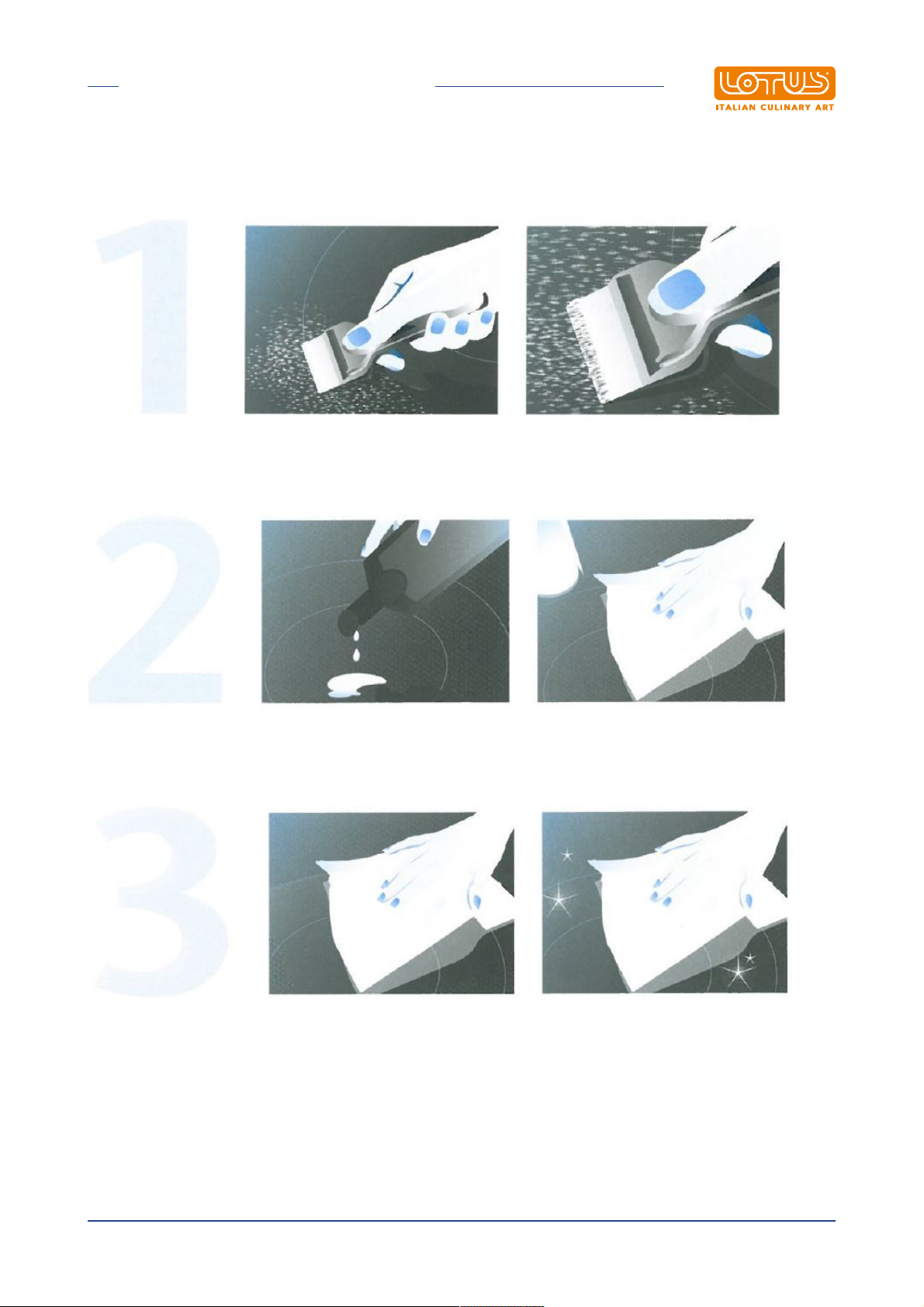

To ensure thorough cleaning, first remove the worst encrustations and food remains using a special cleaning
spatula or a special sponge for glass ceramic hobs.
Then pour a few drops of a specific detergent on to the cold SCHOTT CERAN® hob and wipe with kitchen
paper or a clean cloth. Alternatively, you can also use a special cleaning sponge: we recommend the special
Vileda sponge
Lastly, wipe the hob with a wet cloth and then dry it with a clean cloth or the smooth side of a special sponge
for CERAN. Done!
37
Translation of the original instructions
Page 38
CLEANING
6.5 How to your SCHOTT CERAN® hob bright and shining for a
long time
· The dimensions of the cooking pots must always be suitable for those of the cooking area
· Use cooking pots with smooth bases to avoid damaging the surface
· The base of the hot cooking pot must stand perfectly on the cooking area; in this way, the heat is
transmitted in the best possible way
· We recommend cooking pots with 2-3 mm thick bases for enamelled steel and 4-6 mm for stainless steel
with a sandwich base
· If you use the cold hob as a worktop, remember to clean it to avoid scratches caused by particles of dirt
or the like.
· When moving pots on the hob, always lift them to avoid scratching the surface.
Warning
A moment's distraction is more than enough ... for plastic, aluminium foil, sugar or foods
containing sugar to come into contact with the hob. These substances must be eliminated
immediately from the hot cooking area using the special cleaning spatula. If they melt, they
may damage the surface. We therefore recommend treating the hob with a suitable product
before cooking foods with high sugar content.
38
Translation of the original instructions
Loading...
