Page 1

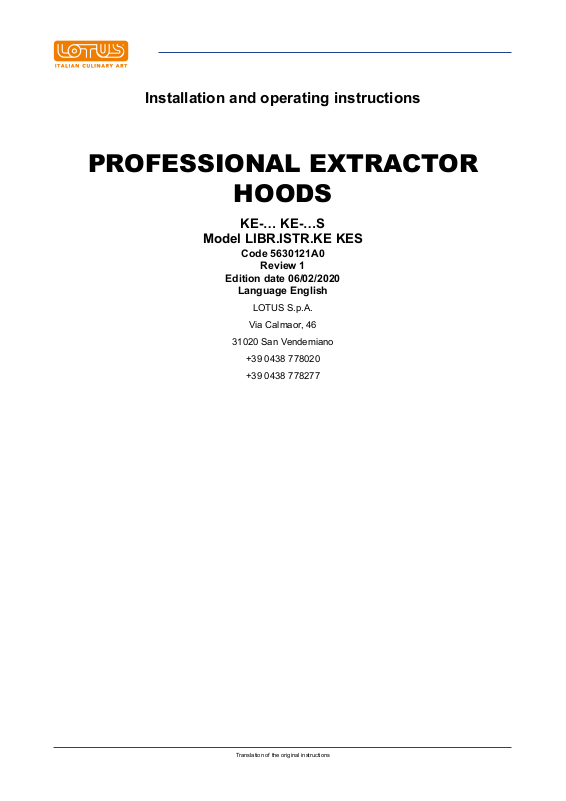

Installation and operating instructions
PROFESSIONAL EXTRACTOR
HOODS
KE-… KE-…S
Model LIBR.ISTR.KE KES
Code 5630121A0
Review 1
Edition date 06/02/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Page 2
Contents
Contents
1 INTRODUCTION......................................................................................................................... 3
1.1 Installation drawing...................................................................................................................... 3
2 GENERAL INFORMATION ......................................................................................................... 7
2.1 Declaration of compliance............................................................................................................ 7
2.2 User information, RAEE Directive on waste electrical and electronic equipment ........................ 8
2.3 Technical data table ..................................................................................................................... 8
3 INSTALLATION........................................................................................................................... 9
3.1 Delivery checks ............................................................................................................................ 9
3.2 Removing the packaging ............................................................................................................. 9
3.3 Mechanical installation ................................................................................................................. 9
3.4 Electrical/gas connections ........................................................................................................... 9
4 INSTRUCTIONS FOR USE......................................................................................................... 11
4.1 General information ..................................................................................................................... 11
4.2 Start-up........................................................................................................................................ 11
4.3 Use............................................................................................................................................... 11
4.4 Starting up.................................................................................................................................... 11
5 MAINTENANCE.......................................................................................................................... 12
5.1 Routine......................................................................................................................................... 12
6 CLEANING.................................................................................................................................. 13
6.1 Routine cleaning.......................................................................................................................... 13
2
Translation of the original instructions
Page 3
INTRODUCTION
1 INTRODUCTION

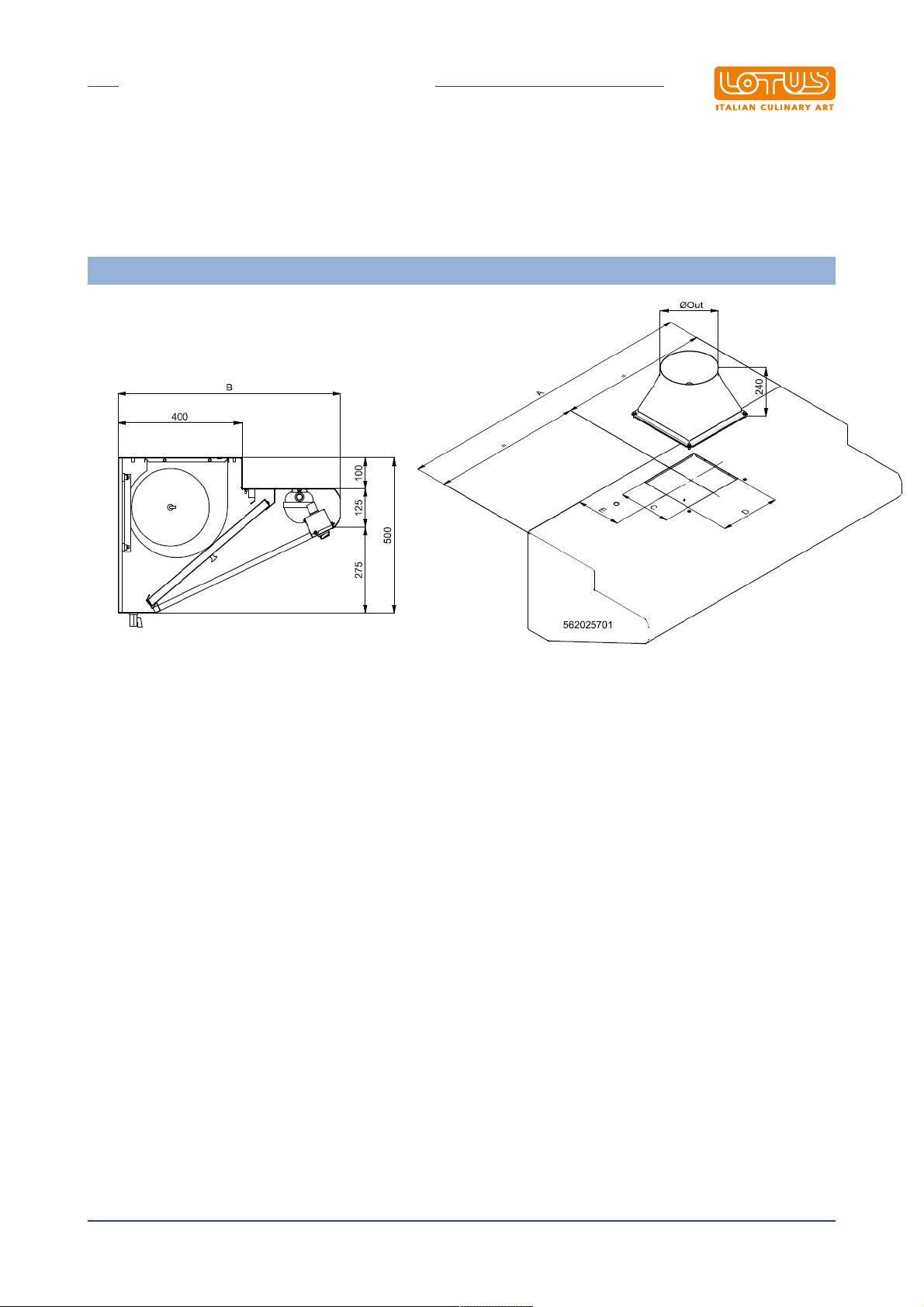

1.1 Installation drawing
FIG. 1
B Electrical connection
3
Translation of the original instructions
Page 4

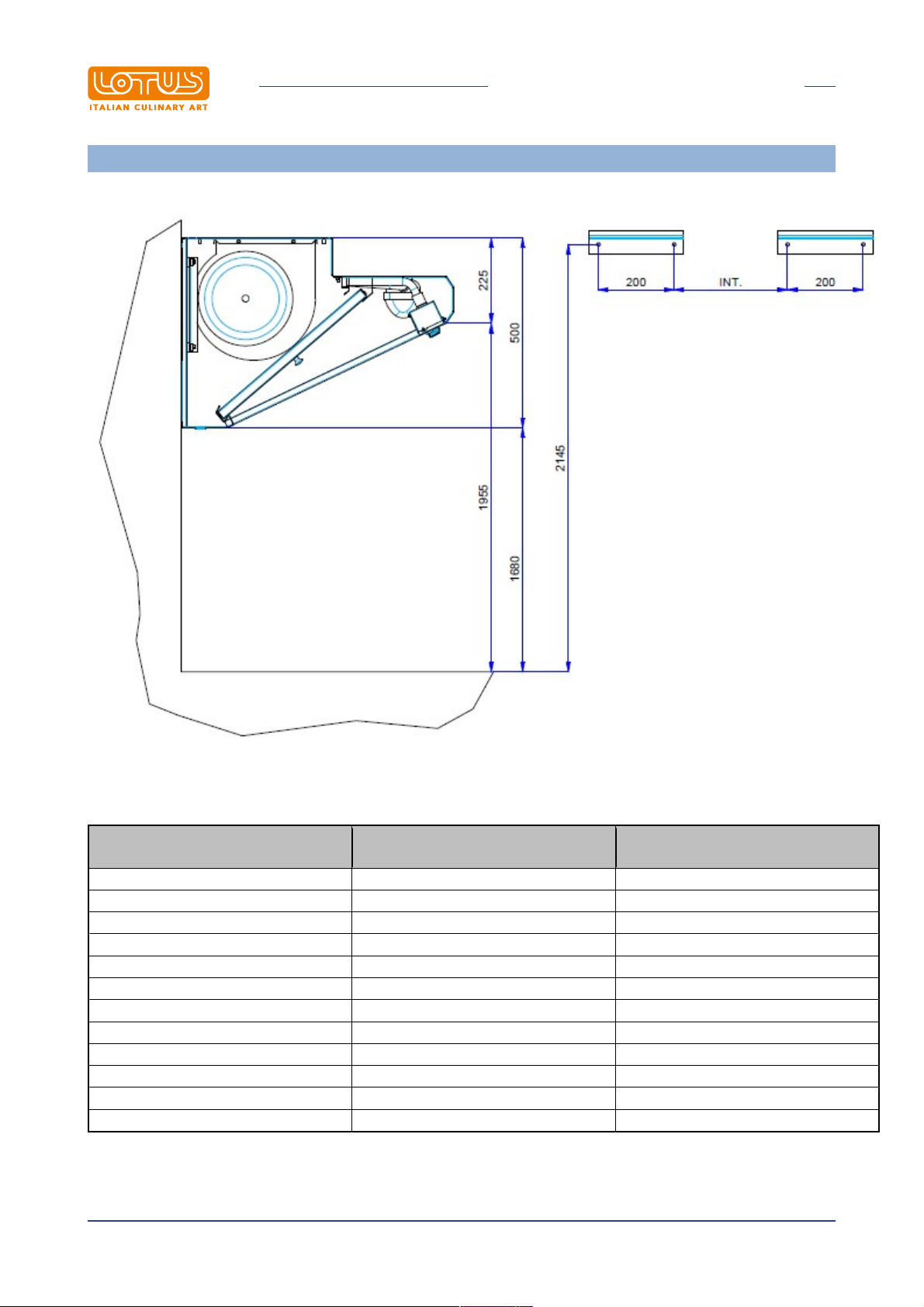

WALL-MOUNTED HOOD INSTALLATION
Hood positioning drawing and bracket arrangement diagram
INTRODUCTION
KE Support bracket positioning table
MODEL
KE-8 800 300
KE-10 1000 500
KE-12 1200 700
KE-14 1400 900
KE-16 1600 1100
KE-18 1800 1300
KE-20 2000 650
KE-22 2200 750
KE-24 2200 850
KE-26 2600 950
KE-28 2800 1050
KE-30 3000 1150
LENGTH
(mm)
SUPPORT BRACKET
CENTRES (mm)
4
Translation of the original instructions
Page 5
INTRODUCTION

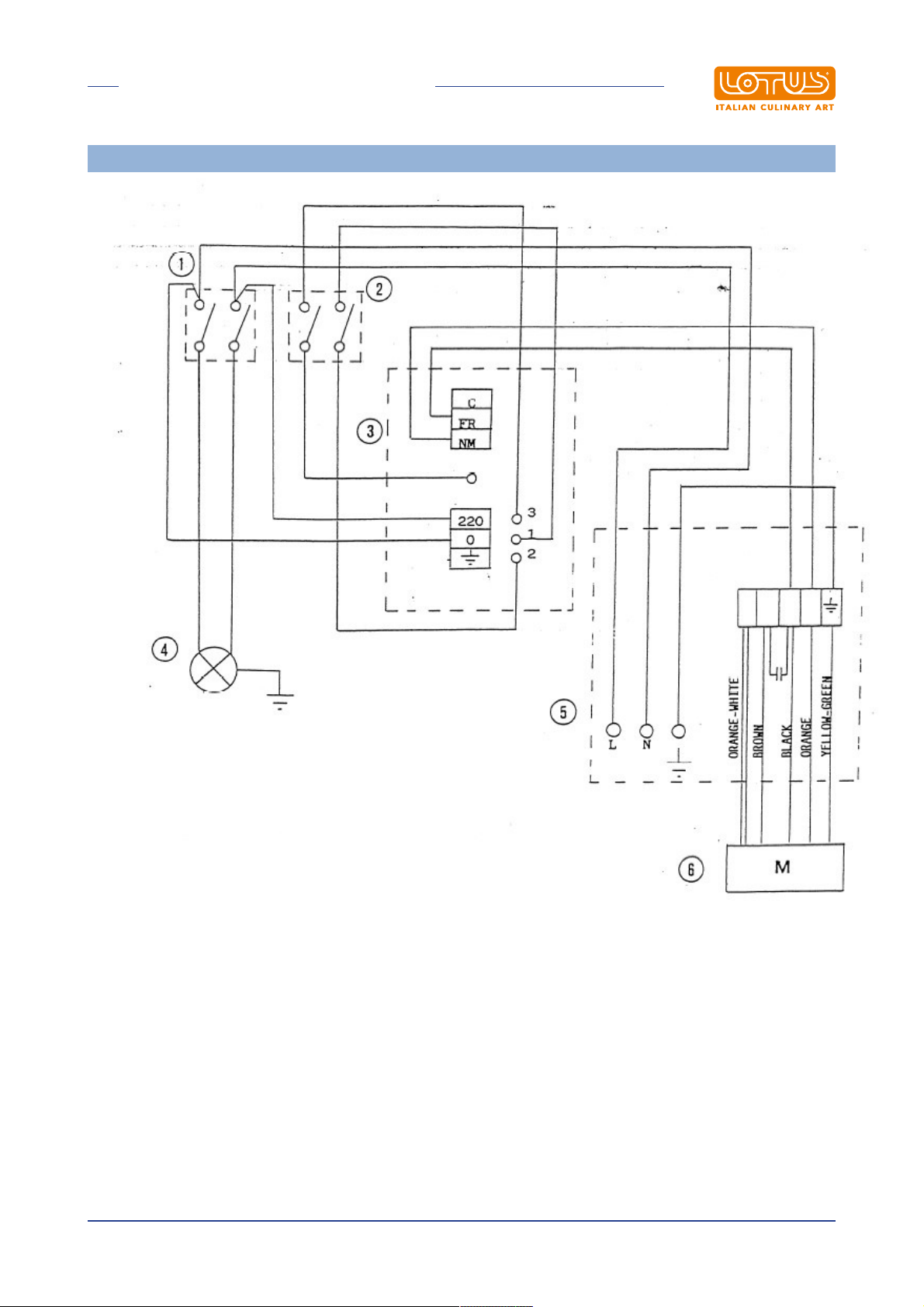

WIRING DIAGRAM
1 Hood switch
2 Motor switch
3 Speed controller
4 Lamp
5 Junction box
6 Suction motor
5
Translation of the original instructions
Page 6

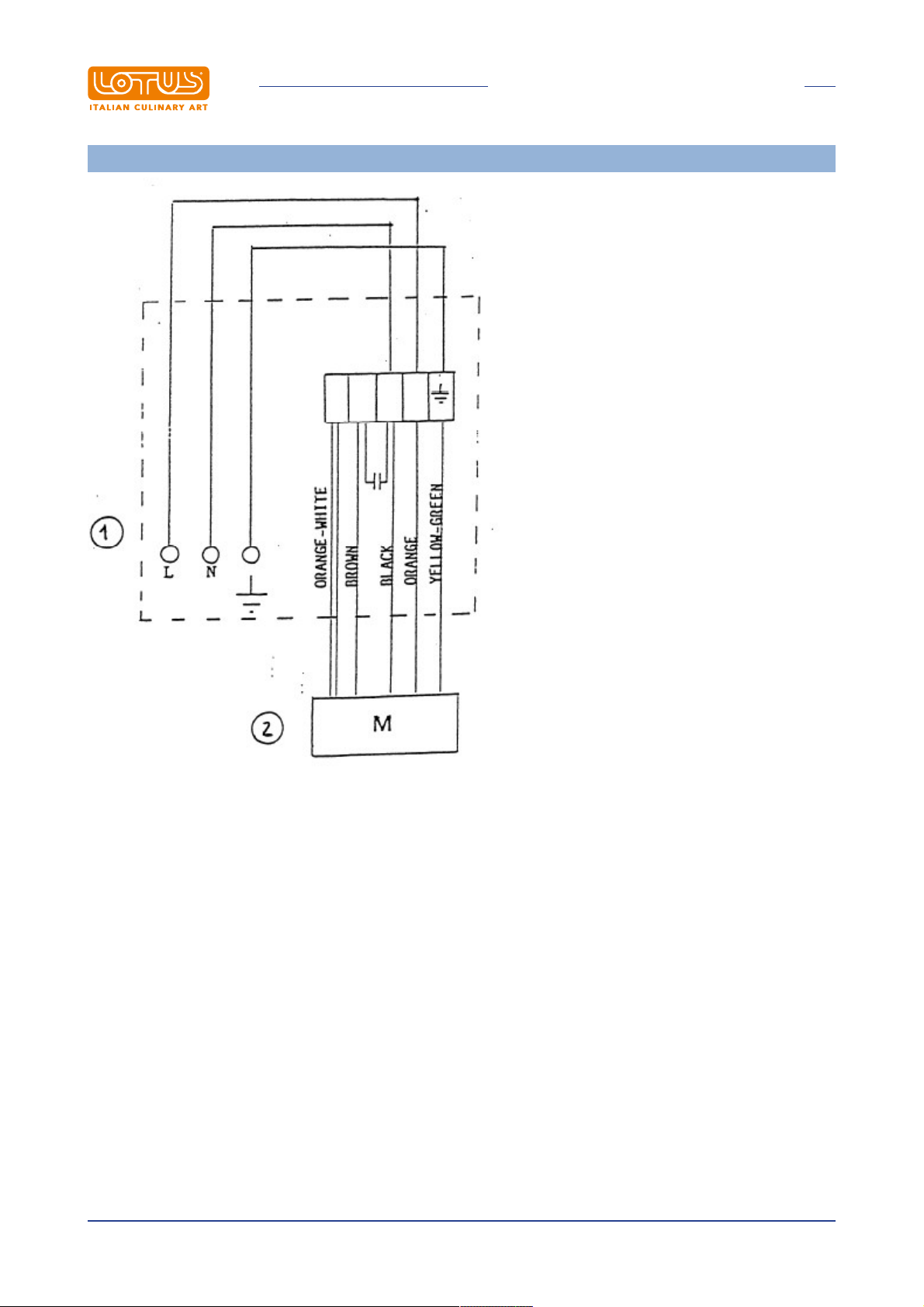

MOTOR WIRING DIAGRAM
INTRODUCTION
1 Junction box
2 Suction motor
6
Translation of the original instructions
Page 7
GENERAL INFORMATION
2 GENERAL INFORMATION
2.1 Declaration of compliance
The manufacturer declares that the appliances comply with the requirements of the regulation GAR
2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be
performed in compliance with current regulations, especially with regard to ventilation of the premises and
the exhaust gas evacuation system.
· Read the warnings in this manual carefully. They provide important information about safe installation,
use and maintenance.
· The instruction manual must be kept for the entire duration of the equipment and made available to users
for every possible consultation. The manual should be consulted for any information concerning
installation, use and maintenance of the appliance.
· After removing the packaging, check the integrity of the equipment.
· All packaging materials (plastic bags, polystyrene, staples, etc.) must be disposed of in compliance with
current regulations.
· Before connecting the appliance, make sure that the information on the data plate matches the electricity
and gas mains where the appliance is installed. The manufacturer accepts no liability if the
equipment is not connected in accordance with current regulations.
· Always keep all parts of the equipment clean to avoid the risk of oxidation/rust and/or aggression by
chemical agents.
· The equipment must only be used by personnel trained for the purpose.
· The installation must be implemented by professionally qualified personnel in accordance with
the manufacturer's instructions and current reference standards.
· The electrical safety of this equipment is only ensured when it is correctly connected to an effective
ground/earth system as required by current electrical safety standards. The manufacturer cannot be held
liable for any damage caused if the system is not connected to ground/earth.
· Before carrying out any cleaning or maintenance tasks on the equipment, unplug it from the electricity
mains. In the event of faults or malfunctions, always deactivate the appliance.
· Repair work of any kind must only be performed by qualified personnel.
· This appliance must only be used for its expressly intended purpose for cooking or heating food. Any
other use is considered improper.
· The appliance is intended for professional use and must be used by trained personnel.
· The installation and possible transformation to another power supply voltage (if envisaged), or
transformation for operation with another type of gas, must be implemented exclusively by qualified and
authorised professional personnel.
· Before using the appliance, carefully clean all surfaces intended to come into contact with food.
· The manufacturer declines any and all liability for any direct or indirect damage resulting from improper
use of the equipment. The manufacturer declines any and all liability for damage caused by incorrect
installation, tampering, poor maintenance and unskilled use. Moreover, the manufacturer declines any
liability for possible inaccuracies that may be contained in this booklet attributable to errors in
transcription or printing and equally reserves the right to make any changes to the product it deems
useful and/or necessary without compromising its essential characteristics.
· The manufacturer cannot be held liable for any damage caused by failure to comply with these
basic standards and all other use and maintenance standards contained in this booklet.
7
Translation of the original instructions
Page 8
GENERAL INFORMATION
2.2 User information, RAEE Directive on waste electrical and
electronic equipment
With regard to the regulatory framework of reference of the European Community, we remind the user of the
following:
· Used AAE (Electrical and Electronic Equipment) products must be collected separately
· The user can carry out this collection in the RAEE collection systems and return the equipment to the
distributor when purchasing a new one
· Plus being RoHS compatible, (in accordance with Directive 2011/65/EU on the restriction of the use of
certain hazardous substances in electrical and electronic equipment) the potential effects on the
environment and human health may be due to the misuse of the same equipment or parts of it
· The symbol next to the rating plate indicates the obligation of separate collection
· The penalties provided for in the event of improper disposal of RAEE (Waste Electrical and Electronic
Equipment) are those provided for by the national transpositions of European Directives 2012/19/EU
2.3 Technical data table
Electrical technical data table KE
DIMENSION
MODEL
KE-8S 80x72x50h 230V~ 50/60 Hz 200 205 229 249 1000 2,42 0,557 1/2
KE-10S 100x72x50h 230V~ 50/60 Hz 200 205 229 249 1200 2,45 0,564 2/1
KE-12S 120x72x50h 230V~ 50/60 Hz 200 205 229 249 1300 2,45 0,564 2/2
KE-14S 140x72x50h 230V~ 50/60 Hz 200 205 229 249 1500 2,45 0,564 3/2
KE-16S 160x72x50h 230V~ 50/60 Hz 250 260 295 222 2100 3,65 0,84 3/2
KE-18S 180x72x50h 230V~ 50/60 Hz 250 260 295 222 2200 3,7 0,852 4/2
KE-20S 200x72x50h 230V~ 50/60 Hz 250 260 295 222 2250 3,7 0,852 4/2
KE-22S 220x72x50h 230V~ 50/60 Hz 250 260 295 222 2300 3,7 0,852 4/3
KE-24S 240x72x50h 230V~ 50/60 Hz 250 260 295 222 2400 3,73 0,858 5/2
KE-26S 260x72x50h 230V~ 50/60 Hz 250 260 295 222 2450 3,73 0,858 5/4
KE-28S 280x72x50h 230V~ 50/60 Hz 250 260 295 222 2500 3,73 0,858 5/4
KE-30S 300x72x50h 230V~ 50/60 Hz 250 260 295 222 2600 3,73 0,858 6/3
S
A x B x H
POWER SUPPLY:Ø Out
(mm)C(mm)D(mm)E(mm)
Flow
rate
Mc/h
Max
consumption
(A)
Rated
Power
Tot. kW
Filters /
Panels
8
Translation of the original instructions
Page 9
INSTALLATION
3 INSTALLATION
3.1 Delivery checks
On delivery, it is important to check the following:
· External conditions of the packaging
· The general status of the equipment
· The conformity of the model with the information in the technical data plate and the instruction manual
· The conformity of the equipment and components to the order form
3.2 Removing the packaging
While removing the packaging, take care not to damage the appliance. Remove the protective film from the
stainless steel and eliminate any traces of glue. Do not smoke. Perform this operation away from sources of
heat and wear protective gloves. Do not disperse packaging material in the environment, keep it out of the
reach of children and dispose in compliance with current legislation.
3.3 Mechanical installation
Place the appliance on a flat base. Adjust and stabilise the appliance by acting on the support feet. Make
sure that the surrounding walls and/or equipment are capable of withstanding the heat emitted by this
appliance. Connect the water supply (if necessary).
Caution
Do not install the appliance near equipment/machines used in cold processes. If the appliance
has to be installed close to cold process equipment, it is advisable to install non-combustible
thermal insulating material and/or neutral elements between them.
3.4 Electrical/gas connections
Before being offered for sale on the market, the appliance was subjected to gas and electrical testing (as
required). The appliance is supplied without a power cable. The installation technician must connect the
equipment in compliance with current safety regulations on the basis of the power of the appliance.
Note
The ID plate is located in the compartment inside the door for appliances with compartments, or on
the left side for appliances with an oven or a top. A second plate with the model and serial number is
located inside the dashboard and a third is included with the certificate of conformity. The serial
number can also be tracked from the sales document (after 2008). The plate has all the data needed
for correct electrical installation. The installation and possible conversion to another power supply
voltage (if envisaged) must be implemented exclusively by professionally qualified and authorized
personnel. Before using the appliance, carefully clean all surfaces intended to come into contact with
food.
9
Translation of the original instructions
Page 10
INSTALLATION
Warning
Installation operations, any conversion to other types of gas and start-up must only be
Gas systems, electrical connections and premises where the appliances are installed must comply with
current regulations in the country of installation; in particular, the appliance must be installed in a room with
good ventilation, if possible under a suction hood to ensure complete evacuation of the exhaust gases
formed during combustion. The air required for combustion is 2 m3/h per kW of installed power. The
appliance can be installed alone or in series with other appliances in our production range. A minimum
distance of 10 cm between appliances must be respected to prevent contact with any walls made of
flammable material; furthermore, appropriate measures should also be adopted to ensure the thermal
insulation of flammable parts, such as the installation of heat shields; take special care to ensure that
appliances are installed in an appropriate and safe manner. The support feet can be adjustable in height and
any unevenness can therefore be eliminated.
performed by qualified personnel, in accordance with current regulations.
ELECTRICAL CONNECTION
Caution
For direct connection to the grid, a device must be provided to ensure disconnection from the
grid, with a contact opening distance that allows complete disconnection under overvoltage
category III conditions, in accordance with the installation rules
The connection terminal is located behind the rear wall. Proceed as follows to install the power supply cable:
· Remove the rear panel.
· Pass the new connection cable through the cable gland, connect the leads to the corresponding terminal
on the terminal block and fasten them securely.
· Lock the cable with the cable gland and refit the panel. The earth/ground lead must be longer than the
others so that if the cable gland breaks it is disconnected after the power cables.
Note
Make sure that the mains voltage complies with the data on the appliance's ID plate and that there is
The appliance must be connected to an equipotential system. The connecting screw is located on the rear of
the appliance and is marked by the yellow symbol above it.
good conductivity to earth/ground. Pay attention when inserting leads to ensure they do not obstruct
the normal course of work and routine appliance cleaning operations. Also make sure that the power
cable is never pulled taut and is not placed in contact with sources of heat.
Note
The connection cable must have the following characteristics: it must be silicone type (to
withstand temperatures of 180 °C), and must have an appropriate cross-section for the power
of the appliance (see technical data table).
EQUIPOTENTIAL
Warning
The manufacturer is not liable for and does not indemnify damages caused by incorrect
inadequate installations that do not comply with these instructions.
10
Translation of the original instructions
Page 11
INSTRUCTIONS FOR USE
4 INSTRUCTIONS FOR USE
4.1 General information
This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other
use is considered improper. The appliance is also intended for industrial use and must only be used by
personnel trained for use and aware of the risks that the hot element entails.
4.2 Start-up
All hood models are designed to operate at single-phase 230 Vac at 50 Hz . Before connecting the appliance
to a main electrical switch, make sure
that the mains voltage matches the value indicated on the data plate. Safe operation of this equipment is
only ensured when it is correctly connected to an effective earth/ground system as required by current
standards. This safety requirement must be verified and, if in doubt, request a complete check of the
electrical system by professionally qualified personnel. Every day - at the end of work, before cleaning and
maintenance or in the event of a malfunction - disconnect the appliance from the power supply. Failure to
comply with this requirement may compromise the safety of the equipment. The manufacturer cannot be
held liable for any damage caused by the lack or inefficiency of the grounding system, incorrect installation,
tampering, poor maintenance or inexperienced usage.
4.3 Use
The device must only be used for the purposes for which it was specifically designed, namely to extract
fumes arising from cooking equipment in kitchens; any other use is considered improper and consequently
dangerous
4.4 Starting up
To start up the appliance, connect the power cable to the mains supply.
Turn ON the main switch for the function required. When work is over, turn OFF the main switch
11
Translation of the original instructions
Page 12
MAINTENANCE
5 MAINTENANCE
5.1 Routine
When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation.
We therefore recommend stipulating a service contract.
Caution
Maintenance must only be performed by specialist personnel in compliance with current
Before carrying out any maintenance and/or cleaning operation:
· Disconnect the appliance from the mains power supply and/or close the gas.
· Wait for a sufficient time for the appliance to cool down.
· Do not wash the appliance with direct or high-pressure jets of water, since any infiltration of water into the
Replacing parts must exclusively be performed by authorised and/or qualified personnel. When replacing the
electrical components of the machine and the electrical panels, scrupulously follow the technical
characteristics for the replacement component indicated on the component itself. The appliance does not
require any special maintenance but during the use of the equipment it is advisable to check the following at
least once a year (possibly increasing the frequency depending on the degree of use):
· The status of connections especially on the terminal board and the power supply cable, as well as the
· The operating condition of the various components (perform a functional test);
· For appliances fitted with rotary resistances, remove the hub, grease it and replace the three o-ring seals
regulations and our own instructions.
electrical components could jeopardise correct operation of the appliance and its safety systems.
Warning
For maintenance/replacement of components, order and use only original spare parts.
status of the gas connections;
to avoid possible leaks.
12
Translation of the original instructions
Page 13
CLEANING
6 CLEANING
6.1 Routine cleaning
Caution
The use of flammable fluids to clean the appliance is forbidden
To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking
care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the
appliance from the power supply. Parts in steel can be washed with warm water and a neutral detergent:
Rinse them thoroughly to eliminate all traces of detergent and then dry with a dry cloth. Do not use abrasive
and corrosive detergents. Enamelled parts must be washed with soapy water. For appliances that included
an oven, cleaning it is made easier by removing the support grid. Thorough, daily cleaning prevents faults
and accumulated deposits of fat and/or food. The steels used in the manufacture of professional equipment
are tried and tested materials of the highest quality. Thanks to their characteristics, they are ideal materials
for use with food substances.
Consequently, when using stainless steel appliances, the following suggestions must be observed:
· Stainless steel surfaces must always be kept clean, also ensuring contact with the air. The lack of oxygen
under layers of scale, starch, egg white or other deposits means that surfaces can be affected by
corrosion
· Do not use products containing salt or sulphuric acid to remove scale. Suitable products are available
commercially but a diluted solution of acetic acid can also be used
· To clean STAINLESS STEEL appliances, it is advisable to use detergents specifically formulated for this
material. For "minor cleaning", a mild washing up liquid solution may also be used
· Do not wash the appliance with jets of water under pressure
· Avoid using detergents containing abrasive powders or bleaches of any kind
· Lockable stainless steel appliances, during periods of inactivity, must be left uncovered so that air can
freely access internal metal surfaces
· Stainless steel must not remain in contact for long periods with concentrated acids or with aromatised
concentrates such as salt solutions, mustard, spice mixtures or the like. At certain temperatures and
concentrations, these substances can damage the passive layer. Contact surfaces must therefore be
immediately rinsed with clean water and then dried
· It is inadvisable to use stainless steel pots exclusively to cook foods in salt water (pasta, rice, potatoes,
etc.). From time to time, these pots must also be used to cook foods containing fats or vegetables. This
helps to prevent damage caused by corrosion
· After cooking foods in salt water, rinse the tanks with fresh water since salt water residues from cooking
form layers of highly concentrated saline solution that can cause spotting corrosion
· To prevent so-called secondary corrosion, prolonged contact of stainless steel with ferritic steels should
be avoided
· Any secondary corrosion spots must be eliminated immediately
· Do not use sharp objects that may scratch stainless steel parts and consequently give rise to
deterioration
Note
To ensure optimal use of the hood filters, immerse them in a degreasing substance diluted in hot
water. The filters are easy to clean since they can be removed from the simple interlocking mount
13
Translation of the original instructions
Loading...
