Installation and operating instructions
ELECTRIC PASTA COOKER FOR
PROFESSIONAL USE
CPD-64ET CPD-84ET
CPAD-64ET CPAD-84ET
Model LIBR.ISTR.CPD
Code 563018801
Review 1
Edition date 12/02/2020
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
+39 0438 778020
+39 0438 778277
Translation of the original instructions
Page 2
Contents
Contents
1 INTRODUCTION......................................................................................................................... 3
1.1 Installation drawing...................................................................................................................... 3
1.2 Components................................................................................................................................. 7
2 GENERAL INFORMATION ......................................................................................................... 11
2.1 Declaration of compliance............................................................................................................ 11
2.2 User information, RAEE Directive on waste electrical and electronic equipment ........................ 12
2.3 Technical data table ..................................................................................................................... 12
3 INSTALLATION........................................................................................................................... 13
3.1 Delivery checks ............................................................................................................................ 13
3.2 Removing the packaging ............................................................................................................. 13
3.3 Mechanical installation ................................................................................................................. 13
3.4 Electrical/gas connections ........................................................................................................... 13
3.5 Water connection and drainage................................................................................................... 15
4 INSTRUCTIONS FOR USE......................................................................................................... 16
4.1 General information ..................................................................................................................... 16
4.2 Turning on the appliance.............................................................................................................. 16
4.3 Switching the appliance off .......................................................................................................... 16
4.4 Emptying the tank........................................................................................................................ 17
4.5 Safety thermostat ......................................................................................................................... 17
4.6 Pasta cooker with automatic loading ........................................................................................... 17
4.7 Characteristics of the feed water ................................................................................................. 18
5 MAINTENANCE.......................................................................................................................... 19
5.1 Routine......................................................................................................................................... 19
5.2 Accessibility ................................................................................................................................. 19
5.3 Spare parts .................................................................................................................................. 20
6 CLEANING.................................................................................................................................. 21
6.1 Routine cleaning.......................................................................................................................... 21
Translation of the original instructions
2
Page 3
INTRODUCTION
1 INTRODUCTION
1.1 Installation drawing

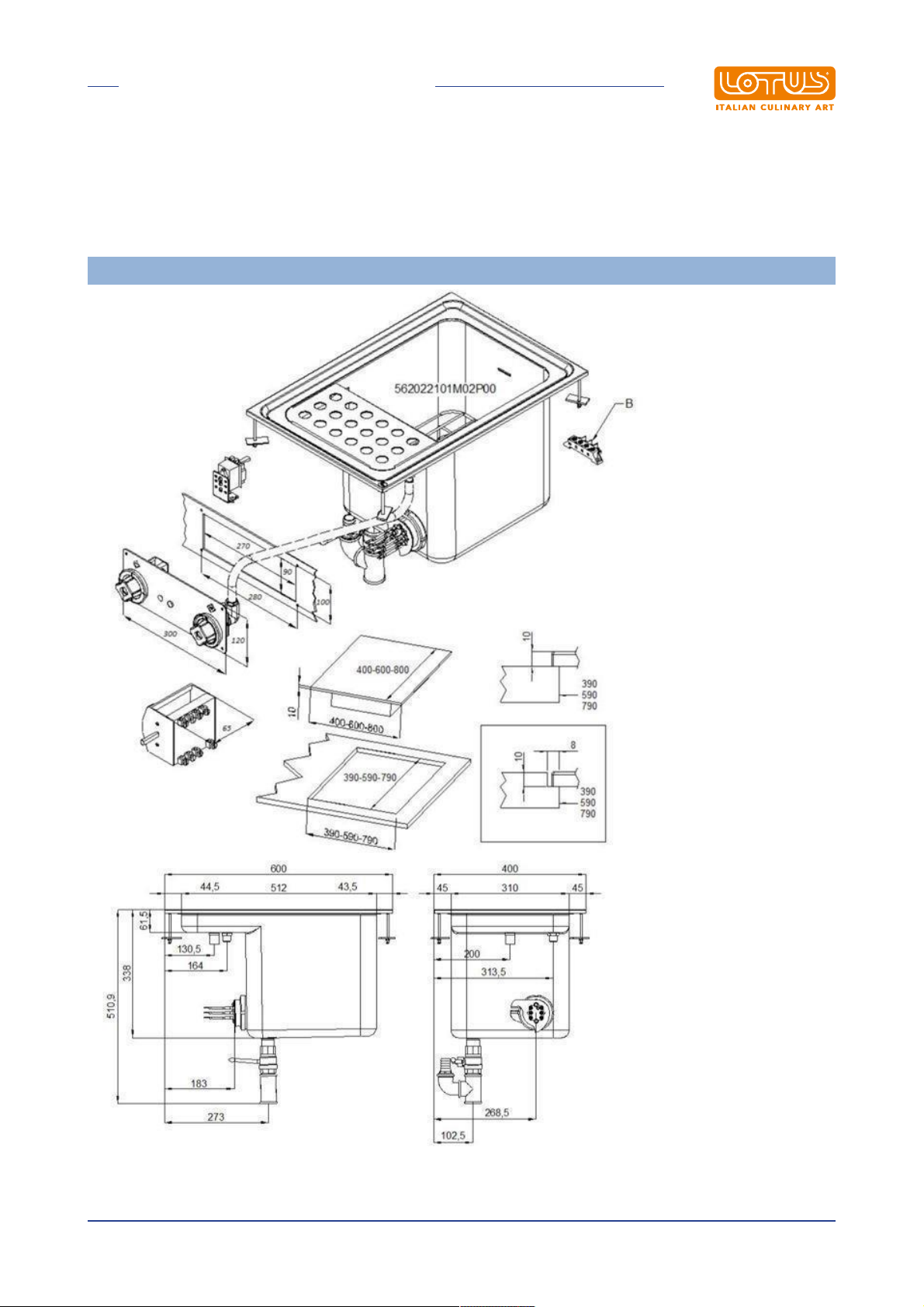

FIG. 1 CPD-64ET
B Electrical connection
Translation of the original instructions
3
Page 4

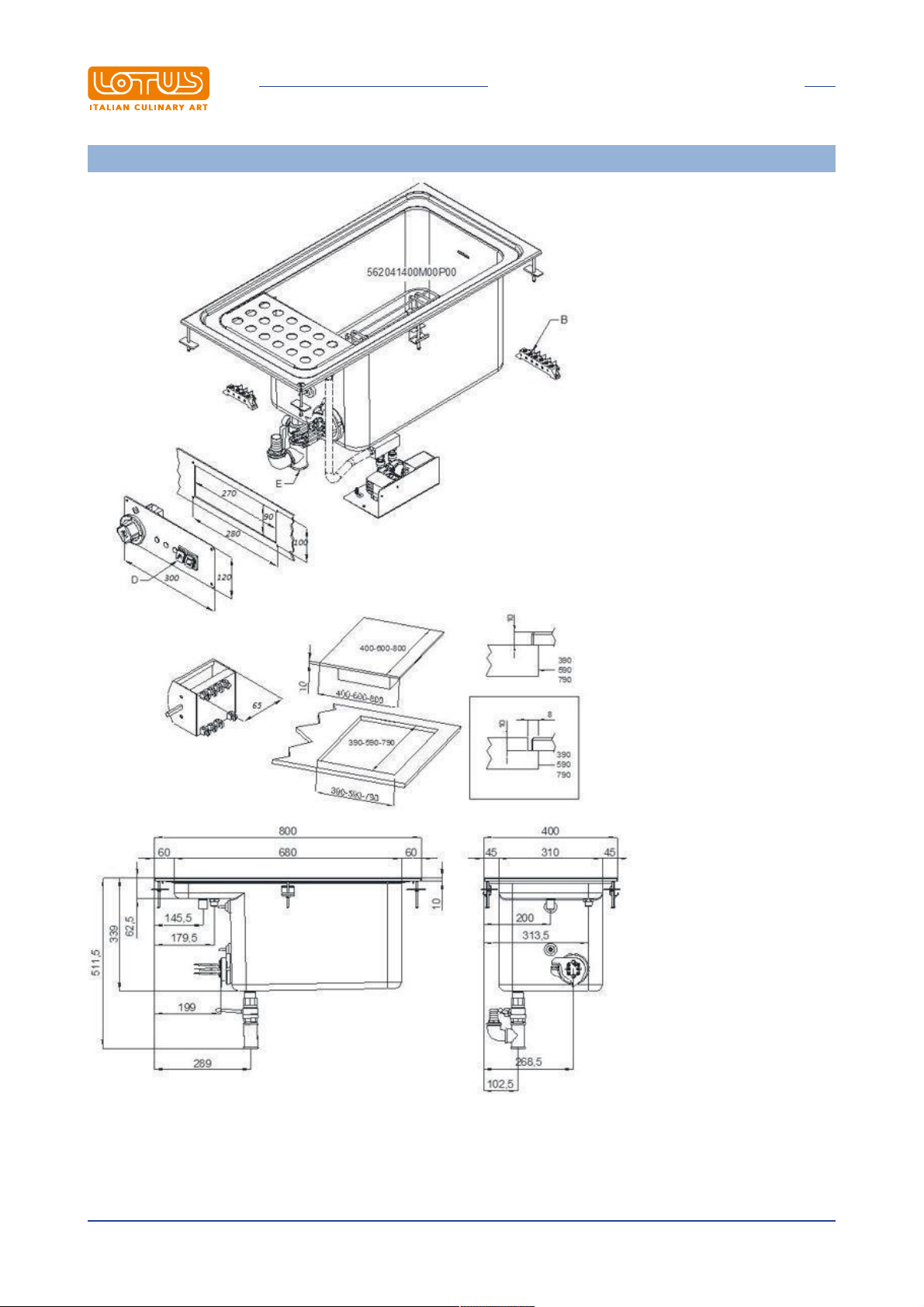

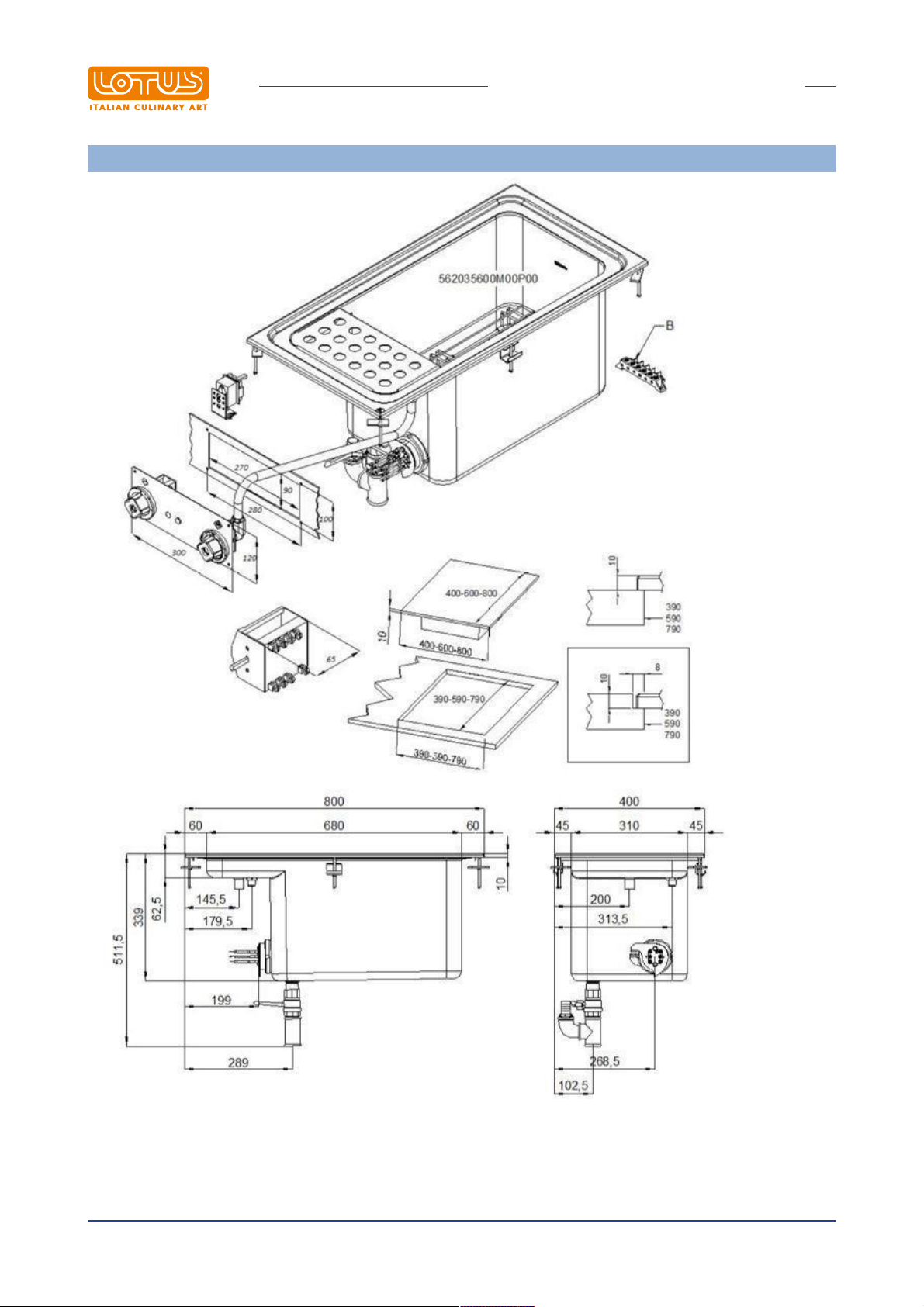

FIG. 2 CPD-84ET
INTRODUCTION
B Electrical connection
Translation of the original instructions
4
Page 5
INTRODUCTION

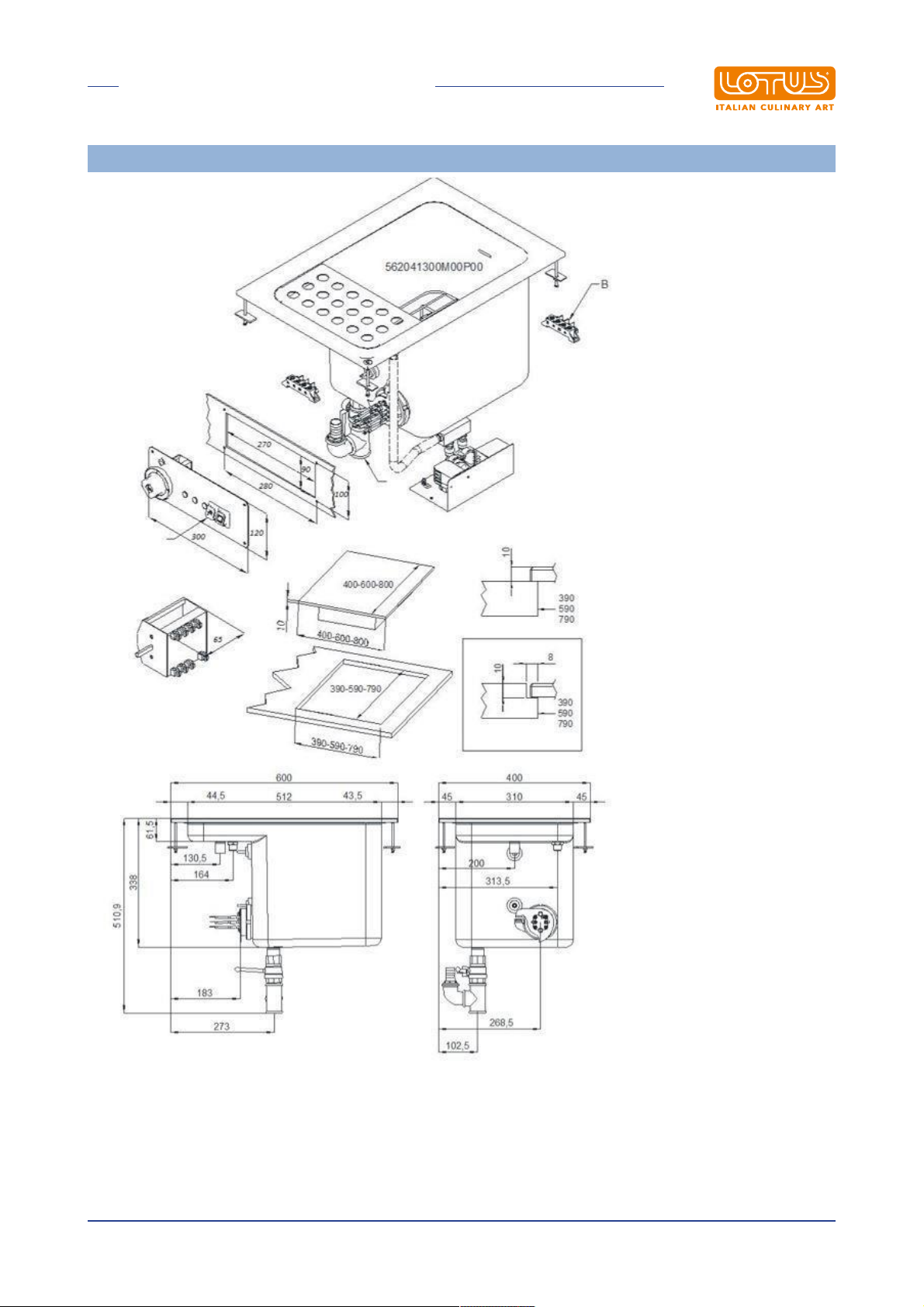

FIG. 3 CPAD-64ET
B Electrical connection
Translation of the original instructions
5
Page 6
FIG. 4 CPAD-84ET
INTRODUCTION
B Electrical connection
Translation of the original instructions
6
Page 7
INTRODUCTION
1.2 Components

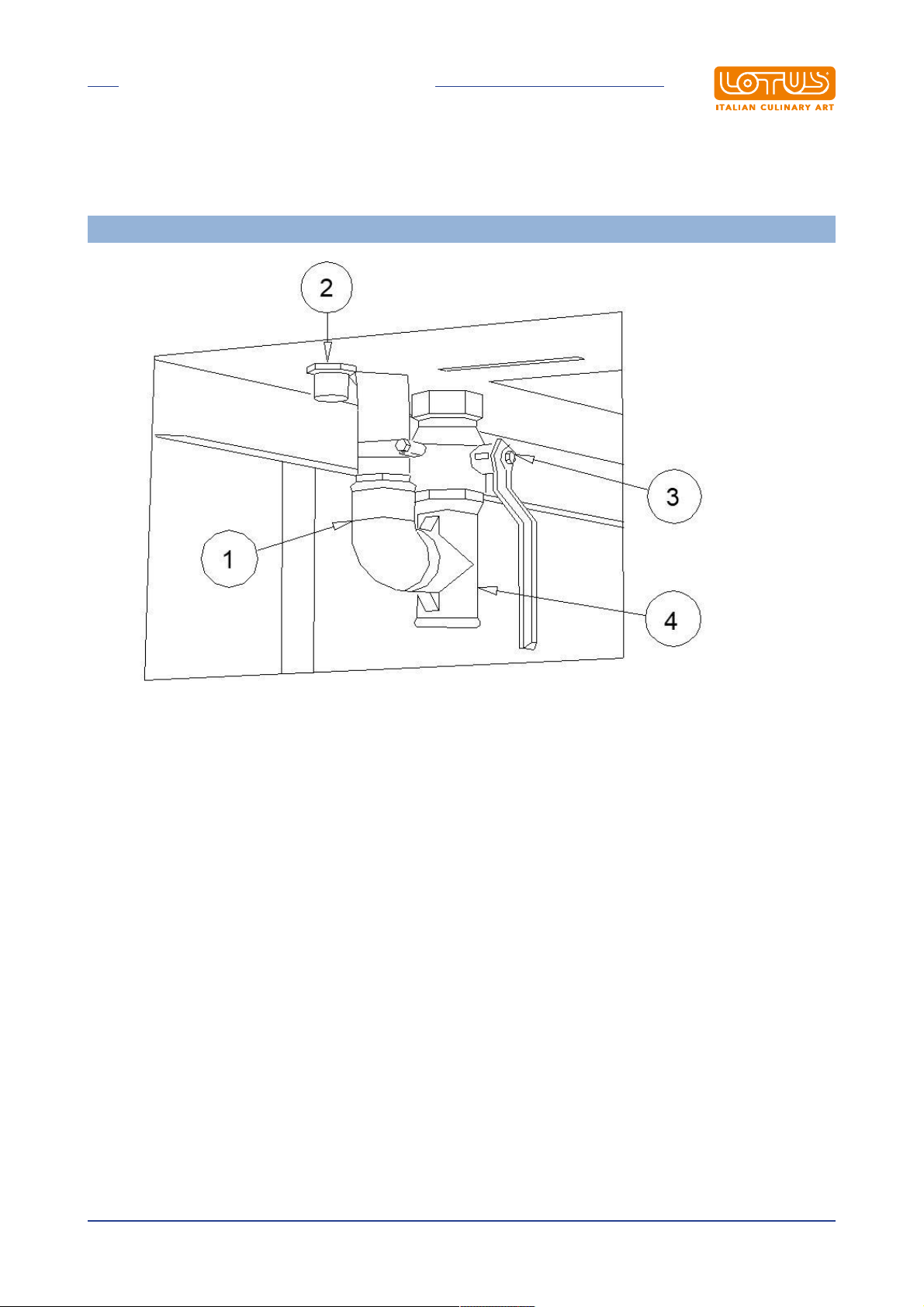

FIG. A
1 Water by-pass
2 Water connection R 1/2"M
3 Water discharge lever
4 Water drain R 1"M
Translation of the original instructions
7
Page 8
Water filling tap
INTRODUCTION

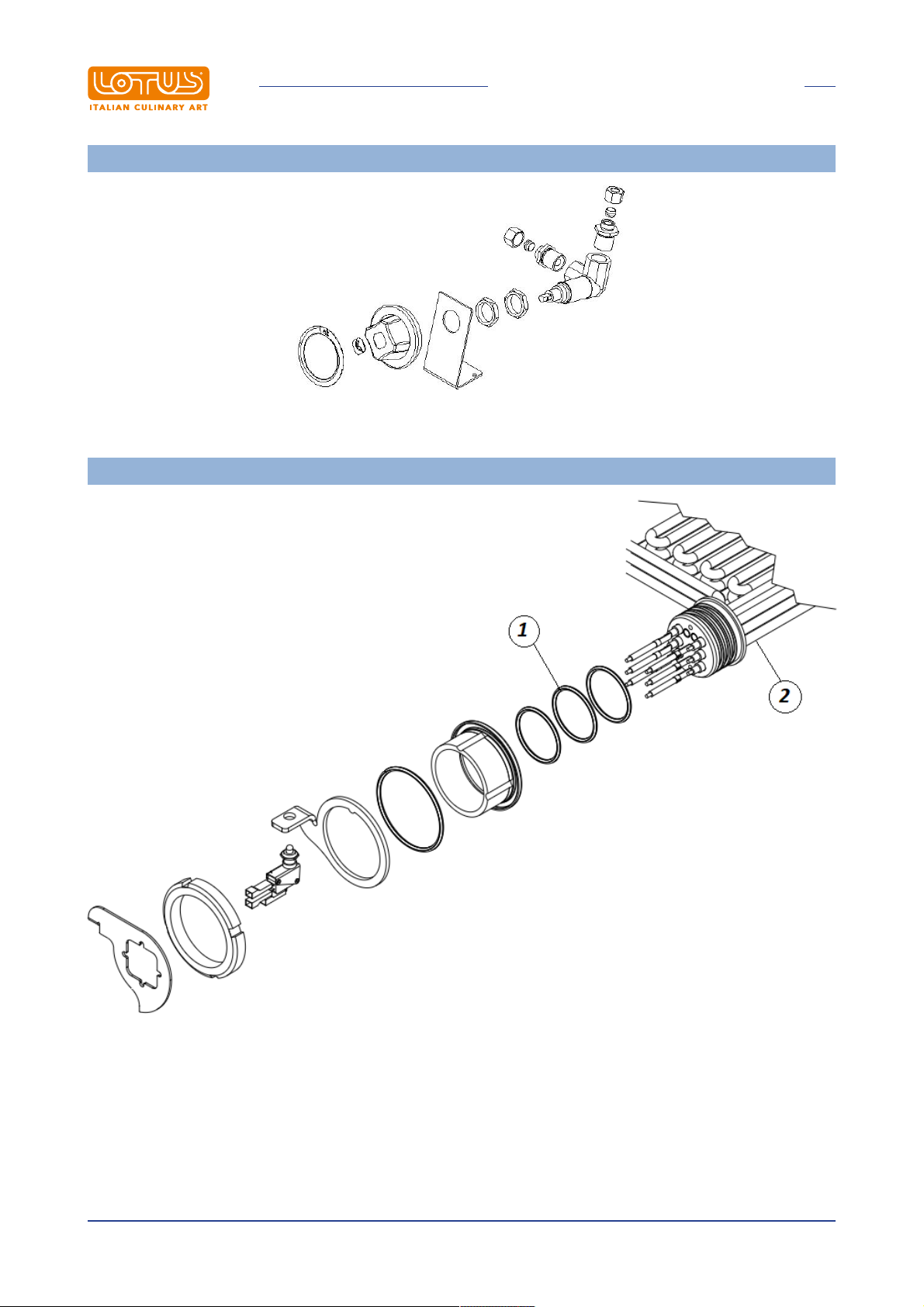

FIG. B CP...
FIG. C (ROTARY RESISTANCE)
1 O-rings
2 Rotary heating element
Translation of the original instructions
8
Page 9
INTRODUCTION

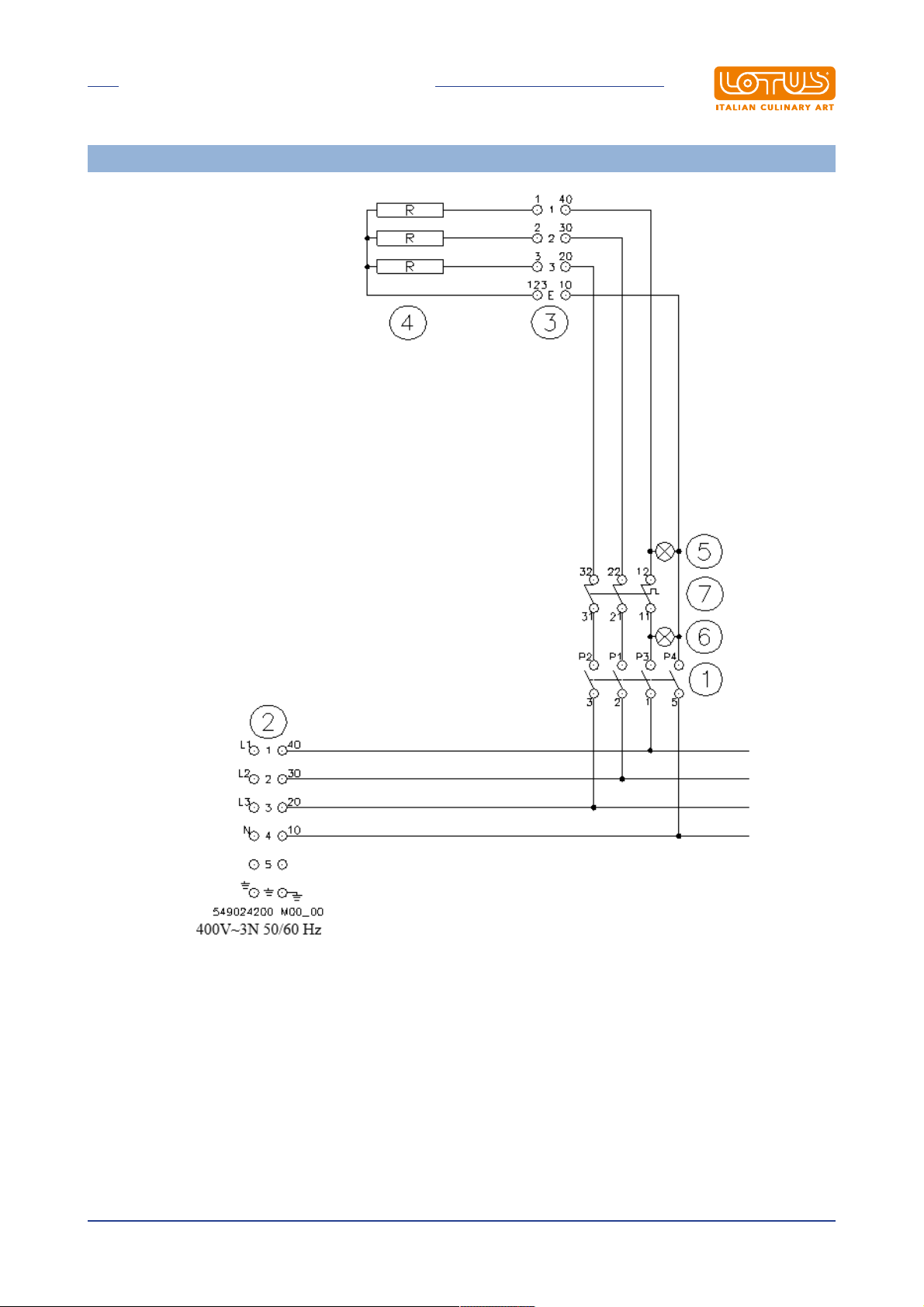

WIRING DIAGRAM CPD-64ET , CPD-84ET
1 Switch
2 Power supply terminal board
3 Switching terminal board
4 Heating element
5 White indicator light
6 Green indicator light
7 Safety thermostat
Translation of the original instructions
9
Page 10
INTRODUCTION

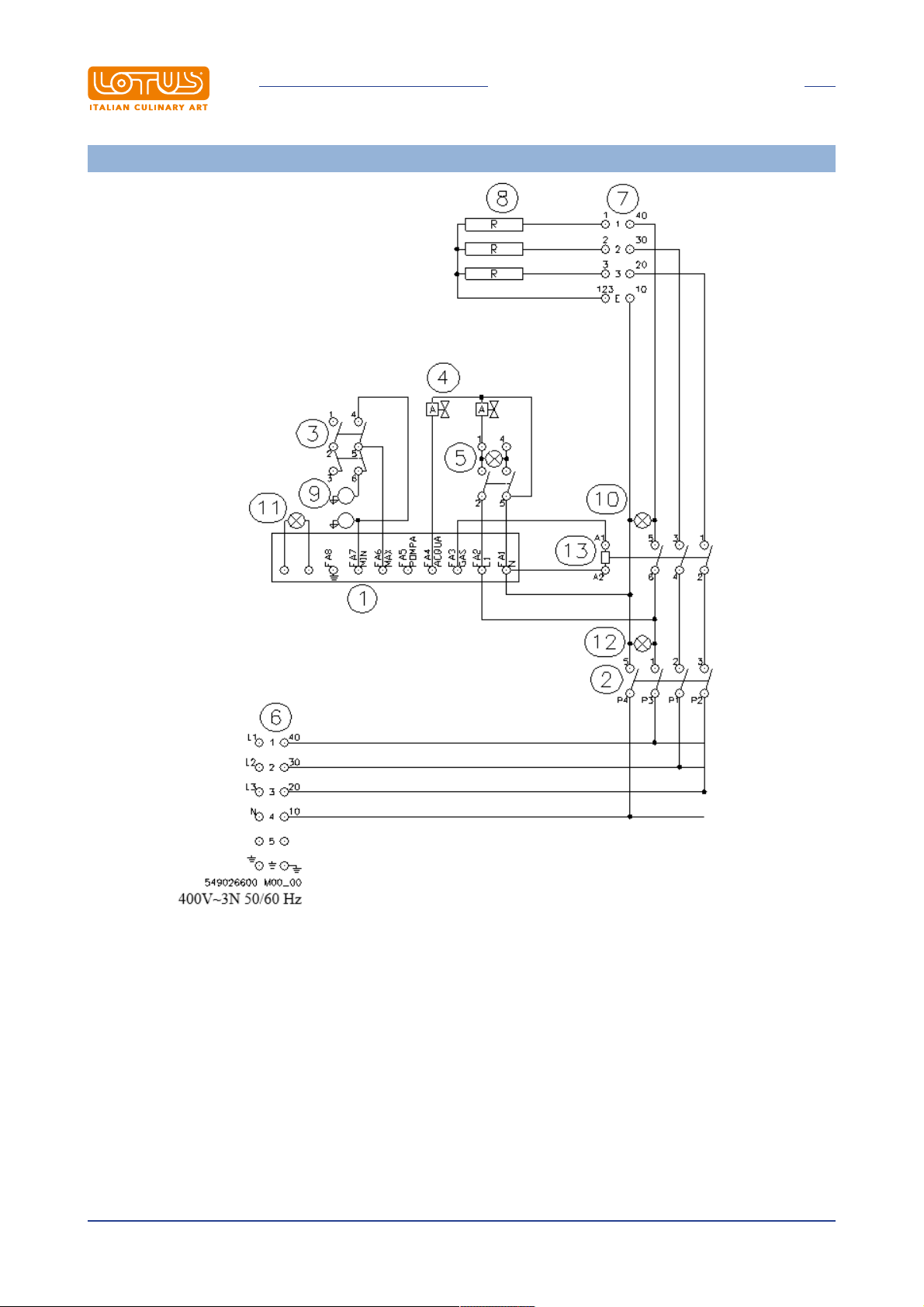

WIRING DIAGRAM CPAD-64ET , CPAD-84ET
1 Water level control unit
2 Switch
3 Bipolar diverter
4 Water solenoid
5 Bipolar switch
6 Power supply terminal board
7 Switching terminal board
8 Heating element
9 Level probe
10 White indicator light
11 Red indicator light
12 Green indicator light
13 Contactor
Translation of the original instructions
10
Page 11
GENERAL INFORMATION
2 GENERAL INFORMATION
2.1 Declaration of compliance
The manufacturer declares that the appliances comply with the requirements of the regulation GAR
2016/426 for the gas part and directive 2014/30/EU,2014/35/EU for the electrical part. Installation must be
performed in compliance with current regulations, especially with regard to ventilation of the premises and
the exhaust gas evacuation system.
· Read the warnings in this manual carefully. They provide important information about safe installation,
use and maintenance.
· The instruction manual must be kept for the entire duration of the equipment and made available to users
for every possible consultation. The manual should be consulted for any information concerning
installation, use and maintenance of the appliance.
· After removing the packaging, check the integrity of the equipment.
· All packaging materials (plastic bags, polystyrene, staples, etc.) must be disposed of in compliance with
current regulations.
· Before connecting the appliance, make sure that the information on the data plate matches the electricity
and gas mains where the appliance is installed. The manufacturer accepts no liability if the
equipment is not connected in accordance with current regulations.
· Always keep all parts of the equipment clean to avoid the risk of oxidation/rust and/or aggression by
chemical agents.
· The equipment must only be used by personnel trained for the purpose.
· The installation must be implemented by professionally qualified personnel in accordance with
the manufacturer's instructions and current reference standards.
· The electrical safety of this equipment is only ensured when it is correctly connected to an effective
ground/earth system as required by current electrical safety standards. The manufacturer cannot be held
liable for any damage caused if the system is not connected to ground/earth.
· Before carrying out any cleaning or maintenance tasks on the equipment, unplug it from the electricity
mains. In the event of faults or malfunctions, always deactivate the appliance.
· Repair work of any kind must only be performed by qualified personnel.
· This appliance must only be used for its expressly intended purpose for cooking or heating food. Any
other use is considered improper.
· The appliance is intended for professional use and must be used by trained personnel.
· The installation and possible transformation to another power supply voltage (if envisaged), or
transformation for operation with another type of gas, must be implemented exclusively by qualified and
authorised professional personnel.
· Before using the appliance, carefully clean all surfaces intended to come into contact with food.
· The manufacturer declines any and all liability for any direct or indirect damage resulting from improper
use of the equipment. The manufacturer declines any and all liability for damage caused by incorrect
installation, tampering, poor maintenance and unskilled use. Moreover, the manufacturer declines any
liability for possible inaccuracies that may be contained in this booklet attributable to errors in
transcription or printing and equally reserves the right to make any changes to the product it deems
useful and/or necessary without compromising its essential characteristics.
· The manufacturer cannot be held liable for any damage caused by failure to comply with these
basic standards and all other use and maintenance standards contained in this booklet.
Translation of the original instructions
11
Page 12
GENERAL INFORMATION
2.2 User information, RAEE Directive on waste electrical and
electronic equipment
With regard to the regulatory framework of reference of the European Community, we remind the user of the
following:
· Used AAE (Electrical and Electronic Equipment) products must be collected separately
· The user can carry out this collection in the RAEE collection systems and return the equipment to the
distributor when purchasing a new one
· Plus being RoHS compatible, (in accordance with Directive 2011/65/EU on the restriction of the use of
certain hazardous substances in electrical and electronic equipment) the potential effects on the
environment and human health may be due to the misuse of the same equipment or parts of it
· The symbol next to the rating plate indicates the obligation of separate collection
· The penalties provided for in the event of improper disposal of RAEE (Waste Electrical and Electronic
Equipment) are those provided for by the national transpositions of European Directives 2012/19/EU
2.3 Technical data table
Electrical technical data table CPD
MODEL POWER SUPPLY MAXIMUM INPUT (A)
CPD-64ET 400V~3N 50/60 Hz 11,3 7,8 5 x 1,5 mm²
CPD-84ET 400V~3N 50/60 Hz 19,57 13,5 5 x 2,5 mm²
CPAD-64ET 400V~3N 50/60 Hz 11,3 7,8 5 x 1,5 mm²
CPAD-84ET 400V~3N 50/60 Hz 19,57 13,5 5 x 2,5 mm²
MAXIMUM POWER
(kW)
Silicon POWER
SUPPLY CABLE
Translation of the original instructions
12
Page 13
INSTALLATION
3 INSTALLATION
3.1 Delivery checks
On delivery, it is important to check the following:
· External conditions of the packaging
· The general status of the equipment
· The conformity of the model with the information in the technical data plate and the instruction manual
· The conformity of the equipment and components to the order form
3.2 Removing the packaging
While removing the packaging, take care not to damage the appliance. Remove the protective film from the
stainless steel and eliminate any traces of glue. Do not smoke. Perform this operation away from sources of
heat and wear protective gloves. Do not disperse packaging material in the environment, keep it out of the
reach of children and dispose in compliance with current legislation.
3.3 Mechanical installation
Place the appliance on a flat base. Adjust and stabilise the appliance by acting on the support feet. Make
sure that the surrounding walls and/or equipment are capable of withstanding the heat emitted by this
appliance. Connect the water supply (if necessary).
Caution
Do not install the appliance near equipment/machines used in cold processes. If the appliance
has to be installed close to cold process equipment, it is advisable to install non-combustible
thermal insulating material and/or neutral elements between them.
3.4 Electrical/gas connections
Before being offered for sale on the market, the appliance was subjected to gas and electrical testing (as
required). The appliance is supplied without a power cable. The installation technician must connect the
equipment in compliance with current safety regulations on the basis of the power of the appliance.
Caution
Our drop-in units are to be considered as semi-finished products. The completion and
securing of the finished product is the responsibility of the installer, in accordance with the
applicable regulations Installation, commissioning and maintenance of the appliance must be
carried out by qualified personnel. All work necessary for installation must be carried out in
accordance with the regulations in force. The manufacturer accepts no liability in the event of
malfunctions due to incorrect or improper installation
Translation of the original instructions
13
Page 14
INSTALLATION
Note
The ID plate is located in the compartment inside the door for appliances with compartments, or on
the left side for appliances with an oven or a top. A second plate with the model and serial number is
located inside the dashboard and a third is included with the certificate of conformity. The serial
number can also be tracked from the sales document (after 2008). The plate has all the data needed
for correct electrical installation. The installation and possible conversion to another power supply
voltage (if envisaged) must be implemented exclusively by professionally qualified and authorized
personnel. Before using the appliance, carefully clean all surfaces intended to come into contact with
food.
Warning
Installation operations, any conversion to other types of gas and start-up must only be
performed by qualified personnel, in accordance with current regulations.
Gas systems, electrical connections and premises where the appliances are installed must comply with
current regulations in the country of installation; in particular, the appliance must be installed in a room with
good ventilation, if possible under a suction hood to ensure complete evacuation of the exhaust gases
formed during combustion. The air required for combustion is 2 m3/h per kW of installed power. The
appliance can be installed alone or in series with other appliances in our production range. A minimum
distance of 10 cm between appliances must be respected to prevent contact with any walls made of
flammable material; furthermore, appropriate measures should also be adopted to ensure the thermal
insulation of flammable parts, such as the installation of heat shields; take special care to ensure that
appliances are installed in an appropriate and safe manner. The support feet can be adjustable in height and
any unevenness can therefore be eliminated.
ELECTRICAL CONNECTION
Caution
In accordance with international provisions, when connecting the appliance an automatic
device must be installed up-line of it so that the device can be fully disconnected from the
mains; this device must have a contact aperture of at least 3 mm.
The connection terminal is located behind the rear wall. Proceed as follows to install the power supply cable:
· Remove the rear panel.
· Pass the new connection cable through the cable gland, connect the leads to the corresponding terminal
on the terminal block and fasten them securely.
· Lock the cable with the cable gland and refit the panel. The earth/ground lead must be longer than the
others so that if the cable gland breaks it is disconnected after the power cables.
Note
Make sure that the mains voltage complies with the data on the appliance's ID plate and that there is
good conductivity to earth/ground. Pay attention when inserting leads to ensure they do not obstruct
the normal course of work and routine appliance cleaning operations. Also make sure that the power
cable is never pulled taut and is not placed in contact with sources of heat.
Translation of the original instructions
14
Page 15
INSTALLATION
Note
The connection cable must have the following characteristics: it must be silicone type (to
withstand temperatures of 180 °C), and must have an appropriate cross-section for the power
of the appliance (see technical data table).
EQUIPOTENTIAL
The appliance must be connected to an equipotential system. The connecting screw is located on the rear of
the appliance and is marked by the yellow symbol above it.
Warning
The manufacturer is not liable for and does not indemnify damages caused by incorrect
inadequate installations that do not comply with these instructions.
3.5 Water connection and drainage
· It is advisable to connect the appliance to the hot water pipe (max. 60 °C) to reduce heating times; we
also recommend installing a shut-off valve up-line of the appliance
· The discharge pipe must be connected to a suitable drain in compliance with applicable legislation. It is
advisable to connect pipes without bends to avoid bottlenecks or siphon effects. Water is drained by
gravity. Inasmuch, it is essential that the drain is below the exit point of the pipe
Commissioning: before using the appliance, clean it carefully, especially the tank (see the "cleaning and
care" section). Check the appliance's water connection and operate it in accordance with the instructions
given below
Warning
The appliance must only be used under surveillance
Filling with water: make sure that the drain tap lever is in the closed position. Open the tap to fill the tank
with water up to the level indicated by the lower notch.
Translation of the original instructions
15
Page 16
INSTRUCTIONS FOR USE
4 INSTRUCTIONS FOR USE
4.1 General information
This appliance must only be used for its expressly intended purpose for cooking or heating food. Any other
use is considered improper. The appliance is also intended for industrial use and must only be used by
personnel trained for use and aware of the risks that the hot element entails.
Warning
The appliance operates at high temperatures, so the following is necessary:
· Pay attention to the areas surrounding the hot surface during routine normal operation
(danger of scalding);
· RISK OF BURNS Do not touch hot surfaces floor with your hands or other parts of the body
to avoid burns caused by high temperatures;
· After switching off the appliance, wait for a sufficient time for it to cool before carrying out
any cleaning or maintenance operation.
· Do not operate the appliance without water in the tank
4.2 Turning on the appliance
· When the appliance is powered up, the red indicator light flashes briefly for about 1/2 second
· If there is no water in the tank, the red indicator light continues flashing
· Open the water tap to fill the tank up to the level mark; filling must be higher than the minimum level
sensor but not exceed the maximum level marked on the tank
· For models with automatic control water filling starts. The desired level can be selected by pressing the
button with symbol ; high level for cooking pasta, low level for steaming
Note
If the water does not arrive to the level sensor, the level sensor control unit does not permit the
heating element to heat up
· Turn the control knob corresponding to the plate from position "0" to the heating level desired, between 1
and 3
· The white indicator light turns on as soon as the heating element is powered
4.3 Switching the appliance off
Translation of the original instructions
16
Page 17
INSTRUCTIONS FOR USE
Turn the knob to position "0". This control stops the power supply completely
4.4 Emptying the tank
To perform this operation, open the drain tap (lever in vertical position) which can only be reached from the
door of the cabinet underneath the appliance
Note
It is advisable to perform this operation using water that is not excessively hot
4.5 Safety thermostat
The appliance is equipped with a safety thermostat that cuts off the power supply to the heating element if
the temperature of the heating element rises above 180°C. In the event of dry operation, the thermostat is
triggered after a few seconds. To restore operation, simply remove the threaded nut on the front panel of the
appliance and use a screwdriver to press the red button on the thermostat for a few seconds. If the problem
occurs again, even if the tank is full of water, call the assistance service.
4.6 Pasta cooker with automatic loading
If the probe does not detect water in the tank, the system resets the correct level and after 15 sec. disables
the heating element: an alarm is signalled by the red indicator light flashing. When the probe detects water
again, the heating element is immediately activated and after 3 sec. automatic refilling is interrupted. The
system monitors the filling phase through a TIME-OUT.
· Slow refilling button
When the "slow refilling button" is active, the system fills the tank slowly to prevent possible foaming
· Level button
The "level button" defines the level of water in the tank: high level for cooking pasta, low level for steaming
Warning
Keep the level sensor clean
Translation of the original instructions
17
Page 18
INSTRUCTIONS FOR USE
Caution
If the probe does not detect water in the tank for more than 15 sec., the system disables the
heating element: an alarm is signalled by the red indicator light flashing. When the probe
detect water again, the heating element is activated and the red indicator light switches OFF.
· TIME-OUT
Once the level probe is uncovered, the micro-controller activates an internal timer for the duration of this
stage. If the filling lasts (continuously) for more than 350 seconds, the system blocks the operation of the
device and an alarm is signalled by the red indicator light ON steady. To reset the alarm condition, first
eliminate the fault that caused it to trip (broken or disconnected level probes, water system problems, drain
tap open ...) and then switch the system OFF/ON .
4.7 Characteristics of the feed water
The inlet must be supplied with drinkable water having the specific characteristics listed below, otherwise
the warranty will be forfeited
· Total hardness between 0.5 and 5 French degrees to reduce the formation of scale
· Pressure between 50 and 250 kPa (0.5-2.5 bar)
· pH above 7
· Electrical conductivity between 50 and 2000 μS/cm (20 °C)
· Chloride ion concentration (Cl-) not too high (acceptable reference value: 10ppm) to avoid attacking
the internal steel structures
Translation of the original instructions
18
Page 19
MAINTENANCE
5 MAINTENANCE
5.1 Routine
When using the appliance over time, it is essential to perform regular maintenance to ensure safe operation.
We therefore recommend stipulating a service contract.
Caution
Maintenance must only be performed by specialist personnel in compliance with current
Before carrying out any maintenance and/or cleaning operation:
· Disconnect the appliance from the mains power supply and/or close the gas.
· Wait for a sufficient time for the appliance to cool down.
· Do not wash the appliance with direct or high-pressure jets of water, since any infiltration of water into the
Replacing parts must exclusively be performed by authorised and/or qualified personnel. When replacing the
electrical components of the machine and the electrical panels, scrupulously follow the technical
characteristics for the replacement component indicated on the component itself. The appliance does not
require any special maintenance but during the use of the equipment it is advisable to check the following at
least once a year (possibly increasing the frequency depending on the degree of use):
· The status of connections especially on the terminal board and the power supply cable, as well as the
· The operating condition of the various components (perform a functional test);
· For appliances fitted with rotary resistances, remove the hub, grease it and replace the three o-ring seals
regulations and our own instructions.
electrical components could jeopardise correct operation of the appliance and its safety systems.
Warning
For maintenance/replacement of components, order and use only original spare parts.
status of the gas connections;
to avoid possible leaks.
5.2 Accessibility
To access the terminal box, remove the back of the appliance. The control elements can be reached from the
front dashboard, unscrew the black cap of the water outlet lever, unscrew the screws that secure the
dashboard and remove the latter
Translation of the original instructions
19
Page 20
MAINTENANCE
5.3 Spare parts
It is possible to replace parts such as the valve, the piezoelectric or the ignition control unit (depending on
the type of appliance) or the gas pipes easily and quickly.
To replace such parts, proceed as follows:
· SWITCH: Remove the knob and open the panel, unscrew the two screws that fasten the switch/regulator
to the panel, remove all the electrical connections and proceed with replacement
· LEVEL CONTROL UNIT: disconnect the electrical connections that connect it to the sensor, unscrew the
screws that fasten it to the bottom of the appliance and replace it
· ROTARY HEATING ELEMENT; remove the panel and remove the wires connecting the heating element.
Unscrew the two 8 mm screws that fasten the bracket to the heating element and pull out the bracket
until it can be removed. At this point, the heating element can be removed from inside the bowl, pushing
it towards the draught diverter. Also replace the 3 o-rings (see point 1 in figure C) and apply a bit of
grease to facilitate the operation.
Note
It is recommended to replace the three o-rings once a year as they are subject to wear and, with
time, can cause leaks
Caution
WHAT TO DO IN THE EVENT OF FAULTS:
Close the gas connection cock and/or switch off the power using the up-line device. Notify
customer service.
Warning
MEASURES TO BE TAKEN IF THE APPLIANCE IS NOT TO BE USED FOR A LONG TIME:
Close the gas cock and/or disconnect the power supply. Clean the system as specified above.
Translation of the original instructions
20
Page 21
CLEANING
6 CLEANING
6.1 Routine cleaning
Caution
The use of flammable fluids to clean the appliance is forbidden
To ensure hygiene and the durability of the appliance, perform external cleaning on a regular basis, taking
care not to damage the cables and the electrical connections. Before starting cleaning, disconnect the
appliance from the power supply. Parts in steel can be washed with warm water and a neutral detergent:
Rinse them thoroughly to eliminate all traces of detergent and then dry with a dry cloth. Do not use abrasive
and corrosive detergents. Enamelled parts must be washed with soapy water. For appliances that included
an oven, cleaning it is made easier by removing the support grid. Thorough, daily cleaning prevents faults
and accumulated deposits of fat and/or food. The steels used in the manufacture of professional equipment
are tried and tested materials of the highest quality. Thanks to their characteristics, they are ideal materials
for use with food substances.
Consequently, when using stainless steel appliances, the following suggestions must be observed:
· Stainless steel surfaces must always be kept clean, also ensuring contact with the air. The lack of oxygen
under layers of scale, starch, egg white or other deposits means that surfaces can be affected by
corrosion
· Do not use products containing salt or sulphuric acid to remove scale. Suitable products are available
commercially but a diluted solution of acetic acid can also be used
· To clean STAINLESS STEEL appliances, it is advisable to use detergents specifically formulated for this
material. For "minor cleaning", a mild washing up liquid solution may also be used
· Do not wash the appliance with jets of water under pressure
· Avoid using detergents containing abrasive powders or bleaches of any kind
· Lockable stainless steel appliances, during periods of inactivity, must be left uncovered so that air can
freely access internal metal surfaces
· Stainless steel must not remain in contact for long periods with concentrated acids or with aromatised
concentrates such as salt solutions, mustard, spice mixtures or the like. At certain temperatures and
concentrations, these substances can damage the passive layer. Contact surfaces must therefore be
immediately rinsed with clean water and then dried
· It is inadvisable to use stainless steel pots exclusively to cook foods in salt water (pasta, rice, potatoes,
etc.). From time to time, these pots must also be used to cook foods containing fats or vegetables. This
helps to prevent damage caused by corrosion
· After cooking foods in salt water, rinse the tanks with fresh water since salt water residues from cooking
form layers of highly concentrated saline solution that can cause spotting corrosion
· To prevent so-called secondary corrosion, prolonged contact of stainless steel with ferritic steels should
be avoided
· Any secondary corrosion spots must be eliminated immediately
· Do not use sharp objects that may scratch stainless steel parts and consequently give rise to
deterioration
Translation of the original instructions
21
Loading...
