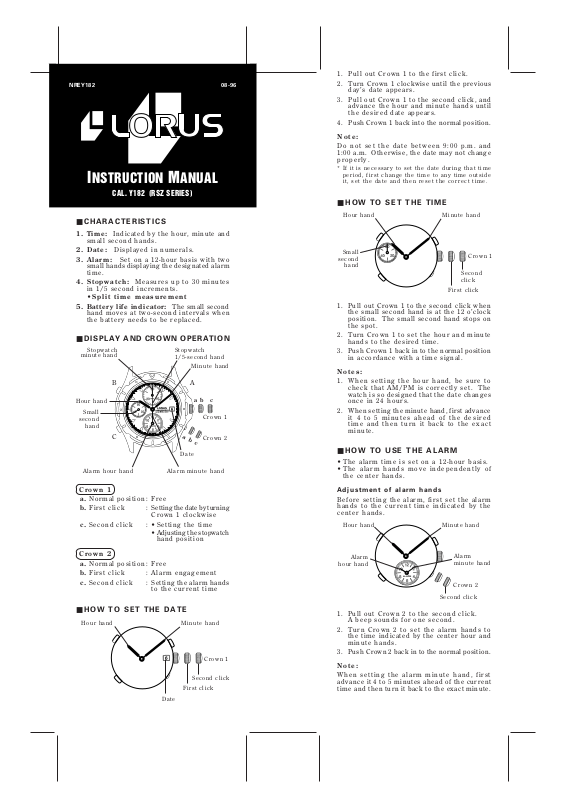

NREY182
INSTRUCTION MANUAL
CAL. Y182 (RSZ SERIES)
■ CHARACTERISTICS
1. Time: Indicated by the hour, minute and
small second hands.
2. Date: Displayed in numerals.
3. Alarm: Set on a 12-hour basis with two
small hands displaying the designated alarm
time.
4. Stopwatch: Measures up to 30 minutes
in 1/5 second increments.
•Split time measurement
5. Battery life indicator: The small second
hand moves at two-second intervals when
the battery needs to be replaced.
■ DISPLAY AND CROWN OPERATION
Stopwatch
minute hand
B
Hour hand
Small
second
hand
C
Crown 1
a. Normal position: Free
b. First click : Setting the date by turning
c. Second click : •Setting the time
Crown 2
a. Normal position: Free
b. First click : Alarm engagement
c. Second click : Setting the alarm hands
■ HOW TO SET THE DATE
Stopwatch
1/5-second hand
Minute hand
A
a b c
Crown 1
a b c
Crown 2
Date
Alarm minute handAlarm hour hand
Crown 1 clockwise
•Adjusting the stopwatch
hand position
to the current time
Minute handHour hand
Crown 1
Second click
First click
Date
08-96
1. Pull out Crown 1 to the first click.
2. Turn Crown 1 clockwise until the previous
day’s date appears.
3. Pull out Crown 1 to the second click, and
advance the hour and minute hands until
the desired date appears.
4. Push Crown 1 back into the normal position.
Note:
Do not set the date between 9:00 p.m. and
1:00 a.m. Otherwise, the date may not change
properly.
* If it is necessary to set the date during that time
period, first change the time to any time outside
it, set the date and then reset the correct time.
■ HOW TO SET THE TIME
Minute handHour hand
Small
second
hand
1. Pull out Crown 1 to the second click when
the small second hand is at the 12 o’clock
position. The small second hand stops on
the spot.
2. Turn Crown 1 to set the hour and minute
hands to the desired time.
3. Push Crown 1 back in to the normal position
in accordance with a time signal.
Crown 1
Second
click
First click
Notes:
1. When setting the hour hand, be sure to
check that AM/PM is correctly set. The
watch is so designed that the date changes
once in 24 hours.
2. When setting the minute hand, first advance
it 4 to 5 minutes ahead of the desired
time and then turn it back to the exact
minute.
■ HOW TO USE THE ALARM
• The alarm time is set on a 12-hour basis.
• The alarm hands move independently of
the center hands.
Adjustment of alarm hands
Before setting the alarm, first set the alarm
hands to the current time indicated by the
center hands.
Minute handHour hand
Alarm
hour hand
1. Pull out Crown 2 to the second click.
A beep sounds for one second.
2. Turn Crown 2 to set the alarm hands to
the time indicated by the center hour and
minute hands.
3. Push Crown 2 back in to the normal position.
Note:
When setting the alarm minute hand, first
advance it 4 to 5 minutes ahead of the current
time and then turn it back to the exact minute.
Alarm
minute hand
Crown 2
Second click
Alarm time setting
Alarm
minute hand
Crown 2
First click
Alarm
hour hand
C
1. Pull out Crown 2 to the first click.
2. Press button “C” repeatedly to set the desired
alarm time.
* With each press of button “C”, the alarm
hands move one minute. They move quickly
if the button is kept pressed.
3. Push Crown 2 back in to the normal position.
Note:
If Crown 2 is pulled out to the first click
within one minute after being pushed back
in to the normal position, the alarm sounds.
Alarm engagement/disengagement
● To engage the alarm, pull out Crown 2 to
the first click.
Crown 2
Alarm hands indicate the
designated alarm time.
* The alarm rings at the designated time
for 20 seconds.
To stop it manually, press any one of the buttons,
or push Crown 2 back in to the normal position.
● To disengage the alarm, push Crown 2
back in to the normal position.
Crown 2
Alarm hands indicate
the current time.
Note:
If Crown 2 is pulled out to the second click,
the designated alarm time is canceled with a
beep.
* In that case, set the alarm hands to the time
indicated by the center hands again, push Crown
2 back in to the normal position, and then, pull it
out to the first click and set the desired alarm
time again.
* However, if Crown 2 is pushed back in to the
normal position before the warning beep stops,
the designated alarm time will not be canceled.
■ HOW TO USE THE STOPWATCH
• The stopwatch can measure up to 30 minutes
in 1/5 second increments.
•After 30 minutes, it will start counting again
fron “0” repeatedly up to 6 hours.
Stopwatch minute hand
B
Stopwatch 1/5-second hand
✩ Before using the stopwatch, be sure to check
that Crowns 1 and 2 are set at the normal
position, and press button “B” to reset the
stopwatch hands to “0” position.
Stopwatch operation
Standard measurement
A
■ADJUSTING THE STOPWATCH HAND
POSITION
•If the stopwatch hands will not return to
the “0” position when the stopwatch is reset
or when the battery is replaced with a new
one, follow the procedure below to reset
the hands.
Stopwatch
1/5-second
hand
BA
1. Pull out Crown 1 to the second click.
2. Press button “A” repeatedly to reset the
stopwatch minute hand to the “0” position.
Press button “B” repeatedly to reset the
stopwatch 1/5-second hand to the “0”
position.
* The hands move quickly if the respective
buttons are kept pressed.
3. Push Crown 1 back in to the normal position.
* After adjusting the hand position, set
the time.
Stopwatch
minute hand
Crown 1
Second click
A
A
B
Start Stop Reset
Accumulated elapsed time measurement
A
A A
A
B
Start Stop Restart Stop Reset
* Restart and stop of stopwatch
can be repeated by pressing
button “A”.
Split time measurement
A
Start Split Split Stop Reset
BB
release
* Measurement and release of
split time can be repeated by
pressing button “B”.
A
B
Measurement of two competitors
A
Start Finish 2nd Finish Reset
competitor competiror
Notes on crown operation while the
stopwatch is in use:
1. If Crown 1 is pulled out to the second
click, the stopwatch hands are reset to
“0” position.
2. If Crown 2 is pulled out to the first or
second click, the stopwatch hands are
reset to “0” position.
3. When the stopwatch has been reset and
button “A” is pressed before the hands
reach “0” position, the stopwatch still
starts counting when button “A” is pressed.
time
of 1st
competitor
finishes
time
of 2nd
BB A B
■ RESETTING THE BUIT-IN IC
• In case any of the hands should move improperly,
follow the procedure below to adjust the
hand movement.
B
A
Crown 1
Second click
1. Pull out Crown 1 to the second click.
2. Press buttons “A” and “B” simultaneously
3. Push Crown 1 back in to the normal position.
* Before using the watch again, be sure to
adjust the position of the stopwatch hands
and set the time and alarm.
■ LUMIBRITE WATCH
(dial, hands, buttons, case, bezel,
strap, etc.)
✩ If your watch is a LORUS LUMIBRITE watch,
it has following features.
LORUS LUMIBRITE watches absorb and store
light energy from natural and artificial light
sources and emit light in the dark. They are
made of environmentally friendly material,
and therefore, are harmless to human beings
and the environment.
• With a full charge, LORUS LUMIBRITE
watches glow in the dark hours longer than
conventional luminous watches of this type.
If exposed to a light of more than 500 lux
(i.e., the brightness of a typical office) for
approximately 10 minutes, or direct sunlight
for 2 minutes, they will glow for hours.
• Since LORUS LUMIBRITE watches emit
the light they store, the brightness will
decrease gradually over time. The length
of time they will glow may also differ slightly
depending on such factors as the brightness
of and distance from the light source used
to charge the watch.
■ BATTERY CHANGE
The miniature battery SEIKO SR927W, Maxell
SR927W, SONY SR927W or EVEREADY 399,
which powers your watch should last approximately
2 years. However, because it is inserted at
the factory, the actual life of the battery once
in your possession may be less than the specified
period.
Be sure to replace the battery to prevent any
possible malfunction as soon as it runs down.
To replace the battery, we recommend taking
the watch to a local watch repair shop.
Note: If the alarm is used more than once
a day and/or the stopwatch more than
20 seconds a day, the battery life
may be less than the specified period.
Battery life indicator
When the battery nears its end, the small
second hand moves at two-second intervals
instead of normal one-second intervals to
indicate that the battery needs to be replaced.
* The watch will remain accurate while the second
hand is moving at two-second intervals.
■ CARE OF YOUR LORUS WATCH
• BATTERY
CAUTION
Do not expose the old battery to
fire or recharge it. Keep it at a
place beyond the reach of children. If a child swallows it,
consult a doctor immediately.
• TEMPERATURE
Your watch is preadjusted so that constant
accuracy may be insured at normal temperature.
■ SERVICE
When your LORUS watch requires repair or
servicing, please see the enclosed WARRANTY/
GUARANTEE.
Printed in Hong Kong
• WATER RESISTANT
Condition
Accidental
of use
contact with
No
water, such
as splashes
and rain
*
Indication on
the dial/
case back
indication
WATER
RESISTANT
WATER
RESISTANT
(50 M/5 BAR)*
WATER
RESISTANT
100 M/
10 BAR or
()
above
* If your watch is 200 M/20 BAR, 100 M/10
BAR or 50 M/5 BAR water resistant, it is so
indicated on the dial/case back.
• Do not press the buttons or turn the crowns
when the watch is wet.
• If the watch is exposed to salt water, rinse
it in fresh water and then wipe it thoroughly
dry.
Swimm-
Skin
diving
Scuba
diving
ing and
taking a
shower
NO NO NO NO
YES NO NO NO
YES YES NO NO
YES YES YES NO
Caution:
Leather straps are not water resistant except
so indicated, even if the watch head is water
resistant.
• ALLERGIC REACTION
Because the case and band touch the skin
directly, it is important to clean them
regularly. If not, shirt sleeves may be
stained and those with delicate skin may
develop a rash. Please wear the watch
with some play to avoid any possible allergic
reaction. If you develop a rash on your
wrist, stop wearing and consult a physician.
• MAGNETISM
Your watch will not be affected by magnetism generated by household electric
appliances.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports
activities, but be careful not to drop it or
hit it on hard surfaces.
