■ CHARACTERISTICS
1. Time/calendar display:
•Hour, minutes, seconds, month, date and day
of the week.
•Fully automatic calendar: Calendar adjusts automatically for odd and even months
including February of leap years from the
year 1994 up to the end of 2043.
•Time indication: Changeover between 12and 24-hour indications is possible.
2. Stopwatch: Measures up to 10 hours with
1⁄100-second readout.
•8 lap memory: Up to 8 lap times can be
stored in memory.
3. Stroke function:
• The stroke per minute, for example pulse
rate, can be calculated and displayed.
4. Countdown timer:
• Preset timer: Nine different lengths of time
(3, 5, 10, 15, 20, 30, 35, 40 and 45 minutes)
have been preset for the timer.
•Adjustable timer: Up to 9 hours and 59
minutes can be set in minutes.
•Auto repeat function: After the set time is
up, the timer counts down the set time again
as many times as necessary.
5. Daily alarm: The alarm can be set to ring on
a 24-hour basis. At a designated time, the display is illuminated as the alarm rings.
•Hourly time signal: Can be set to ring
every hour on the hour with a single beep.
6. Illuminating light: The light evenly illuminates the display in the dark.

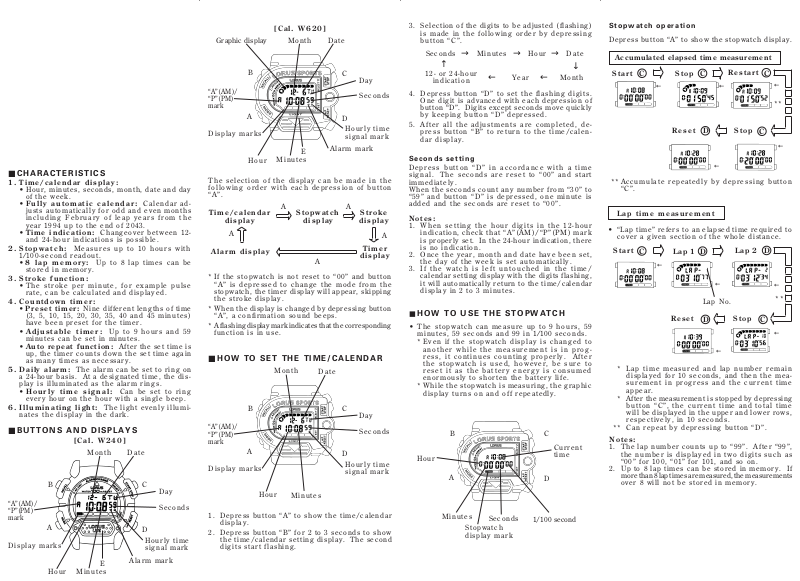

■ BUTTONS AND DISPLAYS
[Cal. W240]
B
“A”(AM)/
“P”(PM)
mark
Display marks
A
Hour
Month
Minutes
E
Date
C
Day
Seconds
D
Hourly time
signal mark
Alarm mark
[Cal. W620]
Graphic display
B
“A”(AM)/
“P”(PM)
mark
A
Display marks
Hour
The selection of the display can be made in the
following order with each depression of button
“A”.
Time/calendar
display
A
Alarm display
* If the stopwatch is not reset to “00” and button
“A” is depressed to change the mode from the
stopwatch, the timer display will appear, skipping
the stroke display.
* When the display is changed by depressing button
“A”, a confirmation sound beeps.
* A flashing display mark indicates that the corresponding
function is in use.
Month
Minutes
AA
Stopwatch
E
display
A
Date
C
Day
Seconds
D
Hourly time
signal mark
Alarm mark
Stroke
display
display
A
Timer
■ HOW TO SET THE TIME/CALENDAR
Month
B
“A”(AM)/
“P”(PM)
mark
A
Display marks
Hour
1. Depress button “A” to show the time/calendar
display.
2. Depress button “B” for 2 to 3 seconds to show
the time/calendar setting display. The second
digits start flashing.
Minutes
Date
C
Day
Seconds
D
Hourly time
signal mark
3. Selection of the digits to be adjusted (flashing)
is made in the following order by depressing
button “C”.
Seconds Minutes Date
↑
12- or 24-hour
indication
4. Depress button “D” to set the flashing digits.
One digit is advanced with each depression of
button “D”. Digits except seconds move quickly
by keeping button “D” depressed.
5. After all the adjustments are completed, depress button “B” to return to the time/calendar display.
Seconds setting
Depress button “D” in accordance with a time
signal. The seconds are reset to “00” and start
immediately.
When the seconds count any number from “30” to
“59” and button “D” is depressed, one minute is
added and the seconds are reset to “00”.
Notes:
1. When setting the hour digits in the 12-hour
indication, check that “A”(AM)/“P”(PM) mark
is properly set. In the 24-hour indication, there
is no indication.
2. Once the year, month and date have been set,
the day of the week is set automatically.
3. If the watch is left untouched in the time/
calendar setting display with the digits flashing,
it will automatically return to the time/calendar
display in 2 to 3 minutes.
■
HOW TO USE THE STOPWATCH
• The stopwatch can measure up to 9 hours, 59
minutes, 59 seconds and 99 in 1⁄100 seconds.
* Even if the stopwatch display is changed to
another while the measurement is in progress, it continues counting properly. After
the stopwatch is used, however, be sure to
reset it as the battery energy is consumed
enormously to shorten the battery life.
* While the stopwatch is measuring, the graphic
display turns on and off repeatedly.
BC
Hour
A
Minutes
Stopwatch
display mark
Year
Seconds
→Hour→→
↓
←←
Month
Current
time
D
1/100 second
Stopwatch operation
Depress button “A” to show the stopwatch display.
Accumulated elapsed time measurement
C
←
←
Lap No.
D
←
Restart
←
C
** Accumulate repeatedly by depressing button
“C”.
Lap time measurement
• “Lap time” refers to an elapsed time required to
cover a given section of the whole distance.
C
* Lap time measured and lap number remain
displayed for 10 seconds, and then the measurement in progress and the current time
appear.
* After the measurement is stopped by depressing
button “C”, the current time and total time
will be displayed in the upper and lower rows,
respectively, in 10 seconds.
** Can repeat by depressing button “D”.
Notes:
1. The lap number counts up to “99”. After “99”,
the number is displayed in two digits such as
“00” for 100, “01” for 101, and so on.
2. Up to 8 lap times can be stored in memory. If
more than 8 lap times are measured, the measurements
over 8 will not be stored in memory.
StopStart
←
Reset D Stop
Lap 1 D
←
C
←
**
C
←
Lap 2Start
D
←
**
StopReset
C
←
Memory function
• Up to 8 lap times are automatically stored in
memory, and they can be recalled either during
or after the measurement.
B
“RECALL” mark
D
[Memory recall after measurement]
1. Depress button “B” to show the memory recall
display. The oldest measurement stored in
memory is displayed.
2. With each depression of button “D”, the stored
data are recalled successively from the oldest
to the newest.
[Memory recall during measurement]
1. Depress button “B” to show the memory recall
display. The newest measurement stored in
memory is displayed.
2. With each depression of button “D”, the stored
data are recalled successively from the oldest
to the newest.
Note: Even if the digits are reset to “00” in the
stopwatch measurement, stored data is not
erased and can be recalled unless a new
measurement is started.
■HOW TO USE THE STROKE FUNCTION
• The stroke per minute, for example pulse rate,
is automatically calculated by measuring the
time required to make three strokes.
• The time required to make each stroke is measured
up to 9 seconds and 99 in 1/100 seconds.
• The measurable number of strokes per minute
is between 18 and 240.
Note: The stroke and stopwatch functions can-
not be used simultaneously.
BC
A
Stroke display
mark
D
Stroke measurement
1. Depress button “A” to show the stroke display.
2. Depress button “C” to start the measurement.
3. When the third stroke is made, depress button
“C” to stop the measurement. The number of
strokes per minute will be displayed.
Start Stop
1st sroke
Start Stop
C
Measuring
2nd stroke
Number of strokes
per minute
3rd stroke
C
BC
Hour
A
Selection of the preset time
1. Depress button “A” to show the timer display.
2. Depress button “D” to select the desired preset
time. Selection of the preset time is made in
the following order by depressing button “D”.
3 min. 5 min. 10 min. 15 min. 20 min.
↑
Notes:
1. The measurable number of strokes per minute
is between 18 and 240. If the measurement is
stopped within 0.75 seconds after it is started
by depressing button “C”, “-␣ -␣ -” is displayed.
If the measurement is not stopped after more
than 10 seconds have elapsed, “Err” will automatically appear.
When the measurement is stopped
[][]
within 0.75 seconds
2. Even if “-␣ -␣ -” or “Err” is shown on the display,
the measurement can be started by depressing
button “C”.
When the measurement exceeds more
than 10 seconds
C
C
■HOW TO USE THE TIMER
• Two types of timers (adjustable timer and preset
timer) are available.
• After the set time is up, the timer counts down
the set time repeatedly. After the timer is used,
therefore, be sure to reset it as the battery
energy is consumed enormously to shorten the
battery life.
1. How to Use the Preset Timer
• Nine different lengths of time (3, 5, 10, 15, 20,
30, 35, 40 and 45 minutes) have been preset for
the timer.
Preset timer operation
Depress buttons in the following order.
C
Start
* A warning sound beeps for 5 seconds when the
set time is up. To stop it manually, depress
button “A”, “B”, “C”, “D” or “E”.
Notes:
1. After the countdown is repeated 99 times, the
2. Once the timer is set, the set time is retained
2. How to Use the Adjustable Timer
• The adjustable timer can be set for up to 9
hours and 59 minutes in minutes.
Adjustable timer setting
1. Depress button “A” to show the timer display.
2. Depress button “B” for 2 to 3 seconds to show
45 min. 40 min. 35 min. 30 min.
* The preset time does not include 25 minutes.
To set 25 minutes for the timer, use the adjustable
timer.
C
Stop
Restart and stop of the
timer can be repeated
by depressing button
“C”.
number of times the countdown is repeated is
displayed in two digits such as “00” for 100,
“01” for 101, and so on.
and can be used repeatedly unless it is readjusted.
the adjustable timer setting display. The minute
digits start flashing.
* To facilitate the adjustable timer setting procedure,
depress button “D” to select a preset time
closest to the time you wish to set, and then,
depress button “B” to show the adjustable
timer setting display.
Current time
Number of times
the countdown is
repeated
D
E
SecondsMinutes Timer display
mark
→→→ →
←←←
C
Restart
Time-up
Warning
sound
beeps.
↓
C
Stop
D
Reset
3. Selection of the digits to be adjusted (flashing)
is made in the following order by depressing
button “C”.
Minutes Hour
→
↑
4. Depress button “D” to set the digits. One digit
is advanced with each depression of the button.
The digits move quickly by keeping the button
depressed.
5. After all the adjustments are completed, depress button “B” to return to the timer display.
The time you have set remains displayed.
* If button “D” is depressed while the time you
have set is displayed, the set time will be canceled
and the preset time 3 minutes will be shown.
Note: If the watch is left untouched in the adjustable
timer setting display with the digits flashing,
it will automatically return to the timer
display in 2 to 3 minutes.
Adjustable timer operation
Refer to “Preset timer operation” above.
■ HOW TO SET THE ALARM
• The alarm can be set to ring on a 24-hour basis.
At the designated time, the display is illuminated as the alarm rings.
Current time
BC
“A”(AM)/
“P”(PM)
mark
A
E
MinutesHour
1. Depress button “A” to show the alarm display.
2. Depress button “B” for 2 to 3 seconds to show
the alarm setting display. The alarm mark and
“on”/“-␣ -” mark disappear and the hour digits
(and “A”/“P” mark if the time is set in the 12hour indication) start flashing.
3. Depress button “C” to select the digits to be
adjusted (flashing).
Hour Minutes
→
“on”/“-␣ -”
(Alarm
engagement/
disengagement
mark)
D
Hourly time
signal mark
Alarm mark
Alarm display
mark
↑
4. Depress button “D” to set the digits. One digit
is advanced with each depression of the button.
The digits move quickly by keeping the button
depressed.
5. After all the adjustments are completed, depress
button “B” to return to the alarm display.
The alarm mark and “on” mark are automatically displayed.
Notes:
1. When the time function is displayed in the 24hour indication, the alarm is also displayed in
the 24-hour indication.
2. When setting the hour digits in the 12-hour
indication, check that “A”(AM)/“P”(PM) mark
is properly set. In the 24-hour indication, there
is no indication.
3. If the watch is left untouched in the alarm
setting display with the digits flashing, it will
automatically return to the alarm display in 2
to 3 minutes.
Engagement/disengagement of the alarm
• With each depression of button “C” in the alarm
display, the alarm is engaged and disengaged
alternately.
Alarm engaged
Alarm disengaged
• At the designated time, the alarm rings and the
display is illuminated alternately for 20 seconds
and stop. To stop it manually, depress button
“A”, “B”, “C”, “D” or “E”.
Turning on/off of the hourly time signal
and confirmation sound; and alarm test
• With each depression of button “C” in the time/
calendar display, the hourly time signal and
confirmation sound for the button operation are
turned on and off alternately.
Hourly time signal and confirmation sound turned on
Hourly time signal and confirmation sound turned off
• The alarm can be tested by keeping buttons “C”
and “D” depressed in the time/calendar display.
* After the alarm sound is tested, be sure to
check turning on/off of the hourly time signal
and confirmation sound, as they are turned on
and off alternately by depressing button “C”.
■ NOTE ON UNUSUAL DISPLAY
While in the time/calendar setting display, the
display as shown below will appear if both buttons
“C” and “D” are depressed at the same time. This
is not a malfunction. Depress button “A”, “B”,
“C”, “D” or “E” to return to the time/calendar
display, and then set the time/calendar again.
[All the segments lighting up]
■ LUMIBRITE WATCH
(dial, hands, buttons, case, bezel, strap, etc.)
✩ If your watch is a LORUS LUMIBRITE watch, it
has following features.
LORUS LUMIBRITE watches absorb and store light
energy from natural and artificial light sources
and emit light in the dark. They are made of
environmentally friendly material, and therefore,
are harmless to human beings and the environment.
• With a full charge, LORUS LUMIBRITE watches
glow in the dark hours longer than conventional luminous watches of this type. If exposed to a light of more than 500 lux (i.e., the
brightness of a typical office) for approximately 10 minutes, or direct sunlight for 2 minutes,
they will glow for hours.
• Since LORUS LUMIBRITE watches emit the light
they store, the brightness will decrease gradually
over time. The length of time they will glow
may also differ slightly depending on such factors
as the brightness of and distance from the light
source used to charge the watch.
10-94 112L1
NR2AQ
■ LORUS LITE
When button “E” is depressed and released in
the time/calendar, stopwatch, stroke, timer or
alarm display, the electroluminescent light evenly
illuminates the display for 3 seconds for easy
viewing in the dark.
E
Notes:
1. LORUS LITE watches work with one battery.
When the electroluminescent light begins to
lose its luminance, this is an indication that
the battery is depleted. We recommend that
you change the battery before the watch itself
stops.
2. If the electroluminescent light is used continuously for a long time, the battery life may
be less than the specified period.
■ BATTERY CHANGE
The miniature lithium battery Matsushita CR1620
(for Cal. W240)/SEIKO CR2025, SONY CR2025 or
Matsushita CR2025 (for Cal. W620), which powers
your watch should last approximately 2 years.
However, because it is inserted at the factory, the
actual life of the battery once in your possession
may be less than 2 years.
Be sure to replace the battery to prevent any possible
malfunction as soon as it runs down. To replace
the battery, we recommend taking the watch to a
local watch repair shop.
Notes:
1. If the stopwatch and timer are used simultaneously
for more than 10 hours a day, the alarm for
more than 10 seconds (for Cal. W240)/20 seconds
(for Cal. W620) a day, the illuminating light
more than 2 times (for Cal. W240)/3 times (for
Cal. W620) a day and/or the confirmation sound
more than 50 times a day, the battery life may
be less than the specified period.
2. After the battery is replaced with a new one, be
sure to depress buttons “A”, “B”, “C” and “D”
at the same time for 2 to 3 seconds. The display
becomes blank, and when the buttons are released,
the time/calendar of “A 12:00oo SA 1-1” is displayed.
Then, set the desired time/calendar and alarm
time. (See “HOW TO SET THE TIME/CALENDAR”
and “HOW TO SET THE ALARM”.)
■ CARE OF YOUR LORUS WATCH
• BATTERY
CAUTION
Do not expose the old battery to fire
or recharge it. Keep it at a place
beyond the reach of children. If a
child swallows it, consult a doctor
immediately.
• WATER RESISTANT
Condition
Accidental
of use
contact with
No
water, such
as splashes
and rain
*
Indication on
the dial/
case back
indication
WATER
RESISTANT
WATER
RESISTANT
(50 M/5 BAR)*
WATER
RESISTANT
100 M/
10 BAR or
()
above
* If your watch is 200 M/20 BAR, 100 M/10 BAR
or 50 M/5 BAR water resistant, it is so indicated
on the dial/case back.
• Do not operate the buttons when the watch is
wet.
• If the watch is exposed to salt water, rinse it in
fresh water and then wipe it thoroughly dry.
Swimm-
Skin
diving
Scuba
diving
ing and
taking a
shower
NO
YES NO NO NO
YES
YES YES YES NO
NO NO NO
YES NO NO
Caution:
Leather straps are not water resistant except so
indicated, even if the watch head is water resistant.
• ALLERGIC REACTION
Because the case and band touch the skin
directly, it is important to clean them regularly.
If not, shirt sleeves may be stained and those
with delicate skin may develop a rash. Please
wear the watch with some play to avoid any
possible allergic reaction. If you develop a
rash on your wrist, stop wearing and consult
a physician.
• MAGNETISM
Your watch will not be affected by magnetism
generated by household electric appliances.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports
activities, but be careful not to drop it or hit it
on hard surfaces.
• TEMPERATURE
Your watch is preadjusted so that constant
accuracy may be insured at normal temperature.
■SERVICE
When your LORUS watch requires repair or
servicing, please see the enclosed WARRANTY/
GUARANTEE.
Printed in Hong Kong
Loading...
