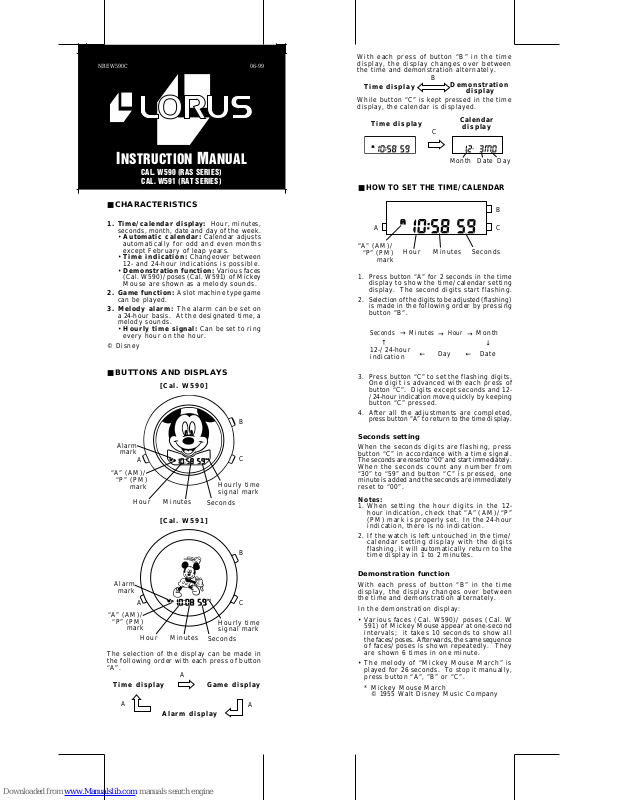

LORUS W590, W591 Instruction Manual

■ CHARACTERISTICS

1. Time/calendar display: Hour, minutes,
seconds, month, date and day of the week.

•Automatic calendar: Calendar adjusts

automatically for odd and even months
except February of leap years.

•Time indication: Changeover between

12- and 24-hour indications is possible.

•Demonstration function: Various faces

(Cal. W590)/poses (Cal. W591) of Mickey
Mouse are shown as a melody sounds.

2. Game function: A slot machine type game
can be played.

3. Melody alarm: The alarm can be set on
a 24-hour basis. At the designated time, a
melody sounds.

•Hourly time signal: Can be set to ring

every hour on the hour.

With each press of button “B” in the time
display, the display changes over between
the time and demonstration alternately.

Time display

Demonstration

display

While button “C” is kept pressed in the time
display, the calendar is displayed.

B

C

INSTRUCTION MANUAL

CAL. W590 (RAS SERIES)
CAL. W591 (RAT SERIES)

NREW590C

06-99

© Disney

■ BUTTONS AND DISPLAYS

[Cal. W590]

[Cal. W591]

The selection of the display can be made in
the following order with each press of button
“A”.

Game display

A

Alarm display

Time display

A

A

A

Hour Minutes

Seconds

Hourly time
signal mark

B

C

B

C

A

“A” (AM)/

“P” (PM)

mark

Alarm

mark

Seconds

Hourly time
signal mark

Minutes

Hour

Alarm

mark

“A” (AM)/

“P” (PM)

mark

Calendar

display

DayDateMonth

“A” (AM)/

“P” (PM)

mark

A

B

C

Hour Minutes Seconds

1. Press button “A” for 2 seconds in the time
display to show the time/calendar setting
display. The second digits start flashing.

2. Selection of the digits to be adjusted (flashing)
is made in the following order by pressing
button “B”.

Seconds setting

When the seconds digits are flashing, press
button “C” in accordance with a time signal.
The seconds are reset to “00” and start immediately.
When the seconds count any number from
“30” to “59” and button “C” is pressed, one
minute is added and the seconds are immediately
reset to “00”.

3. Press button “C” to set the flashing digits.
One digit is advanced with each press of
button “C”. Digits except seconds and 12­/24-hour indication move quickly by keeping
button “C” pressed.

4. After all the adjustments are completed,
press button “A” to return to the time display.

Seconds

Month

HourMinutes

DateDay

12-/24-hour
indication

2. If the watch is left untouched in the time/

calendar setting display with the digits
flashing, it will automatically return to the
time display in 1 to 2 minutes.

Notes:

1. When setting the hour digits in the 12-

hour indication, check that “A” (AM)/“P”
(PM) mark is properly set. In the 24-hour
indication, there is no indication.

Demonstration function

With each press of button “B” in the time
display, the display changes over between
the time and demonstration alternately.

In the demonstration display:

• Various faces (Cal. W590)/ poses (Cal. W

591) of Mickey Mouse appear at one-second
intervals; it takes 10 seconds to show all
the faces/poses. Afterwards, the same sequence
of faces/poses is shown repeatedly. They
are shown 6 times in one minute.

• The melody of “Mickey Mouse March” is

played for 26 seconds. To stop it manually,
press button “A”, “B” or “C”.

* Mickey Mouse March

© 1955 Walt Disney Music Company

■

HOW TO SET THE TIME/CALENDAR

Time display

→

→

→

→

→

→

→

■ HOW TO USE THE GAME

FUNCTION

• A slot machine type game can be played.

■ HOW TO SET THE ALARM

Rule of the Game

• To win, you should press the button to stop
the sequential display of Mickey Mouse faces
(Cal. W590)/poses (Cal. W591) to show on
the display the face/pose that was indicated
as the target before the game starts.

• After the game is over, one of the two different
Mickey Mouse faces/poses appears depending
on whether you have won or lost.

• When you have won, the melody of “Mickey
Mouse March”is played as the winning face/
pose appears, lasting for 26 seconds.

1. Press button “A” to show the game display.

The target face/pose appears.

2. Press button “B” to start the game.

Several faces/poses are shown sequentially.

3. Press button “B” to stop the sequential

display.

4. Either the face/pose when you have won

or that when you have lost is shown, and
then, a new target face/pose will appear.

5. Press button “B” to restart the game, or

press button “A” to change the display to
another as you require.

Game Operation

Notes:

1. If you have won, the winning faces/poses

appear alternately at one-second intervals
and the melody sounds for 26 seconds. To
stop them manually, press button “A”, “B”
or “C”. A new target face will be displayed
immediately.

2. If the watch is left untouched in the sequential

display, it will automatically return to the
target face/pose in 1 to 2 minutes.

3. To win more easily, check the number of

target face/pose as a cue to press the
button timely.

B

C

A

Face/pose No.

B

CA

“A” (AM)/“P”
(PM) mark

Hour Minutes

Hourly time
signal mark

Alarm

mark

1. Press button “A” to show the alarm display.

2. Press button “A” for 2 seconds to show the
alarm setting display. The hour digits
(and “A”/“P” mark if the time is set in the
12-hour indication) start flashing.

3. Press button “B” to select the digits to be
adjusted (flashing).

MinutesHour

→

→

4. Press button “C” to set the digits. One
digit is advanced with each press of the
button. The digits move quickly by keeping
the button pressed.

5. After all the adjustments are completed,
press button “A” to return to the alarm
display.

3. If the watch is left untouched in the alarm
setting display with the digits flashing, it
will automatically return to the alarm display
in 1 to 2 minutes.

Notes:

1. When the time function is displayed in the
24-hour indication, the alarm is also displayed
in the 24-hour indication.

2. When setting the hour digits in the 12­hour indication, check that “A” (AM)/“P ”
(PM) mark is correctly set. In the 24-hour
indication, there is no indication.

• With each press of button “B” in the alarm

display, the engagement and disengagement
of the alarm and hourly time signal are made
as follows.

Engagement/disengagement of the
alarm and hourly time signal

Alarm mark

Hourly time
signal mark

Hourly time signal engaged1

• At the designated alarm time, the melody

of “Mickey Mouse March” is played for 26
seconds and stops. To stop it manually,
press button “A”, “B” or “C”.

• The alarm can be tested by keeping button

“B” pressed in the alarm display.

4

Neither engaged

Alarm engaged3

Both engaged

2

■ NOTE ON UNUSUAL DISPLAY

While in the time/calendar setting display,
the display as shown below will appear if
both buttons “B” and “C” are pressed at the
same time. This is not a malfunction. Press
button “A”, “B” or “C” to return to the time
display, and then set the time/calendar again.

[All the segments lighting up]

■ CARE OF YOUR LORUS WATCH

• BATTERY

• WATER RESISTANT

No

indication

WATER

RESISTANT

WATER

RESISTANT

(50 M/5 BAR)*

WATER

RESISTANT

100 M/

10 BAR or

above

Condition

of use

Accidental
contact with
water, such
as splashes
and rain

Swimm­ing and
taking a
shower

Skin

diving

Scuba

diving
Indica­tion on
the dial/
case back

NO

NO NO NO

YES

YES NO NO

YES NO NO NO

YES YES YES NO

()

*

CAUTION

Do not expose the old battery to
fire or recharge it. Keep it at a
place beyond the reach of chil­dren. If a child swallows it, consult
a doctor immediately.

* If your watch is 200 M/20 BAR, 100 M/10

BAR or 50 M/5 BAR water resistant, it is so
indicated on the dial/case back.

• Do not operate the buttons when the watch
is wet.

• If the watch is exposed to salt water, rinse
it in fresh water and then wipe it thoroughly
dry.

Caution:

Leather straps are not water resistant except
so indicated, even if the watch head is water
resistant.

• ALLERGIC REACTION

Because the case and band touch the skin
directly, it is important to clean them regularly.
If not, shirt sleeves may be stained and
those with delicate skin may develop a
rash. Please wear the watch with some
play to avoid any possible allergic reaction.
If you develop a rash on your wrist, stop
wearing and consult a physician.

• MAGNETISM

Your watch will not be affected by mag­netism generated by household electric
appliances.

• SHOCKS AND VIBRATIONS

Your watch may be worn for normal sports
activities, but be careful not to drop it or
hit it on hard surfaces.

• TEMPERATURE

Your watch is preadjusted so that constant
accuracy may be insured at normal tem­perature.

■ SERVICE

When your LORUS watch requires repair or
servicing, please see the enclosed WARRANTY/
GUARANTEE.

Printed in Hong Kong

■ ViViDiGi

ViViDiGi is a new type of liquid crystal panel
that makes possible various colors and high
contrast.

• Excellent light reflection and transmission
make the display bright and clear.

• Various color options are available.

* Features vary in different models.

■ BATTERY CHANGE

The miniature lithium battery PANASONIC
CR2016,which powers your watch should last
approximately 3 years. However, because it
is inserted at the factory, the actual life of
the battery once in your possession may be
less than the specified period. Be sure to
replace the battery to prevent any possible
malfunction as soon as it runs down. To
replace the battery, we recommend taking
the watch to a local watch repair shop.

Note: If the alarm is used for more than 10

seconds a day and/or the alarm is tested
for more than 10 seconds a day, the
battery life may be less than the specified
period.
