Lorex LW2451, LW2450, LW241, LW2401 User Manual

WIRELESS VIDEO MONITOR
USER’S GUIDE
ENGLISH VERSION 5.0
LW2401/LW2450/LW2451
www.lorextechnology.com
Thank you for purchasing the Lorex LIVE video monitor. This user’s guide refers to the following models:
• LW2401
• LW241
• LW2450
• LW2451
Contents
Before you start, make sure you have the contents listed below.
• 1x Video monitor
• 1x Camera
• 1x Video monitor charging cradle
• 1x Camera power adapter
• 1x Video monitor power adapter
• 1x microSD memory card*
• 1x microSD to SD adapter card*
• 1x mini-USB cable
• 1x User’s guide
• 1x Quick start guide
• 1x Driver CD
• 1x Mounting screw kit
• 3x Cable clips
*Optional. Check the contents on your product package.
i
Safety Instructions
WARNING
This video monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when assembling.
• This product is not a toy. Do not allow children to play with it.
• This video monitor is not a substitute for responsible adult supervision.
• Keep the cords out of reach from children.
• Do not cover the video monitor with a towel or blanket.
• Never use extension cords with power adapters.
• Only use the power adapters provided.
• Test the video monitor before use. Become familiar with its functions.
• Do not use the video monitor near water.
• Do not install the video monitor near a heat source.
• Only insert batteries/battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects. Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.
• Keep this user’s guide for future reference.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
• DISPOSE OF OR RECYCLE BATTERIES PROPERLY IN ACCORDANCE WITH APPLICABLE LAWS, which may vary by location.
• Insert batteries with the correct polarity.
• Do not mix new and used batteries.
• Do not mix alkaline, standard, and rechargeable batteries.
• Remove exhausted batteries from the product.
• Keep all batteries away from children.
ii
Using this product as a baby monitor
3 ft./1m
Option 1: Thread the extra cable through the cable clip notches.
Option 2: Thread the extra cable through the cable clip notches. Wrap the excess cable around the clip.
Option 3: Wrap the excess cable around the clip.
If you intend to use this wireless video monitor as a baby monitor, we advise you to take the following precautions to avoid possible injury to infants:
DO NO
T place baby audio and video camera monitors too close to cribs,
bassinets, play yards, and other safe sleep environments for infants.
• MAKE SURE to run all power adapter cords where they are unlikely to
be tripped over and are out of arms reach of your infant. Keep them at least 3 ft./1m away
• MAKE SURE baby audio and video camera monitors are on a stable
footing so they cannot be easily knocked over
• Use the included cable clips to keep the power cord out of reach from
infants and young children.
NOTE: These pr
ecautions are important even if your infant is not yet
standing or mobile.
Using the Cable Clips
iii
iv
Table of Contents
Video Monitor Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Using the joystick to navigate menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Monitor display icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Camera Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cameras and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LW2401 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pan-Tilt Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Pan/tilt control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 1 of 2: Powering on the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 2 of 2: Powering on the video monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Testing your setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Positioning / wall mounting your camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting camera view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Camera setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Adjusting the camera sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the camera volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the camera night light (LW2401 camera only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Video monitor setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Unlocking the video monitor antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Reading the power indicator LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pairing cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Sequence view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Viewing multiple cameras (Quad view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the talk function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Turning the video monitor screen on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Manual recording & auto recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Manual recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Auto recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Viewing recorded files on the video monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Viewing video files on a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Viewing video files on a Mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Configuring your Video Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Enabling the Auto-Mute feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Configuring the Overwrite feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

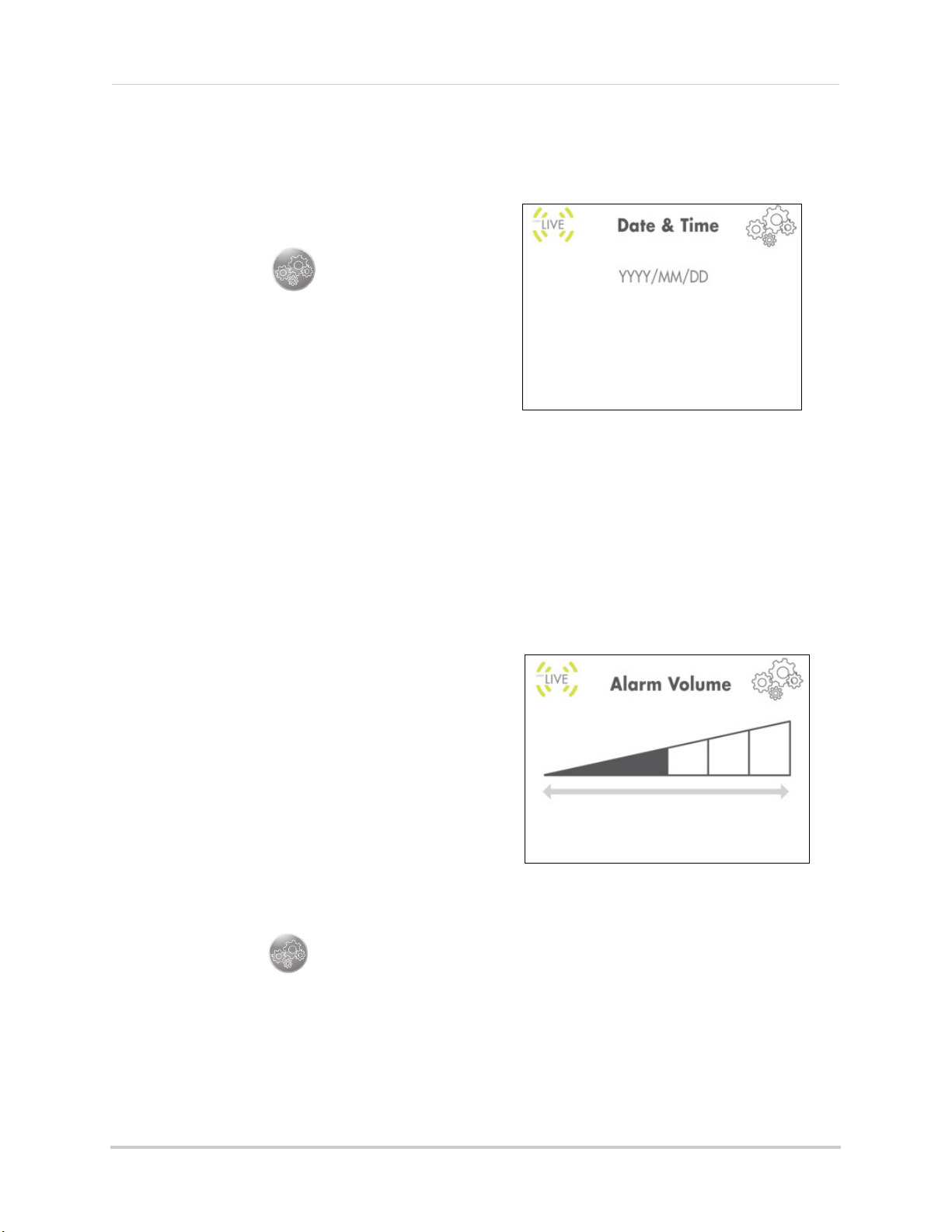

Changing the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Adjusting the alarm volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
v
Adjusting the screen brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the timer settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the temperature unit of measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configuring the temperature alert range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Erasing the memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Restoring default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Viewing your Camera Remotely Using Skype . . . . . . . . . . . . . . . . . . . . . . . 25
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting to Skype on a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Step 1 of 6: Installing the camera driver for PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Step 2 of 6: Connecting the video monitor to the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Step 3 of 6: Creating a Skype account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Step 4 of 6: Configuring Skype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Step 5 of 6: Send a contact request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Step 6 of 6: Test the connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connecting to Skype on a Mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Step 1 of 6: Installing the camera driver for Mac OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

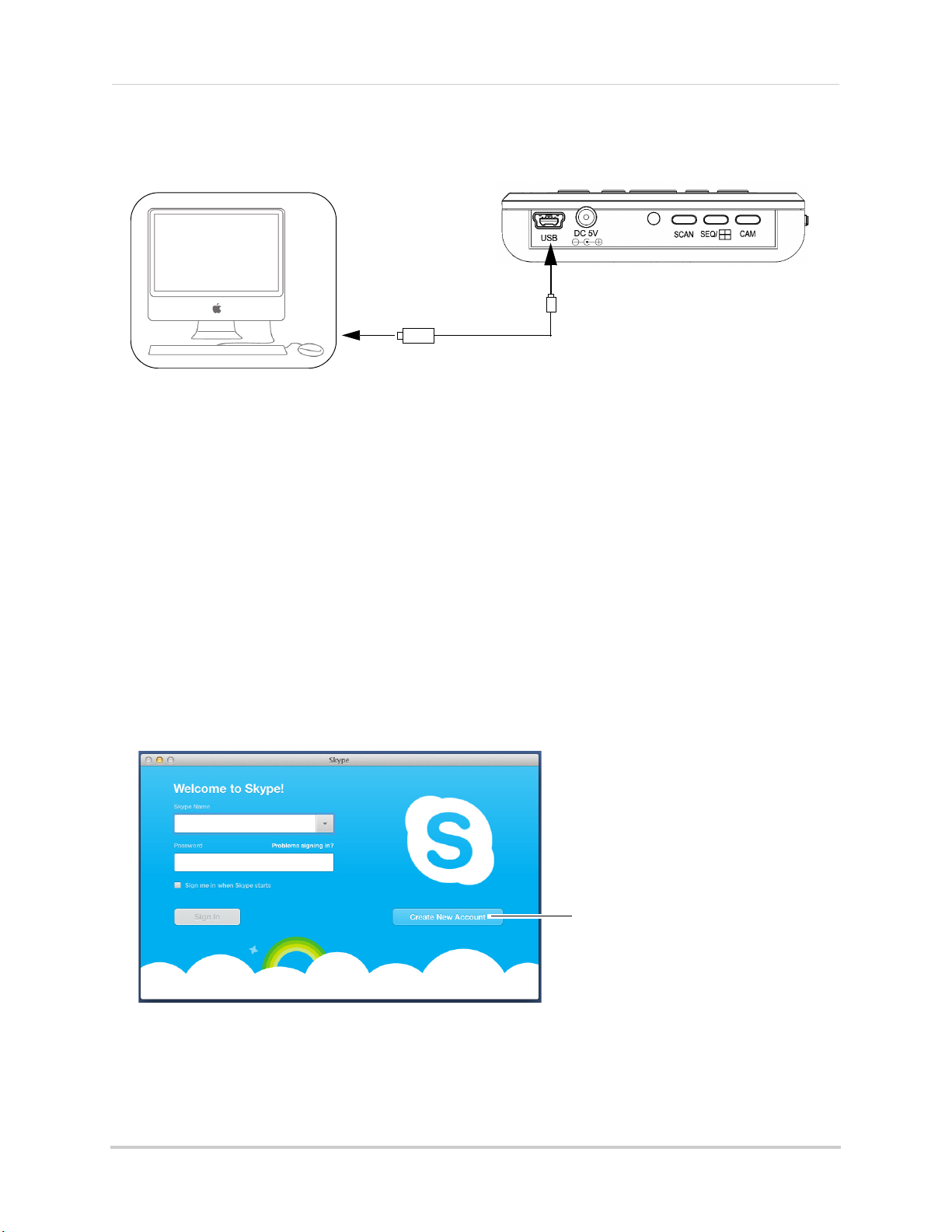

Step 2 of 6: Connecting the video monitor or receiver to your computer . . . . . . . . . . . . . . . . . . . . . . . 32
Step 3 of 6: Creating a Skype account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Step 4 of 6: Configuring Skype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Step 5 of 6: Send a contact request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Step 6 of 6: Test the connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
If you do not have a Skype account... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing the camera view on Skype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Viewing a camera on your mobile device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Supported apps & devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

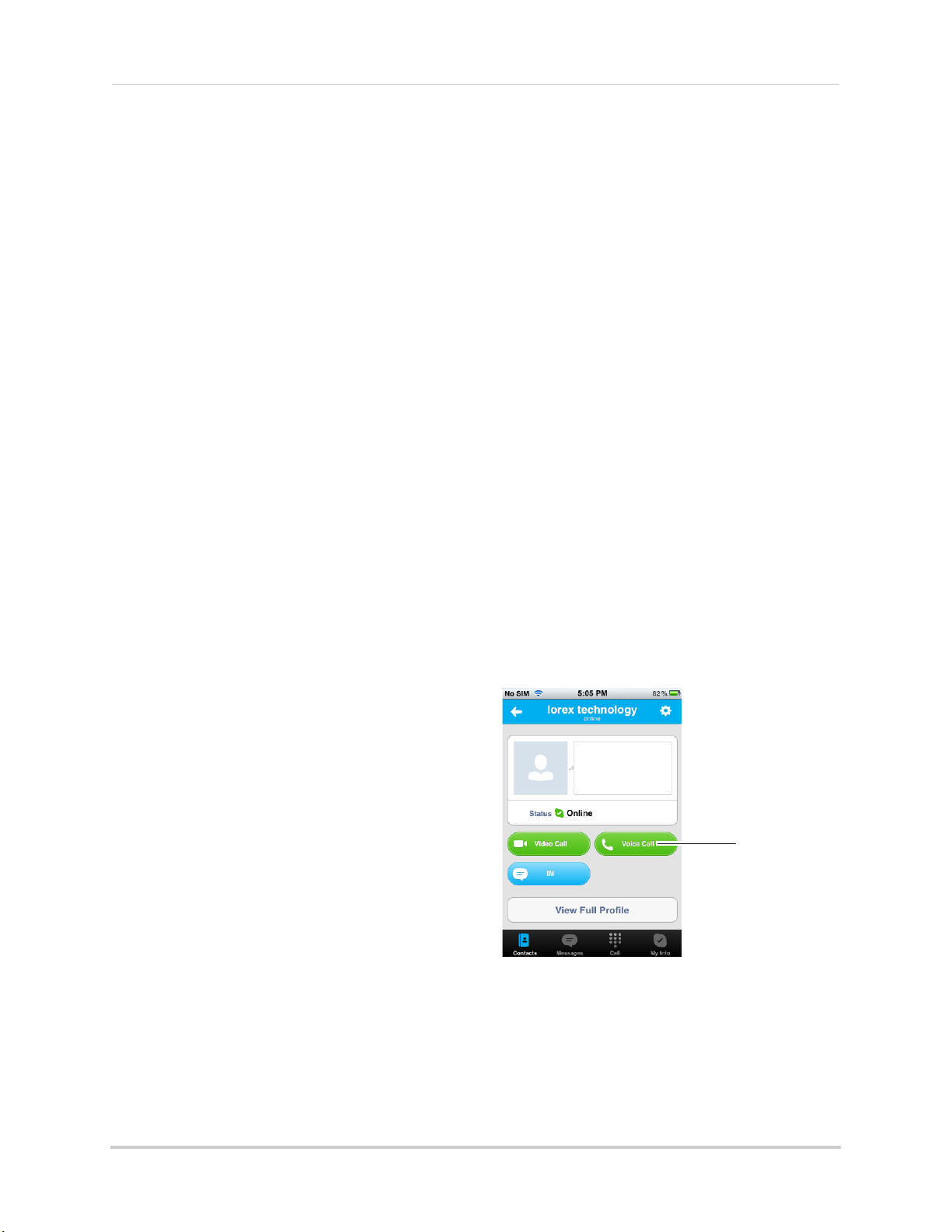

Viewing your camera on iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installing Camera Batteries (LW2401 Camera Only). . . . . . . . . . . . . . . . . 41
Installing non-rechargeable AA batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installing a rechargeable battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Disposal of the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
FCC notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
IC notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Troubleshooting (continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Mounting Template (LW2401 Camera Only) . . . . . . . . . . . . . . . . . . . . . . . . 50
vi

Video Monitor Overview

Video Button
Press the Video button to turn off the screen. The speaker will remain on.
Press to access the monitor menu options. Press Menu again to exit.
Joystick
Use to navigate monitor menus. Press down on the joystick to confirm a selection. Use to control the pan/tilt camera.
Volume Control
Press + / - to control the volume level.
Audio Level Indicator
Displays the level of sound detected by the camera.
Menu Button
Talk Button
Hold the talk button to enable two-way audio between the video monitor and camera.
AUTO LED
Glows blue when auto-record is enabled. Blinks when monitor is in Scan mode.
ON/OFF Switch
Slide the power switch to the ON position to turn the video monitor on.
Music Buttons
Press the button once to begin playing a tune. Press the button again to stop the tune.
Press the button to skip to the next tune.
microSD Card Slot
Ins ert a micro SD card to reco rd vid eo.
NOTE: microSD card and adapter are optional. Check the contents on your product package.
Power LED
Glows green to indicate unit is powered on. Blinks when the battery is low.
Microphone
Allows you to speak to the person on the camera side when you press the Talk button.
Charging Cradle
Charges the video monitor’s battery.
Press to start manual recording.
Manual Record Button
Press to enable auto recording.
Auto Record Button
Slide the switch to release the receiver antenna.
Antenna Unlock Switch
Video Monitor
Overview
1
Video Monitor Overview
OK Button
Step 1: Press the Menu button on the
video monitor.
Step 2: Move the joystick up, down, left, or right to navigate through the menus.
Step 3: Press down on the OK button to confirm a selection or press Menu to exit menus without saving changes.
Menu Navigation
Sequence/Quad Button
Press the Sequence/Quad button to view video in Quad view (4 screen split view), or in Sequence view.

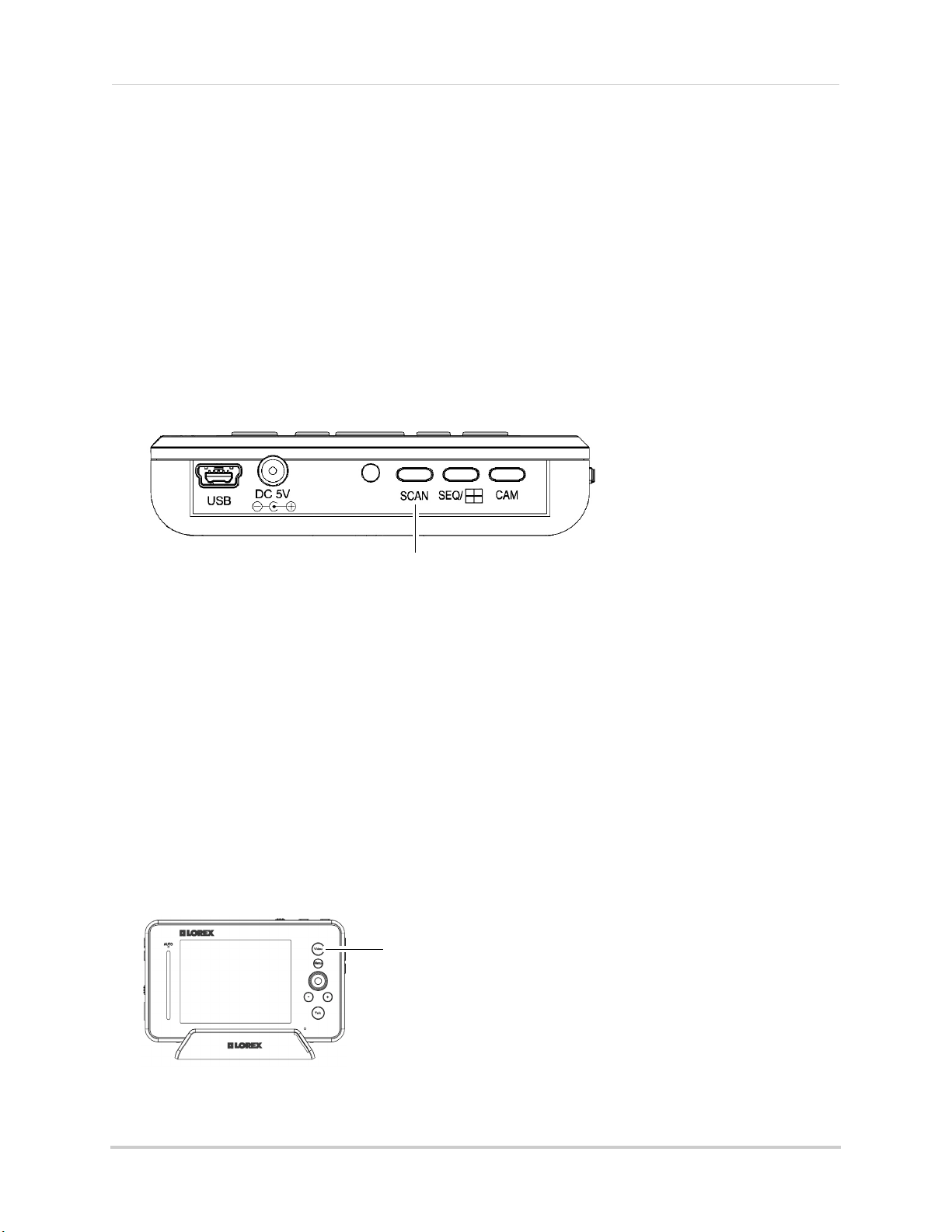

Scan Button
Turns off the video monitor, and waits for a camera to detect a sound. When sound is detected, the video monitor turns back on.
Charging LED Indicator
Glows red to indicate video monitor is charging. Glows green to indicate video monitor is finished charging.
Cam Button
Press the Cam button to manually switch between channels 1-4.
Power Port
Connect the power adapter into the power port to charge the video monitor without the cradle.
Mini USB
Connect a mini USB cable (included) between the video monitor and a computer to view video remotely using Skype (setup required).
Speaker
Plays sound received from the camera(s).
Power Port (DC5V)
Connect the power adapter to the charging cradle.
Charging Terminals
Metal contact points are located on the cradle and underneath the video monitor. These contact points must be aligned to charge the monitor using the cradle.

Using the joystick to navigate menus

The joystick allows you to navigate through the video monitor menus or control the camera angle (pan/tilt camera only, see “Pan/tilt control” on page 6)
2

Monitor display icons

SD
CAM1
REC
OW
The video monitor displays the following icons during normal use.
Icon Meaning
No signal between the camera and video monitor.
Full signal between the camera and video monitor.
Timer is enabled.
The video monitor audio is muted.
The camera night light is on (LW2401 camera only).
Two-way talk is enabled. You can now speak into the video monitor to talk to the camera. Release the Talk button on the video monitor to listen to audio from the camera.
Video Monitor Overview
Charge Battery
Charge Camera
An SD card is inserted in the video monitor.
A new file has been recorded onto the microSD card. Note that this icon is yellow.
The microSD card is full. Note that this icon is red.
Indicates what channel the video monitor is on.
Indicates that the video monitor is recording video. The file name appears beside the REC icon.
Overwrite is enabled. This means the video monitor will overwrite old video files once the card is full. For details, see “Configuring the Overwrite feature” on page 20.
The video monitor battery is low.
The camera batteries are low (LW2401 camera only). For details on installing batteries in the camera, see “Installing Camera Batteries (LW2401 Camera Only)” on page 41.
OUT OF RANGE
The camera is out of range. Move the camera closer to the video monitor.
3

Camera Overview

LW2401AC1
Camera
Accessory #: LW2401AC1
• Wall mountable
• Includes night light
• Takes AA batteries (optional, not included)* or rechargeable battery pack (optional, not included)*
For instructions, see “LW2401 Camera” on page 5.
LW2451AC1
Pan/Tilt Camera
Accessory #: LW2451AC1
• Adjustable pan/tilt using the video monitor joystick
• Wall mount available
• AC power only
For instructions, see “Pan-Tilt Camera” on page 6.
Rechargeable Battery for
LW2401AC1 Camera*
Accessory #: ACC2401BATT
Wall Mount for
LW2451AC1
Camera****
Accessory #: ACCMNT2451
Charging Cradle for
Video Monitor
Accessory #: ACC241CRDL
LW2401AC2 Indoor/
Outdoor Camera
Accessory #: LW2401AC2
• Wall/ceiling mountable
• Motion detector for motion recording/ alarms**
• No volume control, audio alarms, or alarm sensitivity control
• No temperature sensor***
• AC power only
For installation instructions, see the LW2401AC2 Quick Start Guide.
Camera Overview

Cameras and Accessories

The camera included with your system differs depending on the model number of your device. The cameras and accessories shown below are all compatible with the video monitor system and are available from www.lorextechnology.com. The video monitor supports up to 4 cameras and can support a mix of pan/tilt, regular, cameras.
and indoor/outdoor
* For instructions on installing batteries, see “Installing Camera Batteries (LW2401 Camera Only)” on page 41. ** Motion detector uses Auto Record feature for motion recording. For details, see “Auto recording” on page 17. *** When selected, temperature reading on monitor is permanently set to 68°F / 20°C. **** Appearance may not be exactly as shown.
4

LW2401 Camera

Infrared LEDS
Infrared (IR) LEDs that allow you to see in the dark.
Sensitivity Dial
Adjust the audio level that will trigger an alert on the video monitor.
Volume Dial
Adjusts the speaker volume.
Battery Charging Indicator
Glows to indicate battery is charging. This requires a rechargeable battery pack. For details, see “Installing Camera Batteries (LW2401 Camera Only)” on page 41).
Power Switch
Turns the camera on and off.
Speaker
The speaker allows you to hear the person speaking into the video monitor.
Power Port (DC5V)
Connect the power adapter to the Power Port.
Microphone
Pair Button
Press the Pair button during the pairing process with the video monitor.
Temperature Sensor
Detects the room’s ambient temperature*.
* Avoid placing the camera in direct sunlight, as this will cause the temperature sensor to detect the wrong temperature.
IR Light Sensor
Night Light Button
Press to activate the camera’s night light.
Power LED
Glows to indicate camera is on. Blinks when battery is low.
Detects the level of light in the room to trigger night vision.
Camera Overview
5
Camera Overview
Power Switch
Turns the camera on and off.
Speaker
The speaker allows you to hear the person speaking into the video monitor.
Power Port (DC5V)
Microphone
Light Sensor
Detects the level of light in the room to trigger night vision.
Sensitivity Dial
Adjust the audio level that will trigger an alert on the video monitor.
Volume Dial
Adjusts the speaker volume.
Pair Button
Use a pin or thin object to press the Pair button during the pairing process with the video monitor.
Temperature Sensor
Detects the room’s ambient temperature*.
Pan/tilt control
Power LED
Glows when the camera is on.
NOTE: You must be in full-screen view to adjust the angle. If the monitor is in Quad view (i.e. showing
multiple cameras), press
SEQ and then CAM to return to full-screen view. If the monitor is in
Sequence view (i.e. switching between cameras), press
CAM to exit Sequence view.
Tilt UP
Tilt DOWN
Pan LEFT
Pan RIGHT
Pan Left/ Right
Tilt
Up/Down
Connect the power adapter to the Power Port.
Infrared LEDS
Infrared (IR) LEDs that allow you to see in the dark.
*Avoid placing the camera in direct sunlight, as this will cause the temperature sensor to detect the wrong temperature.
1 Select the channel the pan/
tilt camera is connected to. Ensure you are in full-screen view.
2 Use the joystick on the video
monitor to control the camera.

Pan-Tilt Camera

6

Basic Setup

Slide the power switch to the ON position
OPTIONAL (LW2401 camera only): To install batteries in the camera, see “Installing Camera Batteries (LW2401 Camera Only)” on page 41.
1
2
LW2401 camera
Pan-tilt camera
1 2
Slide the power switch to the ON position
Basic Setup

Step 1 of 2: Powering on the camera

1 Connect the power adapter to the DC5V port on the camera. Connect the other end to a power
outlet.
2 Slide the po
wer switch to the ON position.

Step 2 of 2: Powering on the video monitor

1 Connect the power adapter to a power outlet and to the DC5V port on the video monitor or
charging cradle (ensure the video monitor firmly rests on the cradle). The video monitor’s charging LED indicator glows red to indicate charging is in progress. The charging LED glows green when the video monitor is fully charged.
NOTE: It
requires 6 hours to fully charge the battery.
7
Basic Setup
DC5V port
Slide the power switch to the ON position
Using the charging cradle
2 Slide the power switch to ON.
The video monitor will automatically scan for cameras in range.

Testing your setup

It is recommended that you test your camera setup before permanent installation so that you get the best picture and sound quality from your video monitor.
Test the camera and video monitor reception:
1 Plac
e the camera and video monitor in two different rooms.
2 Have one person monitor the signal strength on the video monitor.
3 If t
he signal strength is low, have a second person move the camera to different locations in
the room to find the best placement location.
Test the camera volume level:
1 Hav
e a person with the video monitor press and hold the TALK button to confirm the camera
volume level. Have the other person adjust the volume dial on the camera as required.
2 Hav
e the person near the camera speak into it to test the sound quality on the video monitor. The person holding the video monitor can determine if the camera needs to move to a different location in the room for better sound clarity.
8
Basic Setup
Use the cable clips to secure and manage the cables. You can wrap the excess cable around the security clip to reduce the cable length.

Positioning / wall mounting your camera

• Keep cables and wires at least 3 feet (1 meter) away from infants or young children.
Use the cable clips to keep the power cords out of reach from young children and infants.
• Determine the camera position that will give you the best view before permanently mounting
the camera. Ensure the power cable is long enough to power the camera.
To wall mount your camera (LW2401 camera only)*:
1 Mark the screw holes using the template on page 50.
2 Drill the holes in the wall.
3 Insert the screw anchors (included) into the hole. Lightly tap the anchor into the hole with the
hammer until the anchor is flush with the wall.
4 Tighten the screw into the anchor, leaving 1/4" of the screw exposed.
5 Rotate the base of the camera as shown in “Adjusting camera view” on page 10.
6 Slide the back of the camera onto the screws and pull down to secure the camera in place.
7 Connect the power adapter to the camera.
8 Use the cable clips to keep the cables out of reach from infants and young children.
* An optional wall-mount accessory is available for the pan/tilt camera from
www.lorextechnology.com (accessory # ACCMNT2451). For wall/ceiling mounting
instructions for LW2401AC2, see the LW2401AC2 Quick Start Guide.
9
Basic Setup
Table top adjustment Wall mount Adjustment
St ep 1 : Ro tat e Ca mer a
Rotate the camera to the right.
Step 2: Fold camera base
Fold the camera base towards the back of the camera.
LW2401 Camera
Night Light Button (LW2401 Camera Only)
Press the Night Light button to turn the camera night light on or off.
Adjust the camera volume
Adjust the speaker volume.
Adjust the audio sensitivity
Adjust the audio level that will trigger an alert on the video monitor.
LW2401 Camera Pan/tilt Camera

Adjusting camera view

Adjust the camera to achieve the optimal viewing position.
Pan/tilt camera
Use the pan/tilt controls to adjust the camera view. For instructions, see “Pan/tilt control” on page 6.

Camera setup

Adjusting the camera sensitivity

The camera’s Sensitivity dial allows you to adjust the microphone sensitivity level for triggering an alert on the video monitor.
10
Basic Setup
Power LED
Slide the Lock button to the right to release the antenna
To adjust the camera’s sensitivity level:
• Scroll the Sensitivity dial to increase camera sensitivity (i.e. softer noises trigger the camera)
or r
educe sensitivity (i.e. louder noises trigger the camera).

Adjusting the camera volume

The camera’s speaker volume can be adjusted to the desired level. Scroll the Volume dial to increase or decrease the camera volume.

Turning on the camera night light (LW2401 camera only)

• Press the night light button on the top of the camera to turn the night light on or off. The night
light button glows when the night light is on and the monitor displays the icon to indicate the camera night light is on.

Video monitor setup

Unlocking the video monitor antenna

The video monitor has a built-in antenna that improves signal range. It is recommended that you extend antenna for optimal performance.
To unlock the monitor antenna:
• Slide the lock button to the right.

Reading the power indicator LED

The power indicator LED glows green when the monitor is powered on. When the battery is low, the power LED blinks.
11
Basic Setup
Pair Button
Press the Pair button during the pairing process with the video monitor.
LW2401 Camera
Pair Button
Press the Pair button with a pin or thin object.
Pan/tilt Camera

Pairing cameras

The camera included with the video monitor has already been paired up with the video monitor. If for any reason your monitor and camera are not paired up, or you wish to add additional cameras, follow the directions below.
To pair a camera to the video monitor:
1 Place the camera and video monitor 12
2 Pr
3 Se
inches apart. Turn on the camera first and then the video monitor.
ess the Menu button on the monitor, then select Pairing and press the OK button.
lect an available channel, and press the
OK button. NOTE: By def
ault, the camera included with
the system is paired to channel 1.
4 Pr
5 OPTIONAL: T
ess the PAIR button on the camera within 30 seconds. (Pan/tilt camera) Use a pin, paper clip, or another thin object to press the PAIR button.
• You should immediately see video from the
amera on the video monitor.
c
o pair multiple cameras, repeat steps 2~4, selecting a different channel in the pairing menu.
NOTE: Y
ou can add a maximum of four (4) wireless cameras to the video monitor. Add-on cameras are available from
www.lorextechnology.com
(accessory # LW2401AC1,
W2451AC1, LW2401AC2).
L
12
Basic Setup
SEQ/Quad button
Camera 1
Camera 4
Camera 3
Camera 2
How Sequence View works
SEQ/Quad button
Video monitor displays 4 video images in Quad view

Sequence view

In Sequence view, the monitor switches between paired cameras every six seconds. For example, the monitor displays channel 1 for six seconds, then channel 2 for six seconds and so on. The monitor only switches to channels that are paired with a camera.
To enable Sequence view:
• Press the SEQ/Quad button once to enter Sequence view.
To exit Sequence view:
• Press the CAM button.

Viewing multiple cameras (Quad view)

You can view all of the paired cameras in Quad view. The video monitor supports a maximum of four cameras.
NOTE: Audio monitoring is not available in Quad view.
To view multiple cameras in Quad view:
• Press the SEQ/Quad button twice on the video monitor.
To exit Quad view:
• Press the SEQ/Quad button, and then press CAM t o ex i t Qu a d v ie w an d re t u rn t o s i ng l e- c a m er a view.
13
Basic Setup
Hello
Hello
Talk and listen
(Two-way co mmunicat ion)
LW2401 camera shown

Using the talk function

The talk function allows you to speak into the video monitor and have the camera output your voice. The camera also has a built-in microphone, which allows the person to speak into the camera.
To use the talk function:
1 Adjus
t the volume on the camera and video monitor to the desired level.
2 Pr
ess and hold the Talk button on the video monitor and begin speaking. Release the Talk
button when you are finished. NOTE: Y
ou must release the Talk button on the video monitor in order to listen to the audio
from the camera.
NOTE: The
talk function does not work in Quad view.

Music

The music feature allows the camera to play pre-loaded tunes.
To use the tune feature:
• Press the button to begin playing a tune on the c monitor.
• Press the button again to stop the tune.
• Press the button to skip to the next tune. The song title appears on-screen.
NOTE: M
usic is not available in Quad
view.
amera and video
14
Basic Setup
Scan button
Video button
Using Scan mode
Scan mode temporarily turns off the video monitor, and waits for a camera to detect a noise. Once one of the cameras detect sounds, the video monitor automatically turns on, and beeps to notify you. This feature is especially useful if you have multiple cameras, and only want to view the camera that detects a sound (e.g. infant crying).
To enable Scan mode:
• Press the Scan button.
To disable the Scan mode:
• Press the Scan button to turn off Scan mode.
NOTE: The first camera to detect a sound will trigger the video monitor to turn on. After
several seconds, the monitor turns off and begins monitoring the cameras again.

Turning the video monitor screen on/off

Turning off the video monitor screen allows you to listen to audio from the camera, while the video monitor screen is off. For example, if you want to monitor a baby’s room at night while you sleep, you can turn off the video monitor screen to conserve power, and at the same time listen to the camera audio.
To turn the video monitor screen on/off:
• Press the Video button to turn the screen off.
• Press the Video button again to turn the screen on.
15

Recording

microSD Card
Capacity
With movement
(e.g. drive-by cars)
With limited movement
(e.g. empty room)
512 MB 55 minutes 1 hour and 50 minutes
1 GB 1 hour and 45 minutes 2 hours and 50 minutes
2GB 3 hours and 50 minutes 5 hours and 50 minutes
4GB 7 hours and 40 minutes 12 hours
8GB 15 hours and 30 minutes 23 hours and 40 minutes
16 GB 29 hours and 10 minutes 45 hours and 50 minutes
32 GB 57 hours and 40 minutes 89 hours and 25 minutes
NOTE: Estimated recording times based on tests using Kingston
TM
brand microSD cards. There may be a slight variation when using different brands of memory. A scene with more activity requires more storage space.
Orient the microSD card as shown and insert it into the microSD slot.
microSD icon
SD
Recording
NOTE: A microSD card is required to enable recording.
This system is capable of recording video on a
microSD card. Use the table below to help
you estimate recording times on various sizes of microSD cards.

Manual recording & auto recording

Prerequisite:
• Insert a microSD card into the microSD slot in the video monitor. NOTE: The video
16
monitor supports microSD cards up to 32 GB (gigabytes).
Recording

Manual recording

Manual recording allows you to record video by pressing the record button on the video monitor. Manual recording may be useful if you want to quickly record an event to your video monitor while you are watching it.
NOTE: It is
To start manual recording:
ess the M button on top of the video monitor. The REC icon, followed by the file name (e.g.
1 Pr
113711-1.AVI) appears on the screen to indicate recording is in progress.
2 Press the M button again to stop recording. The yellow file icon ( ) appears to indicate a
new recording is ready for viewing.
recommended to set the date and time before using the recording function. For
details on setting the date and time, see “Changing the date and time” on page 21.

Auto recording

Auto Recording allows the video monitor to record only when the camera detects a sound or motion (LW2401AC2 only). For example, if you are monitoring a sleeping baby, the video monitor will not record until the baby cries (ensure you set the appropriate sensitivity level).
W2401AC2 Only: Auto Recording is triggered by the built in motion detector in the camera.
L The camera does not support audio alarms or audio triggered recording.
Prerequisites:
• Adjust the sensitivity level on the camera to the desired level. Higher sensitivity means the
amera will be more sensitive to noise. This means that the slightest sound will cause the
c video monitor to record. There is no sensitivity control on the LW2401AC2 camera.
To enable Auto Recording:
• Press the A butt detects a sound or motion (LW2401AC2 only), the video monitor begins to record. The REC icon, followed by the file name (i.e. 113711-1.AVI) appears on screen to indicate a new recording. The yellow file icon appears to indicate a new recording is ready for viewing.
on on top of the video monitor. The AUTO LED glows blue. When a camera
NOTE: The
seconds. The duration of the recording can be set in the Trigger menu (Menu>Record>Audio Trigger). This also applies to motion recording using the LW2401AC2 camera.
NOTE: Th
e maximum recording time during auto recording is 10 consecutive minutes. For example, if there is constant noise, the video monitor will record a maximum of 10 minutes.
recording time after a camera triggers the video monitor, is between 5~30
17
Recording
VIDEO
110204
• Press right on the joystick repeatedly to increase playback speed (2x, 4x, 8x)
• Press left on the joystick to reduce playback speed (-2x, -4x, -8x)
..
102904_1
1MB
Video Playback Controls
Fast forward
Rewind

Viewing recorded files on the video monitor

There are two ways that you can view the recorded video files on the microSD memory card: through the video monitor or on your computer.
NOTE: Vid
To view video files through the video monitor:
ess the OK button on the video monitor (press down on the joystick). The File List menu
1 Pr
opens.
eo files are saved in .avi format.
2 Press OK to open the VIDEO folder.
3 Sel
ect the desired folder and press the OK button.
NOTE: The f
olders are named by the year, month, and date. For example, a folder named
110204 means that the folder was created in 2011, February (02), on the 4th.
4 Select the video file you wish to view, and press the OK button to begin playback.
18

Viewing video files on a PC

Push the microSD card to eject
1 Remove the memory card.
2 Insert the microSD card into a memory card reader (not included).
NOTE: If r
equired, use the included SD card adapter to convert the microSD card to
SD/HCSD memory card format.
Recording
3 When the Aut
4 Double-click the VIDEO folder, then select the sub-folder you want to open.
NOTE: The f
110204 means that the folder was created in 2011, February (02), on the 4th.
5 Doubl
e-click the desired video file to begin playback.
oPlay menu appears, click on Open folder to view files.
olders are named by the year, month, and date. For example, a folder named

Viewing video files on a Mac

1 Insert the microSD card into a memory card reader. If required, use the included SD card
adapter.
2 The
memory card automatically appears on the desktop.
3 Doubl
4 Doubl
e-click the USB icon ( ) on your desktop to view the microSD contents.
e-click the VIDEO folder, then select the sub-folder you want to open.
19

Configuring your Video Monitor

Configuring your Video Monitor

Enabling the Auto-Mute feature

The Auto-Mute feature eliminates white noise when monitoring a room. The Auto-Mute feature works by muting the video monitor when the camera detects no audible noise. Once the camera detects a sound, the video monitor plays sound again.
To enable Auto-Mute:
1 Pr
ess the Menu button on the video monitor.
2 Se
3 Se
4 Pr
lect Auto Mute ( ) using the joystick
and press OK.
lect ON to enable auto mute.
ess the OK button (press down on the
joystick) to save your settings.

Configuring the Overwrite feature

The Overwrite feature allows the video monitor to continuously record on the microSD card. When the microSD card is full, the video recordings overwrite the first recorded video entry (first in first out).
To enable overwrite:
1 Pr
ess the Menu button on the video monitor.
2 Se
3 Se
lect Record ( ) and press OK.
lect File Overwrite and press OK.
4 Se
5 Pr
20
lect Yes to enable overwrite or select No to
disable overwrite.
ess the OK button to save your settings.

Changing the date and time

2011-02-14 09:54:30
NOTE: To disable the alarm ’beep’ turn
the volume all the way down.
To adjust the video monitor’s date and time:
1 Press the Menu button on the video monitor.
Configuring your Video Monitor
2 Se
3 Se
4 Use
5 Pr
lect Settings ( ) and then press the OK
button.
lect Date & Time and then press the OK
button.
the joystick to configure the Year, Month,
and Date.
• Press up/down on the joystick to adjust the lues.
va
• Press left/right to move between the year,
month, and date.
ess the OK button to save your changes, or press Menu to exit the menu without saving
your changes.

Adjusting the alarm volume

The video monitor ’beeps’ when the camera detects audio triggers (e.g. a loud noise) or motion triggers (LW2401AC2 only). You can adjust how loud the video monitor beeps when the alarm triggers.
This is useful if you want to monitor activity in an area, but canno monitor.
To change the video alarm volume:
ess the Menu button on the video monitor.
1 Pr
2 Se
3 Se
4 Pr
5 Pr
lect Settings ( ) and then press the OK
button.
lect Alarm Volume and then press the OK button.
ess left and right on the joystick to adjust the alarm volume.
ess the OK button to save your settings.
t keep your eyes on the video
21
Configuring your Video Monitor
04:30
Timer indicator
00:00

Adjusting the screen brightness

To adjust screen brightness:
1 Pr
ess the Menu button on the video monitor.
2 Select Settings ( ) and then press the OK
button.
3 Se
4 Pr
lect Brightness and then press the OK button.
ess left and right on the joystick to adjust the
screen brightness.
ess the OK button to save your settings.
5 Pr

Adjusting the timer settings

The timer allows the video monitor to beep after a set duration. If the monitor is used as a baby monitor, the timer can help remind you when it is time to feed the baby.
To enable the Timer:
ess the Menu button on the video monitor.
1 Pr
2 Select Settings ( ) and then press the OK
button.
3 Se
lect Timer and then press the OK button.
4 Ent
er the timer duration using the joystick. Press left / right to navigate the values. Press up/down to adjust the values.
NOTE: Timer dur
ation is represented as (Hours:
Minutes)
5 Se
lect ON and then press the OK button to save your settings. When the timer duration ends, an alarm goes off and the timer resets until it is manually disabled.
22

Adjusting the temperature unit of measurement

The camera has a built-in temperature sensor.You can change the video monitor to display temperature in Fahrenheit (F) or Celsius (C).
To change the unit of measurement:
1 Pr
ess the Menu button on the video monitor.
Configuring your Video Monitor
2 Se
3 Se
4 Se
5 Pr
lect Settings ( ) and press the OK button.
lect Temp. Display and press the OK button.
lect either C for Celsius or F for Fahrenheit.
ess the OK button to save your settings.

Configuring the temperature alert range

You can configure the video monitor to alert you through alarm beeps, when the temperature goes above or
NOTE: T
3°F/1°C.
NOTE: The L
not have a temperature sensor. When this camera is selected, the temperature reading is permanently set to 68°F/20°C.
below the set temperature range.
emperature sensor is accurate within
W2401AC2 accessory camera does
To configure the tempe
1 Pr
ess the Menu button on the video monitor.
2 Se
3 Se
4 Using the
5 Se
lect Settings ( ) and then press the OK button.
lect Temp. Alert and then press the OK button.
Joystick, press up/down to change selection, left/right to adjust the values:
• Beside Low Temperature, enter the lowest room temperature threshold.
• Beside High
lect the ON button and then press OK.
Temperature, enter the highest room temperature threshold.
rature alert range:
23
Configuring your Video Monitor

Erasing the memory card

Once you erase the memory card, the video will be deleted permanently.
To erase the memory card:
1 Pr
ess the Menu button on the video
monitor.
2 Se
3 Se
4 Se
lect Settings ( ) and then press the OK butt
OK button.
erase the memory card.
• The message "Format OK" appears to
on.
lect Format memory and then press the
lect Yes and then press the OK button to
c
onfirm that the card has been erased.

Restoring default settings

Restoring your video monitor settings returns any setting changes to factory default settings
To restore the video monitor factory defaults:
ess the Menu button on the video
1 Pr
monitor.
2 Se
OK butt
3 Se
OK button.
4 Se
24
lect Settings ( ) and then press the
on.
lect Factory Reset and then press the
lect Yes, and then press the OK button.

Viewing your Camera Remotely Using Skype

Skype server
Home computer
Disclaimers
You must have a high-speed internet connection to use the video function on Skype. Traffic congestion may result in choppy video.
Mobile Data Charges
When using a mobile cellular network, data charges may apply. Check with your provider for details.
*Computer to computer
For Skype related support, visit
https://support.skype.com/
Viewing your Camera Remotely Using Skype
Connecting to your video monitor through Skype is a convenient and free* method to view your camera from anywhere with an internet connection.
NOTE: When
monitoring, and pan/tilt controls are disabled.

How it works

Your computer connects to the Skype server. The Skype server is connected to your home computer. Your home computer connects to the video monitor, which captures video from the camera.
remotely connecting to your video monitor using Skype, recording, audio

System requirements

iPhone, iPad, iPod Touch Requirements
Skype
for iPhone v. 3.0 and above
Skype for iPad
• iPhone 4S/4/3GS, iPad (1st generation and above),
iPod touch (3rd generation and above)
• iOS 4.0 and above
For the latest device compatibility list, visit
www.lorextechnology.com
PC requirements
• Skype for Windows v. 4.2 and above
Windows XP SP2/Vista/Windows 7
• 1 Ghz or greater processor
For instructions, see “Connecting to Skype on a PC” on page 26.
Mac requirements
• Skype for Mac OS v. 5.3 and above
c OS v. 10.5.8 and above
• Ma
• 1 GHz or higher Intel processor
• PowerPC™ not supported
For instructions, see “Connecting to Skype on a Mac” on page 32.
v. 3.5 and above
25
Viewing your Camera Remotely Using Skype
Run Lorex.exe
Click the USB Driver button
Then, click "USB Driver" to copy the driver to your desktop.

Connecting to Skype on a PC

Step 1 of 6: Installing the camera driver for PC

You will need to install the camera drivers located on the software CD (included) or available as a free download from www.lorextechnology.com.
To install the camera drivers:
1 Insert th
2 Cl
ick Run Lorex.exe.
e software CD into your computer. An Autoplay window opens.
3 Click the USB Driver button, and then click USB Driver. The driver appears on your desktop.
4 Click the button to close the window.
5 Doubl
6 F
e-click the Usbdriver-PC icon on your desktop.
ollow the on-screen instructions to complete the driver installation
26
Viewing your Camera Remotely Using Skype
mini-USB cable
Click Create a new account

Step 2 of 6: Connecting the video monitor to the PC

1 Turn on the camera first, then the video monitor. Make sure you can see a video image on
channel 1. NOTE: P
air the camera that is most important for you to view remotely to Channel 1. For
instructions on how to pair cameras, see “Pairing cameras” on page 12.
2 Con
nect the mini-USB cable (included) to your video monitor and into the computer’s USB
port.
The video monitor displays the following: "USB PC CAMERA MODE"

Step 3 of 6: Creating a Skype account

A Skype account allows you to connect to your camera through the Skype service. Skype is a service that allows users to make voice calls and video calls to anywhere in the world.
In order to connect to your video monitor using Skype, you will need two accounts---one for the
NOTE: The
If you do not have a Skype account
See “If you do not have a Skype account...” on page 37.
If you have an existing Skype account (PC)
You will have to create a separate account for your camera. Follow the in
camera (e.g Lorex Camera) and one for yourself (e.g. Tom Smith).
Skype illustrations and instructions below serve as a guideline only. Skype may
change their website / product interface without prior notice.
structions below.
1 Launch Skype.
2 F
rom the Skype Login window, click Create a new account.
If you are connected to Skype, click Skype>Sign Out.
27
Viewing your Camera Remotely Using Skype
Live video
Continue
Select Wireless Monitoring System if necessary
Live video
Save button
Video Settings
Select Wireless Monitoring System if necessary
3 Follow the on-screen instructions to create a new account. Upon login, the Setting up Skype
wizard starts. Click Continue. Under Video, you will see an image from the camera. If no image appears, make sure the monitor is connected to the computer via the USB cable.
NOTE: If you can see an image from a webcam that is already connected, select Wireless
Monitoring System from the drop-down menu.
NOTE: If the
Setting up Skype wizard does not run, click Tools>Options>Video Settings. Make sure you can see video in the window. Click Save to exit. If the image is from an already connected webcam, select Wireless Monitoring System under Select
Webcam.
4 Click Continue.
5 In
the next page, click Add later to not include a profile picture for the camera’s Skype account, or click Continue and follow the instructions to add a profile picture for the camera’s Skype account.
ick Start using Skype.
6 Cl
28

Step 4 of 6: Configuring Skype

Options
Show advanced options
7 Click on Tools>Options.
8 Click the Calls button ( ).
ick the Show advanced options button.
9 Cl
Viewing your Camera Remotely Using Skype
10 Under Allow calls from..., select people in my Contact list only. This will prevent the device
from accepting Skype calls from anyone who is not in the contact list for its account.
NOTE: You may also select anyone, which will allow anyone with a Skype account to call
the device and access your camera. This setting is not recommended
29
Viewing your Camera Remotely Using Skype
Save
Add a contact
Search for the name of your personal Skype account
Click Add
11 Check Answer incoming calls automatically and Start my video automatically when I am in
a call.
Click Save.

Step 5 of 6: Send a contact request

Next, you have to send a friend request to your personal account (e.g. Tom Smith).
ick the Add a contact button ( ).
1 Cl
2 Search for the name of your personal account (e.g. Tom Smith), and then click the Add button.
30
Viewing your Camera Remotely Using Skype
Send contact request
3 Click Send Request.

Step 6 of 6: Test the connection

NOTE: This step requires you to log in to Skype from a different computer or compatible
mobile device.
1 Log in t
o your personal account (e.g. Tom Smith).
2 A "new contact" pop-up appears. Click the new contact request icon that appears on the
bottom-right corner of the window.
3 Click the Add to Contacts button to add the camera to your contact list.
31
Viewing your Camera Remotely Using Skype
Call
4 From the contact list, right-click on your camera’s account name (e.g. Lorex Camera), and
click Call. The video call begins automatically. Please allow around 15 to 25 seconds for the video connection to be established.
NOTE: Video may appear pixelated immediately after connecting. It should improve within
a few seconds, depending on your Internet connection.

Connecting to Skype on a Mac

Step 1 of 6: Installing the camera driver for Mac OS

You will need to install the camera drivers included on the software CD (included).
1 Insert the softwar
2 Doubl
3 Doubl
4 Doubl
5 Doubl
6 F
e-click the Lorex CD icon ( ) on your desktop.
e-click the Mac folder.
e-click the SD Series Mac Driver.zip file to extract the installer. The installer is saved to
your Downloads folder and your downloads folder opens automatically.
e-click the SD Series Mac Driver folder and then double-click the
WirelessCameraMacDriverSuiteInstaller (.pkg) file.
ollow the on-screen instructions to install.
e CD into your computer. The Lorex CD icon ( ) appears on your desktop.

Step 2 of 6: Connecting the video monitor or receiver to your computer

1 Turn on your camera first, and then turn on your video monitor or receiver. Make sure you can
see a video image on Channel 1. NOTE: P
air the camera that is most important for you to view remotely to Channel 1. For
instructions on how to pair cameras, see “Pairing cameras” on page 12.
32
Viewing your Camera Remotely Using Skype
mini-USB cable
Create New Account
2 Connect the mini-USB cable (included) from the USB port on your video monitor or receiver
to an available USB port on your computer. "USB PC CAMERA MODE" appears on the screen.

Step 3 of 6: Creating a Skype account

A Skype account allows you to connect to your camera through the Skype service. Skype is a service that allows users to make voice and video calls to anywhere in the world.
In order to connect to your video monitor using Skype, you will need two accounts—one f the camera (e.g. Lorex Camera) and one for yourself (e.g. Tom Smith).
NOTE: The
Skype illustrations and instructions below serve as a guideline only. Skype may
change their website / product interface without prior notice.
or
If you do not have an existing Skype account:
See “If you do not have a Skype account...” on page 37.
If you have an existing Skype
You have to create a separate account for
1 Launch
Skype. If you are already connected to Skype, click File>Sign Out.
account (Mac):
your camera. Follow the instructions below.
2 Click Create New Account.
3 Follow the on-screen instructions to create a new account.
33
Viewing your Camera Remotely Using Skype
Audio/Video tab
Calls tab
Answer automatically
Click Configure

Step 4 of 6: Configuring Skype

1 Upon login, click Skype>Preferences. Select the Audio/Video tab.
2 Under Camera, select Wireless Monitoring System if it is not already selected. You will see
live video from your camera if your device is connected.
• If the video area is black, check to see if your c
amera is on and is paired to Channel 1. Also
check to make sure your video monitor is connected to your computer.
NOTE: When
connecting or reconnecting your video monitor, you must close the Preferences window and re-open it to the Audio/Video tab to test the video connection.
3 Se
lect the Calls tab.
4 Under Incoming Calls, select Answer Automatically.
5 Cl
ick Configure.
34
6 Select Answer automatically with video. Click Done.
Select Answer automatically with video
Allow calls from Contacts
Privacy tab
Add Contact
7 Select the Privacy tab.
Viewing your Camera Remotely Using Skype
8 Under
Allow calls from, select Contacts. This will prevent the device from accepting Skype
calls from anyone who is not in the contact list for its account.
NOTE: You may also select Anyone, which will allow anyone with a Skype account to call
the device and access your camera. This setting is not recommended.
ose the Preferences window to return to the main Skype window.
9 Cl

Step 5 of 6: Send a contact request

Next, you have to send a friend request to your personal Skype account (e.g. Tom Smith).
1 F
rom the main Skype window, click Contacts then click Add Contact.
35
Viewing your Camera Remotely Using Skype
Enter the account name or email address for your personal Skype account
Click Find
Send contact request
Contact Request
Accept
Call
2 Under Add Contact, enter the Skype account name (e.g. Tom Smith) or email address for your
personal Skype account. Click Find. Your personal Skype account should appear below the search bar.
3 Next to your personal Skype account, click and then click Send to send the contact
request.

Step 6 of 6: Test the connection

NOTE: This step requires you to log in to Skype from a different computer or compatible
mobile device.
1 Log in t
2 The c
o your personal account (e.g. Tom Smith).
ontact request from your device’s Skype account should appear in the left column under
Recent. Click the Skype account name for your device.
3 Click Accept.
4 Cl
ick the (Make a Voice Call) button to call your camera. The video call begins
automatically. Please allow around 15 to 25 seconds for the video connection to be es
tablished.
• You can also call the camera from the contact list using the button. Do not use the Video
NOTE: Video may ap
Call ( ) button.
pear pixelated immediately after connecting. It should improve within
a few seconds, depending on your Internet connection.
36
Viewing your Camera Remotely Using Skype
Join Skype
Create Account
I Agree - Continue

If you do not have a Skype account...

Create your personal account first (e.g. Tom Smith), then create a second account for your camera (e.g. Lorex Camera).
Create a personal account (i.e. Tom Smith):
1 Go to www.skype.com, and click on Jo
in Skype.
2 Click Create an Account. Fill in the appropriate fields.
3 Click the I Agree - Continue button.
4 Follow the on-screen instructions to download and install Skype on your computer.
5 Onc
e you are logged in to Skype, click on Skype>Sign out (PC) or File>Sign out (Mac), then
see “If you have an existing Skype ac
count (PC)” on page 27 or see “If you have an existing
Skype account (Mac):” on page 33.
37
"Personal" Skype account (e.g. Tom Smith)
"Camera" Skype account (e.g. Lorex Camera)
Skype Name:
Password:
Email address used to register this account (used for account retrieval):
Skype Name:
Password:
Email address used to register this account (used for account retrieval):
Viewing your Camera Remotely Using Skype
Press CAM to change cameras
Cam 2
USB PC CAMERA MODE
Camera number
My Skype Account Information

Changing the camera view on Skype

NOTE: This section is applicable only if you have more than 1 camera.
You cannot change the camera or control the camera angle on remotely using Skype; however, you can change the channel manually using the video monitor.
Pair the camera that is most important for you to view remotely to Channel 1. When you connect the USB cable to the vide if you have a different channel selected.
To change the camera view:
• From your video monitor, press CA
• The camera number changes to the next connected camera.
NOTE: Y
ou can only view one camera at a time
the pan/tilt camera
o monitor, the video monitor defaults to Camera 1, even
M to change cameras.
38
Viewing your Camera Remotely Using Skype
Voice Call button

Viewing a camera on your mobile device

You can remotely monitor your camera using Skype on supported mobile devices.

Supported apps & devices

Skype
for iPhone v. 3.0 and above
Skype for iPad
• iPhone 4S/4/3GS, iPad (1st generation and above), iPod touch (3rd generation and above)
• iOS 4.0 and above
For the latest device compatibility list, visit www.lorextechnology.com
Prerequisites
• Install and configure the PC/Mac Skype software and USB driv your Camera Remotely Using Skype” on page 25.
• Ensure you configure your camera’s Skype account to auto-accept incoming calls.
• Ensure your personal Skype account has been added to the contact list for the video monitor’s Skype account.
• Ensure the video monitor is connected to your computer with the USB cable.
v. 3.5 and above
ers. For details, see “Viewing

Viewing your camera on iPhone

1 Download and install the
NOTE: Skype
2 Launch
Contacts. If a different contact list is open, tap Contacts and then tap All Contacts.
3 Se
lect the video monitor’s account, and tap Voice Call to connect to the camera. The video call connects automatically. Please allow 15 to 25 seconds for the call to connect.
NOTE: Video may appear pixelated
immediately after connecting. It should improve within a few seconds, depending on your Internet connection.
is a free application, but it requires a valid iTunes account to download.
Skype and sign in using your personal account. Your contact list opens to All
Skype
application from the App Store.
39
Viewing your Camera Remotely Using Skype
Voice Call button
Viewing your camera on iPad
1 Download and install the
NOTE: Skype f
2 Launch
or iPad is a free application, but it requires a valid iTunes account to download.
Skype and sign in using your personal account. Your contact list opens to All
Skype for iPad
application from the App Store.
Contacts. If a different contact list is open, tap Lists (
3 Se
lect the video monitor’s account, and tap Voice Call to connect to the camera. The video call connects automatically. Please allow 15 to 25 seconds for the call to connect.
NOTE: Video may appear
pixelated immediately after connecting. It should improve within a few seconds, depending on your Internet connection.
) and then tap All Contacts.
40

Installing Camera Batteries (LW2401 Camera Only)

Remove battery cover from camera base.
Align the metal contact points to the connector inside the camera base.
This side faces up.
Connect the power adapter to the DC5V port
Installing Camera Batteries (LW2401 Camera Only)
The camera base has a built-in battery compartment where you can install rechargeable and non-rechargeable batteries. This can be useful if you want to temporarily monitor an area with no power outlets.

Installing non-rechargeable AA batteries

You can install regular AA Alkaline batteries (non-rechargeable) into the camera’s battery compartment.
To install regular AA batteries in the camera:
1 Unplug the
power cord from the base of the camera.
2 Remo
3 Insert
1 Remo
2 Plug the po
ve the battery cover.
four AA batteries into the battery compartment
and replace the battery cover.

Installing a rechargeable battery pack

Optional rechargeable battery packs are available from www.lorextechnology.com (part # ACC2401BATT). Regular rechargeable batt
eries cannot be charged in the camera
base.
To install the rechargeable battery pack:
ve the battery cover and insert the rechargeable battery pack in the battery compartment. Replace the battery cover.
wer adapter into a power outlet. Connect the end of the power adapter into the camera base. Allow the camera to charge for 6 hours.
NOTE: The Charge LED indicator glows to indicate the battery is
charging.
41

Technical Specifications

Technical Specifications
LW2401 Camera Specifications
Frequency 2400~2483.5Mhz
Maximum Range 450 ft. (138m) outdoor / 150 ft. (46m)
Image Sensor 1/5" CMOS sensor
IR LED 8 Pcs.
Power Adapter Voltage 5V 1A
Battery Voltage 4xAA alkaline battery (not included)
or 3.7V Li-Polymer battery (not included)
Battery Life Up to 4 hours. Up to 2.5 hours with night vision on. Requires
ptional batteries.
o
Dimensions 3.3in x 2.6in x 6in / 84mm x 67mm x 158mm
indoor line of sight
Weight 0.3 lbs / 0.14 kg
Pan/Tilt Camera Specifications
Frequency 2400~2483.5Mhz
Maximum Range 450 ft. (138m) outdoor / 150 ft. (46m)
Image Sensor 1/5" CMOS sensor
IR LED 8 Pcs.
Power Adapter Voltage 5V 1A
Dimensions 2.8in x 3.5in x 3.6in / 70mm x 90mm x 91mm
Weight 0.4lbs / 0.19 kg
Video Monitor Specifications
Frequency 2400~2483.5Mhz
Display size 3.5" TFT LCD
Power adapter voltage 5V 1A
Battery voltage 3.7V Li-Polymer battery (built-in)
Battery Life Up to 4.5 hours
Dimensions 5.0in x 0.7in x 3in / 126mm x 17mm x 76mm
Weight 0.35lbs / 0.16kg
indoor line of sight
42

Cleaning and disposal

Cleaning and disposal

Cleaning

Clean the monitor and camera with a slightly damp cloth or an anti-static cloth. Never use cleaning agents or abrasive solvents.
• Do not clean any part of the product with cleaners with thinners or other solvents and
emicals. This may cause permanent damage to the product which is not covered by the
ch Warranty. When necessary, clean it with a damp cloth.
• Keep your camera and monitor away from hot, humid, pr wet areas or strong sunlight.
• Every effort has been made to ensure high standards of reliability for your video monitor.
However, if something does go wrong, please do not try to repair it yourself . Contact Customer Service for assistance.

Disposal of the device

At the end of the product lifecycle, you should not dispose of this product with normal household waste, but take the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this.
Some of the product materials can be re-used if you take them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the collection points in according to your local regulations.
your area. Dispose of the battery pack in an environmentally-friendly manner
43

Notices

Notices
Warning: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

FCC notice

This device complies with Part 15, subpart C, of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
However, it is imperative that the user follows the improper usage which may result in damage to the unit, electrical shock and fire hazard injury. In order to improve the feature functions and quality of this product, the specifications are subject to change without notice from time to time.
Caution: To main at least 20cm (7.87in) from nearby persons.
tain compliance with the FCC’s RF exposure guidelines, place the camera
guidelines in this manual to avoid

IC notice

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de lice (1) l'appareil ne doit pas produir accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
nce. L'exploitation est autorisée aux deux conditions suivantes:
e de brouillage, et (2) l'utilisateur de l'appareil doit
The Lorex Live Handheld Video Monitor models LW2401 and LW241 are in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
44

Troubleshooting

Problem Possible Causes Solution
No picture or sound on the Monitor
• The monitor may be off.
• The batteries on the camera or video monitor may be low.
• The batteries may be installed backwards.
• The monitor may be in Scan mode.
• Ensure that both the camera and monitor are turned on.
• Ensure that both the camera and monitor are plugged in and fully charged
• Double check that you have not inserted the rechargeable battery backwards.
• Press the scan button to turn off Scan mode.
Monitor produces a high-pitched noise (squealing)
• The video monitor and camera are too close together.
• The video monitor volume may be too loud.
• Move the camera and video monitor further apart.
• Lower the video monitor volume.
Picture but no sound on the monitor
• The volume on the video monitor may be too low.
• The Auto-Mute feature may be enabled.
• Turn up the volume on the video monitor.
• In the Main Menu select Auto-Mute, then turn the setting off.
Sound but no picture on monitor
• The video monitor screen may be off.
• Press the Video button on the video monitor to turn the screen back on.
I get a "Out of Range" message on the moni­tor
• The video monitor lost connection with the camera.
• The camera may be off.
• (LW2401 only) The camera may be out of batteries.
• Move the video monitor and camera closer together.
• Ensure the cameras are turned on.
• (LW2401 only) Install fresh camera batteries.
Picture is not clear • The video monitor and
camera may have a weak signal.
• Interference from the environment (from microwaves, wireless routers, etc.)
• Brightness on the video monitor may be too low.
• Move monitor closer to the camera.
• Move the monitor away from other wireless devices (e.g. wireless routers, cordless phones, walkie-talkies, etc).
• Adjust the brightness on the video monitor.
The video monitor does not turn on
• The video monitor may have low batteries.
• Connect a power adapter to the video monitor and a power outlet to charge the monitor. Charge the monitor for
4.5 hours.
Troubleshooting
45
Troubleshooting
Problem Possible Causes Solution
Incorrect temperature reading
• The camera may be under direct sunlight.
• Temperature sensor is accurate within 3°F/1°C.
• Temperature setting on LW2401AC2 accessory camera is permanently set to 68°F/20°C.
• Move the camera to an area away from direct sunlight.
Missing recorded video files
• The Overwrite feature may be turned on.
• Turn the Overwrite feature off. For details, see “Configuring the Overwrite feature” on page 20.
I’m connected to Skype, but I don’t see any video
• The video monitor may be on the wrong channel.
• The camera(s) may be off.
• Handheld monitor may not be connected to computer.
• USB drivers may not be installed.
• USB port may be broken.
• Auto-answer may not be enabled.
• Press right on the joystick to change to the correct channel.
• Ensure the camera has power, and is turned on.
• Launch Skype, then click Tools>Options>Video Settings. Ensure you can see the video on Skype
• Ensure the handheld monitor is connected to the computer via the USB cable.
• Insert the driver CD and install the USB driver.
• Connect the video monitor to a different USB port.
• For instructions on how to configure Skype to Auto-answer incoming calls, see page 29 for PC or page 34 for Mac.
I can’t see video on my mobile device
• Outdated version of Skype.
• Camera drivers may not be installed.
• Viewing on a non-supported mobile device.
• Install the latest version of Skype on your mobile device.
• Ensure the camera drivers are installed from the CD.
• Ensure the device is compatible with Skype. For a compatibility list, visit www.lorextechnology.com

Troubleshooting (continued)

46

Frequently Asked Questions

Frequently Asked Questions
Q: I have Skype. Why do I need to create a Skype account for the video monitor?
A: The video monitor requires a Skype account so you can access the camera(s) from your
personal Skype account. Setup the video monitor for Skype viewing (for instructions, see “Viewing your Camera Remotely Using Skype” in the user’s guide). Then create a Skype account for the video monitor and add your personal Skype account to its Contacts. You access the camera by calling it - just like calling any one of your Skype contacts.
Q: Why can't I see an image from the camera(s) in Skype?
A: Is this the first time you are setting up the video monitor for remote viewing? If so, follow
the instructions in the guide.
If you have already performed the initial setup, and still cannot access your camera(s) (or the video monitor appears as 'Offline'), check the following:
• Is the camera you want to view paired to Channel 1 or the channel selected on the video monitor?
• Is the handheld monitor connected to the computer?
• Are the camera and handheld monitor powered on?
• Is the computer powered on?
• Is the computer in Sleep mode or Hibernate mode? The video monitor will not be able to connect to Skype if the computer is in Sleep or Hibernate mode.
• Is Skype running on the computer and is the video monitor’s account signed in?
• Have you created a Skype account for the video monitor?
• Have you added your personal Skype account to the video monitor’s contact list?
• Do you have the latest version of Skype installed on your computer and/or mobile device?
“Viewing your Camera Remotely Using Skype” section of the user’s
Q: What Skype app do I use to connect to the video monitor on my iPhone or iPad?
A: For the iPhone, use the Skype app. For the iPad, use the Skype for iPad app. Both apps
are available for free from the App Store.
Q: How do I pair cameras?
A: The camera included with your device has already been paired up with the handheld
monitor. If for any reason your monitor and camera are not paired up, or you wish to add additional cameras, please perform the following:
1 Place the camera and video monitor 12 inches apart. Turn on the camera first and then the
video monitor.
2 Press the Menu button on the monitor, then select Pairing and press the OK button.
47
Frequently Asked Questions
Pop up mode
Default view
3 Select an available channel, and press the OK button.
NOTE: By
ess the PAIR button behind the camera (LW2401 camera) or on the side of the pan/tilt
4 Pr
camera within 30 seconds. You should immediately see video from the camera on the video monitor.
NOTE: Y
default, the camera included with the system is paired to Channel 1.
ou can add a maximum of four (4) wireless cameras to the handheld monitor.
NOTE: On the
button.
pan/tilt camera, you will need to use a pin or thin object to press the PAIR
Q: How do I copy video to my computer?
A: Remove the microSD card by using your finger-nail or other thin object to release the
card. Insert the microSD card into the included SD card adapter and slide the notch to LOCK. Insert the SD card into your computer's SD card reader. If your computer does not have a built-in SD card slot, you will have to purchase a separate SD card reader. Your computer (PC or Mac) should load the card like a standard drive. Copy or move the files from the SD card to a location on your hard disk.
Q: Why is my picture at night time not as clear via Skype compared to my handheld monitor?
A: Video is transmitted at a resolution
of QVGA (320x240). When viewing on your computer, screen is larger than the handheld monitor, to fit the screen-size. This is even more evident in night vision mode. In Skype, we recommended using "pop up mode" (image 1) for better clarity compared to default view (image 2).
resulting in a stretched image
typically the viewing
48
Q: Why is the temperature sensor giving me an inaccurate reading?
A: Older versions of the LW2401 camera have a flexible
temperature sensor. If it is placed too close to the camera, heat from the camera can be cause the temperature to appear higher than the actual temperature. The solution is to gently angle the sensor away from the body of the camera.
Newer versions of the LW2401 camera temperature sensor that keeps the temperature sensor away from the camera to prevent inaccurate readings.
Make sure to keep the camera out of may affect temperature readings.
NOTE: The L
W2401AC2 accessory camera does not have a temperature sensor. When this
camera is selected, the monitor will always show a temperature of 68°F/20°C.
have a non-flexible
direct sunlight, as this
Frequently Asked Questions
49

Mounting Template (LW2401 Camera Only)

Mounting Template (LW2401 Camera Only)
Use the mounting template to align mounting holes for your camera.
50
LW2401 / LW2450 / LW2451
Version 5.0
www.lorextechnology.com
Copyright © 2012 Lorex Technology Inc.
Loading...
