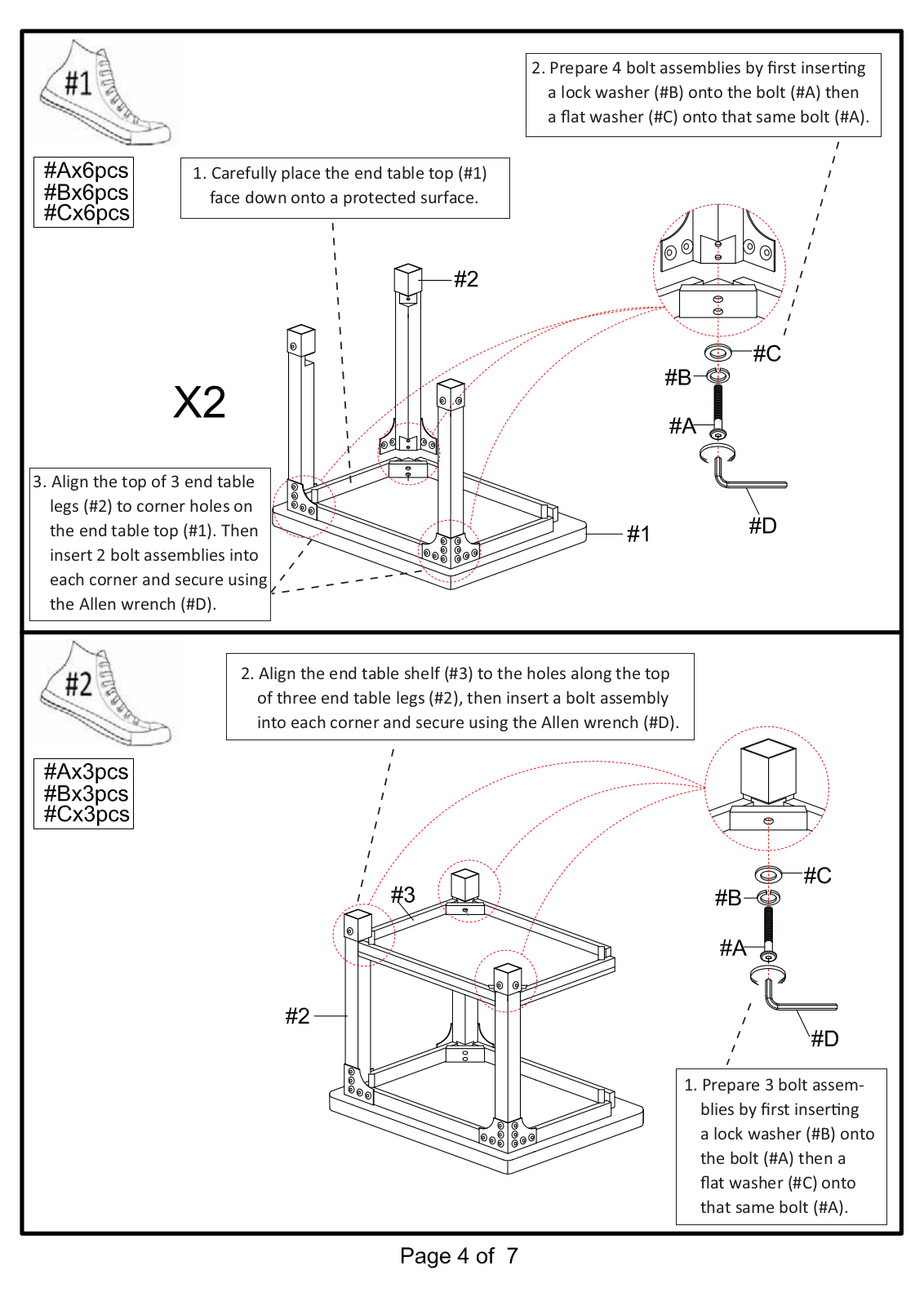

1. Carefully place the end table top (#1)
face down onto a protected surface.
3. Align the top of 3 end table
legs (#2) to corner holes on
the end table top (#1). Then
insert 2 bolt assemblies into
each corner and secure using
the Allen wrench (#D).
2. Prepare 4 bolt assemblies by first inserng
a lock washer (#B) onto the bolt (#A) then
a flat washer (#C) onto that same bolt (#A).
2. Align the end table shelf (#3) to the holes along the top
of three end table legs (#2), then insert a bolt assembly
into each corner and secure using the Allen wrench (#D).
1. Prepare 3 bolt assem blies by first inserng
a lock washer (#B) onto
the bolt (#A) then a
flat washer (#C) onto
that same bolt (#A).

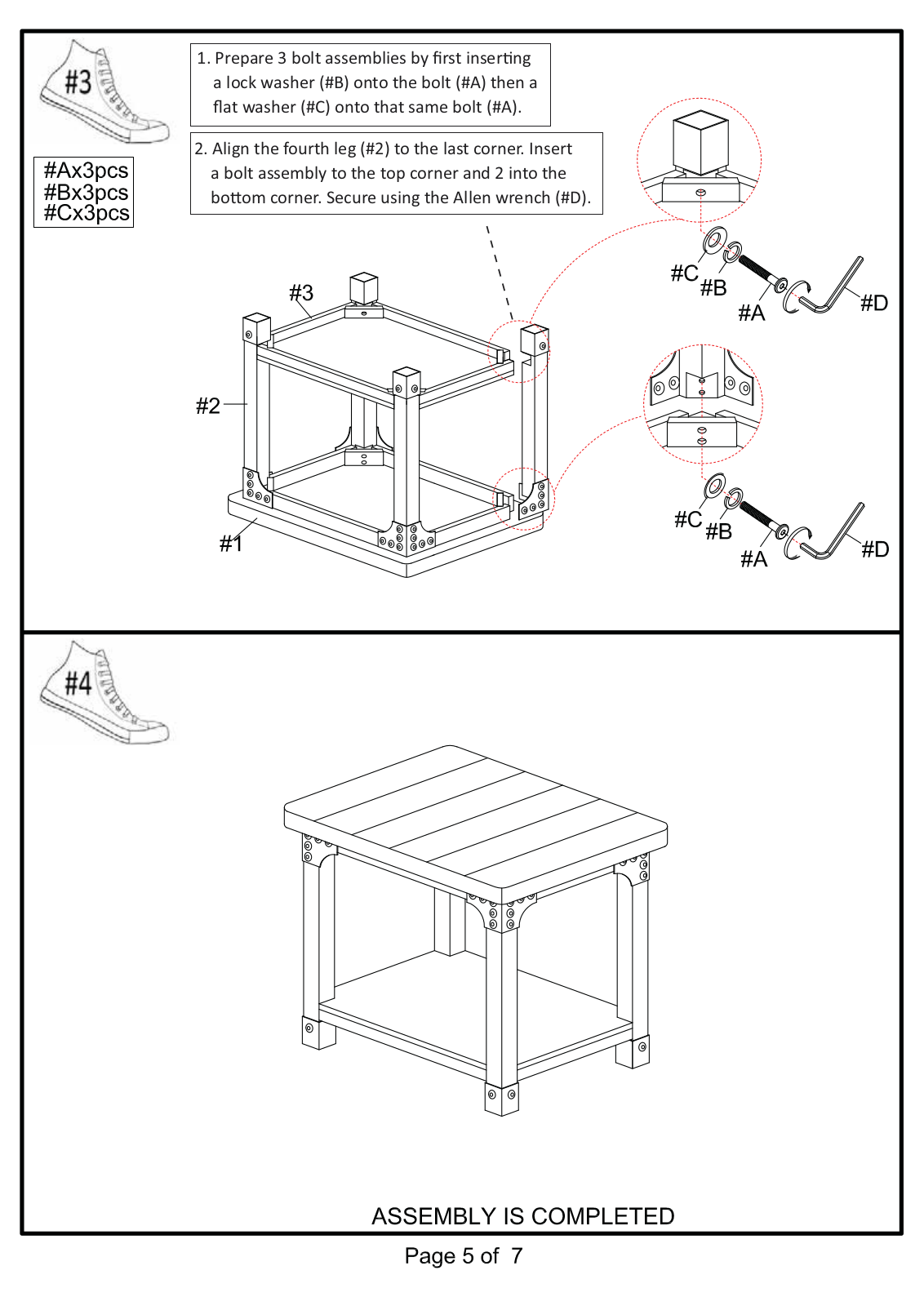

1. Prepare 3 bolt assemblies by first inserng
a lock washer (#B) onto the bolt (#A) then a
flat washer (#C) onto that same bolt (#A).
2. Align the fourth leg (#2) to the last corner. Insert
a bolt assembly to the top corner and 2 into the
boom corner. Secure using the Allen wrench (#D).

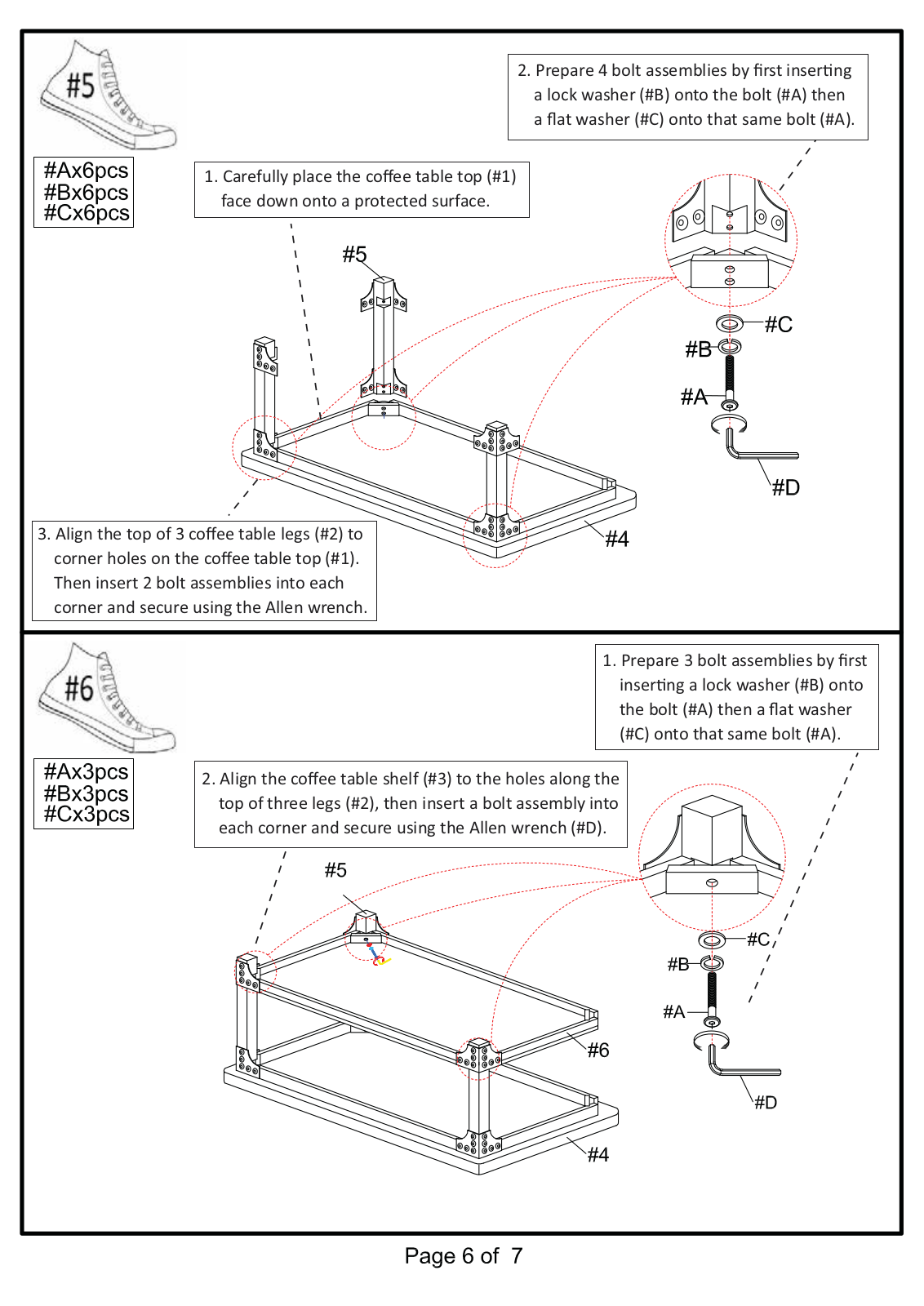

1. Carefully place the coffee table top (#1)
face down onto a protected surface.
2. Prepare 4 bolt assemblies by first inserng
a lock washer (#B) onto the bolt (#A) then
a flat washer (#C) onto that same bolt (#A).
3. Align the top of 3 coffee table legs (#2) to
corner holes on the coffee table top (#1).
Then insert 2 bolt assemblies into each
corner and secure using the Allen wrench.
2. Align the coffee table shelf (#3) to the holes along the
top of three legs (#2), then insert a bolt assembly into
each corner and secure using the Allen wrench (#D).
1. Prepare 3 bolt assemblies by first
inserng a lock washer (#B) onto
the bolt (#A) then a flat washer
(#C) onto that same bolt (#A).

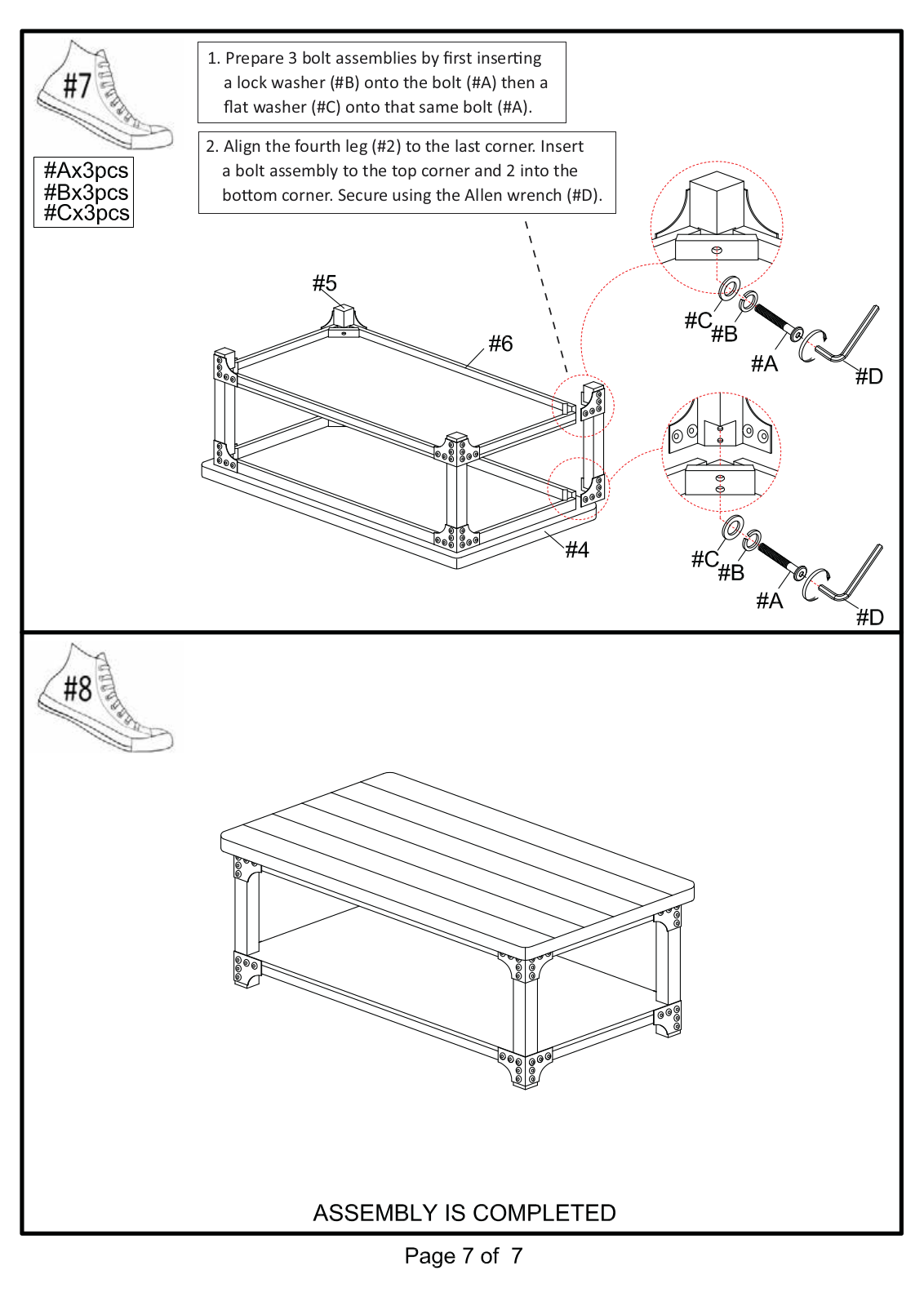

1. Prepare 3 bolt assemblies by first inserng
a lock washer (#B) onto the bolt (#A) then a
flat washer (#C) onto that same bolt (#A).
2. Align the fourth leg (#2) to the last corner. Insert
a bolt assembly to the top corner and 2 into the
boom corner. Secure using the Allen wrench (#D).
