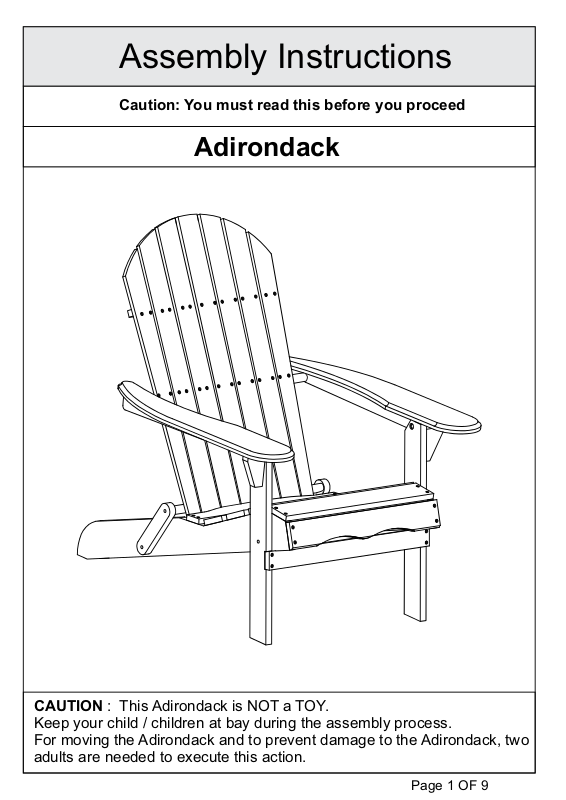

Assembly Instructions
Caution: You must read this before you proceed
Adirondack
CAUTION : This Adirondack is NOT a TOY.
Keep your child / children at bay during the assembly process.
For moving the Adirondack and to prevent damage to the Adirondack, two
adults are needed to execute this action.
Page 1 OF 9

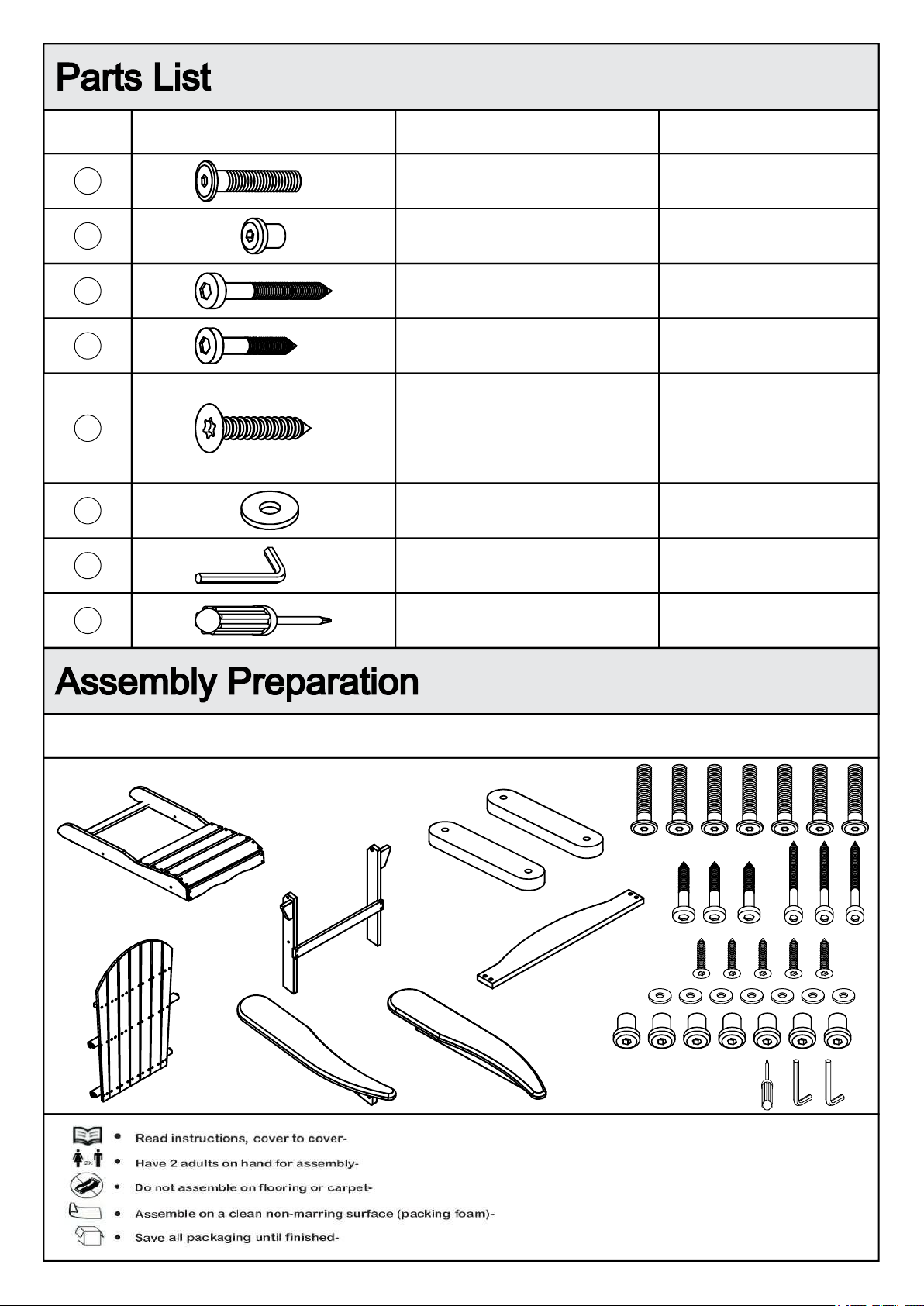

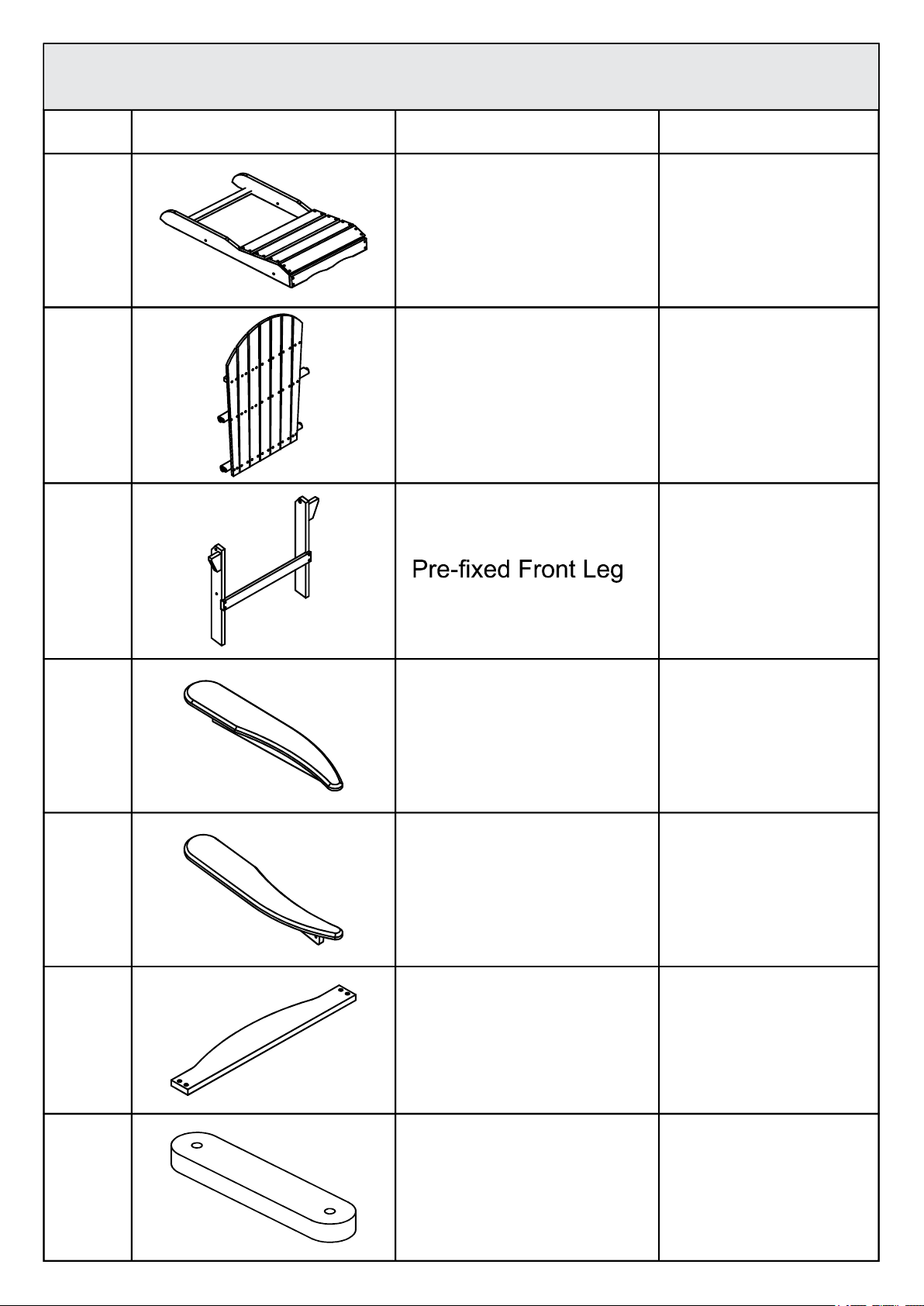

Parts List
Label Picture
A
B
C
Description
Seat Panel
Backrest
QTY
1
1
1
D
E
F
G
Left Armrest
Right Armrest
KD Slat
Folding Support Bar
1
1
1
2
Page 2 OF 9
Label Picture
Description
QTY
1
2
3
4
5
6
7
8
Bolt ( M8x35 )
Sleeve Nut ( M8x15 )
Long Screw ( M7x70 )
Short Screw ( M7x40 )
7
7
3
3
Screw (M4x30mm)
(Use with Screwdriver)
Plastic Washer
Allen Key
Screwdriver
Not provided
5
7
2
Before Beginning Assembly:
Page 3 OF 9

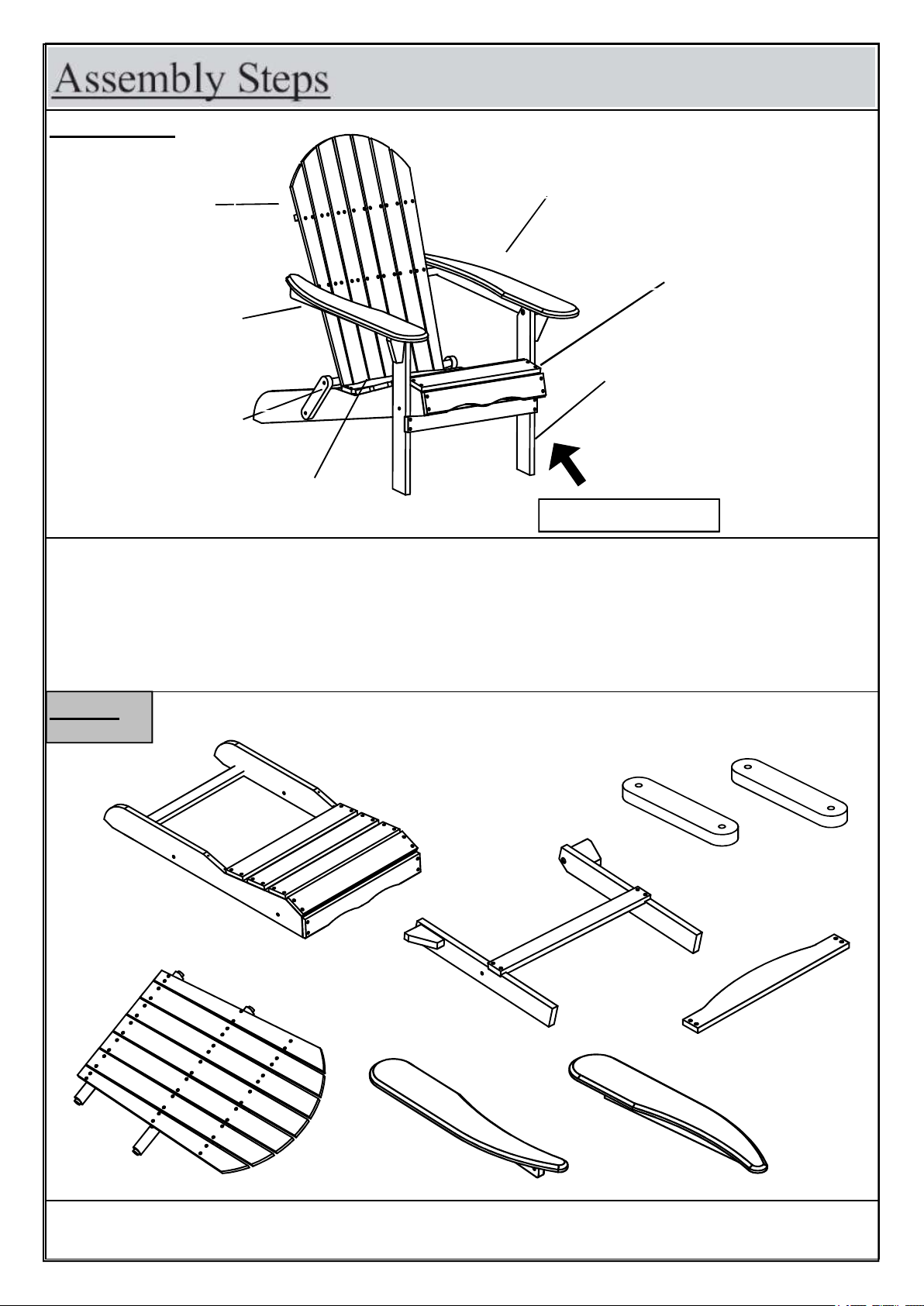

OVERVIEW
Right Armrest (E)
Backrest (B)
Seat Panel
(A)
Left Armrest (D)
Pre-fixed Front Leg (C)
Folding Support Bar (G)
KD Slat (F)
FRONT FACING
This Adirondack has multiple parts and may require up to 30 minutes to
assemble. To give you an overview of the Adirondack parts, the above picture is
to help you put the various parts into perspective. Please read through the
instructions below to familiarise yourself with the parts and steps before
assembly.
Step 1
Unpack and place all parts on a clean, non-marring surface.
Page 4 OF 9

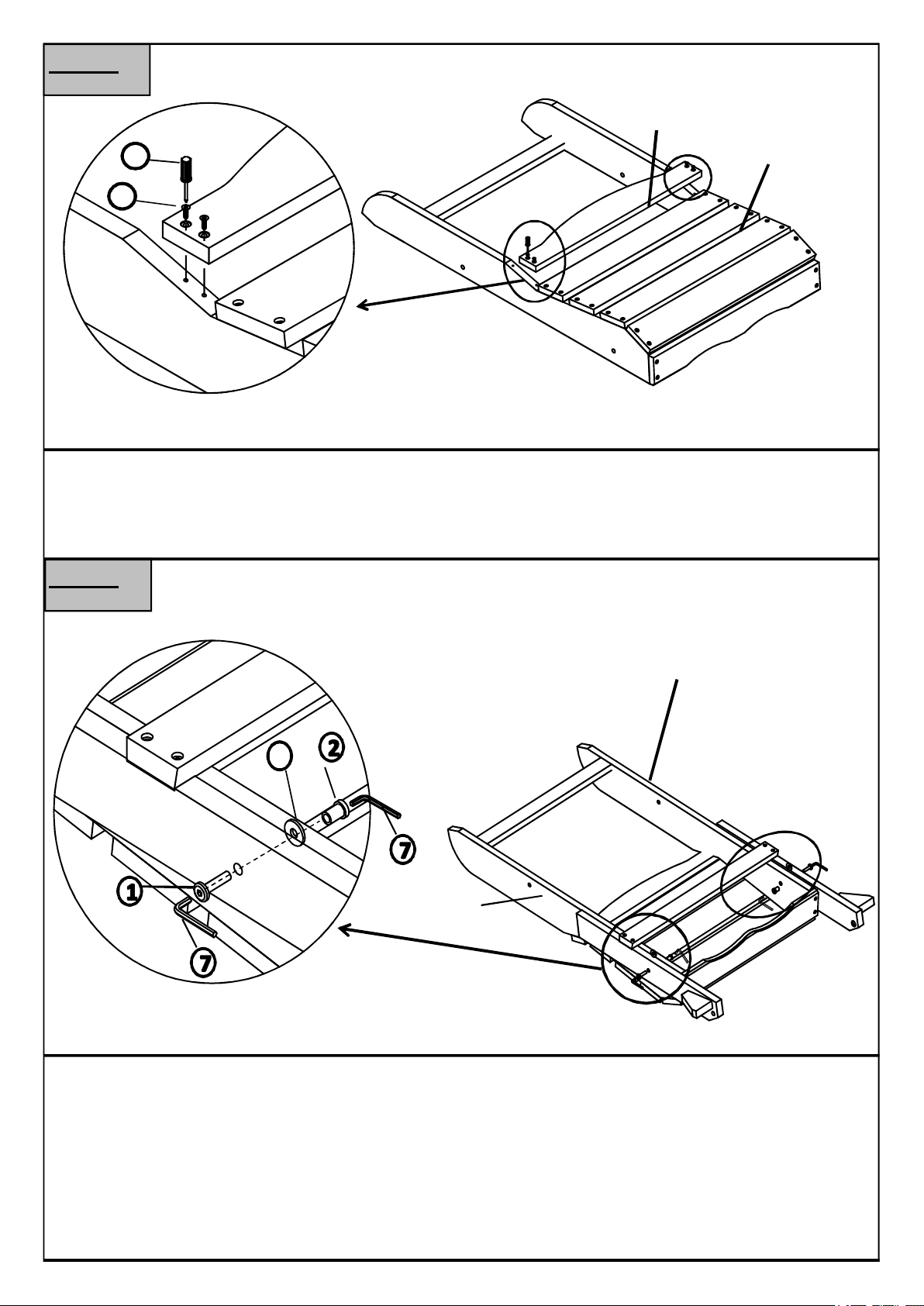

Step 2
F
8
A
5
Place the Seat Panel(A) onto a clean, non-marring surface.
Position KD Slat(F) onto the Seat Panel(A) and attach using 4 Screws(⑤) and
Screwdriver(⑧).
Step 3
6
C
Place the Seat Panel(A) as shown in the picture.
A
Attach Pre-fixed Front Leg(C) to Seat Panel(A) using Bolts(①), Plastic
Washers(⑥), and Sleeve Nuts(②) with Allen Keys( ⑦).
Do not fully tighten Bolts.
Note: The Plastic Washer should be placed between the Seat Panel and
Pre-fixed Front Leg.
Page 5 OF 9

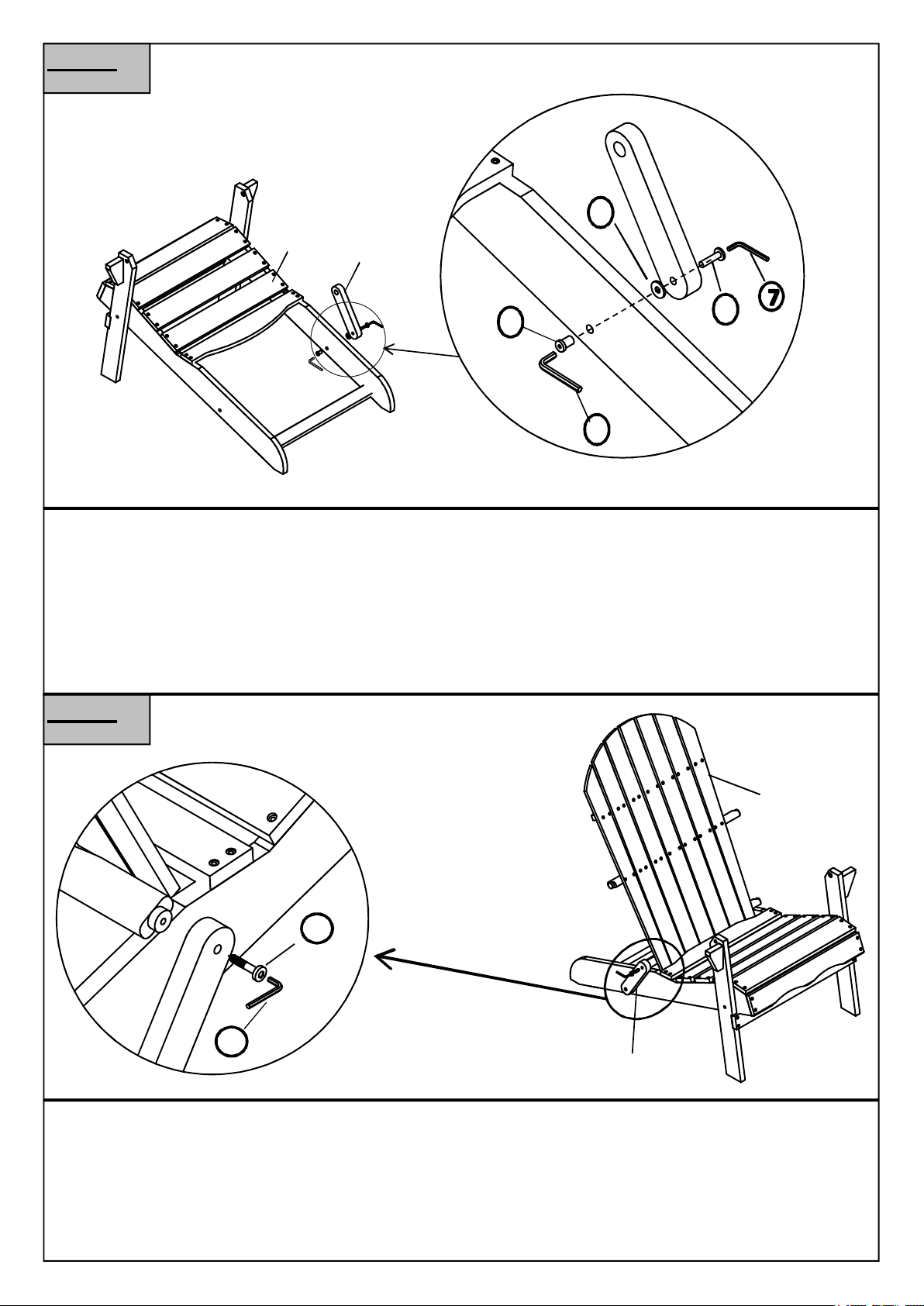

Step 4
6
A
G
1
2
7
Place the Frame in Step 3 in the position as picture above.
Attach Folding Support Bar(G) to Seat Panel(A) using Bolt(①), Plastic
Washer(⑥), and Sleeve Nut(②) with Allen Keys( ⑦).
Do not fully tighten Bolts.
Note: Plastic Washer should be placed between Seat Panel and Folding
Support Bar.
Step 5
B
4
7
G
Position Backrest(B) with mortise into housing of Folding Support Bar(G).
Secure Folding Support Bar(G) to Backrest(B) using Short Screw(④) with Allen
Key(⑦).
Do not fully tighten Screws.
Repeat the same process with the second Folding Support Bar(G).
Page 6 OF 9

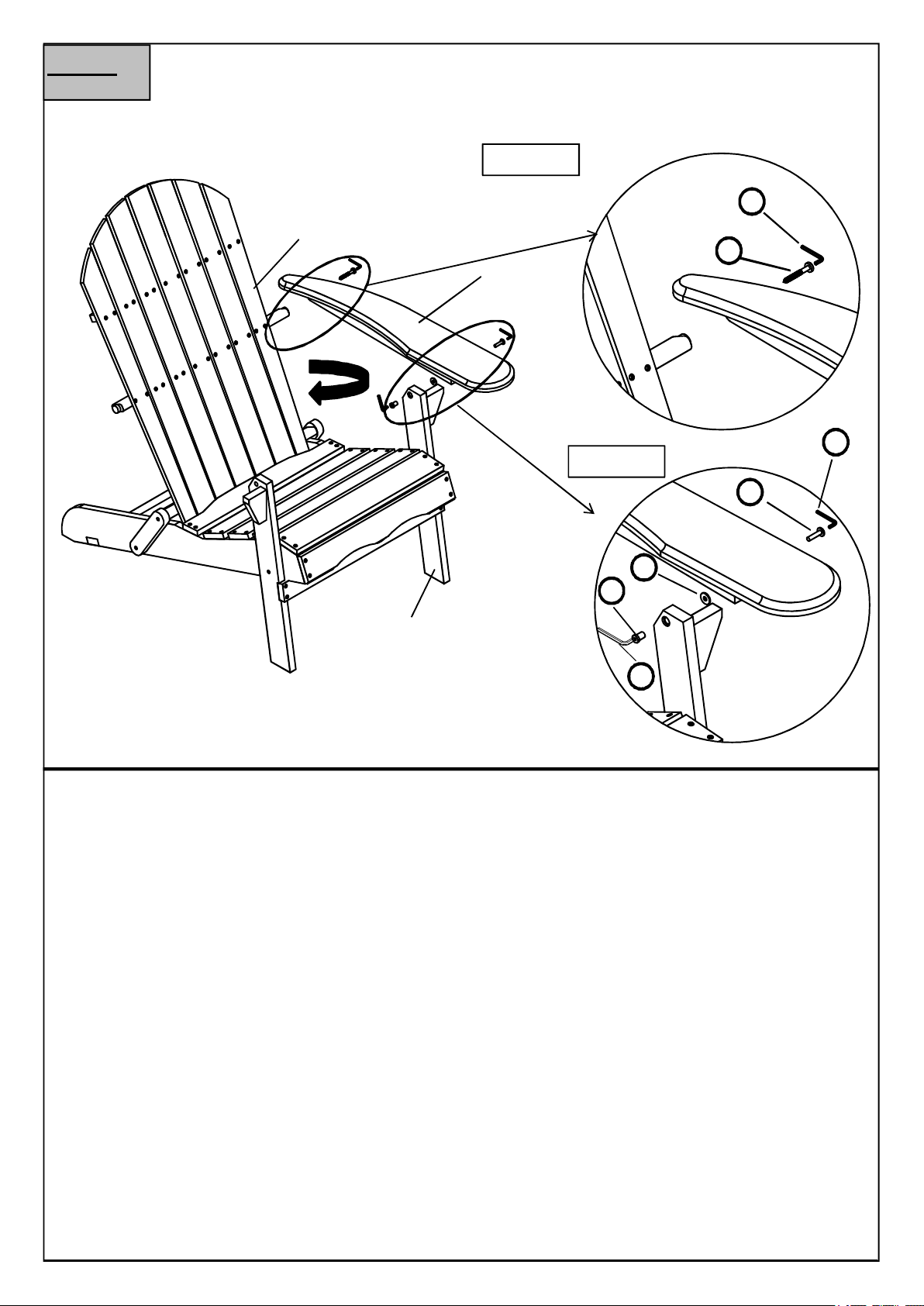

Step 6
Step 6.2
7
B
3
E
7
Step 6.1
1
6
2
C
7
Open Backrest(B) as indicated with the arrow.
6.1) Secure Right Armrest(E) to Pre-fixed Front Leg(C) by using Bolt( ), Plastic ①
Washer( ), and Sleeve Nut( ) with Allen Keys( ).⑥ ② ⑦
6.2) Secure Right Armrest(E) to Backrest(B) using Long Screw( ) with Allen ③
Key( ).⑦
Do not fully tighten Bolts and Screws.
Note: Plastic Washer should be placed between Left Armrest and Pre-fixed
Front Leg.
Repeat the same process with the Left Armrest (D).
In a sequential manner, tighten all Bolts and Screws at all joints until fully
locked into position.
Page 7 OF 9

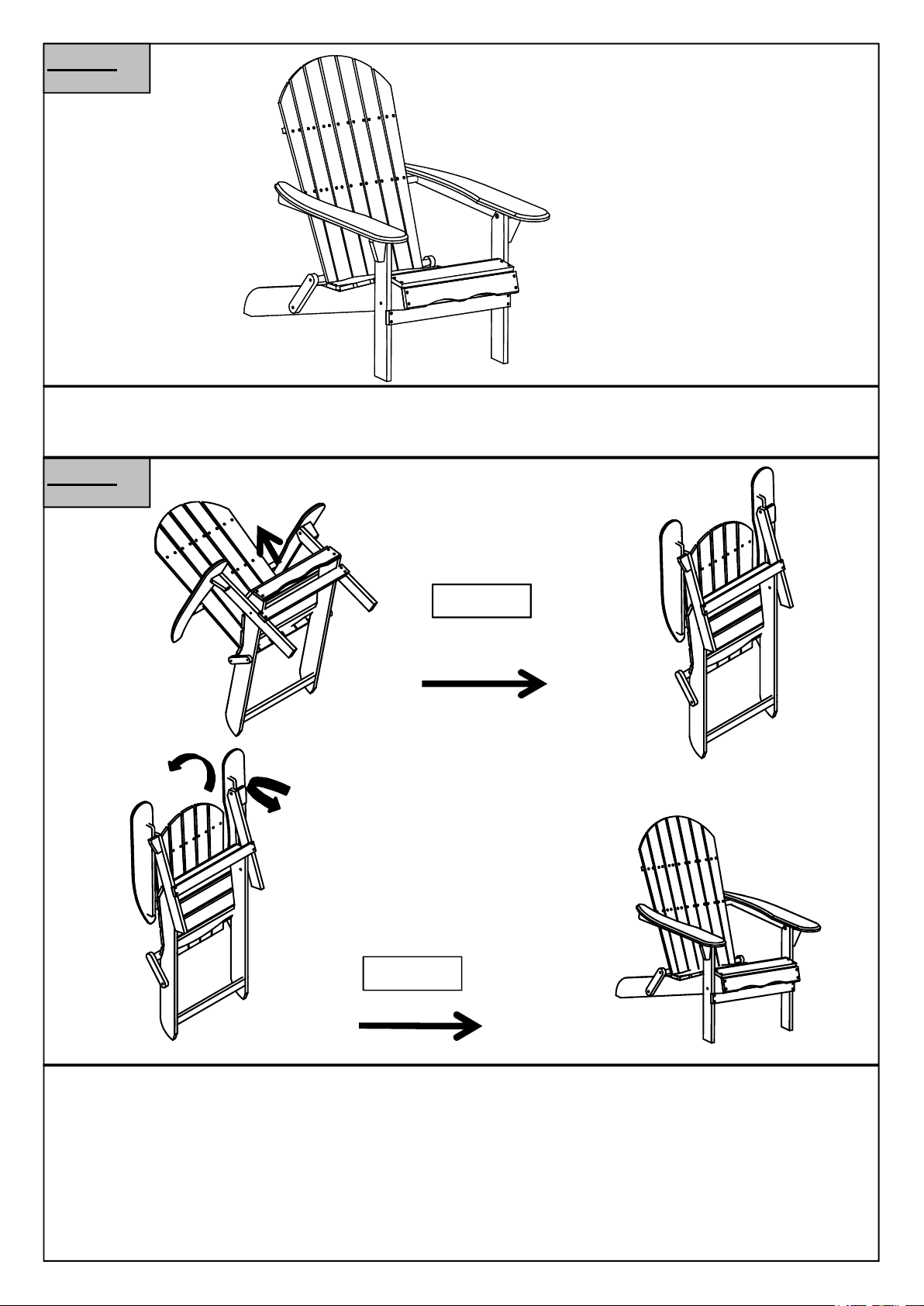

Step 7
Your Adirondack is ready for use.
This Adirondack can only be used on a flat, level surface.
Step 8
To Open
To Fold
This Adirondack can be folded shut.
To fold this Adirondack, raise up Backrest and fold Seat with Leg Frame as
indicated by the arrows, by hand, until the Adirondack folds shut.
To open this Adirondack, open Backrest and Seat as indicated by the arrows, by
hand until the Adirondack folds out and locks into position.
Note: This Adirondack is slightly heavy, do exercise caution to avoid injury.
Page 8 OF 9

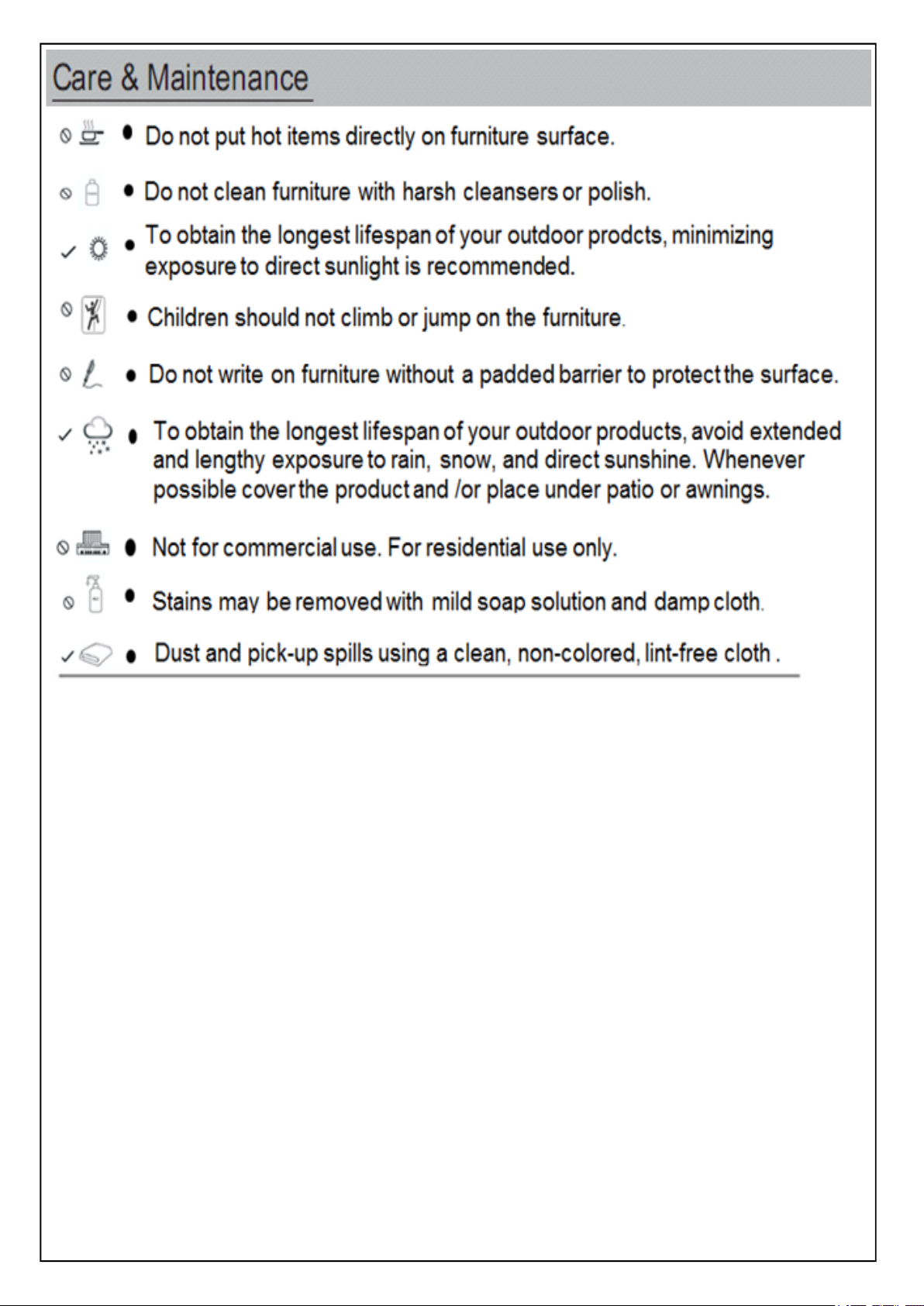

Page 9 OF 9
