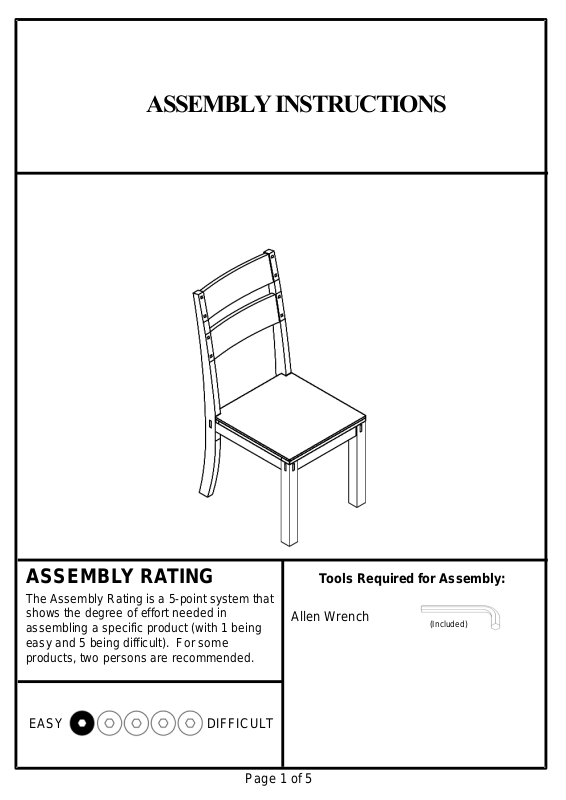

ASSEMBLY INSTRUCTIONS
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
DIFFICULT
Page 1 of 5
Tools Required for Assembly:
Allen Wrench
(Included)
Page 2
Page 2 of 5
Page 3
MD

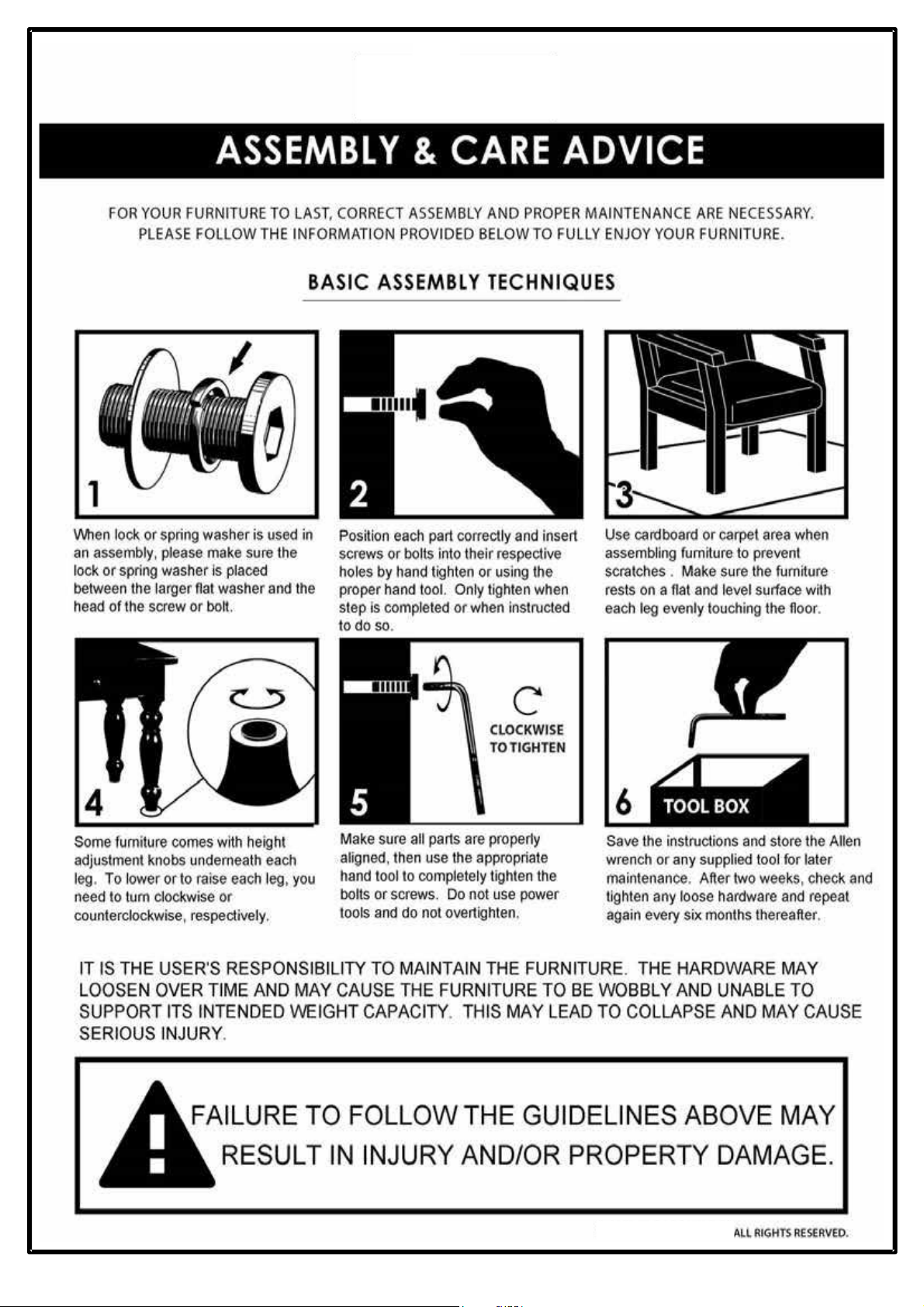

Before you begin, please read Page 2
of “Assembly and Care Advice”.
And remember, do not tighten until
each step is completed or instructed.
Parts List
#1 x 1 pc x 2
Backrest w/ Legs
#2 x 1 pc x 2
Seat
#3 x 2 pcs x 2
Front Legs
Hardware List
#A x 1 pc x 2
Bolt 5/16”x2”
#B x 4 pcs x 2
Bolt 5/16”x2-1/8”
#C x 4 pcs x 2
Bolt 5/16”x3-1/2”
#D x 9 pcs x 2
Flat W asher
#E x 9 pcs x 2
Lock W asher
X 2
#F x 1 pc
Allen Wrench
Note: The above parts and hardware are shown for
a complete assembly of ONE chair. However, the
actual parts and hardware (with an exception of the
Allen wrench) in the box will be twice the quantities
listed to include the assembly of the second chair.
Page 3 of 5
Page 4
#A x 1 pc
#D x 1 pc
#E x 1 pc

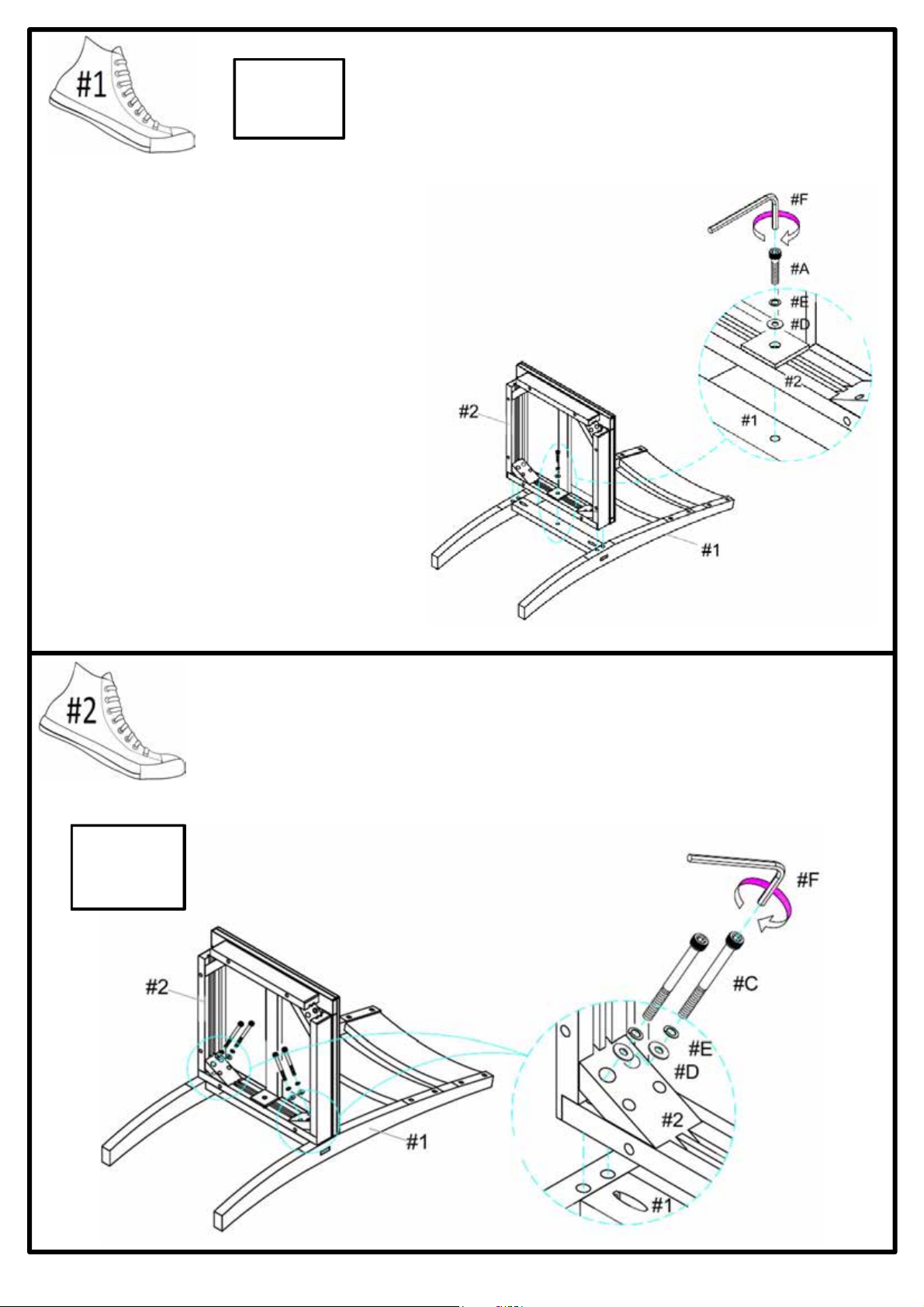

I. Place the backrest with legs (#1)
on a protected
surface.
Align the
seat (#2) with the pre-drilled
holes of the backrest
with
legs
(#3).
II.
Prepare a bolt assembly by
inserting FIRST the lock washer
(#E) onto the bolt (#A) and then
the flat washer
SAME
bolt (#A), in that order
(#D) onto
the
.
III. Insert the bolt assembly through
the pre-drilled hole on the center
of the seat (#2) and secure that
bolt using
to lock it with the
the
Allen wrench (#F)
backrest
with
legs (#1).
Turn right (clockwise) to tighten
#C x 4 pcs
#D x 4 pcs
#E x 4 pcs
I. Prepare 4 bolt assemblies by inserting FIRST the lock washer
(#E) onto the bolt (#C) and then
SAME
bolt (#C), in that order.
II. Insert the bolt assemblies through the pre-drilled holes in
the flat washer
(#D) onto the
the
corners of the seat (#2) and secure those bolts using the
Allen wrench (#F) to lock them with the backrest with legs
(#1).
Turn right (clockwise) to tighten
Page 4 of 5
Page 5
#B x 4 pcs
#D x 4 pcs
#E x 4 pcs

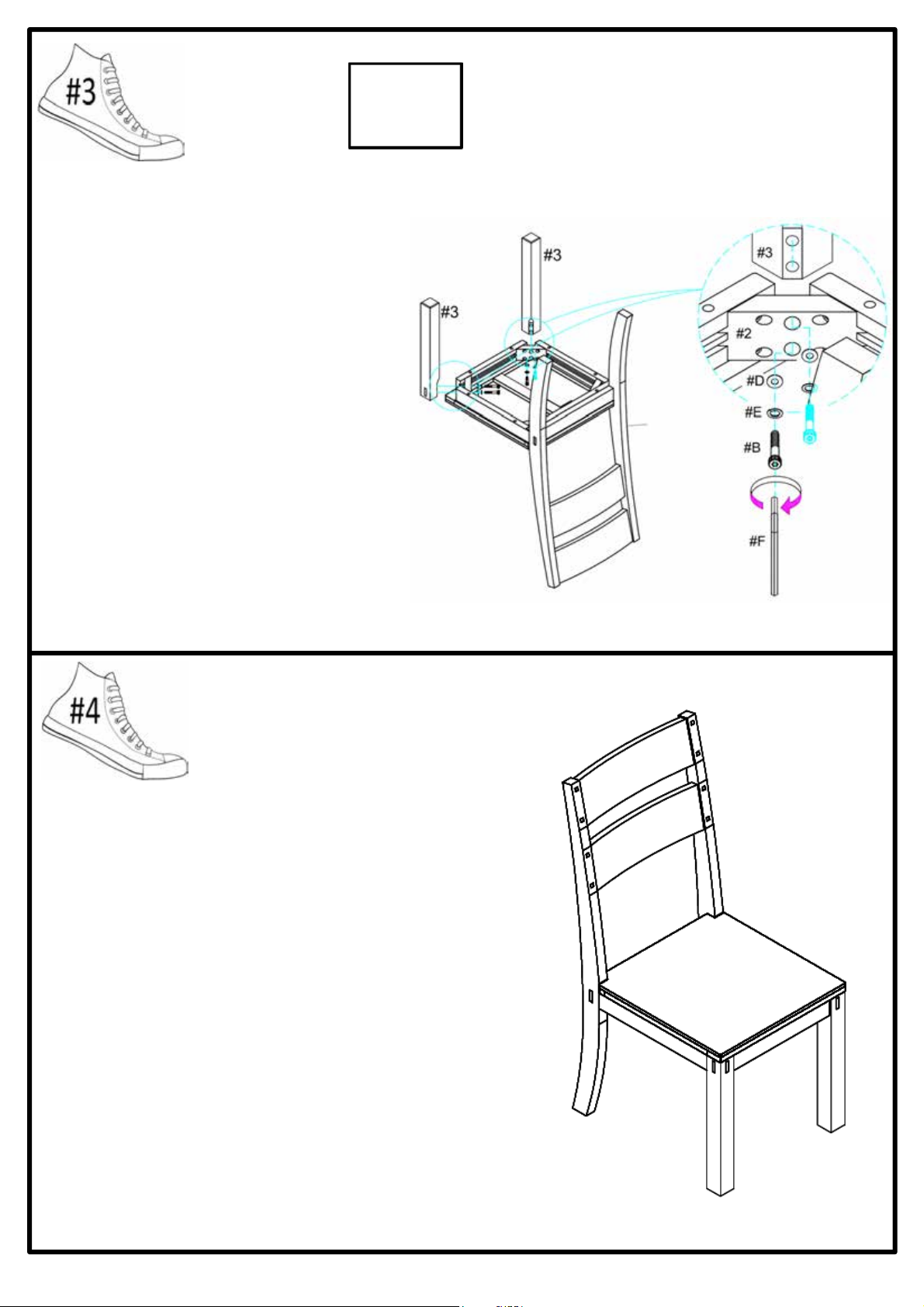

I. Align the 2 front legs (#3) with
the pre-drilled holes on the
corners of the seat (#2).
Prepare 4 bolt assemblies
II.
by
inserting FIRST the lock washer
(#E) onto the bolt (#B) and then
the flat washer
SAME
III.
Insert the bolt assemblies
bolt (#B), in that order .
(#D) onto
the
through the pre-drilled holes in
the corners of the seat (#2) and
secure those bolts using the
Allen wrench (#F) to lock them
with the two front legs (#3).
#2
#1
Carefully place the completed chair upright.
Make sure the chair is rested on a flat surface
and does not feel loose or wobbly. If it does,
double check that the bolts/screws are
secured and properly tightened.
Turn right (clockwise) to tighten
ASSEMBLE EVERYTHING EXACTLY THE SAME FOR THE SECOND CHAIR
Page 5 of 5
