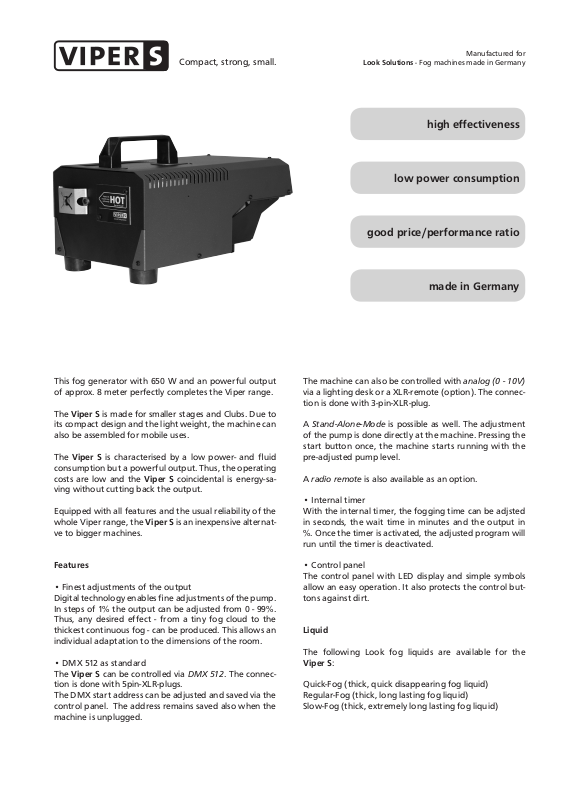

Look Solutions VI-0271 Specifications
Compact, strong, small.
Look Solutions - Fog machines made in Germany
Manufactured for
high effectiveness
low power consumption
good price/performance ratio
made in Germany
This fog generator with 650 W and an powerful output
of approx. 8 meter perfectly completes the Viper range.
The Viper S is made for smaller stages and Clubs. Due to
its compact design and the light weight, the machine can
also be assembled for mobile uses.
The Viper S is characterised by a low power- and fluid
consumption but a powerful output. Thus, the operating
costs are low and the Viper S coincidental is energy-saving without cutting back the output.
Equipped with all features and the usual reliability of the
whole Viper range, the Viper S is an inexpensive alternat-
ve to bigger machines.
Features
• Finest adjustments of the output
Digital technology enables ne adjustments of the pump.
In steps of 1% the output can be adjusted from 0 - 99%.
Thus, any desired effect - from a tiny fog cloud to the
thickest continuous fog - can be produced. This allows an
individual adaptation to the dimensions of the room.
• DMX 512 as standard
The Viper S can be controlled via DMX 512. The connec-
tion is done with 5pin-XLR-plugs.
The DMX start address can be adjusted and saved via the
control panel. The address remains saved also when the
machine is unplugged.
The machine can also be controlled with analog (0 - 10V)
via a lighting desk or a XLR-remote (option). The connection is done with 3-pin-XLR-plug.
A Stand-Alone-Mode is possible as well. The adjustment
of the pump is done directly at the machine. Pressing the
start button once, the machine starts running with the
pre-adjusted pump level.
A radio remote is also available as an option.
• Internal timer
With the internal timer, the fogging time can be adjsted
in seconds, the wait time in minutes and the output in
%. Once the timer is activated, the adjusted program will
run until the timer is deactivated.
• Control panel
The control panel with LED display and simple symbols
allow an easy operation. It also protects the control buttons against dirt.
Liquid
The following Look fog liquids are available for the
Viper S:
Quick-Fog (thick, quick disappearing fog liquid)
Regular-Fog (thick, long lasting fog liquid)
Slow-Fog (thick, extremely long lasting fog liquid)
Specifications Dimensions
Procedure Vaporizing fog generator
Power requirement 650 Watt
Voltage 230 V/50 Hz or 120 V/60 Hz
Heat-up time approx. 7 minutes
Fog output adjustable in 99 steps (1% steps)
Fluid tank capacity 750 ml (25.3 oz)
Fluid consumption 60 ml/min. at max. output (2 oz)
15 ml/min. at cont. output (0.5 oz)
Output projection max. 8 m (26.2 ft)
Fog time at 100% approx. 35 seconds
at <50% continuous output
Temperature control Microprocessor controlled
Overheating protection Heater block with thermostat
Pump with temperature switch
Control DMX 512
0-10 V analog
Stand alone
internal timer
Radio remote (option)
Dimensions (L x B x H) 35 x 18 x 19 cm (13.7 x 7.1 x 7.5 in)
Weight without canister 5.4 kg (11.9 lb)
35 cm (13.7 in)
19 cm
(7.5 in)
18 cm (7.1 in)
Advantages
• DMX 512 as standard, analog (0 - 10 V) and
Stand-alone-mode
• Internal timer
• Control panel eith LED-display and simple symbols for
an easy operation
• Powerful output
• Fog output adjustable in steps of 1%
• Continuous output
• Made in Germany
Accessories
• XLR-remote for analog control
• Radio remote
• Duct adaptor for hose diameter 65 mm
• Flightcase
Service
Based on the strong partnership with the german
manufacturer, Look Solutions is able to provide a quick
and easy service which guarantees the high quality of all
products.
www.looksolutions.com
