Logitech Far East VR0012, VR0010 User Manual [en, fr, es, pt]

RALLY CAMERA

Setup Guide | Guide d’installation

English . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . 10

Español. . . . . . . . . . . . . 17

Português . . . . . . . . . . . 24

2

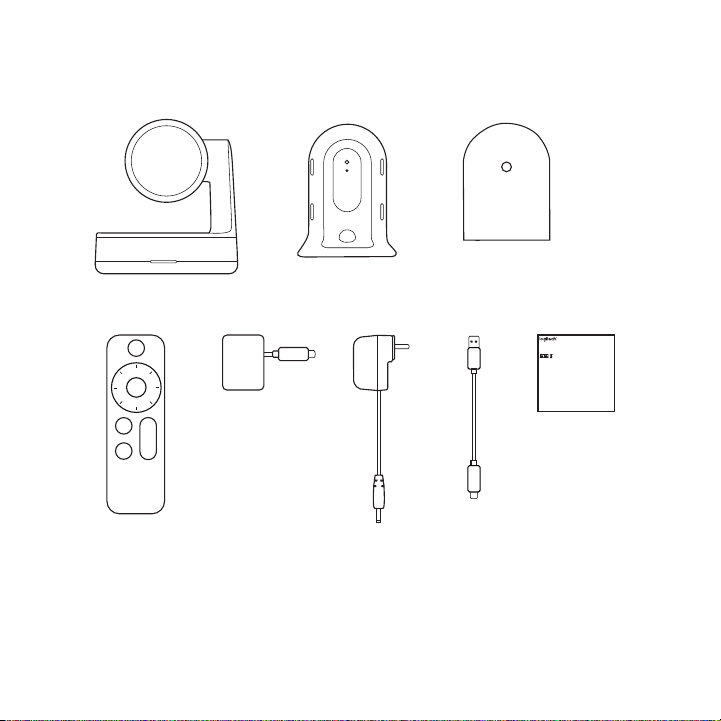

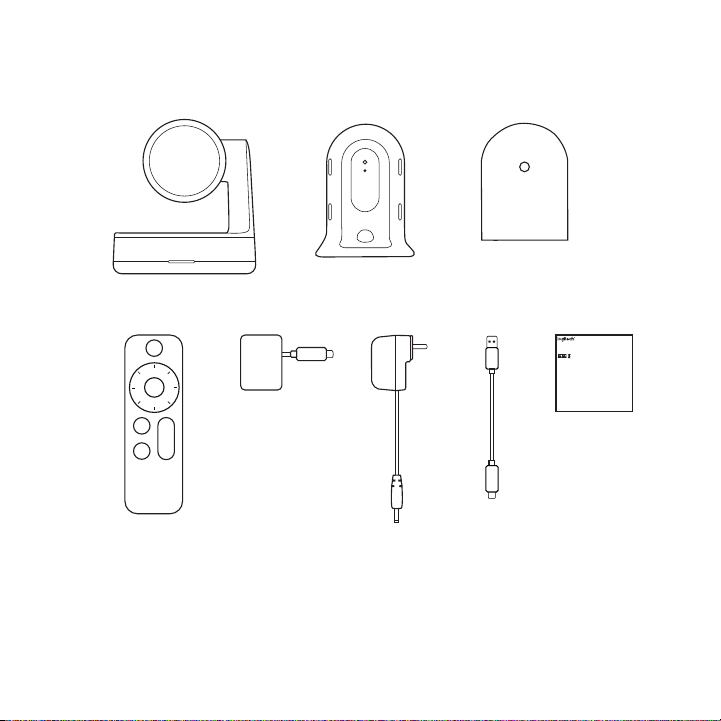

WHAT’S IN THE BOX

right

1

4

1. Camera

2. Camera Mount

3. Power Splitter Case

4. Remote

2 3

5 6 7 8

5. Power Splitter

6. Power Adapter

7. USB Cable

8. Documentation

Important Safety, Compliance and Warranty Information

Informations importantes concernant la sécurité, la mise en conformité et la garantie

FCC statement

English

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

Read Manual Before Product Use.

two conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in

POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply

a commercial environment. This equipment generates, uses, and can radiate radio frequency

included with your product. Do not attempt to repair or use a damaged power supply. Do not

energy and, if not installed and used in accordance with the instruction manual, may cause

immerse the power supply in water or subject it to physical abuse. Inspect the power supply

harmful interference to radio communications. Operation of this equipment in a residential

regularly for cable, plug, and casing damage.

area is likely to cause harmful interference in which case the user will be required to correct

BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion

the interference at his own expense.

and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical

Warning: Where shielded interface cables or accessories have been provided with the

burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above

product or specified additional components or accessories elsewhere defined to be used with

54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed,

the installation of the product, they must be used in order to ensure compliance with FCC.

or in any way abnormal. Do not leave your battery discharged or unused for extended periods.

Changes or modifications to product not expressly approved by Logitech, Inc could void your

Do not short circuit. Your device may contain an internal, rechargeable battery that is not

to use or operate your product by the FCC.

replaceable. Battery life varies with usage. Non-operational batteries should be discarded

Radiation Exposure Statement: This equipment complies with FCC and IC radiation exposure

according to local laws. If no laws or regulations govern, dispose of your device in a waste bin

limits set forth for an uncontrolled environment. This equipment should be installed and operated

for electronics. Keep batteries away from children.

with minimum distance 20cm between the radiator & your body.

BUTTON BATTERIES—WARNING! Coin-sized and button batteries may be easily swallowed,

Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce

which may cause personal injury and death in children and senior citizens. Keep these batteries

the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power

away from children! Do not allow children to play with or be in contact with these batteries

radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-

or this product at any time. Add further security to the battery compartment as necessary.

5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Never place batteries in your mouth for any reason as they may be swallowed accidentally.

IC statement: CAN ICES-3 (A) / NMB-3 Class (A)

Always check medication before ingesting as adults have mistaken button batteries for pills or

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the

tablets. If a button battery is ingested, seek medical attention immediately. Contact the National

following two conditions: (1) This device may not cause interference; and (2) This device must

Battery Ingestion Hotline at [phone]. It is available 24 hours a day.

accept any interference, including interference that may cause undesired operation of the device.

Safe Usage Guidelines for Products

Warning

• Do not open or modify the product except for battery removal and replacement.

This is a class A product. In a domestic environment this product may cause radio interference

• Do not disassemble or attempt to service this product.

in which case the user may be required to take adequate measures.

• This product is safe under normal and reasonably foreseeable operating conditions.
Logitech Limited Hardware Product Warranty – A Summary

• If product is operating improperly, please contact Logitech support.

Logitech warrants that its hardware product shall be free from defects in materials and

• Product must be returned to the manufacturer for any service or repair.
workmanship for the length of time identified on your product package beginning from the date

• This is not a Children's Product and is not intended for use by children under 14 years old.
of the original retail purchase. See support.logitech.com for specific warranty information about

• Warning: Not suitable for children under 36 months. Small parts. Choking hazard.
your product and procedures to act on a warranty claim.

• Mount device properly according to the provided instructions. Improper installation of
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be,

this product may cause damage or injury.

at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund

Logitech Compliance. For Product Safety, EMC, RF and Energy information,

the price paid, if the hardware is returned to the point of purchase or such other place as Logitech

go to www.logitech.com/compliance. Maintenance is not required for product compliance.

may direct along with a receipt. Warranty protections are in addition to rights provided under
local consumer laws and may vary among countries. See full warranty information to know
your consumer rights and the additional protections provided by this product warranty.

Logitech Address: Logitech, Inc., 7700 Gateway Blvd. Newark, California 94560.
Full Warranty Information: support.logitech.com

English 3

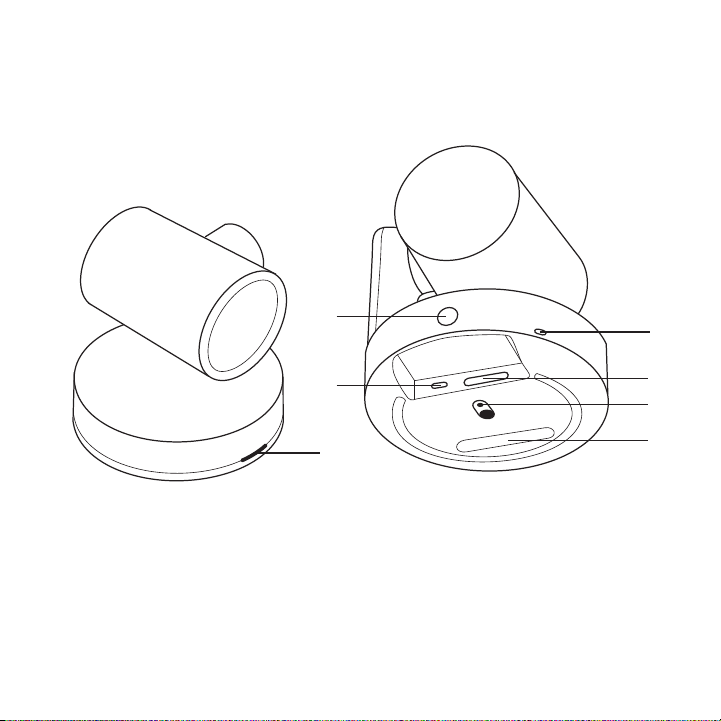

WHAT’S WHAT

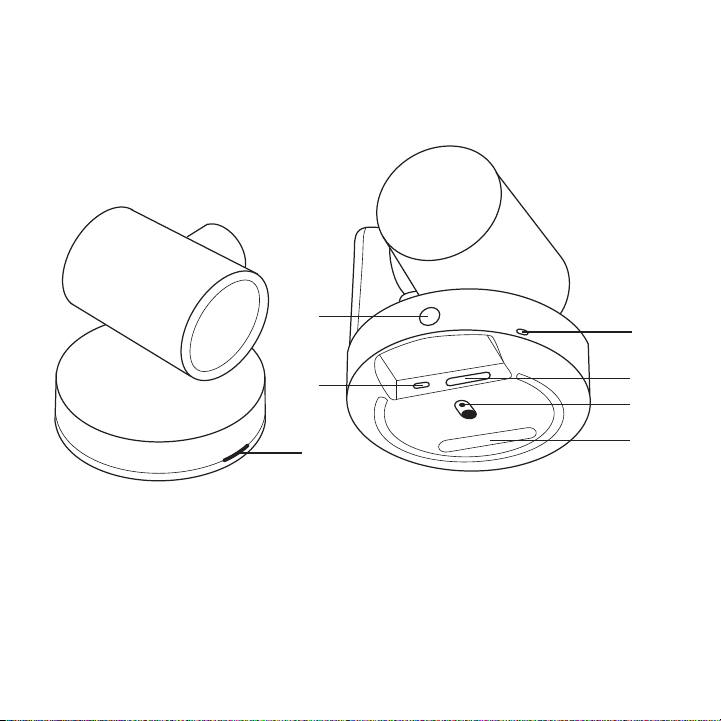

CAMERA

1. Remote Pairing Button

2. USB

3. Status LED

4 English

1

2

3

4

5
6

7

4. Security Slot

5. MIPI

6. Tripod Thread

7. Expansion Slot

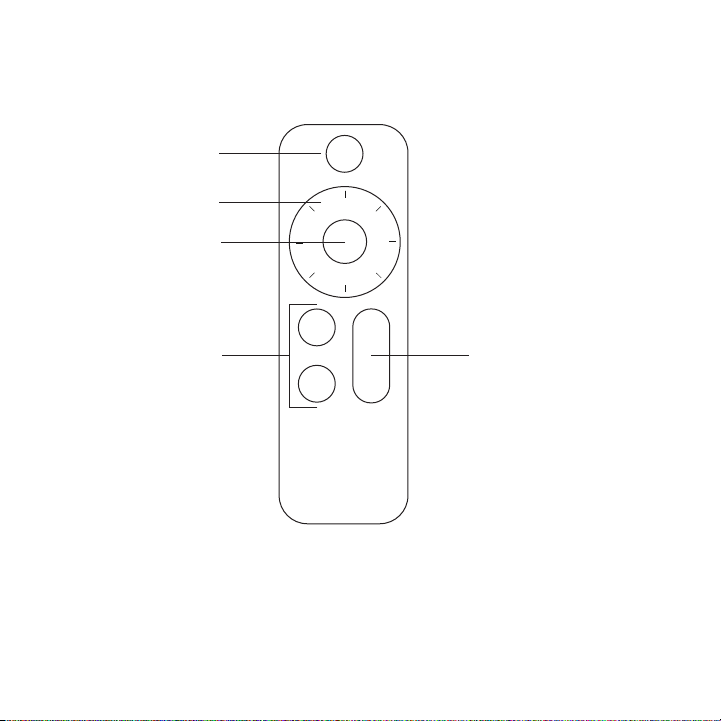

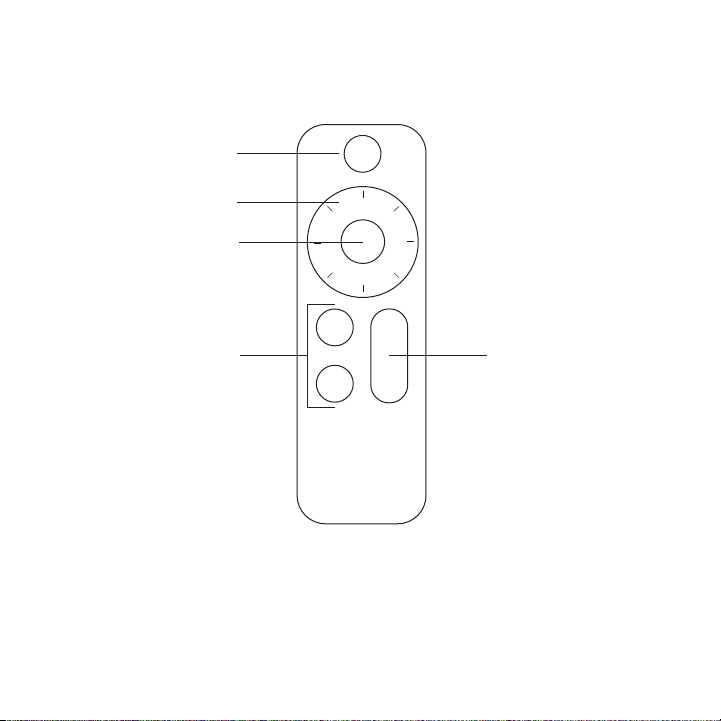

REMOTE

1

2

3

4 5

1. Video Mute

2. Pan/Tilt

3. Camera Home

4. Camera Presets

5. Zoom In/Out

English 5

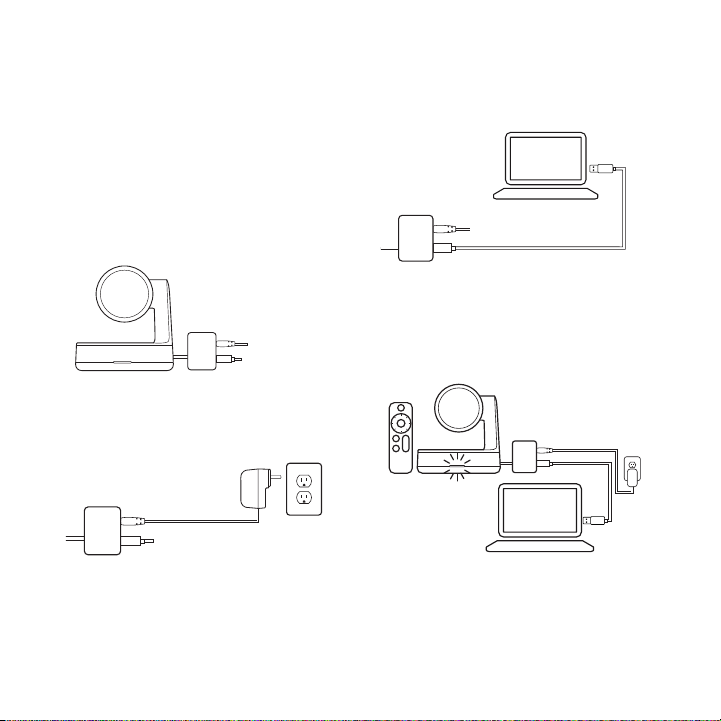

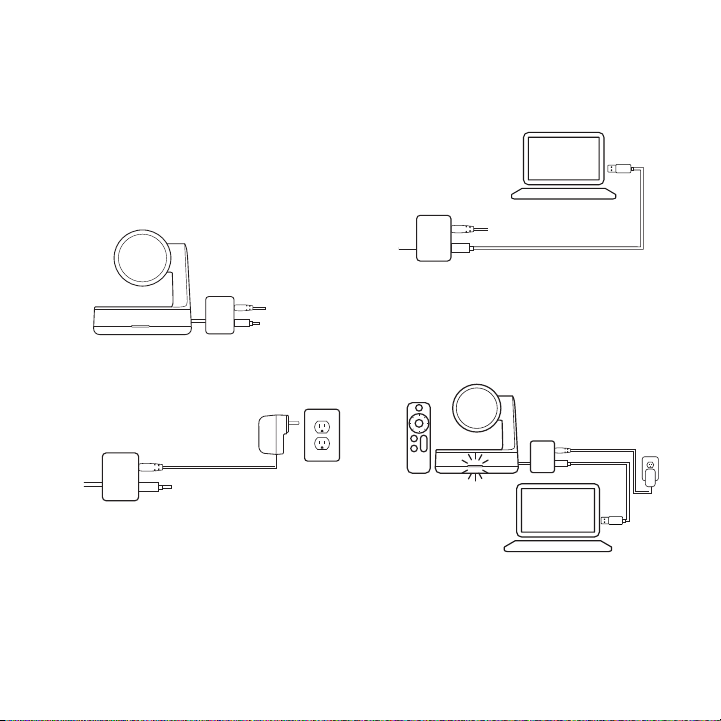

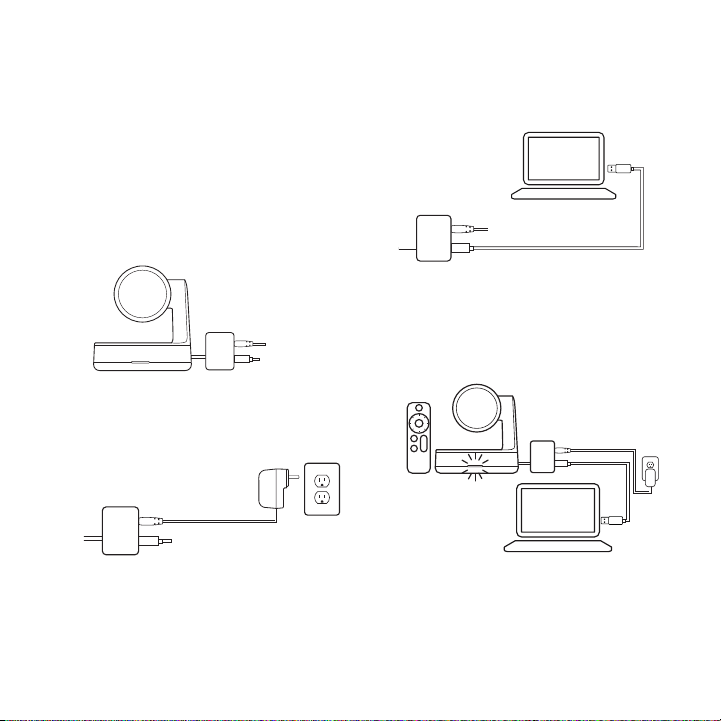

CONNECT YOUR CAMERA

Connecting Rally Camera is the same
whether you plan on using a dedicated
computer in the room, or your team
members bring a laptop to the room
to run the meeting.

1. Plug the power splitter USB pigtail

into the USB port of the camera.

2. Connect the power adapter from

the power splitter to a wall outlet.

3. Connect the USB cable from

the power splitter to your computer.

4. The status LED will ash when

the camera is connecting.
Once complete, the camera head
will rotate.

5. If issues persist, consult

www.logitech.com/support/
rallycamera or call technical support.

6 English

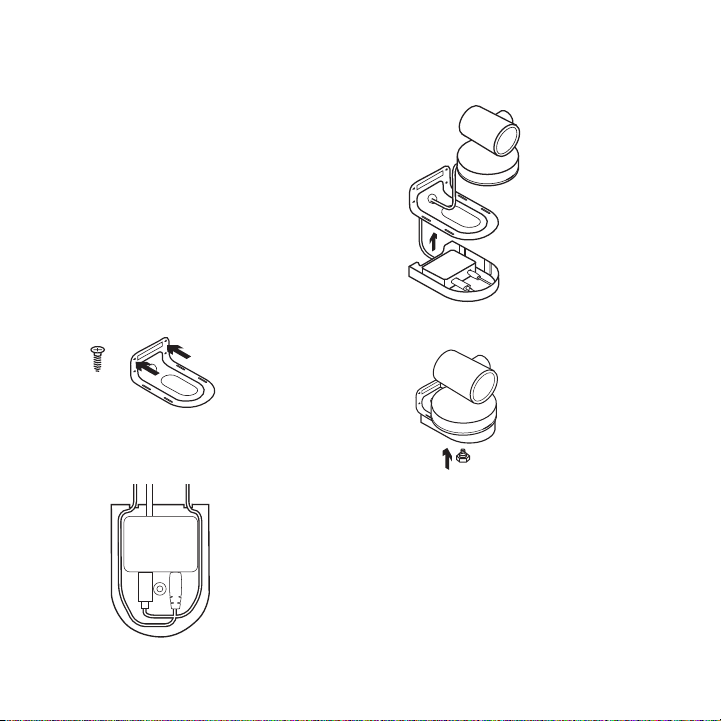

MOUNT YOUR CAMERA

We oer a numer of options to mount
your Rally Camera. For video calls,
we recommend placing the camera as
close to eye level as possible. Best results
typically come from mounting below
the T V.

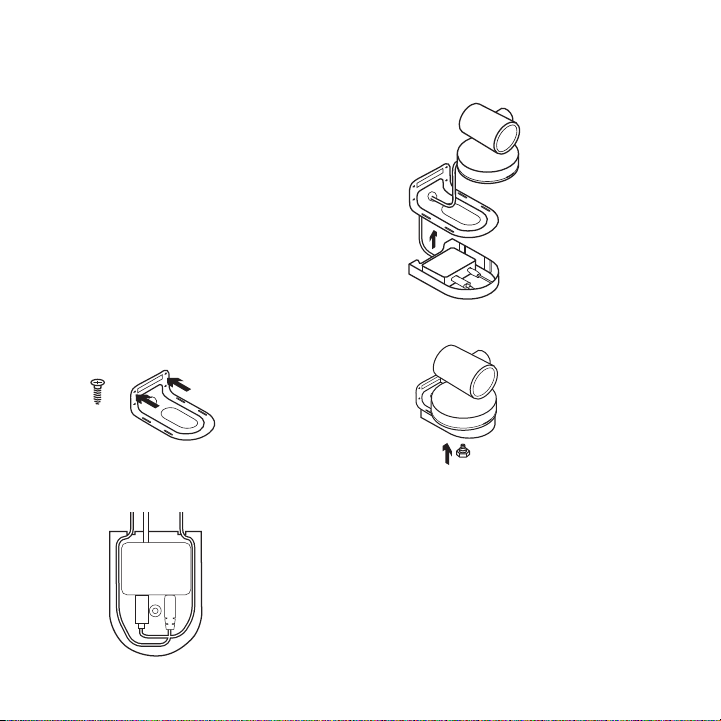

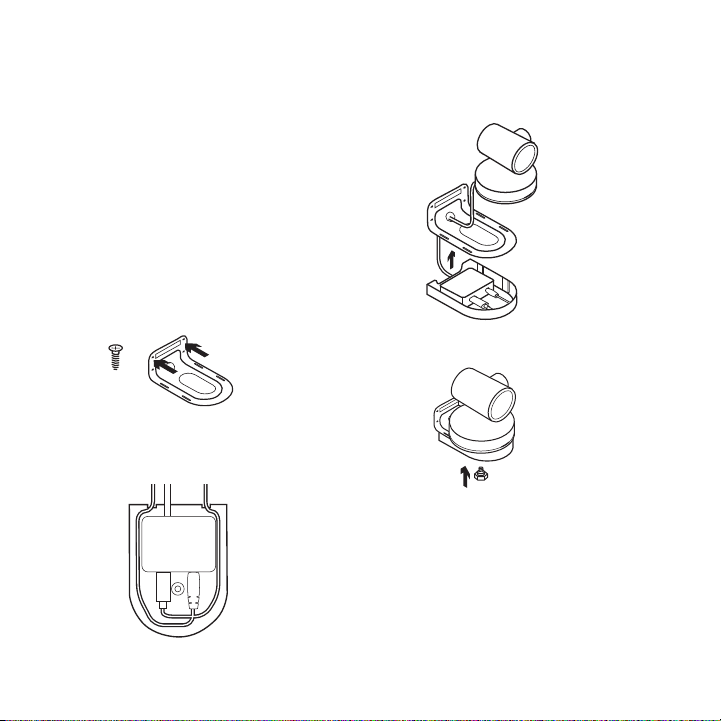

1. Place on a table or shelf near the TV.

2. Mount on the wall:
a. Attach wall mount to the wall.

Please use the appropriate screw
type for your wall type.

c. Thread the USB pigtail through

the hole in the bottom of
the mount and connect to
the camera.

x2

b. Insert the power splitter into

the power splitter case and route
cables as shown.

d. Latch the power splitter case

to the mount.

e. Secure the camera to the mount

via the tripod screw.

3. Mount to the TV: An optional

TV mount bracket is available
at www.logitech.com.

English 7

STARTING THE VIDEO CALL

To start a video call/capture session, start
your application of choice and select
the Rally Camera. The status LED will
illuminate when video is streamed.

Note regarding 4K video: The USB

2.0 cable included with Rally Camera
supports Full HD video (up to 1080p).
If you require 4K video, please use
a USB 3.0 cable (not included).

PAN AND TILT

Press once for incremental movement or
press and hold for continuous pan and tilt.

Caution: Manually rotating camera
head may damage the device.

CAMERA PRESETS

Set up to 2 preset positions. Once in the
desired position, save a preset by pressing
and holding the button for 3 seconds.
Return to the desired position at any time
by pressing the button once

HOME

Home will be the position the camera
moves to when the camera is started.
Save a new Home position by holding
the button for 10 seconds.

8 English

CAMERA SETTINGS
APPLICATION

Use this program to control the camera
pan, tilt, zoom, focus, and image
quality (like brightness and contrast).
The software can be downloaded from
www.logitech.com/support/rallycamera

RIGHTSIGHT

This function to automatically frame the
people in the room will be downloaded
after the camera is rst connected to
a computer (Windows only). To enable
the function on a Mac or if the download
is blocked on Windows, install the Camera
Settings Application. RightSight will run
at the start of a video call/capture session
and on demand by pressing the Home
button. To disable the RightSight function,
use the Camera Settings Application.

PAIRING THE REMOTE

Your camera and remote control are paired at the factory. However, if you need to pair
a remote to the camera (such as when replacing a lost remote) do the following:

1. Press and hold button on the back of the camera until LED ashes blue.

2. Press and hold the Video Mute button on the remote for 10 seconds to place it

in pairing mode.

3. Once the remote and camera are paired the LED will stop ashing

4. If the pairing fails, the LED will keep ashing. Start from step 2 and repeat.

FOR MORE INFORMATION

You can nd additional information on Rally including:

– FAQ s
– Firmware Upgrades
– Software Downloads
– Support Community
– Warranty Information
– Replacement Parts
– And more at

www.logitech.com/support/rallycamera

English 9

CONTENU DU COFFRET

right

1

4

5 6 7 8

2 3

1. Caméra

2. Support de caméra

3. Boitier pour répartiteur de puissance

4. Télécommande

10 Français

Important Safety, Compliance and Warranty Information

Informations importantes concernant la sécurité, la mise en conformité et la garantie

English

Read Manual Before Product Use.

POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply
included with your product. Do not attempt to repair or use a damaged power supply. Do not
immerse the power supply in water or subject it to physical abuse. Inspect the power supply
regularly for cable, plug, and casing damage.
BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion
and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical
burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above
54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed,
or in any way abnormal. Do not leave your battery discharged or unused for extended periods.
Do not short circuit. Your device may contain an internal, rechargeable battery that is not
replaceable. Battery life varies with usage. Non-operational batteries should be discarded
according to local laws. If no laws or regulations govern, dispose of your device in a waste bin
for electronics. Keep batteries away from children.
BUTTON BATTERIES—WARNING! Coin-sized and button batteries may be easily swallowed,
which may cause personal injury and death in children and senior citizens. Keep these batteries
away from children! Do not allow children to play with or be in contact with these batteries
or this product at any time. Add further security to the battery compartment as necessary.
Never place batteries in your mouth for any reason as they may be swallowed accidentally.
Always check medication before ingesting as adults have mistaken button batteries for pills or
tablets. If a button battery is ingested, seek medical attention immediately. Contact the National
Battery Ingestion Hotline at [phone]. It is available 24 hours a day.

Safe Usage Guidelines for Products

• Do not open or modify the product except for battery removal and replacement.

• Do not disassemble or attempt to service this product.

• This product is safe under normal and reasonably foreseeable operating conditions.

• If product is operating improperly, please contact Logitech support.

• Product must be returned to the manufacturer for any service or repair.

• This is not a Children's Product and is not intended for use by children under 14 years old.

• Warning: Not suitable for children under 36 months. Small parts. Choking hazard.

• Mount device properly according to the provided instructions. Improper installation of

this product may cause damage or injury.
Logitech Compliance. For Product Safety, EMC, RF and Energy information,
go to www.logitech.com/compliance. Maintenance is not required for product compliance.

5. Répartiteur de puissance

6. Adaptateur secteur

7. Câble USB

8. Documentation

FCC statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Warning: Where shielded interface cables or accessories have been provided with the
product or specified additional components or accessories elsewhere defined to be used with
the installation of the product, they must be used in order to ensure compliance with FCC.
Changes or modifications to product not expressly approved by Logitech, Inc could void your
to use or operate your product by the FCC.
Radiation Exposure Statement: This equipment complies with FCC and IC radiation exposure
limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power
radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650­5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

IC statement: CAN ICES-3 (A) / NMB-3 Class (A)

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause interference; and (2) This device must
accept any interference, including interference that may cause undesired operation of the device.

Warning

This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.

Logitech Limited Hardware Product Warranty – A Summary

Logitech warrants that its hardware product shall be free from defects in materials and
workmanship for the length of time identified on your product package beginning from the date
of the original retail purchase. See support.logitech.com for specific warranty information about
your product and procedures to act on a warranty claim.
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be,
at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund
the price paid, if the hardware is returned to the point of purchase or such other place as Logitech
may direct along with a receipt. Warranty protections are in addition to rights provided under
local consumer laws and may vary among countries. See full warranty information to know
your consumer rights and the additional protections provided by this product warranty.

Logitech Address: Logitech, Inc., 7700 Gateway Blvd. Newark, California 94560.
Full Warranty Information: support.logitech.com

DISPOSITIF

CAMÉRA

1. Bouton de couplage à distance

2. USB

3. Témoin d'état

1

2

3

4. Emplacement de sécurité

5. MIPI

6. Filetage du trépied

7. Fente d'extension

4

5
6

7

Français 11

TÉLÉCOMMANDE

1

2

3

4 5

1. Coupure de la vidéo

2. Panoramique et inclinaison

3. Accueil de la caméra

12 Français

4. Préréglages de la caméra

5. Zoom avant/arrière

CONNECTER VOTRE CAMÉRA

Que vous utilisiez un ordinateur
dédié dans la salle de réunion ou que
les membres de votre équipe y apportent
un ordinateur portable, le processus
de connexion de la caméra Rally reste
le même.

1. Branchez le connecteur du répartiteur
de puissance USB dans le port USB de
la caméra.

2. Connectez l'adaptateur secteur
du répartiteur de puissance
à une prise murale.

3. Connectez le câble USB du répartiteur
de puissance à votre ordinateur.

4. Le témoin lumineux clignote lorsque

la caméra est en cours de connexion.
Une fois la connexion terminée,
la caméra pivote.

5. Si le problème persiste, rendez-vous

sur www.logitech.com/support/
rallycamera ou contactez le support
technique.

Français 13

MONTER VOTRE CAMÉRA

Nous proposons de nombreuses possibi­lités pour monter votre caméra Rally.
Pour les appels vidéo, nous vous recom­mandons de positionner la caméra
à hauteur des yeux, dans la mesure
du possible. Les résultats obtenus sont
généralement bien meilleurs lorsque
le dispositif est installé en dessous
du téléviseur.

1. Placez la caméra sur une table ou

une étagère à côté du téléviseur.

2. Montez le dispositif au mur:
a. Fixez le support mural au mur.

Utilisez des vis adaptées à
votre type de mur.

x2

b. Insérez le répartiteur de puissance

dans le boîtier dédié et placez
les câbles comme indiqué.

c. Faites passer le connecteur USB

dans le trou situé au bas du support
et connectez-le à la caméra.

d. Assemblez le boîtier du répartiteur

de puissance sur le support.

e. Fixez la caméra au support via la vis

du trépied.

3. Montage sur un téléviseur:

Un support pour téléviseur (en option)
est disponible sur www.logitech.com.

14 Français

DÉMARRER UN APPEL VIDÉO

Pour démarrer une session d'appel/
de capture vidéo, lancez l'application
de votre choix et sélectionnez
la caméra Rally. Le témoin lumineux
s'allume pendant la diusion de la vidéo.

Remarque concernant la vidéo 4K:

le câble USB 2.0 fourni avec la caméra
Rally prend en charge les vidéos Full HD
jusqu'à 1080p. Si vous souhaitez utiliser
le format vidéo 4K, veuillez utiliser
un câble USB 3.0 (non fourni).

PANORAMIQUE ET
INCLINAISON

Pour un réglage progressif, procédez
par pressions courtes; pour un contrôle
Panoramique et Inclinaison continu,
maintenez une pression longue.

Attention: la rotation manuelle de
la tête de la caméra peut endommager
le dispositif.

PRÉRÉGLAGES DE LA CAMÉRA

Vous pouvez congurer jusqu'à 2 positions
de préréglage de la caméra. Une
fois dans la position de votre choix,
enregistrez un préréglage en maintenant
le bouton enfoncé pendant 3 secondes.

Vous pouvez revenir à tout moment
à la position que vous avez dénie
en appuyant sur le bouton

PAGE D'ACCUEIL

La position d'origine est la position
de la caméra lorsqu'elle démarre.
Enregistrez une nouvelle position d'origine
en maintenant le bouton enfoncé
pendant 10 secondes.

APPLICATION
CAMERASETTINGS

Utilisez ce programme pour contrôler
les fonctions de panoramique et
d'inclinaison, le zoom, la mise au point
et la qualité d'image de la caméra
(comme la luminosité et le contraste).
Le logiciel est téléchargeable sur
www.logitech.com/support/rallycamera

RIGHTSIGHT

Cette fonction permettant de cadrer
automatiquement les personnes
dans la pièce sera téléchargée après
la première connexion de la caméra
à un ordinateur (Windows uniquement).

Français 15

Pour activer la fonction sur un Mac ou si le téléchargement est bloqué sur Windows,
installez l'application Camera Settings. RightSight s'exécutera au lancement d'une
session d'appel/de capture vidéo et sur demande en appuyant sur le bouton d'accueil.
Pour désactiver la fonction RightSight, utilisez l'application Camera Settings.

COUPLAGE DE LA TÉLÉCOMMANDE

Votre caméra et sa télécommande sont couplées en usine. Cependant, si vous souhaitez
coupler une autre télécommande avec la caméra (lorsque vous avez égaré
la télécommande d'origine, par exemple), procédez comme suit:

1. Maintenez appuyé le bouton à l'arrière de la caméra jusqu'à ce que le témoin
lumineux clignote en bleu.

2. Appuyez sur le bouton Coupure de la vidéo de la télécommande pendant
10 secondes pour la passer en mode de couplage.

3. Une fois la télécommande et la caméra couplées, le témoin lumineux cesse
de clignoter

4. Si le couplage échoue, le témoin lumineux continuera de clignoter.
Reprenez l'ensemble de la procédure à partir de la deuxième étape.

POUR EN SAVOIR PLUS

Des informations supplémentaires sur la caméra Rally sont disponibles, notamment:

– Les questions fréquentes
– Les mises à niveau du micrologiciel
– Le téléchargement de logiciels
– La communauté d'entraide
– Des informations sur la garantie
– Les pièces de remplacement
– Et bien plus encore, à l'adresse

www.logitech.com/support/rallycamera

16 Français

CONTENIDO DE LA CAJA

right

1

4

1. Cámara

2. Soporte de cámara

3. Caja del divisor de alimentación

4. Control remoto

5 6 7 8

2 3

5. Divisor de alimentación

6. Adaptador de alimentación

7. Cable USB

8. Documentación

Important Safety, Compliance and Warranty Information

Informations importantes concernant la sécurité, la mise en conformité et la garantie

FCC statement

English

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

Read Manual Before Product Use.

two conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in

POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply

a commercial environment. This equipment generates, uses, and can radiate radio frequency

included with your product. Do not attempt to repair or use a damaged power supply. Do not

energy and, if not installed and used in accordance with the instruction manual, may cause

immerse the power supply in water or subject it to physical abuse. Inspect the power supply

harmful interference to radio communications. Operation of this equipment in a residential

regularly for cable, plug, and casing damage.

area is likely to cause harmful interference in which case the user will be required to correct

BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion

the interference at his own expense.

and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical

Warning: Where shielded interface cables or accessories have been provided with the

burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above

product or specified additional components or accessories elsewhere defined to be used with

54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed,

the installation of the product, they must be used in order to ensure compliance with FCC.

or in any way abnormal. Do not leave your battery discharged or unused for extended periods.

Changes or modifications to product not expressly approved by Logitech, Inc could void your

Do not short circuit. Your device may contain an internal, rechargeable battery that is not

to use or operate your product by the FCC.

replaceable. Battery life varies with usage. Non-operational batteries should be discarded

Radiation Exposure Statement: This equipment complies with FCC and IC radiation exposure

according to local laws. If no laws or regulations govern, dispose of your device in a waste bin

limits set forth for an uncontrolled environment. This equipment should be installed and operated

for electronics. Keep batteries away from children.

with minimum distance 20cm between the radiator & your body.

BUTTON BATTERIES—WARNING! Coin-sized and button batteries may be easily swallowed,

Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce

which may cause personal injury and death in children and senior citizens. Keep these batteries

the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power

away from children! Do not allow children to play with or be in contact with these batteries

radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-

or this product at any time. Add further security to the battery compartment as necessary.

5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Never place batteries in your mouth for any reason as they may be swallowed accidentally.

IC statement: CAN ICES-3 (A) / NMB-3 Class (A)

Always check medication before ingesting as adults have mistaken button batteries for pills or

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the

tablets. If a button battery is ingested, seek medical attention immediately. Contact the National

following two conditions: (1) This device may not cause interference; and (2) This device must

Battery Ingestion Hotline at [phone]. It is available 24 hours a day.

accept any interference, including interference that may cause undesired operation of the device.

Safe Usage Guidelines for Products

Warning

• Do not open or modify the product except for battery removal and replacement.

This is a class A product. In a domestic environment this product may cause radio interference

• Do not disassemble or attempt to service this product.

in which case the user may be required to take adequate measures.

• This product is safe under normal and reasonably foreseeable operating conditions.
Logitech Limited Hardware Product Warranty – A Summary

• If product is operating improperly, please contact Logitech support.

Logitech warrants that its hardware product shall be free from defects in materials and

• Product must be returned to the manufacturer for any service or repair.
workmanship for the length of time identified on your product package beginning from the date

• This is not a Children's Product and is not intended for use by children under 14 years old.
of the original retail purchase. See support.logitech.com for specific warranty information about

• Warning: Not suitable for children under 36 months. Small parts. Choking hazard.
your product and procedures to act on a warranty claim.

• Mount device properly according to the provided instructions. Improper installation of
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be,

this product may cause damage or injury.

at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund

Logitech Compliance. For Product Safety, EMC, RF and Energy information,

the price paid, if the hardware is returned to the point of purchase or such other place as Logitech

go to www.logitech.com/compliance. Maintenance is not required for product compliance.

may direct along with a receipt. Warranty protections are in addition to rights provided under
local consumer laws and may vary among countries. See full warranty information to know
your consumer rights and the additional protections provided by this product warranty.

Logitech Address: Logitech, Inc., 7700 Gateway Blvd. Newark, California 94560.
Full Warranty Information: support.logitech.com

Español 17

QUÉ ES CADA COSA

CÁMARA

1. Botón de emparejamiento

de control remoto

2. USB

3. LED de estado

18 Español

1

2

3

4. Conector de seguridad

5. MIPI

6. Adaptador para trípode

7. Ranura de expansión

4

5
6

7

CONTROL REMOTO

1

2

3

4 5

1. Desactivar video

2. Panorámica/Inclinación

3. Centrar cámara

4. Preajustes de cámara

5. Zoom para ampliar/reducir

Español 19

CONEXIÓN DE LA CÁMARA

La conexión de la cámara Rally
es la misma tanto si piensas usar
una computadora exclusiva en la sala
como si los miembros del equipo
llevan una laptop a la sala para realizar
la reunión.

1. Conecta el cable exible de conexión

USB del divisor de alimentación
al puerto USB de la cámara.

2. Conecta el adaptador de

alimentación del divisor
de alimentación a una toma de pared.

3. Conecta el cable USB del divisor

de alimentación a la computadora.

4. El LED de estado emitirá destellos

mientras se establece la conexión.
Una vez establecida, el cabezal de
la cámara girará.

5. Si los problemas persisten,

consulta www.logitech.com/
support/rallycamera o llama
a asistencia técnica.

20 Español

MONTAJE DE LA CÁMARA

Ofrecemos diversas opciones
para montar la cámara Rally.
Para videoconferencias, recomendamos
colocar la cámara lo más cerca posible
de la altura de la mirada. Los mejores
resultados suelen obtenerse con
el montaje debajo del televisor.

1. Coloca en una mesa o estante cerca

del televisor.

2. Montaje en la pared:
a. Fija el soporte de pared a la pared.

Usa el tipo de tornillos adecuado
para el tipo de pared.

x2

b. Inserta el divisor de alimentación en

la caja del divisor de alimentación
y pasa los cables como se indica.

c. Pasa el cable exible de conexión

USB a través del oricio en la parte
inferior del soporte y conéctalo
a la cámara.

d. Encaja la caja del divisor

de alimentación en el soporte.

e. Asegura la cámara al soporte

mediante el tornillo del trípode.

3. Montaje en el televisor:

En www.logitech.com encontrarás
un soporte de montaje en televisor
opcional.

Español 21

INICIO DE
UNAVIDEOCONFERENCIA

Para iniciar una sesión de llamada/captura
de video, inicia tu aplicación preferida
y selecciona la cámara Rally. El LED
de estado de la cámara se iluminará
al iniciarse el streaming de video.

Nota sobre video 4K: El cable USB 2.0
incluido con la cámara Rally admite video
Full HD (hasta 1080p). Si necesitas video
4K, usa un cable USB 3.0 (no incluido).

PANORÁMICA E INCLINACIÓN

Pulsa una vez para incrementar
gradualmente el movimiento, o mantén
la pulsación para un incremento de
panorámica e inclinación continuado.

Precaución: La rotación manual
del cabezal de la cámara puede dañar
el dispositivo.

PREAJUSTES DE CÁMARA

Puedes congurar hasta dos posiciones
predeterminadas. Una vez en la
posición deseada, guarda un preajuste
presionando y manteniendo presionado
el botón durante tres segundos.
Vuelve a la posición deseada en cualquier
momento pulsando una vez el botón.

INICIO

Inicio será la posición a la que se mueva
la cámara cuando se inicia la cámara.
Para guardar una nueva posición de inicio,
mantén presionado el botón durante diez
segundos.

APLICACIÓN CAMERA
SETTINGS

Usa este programa para controlar
la panorámica, la inclinación, el zoom,
el enfoque y la calidad de imagen
(como el brillo y el contraste).
El software se puede descargar desde
www.logitech.com/support/rallycamera

RIGHTSIGHT

Esta función para encuadrar
automáticamente a la gente de
la sala se descargará después de que
la cámara se conecte por primera vez
a una computadora (sólo Windows).
Para activar la función en una Mac, o si
la descarga está bloqueada en Windows,
instala la aplicación Camera Settings.
RightSight se ejecutará al inicio de una
sesión de llamada/captura de video y bajo
demanda al presionar el botón de inicio.
Para desactivar la función RightSight,
usa la aplicación Camera Settings.

22 Español

EMPAREJAMIENTO DEL CONTROL REMOTO

La cámara y el remoto vienen emparejados de fábrica. Sin embargo, si tiene
que emparejar un remoto con la cámara (como al sustituir un remoto extraviado),
haz lo siguiente:

1. Mantén pulsado el botón en la parte posterior de la cámara hasta que el LED
emita destellos azules.

2. Mantén pulsado el botón de desactivación de video en el remoto durante
10 segundos para activar el modo de emparejamiento.

3. Cuando el remoto y la cámara estén emparejados, el LED dejará de emitir destellos.

4. Si el emparejamiento falla, el LED seguirá emitiendo destellos. Inicia desde el paso

2 y repite.

PARA OBTENER MÁS INFORMACIÓN

Encontraré información adicional sobre Rally, que incluye:

– Preguntas más habituales
– Actualizaciones de rmware
– Descargas de software
– Comunidad de asistencia
– Información de garantía
– Piezas de recambio
– Y más en

www.logitech.com/support/rallycamera

Español 23

CONTEÚDO DA CAIXA

right

1

4

1. Câmera

2. Suporte da câmera

3. Estojo do separador de energia

4. Controle remoto

24 Português

5 6 7 8

2 3

5. Separador de energia

6. Adaptador de alimentação

7. Cabo USB

8. Documentação

Important Safety, Compliance and Warranty Information

Informations importantes concernant la sécurité, la mise en conformité et la garantie

FCC statement

English

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

Read Manual Before Product Use.

two conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in

POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply

a commercial environment. This equipment generates, uses, and can radiate radio frequency

included with your product. Do not attempt to repair or use a damaged power supply. Do not

energy and, if not installed and used in accordance with the instruction manual, may cause

immerse the power supply in water or subject it to physical abuse. Inspect the power supply

harmful interference to radio communications. Operation of this equipment in a residential

regularly for cable, plug, and casing damage.

area is likely to cause harmful interference in which case the user will be required to correct

BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion

the interference at his own expense.

and personal injury. Mistreated rechargeable batteries may present a risk of fire or chemical

Warning: Where shielded interface cables or accessories have been provided with the

burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above

product or specified additional components or accessories elsewhere defined to be used with

54° C (130° F). Do not use or charge the battery if it appears to be leaking, discolored, deformed,

the installation of the product, they must be used in order to ensure compliance with FCC.

or in any way abnormal. Do not leave your battery discharged or unused for extended periods.

Changes or modifications to product not expressly approved by Logitech, Inc could void your

Do not short circuit. Your device may contain an internal, rechargeable battery that is not

to use or operate your product by the FCC.

replaceable. Battery life varies with usage. Non-operational batteries should be discarded

Radiation Exposure Statement: This equipment complies with FCC and IC radiation exposure

according to local laws. If no laws or regulations govern, dispose of your device in a waste bin

limits set forth for an uncontrolled environment. This equipment should be installed and operated

for electronics. Keep batteries away from children.

with minimum distance 20cm between the radiator & your body.

BUTTON BATTERIES—WARNING! Coin-sized and button batteries may be easily swallowed,

Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce

which may cause personal injury and death in children and senior citizens. Keep these batteries

the potential for harmful interference to co-channel mobile satellite systems; (ii) high-power

away from children! Do not allow children to play with or be in contact with these batteries

radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-

or this product at any time. Add further security to the battery compartment as necessary.

5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Never place batteries in your mouth for any reason as they may be swallowed accidentally.

IC statement: CAN ICES-3 (A) / NMB-3 Class (A)

Always check medication before ingesting as adults have mistaken button batteries for pills or

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the

tablets. If a button battery is ingested, seek medical attention immediately. Contact the National

following two conditions: (1) This device may not cause interference; and (2) This device must

Battery Ingestion Hotline at [phone]. It is available 24 hours a day.

accept any interference, including interference that may cause undesired operation of the device.

Safe Usage Guidelines for Products

Warning

• Do not open or modify the product except for battery removal and replacement.

This is a class A product. In a domestic environment this product may cause radio interference

• Do not disassemble or attempt to service this product.

in which case the user may be required to take adequate measures.

• This product is safe under normal and reasonably foreseeable operating conditions.
Logitech Limited Hardware Product Warranty – A Summary

• If product is operating improperly, please contact Logitech support.

Logitech warrants that its hardware product shall be free from defects in materials and

• Product must be returned to the manufacturer for any service or repair.
workmanship for the length of time identified on your product package beginning from the date

• This is not a Children's Product and is not intended for use by children under 14 years old.
of the original retail purchase. See support.logitech.com for specific warranty information about

• Warning: Not suitable for children under 36 months. Small parts. Choking hazard.
your product and procedures to act on a warranty claim.

• Mount device properly according to the provided instructions. Improper installation of
Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be,

this product may cause damage or injury.

at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund

Logitech Compliance. For Product Safety, EMC, RF and Energy information,

the price paid, if the hardware is returned to the point of purchase or such other place as Logitech

go to www.logitech.com/compliance. Maintenance is not required for product compliance.

may direct along with a receipt. Warranty protections are in addition to rights provided under
local consumer laws and may vary among countries. See full warranty information to know
your consumer rights and the additional protections provided by this product warranty.

Logitech Address: Logitech, Inc., 7700 Gateway Blvd. Newark, California 94560.
Full Warranty Information: support.logitech.com

O QUE É O QUÊ

CÂMERA

1. Botão de emparelhamento remoto

2. USB

3. LED de status

1

2

3

4. Ranhura de segurança

5. MIPI

6. Rosca do tripé

7. Ranhura de expansão

4

5
6

7

Português 25

CONTROLE REMOTO

1

2

3

4 5

1. Vídeo sem som

2. Panorâmica/inclinação

3. Início da câmera

26 Português

4. Predenições da câmera

5. Mais/Menos zoom

CONECTAR A CÂMERA

A conexão da câmera Rally é a mesma,
seja ao usar em seu computador
dedicado na sala de reuniões ou em
um laptop de algum de seus colegas
de equipe.

1. Conecte o cabo USB separador

de energia à porta USB da câmera.

2. Conecte o adaptador de alimentação

ao separador de energia e à tomada.

3. Conecte o cabo USB ao separador

de energia e ao computador.

4. O LED de status irá piscar quando

a câmera estiver se conectando.
Após conectada, a parte superior
da câmera girará.

5. Se os problemas persistirem,

consulte www.logitech.com/support/
rallycamera ou entre em contato com
o suporte técnico.

Português 27

FIXAR A CÂMERA

Oferecemos várias opções de
xação para a câmera Rally.
Para videochamadas, recomendamos
posicionar a câmera o mais próximo
da altura dos olhos possível. Geralmente,
obtém-se melhores resultados ao
posicionar a câmera abaixo da TV.

1. Coloque-a em uma mesa ou

prateleira próxima à TV.

2. Fixar na parede:
a. Fixe o suporte na parede.

Use o tipo de parafuso adequado
para seu tipo de parede.

x2

b. Introduza o separador de energia

no estojo e coloque os cabos
conforme mostrado.

c. Introduza o cabo USB no furo

na parte inferior do suporte
e conecte-o à câmera.

d. Una o estojo do separador

de energia ao suporte.

e. Prenda a câmera ao suporte com

o parafuso do tripé.

3. Suporte para TV: Um suporte de

montagem opcional para TV está
disponível em www.logitech.com.

28 Português

INICIAR A VIDEOCHAMADA

Para iniciar uma videochamada/sessão
de captura, inicie o aplicativo da sua
preferência e selecione a câmera Rally.
O LED de status se acenderá quando
o vídeo for transmitido.

Observação sobre o vídeo 4K: O cabo
USB 2.0 incluído com a câmera Rally
suporta vídeos FullHD (até 1080p).
Se precisar de vídeos 4K, use um cabo
USB 3.0 (não incluído).

PANORÂMICA E INCLINAÇÃO

Pressione uma vez para ajustar
o movimento ou pressione e mantenha
pressionado para panorâmicas
e inclinação contínuas.

Cuidado: Girar a cabeça da câmera
manualmente pode danicar
o dispositivo.

PREDEFINIÇÕES DA CÂMERA

Congure até 2 posições predenidas.
Quando a câmera estiver na posição
desejada, salve a predenição mantendo
o botão pressionado por 3 segundos.
Volte à posição desejada a qualquer
momento pressionando uma vez o botão.

INÍCIO

Início é a posição da câmera quando
ela é iniciada. Salve um nova posição
de início mantendo pressionado o botão
por 10 segundos.

APLICATIVO PARA
CONFIGURAÇÃO DA CÂMERA

Use este programa para controlar
a panorâmica, a inclinação, o zoom,
o foco e a qualidade da imagem
da câmera (como brilho e contraste).
O software pode ser baixado em
www.logitech.com/support/rallycamera

RIGHTSIGHT

Esta função de enquadrar
automaticamente as pessoas que estão
na sala será baixada depois que a câmera
for conectada pela primeira vez a
um computador (somente Windows).
Para ativar a função em um Mac ou,
se o download for bloqueado no Windows,
instale o Aplicativo para conguração
da câmera. O RightSight será executado
ao iniciar uma videochamada/sessão
de captura e sob demanda ao pressionar
o botão Início. Para desativar a função
RightSight, use o Aplicativo para
conguração da câmera.

Português 29

EMPARELHAMENTO COM O CONTROLE REMOTO

Sua câmera e controle remoto estão emparelhados de fábrica. No entanto,
caso seja necessário emparelhar um controle remoto à câmera (como ao substituir
um controle perdido) siga estas etapas:

1. Mantenha pressionado o botão atrás da câmera até que o LED pisque em azul.

2. Mantenha pressionado o botão Vídeo sem som no controle remoto

por 10 segundos para colocá-lo no modo de emparelhamento.

3. Após emparelhar a câmera e o controle remoto, o LED para de piscar.

4. Se o emparelhamento falhar, o LED continuará piscando. Volte à etapa 2 e repita.

PARA MAIS INFORMAÇÕES

É possível obter mais informações sobre a Rally, incluindo:

– Perguntas frequentes
– Atualizações do rmware
– Downloads de software
– Comunidade de suporte
– Informações sobre garantia
– Peças de substituição
– E mais em

www.logitech.com/support/rallycamera

30 Português

© 2018 Logitech. Logitech, Logi and other Logitech marks are owned by Logitech and may be registered.
Allothertrademarks are the property of their respective owners. Logitech assumes no responsibility for any errors
that may appear in this manual. Information contained herein is subject to change without notice.

© 2018 Logitech. Logitech, Logi et les autres marques Logitech sont la propriété de Logitech et sont susceptibles
d’être déposées.Toutes les autres marques sont la propriété exclusive de leurs détenteurs respectifs. Logitech décline
toute responsabilité en cas d’erreurs dans ce manuel. Les informations énoncées dans le présent document peuvent
faire l’objet de modications sans avis préalable.

620-008410.002
