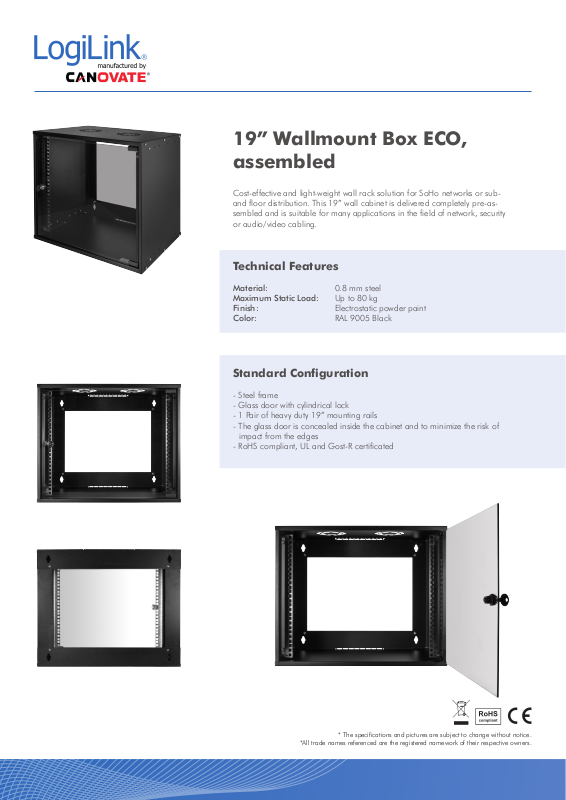

19” Wallmount Box ECO,
assembled
Cost-effective and light-weight wall rack solution for SoHo networks or suband floor distribution. This 19” wall cabinet is delivered completely pre-assembled and is suitable for many applications in the field of network, security
or audio/video cabling.
Technical Features
Material: 0.8 mm steel
Maximum Static Load: Up to 80 kg
Finish: Electrostatic powder paint
Color: RAL 9005 Black
Standard Configuration
- Steel frame
- Glass door with cylindrical lock
- 1 Pair of heavy duty 19” mounting rails
- The glass door is concealed inside the cabinet and to minimize the risk of
impact from the edges
- RoHS compliant, UL and Gost-R certificated
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
19” Wallmount Box ECO, assembled
D
d1
h1
H
w1
W
Height UOuter Width
(W) mm
4U 545 400 221 485 380 189 6 W04C55B 8698800003622
6U 545 400 310 485 380 278 10 W06C55B 8698800003646
9U 545 400 444 485 380 412 11 W09C55B 8698800003660
12U 545 400 577 485 380 545 14 W12C55B 8698800003684
Outer
Depth (D)
mm
Outer
Height
(H) mm
Inner
Width
(w1) mm
Inner
Depth
(d1) mm
Inner
Height (h1)
mm
Weight kgPart No. EAN Code
