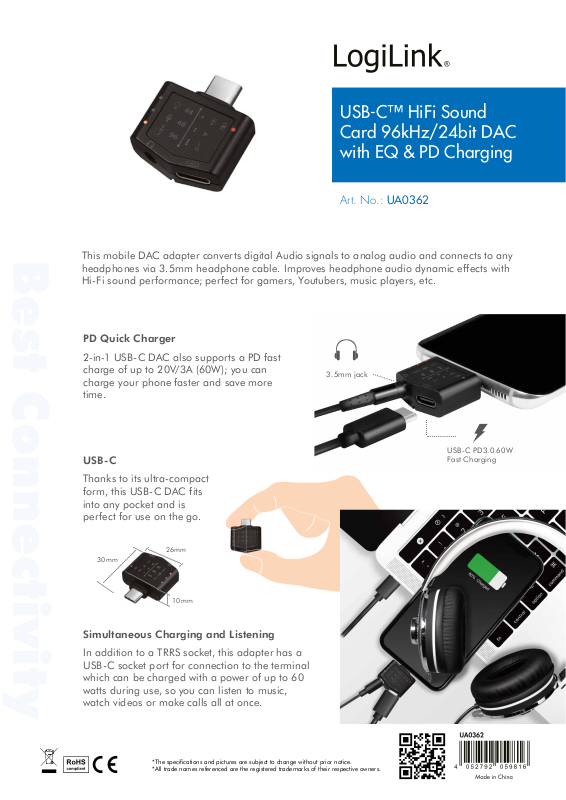

Page 1
USB-C™ HiFi Sound
Card 96kHz/24bit DAC
with EQ & PD Charging
Art. No.: UA0362
Best Connectivity
This mobile DAC adapter converts digital Audio signals to analog audio and connects to any
headphones via 3.5mm headphone cable. Improves headphone audio dynamic effects with
Hi-Fi sound performance; perfect for gamers, Youtubers, music players, etc.
PD Quick Charger
2-in-1 USB-C DAC also supports a PD fast
charge of up to 20V/3A (60W); you can
charge your phone faster and save more
time.
USB-C
Thanks to its ultra-compact
form, this USB-C DAC fits
into any pocket and is
perfect for use on the go.
3.5mm jack
USB-C PD3.0 60W
Fast Charging
26mm
30mm
10mm
Simultaneous Charging and Listening
In addition to a TRRS socket, this adapter has a
USB-C socket port for connection to the terminal
which can be charged with a power of up to 60
watts during use, so you can listen to music,
watch videos or make calls all at once.
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Page 2
USB-C™ HiFi Sound
Card 96kHz/24bit DAC
with EQ & PD Charging
Art. No.: UA0362
Best Connectivity
Comfortable Extras at the Push of a Button
Compatible with popular headphone in-line controls
and equipped with an interchangeable hardware
equalizer; this allows you to adjust audio output to suit
your listening preference with just one button.
Excellent HiFi Audio Experience
A sampling rate of 96 kHz at 24 bits and an outstanding noise
ratio of 100 decibels, this adapter delivers a breathtaking
audio experience. Enjoy original and pure sound
of your favorite music, videos or movies.
High Compatibility
Fully compatible with most smartphones and
notebooks, with USB-C connections, in the
market.
An Affordable Solution for HiFi Sound
Provides the most economical solution to enjoy
high quality sound performance instead of
buying an expensive Bluetooth headset.
On Air Everywhere!
With the handy cable design, you‘re
not only have a powerful headphone
amplifier in your pocket, but it’s also
more comfortable to listen to music
while working and walking.
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Page 3
USB-C™ HiFi Sound
Card 96kHz/24bit DAC
with EQ & PD Charging
Art. No.: UA0362
Best Connectivity
Specification:
» USB-C complies with USB2.0 specification
» USB Bus-Powered mode, no external power required
» DAC: BES Technic BES3100
» Headphone Amplifier: Maxim MAX97220AA
» Supports sampling rates of 44, 48, 96 kHz with a 24-bit resolution
» Built-in microphone for supported mobile phones
» 3 Built-in levels for the hardware equalizer (EQ), selectable by control button
» Supports most 3.5mm 3 pole 16-600ohm headsets in the market
» Output power (W): 125mW (max) per channel
» Signal to Noise Ratio (SNR): around 100dB (A-weighting)
» Total Harmonic Distortion (THD+N): 0.003% (A-weighting)
» Crosstalk: >=110dB
» LED indicator for charging speed/sampling rate/EQ modes
Purple: 9V or above fast charging
Red: 5V normal charging
» Fully Plug & Play, and Hot Swap compatible
» Supports most mobile phones with USB-C interfaces (Google Pixel 2 /2XL / Nexus, Motorola Z /
Z2 / Huawei Mate9 / Mate10, Xiaomi, One Plus5 / 5T, LeEco, Smartisan, Nubia, Asus, Samsung
S8 / S9 / Note8, LG V30, Sony & Nokia)
» Supports notebooks with USB-C connectors (MacBook, MacBook Pro, HP, Dell, Samsung)
Package Contenst:
» 1x USB-C HiFi Sound Card 96Hz/24bit DAC
with EQ & PD charging
» 1x User Manual
Package Information:
» Packing Dimension: 137x148x12 mm
» Packing Weight: 0.015 kg
» Carton Dimension: 465x300x360 mm
» Carton Q‘ty: 250 pcs
» Carton Weight: 4.69 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
