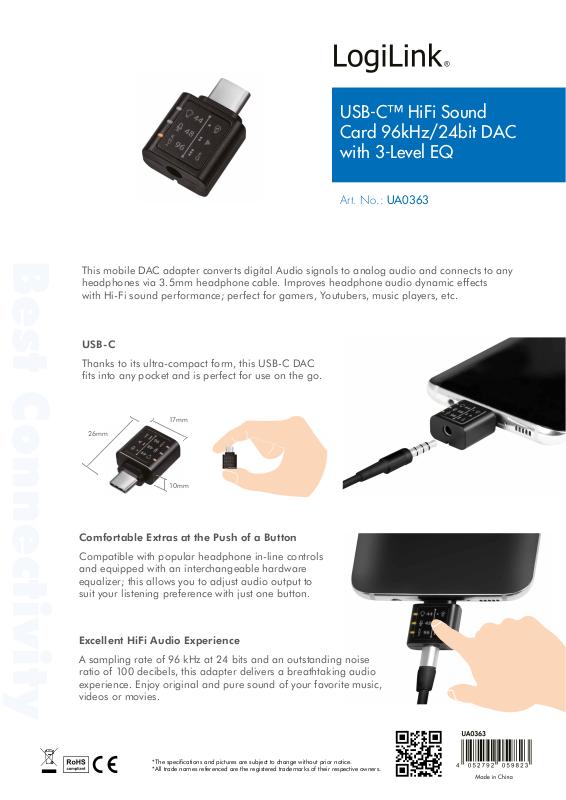

USB-C™ HiFi Sound
Card 96kHz/24bit DAC
with 3-Level EQ
Art. No.: UA0363
Best Connectivity
This mobile DAC adapter converts digital Audio signals to analog audio and connects to any
headphones via 3.5mm headphone cable. Improves headphone audio dynamic effects
with Hi-Fi sound performance; perfect for gamers, Youtubers, music players, etc.
USB-C
Thanks to its ultra-compact form, this USB-C DAC
fits into any pocket and is perfect for use on the go.
17mm
26mm
10mm
Comfortable Extras at the Push of a Button
Compatible with popular headphone in-line controls
and equipped with an interchangeable hardware
equalizer; this allows you to adjust audio output to
suit your listening preference with just one button.
Excellent HiFi Audio Experience
A sampling rate of 96 kHz at 24 bits and an outstanding noise
ratio of 100 decibels, this adapter delivers a breathtaking audio
experience. Enjoy original and pure sound of your favorite music,
videos or movies.
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
USB-C™ HiFi Sound
Card 96kHz/24bit DAC
with 3-Level EQ
Art. No.: UA0363
Best Connectivity
High Compatibility
Fully compatible with most smartphones and
notebooks with USB-C connections, in the
market.
An Affordable Solution for HiFi Sound
Provides the most economical solution
to enjoy high quality sound performance
instead of buying an expensive Bluetooth
headset.
On Air Everywhere!
With the handy cable design, you‘re not only
have a powerful headphone amplifier in your
pocket, but it’s also more comfortable to listen
to music while working and walking.
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
USB-C™ HiFi Sound
Card 96kHz/24bit DAC
with 3-Level EQ
Art. No.: UA0363
Best Connectivity
Specification:
» USB-C complies with USB2.0 specification
» USB Bus-Powered mode, no external power required
» DAC: BES Technic BES3100
» Headphone Amplifier: Maxim MAX97220AA
» Supports sampling rates of 44, 48, 96 kHz with a 24-bit resolution
» Built-in microphone for supported mobile phones
» 3 Built-in levels for the hardware equalizer (EQ), selectable by control button
» Supports most 3.5mm 3 pole 16-600ohm headsets in the market
» Output power (W): 125mW (max) per channel
» Signal to Noise Ratio (SNR): around 100dB (A-weighting)
» Total Harmonic Distortion (THD+N): 0.003% (A-weighting)
» Crosstalk: >=110dB
» LED indicator for sampling rate/EQ modes
» Fully Plug & Play, and Hot Swap compatible
» Supports most mobile phones with USB-C interfaces (Google Pixel 2 /2XL / Nexus, Motorola Z /
Z2 / Huawei Mate9 / Mate10, Xiaomi, One Plus5 / 5T, LeEco, Smartisan, Nubia, Asus, Samsung
S8 / S9 / Note8, LG V30, Sony & Nokia)
» Supports notebooks with USB-C connectors (MacBook, MacBook Pro, HP, Dell, Samsung)
Package Contents:
» 1x USB-C HiFi Sound Card 96kHz/24bit DAC with 3-Level EQ
» 1x User Manual
Package Information:
» Packing Dimension: 137x148x12 mm
» Packing Weight: 0.015 kg
» Carton Dimension: 465x300x360 mm
» Carton Q‘ty: 250 pcs
» Carton Weight: 4.69 kg
