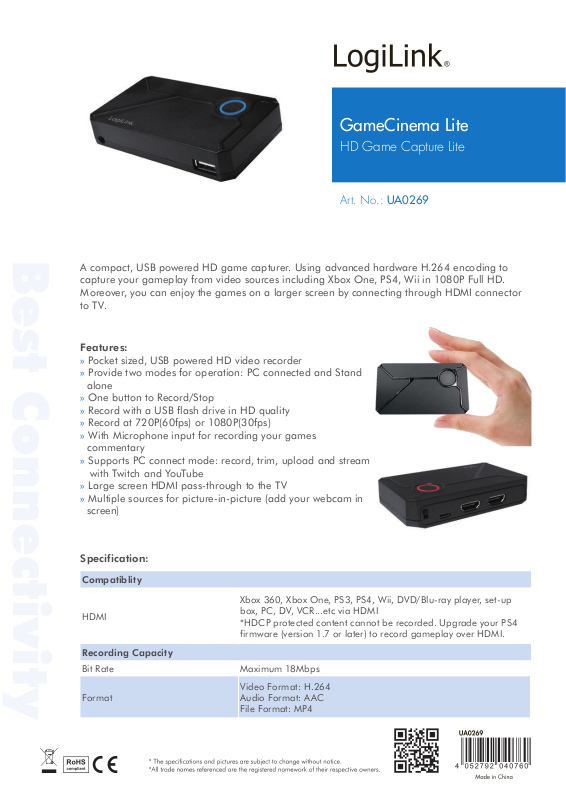

LogiLink UA0269 User Manual

Connectivity Best

GameCinema Lite

HD Game Capture Lite

Art. No.: UA0269

A compact, USB powered HD game capturer. Using advanced hardware H.264 encoding to capture your gameplay from video sources including Xbox One, PS4, Wii in 1080P Full HD. Moreover, you can enjoy the games on a larger screen by connecting through HDMI connector to TV.

Features:

»Pocket sized, USB powered HD video recorder

»Provide two modes for operation: PC connected and Stand alone

»One button to Record/Stop

»Record with a USB flash drive in HD quality

»Record at 720P(60fps) or 1080P(30fps)

»With Microphone input for recording your games commentary

»Supports PC connect mode: record, trim, upload and stream with Twitch and YouTube

»Large screen HDMI pass-through to the TV

»Multiple sources for picture-in-picture (add your webcam in screen)

Specification:

Compatiblity

HDMI

Recording Capacity

Bit Rate

Format

Xbox 360, Xbox One, PS3, PS4, Wii, DVD/Blu-ray player, set-up box, PC, DV, VCR...etc via HDMI

*HDCP protected content cannot be recorded. Upgrade your PS4 firmware (version 1.7 or later) to record gameplay over HDMI.

Maximum 18Mbps

Video Format: H.264

Audio Format: AAC

File Format: MP4

(Firmware needs to be version 62 or above)

(it will generate a new file once size is over 2GB)

Connectivity Best

Record File Size

Support Resolutions

Input/Pass-through

Record

Product

Dimension

Weight

Cable Length

User Interface

Software Application

Arcsoft Showbiz

OBS Application

GameCinema Lite

HD Game Capture Lite

Art. No.: UA0269

FAT32 format: maximum 2GB NTFS format: unlimited

*HDD partition table must use MBR, doesn't support GPT

*HDD must use one partition only, doesn't support 2 partition in HDD *HDD capacity support up to 2TB

640 x 480 (60p), 720 x 480 (60p), 720 x 576 (50p), 800 x 600 (60p), 1024 x 768 (60p), 1280 x 720p (50p), 1280 x 720p (60p), 1280 x 768 (60p), 1280 x 800 (60p), 1280 x 1024 (60p), 1360 x 768 (60p), 1440 x 900 (60p), 1680 x 1050 (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)

640 x 480 (60p), 720 x 480 (60p), 720 x 576 (50p), 1280 x 720 (50p), 1280 x 720 (60p), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p)

*Upscaling is not supported

99.7 x 58.42 x 19.35mm (L x W x H) 56.8g (without any accessories) 330mm

Record button, Standalone/PC mode switch

Record, trim, capture and upload to YouTube directly Record, live stream to Twitch or YouTube and PIP supported
