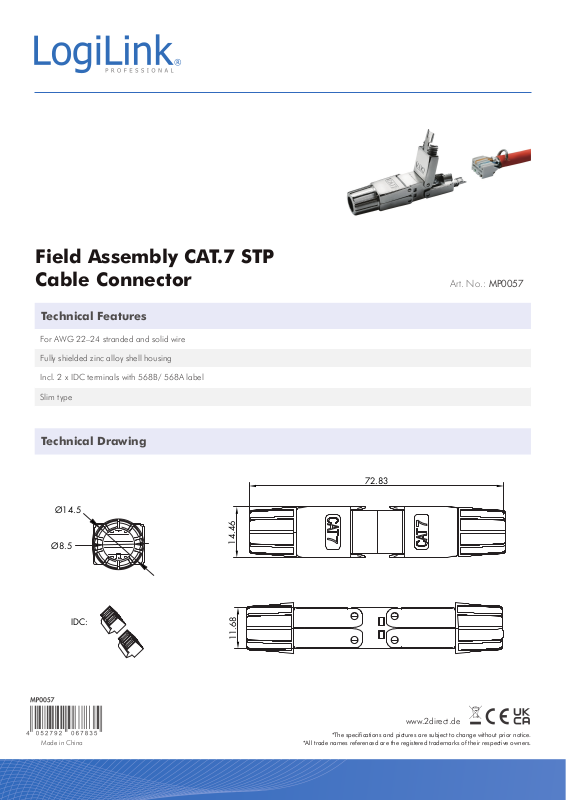

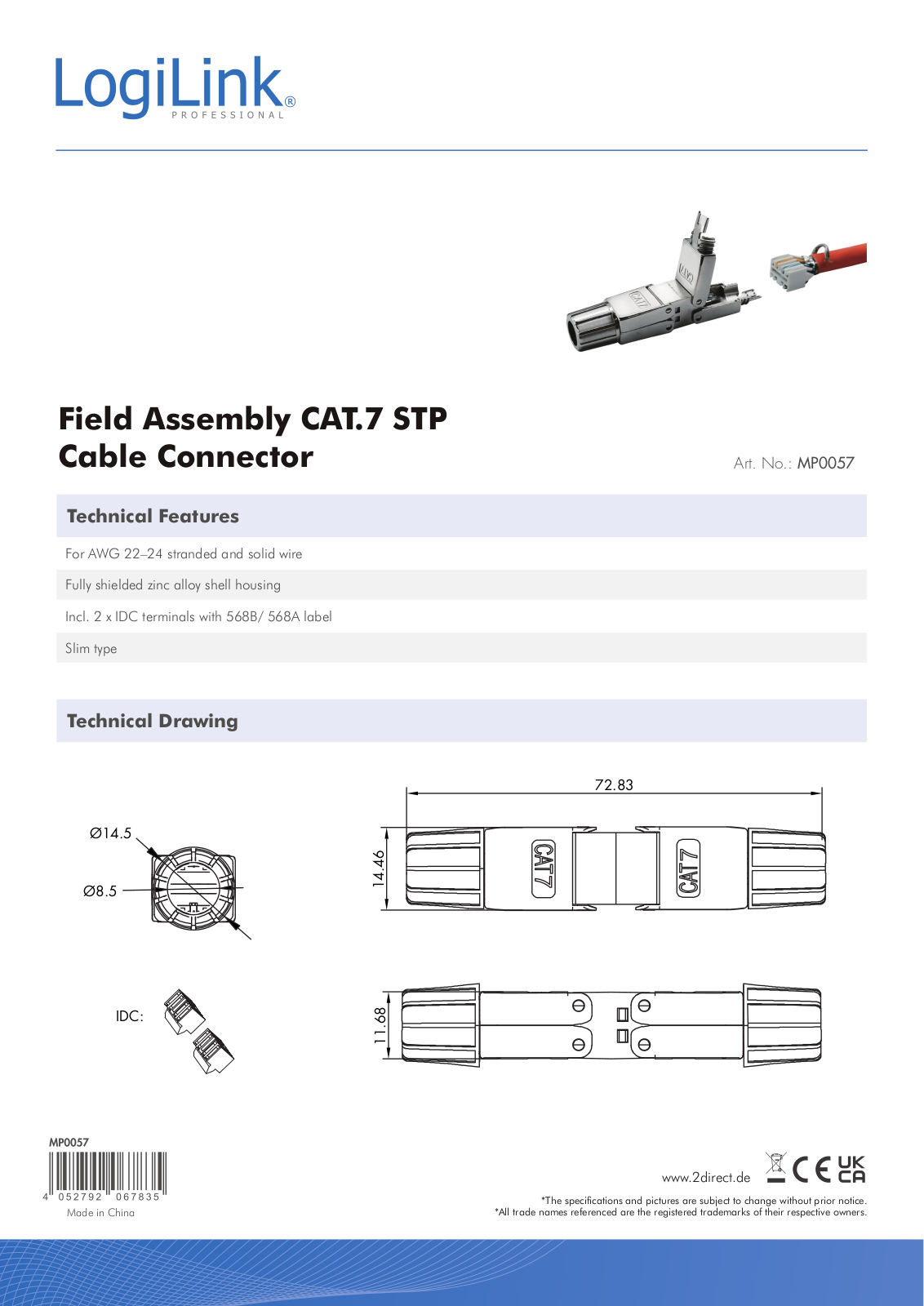

LOGILINK MP0057 Datasheet

Field Assembly CAT.7 STP Cable Connector
Technical Features
For AWG 22–24 stranded and solid wire
Fully shielded zinc alloy shell housing
Incl. 2 x IDC terminals with 568B/ 568A label
Technical Drawing
Ø14.5
Ø8.5
Art. No.: MP0057
72.83
14.46
IDC:
Made in China
11.68
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.

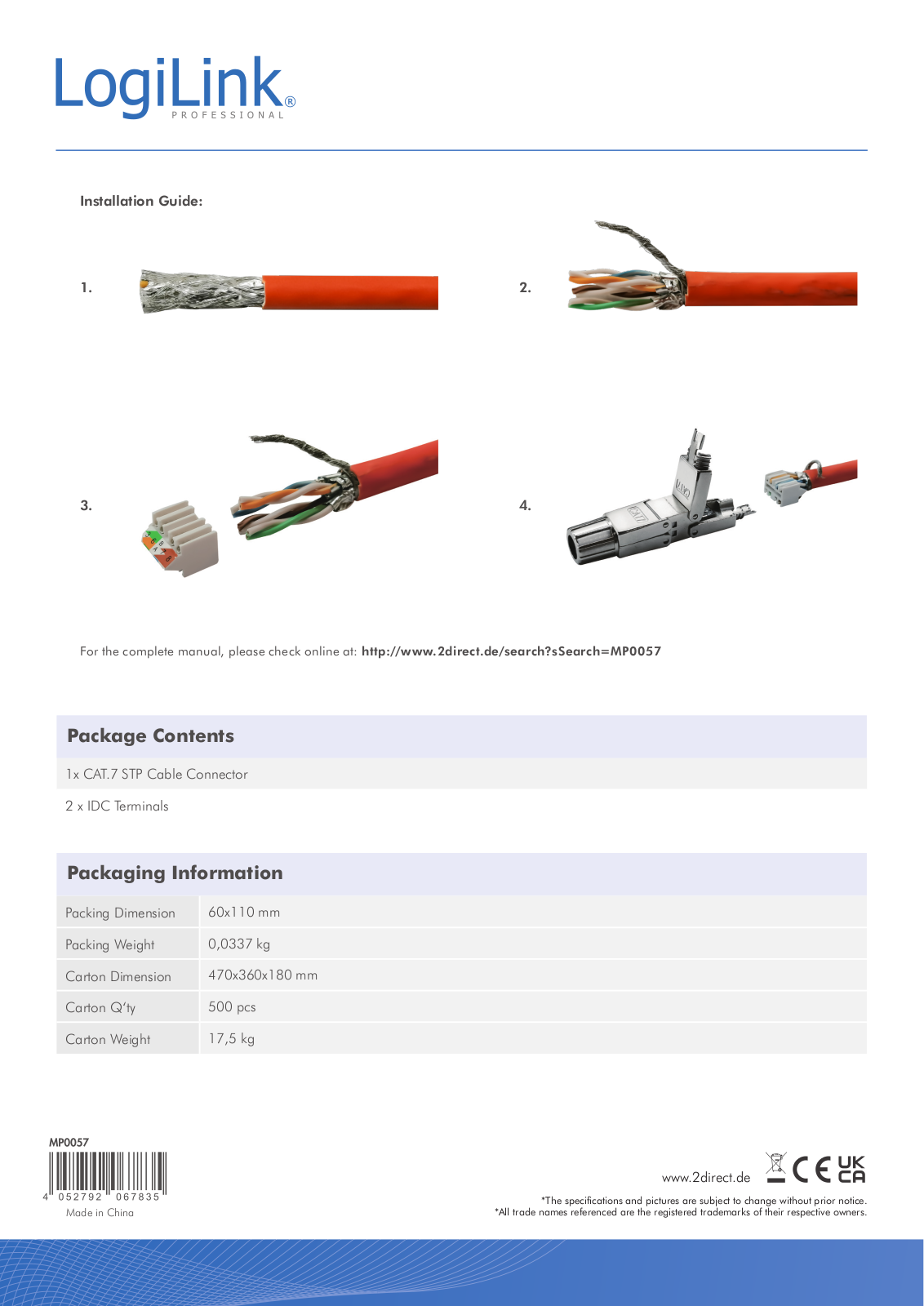

Installation Guide:
1.
3.
For the complete manual, please check online at: http://www.2direct.de/search?sSearch=MP0057
2.
4.
Package Contents
1x CAT.7 STP Cable Connector
2 x IDC Terminals
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
Made in China
60x110 mm
0,0337 kg
470x360x180 mm
500 pcs
17,5 kg
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
