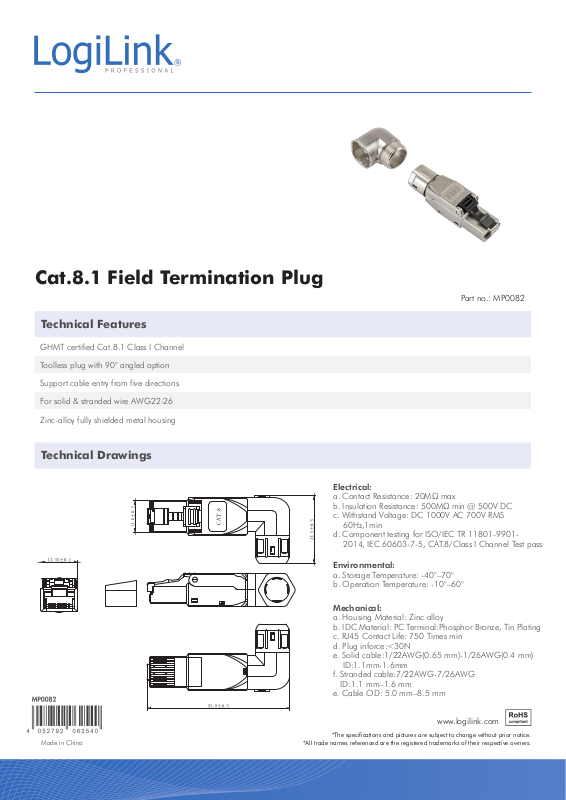

Cat.8.1 Field Termination Plug
Technical Features
GHMT certified Cat.8.1 Class I Channel
Toolless plug with 90° angled option
Support cable entry from five directions
For solid & stranded wire AWG22-26
Zinc-alloy fully shielded metal housing

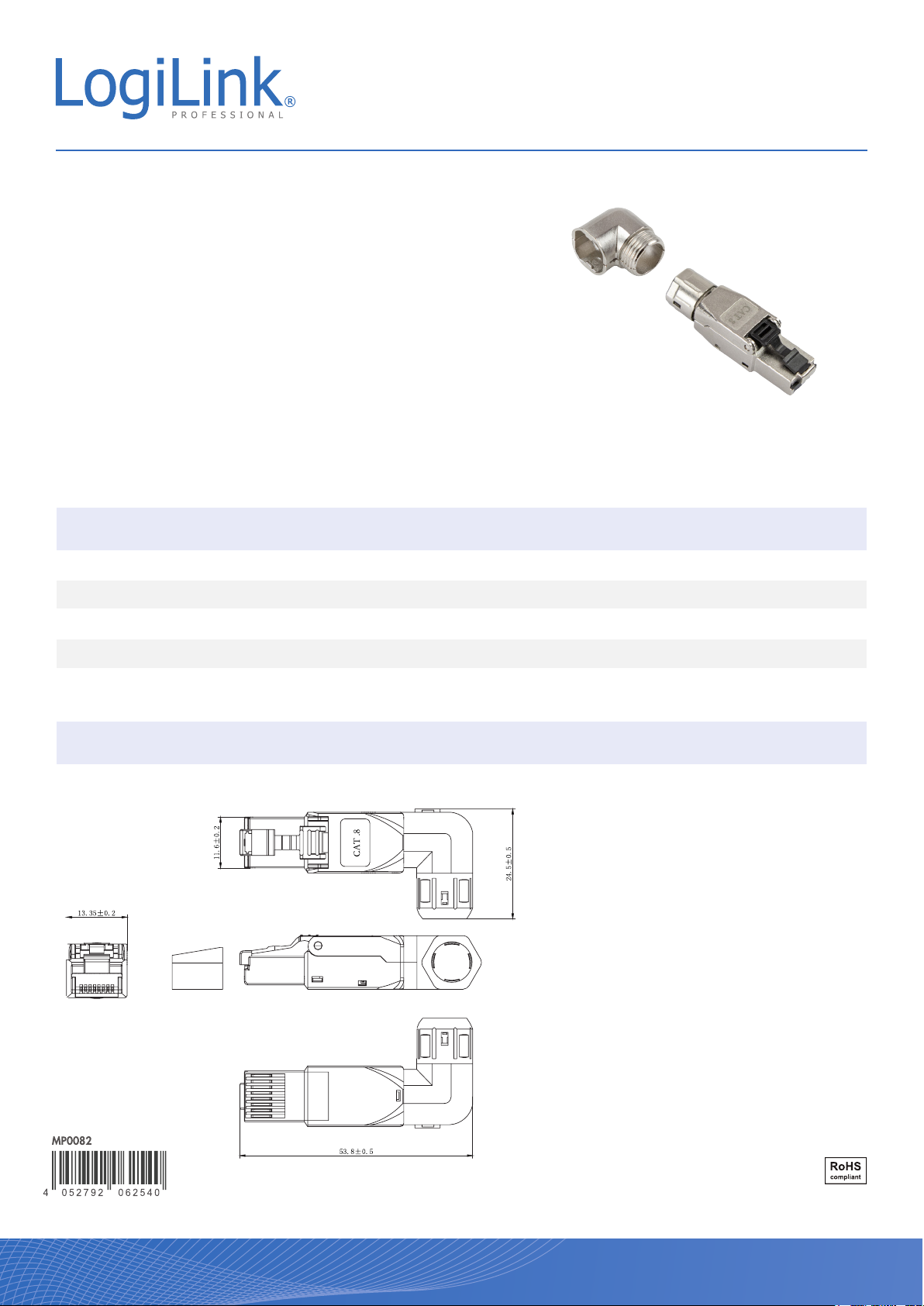

Technical Drawings
Part no.: MP0082
Electrical:
a. Contact Resistance: 20MΩ max
b. Insulation Resistance: 500MΩ min @ 500V DC
c. Withstand Voltage: DC 1000V AC 700V RMS
60Hz,1min
d. Component testing for ISO/IEC TR 11801-9901-
2014, IEC 60603-7-5, CAT.8/Class I Channel Test pass
Made in China
Environmental:
a. Storage Temperature: -40°–70°
b. Operation Temperature: -10°–60°
Mechanical:
a. Housing Material: Zinc alloy
b. IDC Material: PC Terminal:Phosphor Bronze, Tin Plating
c. RJ45 Contact Life: 750 Times min
d. Plug inforce:<30N
e. Solid cable:1/22AWG(0.65 mm)-1/26AWG(0.4 mm)
ID:1.1mm-1.6mm
f. Stranded cable:7/22AWG-7/26AWG
ID:1.1 mm–1.6 mm
e. Cable OD: 5.0 mm–8.5 mm
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Page 2

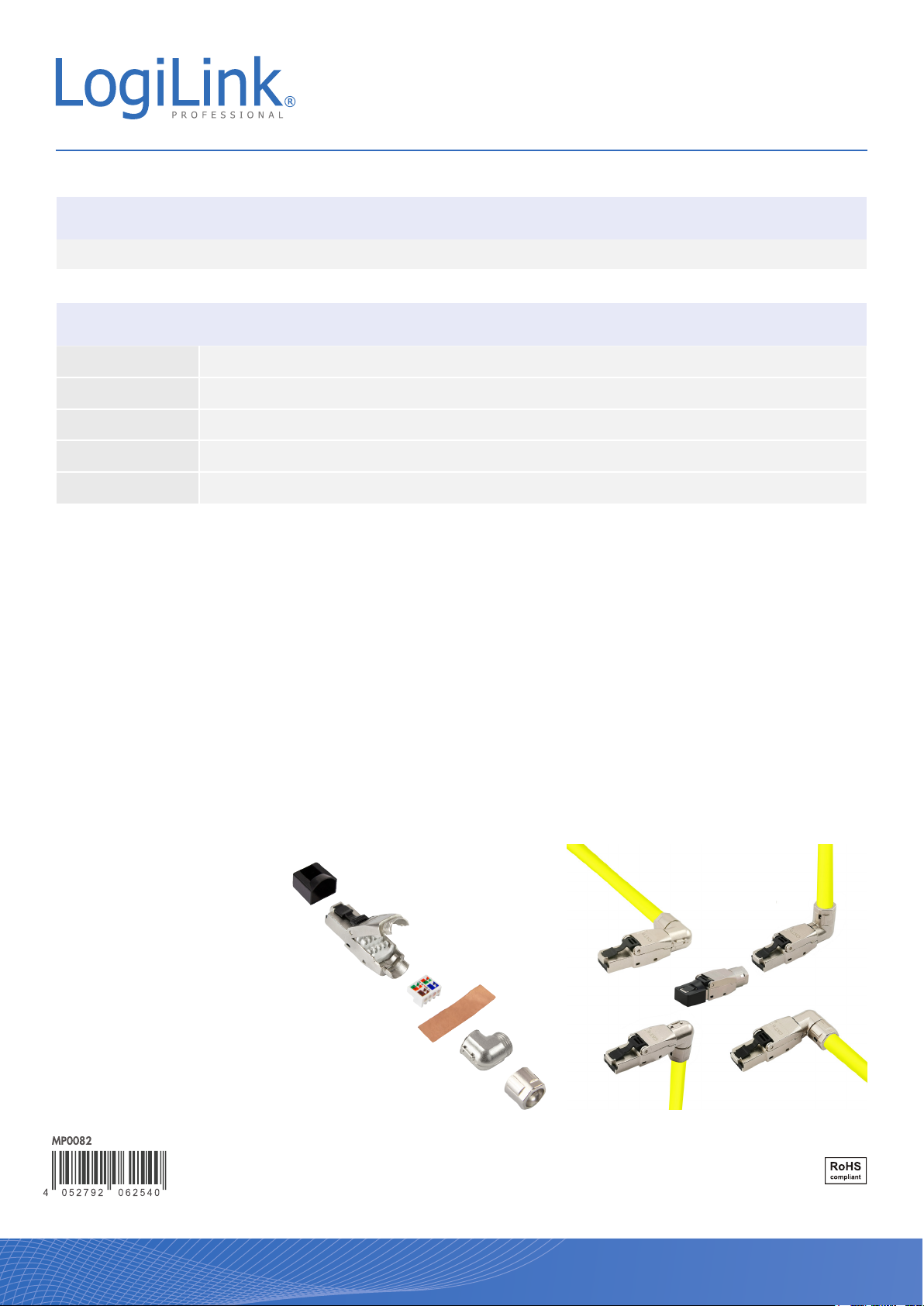

Package Contents
1x Cat.8.1 Field Termination Plug
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
mm
kg
mm
pcs
kg
Made in China
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
