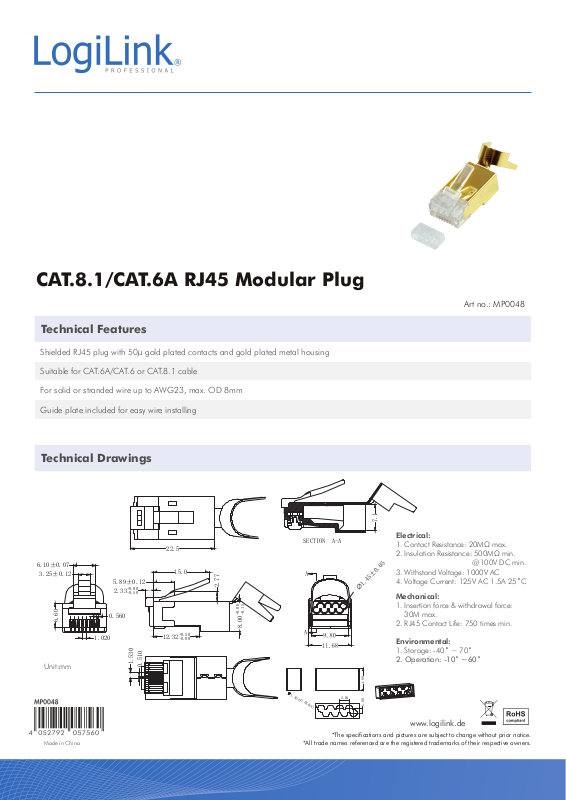

CAT.8.1/CAT.6A RJ45 Modular Plug
Technical Features
Shielded RJ45 plug with 50μ gold plated contacts and gold plated metal housing
Suitable for CAT.6A/CAT.6 or CAT.8.1 cable
For solid or stranded wire up to AWG23, max. OD 8mm
Guide plate included for easy wire installing
Technical Drawings
SECTIONA-A
1.50±0.05(8X)
2.04
6.10±0.07
3.25±0.12
6.60
Unit:mm
1.020
5.89±0.12
+0.00
2.33
-0.50
0.560
1.530
0.510
22.5
12.32
15.0
+0.50
-0.00
2.77
+0.00
8.00
-0.15
Art no.: MP0048
7.1
Electrical:
1. Contact Resistance: 20MΩ max.
2. Insulation Resistance: 500MΩ min.
@100V DC min.
3. Withstand Voltage: 1000V AC
4. Voltage Current: 125V AC 1.5A 25˚C
Mechanical:
1. Insertion force & withdrawal force:
30M max.
2. RJ45 Contact Life: 750 times min.
Environmental:
1. Storage: -40˚ ~ 70˚
2. Operation: -10˚ ~60˚
4.80
1.00
Made in China
www.logilink.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Package Contents
CAT.8.1/CAT.6A RJ45 Modular Plug x10
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
mm
kg
mm
pcs
kg
