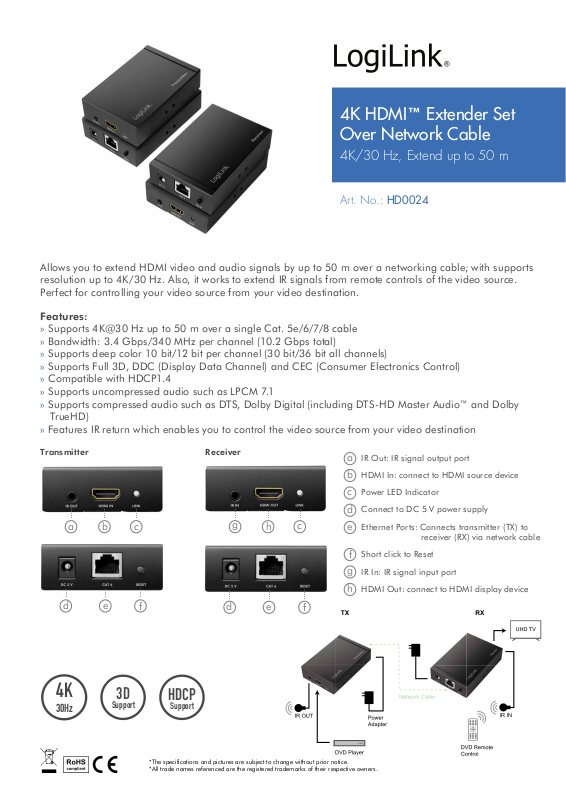

4K HDMI™ Extender Set
Over Network Cable
4K/30 Hz, Extend up to 50 m
Art. No.: HD0024
Allows you to extend HDMI video and audio signals by up to 50 m over a networking cable; with supports
resolution up to 4K/30 Hz. Also, it works to extend IR signals from remote controls of the video source.
Perfect for controlling your video source from your video destination.
Features:
» Supports 4K@30 Hz up to 50 m over a single Cat. 5e/6/7/8 cable
» Bandwidth: 3.4 Gbps/340 MHz per channel (10.2 Gbps total)
» Supports deep color 10 bit/12 bit per channel (30 bit/36 bit all channels)
» Supports Full 3D, DDC (Display Data Channel) and CEC (Consumer Electronics Control)
» Compatible with HDCP1.4
» Supports uncompressed audio such as LPCM 7.1
» Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby
True H D)
» Features IR return which enables you to control the video source from your video destination
Transmitter Receiver
g
d
d
4K
30Hz
a
b
e
3D
Support
c
f
HDCP
Support
IR Out: IR signal output port
a
HDMI In: connect to HDMI source device
b
Power LED Indicator
c
Connect to DC 5 V power supply
d
h
e
c
f
Ethernet Ports: Connects transmitter (TX) to
e
receiver (RX) via network cable
Short click to Reset
f
g
IR In: IR signal input port
h
HDMI Out: connect to HDMI display device
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Specifications:
Transmitter (TX) Interface 1x HDMI-A female, 1x RJ45
Receiver (RX) Interface 1x HDMI-A female, 1x RJ45
HDMI Version 1.4
HDCP Version 1.4
Working Distance 50 m
Output Resolution
Video Bandwith 3,4 Gbps/340 MHz
CEC (Consumer Electronics Control) Yes
DDC (Display Data Channel) Yes
Chassis Material Metal
3D Supporting Yes
LED Indicator Yes
IR Support Yes
Power Consumption TX: 2 W R X: 3 W
Power Supply
Uncompressed Audio L P C M 7.1
Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
Networking Cable Cat 5 e /6/7/8
Operating Temperature 0˚C–70˚C
Operating Humidity 10%–85% RH (no condensation)
Storage Temperature -10˚C– 80˚C
480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz,
720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K/24/25/30 Hz
5 V/1 A
Storage Humidity 5%–90% RH (no condensation)
Dimensions 10x6,6x2,5 cm
Weight 0,35 kg
Specification of External Power Supply:
Input Voltage 100–240 V, 50/60 Hz 0,2 A max.
Output Power 5 V/1 A, 5 W
DC Plug 5, 5x 2,1 mm
Dimensions 51x35x59 mm
Cable Length 1,2 m
Weight 0,07 kg
Package Contents:
» 1x HDMI Extender Set
» 1x IR TX Cable
» 1x IR RX Cable
» 4x Mounting Ears
» 2x Power Adapters 5 V/1 A
Package Information:
» Packing Dimension: 243x196x60 mm
» Packing Weight: 0,7 kg
» Carton Dimension: 505x235x340 mm
» Carton Q‘ty: 10 pcs
» Carton Weight: 7,5 kg
» 1x User Manual
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
