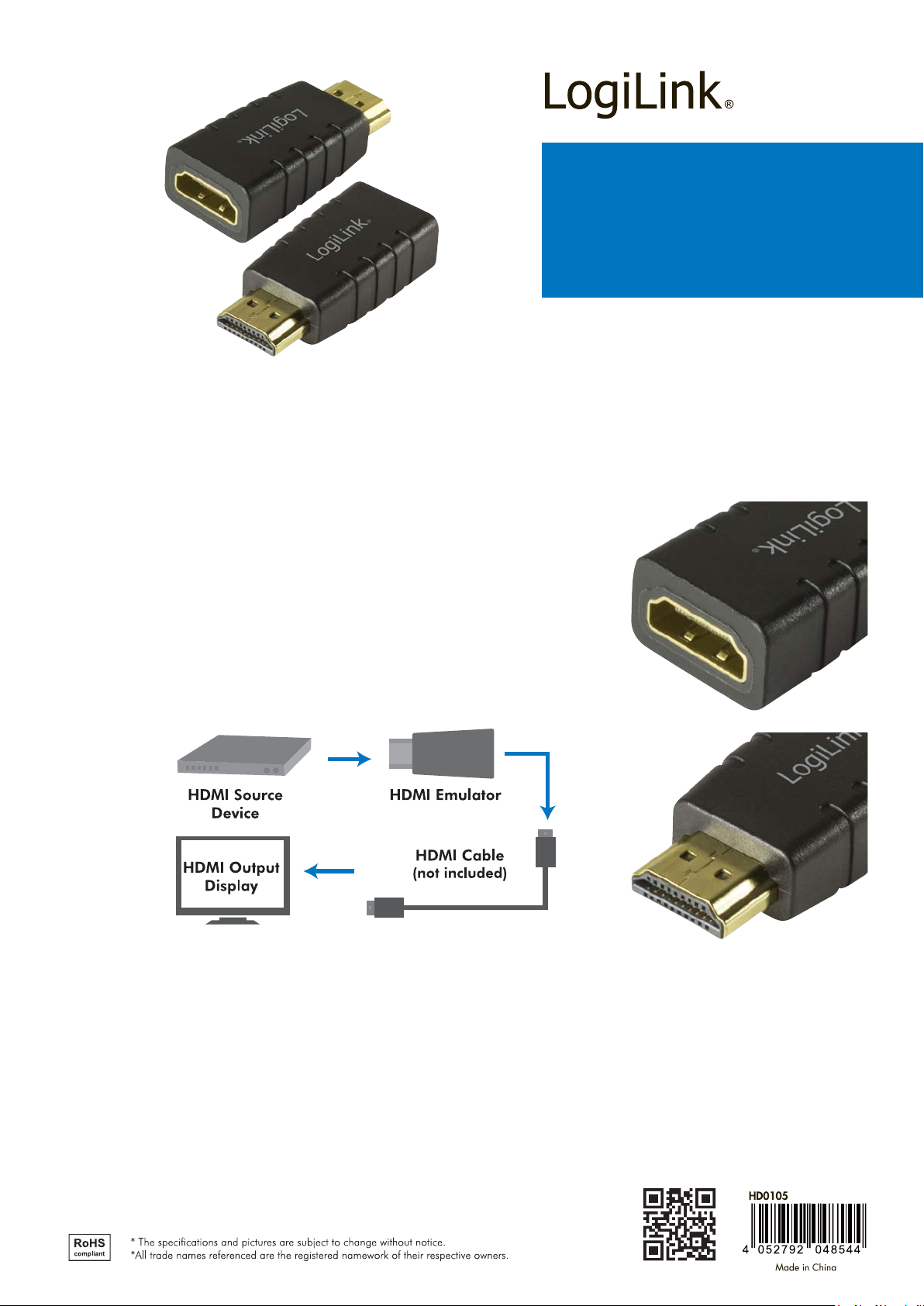

Page 1
HDMI EDID Emulator
Art. No.: HD0105
Best Connectivity
HD0105 is designed to emulate and store the EDID of a video display, providing constant and
reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
Features:
» Designed to emulate and store the EDID of a video display
» Compliant with HDMI 1.4/2.0
» Support resolution up to 4K x 2K@60Hz
» Built-in LED indicator to easily identify the EDID mode
» Support VESA and CEA specification
» Works with any operating system, no software installation
required
» Power from HDMI source device
EDID Resolution - VESA Block:
Established Timings I
• 720 x 400 @ 70Hz (IBM, VGA)
• 640 x 480 @ 60Hz (IBM, VGA)
• 640 x 480 @ 67Hz (Apple, Mac II)
• 640 x 480 @ 72Hz (VESA)
• 640 x 480 @ 75Hz (VESA)
• 800 x 600 @ 56Hz (VESA)
• 800 x 600 @ 60Hz (VESA)
Established Timings II
• 800 x 600 @ 72Hz (VESA)
• 800 x 600 @ 75Hz (VESA)
• 832 x 624 @ 75Hz (Apple, Mac II)
• 1024 x 768 @ 60Hz (VESA)
• 1024 x 768 @ 70Hz(VESA)
• 1024 x 768 @ 75Hz (VESA)
• 1280 x 1024 @ 75Hz (VESA)
Page 2
HDMI EDID Emulator
Art. No.: HD0105
Best Connectivity
Manufacturer‘s Timings
• 1152 x 870 @ 75Hz (Apple, Mac II)
Standard Timings
• 1152x864 @ 75 Hz (4:3 Aspect Ratio)
• 1280x1024 @ 60 Hz (5:4 Aspect Ratio)
• 1280x960 @ 60 Hz (4:3 Aspect Ratio)
• 1440x900 @ 60 Hz (16:10 Aspect Ratio)
EDID Resolution - CEA Block:
• 3840x2160p @ 60Hz
• 3840x2160 @ 24Hz 16:9 Apsect Ratio
• 1920x1080p @ 59.94/60Hz - HDTV (16:9, 1:1)
• 1920x1080i @ 59.94/60Hz - HDTV (16:9, 1:1)
• 1280x720p @ 59.94/60Hz - HDTV (16:9, 1:1)
• 720x480p @ 59.94/60Hz - EDTV (16:9, 32:27)
• 720x480p @ 59.94/60Hz - EDTV (4:3, 8:9)
• 640x480p @ 59.94/60Hz - EDTV (4:3, 1:1)
• 720x576p @ 50Hz - EDTV (4:3, 16:15)
• 720x576p @ 50Hz - EDTV (16:9, 64:45)
• 1280x720p @ 50Hz - HDTV (16:9, 1:1)
• 1920x1080i @ 50Hz - HDTV (16:9, 1:1)
• 1920x1080p @ 50Hz - HDTV (16:9, 1:1)
• 1440x480p @ 59.94/60Hz (4:3, 4:9 or 8:9³ )
• 1440x480p @ 59.94/60Hz (16:9, 16:27 or 32:27³ )
• 1440x576p @ 50Hz (4:3, 8:45 or 16:15³ )
• 1440x576p @ 50Hz (16:9, 32:45 or 64:45³ )
• 720(1440)x480i @ 59.94/60Hz - SDTV (4:3, 8:9)
• 720(1440)x480i @ 59.94/60Hz - SDTV (16:9, 32:27)
• 720(1440)x576i @ 50Hz - SDTV (4:3, 16:15)
• 720(1440)x576i @ 50Hz - SDTV (16:9, 64:45)
• 2560x1440 @ 60Hz 16:9 Apsect Ratio
• 1920x1200 @ 60Hz 16:9 Apsect Ratio
• 1920x1080 @ 60Hz 16:9 Apsect Ratio
Detailed Timing
• 1920x1080 @ 60Hz
• 3840x2160 @ 30Hz
• 1680x1050 @ 60 Hz (16:10 Aspect Ratio)
• 1920x1080 @ 60 Hz (16:9 Aspect Ratio)
• 1920x1200 @ 60 Hz (16:10 Aspect Ratio)
Package Contents:
» 1 x HDMI EDID Emulator
» 1 x User Manual
Package Informations:
» Packing Dimension: 120 x 100mm
» Packing Weight: kg
» Carton Dimension: mm
» Carton Q‘ty: pcs
» Carton Weight: kg
