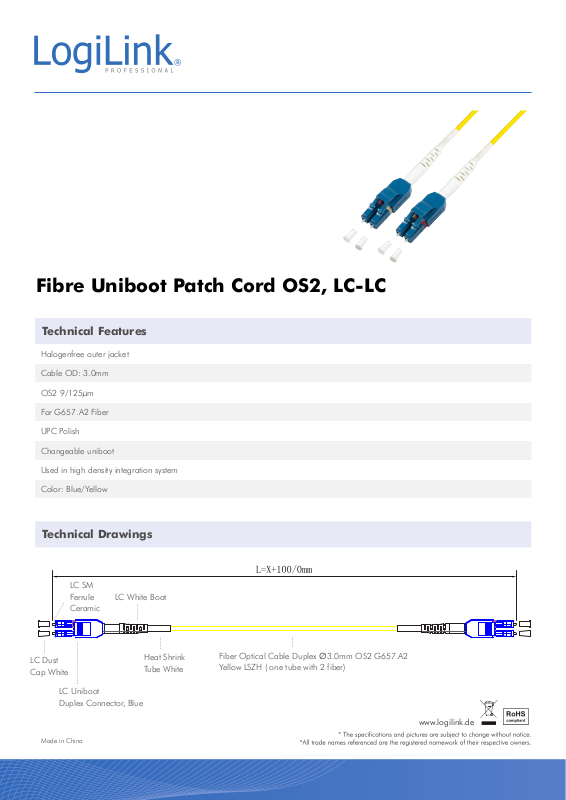

Fibre Uniboot Patch Cord OS2, LC-LC
Technical Features
Halogenfree outer jacket
Cable OD: 3.0mm
OS2 9/125µm
For G657.A2 Fiber
UPC Polish
Changeable uniboot
Used in high density integration system
Color: Blue/Yellow
Technical Drawings
LC Dust
Cap White
LC Uniboot
Duplex Connector, Blue
Made in China
LC SM
Ferrule
Ceramic
LC White Boot
Heat Shrink
Tube White
Fiber Optical Cable Duplex Ø3.0mm OS2 G657.A2
Yellow LSZH ( one tube with 2 fiber)
www.logilink.de
Test Method (Grade Designation)
Type Single-Mode Standard
Insertion Loss ≤0.25dB IEC61300-3-4
Return Loss UPC≥50dB IEC61300-3-6
Test Wavelength 1310mm
Typical ≤0.12dB
Durability 0.2dB after 500 times mating IEC61300-2-2
Temperature Range -20˚C~60˚C IEC60794-2
End Face x IEC/PAS 61300-3-35
Fiber Cable Straight Pull 6.8kg GR-326-CORE
x
x
LC Uniboot Connector Switch Polarity
1
Get ready to switch.
2
Open the connector bottom.
3
Made in China
Switch the polarity.
4
Close the connector.
www.logilink.de
Length Art-No. EAN Code
0.50 m FP0UB00 4052792056907
1.00 m FP0UB01 4052792056914
2.00 m FP0UB02 4052792056921
3.00 m FP0UB03 4052792056938
5.00 m FP0UB05 4052792056945
7.50 m FP0UB07 4052792056952
10.00 m FP0UB10 4052792056969
15.00 m FP0UB15 4052792056976
20.00 m FP0UB20 4052792056983
Package Contents
1 x Fiber Uniboot Patch Cord OS2
Packaging Information
Art no. Packing Dimension Packing Weight Carton Dimension Carton Q‘ty Packing Weight
FP0UB00
FP0UB01
FP0UB02
FP0UB03
FP0UB05
FP0UB07
FP0UB10
FP0UB15
FP0UB20
160 x 200 x 20mm 1.153kg 450 x 250 x 250mm
160 x 200 x 20mm 0.139kg 450 x 250 x 250mm
160 x 200 x 20mm 1.952kg 450 x 250 x 250mm
160 x 200 x 20mm 0.301kg 450 x 250 x 250mm
200 x 240 x 20mm 4.433kg 450 x 250 x 250mm
200 x 240 x 20mm 0.732kg 450 x 250 x 250mm
200 x 240 x 20mm 8.925kg 450 x 250 x 250mm
200 x 240 x 20mm 0.127kg 450 x 250 x 250mm
200 x 240 x 20mm 1.356kg 450 x 250 x 250mm
300pcs
300pcs
250pcs
200pcs
120pcs
50pcs
80pcs
50pcs
50pcs
www.logilink.de
3.96kg
4.67kg
5.38kg
6.52kg
5.82kg
4.16kg
7.64kg
6.85kg
7.28kg
