Operating instructions

3 2 5 0 6 0 2 4

Concept L 32

Concept L 32 Basic

Concept L 26

Concept L 26 Basic

233–32506.024

Contents

Remote control - TV functions 3

Control Unit 4

Connections to rear panel 5

Welcome 6

Integrated features 6 Scope of delivery 6 Transporting 6 Installation options 6 Note on the LCD screen 7 Cleaning 7 Disposal 7

For your safety 8

First installation 9

Remote control 9 Connection 9 Handling the fabric hose (optional) 10 Using the Conditional Access module 10 Switching on 10 Automatic programming 11 Directing DVB-T antenna 12

Daily operation 12

Switching on/off 12 Changing stations 13 Basics about the menu operation 14 For the info system ... 15 For the index ... 16 Setting the sound 17 Picture settings 17 Direct control on TV set 17

Operating modes – TV 18

How the coloured keys work in TV mode 18 Show status display 18 Calling the index 18 Call additional functions 19 Call timer overview 19 Select picture format 19 Move picture up/down 19 TV menu 19 DVB subtitles 20 Removing the CA module 21 Inserting a new CA module 21 Installing new DVB software 21

Operating modes – PIP 22

PIP picture as freeze picture 22 Selecting the station of the PIP picture 22 Select the station of the TV picture (main picture) 22 PIP scan in the PIP picture 22 Interchanging PIP picture/TV picture 22 Functions in the PIP menu 23 Setting the PIP type 23 Position of the PIP picture 23

Operating modes – EPG 24

Using the EPG 24 EPG menu 25 Selecting providers and stations 25 Data capture 25

Operating modes – Teletext 26

Page selection with the coloured keys 26 Displaying teletext pages 26 Programme timer recordings 27 Teletext menu 27 Digital teletext operation (only for MHEG-5 device versions) 27

Operating modes – Radio 28

Radio menu 28 EPG - Programme guide 28

Operating additional equipment 29

Login and connect equipment 29 Video playback 30 Timer recording with video or DVD recorder 30 Assignment of digital audio inputs and outputs 31 Connecting Loewe DVD Preceiver Auro 2216 PS and Individual Sound loudspeaker system 32 Connecting other audio ampliers or active speakers 33 HDMI (DVI) connection 34 VGA/XGA connection 34 Component video connection 35 Operating Loewe video recorders and Loewe DVD players directly 36

What to do, if ... 37

Technical data 39

General data 39 Electrical data 40

Accessories 41

Service 43

- 2

Remote control - TV functions

P+

P–

V– V+

DVD

VCR

DISC-MENU

T-C

SV SP/LP 000

END

INFO

abc def

ghi jkl

mno

pqrs

tuv

wxyz

EPG

PIP

RADIO

P+

P–

V–

V+

P+

P–

V–

V+

Sound off/on

Green button:

Standard settings

for picture/sound

Red button:

freeze picture on/off

Teletext on/off

Show/hide menu

Electronic Programme Guide

Now&Next Programme Info

Set picture format

Call timer list

Switch over to operate TV set

Switch over to operate VCR

Select station down

/ in the Wizard: back

Direct recording

Freeze picture on/off

Switch on/off

- on standby

Yellow button: (2 previous station

Open index /in the menu: info texts on/off

Status display on/off

/in the menu: hide menu

Call AV selection

PIP on/off (picture in picture)

Picture menu on/off

Switch over to operate DVD player

Sound menu on/off

Radio on/off (1

Select station directly /in the menu: enter numbers or letters

Station list on /in the menu: confirm/call

Blue button: (2 programme info off/on

Select station up Freeze picture off

Freeze picture on

V–/V+ Volume down/up

for PIP: Position of the PIP picture / in the menu: select/set

P+/P– Select station up/down

Radio only for DVB reception

if broadcast by the station

Alternative

remote control

with DVB-T stations in GB different function. The coloured keys do not work as described with DVB-T stations in GB, but they operate as described on page 27 (Digital Teletext).

Menu "Additional functions" on/off

3 -

Control Unit

LOEWE.

–

Open control

panel

Display: red = standby green = operation orange = operation without screen display (radio mode, EPG data capture or timer recording)

Mains switch

Headphones connection

S-VHS connection (AVS) (i.e. for camcorders)

Video input (AVS)

Audio input right

Audio input left

Call the menu,

in the menu: up/down 

Station down,

in the menu: left 

Station up,

in the menu: right 

- 4

Connections to rear panel

89374.003

SE RV IC E

VGA/XG A

HDTV/P CI N

AUDIO OUT

AUDI OD IGIT AL

L R

OUT

AUDI OI N

SD/HD-COMPONENT IN

C/ P

r r

Y C/ P

b b

AV 1

RGB / Y UV

( )

AV 2

ANT -TV

ANT -S AT

13/18 V /350 mA

5V /80 mA

HDMI DVI

( )

220-240V~

50/60 Hz

9374.003

A/XG

AUDI

AUDI OD

IGIT

AUDI

D/HD-COMPONENT IN

b b

AV 1

RGB/YUV

( )

AV 2

ANT

-S AT

13/18

/350

/80

HDMI

( )

DVI

220-240

50/60 Hz

Audio output left/right (analogue)

Audio input left/right (analogue)

Center Audio input (analogue)

Antenna/cable PIP tuner

or satellite antenna

Euro-AVsocket 1

Euro-AVsocket 2

Socket for power cable

Service socket

VGA/XGA input

HDMI (DVI) input

Digital audio input

Digital audio output

Component video inputs

(Cb/Pb–Cr/Pr–Y)

Antenna output PIP tuner

connect to tuner 1

Antenna/cable

analogue/digital (1

(tuner 1)

Common Interface

(CI-Slot)

Set-specic equipment and retrotting options for CI-Slot, PIP and satellite tuners, see pages 41 and 42.

5 -

Welcome

Thank you!

At Loewe, we combine the highest standards of technology, design and user friendliness. This applies equally for TV, video and accessories. Your new TV set is ideally equipped for the TV standard of the future - ”HDTV”

(High Denition Television). With its high-resolution screen and the future-proof

digital interfaces HDMI , you have the option to view HD content with excellent picture quality. It therefore carries the European quality mark ”HD ready”. Digital TV is steadily spreading via terrestrial reception, in the cable network and via satellite. Loewe supplies sets equipped with DVB-T and DVB-C (DVB-C not

for GB). A digital satellite tuner (DVB-S) can be retrotted. The DVB integrated

within the TV set is operated via the TV set menus using the remote control. We have designed this TV set so that it is easy to operate by using menus. Information about settings in menus is shown automatically; this enables you to understand the context quickly.

You will nd the answers to many of your technical queries in the index of your

TV. If you want to operate the TV, you can access functions directly from the index. This saves you from having to read through detailed operating instructions and is the reason why this operating manual only explains the most important operating steps.

Integrated features

The maximum equipment is described in these operating instructions. Functions indicated by  are not available in all TV sets. Menu contents may differ from the ones shown, depending on how your TV is equipped. You can display how your set is equipped in the “Integrated features“ index (press the INFO button in the TV mode if no menu is displayed; the “Integrated features“ menu item is also displayed in the index before the initial letter A).

Transporting

Only transport the unit in an upright position. Hold the set by the top and bottom edges of the housing. The LCD screen is made of glass and/or plastic and may break if not handled carefully. Should the LCD screen become damaged or should the liquid crystal begin to leak, then it is imperative you wear rubber gloves when removing the set. Should the liquid come in contact with your skin, thoroughly rinse with water immediately.

Installation options

As a desktop unit

The foot is included in delivery.

As a wall-mounted unit

Wall holder WM55 for Concept L26 / Concept L26 Basic,

• Loewe order no. 65497 A00.

Wall holder WM54 for Concept L32 / Concept L32 Basic,

• Loewe order no. 65498 A00.

Scope of delivery

LCD-TFT TV set

• Mains cable

• RC4 remote control with 2 batteries

• Table stand

• Marketing and service card

• These operating instructions

•

- 6

Welcome

Note on the LCD screen

The TV set with an LCD screen you have purchased meets the highest quality requirements and has been tested for pixel errors. Despite the utmost caution in production of the displays, it cannot be totally ruled out that some of the pixels might be defective for technological reasons. Please understand that such

effects cannot be considered a unit defect as dened by the warranty as long as they are within the limits specied by the standard.

Cleaning

Use only a soft, clean, damp cloth to clean the TV set, the screen and remote control (do not use any caustic or abrasive cleaning agents).

Disposal

Packing and box

You have chosen a long lasting technical product of very high quality. We have paid a fee to authorised recyclers who will collect the packing from your dealer for disposal, pursuant to domestic regulations. Nevertheless, we recommend you to keep the original box and packing material for optimum protection if you have to transport the set.

The set

Attention: The EU directive 2002/96/EC regulates the proper way to recycle, handle and utilise used electronic devices. Hence, all used electronic devices are to be disposed of separately. Please do not dispose of this set in the normal household rubbish.

You may return your used set free of charge at designated recycling centres or at your specialist dealer whenever you purchase a new, comparable set. You can nd out more about recycling (also for countries outside the EU) from your local government.

7 -

For your safety

LOEWE.

10 cm

10 cm10 cm

LOEWE.

For your safety and to avoid unnecessary damage to your TV set, please read and observe the following safety instructions:

• This TV set is designed exclusively for reception and reproduction of video

and audio signals.

• This equipment is designed for domestic and

ofce environments and must not be used

in rooms with high humidity (e.g. bathroom, sauna) or high concentrations of dust (e.g. workshops). If the equipment is used in the open air, ensure that it is protected against moisture (rain, drips, splashes, sprayed water or dew). Do

not place any containers lled

with liquids or lit candles on top of the TV.

High levels of moisture and

concentrations of dust cause leakage currents in the equipment, which can

lead to danger of electric shock or re.

The manufacturer‘s warranty is only valid for use in the specied permissible

environment.

• If you have moved the TV set out of the cold into a warm environment, leave

it standing for about an hour since condensation may form.

• This equipment must only be connected to a mains power supply which has

the same voltage and frequency as that specied on the rating plate; use

the power cable provided. Incorrect voltages can damage the equipment.

• Like all electronic equipment, your TV needs air for cooling. Obstruction

of the air circulation can cause res. Therefore the air vents on the back

must always be kept free. Please do not place newspapers or cloths on/over the TV.

If the TV is placed in a

cabinet or on a shelf, leave at least 10 cm at the sides and 10 cm at the top to ensure suf-

cient air circulation.

Position the set so that it

is not exposed to direct sunlight and additional heating from radiators.

• Prevent any metal parts, needles, paper clips, liquids, wax or the like from getting into the TV set through the air venting slits in the rear panel. This

can lead to short-circuits and possibly to re. If something should get into

the inside of the TV set, pull out the plug immediately and notify customer service.

• Never remove the back of the TV set yourself. Repair and servicing of your TV set should only be carried out by authorised TV technicians.

• Place the TV set on a level, rm base. The set should not protrude at the

front when installing in cabinets or shelves.

Only use original accessories if possible, e.g. Loewe wall holders and stands. Never let children handle the TV unattended. Do not allow children to play in the immediate vicinity of the TV, they could

knock, shift or pull it over and injure someone.

Never leave the TV on unsupervised.

• Do not install the TV where there may be vibrations. Vibrations can lead to material stress.

• Pull out the power and antenna cables during thunderstorms. Surge voltages caused by lightning strikes can damage the TV through the antenna system and the mains. Also remove the antenna and mains plugs in long periods of absence.

• The mains plug of the TV set must be easily accessible so that the set can be disconnected at any time.

• Lay the mains cable in such a way that it will not be damaged. The power cable may not be kinked or laid over sharp edges, not stood on and not exposed to chemicals, the latter also applies to the device as a whole. A mains

cable with damaged insulation can lead to electric shocks and is a re risk.

• When removing the mains plug, pull the plug housing and not the cable. The wires in the plug could be damaged and cause a short circuit the next time it is plugged in.

The rating plate of the TV is on the rear of the set.

- 8

First installation

ANT-TV

ANT-SAT *

220-240V~

50/60 Hz

Remote control

Batteries

To insert or change the batteries, press on the arrow. Slide the battery compartment cover downwards and remove it. Insert LR 03 alkaline-manganese batteries (AAA) and ensure that the + and - ends are positioned correctly.

Then push the cover back on from the bottom.

Note on disposing batteries

The batteries provided contain no harmful materials such as cadmium, lead or mercury. Regulations concerning used batteries stipulate that batteries may no longer be thrown out with the household rubbish. Deposit any used batteries free of charge into the designated collection containers set up at commercial businesses.

Connection

Power mains

Connect the TV set to a 220-240V/50- 60 hertz power outlet. Plug the small plug of the mains cable into the mains socket on the rear of the TV set; plug the large mains plug into a mains socket.

Antennas

Plug the antenna plug of your antenna/cable system or the room antenna for DVB-T into the ANT-TV socket.

Setting up the remote control for operating the TV

Push the TV button.

How to operate other equipment is described as of page 36.

9 -

First installation

Contact side

Eject button

CA module

CI-Slot

If the reception conditions are good, then a room antenna may be used for DVB-T. Passive and active room antennas are available on the market. The power is supplied for an active antenna via the antenna connection. For automatic programming or in “TV Menu – Connections – Antenna DVB – Antenna DVB-T,“ the distribution voltage (5 volts) is to be set correspondingly. It may be practical to use a nondirectional antenna. If the location is outside the normal transmitting range, then a unidirectional antenna may also be used to improve the reception quality.

You can nd out more on the digital stations that can be received in your area

at your specialist dealer.

If a set was retrotted with a PIP tuner, then plug the antenna into the antenna

input of the PIP tuner and connect the PIP tuner output with the ANT-TV socket (Tuner 1). See illustration on page 5. Set-specic equipment and retrotting options for CI-Slot, PIP and satellite tuners, see pages 41 and 42.

If a Digital Satellite Tuner has been retrotted, connect your satellite antenna

system to the ANT-SAT socket.

When laying the cable, use the cable clips afxed beneath the TV set.

Handling the fabric hose (optional)

Use the fabric hose for tidy laying of the power cables, antenna cables or cables of other electronic components and lay the hose with the cables to the connecting sockets. This provides you with an elegant solution when laying cables. The diameter of the fabric

hose increases when you push it together lengthwise (see illustration). This makes it easier for you to push through cables with plugs.

You can obtain the fabric hose as an accessory from your Loewe dealer or Loewe Customer Service.

Using the Conditional Access module

(Only for sets with CI slot)

In order to be able to receive encrypted digital stations, a Conditional Access module (CA-module

the corresponding slot of your TV set. You can nd the Common Interface slot

(CI-Slot) on the back of your TV set, see the illustration on page 5.

1. Make sure the TV set is switched off with the mains switch on the set.

2. First push the Smart Card into the CA-module as far as it will go. Insert it so that the side with the golden contact chip faces the side of the module printed with the supplier‘s brand logo. Printed arrows indicate how to insert the card. Also follow the installation instructions included with the Smart Card.

3. Push the CA module carefully into the slot contact

side rst. When you are standing in front of the TV

set, the logo on the CA module must face the rear.

Make sure the module is not twisted in the process.

Do not use force.

When the module locks, the eject button is pressed

outwards.

The CA-module and the Smart Card are not included

in the scope of delivery of this set; you can usually obtain them at your specialist dealer.

) and a Smart Card

, if necessary, must be inserted into

Switching on

Switch the TV set to standby with the Mains switch on the front behind the ap. The red indicator on the set now lights up (standby mode).

From standby (red LED lights) it is best to switch on the TV with the blue On/Off button or a numeric button on the remote control.

- 10

First installation

Initial installation

Connect antenna cable(s)

Proceed

Back

Connect/disconnect

Antenna cable(s) for: to antenna socket(s): Antenna/cable (analogue) ANT TV DVB-T ANT TV DVB-C ANT TV DVB-S ANT SAT

Automatic programming

Automatic programming of the TV set is started the rst time you switch it on.

Follow the menus.

By pressing in one of the arrow directions, you can choose the settings ...

... and conrm your settings by pressing OK. You then go to the next menu.

Back to the previous menu.

1. First you have to select the menu language.

2. By pressing the OK button, you can call the menu “Connect antenna cable(s)“. If you want to receive digital stations via satellite, then choose “DVB-S“ - conrm using the yellow coloured key. If you also want to receive digital terrestrial stations (DVBT), then select “DVB-T“. Also select “Antenna/cable (analogue)“ - this way the standard analogue stations can also be searched for and saved. If you can receive digital stations from the cable network, then select “DVB-C“ using the yellow coloured key.

3. For the country-specic station sorting and for presettings for DVB-T and

DVB-C, enter the location at which the TV set is operated.

4. If you have selected “DVB-T“, you then reach the menu “Antenna DVB-T“. If you use an active antenna, then select “yes (5V)“.

5. If you have selected „DVB-C“, you generally leave the symbol rates and modulation types unchanged. If other symbol rates are used in your cable network for broadcasting, enter the values with the numeric buttons of the remote control. If only one symbol rate is used, enter the same value for both symbol rates. If other modulation types are used for broadcasting in your cable network, select them in the menu. If only one modulation is used, select „none“ for modulation type 2. If necessary, ask your specialist dealer about the necessary settings for your cable network.

6. In the “Select satellite installation“ menu, make the selection that corresponds to your satellite antenna installation.

Note: If you have any questions on how your satellite antenna installation

is congured and on the antenna settings, consult your antenna installer or

your specialist dealer.

7. Select the satellite the antenna is directed at, such as ASTRA1.

If you only receive one satellite ...

8. In the following menu, specify whether the station search should take place in the high and low band (“Yes“) or only in the low band (“No“). Note: For most satellites, a station search is required in both bands.

9. For the low band and high band, the standard frequencies 9750 MHz (9.75 GHz) and 10600 MHz (10.6 GHz) are preset. If your satellite antenna is equipped with an LNC (LNB) with a divergent oscillator frequency, specify the corresponding frequency for low and high band respectively. Note: The correct display of the received frequencies in the “TV menu – Settings – Stations – Manual adjustment“ depends upon this setting.

10. You should receive a picture with sound with the settings previously made (only for ASTRA 1 and HOTBIRD). Then press OK.

11. In the “Pre-programming“ menu, select the factory-set pre-programming to programme the satellite stations quickly. To ensure all stations that can be currently received are searched for and saved, select “No“ at this point. Symbol rates: The standard symbol rates 22000 and 27500 are preset. If you would like to receive stations with different symbol rates, specify the corresponding values here using the numeric buttons on your remote control.

12. Press OK to obtain an overview of the settings with which the automatic programming is to take place.

13. Press the OK button again and the station search will start. The TV set searches for, sorts and saves all the TV stations that can be received, according to your settings and the antennas connected.

14. When the TV stations are saved, you will receive a corresponding message.

15. Press the OK button and the set then searches for the radio stations.

16. The TV set searches for, saves and sorts all radio stations which can be received with your antenna system.

17. Then log on your video equipment, decoder and audio system using the connection wizard and connect these to the TV according to the connection diagram displayed. If you want to connect other equipment later, you can

nd information as of page 29.

You can repeat the initial installation at any time, e.g. after moving house. Call the index using the INFO button (in the TV mode, if no menu is opened). Select

the index item “Repeat initial installation“ (you will nd this listed separately

before the letter A). Press OK to start the initial installation. Note: For DVB-T stations in GB the stations are tied to “Logical Channel Num-

bers” -- “LCN” and sorted from 1-799. Digital stations without “LCN” are stored from 800 onwards. Analogue stations are stored from 1001.

Station sorting

Note: not with DVB-T stations in GB. You can change the station sorting that was carried out automatically later at any time, see “TV menu – Settings – Stations – Change stations“.

11 -

First installation

INFO

END

Manual adjustment ...

Language

Parental lock

Stations

Timer functions

TV menu

Settings

END

Manual adjustment

Signal source Channel F r equen

cy Name Bandwidth

C/N 96

DVB-T E 05

177.50 MHz T

es t 7 MHz

Level 99

DVB-C Antenna/cable (analogue)

RADIO

Daily operation

Directing DVB-T antenna

Note: not with DVB-T stations in GB. If you use a room antenna to receive one or more DVB-T stations that have picture and sound interference, then you should change the location of where the antenna is set up. To help you direct your antenna or to help you determine the most suitable location to set up the antenna, your TV set has a display for the signal quality C/N and the signal strength Level.

Consult your specialist dealer to nd out which channels and frequency bands

(VHF or UHF) are used to broadcast the digital TV stations in your area. On any one channel, several digital stations are broadcast.

Select a TV channel

1. Call the “TV menu“ via the MENU button.

2. Use 34 to select “Settings“, then use 6 to select the menu line underneath.

3. Select “Stations“, then use 6 to select the menu line underneath.

4. Select “Manual adjustment“ and call the menu using OK (not possible for MHEG-5 device versions).

5. For digital stations, select “Signal source – DVB-T“.

6. Use the numerical buttons to specify the corresponding channel number.

Depending on the channel selected and country, the system automatically

sets the corresponding bandwidth of 7 or 8 MHz. You should only change the bandwidth under special circumstances - if the channel raster in your area is different from the standard.

When you receive a digital station, the system displays the signal quality

C/N via a bar/numeric value and the signal strength via Level. The antenna‘s direction or position is best when the largest values possible are displayed (long bar) for the signal quality and signal strength.

7. Direct the antenna so that the largest numerical value/bar size is reached.

8. If no signal is found in the channel set, you can start the frequency search run by pressing the blue button within the band selected (VHF or UHF).

9. Check the other channels one after another on which digital stations are broadcast terrestrially in your area.

For the weakest station, direct the antenna so that the maximum numerical

value/bar size is achieved.

10. After you position or direct the antenna, we recommend to search for all the stations using the “Search wizard“ (TV menu – Settings – Stations – Search wizard).

- 12

Switching on/off

Your TV is equipped with an eco-standby power supply unit. On standby, the power consumption drops to low power. If you want to save even more electricity, switch the set off with the mains switch. However, please bear in mind that EPG data (electronic programme guide) will be lost and programmed timer recordings will not be performed by the TV.

Switching off

If the TV set is switched on, you can switch it to standby using the blue ON/OFF button on the remote control. The red lamp on the TV set lights up. If the orange indicator lights up, a timer recording is being made, EPG data is being captured or radio operation without screen display is active.

Switching on the TV set

From standby, it is best to switch the set back on using the blue On/Off button or by using the numeric buttons of the remote control (0 – 99). The green indicator on the TV set lights up.

Or switch on the TV set with OK, you can then see the station list and select a station.

Switching the radio on

With the RADIO button on the remote control.

If you switch off the TV set using the mains switch on the set, the indicator no longer lights up.

If the TV set is switched off via the mains switch, you have to switch it into the

standby mode  rst via the mains switch and then switch it on using one of the

above mentioned methods.

Daily operation

0 9

END

6 3SAT 7 S–RTL 8 N–TV 9 DSF 10 TM3 11 PRO7 12 RTL 2 13 WDR 3 14 BR 15 HR 16 MDR 3 17 N 3

COMP. IN HDMI/DVI VGA

AVS

DVD VCR 0 VIDEO 1 ARD 2 ZDF 3 SAT.1 4 RTL 5 VOX

Station list Numerical

Switch to ... Scan stations

21:00 - 21:45 Eifellandschaft

... Select station Change stations

Change sorting

END

CNN INT. CAM

DELUXE DSF

EUROSPRT

HOT HR

KIKA

COMP. IN HDMI/DVI VGA

AVS

DVD VCR

ARD

BR-ALPHA BR3

Station list Alphabetical

Switch to ... Scan stations

21:00 - 21:45 Eifellandschaft

... Select letter Change stations

Change sorting

41 ZDF Eifellandschaft 21:00 – 21:45

Language/sound selection

P+

P–

V–

V+

abc

pqrs

wxyz

abc

pqrs

tuv

P+

P–

V— V+

Changing stations

... with the P+/P- buttons on the remote control

Stations up/down

When changing, the station display is visible for a few seconds.

If additional languages are broadcast with DVB stations, then the set displays the language/sound selection under the station display. Call the language/sound selection by using the green coloured key and select using 56.

... with the numeric buttons of the remote control

The set has a dynamic memory with 430 (with DVB 1680) station memory locations. If up to 9 stations are stored, you only need to enter one digit; up to 99 stations, two digits are needed; up to 999 stations, three digits are needed (refer to the station list to see how many stations have been stored).

1 digit stations

long

short short long

all short

Call last viewed station (for DVB-T stations in GB)

Press buttons 0 -9 for one second, and the station changes instantly.

Or press button 0 – 9 briey, the station then changes after 2 seconds (the station changes immediately when only 9 stations are saved).

2- and 3-digit stations

After briey pressing the  rst numeric button(s), keep the

last numeric button pressed for one second, the station then changes immediately.

Or press all numeric buttons briey, the station then changes after 2 seconds (the station changes immediately if up to 99 or 999 stations are saved).

4 digit stations

Press the four numeric buttons briey, the station then

changes immediately.

You can switch back and forth quickly between two stations using this button.

... via the station list

Use OK to call the station list.

Select the station (if possible, the selected station will be displayed as a small picture) or ...

... select with numeric buttons

call selected station.

Blue coloured key: sort alphabetically/according to bouquets/ numerically.

For an alphabetical display: Enter letters with the numeric button (like on a mobile phone keypad), select with 6534 and call with OK. For bouquet display (sorting according to broadcasting chains, only for DVB stations, not for DVB-T stations in GB): Enter bouquet number, select with 6534 and call with OK.

Digital DVB-T stations are indicated by T, DVB-C stations by C and DVB-S stations by S. Encrypted stations are additionally indicated by . Ask your specialist dealer about decoders or the use of a CA module and a Smart Card for the reception of encrypted stations.

13 -

Daily operation

Treble ...

INFO

END

TV menu

Settings

Connections

Recording

Sound


INFO

END

more ...

Bass

Treble

TV menu

Sound

INFO

END

more ...

TV menu

Sound

Treble Bass

INFO

END

Bass

TV menu

Sound

INFO

END

more ...

Treble

Bass

TV menu

Sound

INFO

END

Auto vol

Loudspeaker sound

Headphone volume

TV menu

Stereo ...

Sound

Headphone sound

Bass

INFO

END

Auto volume

TV menu

Sound

off on

Picture adjustment ...

INFO

END

Settings

Connections

Recording

Sound

TV menu Picture

Picture Here you can adjust among other things: Contrast, colour, brightness,

picture adjustment, sharpness, picture format.

OKOKOK

INFO

END

AV audio signal Maximum volume

sound

Auto volume

TV menu

Sound

Balance

off ...

INFO

END

Auto volume

TV menu

Sound

onoff

END

P+

P–

V–

V+

Basics about the menu operation

Menus are called via the MENU button or via the button for special menus and can be hidden by using these buttons or by using the END button. The menu is displayed in the bottom section of the screen. At the top, you can see additional information for the menu point selected. In the menus, navigate by using the cursor5634. You can make settings by using 34. When you exit the menu, the settings are adopted.

Example of the menu operation

We shall demonstrate how to navigate with the menus using the TV menu as an

example. You can see which buttons you can use in the dark blue eld on your

TV set.

Open TV menu (in TV mode).

Select the function in the TV menu, e.g. “Sound“ (for sound settings). Use 4 to move the menu points displayed on the right into the dark blue eld; use 3 to move the menu points displayed on the left.

Select the sound function below with 6 or OK; you will then see a list of the sound settings.

- 14

In the sound settings, also select the function with 34, e.g. “Bass“ (for increasing or reducing the bass tones).

To set the bass tones, use 6 or OK to select the setting bar underneath.

Set the bass tones by using 34. If you want to make other sound settings, move up with 5

to “Bass“ and select with 34, e.g. “more...“. You can also move up further to “Sound“ by using 5 and select other settings in the TV menu (such as, picture settings).

Use OK to call additional sound settings.

Select the sound setting using 34, e.g. “Auto volume“ and ...

... use 6 to select the auto volume option.

Use 34 to select “on“ and activate the auto volume.

Press the END button to hide the menu.

Apart from the TV menu shown here, other menus can be opened in TV mode as follows:

Call the Sound menu directly. Call the Picture menu directly. Quick calls for teletext subtitles, personal text pages, head-

phone volume, scan stations and to move the picture up and down.

Green coloured key: Call standard settings for picture and sound.

Using the volume control, you can also open other sound settings, such as Sound via, Sound adjustment, Sound effects and Loudness. The key 5 or OK must be pressed for the duration of the volume display for this.

Daily operation

INFO

END

Stations ...

TV menu Settings

Connections

Recording

Sound


Settings Here, you can search for the stations automatically or manually as well

as set the menu language, timer functions, parental lock, on-screen displays, etc.

INFO

END

Search wizard ...

Timer functions

Parental lock

Stations

Language

Mis

TV menu

Settings

Stations The menu contains the automatic station search and the manual station

setting. You can re-sort stations, enter and change station names and delete stations.

INFO

END

Search wizard

Manual adjustment Change stations

Stations

TV menu

Settings

Search wizard Use this menu to search for stations automatically once certain settings

have been made. If you want to search for stations with other than the displayed settings, select the "Change settings" menu.

For the info system ...

For each menu point, an info text is displayed at the top of the picture to help you with the setting. This saves you from having to refer back to the operating instructions. We shall demonstrate this using the station search option as an example:

Call the TV menu.

Select “Settings“.

In this example, you can see the options available after “Settings“.

If you want to search for new stations, for example, use 6 to select “Stations“ in the line below.

Use 6 to select the line below, for example “Search wizard“.

The info text explains how you are to proceed.

Upon delivery, the TV set is congured so that the info texts are always displayed (Automatic info “yes“). In this case, you can hide the info texts by using the INFO button.

You can also congure the TV set so that you call the info texts when needed by

using the INFO button (Automatic info “no“). You can nd the setting to switch the automatic info option on or off via “TV menu under Settings – Miscellaneous – On-screen displays – Automatic info – yes/no“.

The info text indicates which settings you can make in “Stations“.

15 -

Daily operation

a z

END

P+ P–

Index

You can select your language for operating the TV set.

Language Integrated features Repeat initial installation * Access code Active window (PIP) Automatic channel programming (ACP) AV (Audio/Video)

Activate Previous/next letter

... Select letter Page /

a z

END

P+ P–

Index

You can set your TV set to switch off to stand-by mode once or every day at a given time.

Switch off Automatic Manual Symbol rate* Teletext Activate Character set FLOF

Activate Previous/next letter

... Select letter Page /

INFO

END

no ...

One-time reminder

Switch off daily

Switch off today only

Wake up

TV menu

Settings

Timer functions

Switch off today only If you want your TV set to switch off once automatically (to stand-by

mode) select "yes" and enter the time.

P+

P–

V–

V+

INFO

wxyz

abc

For the index ...

Using the index, you can access many operational functions directly. You can

also nd a great deal of information on technical terms about television. Before the alphabetical sorting, you can nd the menu language option, the list of

features integrated into the TV set and the repeat initial installation option.

Call the index in the TV mode (without any other on-screen displays).

Info on the index item selected is visible at the top of the picture. If the OK symbol is displayed in the line selected, you can use the OK button to access the menu directly and carry out settings or selections.

This is how to select the index item:

Enter the rst letter using the numeric buttons on the remote

control (like on a mobile phone keypad); or

use 34 to go to the previous/next letter, or

For example, you want to have the TV set switch off automatically:

Select the index item “Switch off“ – “Automatic“.

Use the OK button to call “Switch off“ – “Automatic“.

The corresponding menu “Timer functions“ is displayed (in the TV menu – Settings). You can now choose between “Switch off today only“ and “Switch off daily“ and enter the time.

use P+/P– to scroll up or down through the pages

and use 65 to go from line to line.

- 16

Daily operation

Volume ... 24

normal

Loudness

Sound adjustment

Sound effects

Volume

Pop

Classic

Sound adjustment

Speech

normal

Sound off

Sound on

INFO

END

more ...

Sound

Bass

Treble

INFO

END

Sound

Bass

normal ...

INFO

END

more ...

Sharpness

Colour

Contrast

Picture Picture adjustment

Brightness

INFO

END

Colour


Operating mode Contrast Picture format

Direct control on TV set

Volume Brightness

Volume Operating mode Contrast Brightness Picture format Station

Direct control on TV set

Volume

Direct control on TV set

Sound adjustment

Volume

Sound effects

Loudness

P+

P–

V–

V+

–

Setting the sound

Volume and other frequently used sound settings

Setting the volume

by using 5 or OK, you can call other sound settings ...

and select using 34 ...

use 6 for the related selection/setting...

... and use 34 to make the selection/setting there.

Sound adjustment allows you to adjust the sound characteristics to the station‘s sound. The Sound effects settings allow you to expand a Dolby Pro Logic Signal to a virtual surround signal by using “Dolby Virtual“; by using “Panorama“, you can enhance the foundation of the stereo sound virtually for the loudspeakers.

Sound off/on

Sound off; Sound on: Press button again or adjust volume.

Other sound settings:

Call the Sound menu

Picture settings

Open the Picture menu

use 34 to select the picture function to be set and use 6for the related selection ...

... and use 34 to set/select.

Picture settings: Picture adjustment, Contrast, Colour, Brightness, Sharpness.

Under “more ...“, you can nd settings for Picture format, Move picture up/down

and Auto format.

Direct control on TV set

On page 4, you can nd an illustration of the control unit located on the set.

Switching station on the TV set

Station up: with the button +

Station down: with the button –

Additional functions via the menu

In the radio or TV operating modes, you can make settings for Volume, Brightness, Contrast, Picture format and Stations. “Service“ is intended for the customer service department.

use to call the menu

use 34 to select the sound function to be set and use 6for the related selection ...

and use 34 to select/set.

Sound settings: Treble and bass. Different menu items are displayed depend-

ing on the connected audio device (AURO, hi- amplier). Under “more ...“ you will nd the sound selection for loudspeakers and headphones, auto volume,

headphone volume, AV audio signal, maximum volume and balance.

use – or + to select the function to be set

use for the related setting/selection

use – or + to set/select.

Use to move one level up; you can use – or + to select other functions.

17 -

Operating modes – TV

END

INFO

Call up factory settings Store as personal

Standard settings pict./sound

Activate

END

INFO

Call up personal settings

END

Detailed info (teletext)

Programme info 14:43 Detailed info

Programme preview (teletext

1 ARD Eifelland 14:30 - 15:15

14:42 Alarm time 20:00 Sleep timer 23:00

Language/sound selection

1 ARD Eifellandschaft 14:30 - 15:15 Stereo

a z

END

P+ P–

Index

You can select your language for operating the TV set.

Language Integrated features Repeat initial installation * Access code Active window (PIP) Automatic channel programming (ACP) AV (Audio/Video)

Activate Previous/next letter

... Select letter Page /

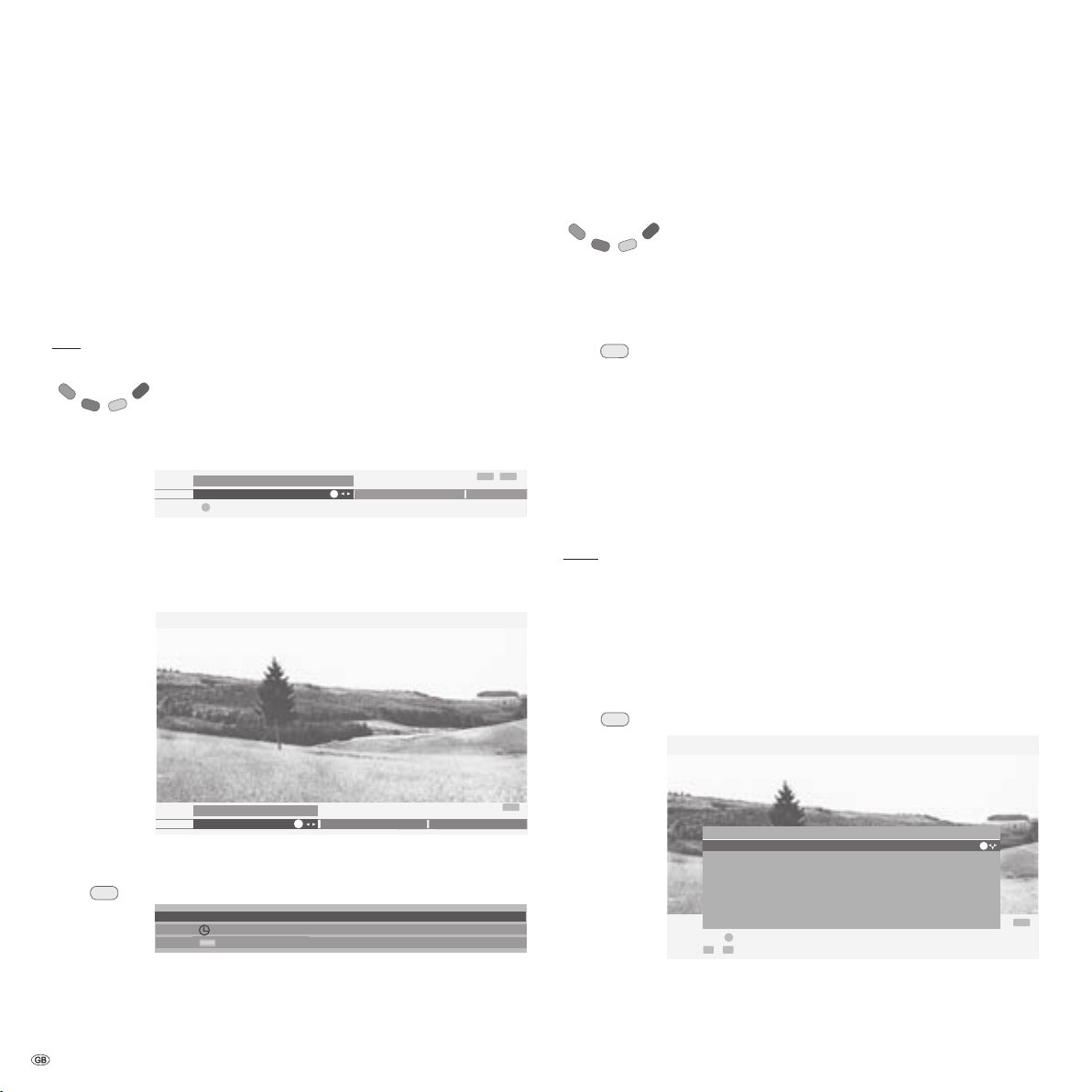

In initial installation and daily operation, the TV set is in TV mode. This is also the case when none of the other modes of operation, such as EPG, Teletext, PIP or Radio, have been selected. Each of these operating modes has a separate menu with separate functions for the coloured keys. Call the menu via the MENU button.

How the coloured keys work in TV mode

Note: The coloured keys do not work as described below with DVB-T stations in GB, but they operate as described on page 27 (Digital Teletext).

Red: the TV picture freezes. Pressing this button again starts the picture moving again.

Green: Call personal settings/factory settings for picture and sound, save picture and sound settings as personal settings.

Yellow: call last station viewed. You can switch back and forth quickly between two stations using this button.

Blue: call programme info.

For the status display, the DVB station providers may offer additional selection options for each station. Thus, the corresponding colour key or the TEXT button is displayed:

Red: channel selection for multi-channel providers.

Green: language/sound selection.

Yellow: time selection.

Blue: protection of minors.

DVB subtitles.

If you press one of the coloured keys during the status display or you press the TEXT button, the related selection menu is displayed. The status display subtitles refer only to the “DVB subtitles“ and are not provided by all stations. The options you see depend on the particular station (many stations broadcast subtitles via teletext). The status display is displayed automatically when a new programme begins with options different to the previous one.

Notes:

• In the sound mode, Mono! means that you have switched manually from stereo to mono, for example.

• The selection menus are only available as long as the status display is displayed. You can call them again at any time by pressing the END button on your remote control.

Show status display

Show/hide status

In the line above, you can see the name of the station and the sound mode. Displayed below are additional options (Time, Sound mode, Alarm time and Sleep timer) that can be selected in the “TV menu – Settings – Miscellaneous – Onscreen displays“.

- 18

Calling the index

You can nd more information on the index on page 16.

Operating modes – TV

Teletext subtitles Personal teletext pages Headphone volume

Additional functions

INFO

END

Zoom

Cinema

Panorama

16:9

Picture format

4:3

END

Timer list Fri 12.09./14:12

12.09. 18:00-18:30 3SAT Die Köchin, die Putzfrau und d

Detail New recording Change

Delete

TEXT

INFO

Picture adjustment ...

INFO

END

Settings

Connections

Recording

Sound

TV menu Picture

Picture Here you can adjust among other things: Contrast, colour, brightness,

sharpness, tint, picture adjustment, picture format.

Call additional functions

Select additional functions such as Teletext subtitles, Personal teletext pages, Headphone volume, Scan stations and to move the picture up and down.

Call timer overview

If timer recordings have been programmed, you will see when which station is recorded here.

Select picture format

The TV set sets the best picture format automatically when Auto format is switched on. If you want to set a different format, press this button until the desired format is selected or select the format with 34.

You can switch the panorama picture over to distortion-free representation on your TV set. Dark margins are then visible on the left and right of the picture.

Switching over: Keep the button on the set pressed, at the same time press the ”Picture format” button on the remote control briey.

Resetting: Press the same button combination again.

Move picture up/down

Note: for DVB-T stations in GB you can switch back and forth quickly between two stations using this button.

To make picture subtitles visible, you can use56to move the picture up or down with the picture formats “Panorama“, “Cinema“ and “Zoom“.

TV menu

Call up the TV menu

You will nd a description of the picture and sound settings on page 17. The TV

menu offers other options for recording, connections and settings of the TV set.

For a recorder that is logged in, you can nd the following

menus in the “Recording“:

Recording wizard - to programme new timer recordings

• Via EPG • Via teletext • Manual

You will nd further information about timer recording on page 30.

Timer list

Here you will nd a list of programmes programmed for recording. You can

change the recording data or delete programmed recordings and programme new recordings.

Pre-record time and Post record time For recordings without VPS/PDC, set a lead and lag time here so that the programme is fully recorded despite any slight differences in the time.

Under “Connections“ you will nd the following functions:

New devices/modications (connection wizard) The connection wizard helps you connect and log in additional equipment such as video recorders, DVD players/recorders, camcorders/digital cameras, pay TV decoders, equipment with component signals and digital HDMI/DVI signals.

Antenna DVB (only for sets with DVB)

• Antenna DVB-T • Antenna DVB-S (1

You can nd more information on pages 11 and 12.

Digital Link Plus Transmission of the station data from the TV set to the video/DVD recorder if a recorder with Digital Link Plus is connected.

Miscellaneous (connections)

• Set AV norm for the connections manually (if it is not recognised automatically).

• “Assign audio digital signals“ to one of the AV sockets.

• “Allow switching voltage“ to display the signals of the connected device immediately on the screen via Euro AV during playback.

• RGB insertions at AV2 to play back RGB signals at all station storage locations.

• Select decoder stations and set sound encoding.

only for sets with DVB-S

19 -

Operating modes – TV

END

INFO

Subtitles off for impaired hearing for translation

DVB subtitles

Under “Settings“ you will nd the following functions:

Stations Here you can search for and store new stations automatically or manually. With “Change stations“, you can rearrange and delete the stations and change station names (not for DVB-T stations in GB).

• Search wizard • Manual adjustment • Change stations Parental lock

You can lock the TV “immediatley“, “daily“ for a certain period of time or “agerelated“ for DVB programmes with age restrictions. Here, you determine the PIN to enter if you want to watch locked programmes.

Timer functions You can have your TV switch off at pre-programmed times or wake you/remind you with radio or TV. If you are not present at the time, a safety prompt makes sure the TV switches off again after 5 minutes.

• Switch off today only • Switch off daily • One-time reminder

• Wake up Mon-Fri • Wake up Sat • Wake up Sun • Wake up with

• Wake up signal volume Language

If “your“ menu language is not set, you have to select the “Language“ menu in a language that you do not understand. Therefore here is a simple way to set the right menu language:

1. Press the INFO button (index), select the rst listing (this is above A).

2. Call the language selection by pressing the OK button.

3. Now select the desired language and conrm it by pressing the OK key.

4. Hide the menu again with the END button.

Miscellaneous (settings) On-screen displays

You can set the duration and position of the station and status display, dene

the content of the status display and switch the automatic info texts on or off:

• On-screen display time • On-screen display position • Programme title

• Sound mode • Time • Alarm time • Sleep timer • Automatic info Time and date

If you receive teletext, the set registers the time and date. These are required for timer recordings, timer functions and EPG. If you do not receive teletext, then you have to enter the date and time; you should not switch off the set using the mains switch since the settings will then be lost.

DVB software Update of DVB software via satellite (1.

DVB subtitles

• Subtitles off • Subtitles for the Hearing Impaired

• Subtitles as translation for foreign language programmes

- 20



DVB character set



• Western European • Polish • Standard.

DVB subtitles

If the station provides DVB subtitles, then you can have the TV display them permanently or suppress their display. You can also select between subtitles “for translation“ or “for the Hearing Impaired“.

1. Call the “TV menu“ via the MENU button.

2. Select the “Settings“ line and conrm using OK.

3. Select the “Miscellaneous“ line and conrm using OK.

4. Select the “DVB subtitles“ line and conrm using OK.



Note: If you have selected “Subtitles off“, then the set generates an on-screen display when subtitles are available.

By using the END button, you can open the status display and you can display the subtitles again by using the TEXT button.

• Call the status display by pressing the END button, if it is not yet displayed.

• When the status display is visible, press the TEXT button. Select the desired language and conrm using OK. The presetting changes for the current programme.

• Which subtitle languages can be selected depends on the provider.

• The automatic shortlist is determined by the menu language and the selection made in the “DVB subtitles” settings menu.

• By pressing the END button, you can hide the menu again.

Note: DVB subtitles are not available when Digital Teletext is being displayed.

only for sets with DVB-S.

Operating modes – TV

CA module

CI-Slot

Update digital TV software

Current version: V3.x.x

You can search for a new software version with OK.

Update digital TV software

Current version: V3.x.x

New version: V3.1.0

END

Autom. station search

Your TV set has detected a new CI module. This requires a station search for all new receivable stations.

Removing the CA module

(Only for sets with CI slot)

1. Switch the TV set off with the mains switch.

2. Remove the cover from the back of the set on the upper left.

3. Press the eject button at the module slot; the CA module is unlocked.

4. Remove the CA module from the set.

Inserting a new CA module

After you insert a new CA module (CI module displayed in the menu) and switch the TV set on, the following dialogue is displayed:

After you press the OK button, the system starts the wizard to carry out the automatic station search. Check the proposed search parameters and let the set search for new stations.

Calling the CA module menu

Here you can call up information on the inserted Conditional Access module and the Smart Card. To do this, use the MENU button to call the TV menu, select the line “Settings”, “Miscellaneous” and then the entry “CI module - xxx” (in place of “xxx” stands the name of the provider which is output by the Smart Card. The term CI module

displayed in the menu refers to the CA module. The content of

this menu depends on the particular supplier of the CA module. Note: This menu is only available for digital stations.

Installing new DVB software

To ensure your DVB-S receiver is always performing at the state of the art, newly developed software versions are made available from time to time; these are broadcast via satellite and can be automatically installed on your set (only possible via ASTRA1).

Software is recognised automatically

The set can determine whether a new software version is available. This occurs at night when your EPG is automatically updated. For this, your TV set has to remain in the standby mode (do not switch off using the on/off button on the set). If a new software version has been found, the set will indicate this with an onscreen message the next time the set is switched on: You can decide whether or not you want to download the new software. Conrm using OK, so that the new software can be loaded and installed via satellite. Continue as set out in the “Downloading software” section.

Searching for new software

If you want to carry out a manual search for new software, proceed as follows:

Call the TV menu using the MENU button.

Conrm the “Settings” using OK.

Conrm the “Miscellaneous” using OK.

Select “DVB software” and press OK.

If you start the search using OK, the set checks if there is a new software

5. version available.

If there is a new version available, the set generates an on-screen message.

Downloading software

If you press OK in the dialogue above, you can decide whether you want to

1. download the new software immediately, when you switch off the set or not at all. We recommend you always carry out the update of the digital software. This is the only way to ensure your set is always up to date.

If you do decide to update, the software is initialised on your set and you are

2. informed of the status with a grey bar.

Do not switch your set off during this time. This process may take up to one hour. You will be informed when the process is completed.

After the software is updated, you will be asked to switch your TV set off and

3. back on again using the on/standby switch.

If the update was not carried out, you will be asked several times when you switch on the set whether you want to carry out this update.

CA module has established itself as the usual market name.

This cannot be taken into consideration in the menu yet

21 -

1 ARD Der Wilde Westen 21:15 – 22:15

41 ZDF Eifellandschaften 21:00 – 21:45

1 ARD Der Wilde Westen 21:15 – 22:15

41 ZDF Eifellandschaften 21:00 – 21:45

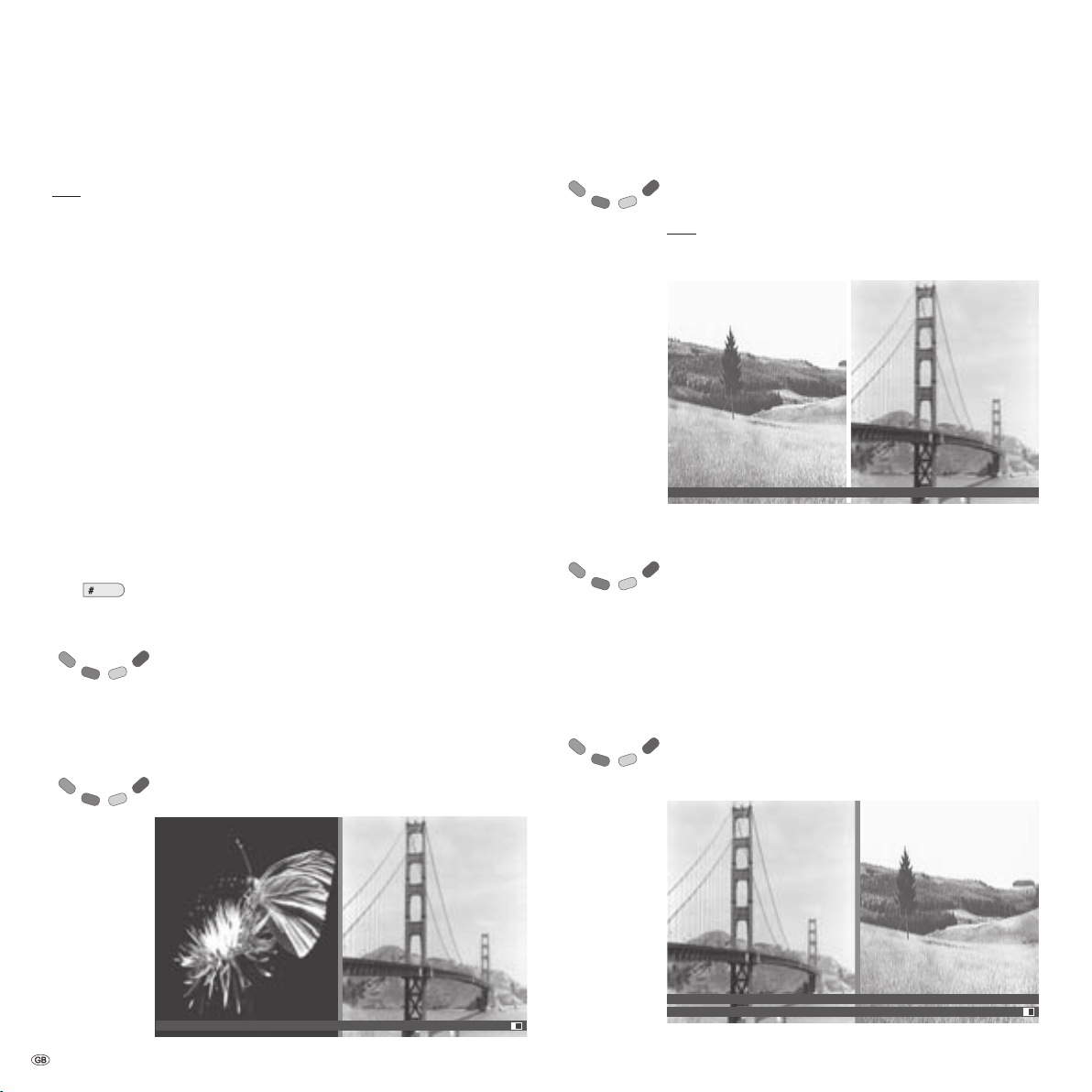

Operating modes – PIP

PIP

Picture in picture (PIP)

Note: The coloured keys do not work as described below with DVB-T stations in GB, but they operate as described on page 27 (Digital Teletext).

Picture in picture displays are possible if the set has an analogue PIP tuner or a digital satellite tuner in addition to the analogue TV cable tuner. You can have

a PIP tuner or a digital satellite tuner retrotted. Set-specic equipment and retrotting options for CI-Slot, PIP and satellite tuners, see pages 41 and 42. If

there is no other tuner installed, you can use PIP (AV-PIP) when playing a video

recorder or DVD player. For a retrotted PIP tuner, the following PIP displays are

possible: Main picture analogue – PIP picture analogue, Main picture digital – PIP picture analogue. The following is not possible: Main picture digital – PIP picture digital, Main picture analogue – PIP picture digital. For “Split screen,” the PIP picture is displayed on the right side of the screen. Both pictures share the screen in two equal halves. For the “Small PIP” setting, a small picture is displayed in the TV picture. The green bar/frame indicates that the control commands have an effect on the PIP picture. The white bar/frame means that the control commands have an effect on the main picture. Use the green coloured key to switch between the PIP picture and the main picture, for example to change stations. The frame or bar between the pictures is green for the time being.

Show/hide PIP picture

PIP picture as freeze picture

The bar/frame has to be green. If not, press the green coloured key. If you press the red coloured key, the PIP picture freezes. Press again - moving picture.

Selecting the station of the PIP picture

The bar/frame has to be green. If not, press the green coloured key. Then select the station as usual.

Select the station of the TV picture (main picture)

The bar/frame has to be white. If not, press the green coloured key. Then select the station as usual.

Note: For GB sets, you switch from the green bar/frame to the white by using the PIP key. The next time you press the PIP key, PIP is switched off.

PIP scan in the PIP picture

The bar/frame has to be green. If not, press the green coloured key. Start scanning the stations using the blue coloured key. The bar/frame turns blue.

The stations now change automatically. Stop scanning the stations by using the blue coloured key. The bar/frame turns green again.

Interchanging PIP picture/TV picture

The bar/frame has to be green. If not, press the green coloured key. Interchange the pictures by using the yellow coloured key.

- 22

Operating modes – PIP

INFO

END

Split screen

Small PIPbildSmall PIP

Type

TV menu

Settings PIP

INFO

END

Small PIP

Type

TV menu

Settings PIP

Split screen

INFO

END

Split screen

Small PIPbildSmall PIP

Type

TV menu

Settings PIP

Functions in the PIP menu

In the PIP menu, you can set the PIP type (small picture or split screen) and the position of the small picture.

Call the PIP menu (PIP must be active, green bar/frame).

Setting the PIP type

You can have the PIP picture displayed as a small PIP or split screen.

Switch to small PIP:

Select “Type” and then “Small PIP”

Position of the PIP picture

Move the PIP picture with the arrow keys to a corner of the TV picture. In this case, the frame around the PIP picture has to be green, and there should not be any other displays visible on the screen.

Switch to split screen:

You can have the PIP picture displayed on the right hand side of the screen. Both pictures share the screen in two equal halves. You will see a coloured vertical bar between the pictures.

Call the PIP menu (PIP must be active, green frame).

Select “Type” and then “Split Screen”.

For the small PIP, you will see a coloured frame around the PIP picture.

23 -

Operating modes – EPG

EPG

TEXT

P+ P–

END

Detail View Record Page / Select time Select date, ... , topics

EPG (Electronic Programme Guide) Fri 10.09./14:14 Fri 10.09. now soon 14:00 15:00 16:00 17:00 all all

Date Time

Stations

Topics

13:20-14:15 Kabel 1 Die Waltons 13:30-14:15 H3 ARD-Buffet 13:55-14:20 Kinderkan Blaubär & Blöd (37) 14:00-14:15 ZDF heute - in Deutschland 14:00-15:00 RTL Das Strafgericht 14:00-15:00 Sat 1 Zwei bei Kallwass 14:00-15:00 Pro7 Das Geständnis - Heute s... 14:00-14:30 N3 DAS! ab 2 14:00-14:20 WDR Die kleinen Strolche (10) Familienserie - Sturzflug

24 Kabel 1

0 9

...

END

Change to programme list

EPG (Electronic Programme Guide) Fri 10.09./14:14

Sat 11.09. Sun 12.09. Mon 13.09.

06:00 all all

Date

Time

Stations

Topics

06:00-06:20 ZDF Die Blobs

06:00-06:30 RTL Wunderbare Jahre 06:00-06:25 Kabel 1 Dennis 06:00-06:25 N3 Extra en español (5) 06:00-06:30 BR Goal. Speak English, Play Football 06:00-06:30 WDR Lokalzeit Südwestfalen 06:00-07:10 SuperRTL Infomercials 06:00-07:10 Kinderkan Reif für die Dodo-Insel (25) 14:00-14:20 9LIVE Reisetraum Comedyserie - Kandidaten mit gewissen Fehlern

24 Kabel 1

END

Change to programme list

EPG (Electronic Programme Guide) Fri 10.09./14:14 Fri 10.09. soon all

News Show Hobby Sport Child Know

Date

Time

Stations

Topics

15:00-15:15 Das Erste Tagesschau um drei

15:00-15:05 hr-fernse hessen aktuell 15:00-15:15 ZDF heute - Sport 16:00-16:05 SÜDWEST Baden-Württemberg Aktuell 16:00-16:15 Das Erste Tagesschau um vier

Nachrichten - News

24 Kabel 1

EPG - Programme guide

EPG is an electronic programme guide. With this system, you can easily nd the

programmes that interest you (sorted according to day, time, stations and topics). You can mark programmes and programme recordings. Depending on whether you are receiving analogue stations by cable/antenna or digital stations, you will have different programme guides.

A wizard is activated the rst time you use EPG (not with DVB) which guides you

through the necessary settings. Then run the data capture (see next page).

Using the EPG

Switch EPG on/off

The programme guide menu is divided into two areas: at the top, you can make the settings for the programme list (date, ..., topics); on the bottom, the programme list is displayed. Use the blue coloured key to switch between the two areas to make your selections. All programmes currently running are listed initially in the programme list. With the 65 buttons, select the programme you want to watch and switch over with the OK button. Brief information is shown below the programme list for some programmes. If more detailed information is available, you can call it using the TEXT button. Use P+/P– to scroll up or down through the pages of the programme guide. In the selection lines for date and time above, you will see the time change when scrolling; when you scroll further, the date also changes. When the “Time” line is selected, you can enter the time as of which the programmes are to be displayed; use the numeric buttons on your remote control to do this. Always enter four digits, such as 0900 for 9 a.m.

- 24

If programmes are displayed which have not yet started, you can mark these with the OK button. The TV set then switches automatically to this station at the given time. When receiving digital terrestrial and digital satellite stations, you

may nd that two identical EPG data are displayed in the “EPG (DVB)” menu

for one station. If you call the EPG menu in the EPG mode by using the MENU button, then select “Station selection,” you can select the duplicate station and deactivate it by using OK). You have direct access to the selection lines above to pre-select the day, the time, the station and the topic.

Blue coloured key: Call Select date/time/stations/topics

Use 65 to select the menu line for the date, time, stations or topics. Use 34 to select within the menu line. If, for example, you are looking for the next news, select today’s date, “Soon“ under Time, “All“ under Stations and “News“ under Topics. Then you get a list of all news programmes in the programme list below.

If you want to mark one of these news programmes, return to the programme list using the blue coloured key, select the desired news programme by using 65and mark this by using OK.

Operating modes – EPG

✓

INFO

END

Switch

Data capture Station select

Timer list

EPG menu Select provider

In front of the programme’s title, the system places an

. This station is switched later to this programme when the set is switched on. If the TV is off, it switches on again automatically at the beginning of the marked programme if this has been set in the EPG menu. If you are out, a security prompt prevents the TV set staying on unattended. Before leaving the upper selection lines using the blue coloured key, select a

specic line. If you have switched back to the programme list, you can change

this menu line using 34 without having to leave the programme list.

Programming recording for recorders

The programme marked using the 65 buttons can be prepared for recording by pressing the red coloured key. In the following menu, conrm the timer data or change them as required. Then, a red dot is set in front of this programme in

the EPG programme list as an identication (if timer data is being transferred to

the recorder, no red dot is set). If you select this programme, you can delete it from the timer using the red coloured key (if the timer data has been transferred to a recorder, the timer has to be deleted there).

EPG menu

Call EPG menu

You will nd the following settings in the EPG menu:

• Select provider • Station selection • Timer list • Data capture

• Switch on TV when marked

Selecting providers and stations

If you want to change the provider for analogue TV reception (the station which transmits EPG data) to have other stations evaluated, you can do this under “Select provider”.

Select “Select provider” and call this menu using OK. If the station you want to switch to is not listed in the “Select provider” list, then use the yellow coloured key to start the automatic search for stations with EPG data. This takes a while.

Or, if you know the station that transmits EPG data, press the blue coloured key to compile manually. Select the provider in the station list and adopt it by using OK and return to the provider selection using 7.

Select the provider in “Select provider” and adopt it using OK. Then a station list search is performed. The stations offered by the provider are displayed in a list.

If you want certain stations to be omitted from the programme guide, you can select and deactivate these via Station selection. Call the station selection by using the blue coloured key.

First, all stations are marked with the ✓ symbol so that their data is displayed in the programme guide (precondition: provided EPG data is broadcast for the respective station). Stations indicated by E are analogue terrestrial/cable stations, stations indicated by T are DVB-T stations, stations indicated by C are DVB-C stations and stations indicated by S are DVB-S stations. These stations are available for evaluation in the programme guide.

Select the stations you want to omit from the programme guide one after another and deactivate each one by using OK. The ✓ symbol is removed.

Data capture

After these settings or after each time the set is switched off using the mains

switch, the data must rst be collected, before switching on the set. To do this, select the station you have dened as a provider and leave the TV

set switched on for about one hour or switch the set to the standby mode. After about two minutes in standby mode, the indicator on the set turns orange. The data acquisition begins and lasts about 1 hour. When data acquisition is terminated, the indicator turns red again. The data are also automatically captured between 2 a.m. and 5 a.m. when the TV is switched to standby. A prerequisite for data capture is that “Data capture“ is “on“ (for DVB + analogue) in the EPG menu.

Note: If the TV set is switched off using the mains switch or the mains plug is pulled out, all EPG data are lost. If, for example, you cannot receive any analogue EPG providers or if you only use DVB, you should set the data capture to “on (only for DVB)”.

Switch on TV when marked

You can have the TV switched on automatically from standby at the beginning of the marked programme. If you are not present at the time, a safety prompt makes sure the TV switches off again after 5 minutes.

25 -

Operating modes – Teletext

100 100 ARD-Text 10.09.04 14:14:42

ARD TEXT Teletext im Ersten

Bulmahn: Bildung statt Eigenheim . . . . . . . . 120

Wird auch der Nahverkehr teurer? . . . . . . . . 121

Australien: Keine Zugeständnisse . . . . . . . . 122

Tote bei Zugunglück in Schweden . . . . . . . . 532

Tennis: Haas unterliegt Hewitt . . . . . . . . . . . . 204

Formel 1: Schumacher erneut vorne . . . . . . . 213

Tagesschau . . 110/112 Kultur. . . . . . . . . 500

Wetter. . . . . . . . . . . 170 Gesellschaft . . . 530

Sport. . . . . . . 200/600 Lotto/Toto . . 666

TV Guide . . . 300/400 Wirtschaft. . . . . . 700

Internet: www.ard-text.de

– +

Inhalt tagesschau

Page selection

Index > 101

100 100 ARD-Text 10.09.04 14:14:42

ARD TEXT Teletext im Ersten

Bulmahn: Bildung statt Eigenheim . . . . . . . . 120

Wird auch der Nahverkehr teurer? . . . . . . . . 121

Australien: Keine Zugeständnisse . . . . . . . . 122

Tote bei Zugunglück in Schweden . . . . . . . . 532

Tennis: Haas unterliegt Hewitt . . . . . . . . . . . . 204

Formel 1: Schumacher erneut vorne . . . . . . . 213

Tagesschau . . 110/112 Kultur. . . . . . . . . 500

Wetter. . . . . . . . . . . 170 Gesellschaft . . . 530

Sport. . . . . . . 200/600 Lotto/Toto . . 666

TV Guide . . . 300/400 Wirtschaft. . . . . . 700

Internet: www.ard-text.de

– +

Inhalt tagesschau

Page selection OK View

Index > 101

Zeitplan Fußball

1 2 3 4 5 6 7 8 9 10 11 12

809 809 ARD-Text 10.09.04 14:14:42

– +

100 100 ARD-Text 10.09.04 14:14:42

ARD TEXT Teletext im Ersten

Bulmahn: Bildung statt Eigenheim . . . . . . . . 120

Wird auch der Nahverkehr teurer? . . . . . . . . 121

Australien: Keine Zugeständnisse . . . . . . . . 122

Tote bei Zugunglück in Schweden . . . . . . . . 532

Tennis: Haas unterliegt Hewitt . . . . . . . . . . . . 204

Formel 1: Schumacher erneut vorne . . . . . . . 213

Tagesschau . . 110/112 Kultur. . . . . . . . . 500

Wetter. . . . . . . . . . . 170 Gesellschaft . . . 530

Sport. . . . . . . 200/600 Lotto/Toto . . 666

TV Guide . . . 300/400 Wirtschaft. . . . . . 700

Internet: www.ard-text.de

– +

Inhalt tagesschau

Seitenauswahl

Index > 101

TOP table

Wetter

Vorhersage Städte Regional Reisen int. Städte Biowetter

Übersicht tagesschau Wetter Sport 1 TV Guide ARD heute ARD morgen FS-Sendungen TV Guide 2 more . . .

END

View

100 100 ARD-Text 10.09.04 14:14:42

ARD TEXT Teletext im Ersten

Bulmahn: Bildung statt Eigenheim . . . . . . . . 120

Wird auch der Nahverkehr teurer? . . . . . . . . 121

Australien: Keine Zugeständnisse . . . . . . . . 122

Tote bei Zugunglück in Schweden . . . . . . . . 532

Tennis: Haas unterliegt Hewitt . . . . . . . . . . . . 204

Formel 1: Schumacher erneut vorne . . . . . . . 213

Tagesschau . . 110/112 Kultur. . . . . . . . . 500

Wetter. . . . . . . . . . . 170 Gesellschaft . . . 530

Sport . . . . . . . 200/600 Lotto/Toto . . . . 666

TV Guide . . . . 300/400 Wirtschaft . . . . 700

Internet: www.ard-text.de

– +

Inhalt tagesschau

Page selection

Index > 101

wxyz

PIP

abc

pqrs

INFO

Analogue Teletext

Teletext transmits information such as news, weather, sports, programme previews and subtitles.

Teletext on/off

Many stations use the TOP operating system, some use FLOF (e.g. CNN). Your TV supports both these systems. The pages are divided into topic groups and topics. After switching on the teletext, up to 1,500 pages, depending on type of set are stored for fast access (see technical data on page 40).

Page selection with the coloured keys

The coloured bars (in TOP) or the coloured writing (in FLOF) in the next to the last line show you which coloured keys you can use to scroll to topic groups and topics.

Red: back to the previously seen page (not in FLOF)

Green: on to the next page (not in FLOF)

Yellow: to the next topic (only in TOP and FLOF)

Blue: to the next topic group (only in TOP and FLOF)

In Multiple pages scroll using 34. You can see which multiples pages can be called in the bottom menu line.

Call contents page 100

Call the TOP table The TOP table is a general list of teletext. You can only call the table for stations that use the TOP operating system.

Use 65 to select the topic group. Select the topic column using 4. Select the topic with 65 and display page with OK.

Enter the page number directly

Displaying teletext pages

Stop self-turning pages (HOLD)

Zoom page: top part - bottom part - normal size (press button several times)

TV picture on/off (Split Text)

Other page selection options:

Select one page number specied on the page by using

65(Page Catching)

call.

- 26

Operating modes – Teletext

100 100 ARD-Text 10.09.04 14:14:42

ARD TEXT Teletext im Ersten

Bulmahn: Bildung statt Eigenheim . . . . . . . . 120

Wird auch der Nahverkehr teurer? . . . . . . . . 121

Australien: Keine Zugeständnisse . . . . . . . . 122

Tote bei Zugunglück in Schweden . . . . . . . . 532

Tennis: Haas unterliegt Hewitt . . . . . . . . . . . . 204

Formel 1: Schumacher erneut vorne . . . . . . . 213

Tagesschau . . 110/112 Kultur. . . . . . . . . 500

Wetter. . . . . . . . . . . 170 Gesellschaft . . . 530

Sport. . . . . . . 200/600 Lotto/Toto . . 666

TV Guide . . . 300/400 Wirtschaft. . . . . . 700

Internet: www.ard-text.de

Inhalt tagesschau

Index > 101

END INFO

Reveal

Recording

Settings

Newsflash

Personal text pages ...

Programme timer recordings

A video and/or DVD recorder must be connected and logged in in the connection wizard. Call the programme pages of the current station in teletext mode using the Direct recording button

Scroll to the teletext page in which

. the programme to be recorded is listed if necessary. Select the programme you want to record by with 65 and conrm with the OK button. For “Timer data,” select the VCR or DVD recorder and whether you want to record once or a series of times. Conrm with OK.

Teletext menu

Display teletext menu

Here you will nd functions such as

• “Newsash”, this is an on-screen display of the latest messages (e.g.

page 111).

• “Reveal” concealed information, e.g. VPS pages in the station preview

pages.

• Programme wizard for recording via teletext.

In the settings, you will nd menus to dene the station preview pages, subtitle

pages and personal text pages, and menus to set the character set selection as well as HiText graphics.

Digital teletext operation (only for MHEG-5 device versions)

In the GB, the teletext for DVB-T stations is transmitted as per the MHEG-5 standard (standard of the Multimedia and Hypermedia Expert Group). It contains text, graphics, functions and links. The operation of these menus depends on the particular provider. Normally after a station is changed, the provider broadcasting the digital teletext makes an introductory offer for this service on the screen via menu selection. Follow these notes. If no message appears telling you how to switch to digital teletext after switching to another station, press the TEXT key. If a selection for DVB subtitles is available, this item must be hidden before.

Depending on the provider’s respective offer, you can use the 6534 buttons and the OK button, the coloured keys, the END/TEXT button and sometimes even the numeric buttons. If you want to close the digital teletext, just select a different station using the P+/P– buttons or follow the menu prompts on the screen.

Note:

Digital teletext is not available when DVB-subtitles are being displayed.

• If a timer recording is programmed at the TV-set, at the start time of the

• recording the digital teletext mode is switched off automatically.

27 -

Operating modes – Radio

END

Radio: 8 DLF Numerical

18:00 - 18:10 Nachrichten

AUDIO IN AVS AV2 AV1 1 B5 AKTL S 2 BAYERN 1 S 3 BR4 KLSK S 4 SUNSHINE S 5 ROCK ANT S 6 ANTENNE S 7 DLR S 8 DLF S

EPG

9 HR-INFO S 10 MDR INFO S 11 MDR FIGA S 12 NDR KULT S 13 SWR1 S 14 SWR2 S 15 WDR3 S 16 WDR5 S 17 OESTER 1 S 18 MDR JUMP S 19 JAZZ RAD S 20 BLUSAT20 S

Switch to ... Scan stations Select station Previous station Screen off/on Change sorting

0 9

...

Treble ...

INFO

END

Timer functions

Stations

Radio menu Sound

RADIO

EPG

Radio

You can only receive radio stations via DVB. If you do not have any DVB radio reception, you can play a sound signal from an external device using the TV set via the sound/AV inputs.

Use the RADIO button on the remote control to switch the radio on or off.

You can see a station list of the radio stations or with DVB-T in GB the station logo. In this case you can call up the station list by using the OK or INFO key. Station list is sorted by LCN.

You can see a station list of the radio stations. Digital DVB-T stations are indicated by T, DVB-C stations by C and DVB-S stations by S. Encrypted stations are additionally indicated by . Ask your specialist dealer about decoders or the use of a CA module and a Smart Card for the reception of encrypted stations.

When time and title are sent by the marked station these data are displayed at the bottom of the station list.

When the station list is shown you can switch off the screen with the red coloured key. The LED indicator on the set changes from green to orange. You can switch the screen display back on by using the OK key, red or blue coloured keys, by using RADIO, MENU or END on the remote control.

Station switching with dark screen: by using – or + on the TV set or by using the remote control P– and P+ or by using the numeric buttons (for DVB-T operation

in GB, the buttons may be congured differently by the provider).

The sound menu can be called in the radio mode using the button.

- 28

Radio menu

Call radio menu

In the radio menu, as in TV mode, you can set the sound, search for radio stations and store them (automatically or manually – not with DVB-T mode in GB), delete stations from the list, rearrange them or change names and set the switching off and alarm functions.

EPG - Programme guide

For the DVB radio stations, you can also use the programme guide if the station currently active supplies data.

Call Programme guide

Operating additional equipment

ENTREE

ANTENNE EURO AV2 DECODER

EURO AV1

AUDIO/ VIDEO

SORTIE

ANTENNE

AERIAL

RF OUT

SORTIE

G L

OUT

AUDIO

ANT

AV1

You have logged in and connected all connected equipment in the initial installation. If you want to connect other equipment or disconnect equipment, call the connection wizard.

Call up the TV menu

Select “Connections”

Select the submenu line

Select “New devices/modications” and ...

Call with OK.

State what equipment you want to connect. State whether a piece of audio equipment is to be connected (more details as of page 31). The connection wizard then shows you which sockets you should connect this equipment to. Then connect the equipment to these sockets according to the connection diagram.

Connecting video/DVD recorders

In addition to the connection via the Euro-AV sockets, you also have to connect the antenna (only for terrestrial antenna or cable systems) through the VCR/DVD recorder to the TV set. The antenna signal is then available to the video/DVD recorder and the TV set.

Note: Use Euro-AV cables with right-angled plugs as shown.

Search for and store the station of the video recorder (if no Euro-AV cable is available)

Switch on the test station on the VCR or insert a recorded tape and start playback. In some video recorders the station must be switched on by activating the modulator.

Then call the AV selection on the TV set with 0 AV. Select the menu item “VIDEO” in the AV selection and call using OK. To prevent “normal” TV stations being found in the search, pull out the antenna plug from the antenna input of the VCR temporarily (the cable to the antenna system). If you cannot see the test station or playback from the cassette, the VCR is transmitting on a different channel. You then have to search for the station or set it manually.

1. Call the TV menu with the MENU button.

2. Select the “Settings” menu item with 34.

3. Select the line below using 6 and use 34 to select “Stations”.

4. Select the line below using 6and select “Manual adjustment” using 34 and call this menu using OK.

5. Enter channel “E30“ under the “Channel“ menu item (“Antenna/cable (analogue)”, select in this menu above if necessary).

6. Start search with the blue coloured key.

7. When the station has been found, change the name if needed, conrm with

OK and save with the red coloured key.

8. A list of the stored stations is displayed.

9. Select 0 (VIDEO) here and overwrite this station storage location using the red coloured key.

10. Hide the menu again using the END button.

Plug the antenna plug back in.

If you now get interference because a TV station is transmitting on the same channel as the VCR station, you have to change the transmitting station on the VCR and search for the VCR station on the TV again.

29 -

Operating additional equipment

HDMI/DVI COMP. IN

AVS

VGA

DVD

VIDEO

AV selection VCR

Video playback

There are several ways to see the picture and hear the sound of the VCR, DVD player/recorder or camcorder on your TV:

1. You can usually use the Euro-AV sockets on the TV set and on the VCR. For camcorders or digital cameras, use the AVS sockets on the TV set. DVD players/recorders and SetTopBoxes may have HDMI or component sockets for video and audio transmission. In this case, use the corresponding sockets on the TV set.

When playing back from a video recorder using Euro-AV socket and Digital

Link Plus (or a comparable system from another manufacturer), the picture from the VCR is shown at the current channel location.

When playing back from another VCR, camcorder or digital camera, use

the AV selection device to which the VCR is connected.

Video recorders transmit a switching voltage during playback, which the

TV can evaluate (can be activated in the connection wizard or in the “TV menu – Connections – Miscellaneous – Allow switching voltage” - set to “yes”). Then the picture of the video recorder is shown during playback at the current station location.

2. You can use the antenna connection between the VCR and the TV without a

Euro-AV socket. The sound is only transmitted in mono. Select the rst menu

item, e.g. VIDEO, in the AV selection.

Calling AV inputs in the AV selection:

Call AV selection

Select AV device/socket (or VIDEO if the video recorder has been connected only via the antenna socket) and use ...

to call.

Now you will see the playback from the connected AV device.

Calling AV input via the station list

Call the station list with the OK button in TV mode.

In the numeric and alphabetical sorting, you will always nd the AV sockets at

the top of the list.

or the station list (OK) to select the AV socket/the

Timer recording with video or DVD recorder

You can programme timer recordings on the TV set. Programming can be done with the EPG programme guide (not with DVB-T in GB), teletext or manually. Call the “Timer list” menu with the button and press the red coloured key for the “Recording wizard”. Select whether you want to programme the recording via EPG, teletext or manually. You also have the option to programme recordings directly from the EPG programme guide or teletext. Note: Copy-protected programmes are not output to the Euro-AV sockets for legal reasons. When you have connected the Euro-AV socket to a recorder which has Digital Link Plus or a comparable system from a different manufacturer, the timer data of analogue terrestrial stations are transmitted from the TV to the recorder. The recording quality SQ or EQ is transmitted for DVD recorders, in additional to the station, date and time. The recording is then controlled by the recorder and the recorder tuner is used for reception of the station. The recording data are

not saved in the timer list of the TV set. You will only nd the timer data in the

recorder. If you want to record from digital stations, the TV tuner is used and the recorder

is controlled by the TV set. Then the station is locked during the timer recording. If you have connected a Loewe video recorder with Digital Link to the Euro-AV

socket (without Digital Link Plus) and you are using the timer programming of the TV, the TV receiver is always used, for terrestrial stations as well. The TV controls the recording. You have to set the recorder to the AV input (signal source) to which the TV set is connected. Then the station on the TV set is locked during the timer recording. Digital Link must be switched on on the recorder. Read the operating instructions of your Loewe recorder for more information. Use only Euro-AV cables, which are completely wired, otherwise Digital Link/ Digital Link Plus will not work. Another advantage of Digital Link is that you can install the recorder in a concealed place (e.g. in a rack). You can control the recorder with the TV set. If you have a Loewe recorder with both systems, you can use all the advantages. The advantages of Digital Link Plus are used for the timer recording; the advantages of Digital Link for concealed installation of the recorder.

- 30

Operating additional equipment

S-VIDEO OUT

DIG OUT

REAR

MAINS

(CVBS) (Y/C)

VIDEO OUT

AUDIO

STEREO OUT VIDEO OUT

AUX-I/O

TO TV-I/O

OPT OUT

RIGHT SUBW. REAR

RIGHT FRONT

LEFT CENTER

MULTICHANNEL AUDIO OUT

DIGITAL AUDIO OUT

PCM/MPEG2/AC3/DTS

LEFT

FRONT

PREOUT

SL SR SUB

L L

R R

AUX1 IN

DIGITAL

OUT

AUX OUT AUX 2

DVD

Surround Amplifier

AV2

AUDIO DIGITAL

OUT

Assignment of digital audio inputs and outputs

Audio input “AUDIO DIGITAL IN”

The TV set has a coaxial digital audio input “AUDIO DIGITAL IN” and a coaxial digital audio output “AUDIO DIGITAL OUT”. If you are using an external digital

surround amplier for sound reproduction, you have to feed digital audio

signals to the TV, e.g. from the DVD player.

Audio output “AUDIO DIGITAL OUT“

The digital audio signal is applied at the “AUDIO DIGITAL OUT” socket of the TV.

For example, you can connect an external digital audio amplier or the Loewe

Auro system here.

An analogue audio signal from the TV set or another sound source which is received at one of the Euro-AV sockets of the TV set is converted into a digital signal (PCM) and output at the “AUDIO DIGITAL OUT“ socket. Conversion from external analogue AV sources to PCM is not possible if the TV’s loudspeakers are

used as a centre channel. In this case, connect your audio amplier additionally to the TV (AUDIO OUT L/R) with a cinch cable and switch the audio amplier to

analogue audio input.

The digital TV sound or the digital sound of a connected auxiliary device is only

audible via an external digital audio amplier (e.g. Loewe Auro system).

Connect the output socket of the DVD player (DIG OUT) to the TV‘s “AUDIO DIGITAL IN” socket with a cinch cable. In the connection wizard, specify that audio transmission is to be digital. Specify that the digital sound is to be assigned for example to the Euro-AV socket 2 to feed the digital sound to the digital audio output of the TV set and via this to

the external audio amplier. Further information about this can be found on

page 33.

31 -

Operating additional equipment

PREOUT

L C R L L

SL LFE SR R R

TO TV

AUX1 IN

DIGITAL

OUT

L-LINK

12V / 15mA

EXT

AUX OUT AUX 2

Line IN

Power OUT

OFF

Bass Intensity

Center to

System connector

230V~50/60Hz

Surr.

Front

Right

Surr.

Front

Subw.

Left

Right

Center

Left

Slave

Master

Phase

Min. Max.

Sat

0 180

Loewe Individual Sound

Loewe Flat-TV

Loewe Auro

COMPONENT

VIDEO OUT

AV2-SCART

SERVICE

CENTER

DIGITAL OUTCOMPONENT IN

LFE

FLE

Connecting Loewe DVD Preceiver Auro 2216 PS and Individual Sound loudspeaker system

You can play audio signals from the TV or DVD player in cinema quality with these components. In addition to the subwoofer illustrated below the Individual Sound system includes up to 5 loudspeakers for the front, center and surround reproduction. The centre signal can be reproduced alternatively by the TV speakers. Connect the cubic socket on the DVD Preceiver to the “Master” cubic socket on the subwoofer. Use the cubic plug cable enclosed with the DVD Preceiver. Plug the white plug (without kink protection) into the cubic socket on the subwoofer. For TV as a centre loudspeaker, connect “AUDIO IN C” on the TV set to “PRE OUT C”on the DVD Preceiver using a cinch cable.

only required for TV as centre loud speaker

Digital audio TV -> Auro

(available in specialised trade)

EURO-AV cable

Connect the digital audio output of the TV set “AUDIO DIGITAL OUT” to the “DIGITAL IN” input of the Preceiver using a cinch cable. Connect the TV socket “SERVICE“ to the TV-L-Link socket on the Preceiver using the L-Link cable (provided with the Preceiver). Switch on the TV set and the Preceiver. Via the L-Link, the TV recognises whether the Preceiver is connected. Select the “Tremo“ loudspeaker system in the DVD menu of the Preceiver, set the listener/speaker distances and adjust the speaker levels. Please consult the Preceiver manual. If you want to listen to the sound via the TV speakers temporarily, call the Sound menu, select “Sound via“ and then “TV“. If you want to listen to the sound via the Loewe Auro system, select “AURO“ under “Sound via“.

Audio cable cinch -> SCART

(available in specialised trade)

Surround speaker system

Component Video

L-Link cable

- 32

Six pin Cinch

Cubic plug cable

Operating additional equipment

PREOUT

SL SR SUB

L L

R R

AUX1 IN

DIGITAL

OUT

AUX OUT AUX 2

AUDIO OUT

AUDIO IN

PREOUT

SL SR SUB

L L

R R

AUX1 IN

DIGITAL

OUT

AUX OUT AUX 2

OUT

AUDIO DIGITAL

AUDIO IN

Connecting other audio ampliers or active

speakers

In the connection wizard, select “HiFi/AV amplier” under “Equipment selec-

tion: audio component”. The connection wizard allows conguration of different audio ampliers (stereo ampliers, surround ampliers, analogue or digital) with

different sound formats (Dolby Digital, dts, MPEG and Stereo/PCM). Refer to the

operating instructions for the audio amplier to be connected.

Select “Digital“ under “Audio transmission“ for digital audio ampliers. Connect the digital audio output of the TV AUDIO DIGITAL OUT to the digital audio

input of the digital amplier.

Assign the digital audio input to the socket through which the corresponding picture is transmitted (e.g. AV2 if a DVD player is connected there). Then the digital sound is passed to the digital audio output of the TV set and fed to the

external audio amplier via this.

Specify which sound formats can be decoded with your digital amplier (Dolby

Digital, MPEG, dts).

Specify under “Type of amplier“ whether the digital amplier is a stereo or surround amplier.

If it is a surround amplier, specify whether or not the TV loudspeakers are to be used as centre loudspeakers. Connect the centre output of the amplier to the

centre output of the TV using a cinch cable, if necessary. Note: do not use the centre loudspeaker connection on the amplier; instead

use the pre-amplier centre output.

Select “Analogue“ for “Sound transmission“ for analogue audio ampliers.

The sound for the analogue amplier is transmitted via the AUDIO OUT L/R connections of the TV to the audio amplier. Connect the amplier with two cinch

cables.

Specify under “Type of amplier“ whether the analogue amplier is a stereo or surround amplier. If it is a surround amplier, also specify whether or not the TV speakers are to be used as centre loudspeakers. Connect the centre output of the amplier to the

centre output of the TV using a cinch cable, if necessary. Note: do not use the

centre loudspeaker connection on the amplier; instead use the pre-amplier

centre output.

If you want to listen to the sound via the TV loudspeakers temporarily, call the Sound menu using the button, select “Sound via“ and then “TV“.

When connecting active speakers, select “Active speakers” in the connection wizard under “Audio equipment selection”. The sound for the active speakers is transmitted via the AUDIO OUT L/R connections to the active speakers. Make connections to the active speakers using the cinch cables.

Make the audio settings on the TV set when active speakers are connected.

When using an external audio amplier, make the audio settings on the audio amplier.

33 -

Operating additional equipment

VIDEO

COMP. IN

AVS VGA

DVD

HDMI/DVI

AV selection

VCR

VIDEO

COMP. IN

VGA

DVD

AVS

HDMI/DVI

AV selection

VCR

HDMI (DVI) connection

The HDMI connection (High Denition Multimedia Interface)

allows digital picture and sound transmission via a connecting cable, e.g. from Loewe DVD Recorder Centros 2102/2172 HD.

The digital picture and sound data are transmitted without data compression and therefore lose none of their quality. In the equipment connected, no analogue/digital conversion is necessary, which might also have lead to losses in quality. DVI signals can be also be reproduced by the HDMI connection using a DVI/HDMI adapter cable. This is possible because HDMI is based on DVI and is downwardly compatible. That means that the digital video signals are transmitted via HDMI - no audio signals are transmitted, though. In addition, both use the same copy protection method HDCP.

Connect the set with an HDMI connection using an HDMI cable (type A, 19-pin) to the HDMI socket of the TV set. Log in the HDMI connection in the connec-

tion wizard (TV menu - Connections - New devices/modications).

Select the HDMI connection in the AV selection.

Call AV selection

Select HDMI/DVI socket and use ...

to call.

Start playback on the device connected with HDMI connection. The set automatically recognises and sets the best possible format for the video. If transmission occurs via a DVI/HDMI adapter cable, then you can feed in the appropriate analogue audio via the audio input sockets AUDIO IN L/R on the TV set. The sound is reproduced via the TV speakers.

If you have connected a digital external audio amplier, you can select the

digital audio signal in the connection wizard (TV menu - Connections - New

devices/modications) and assign it to the HDMI/DVI socket. You can make the other settings for the audio amplier as described for digital ampliers on

page 33. The digital audio signal of the DVI audio source is fed in at the AUDIO DIGITAL IN socket on the TV. Feed the digital audio signal from the TV AUDIO

DIGITAL OUT to the external amplier.

Set geometry: as described for the VGA/XGA connection.

VGA/XGA connection

You can connect a PC or a Set Top Box (STB) and therefore use the TV screen as an output device. Connect the PC/STB to the VGA/XGA socket on the TV using a VGA cable.

When connecting to a PC, rst set one of the following screen resolutions on

your PC. 800x600 60Hz (SVGA) 1024x768 60Hz (XGA). When a Set Top Box is connected, set the following screen resolutions according to the options of the Set Top Box: SDTV: 720x576i (PAL), 720x480i (NTSC), 720x576p, 720x480p. HDTV: 1280x720p, 1920x1080i.

Select the VGA/XGA connection in the AV selection.

Call AV selection

Select VGA socket and use ...

to call.

Start the connected device.

Set geometry

Call the TV menu using the MENU button, select “Geometry“ using 34 and set: If the picture is not positioned correctly, you can move the picture horizontally

and vertically here so that it lls the whole screen. You can also set the phase

position so that the picture appears in the best possible quality.

Setting colour standard

Call the Picture menu using the button. Select “Colour standard“ using 34 and make your selection. The colour standard for a connected PC is RGB. In Set Top Boxes, you usually set Ycc as a colour standard. Other formats such as Ypp or RGB can also be output. Please consult the operating instructions of the device connected. If the wrong standard is selected, you will recognise this by the wrong colours in the display.

- 34

Operating additional equipment

VIDEO

COMP. IN

AVS

VGA

DVD

HDMI/DVI

AV selection

VCR

Sound from PC or Set Top Box

Feed the analogue audio signal from the PC or the STB to the sockets AUDIO IN L/R on the TV via a cinch cable. The sound is reproduced via the TV speakers.

If you have connected a digital external audio amplier, you can select the

digital audio signal in the connection wizard (TV menu - Connections - New

devices/modications) and assign it to the VGA/XGA socket. You can make the other settings for the audio amplier as described for digital ampliers on page

33. The digital audio signal of the Set Top Box is fed in at the AUDIO DIGITAL IN socket on the TV. Feed the digital audio signal from the TV AUDIO DIGITAL OUT

to the amplier.

Component video connection

If you have a DVD player/recorder with Component OUT connections, you can connect it to the SD/HD-COMPONENT IN sockets of the TV instead of to the Euro-AV sockets. The connecting

cable with three cinch plugs each transmits picture information. The playback is of a better quality than via the Euro-AV socket. You need another cinch cable for the analogue sound transmission. Connect the analogue audio outputs of the DVD player to the AUDIO IN L/R sockets on the TV set. The sound is reproduced via the TV speakers. If you want to use the digital sound of the DVD player with a digital audio

amplier connected to the TV, make a connection between AUDIO DIG OUT of

the DVD player and AUDIO DIGITAL IN of the TV set. Log in the component/device in the connection wizard: Assign the AUDIO DIG IN input here to the COMP. IN socket, provided a digital

audio amplier is also connected. You can make the other settings for the audio amplier as described for digital ampliers on page 33.

Set the signal at the component input in the connection wizard: Set to “Auto-

matic“ rst. If the signal is not reproduced when playback is started, consult the operating instructions of the DVD device connected to nd out what screen

resolution is possible (SDTV, HDTV or ProScan).

Select the component connection in the AV selection.

Call AV selection

Select COMP. IN sockets and use ...

to call.

Start playback on the connected device.

Set geometry and colour standard: as described for the VGA/XGA connection.

35 -

Operating additional equipment

P+

P–

V– V+

P+

P–

V–

V+

END

INFO

DVD

VCR

DISC-MENU

abc def

ghi jkl

mno

tuv

wxyz

EPG

PIP

T-C

SP/LP 000

pqrs

RADIO

Switch recorder on/off – in standby

Fast forward /search forwards

Start playback

Stop tape

Set picture format (TV)

Select picture and sound source

Operating DVD players

Select station directly /in menu: enter digits

Call up station list

/in menu: call up/confirm

Status display on/off

Status display on/off in the menu: Close menu

Select video and audio input

Set time display to 0:00:00

on playback: Slow motion forward /in the menu: select/set or to the next menu

Sound off/on (mute)

V–/V+ volume quieter/louder

Pause (still frame)

/frame-by-frame advance

Rewind

/search backwards

Call AV selection (TV)

Switch to Long Play

/Standard Play

Display/close

ShowView timer Menu

Display/close Timer list

Operating the TV set

Operating VCRs

Start recording

Reverse play

/in menu: select/set

/ at stop: Program up/down on playback: manual tracking in the menu: Select position

VCR menu on

/in menu: back

P+

P–

V–

V+

DVD

VCR

END

INFO

RADIO

abc def

jkl

mno

tuv

wxyz

PIP

DISC-MENU

T-C

SV SP/LP 000

ghi

pqrs

EPG

Switch DVD on / off on standby

Next chapter /search forward

Playback

Stop

V–/V+ volume quieter/louder

DVD menu on, previous function activ; in menu: info on/off

Status display on; in menu: close menu

Set picture format (TV)

Select chapter

Operating DVD players

Repeat

Zoom

Select Chapter; in menu: enter digits

Pause

/single frame, slow motion

Beginning of chapter or

previous chapter

/search back

Title/Chapter Table;

in menu: call/confirm

DVD menu on;

in menu: back

Call AV selection (TV)

User interface of

loaded DVD on

Select camera position

Set marker

Operating the TV set

Operating VCRs

/ : Chapter up/down in menu: select up/down / Search back/forward in menu: select left/right

Sound off/on (mute)

VCR

DVD

Operating Loewe video recorders and Loewe DVD players directly

You can switch over the remote control of the TV set to operate Loewe video recorders and Loewe DVD players. These devices can be operated directly.

Select the device to be operated:

press the VCR button, the indicator above lights for about 5 seconds. press the DVD button, the indicator above lights for about 5 seconds. Switch back to TV operation: Push the TV button.

- 36

When operating in the VCR or DVD mode, the indicator above the VCR or DVD button lights up. In DVD mode, the following DVD players can be operated: Xemix 6122DO, 8122DA and 6222PS.

In VCR mode, the following VCRs can be operated: ViewVision 8106H, 8136H, 8176H, 6306H, 6336H, 6376H, 6396H, 4306H, 4376H, 2102M, 2302M, 4206, 4236, 4276.

For other Loewe equipment than that listed, please use the original remote control.

Functions for Loewe DVD players (Xemix 6122DO, 8122DA, 6222PS)Functions for Loewe video recorders (VV 8106, 8136, 8176)

What to do, if ...

Problem Possible cause Remedy

The “Recording” menu point is not displayed in the TV menu.

“Connections” cannot be called in the TV menu (deactivated).

The control of the Loewe video recorder and the timer do not work or do not work properly.

General problems with connecting external equipment via an AV input.

A decoder connection does not function or is faulty. a) The signal is not decoded because the wrong

No video or DVD recorder logged in. Log in the video or DVD recorder in the connection

A time recording is in progress. Wait until the timer recording has ended or delete the

a) The Digital Link function is not activated or not

possible in the recorder. b) Euro-AV cable is not connected. c) Recorder is not logged in.

a) The device is not logged in to the connection

wizard or is connected differently than is shown

in the connection diagram.

b) The AV norm is set incorrectly. c) The AV signal is set incorrectly.

decoder stations are selected in the connection

wizard.

b) The sound is missing in decoder mode because

the wrong decoder sound is assigned in the con-

nection wizard.

wizard and connect the device.

timer.

a) Activate Digital Link in the recorder (see operating

instructions of the video recorder). b) Connect the Euro-AV cable. c) Log in recorder.

a) In the connection wizard (TV menu – Connec-

tions – New devices/modications), compare the

connection diagram with the actual installation

and connect as shown, if necessary. b) Set the norm correctly. c) Set the AV signal correctly. If “Automatic” is set for AV norm or AV signal, this

can lead to errors for signals which do not conform to the norm. Then the norm and the signal are to be

set according to the specications in the operating

instructions of the external device.

a) Follow the instructions in the connection wizard

again (TV menu – Connections – New devices/

modications) and select the corresponding

decoder station. b) Follow the instructions in the connection wizard

again and select the right audio source (decoder,

TV or autom.), see instructions of the decoder.

All menus appear in the wrong language. Menu language has been set incorrectly. Set your menu language:

Press the INFO button in TV mode (index). Select the

rst index item and call it by using OK. Then select the language and conrm with OK.

37 -

What to do, if ...

Problem Possible cause Remedy

Digital Link Plus does not function. a) Euro-AV cable is not fully wired (pin 10 not

wired).

b) Some recorders can only adopt stations during

the initial installation of the TV set.

c) All or some of the terrestrial and cable stations

are stored on station storage locations ≥ 99.

Various characters are displayed incorrectly in the teletext.

No sound via external digital audio amplier. a) The external digital audio amplier does not sup-

The wrong character set is set in the teletext menu. Set the right character set: Teletext menu - Settings

port the selected sound format (Dolby Digital, dts, MPEG).

b) TV set and external digital audio amplier are

not connected.

a) Replace the Euro-AV cable.

b) Restore the recorder to the as-delivered state (see

recorder’s operating instructions). c) Rearrange the terrestrial and cable stations so

that they fall between 1 and 99.

- Character set: standard or the appropriate character set.

a) Set PCM stereo on the DVD player in the sound

selection. For DVB stations, switch language/

sound selection (green coloured key) to Stereo on

the TV set in the status display (END). b) Connect Digital-Out from the TV set to a Digital-In

of the external digital audio amplier and select

the appropriate input to this.

- 38

Technical data

General data

Type Concept L 26 Basic Concept L 26 Concept L 32 Basic Concept L 32

Item no. 65433xxx 65421xxx 65434xxx 65442xxx Versions TV terr. (analogue)

Versions DVB-T/C Versions DVB-T CI (MHEG-5) Versions DVB-T/C CI

Set dimensions without stand (ca. cm WxHxD) Dimensions with stand (ca. cm WxHxD)

Set weight without stand (ca. kg) Set weight with stand (ca. kg)

Display Picture diagonal (cm)/picture format Resolution Contrast ratio

Angle of viewing horizontally/vertically 176° 176° 178° 178° Power consumption (IEC 62087)

in operation (watt) in standby (watt)

Ambient temperature (Celsius) 5º – 35º Relative humidity (not condensing) 20 – 80% Barometric pressure 800 – 1114 hPa (0 – 2000 m over NN)

•

– – –

81,0x41,0x10,0 81,0x47,5x23,2

11,8 13,8

HD-LCD technology 66/16:9 1366x768 1200:1

65 < 3

– –

•

81,0x41,0x10,0 81,0x47,5x23,2

11,8 13,8

HD-LCD technology 66/16:9 1366x768 1200:1

70 < 3

•

– – –

97,0x48,0x10,9 97,0x54,5x23,2

14,7 16,7

HD-LCD technology 80/16:9 1366x768 1200:1

80 < 3

–

•

– 97,0x48,0x10,9

97,0x54,5x23,2 14,7

16,7 HD-LCD technology

80/16:9 1366x768 1200:1

85 < 3



Please keep in a

The code number 3001 cancels out a

secret code and with it the child lock.

safe place.

39 -

Technical data

Electrical data

Chassis name L 2650 Power supply 220 V -240V/50- 60 Hz Tuner VHF/UHF/ cable Hyperband 8 MHz 41 MHz to 860 MHz Station storage locations 430 / for DVB 1680 TV standards B/G, I, L, D/K, M, N

DVB-T, DVB-C, DVB-S

Colour standard SECAM, PAL, NTSC,

NTSC-V, PAL-V (60Hz)

Sound standard Mono/Stereo/Dual-channel

Nicam B/G, I, L,

Virtual Dolby Rated audio power 2 x 20 watt Analogue Teletext TOP/FLOF Level 2.5 Page Memory (Concept L 26 / L 32) 1500 Page Memory (Concept L 26 Basic / L 32 Basic) 1000 Digital Teletext (only for MHEG-5 device versions) MHEG-5

Connections

Jack 3.5mm Headphones 32- 2000 ohm Mini-DIN (AVS) Video IN Y/C (S-VHS/Hi 8)

CVBS (VHS/8 mm) Cinch (yellow) Video IN CVBS (VHS/8 mm) Cinch (white/red) Audio IN L/R IEC socket 75 Ohm/5 V/80 mA Antenna/cable/analogue PIP F socket 75 Ohm 13/18 V/350 mA (1 ANT-SAT



EURO-AV 1 Video IN Y/C (S-VHS/Hi 8)

CVBS (VHS/8 mm)

Video OUT CVBS (VHS/8 mm)

Audio IN L/R Audio OUT L/R EURO-AV 2 Video IN Y/C (S-VHS/Hi 8)

CVBS (VHS/8 mm)

Video OUT CVBS

Y/C, (only with SVHS Link Plus) Audio IN L/R Audio OUT L/R Cinch Audio IN max. 2Vrms Centre 2 x Cinch Audio IN L/R 2 x Cinch Audio OUT (level adjustable in active loud speakers) L/R Cinch COMPONENT IN: Cb/Pb signal Cinch COMPONENT IN: Cr/Pr signal Cinch COMPONENT IN: Y signal Cinch Digital Audio IN (SPDIF) Digital audio Cinch Digital Audio OUT (SPDIF) Digital audio HDMI/DVI Digital Video/Audio IN type A 19pin Digital video and audio VGA/XGA VGA/XGA IN PC/STB video signal Mini-DIN SERVICE Service/L-Link

/DVB-T/C

Y/C (S-VHS/Hi 8)

RGB, YUV

- 40

Dolby and the double ´D´ symbol are trademarks of Dolby Laboratories

Set-specic equipment and retrotting options for CI-Slot, PIP and satellite

tuners, see pages 41 and 42.

Printed in Germany

TB/06/08/7.0

Subject to modifcations!

Accessories

Wall holders and stands

Refer to the notes on the installations options on page 6.

PIP tuner

The PIP tuner enables picture in picture displays (PIP) for analogue terrestrial and cable reception.

You can retrot either this PIP tuner or a digital satellite tuner. The PIP function is possible for both retrot versions. You can nd the retrotting options for your set in the table on the next page.

Loewe order no. 89442.080

Digital Satellite tuner

You can have your TV set retrotted with the digital satellite tuner. By using this tuner, you can receive DVB-S stations. The digital satellite tuner is completely integrated in the TV set (physically and logically) and is operated by the remote control/menu control of the TV. When you retrot your TV set with the digital satellite tuner, your TV set automatically has the PIP function.

You can retrot either this digital satellite tuner or a PIP tuner. You can nd the retrotting options for your set in the table on the next page.

Loewe order no. 89361.056

Common Interface (CI-Slot)

The common interface (slot for CA-module) enables you to also receive encrypted stations. You can purchase the CA-module and Smart Card at your specialist dealer.

You can nd the retrotting options for your set in the table on the next page.

Loewe order no. 89346.080

Loewe DVD players and recorders

The DVD players and recorders from Loewe are characterised by form and colour, which match Loewe TV sets, adapted user guidance and technology. A combination of the two devices forms a system which offers many advantages.

Loewe audio system Auro and the active speaker system Individual Sound

The interplay of a Loewe TV with a Loewe audio system and a Loewe speaker system creates an excellently coordinated home cinema system. Advantages are high operating comfort, attractive design and adapted technology.

Subject to delivery options.

41 -

Accessories

Retrotting options

The following table shows the equipment and retrotting options for the individual device versions.

Device version / Equipment Item no. PIP tuner

Digital

Single SAT-Tuner

Interface (CI-slot)

Common

Concept L 26 Basic 65433xxx – – – Concept L 26 DVB-T CI 65421xxx (MHEG-5) – – Concept L 26 DVB-T/C CI 65421xxx –

○ ●

Concept L 32 Basic 65434xxx – – – Concept L 32 DVB-T CI 65442xxx (MHEG-5) – – Concept L 32 DVB-T/C 66442xxx

○ ○ ○

● available / installed ○ retrottable / optionally available

– retrotting not possible

You can retrot either this PIP tuner or a digital satellite tuner.

You can retrot either this digital satellite tuner or a PIP tuner.

●

- 42

Service

Loewe Austria GmbH Parkring 10 1010 Wien, Österreich Tel.: +43 - 810/0810-24 (zum Ortstarif) E-Mail loewe@loewe.co.at

International Dynamics Australasia Pty Ltd. 129 Palmer Street Richmond 3121, Victoria, Australia Tel. +61 - 3 - 94 29 08 22 Fax +61 - 3 - 94 29 08 33 Email mail@internationaldynamics.com.au

Loewe Opta Benelux NV/SA Uilenbaan 84 2160 Antwerpen, België Tel. +32 - 3 - 2 70 99 30 Fax +32 - 3 - 2 71 01 08 Email ccc@loewe.be

Telion AG Rütistrasse 26 8952 Schlieren, Schweiz Tel. +41 - 44 732 15 11 Fax +41 - 44 732 15 02 Email infocpe@telion.ch

HADJIKYRIAKOS & SONS LTD. Prodromou 121, P.O Box 21587 1511 Nicosia, Cyprus Tel. +357 - 22 87 21 11 Fax +357 - 22 66 33 91 Email Efthymios@hadjikyriakos.com.cy

Ing. Ivo Tietz Dolní nám. 9 746 01 Opava, Česko Tel.: +420 553 624 944 Fax: +420 553 623 147 E-mail tietz@opava.cz

Loewe Opta GmbH, Customer Care Center Industriestraße 11 96317 Kronach, Deutschland Tel. +49 1801–22256393 Fax +49 9261–99500 Email ccc@loewe.de

Kjaerulff 1 A/S C.F. Tietgens Boulevard 19 5220 Odense SØ, Denmark Tel. +45 - 66 13 54 80 Fax +45 - 66 13 54 10 Email mail@kjaerulff1.com

Gaplasa S.A. Conde de Torroja, 25 28022 Madrid, España Tel. +34 - 917 48 29 60 Fax +34 - 913 29 16 75 Email loewe@maygap.com

Loewe Opta France S.A. 13 rue du Dépôt, Parc del l‘Europe, BP 10010 67014 Strasbourg Cédex, France Tel. +33 - 3- 88 79 72 50 Fax +33 - 3- 88 79 72 59 Email loewe.france@wanadoo.fr

Kjaerulff 1 OY Artturinkatu 2 20200 Turku, Finland Tel. +358 - 2 284 1600 Fax +358 - 2 284 1601 Email Finland@kjaerulff1.com

LinnSight Ltd. PO Box 8465 KA 7 2YF Prestwick, UK Tel. +44 - 12 92 - 47 15 57 Fax +44 - 12 92 - 47 15 54 Email helpline@linnsight.co.uk

SIBA Engineering S.A. 6, Kisou Av., 122 42 Aegaleo, Hellas Tel. +30 - 210 - 5913793 Fax +30 - 210 - 5317755 Email service@siba.gr

Basys Magyarorszagi KFT Epitok utja 2–4 2040 Budaörs, Magyar Tel. +36 - 23 41 56 37 (121) Fax +36 - 23 41 51 82 Email basys@mail.basys.hu

Loewe Italiana SRL Largo del Perlar, 12 37135 Verona (VR), Italia Tel. +39 - 045 82 51 619 Fax +39 - 045 82 51 622 Email Angelo.Lorenzi@loewe.it

PL Trading (pz 2004) Ltd. 27, Aliat Hanoar St. Givataiim 53401, Israel Tel. +972 - 3 - 57 27 155 Fax +972 - 3 - 57 27 150 Email info@loewe.co.il

Mirage Holdings Ltd Flamingo Complex, Cannon Road Qormi, Malta Tel. +356 - 22 - 79 40 00 Fax +356 - 21 - 44 59 83 Email servicing@mirage.com.mt

SOMARA S.A. 377, Rue Mustapha El Maani 20000 Casablanca, Morocco Tel. +212 - 22 22 03 08 Fax +212 - 22 26 00 06 Email somara@wanadoopro.ma

CableCom AS Gneisveien 12 3221 Sandefjord, Norge Tel. +47 - 33 48 33 48 Fax +47 - 33 44 60 44 Email soren@cablecom.no

International Dynamics (NZ) Pty Ltd PO Box 109 317, Newmarket Auckland, New Zealand Tel.: +64 9 379 0179 Fax: +64 9 379 0279 E-mail: enquiries@internationaldynamics. co.nz

Videoacústica Comercio e Representacoes de Equipamentos Electronicos S.A. Estrada Circunvalacao, Quinta do Paizinho, Arm. 5 2795-632 Carnaxide, Portugal Tel. +351 - 2 14 24 17 70 Fax +351 - 2 14 18 80 93

Email ofce@videoacustica.pt

DSV TRADING SA Plac Kaszubski 8 81-350 Gdynia, Polska Tel. +48 - 58 - 6 61 28 00 Fax +48 - 58 - 6 61 44 70 Email market@dsv.com.pl

Service Center Loewe ul. Verkhnaya Maslovka, d. 29 125083 Moscow, Россия Tel. +7 - 495 612 50 43 Fax +7 - 495 612 47 10 Email service@atc.ru

Kjaerulff 1 AB Ridbanegatan 4, Box 9076 21377 Malmö, Sverige Tel. +46 - 4 06 79 74 00 Fax +46 - 4 06 79 74 01 Email Sweden@kjaerulff1.com

BaSys Czech & Slovak s.r.o. Stará Vajnorská 17/A 831 04 Bratislava, Slovakia Tel.: + 421 2 49 10 66 18 Fax: + 421 2 49 10 66 33 Email: loewe@basys.sk

Jadran Trgovsko Podjetje Partizanska cesta 69 6210 Sezana, Slovenija Tel. +386 - 57 31 04 40 Fax +386 - 57 31 04 42 Email milos.zvanut@jadran.si

Enkay Elektronik Servis Müdürlügü Alemdag Cad: Site Yolu No.: 10 Ümraniye/ Istanbul, Türkiye Tel. +90 - 216 634 44 44 Fax +90 - 216 634 39 88 Email mhatipog@enkaygroup.com

Videonix (Pty) Ltd P.O. Box 31952, Kyalami 1684 Republic of South Africa Tel. +27 - 1 14 66 47 00 Fax +27 - 1 14 66 42 85 Email mail@loewe.co.za

- 44

Loewe LCD screen TV ConceptL26Basic, LCD screen TV ConceptL32, LCD screen TV ConceptL32Basic, LCD screen TV ConceptL26 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
