Lochinvar PUMP-REC-05 User Manual
PUMP
Recommendation

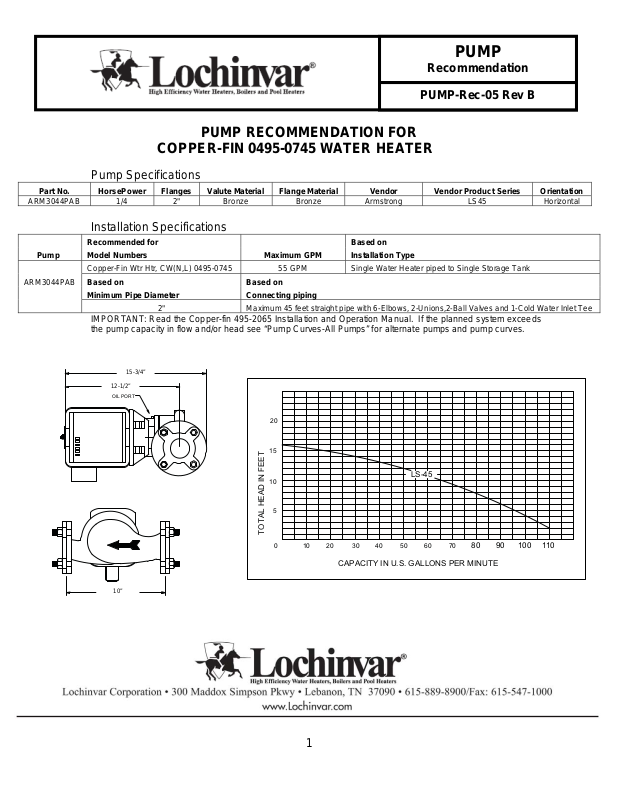

PUMP RECOMMENDATION FOR
COPPER-FIN 0495-0745 WATER HEATER
Pump Specifications
Part No. HorsePower Flanges Valute Material Flange Material Vendor Vendor Product Series Orientation
ARM3044PAB 1/4 2" Bronze Bronze Armstrong LS45 Horizontal
Installation Specifications
Recommended for Based on
Pump Model Numbers Maximum GPM Installation Type
Copper-Fin Wtr Htr, CW(N,L) 0495-0745 55 GPM Single Water Heater piped to Single Storage Tank
ARM3044PAB Based on Based on
Minimum Pipe Diameter Connecting piping
2" Maximum 45 feet straight pipe with 6-Elbows, 2-Unions,2-Ball Valves and 1-Cold Water Inlet Tee
IMPORTANT: Read the Copper-fin 495-2065 Installation and Operation Manual. If the planned system exceeds
the pump capacity in flow and/or head see “Pump Curves-All Pumps” for alternate pumps and pump curves.
15-3/4”
12-1/2”
C
OIL PORT
10”
B D
A
20
15
10
5
TOTAL HEAD IN FEET
0
10
20
30 40 50 60
CAPACITY IN U.S. GALLONS PER MINUTE
PUMP-Rec-05 Rev B
LS-45
80
90
70
100
110
1
PUMP
Recommendation
PUMP RECOMMENDATION FOR
COPPER-FIN 0986-2066 WATER HEATER
Pump Specifications
Part No. HorsePower Flanges Valute Material Flange Material Vendor Vendor Product Series Orientation
ARM3024PAB 1/2 2-1/2" Brass Brass Armstrong 2B1050 Horizontal
Installation Specifications
Recommended for Based on
Pump Model Numbers Maximum GPM Installation Type
Copper-Fin Wtr Htr, CW(N,L) 0986-2066 90 GPM Single Water Heater piped to Single Storage Tank
ARM3024PAB Based on Based on
Minimum Pipe Diameter Connecting piping
2-1/2" Maximum 45 feet straight pipe with 6-Elbows, 2-Unions,2-Ball Valves and 1-Cold Water Inlet Tee
IMPORTANT: Read the Copper-fin 495-2065 Installation and Operation Manual. If the planned system exceeds
the pump capacity in flow and/or head see “Pump-REC-All Pumps” for alternate pumps and pump curves.
19-1/2”
A
16”
C
OIL PORT
B D
11-1/2”
PUMP-Rec-05
2
