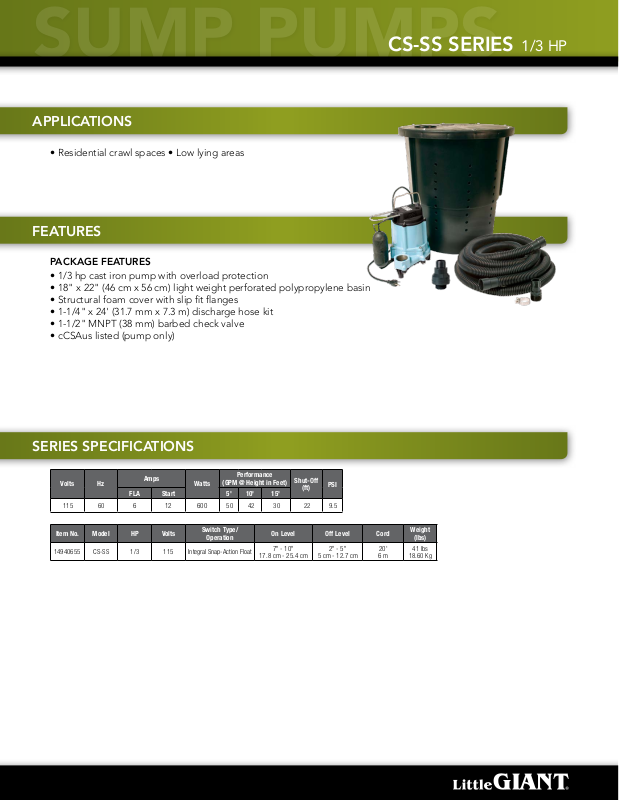

SUMP PUMPS
APPLICATIONS
• Residential crawl spaces • Low lying areas
FEATURES
PACKAGE FEATURES
• 1/3 hp cast iron pump with overload protection
• 18" x 22" (46 cm x 56 cm) light weight perforated polypropylene basin
• Structural foam cover with slip t anges
• 1-1/4" x 24' (31.7 mm x 7.3 m) discharge hose kit
• 1-1/2" MNPT (38 mm) barbed check valve
• cCSAus listed (pump only)
CS-SS SERIES 1/3 HP
SERIES SPECIFICATIONS
Volts Hz
115 60
Item No. Model HP Volts
14940655 CS-SS 1/3 115 Integral Snap-Action Float
Amps
FLA Start 5' 10' 15'
6 12 600
Watts
Performance
(GPM @ Height in Feet)
50 42 30 22 9.5
Switch Type/
Operation
On Level Off Level Cord
7" - 10"
17.8 cm - 25.4 cm
Shut-Off
(ft)
PSI
2" - 5"
5 cm - 12.7 cm
20'
6 m
Weight
(lbs)
41 lbs
18.60 Kg
ENGINEERING DATA
CS-SS SERIES 1/3 HP
B
A
D
C
E
A B C D E
22.1"
56.13 cm
21"
53.34 cm
4"
10.16 cm
1.5"
3.81 cm
0.5"
1.27 cm
Typical Installation
1-1/4" (31.7 mm)
sump pump
discharge hose kit
1-1/2" MNPT (38 mm) x
1-1/4" (31.7 mm)
barbed check valve
Screen to pass
1/2" (12.7 mm) solids
CRAWL SPACE
GRAVEL BACKFILL
PERFORATED BASIN
POWER CORD TO OUTLET
Cover
Basin
Little Giant
Model
6E-CIA-SFS
FLOOR JOISTS
SLOPE DISCHARGE AWAY
FROM FOUNDATION
FOUNDATION
FOOTING
PERFORMANCE DATA
Capacity - Liters per Minute
0 60 120 180 240
30
25
20
15
10
Total Head in Feet
5
0
0 10 20 30 40 50 60 70
Capacity - Gallons per Minute
8
6
4
Total Head in Meters
2
0
PUMP CONSTRUCTION
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute
Epoxy-coated cast iron/
polypropylene
Motor Shaft Cold rolled steel
Mechanical Shaft Seal
Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Bearings
Upper and lower sintered
sleeve bearings
Power Cord SJTW (506612 with SJTOW)
BASIN CONSTRUCTION
Basin Polypropylene
Cover Structural foam
Spec Sheet 14940603
Hotline: 1.800.701.7894 www.franklinwater.com
