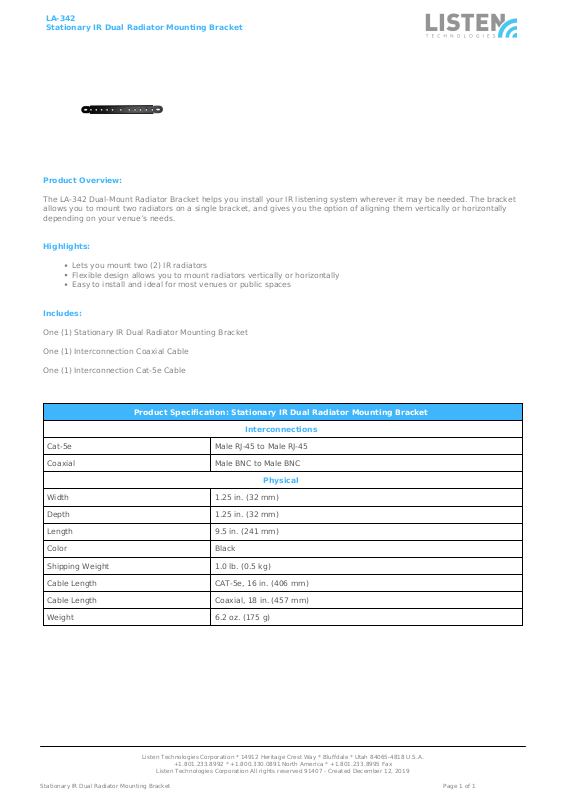

Listen Technologies LA-342 Data Sheet

LA-342

Stationary IR Dual Radiator Mounting Bracket

Product Overview:

The LA-342 Dual-Mount Radiator Bracket helps you install your IR listening system wherever it may be needed. The bracket
allows you to mount two radiators on a single bracket, and gives you the option of aligning them vertically or horizontally
depending on your venue’s needs.

Highlights:

Lets you mount two (2) IR radiators
Flexible design allows you to mount radiators vertically or horizontally
Easy to install and ideal for most venues or public spaces

Includes:

One (1) Stationary IR Dual Radiator Mounting Bracket

One (1) Interconnection Coaxial Cable

One (1) Interconnection Cat-5e Cable

Product Specification: Stationary IR Dual Radiator Mounting Bracket

Interconnections

Cat-5e Male RJ-45 to Male RJ-45

Coaxial Male BNC to Male BNC

Physical

Width 1.25 in. (32 mm)

Depth 1.25 in. (32 mm)

Length 9.5 in. (241 mm)

Color Black

Shipping Weight 1.0 lb. (0.5 kg)

Cable Length CAT-5e, 16 in. (406 mm)

Powered by TCPDF (www.tcpdf.org)

Cable Length Coaxial, 18 in. (457 mm)

Weight 6.2 oz. (175 g)

Listen Technologies Corporation * 14912 Heritage Crest Way * Bluffdale * Utah 84065-4818 U.S.A.

Stationary IR Dual Radiator Mounting Bracket Page 1 of 1

+1.801.233.8992 * +1.800.330.0891 North America * +1.801.233.8995 Fax

Listen Technologies Corporation All rights reserved 91407 - Created December 12, 2019
