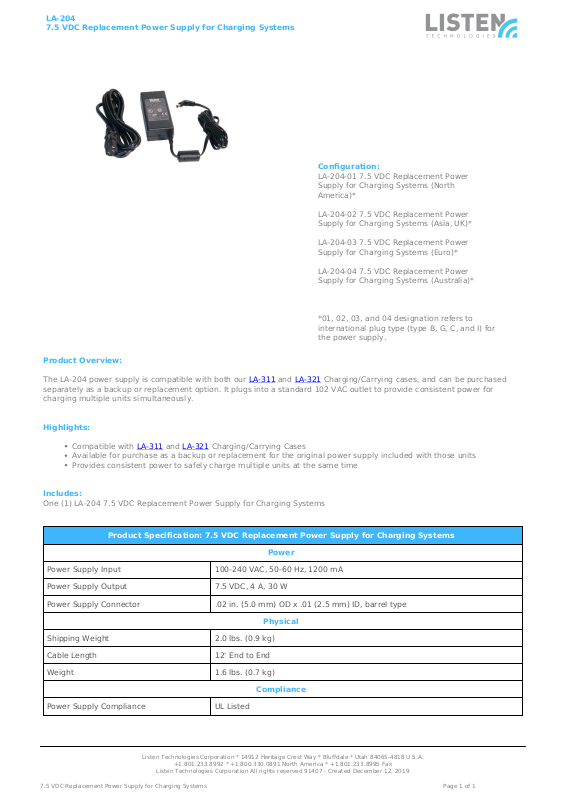

Listen Technologies LA-204-01 Data Sheet
LA-204
7.5 VDC Replacement Power Supply for Charging Systems
Configuration:
LA-204-01 7.5 VDC Replacement Power
Supply for Charging Systems (North
America)*
LA-204-02 7.5 VDC Replacement Power
Supply for Charging Systems (Asia, UK)*
LA-204-03 7.5 VDC Replacement Power
Supply for Charging Systems (Euro)*
LA-204-04 7.5 VDC Replacement Power
Supply for Charging Systems (Australia)*
*01, 02, 03, and 04 designation refers to
international plug type (type B, G, C, and I) for
the power supply.
Product Overview:
The LA-204 power supply is compatible with both our LA-311 and LA-321 Charging/Carrying cases, and can be purchased
separately as a backup or replacement option. It plugs into a standard 102 VAC outlet to provide consistent power for
charging multiple units simultaneously.
Highlights:
Compatible with LA-311 and LA-321 Charging/Carrying Cases
Available for purchase as a backup or replacement for the original power supply included with those units
Provides consistent power to safely charge multiple units at the same time
Includes:
One (1) LA-204 7.5 VDC Replacement Power Supply for Charging Systems
Product Specification: 7.5 VDC Replacement Power Supply for Charging Systems
Power
Power Supply Input 100-240 VAC, 50-60 Hz, 1200 mA
Power Supply Output 7.5 VDC, 4 A, 30 W
Powered by TCPDF (www.tcpdf.org)
Power Supply Connector .02 in. (5.0 mm) OD x .01 (2.5 mm) ID, barrel type
Physical
Shipping Weight 2.0 lbs. (0.9 kg)
Cable Length 12' End to End
Weight 1.6 lbs. (0.7 kg)
Compliance
Power Supply Compliance UL Listed
Listen Technologies Corporation * 14912 Heritage Crest Way * Bluffdale * Utah 84065-4818 U.S.A.
7.5 VDC Replacement Power Supply for Charging Systems Page 1 of 1
+1.801.233.8992 * +1.800.330.0891 North America * +1.801.233.8995 Fax
Listen Technologies Corporation All rights reserved 91407 - Created December 12, 2019
