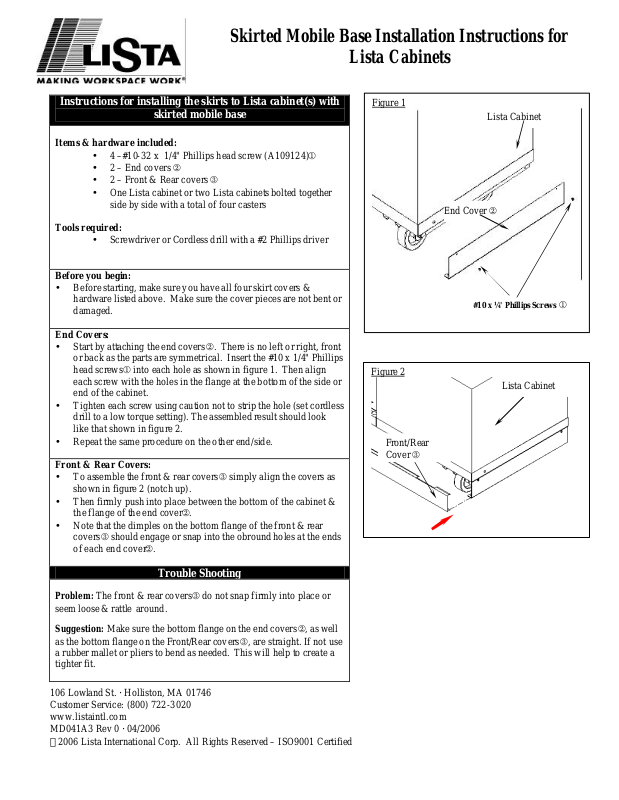

Skirted Mobile Base Installation Instructions for
Cover
®
Instructions for installing the skirts to Lista cabinet(s) with
skirted mobile base
Items & hardware included:
• 4 –#10-32 x 1/4" Phillips head screw (A109124) ¬
• 2 – End covers -
• 2 – Front & Rear covers ®
• One Lista cabinet or two Lista cabinets bolted together
side by side with a total of four casters
Tools required:
• Screwdriver or Cordless drill with a #2 Phillips driver
Before you begin:
• Before starting, make sure you have all four skirt covers &
hardware listed above. Make sure the cover pieces are not bent or
damaged.
End Covers:
• Start by attaching the end covers-. There is no left or right, front
or back as the parts are symmetrical. Insert the #10 x 1/4" Phillips
head screws¬ into each hole as shown in figure 1. Then align
each screw with the holes in the flange at the bottom of the side or
end of the cabinet.
• Tighten each screw using caution not to strip the hole (set cordless
drill to a low torque setting). The assembled result should look
like that shown in figure 2.
• Repeat the same procedure on the other end/side.
Front & Rear Covers:
• To assemble the front & rear covers® simply align the covers as
shown in figure 2 (notch up).
• Then firmly push into place between the bottom of the cabinet &
the flange of the end cover -.
• Note that the dimples on the bottom flange of the front & rear
covers ® should engage or snap into the obround holes at the ends
of each end cover -.
Trouble Shooting
Problem: The front & rear covers® do not snap firmly into place or
seem loose & rattle around.
Suggestion: Make sure the bottom flange on the end covers-, as well
as the bottom flange on the Front/Rear covers®, are straight. If not use
a rubber mallet or pliers to bend as needed. This will help to create a
tighter fit.
106 Lowland St . ⋅ Holliston, MA 01746
Customer Service: (800) 722 -3020
www.listaintl.com
MD041A3 Rev 0 ⋅ 04/2006
2006 Lista International Corp. All Rights Reserved – ISO9001 Certified
Lista Cabinets
Figure 1
Lista Cabinet
End Cover -
#10 x ¼" Phillips Screws ¬
Figure 2
Lista Cabinet
Front/Rear
