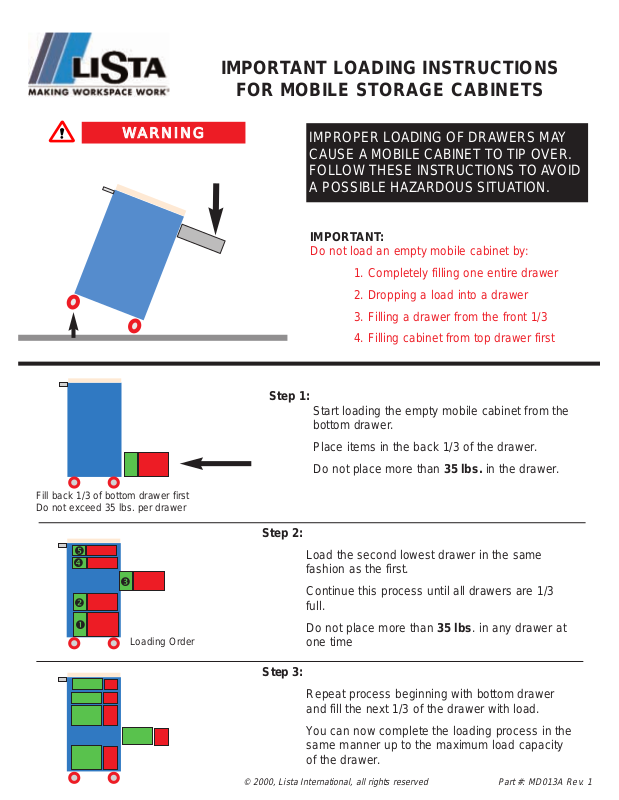

IMPORTANT LOADING INSTRUCTIONS
FOR MOBILE STORAGE CABINETS
IMPROPER LOADING OF DRAWERS MAY
CAUSE A MOBILE CABINET TO TIP OVER.
FOLLOW THESE INSTRUCTIONS TO AVOID
A POSSIBLE HAZARDOUS SITUATION.
WWAARRNNIINNGG
Step 1:
Start loading the empty mobile cabinet from the
bottom drawer.
Place items in the back 1/3 of the drawer.
Do not place more than 35 lbs. in the drawer.
Step 2:
Load the second lowest drawer in the same
fashion as the first.
Continue this process until all drawers are 1/3
full.
Do not place more than 35 lbs. in any drawer at
one time
Step 3:
Repeat process beginning with bottom drawer
and fill the next 1/3 of the drawer with load.
You can now complete the loading process in the
same manner up to the maximum load capacity
of the drawer.
Fill back 1/3 of bottom drawer first
Do not exceed 35 lbs. per drawer
!
"
#
$
%
Loading Order
IMPORTANT:
Do not load an empty mobile cabinet by:
1. Completely filling one entire drawer
2. Dropping a load into a drawer
3. Filling a drawer from the front 1/3
4. Filling cabinet from top drawer first
© 2000, Lista International, all rights reserved Part #: MD013A Rev. 1
