MS Keyfob
Master Development System
User's Guide

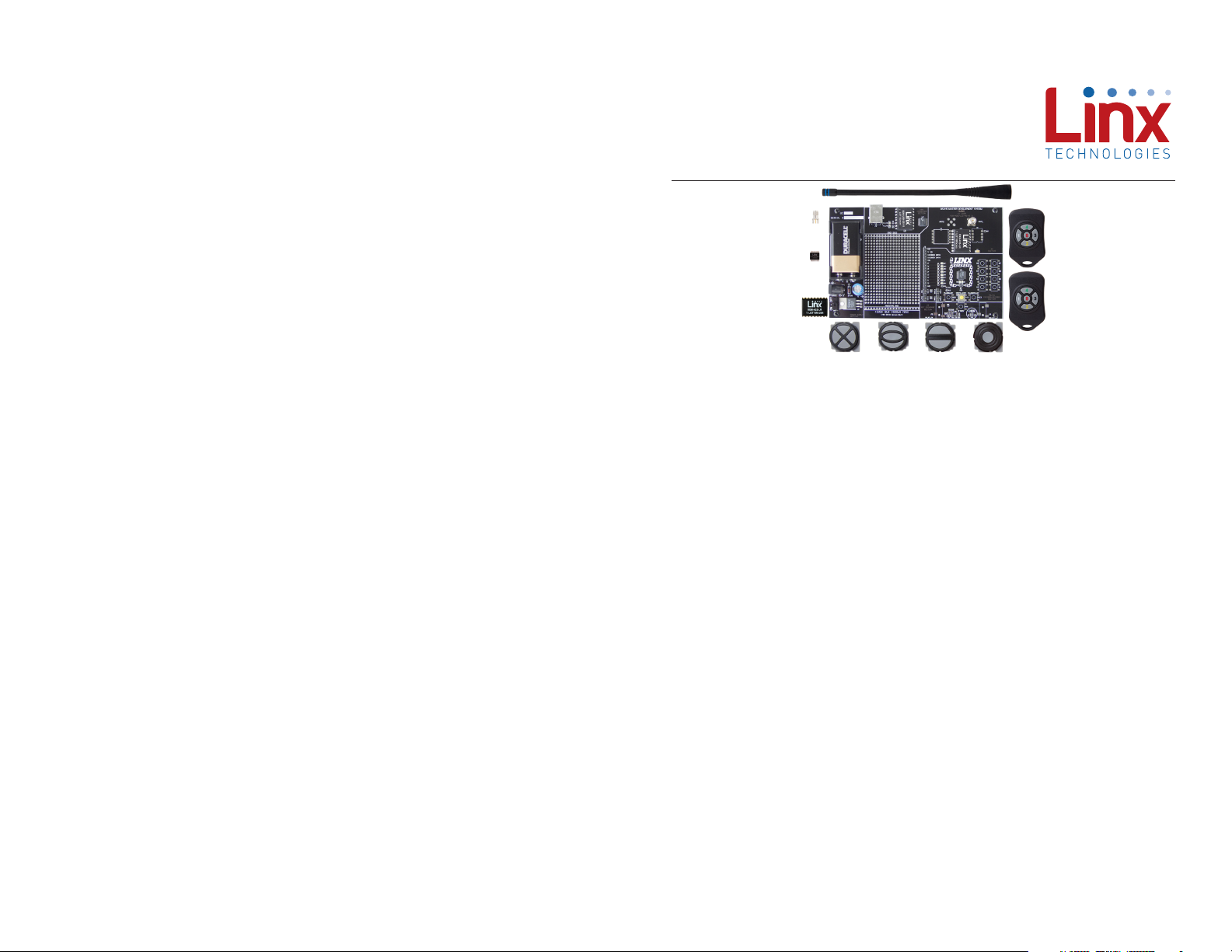

Figure 1: MS Keyfob Transmitter Master Development System
Introduction
The Linx MS keyfob transmitter offers a simple, efficient and cost-effective
method of adding remote control capabilities to any product. This
Master Development System gives a designer all the tools necessary to
incorporate the transmitter, LR Series receiver and MS Series decoder into
a product. It serves several important functions:
• Rapid Evaluation: It allows the performance and features of the
transmitter, LR Series receiver and MS Series encoders and decoders
to be evaluated quickly in a user’s environment.
• Range Testing: The transmitter and receiver board form a full remote
control system so that the range performance can be evaluated.
• Design Benchmark: The boards provide a known benchmark against
which the performance of a custom design may be judged.
• Application Development: An onboard prototyping area allows for the
development of custom circuits directly on the development board. All
signal lines are available on a header for easy access.
The Master Development System includes 2 MS keyfob transmitters,
2 LR Series receivers*, 2 MS Series decoders*, 1 receiver / decoder
development board,1 CW Series antenna, demonstration software CD and
full documentation.
*One part is soldered to the board, one extra is for use on the first prototype board
– –
1
Revised 3/18/2015
Page 4
Ordering Information
Ordering Information
Part Number Description
MDEV-***-HH-KF-MS MS Keyfob Master Development System
*** = 418 (Standard) or 433MHz
Using the Master Development System
Using the Master Development System is straightforward. After unpacking
the board, screw the antenna onto the connector, install the supplied
9V battery, and turn on the power switch. The encoder and decoder are
configured at the factory and work straight out of the box. To create a new
address, follow these easy steps:
Figure 2: Ordering Information
MS Series Decoder Development Board
5
1
6
2
3

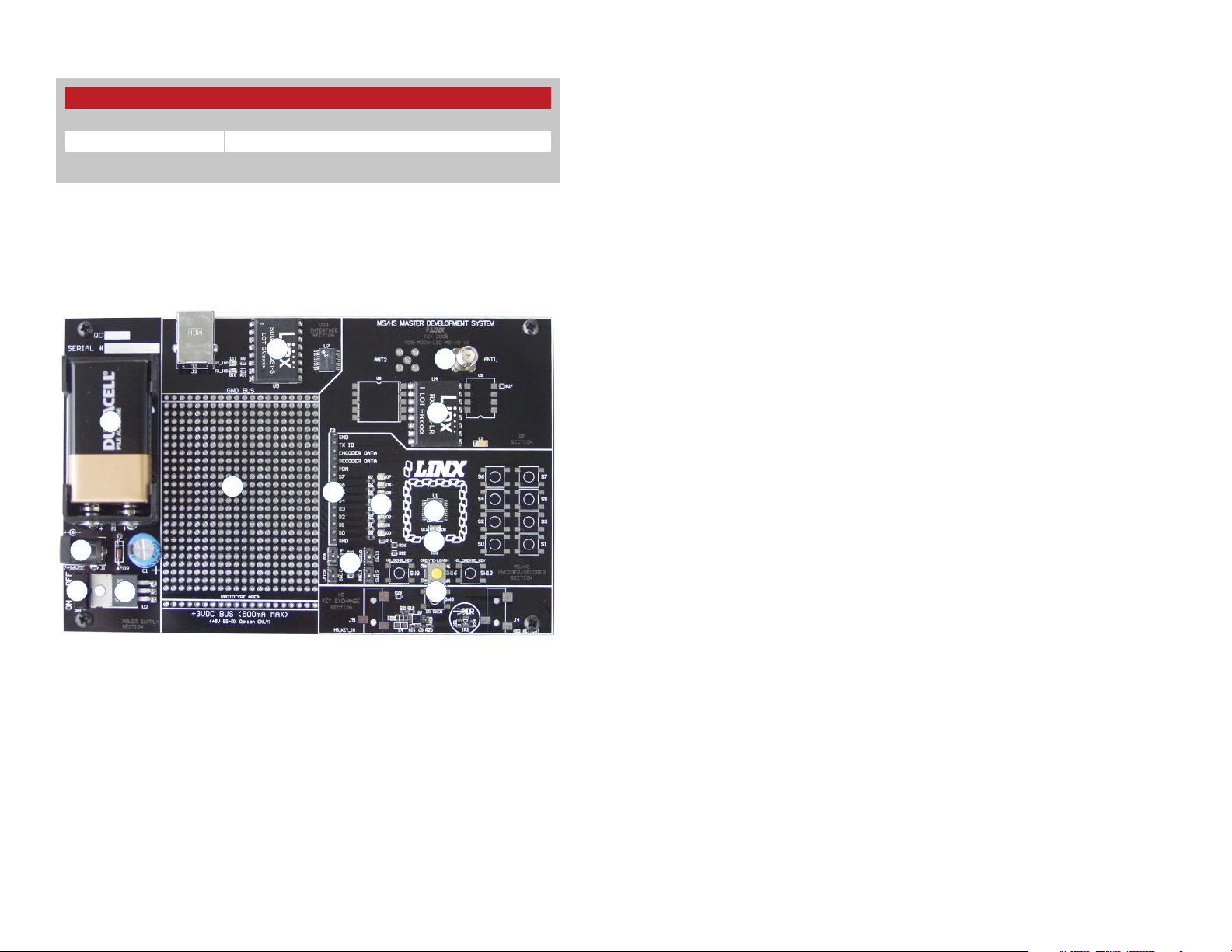

Figure 3: The MS Series Decoder Development Board
4
1. 9V Battery
2. Power Jack
3. On-Off Switch
4. Voltage Regulator

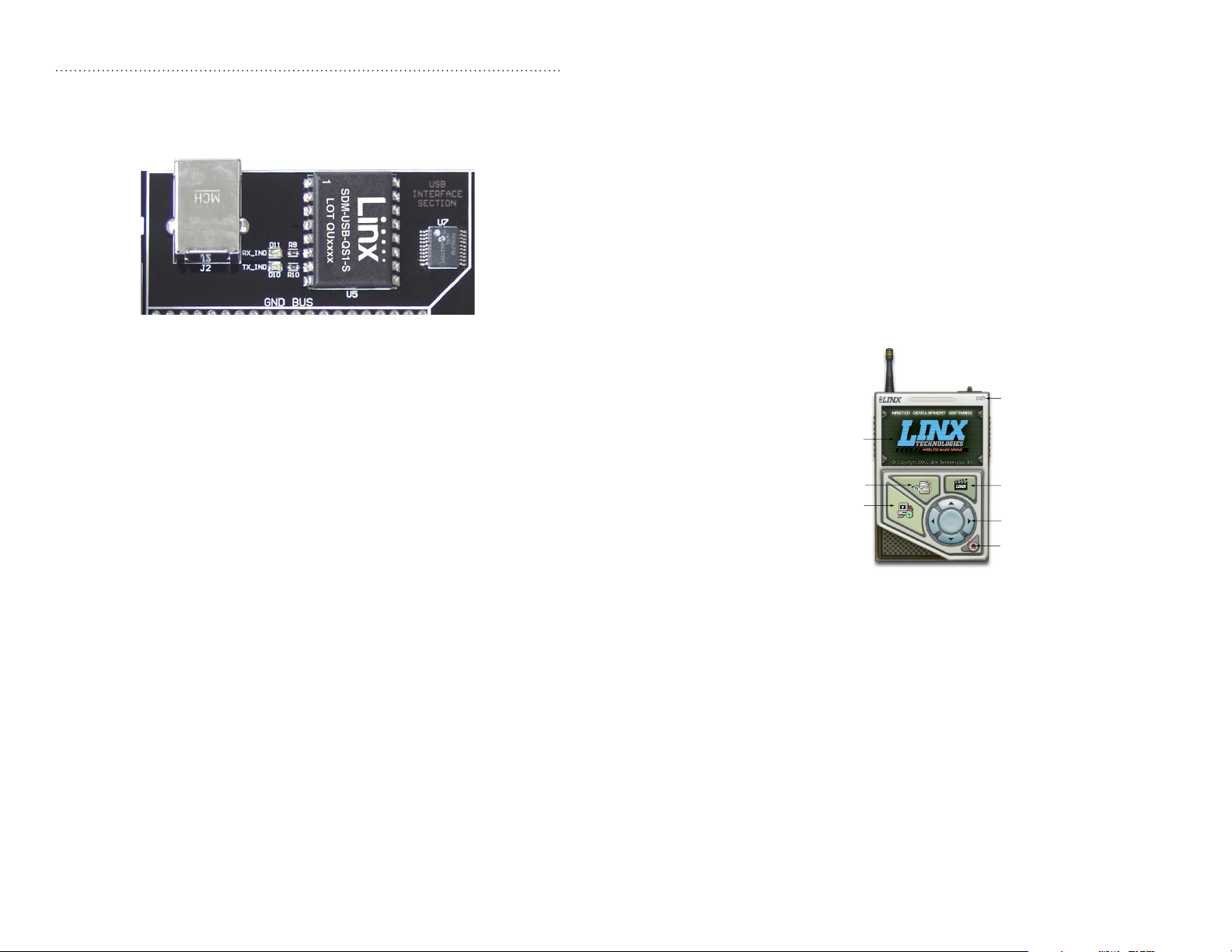

5. QS Series USB Module
6. Prototype Area
7. Break-Out Header
7
13
8. RP-SMA Antenna Connector
9. LR Series Receiver
10. MS Series Decoder
11. Data Line LEDs
12. Indicator LEDs
13. Function Switches
14. LEARN Button
11
10
12
14
1. Press and hold the CREATE_ADDR button on the transmitter to create
a new Code Word. This is done by sticking a paper clip through the
hole on the back of the case and pressing the button inside. The
Address is randomized for as long as the button is held down. Once
comfortable that the number is sufficiently random, release the button.
2. Once the button is released, the MODE_IND LED begins to flash to
indicate that it is ready to accept Control Permissions. Press all of the
8
data line buttons that are to be recognized, then press the CREATE_
ADDR button again or let it time out after seventeen seconds.
3. Press the LEARN button on the decoder board and the MODE_IND
9
LED starts flashing. Press any of the data line buttons on the
transmitter and press the LEARN button again. The encoder’s Address
has now been learned by the decoder and they will operate together.
Troubleshooting
If the boards fail to work out of the box, then try the following:
• Check the battery to make sure it is not dead.
• Make sure the baud rate switches are set to 9,600bps on the decoder
board.
• Make sure that the antenna is connected.
• Check to see if the PDN switch is on, placing the decoder into Power
Down Mode. In most cases, the encoder PDN switch should be on.
• Make sure that you set your Control Permissions correctly. If you have
not set the encoder to use a particular line, then when you press a
button on the encoder board, the MODE_IND LED on the decoder
board lights up, but the data line LED does not light up.
If all of these appear to be in order, then call +1 800 736 6677 or e-mail
[email protected] for technical support.
– –
2 3
– –
Page 5
Setting the Transmitter Address
The address is changed by using a paper clip
or probe to press the CREATE_ADDR button
on the board through the hole in the back
of the case. When the button is depressed,
an LED lights up on the front of the keyfob,
indicating that the address is being created.
The address is randomized for as long as
CREATE_ADDR
Button Access
the button is held down. When the button is
released, the randomized address is saved
and the LED begins flashing to indicate that
the Control Permissions may now be set.

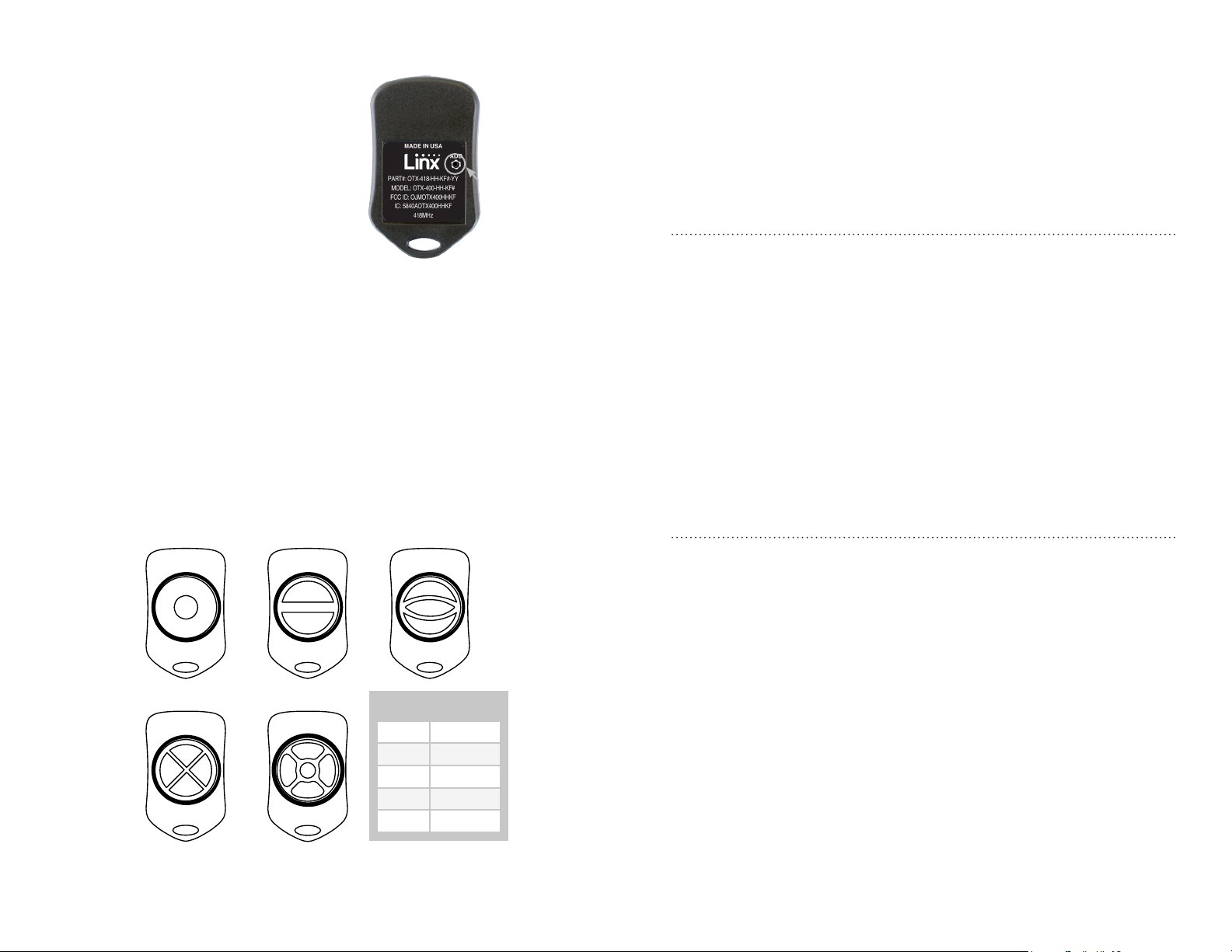

Figure 4: CREATE_ADDR Button Access
Press the buttons that the Keyfob user will have the authority to access.
Press the CREATE_ADDR button with the paper clip again or wait 17
seconds for it to time out. The address and Control Permissions are
now set. The decoder needs to learn the address before it accepts any
transmissions. Please see the MS Series Decoder Data Guide for details.
Button Assignments
The Keyfob is available in five button configurations. Those configurations
and the corresponding switch numbers are shown in Figure 5. The table
shows which encoder data line has been assigned to each switch. When a
button is pressed, the data line goes high, causing the corresponding data
line on the decoder to go high if the address has been learned.
S5
S4
S2
S4
S5
S2
The Decoder Board
The decoder board included with the evaluation kit uses the LR Series
receiver to receive the signal from the Keyfob transmitter and then
feeds it into the MS Series decoder. The board is designed to allow full
access to the many features of the decoder and to speed development
and integration of the LR and MS into a product. The following sections
describe the features of this board in detail.
The Prototyping Area
The prototyping area on the decoder board contains a large area of plated
through-holes so that external circuitry can be placed on the board.
This circuitry can be interfaced with the MS Series decoder through the
breakout header to the right of the holes. At the bottom of this area is a row
connected to the 3V power supply and at the top is a row connected to
ground.
All of the data lines are connected to a wire-wrap header to the right,
allowing easy access from the prototyping area. The Decoder Data and
TX ID lines are also available on the header as well as the PDN line from
the RF module. This allows complete control of the entire system from the
prototyping area, giving the designer a great deal of flexibility in using the
board.
The Power Supply
The power supply on the decoder board consists of a standard 9V battery
and power jack connected to a 3.0V voltage regulator. It can provide
approximately 500mA of current to the prototyping area, so if the added
circuitry needs more than this, the designer must add an external supply.
If the circuit consistently draws more than 100mA of current, it might be
better to use the power jack rather than the battery, as the battery may run
down fairly quickly, reducing testing and development time.
S4
S3
S1
S2
Figure 5: OTX-***-HH-KF#-MS Button Assignments
S4
S1
S3S5
S2
– –
4 5
Button Data Line
S1 D0
S2 D1
S3 D2
S4 D3
S5 D4
The jack accepts a standard 5.5mm plug with the tip ground and the outer
shell 7 to 16VDC positive supply. While a reverse voltage protection diode
has been included on the board to protect the circuitry in case the voltage
on the plug is reversed, it is still a good idea to double-check the polarity.
– –
Page 6
The RF Area

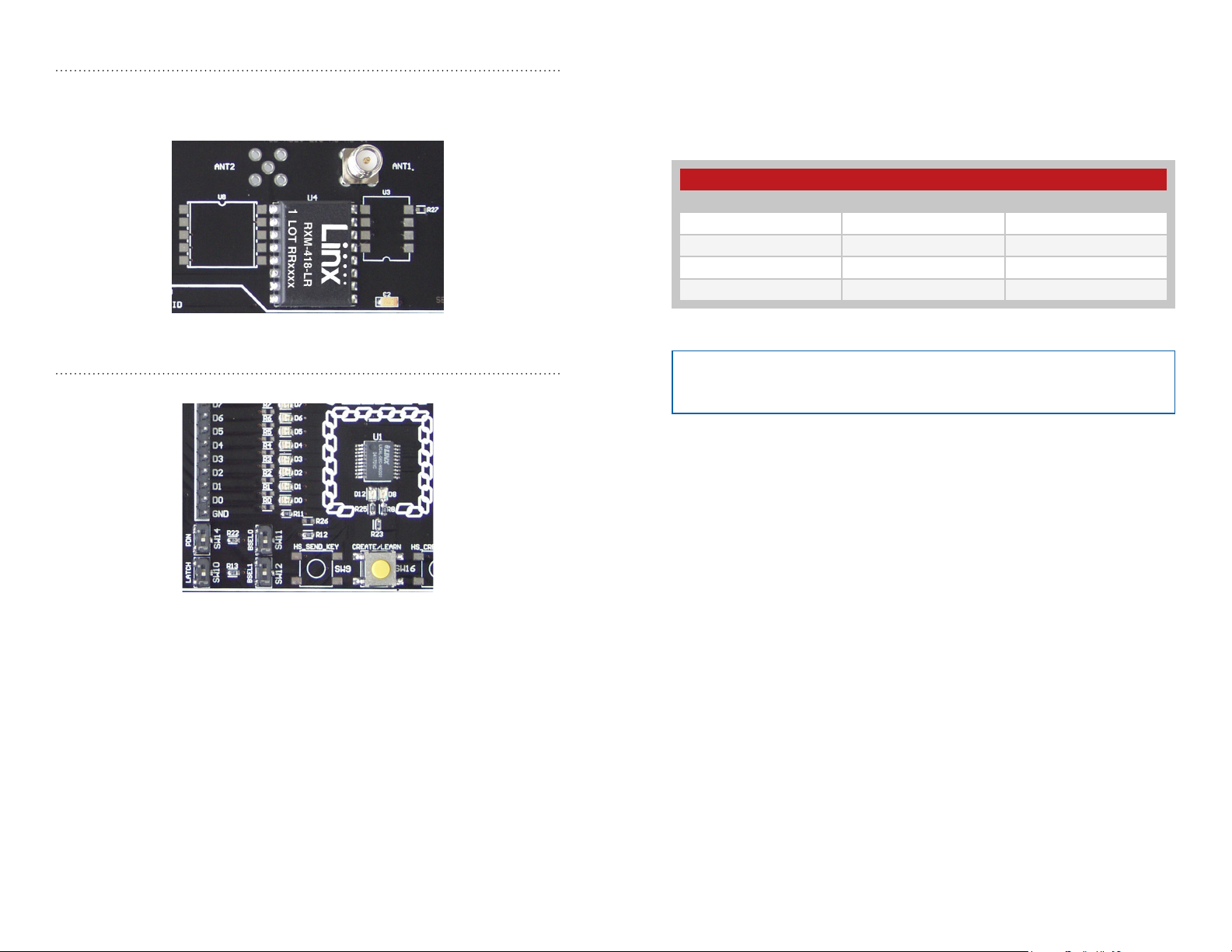

Figure 6 shows the RF area of the development board. The board uses the
LR Series receiver as shown. Attach the included antenna to the reverse
polarity SMA connector before operation.
There are four switches to the left of the CREATE / LEARN button. BSEL0
and BSEL1 are used to set the baud rate of the decoder as shown in
Figure 8. The Keyfob transmitter is set to 9,600bps, so BSEL0 should be
on and BSEL1 should be off. If the switch is up, then the line is high (on); if
down, then the line is low (off).
Baud Rate Selection
BSEL1 BSEL0 Baud Rate
0 0 2,400
0 1 9,600
1 0 19,200
1 1 28,800
Figure 6: The Decoder Board RF Area
The Decoder Area
Figure 7 shows the decoder area of the development board.
Figure 7: The Decoder Area
The decoder is in the center beneath the Linx logo. To the left are LEDs that
are connected to the decoder data lines. These light up when the decoder
receives a signal from the transmitter instructing it to take the data line high.
LED D0 corresponds to data line D0 and so forth.
Beneath the decoder are two LEDs. D12 is connected to the MODE_IND
line. D8 is connected to the RX_CNTL line and provides visual feedback
by lighting up when the decoder activates the receiver when in RX Control
Mode.
Figure 8: Baud Rate Selection
Note: The decoder board must be set to the same baud rate as the
transmitter in order for the signal to be received correctly.
The PDN switch connects the RX_CNTL line of the encoder to the PDN line
of the receiver so that the RX Control Mode can be tested. This mode is
described in the MS Series Decoder Data Guide.
The LATCH switch places the decoder into Latch Mode when on, so that
the data lines go high when a valid signal is received and stay high until
a second valid signal is received. If the switch is off, the data lines are
momentary.
Under the LEDs is a button that is connected to the LEARN line. This
button is used to learn the Address from the encoder as described in the
MS Series Decoder Data Guide.
– –
6 7
– –
Page 7
The USB Area
The decoder board has a Linx SDM-USB-QS-S USB module for use with
the included development software. This module is powered by the USB
bus, so it does not pull any current from the battery. Figure 9 shows this
section.
Figure 9: The Decoder Board USB Area
The microcontroller on the right monitors the data lines and generates
commands that are sent to the development software on the PC via the
QS Series USB module. The RX_IND LED to the left of the module flashes
to indicate that data is being received from the PC, and the TX_IND line
flashes to indicate that the module is sending data to the PC.
Installing the Software and Drivers
The Master Development System uses the QS Series USB module to
provide a simple serial interface to a PC via a USB connection. The module
requires drivers to be installed on the PC before it can function properly.
The QS Series drivers are included on the CD with the software.
The first time the QS module is plugged into the computer, Windows
displays the Found New Hardware Wizard, which guides you through
installing the drivers. Application Note AN-00201 describes the installation
of the drivers in detail. The drivers should be installed before running the
Development Software.
The MS Series Master Development Software automatically starts when the
CD is inserted and the player in Figure 10 appears.
Exit
Player Screen
The QS Series USB module provides a simple serial link to a PC via a
USB connection. It converts logic-level serial signals to USB-compliant
signals and vice versa, so it can be connected to virtually any serial device,
including microcontrollers, RS-232 / RS-485 level converters, or Linx RF
modules. It is completely self-contained, requiring only a USB type B jack,
and includes all necessary firmware and drivers.
– –
8 9
View Documentation
Install Software
Figure 10: Software Installer
Play Movie
Selection Keypad
Go to the
Linx Website
Clicking the Install Software button starts the Installation Wizard, which
guides you through the installation of the development software. The View
Documentation button shows a list of the application notes and manuals
related to the MS Series. Selecting one of these opens the file in Adobe
Acrobat. The Play Movie button plays a short video about Linx on the
Player Screen, which can be controlled with the Selection Keypad. Clicking
the button on the bottom right of the player opens the Linx Technologies
website in the computer’s default browser.
The View Documentation list allows for the installation of Adobe Acrobat
Reader so that the documents may be viewed. There is also the option
of installing Flash, which may be required if the Linx video does not play
correctly.
– –
Page 8
Master Development Software
LATCH
RA2/AN2
1
RA3/AN3
2
RA4/AN4
3
RA5/MCLR
4
GND
5
GND
6
RB0/INT
7
RB1
8
RB2/RX
9
RB3
10
RB4
11
RB5/TX
12
RB6/AN5
13
RB7/AN6
14
VCC
15
VCC
16
RA6
17
RA7
18
RA0/AN0
19
RA1/AN1
20
U7
PIC16LF88
GND
VCC
GND VCC
GND
GND
GND
GND
GND
D7
D4
TX_ID
D6
D3
D0
D1
D2 D5
DATA_PC
PDN
DEC_DATA
GND
GND
VCC
RF1ES RF
1
GND
2
NC
3
GND
4
VCC
5
LR PDN
6
LR RSSI
7
LR DATA
8
NC
9
ES AUDIO REF
10
ES AUDIO
11
ES DATA
12
ES RSSI
13
ES PDN
14
GND
15
LR RF
16
U4
RXM-XXX-LR
RXM-XXX-ES
GND
PDN
DEC_DATA
RF2
ANT1
REVSMAPCB
GND
RF1
ANT2
REVSMAPCB
GND
RF2
DATA_PC
5V
1
DAT -
2
DAT+
3
GND
4
GSHD
5
GSHD
6
J2
USB-B
USBDP
1
USBDM
2
GND
3
VCC
4
SUSP IND
5
RX IND
6
TX IND
7
485 TX
8
DTR
9
CTS
10
RTS
11
DATA OUT
12
DATA IN
13
DSR
14
DCD
15
RI
16
U5
SDM-USB-QS
GND
GND
GNDGND
R9
200
D11
RX_IND
R10
200
D10
TX_ID
B1
9V BATTERY
GND
SW15
POWER SWITCH
GND
+
C1
220uF
GND
VCC
C2
10uF
GND
VCC
D9
DIODE400
Vb
SW Vb
Va
J1
PWRJACK
GND
GND
1
Vout
2
Vin
3
U2
VREG-3V
VREG-5V (ES RX ONLY)
PDN
1
LVL/AM
2
VCC
3
GND
4
DATA
5
/CLK
6
/CLK SEL
7
LV DET
8
GND
9
RF
10
U8
TXM-xxx-ES
GND
VCC
DATA_OUT
PDN RF2
GND
VCC
GND
1
DATA IN
2
GND
3
LADJ/VCC
4
RF OUT
5
GND
6
VCC
7
PDN
8
U3
TXM-xxx-LR
GND
VCC
GND
GND
DATA_OUT
PDN
RF1
R27
620ohm

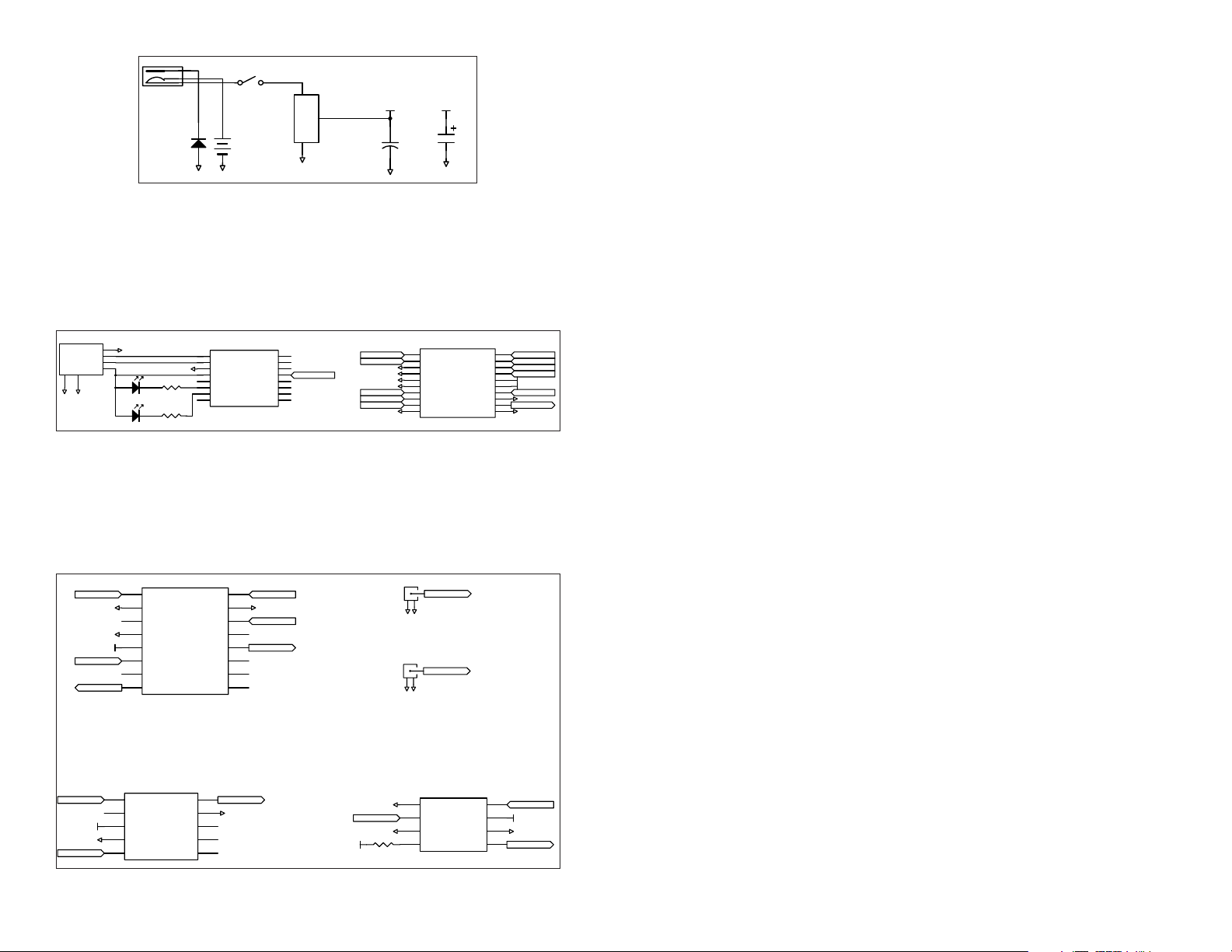

POWER SUPPLY SECTION
USB SECTION
RF SECTION
This software is designed to give a complete understanding of how the MS
Series encoders and decoders work together, as well as providing an idea
of how they can be used in a system.
The Master Development software can be used in one of two modes.
The default mode is a software simulation of the system and does not
require any hardware. It simulates two handheld transmitters as well as two
receiving devices. This is a good way of showing how the MS Series can
work in a system by turning on lights and opening doors.
VCC
D5
S6D6S7
D7D4D6
D4S3D3S2D2S1D1S0D0
S5
D5
D5
S4
VCC
VCC
D3D0D1
D2
D2D3D4
VCC
VCC
D0
D1
SEND/DEC_DATA_IN
CREATE/LEARN
SW16
R23
100K
GND
R26
0K
DEC_DATA
SEND
D7
The second mode is for use with the Master Development System. When
the decoder board is plugged into a USB port on the PC, the transmitter
can be used to activate the features in the software. If the LEDs on the
evaluation board turn on, then the LEDs in the program turn on and
activate the corresponding data line function.

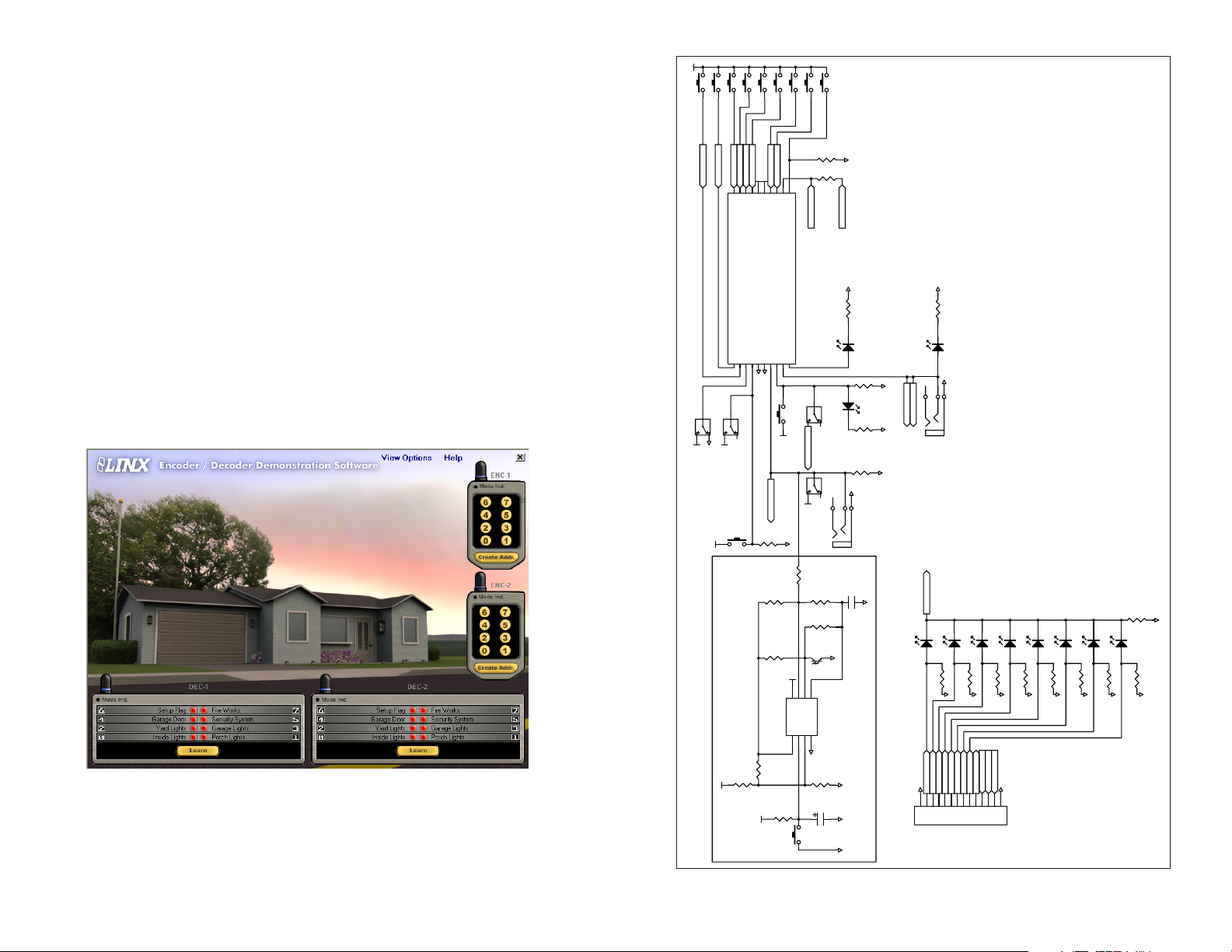

Figure 11 is a screen shot of the program set up in Software Operation
Mode for simulating the operation of the system.
Figure 11: MS Encoder / Decoder Demonstration Software
The transmitters are on the right hand side and the receivers are at the
bottom. Complete instructions for using the software can be found by
clicking on the Help label at the top right of the window.
– –
10 11
U1
D6D7SEL_BAUD0
SEL_BAUD1/HSE_GND/HSD_SEND_KEY
GND
GND
SW11
SEL_BAUD0
SW12
VCC
GND
VCC
HS-ENC
VCC
VCC
SW9
HS_SEND_KEY
R15
SEL_BAUD1
R17
9.1M
VCC
Figure 12: Encoder / Decoder Section
GND
200
R25
GND
KEY_IN/MSE_GND/MSD_LATCH
TX_CNTL/MSD_RX_CNTL/HSD_CREATE_KEY
DATA_OUT/MSD_TX_ID/HSD_KEY_OUT
GND
SW13
VCC
LATCH
R12
100k
R21
100K
R19
10K
U6
9.1M
R14
5.1M
D12
MODE_IND CREATE_ADDR/DEC_LEARN
LICAL-XXX-MS
LICAL-XXX-HS
TX_EN
D8
SW14
PDN
HS_CREATE_KEY
GND
R28
VCC
7
8
VCC
AOUT
1
SW8
COUT
AIN-2AIN+3GND
PDN
R13
SW10
10K
6
SW-PB
GND
LATCH
VCC
J5
HS_KEY_IN
C5
0.01uF
R18
9.1M
R20
51K
IR1
PS1102
GND
5
CIN-
CIN+
TLV2302
4
GND
R16
9.1M
GND
C4
4.7uF
GND
GND
MODE_IND
R22
100k
R8
200
100k
GND
GND
R24
150 ohm
IR2
IR KEY_OUT
GND
GND
GND
GND
TX_ID
DATA_OUT
J4
SEND
D0_INDD1D1_IND
D0
R0
100KR1100KR2100KR3100KR4100KR5100K
GND
D3D0D1D2D5
1011121314
J3
– –
HSD_KEY_OUT
GND
9
D2_INDD3D3_INDD4D4_INDD5D5_INDD6D6_IND
D2
GND
GND
GND
D7D4D6
DEC_DATA
PDN
DATA_OUT
TX_ID
1
2345678
CON14
GND
200
R11
GND
D7_IND
D7
100K
R6
100K
GND
R7
GND
GND
GND
Page 9
B1
9V BATTERY
GND
SW15
POWER SWITCH
GND
+
C1
220uF
GND
VCC
C2
10uF
GND
VCC
D9
DIODE400
Vb
SW Vb
Va
J1
PWRJACK
GND
GND
1
Vout
2
Vin
3
U2
VREG-3V
VREG-5V (ES RX ONLY)
POWER SUPPLY SECTION
USB SECTION
LATCH
RA2/AN2
1
RA3/AN3
2
RA4/AN4
3
RA5/MCLR
4
GND
5
GND
6
RB0/INT
7
RB1
8
RB2/RX
9
RB3
10
RB4
11
RB5/TX
12
RB6/AN5
13
RB7/AN6
14
VCC
15
VCC
16
RA6
17
RA7
18
RA0/AN0
19
RA1/AN1
20
U7
PIC16LF88
GND
VCC
GND VCC
GND
GND
GND
GND
GND
D7
D4
TX_ID
D6
D3
D0
D1
D2 D5
DATA_PC
DATA_PC
5V
1
DAT -
2
DAT+
3
GND
4
GSHD
5
USBDP
1
USBDM
2
GND
3
VCC
4
SUSP IND
5
RX IND
6
TX IND
7
485 TX
8
DTR
9
CTS
10
RTS
11
DATA OUT
12
DATA IN
13
DSR
14
DCD
15
RI
16
U5
SDM-USB-QS
GND
GND
R9
200
D11
RX_IND
R10
200
D10
TX_ID
B1
9V BATTERY
GND
SW15
POWER SWITCH
GND
+
C1
220uF
GND
VCC
C2
10uF
GND
VCC
D9
DIODE400
Vb
SW Vb
Va
J1
PWRJACK
GND
GND
1
Vout
2
Vin
3
U2
VREG-3V
VREG-5V (ES RX ONLY)
POWER SUPPLY SECTION
USB SECTION
RF SECTION
J2
USB-B
GNDGND
Figure 14: USB Section
J1
Va
SW Vb
Vb
GND
POWER SWITCH
B1
9V BATTERY
GND
PWRJACK
D9
DIODE400
Figure 13: Power Supply Section
SW15
U5
1
USBDP
2
USBDM
3
GND
GND
4
VCC
5
SUSP IND
R9
6
RX IND
7
200
TX IND
8
485 TX
SDM-USB-QS
R10
200
DATA OUT
DATA IN
RI
DCD
DSR
RTS
CTS
DTR
6
GSHD
4
GND
GND
3
DAT+
2
DAT -
1
5V
GSHD
5
D11
RX_IND
D10
TX_ID
VREG-3V
3
VREG-5V (ES RX ONLY)
Vin
2
U2
Vout
GND
1
GND
16
15
14
13
DATA_PC
12
11
10
9
VCC
C1
+
220uF
GND
D3
D2 D5
GND
GND
GND
GND VCC
D1
D0
TX_ID
GND
1
2
3
4
5
6
7
8
9
10
U7
RA2/AN2
RA3/AN3
RA4/AN4
RA5/MCLR
GND
GND
RB0/INT
RB1
RB2/RX
RB3
PIC16LF88
VCC
GND
Notes
C2
10uF
20
RA7
RA6
VCC
VCC
RB5/TX
RB4
D4
19
18
D6
17
D7
16
VCC
15
14
LATCH
13
GND
12
DATA_PC
11
GND
RA1/AN1
RA0/AN0
RB7/AN6
RB6/AN5
U4
GND
GND
VCC
1
2
GND
3
NC
4
GND
5
VCC
6
LR PDN
7
LR RSSI
8
LR DATA
RXM-XXX-LR
RXM-XXX-ES
ES PDN
ES RSSI
ES DATA
ES AUDIO
ES AUDIO REF
RF2
PDN
DEC_DATA
U8
1
VCC
GND
PDN
2
LVL/AM
3
VCC
4
GND
5
DATA
TXM-xxx-ES
PDN RF2
DATA_OUT
Figure 15: RF Section
GND
LV DET
/CLK SEL
/CLK
10
RF
9
8
7
6
LR RF
GND
NC
GND
16
15
14
13
12
11
10
9
RF1ES RF
GND
PDN
DEC_DATA
ANT1
REVSMAPCB
RF1
GND
ANT2
DATA_OUT
R27
620ohm
GND
GND
REVSMAPCB
GND
U3
1
GND
2
DATA IN
3
GND
4
LADJ/VCC
TXM-xxx-LR
RF2
8
PDN
PDN
7
VCC
VCC
6
GND
GND
5
RF OUT
RF1
VCC
– –
12 13
– –
Page 10
Resources
Support
For technical support, product documentation, application notes, regulatory
guidelines and software updates, visit www.linxtechnologies.com
RF Design Services
For customers who need help implementing Linx modules, Linx offers
design services including board layout assistance, programming,
certification advice and packaging design. For more complex RF solutions,
Apex Wireless, a division of Linx Technologies, creates optimized designs
with
RF components and firmware selected for the customer’s application. Call
+1 800 736 6677 (+1 541 471 6256 if outside the United States) for more
information.
Antenna Factor Antennas
Linx’s Antenna Factor division has the
industry’s broadest selection of antennas
for a wide variety of applications. For
customers with specialized needs, custom antennas and design services
are available along with simulations of antenna performance to speed
development. Learn more at www.linxtechnologies.com.
by
(This page is intentionally blank.)
– –
14 15
– –
Page 11
Linx Technologies
159 Ort Lane
Merlin, OR, US 97532
Phone: +1 541 471 6256
Fax: +1 541 471 6251
www.linxtechnologies.com
Disclaimer
Linx Technologies is continually striving to improve the quality and function of its products. For this reason, we
reserve the right to make changes to our products without notice. The information contained in this Data Guide
is believed to be accurate as of the time of publication. Specifications are based on representative lot samples.
Values may vary from lot-to-lot and are not guaranteed. “Typical” parameters can and do vary over lots and
application. Linx Technologies makes no guarantee, warranty, or representation regarding the suitability of any
product for use in any specific application. It is the customer’s responsibility to verify the suitability of the part for
the intended application. NO LINX PRODUCT IS INTENDED FOR USE IN ANY APPLICATION WHERE THE SAFETY
OF LIFE OR PROPERTY IS AT RISK.
Linx Technologies DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL LINX TECHNOLOGIES BE LIABLE FOR ANY OF CUSTOMER’S INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING IN ANY WAY FROM ANY DEFECTIVE OR NON-CONFORMING PRODUCTS
OR FOR ANY OTHER BREACH OF CONTRACT BY LINX TECHNOLOGIES. The limitations on Linx Technologies’
liability are applicable to any and all claims or theories of recovery asserted by Customer, including, without
limitation, breach of contract, breach of warranty, strict liability, or negligence. Customer assumes all liability
(including, without limitation, liability for injury to person or property, economic loss, or business interruption) for
all claims, including claims from third parties, arising from the use of the Products. The Customer will indemnify,
defend, protect, and hold harmless Linx Technologies and its officers, employees, subsidiaries, affiliates,
distributors, and representatives from and against all claims, damages, actions, suits, proceedings, demands,
assessments, adjustments, costs, and expenses incurred by Linx Technologies as a result of or arising from any
Products sold by Linx Technologies to Customer. Under no conditions will Linx Technologies be responsible for
losses arising from the use or failure of the device in any application, other than the repair, replacement, or refund
limited to the original product purchase price. Devices described in this publication may contain proprietary,
patented, or copyrighted techniques, components, or materials. Under no circumstances shall any user be
conveyed any license or right to the use or ownership of such items.
©2014 Linx Technologies. All rights reserved.
The stylized Linx logo, Wireless Made Simple, WISE, CipherLinx and the stylized CL logo are trademarks of Linx Technologies.
Loading...
