Linsar LS58UHDSM20 User Manual

58"

Ultra HD

Smart TV

MODEL: LS58UHDSM20

User Manual

Welcome

Welcome to Linsar!

This user manual tells you all you need to know about setting up your new TV.

Please take special note of any important safety and usage information presented with the symbol.

All products brought to you by Linsar are manufactured to the highest standards of performance and safety
and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive
1 Year Warranty.

2

Contents

Welcome 2

Contents 3

Unpack and Prepare 4

What's in the box 4

Important Tips 5

Attaching the stand 6

Wall-mounting the TV 7

Connect to power 8

Connect your antenna 8

Controls and Connections 9

Get to know your TV 9

Buttons on the TV 9

Ports on the TV 10

Remote Control 12

Setup 12

Using the Remote Control 13

Remote Control 14

On-Screen Set Up 16

Networking 17

Connecting to a Wireless Network 17

Connecting to a Wired Network 18

TV Setting Menus 19

Picture 21

Sound 22

Function 23

PVR Settings 24

Time 26

Option 27

Lock 28

Channel 29

QMenu 31

High Dynamic Range (HDR) 32

Smart TV 33

Smart TV Applications 33

Screencast 34

App Portals 34

TV Guide 35

PVR Recording 36

Recording Live TV 37

Scheduled recording 37

Playback 37

Pause Live TV (Time-shift) 38

USB Mode 39

Set up 39

Troubleshooting 42

Specifications 45

Compliance and Responsible Disposal 46

3

Unpack and Prepare

What's in the box

Before installing your new TV, check you have
everything needed.

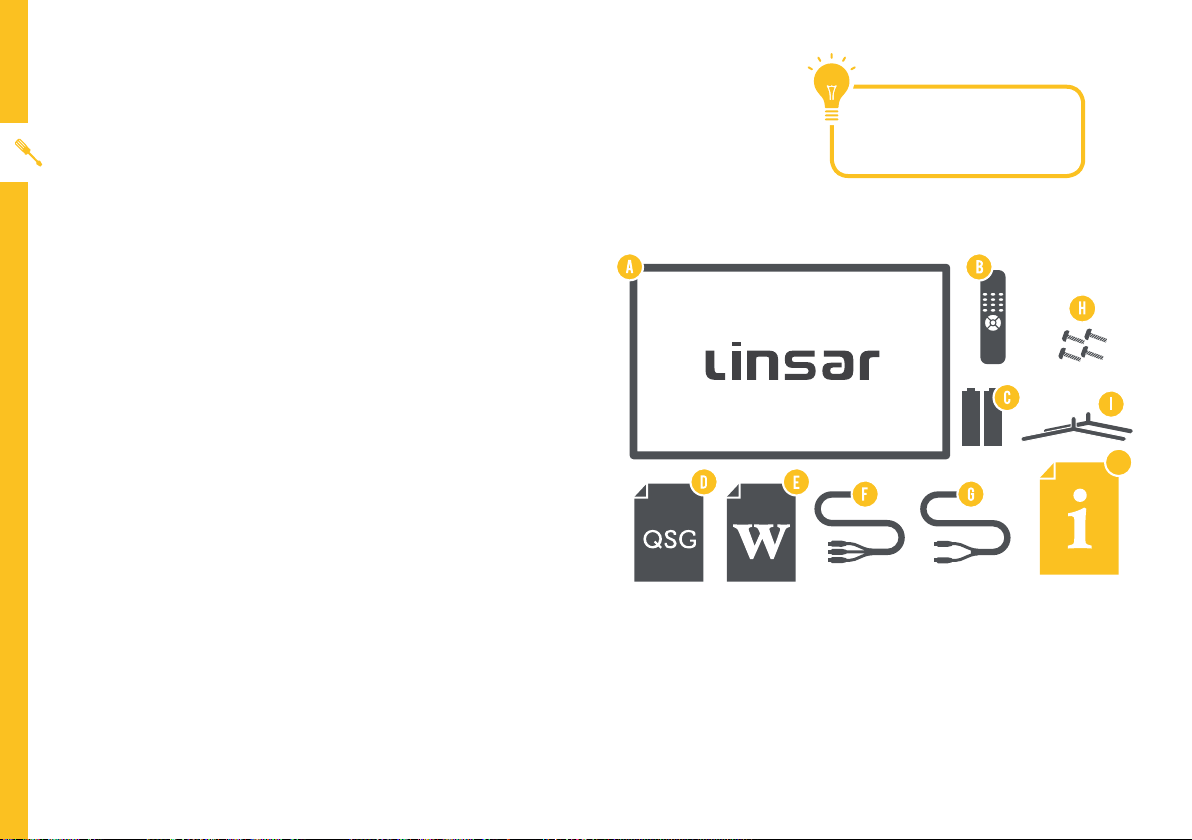

In the box you will find:

A. UHD Smart TV

B. Remote Control

C. AAA Batteries

D. Quick Start Guide

E. Warranty Card

F. Mini Video Adapter

G. Mini Audio Adapter

H. Screws (for the stands)

I. Stands

J. User Manual

See the flap of the box
for how to handle the TV
without damaging it!

J

You will need:

• Phillips-head screwdriver (for stand installation)

• Someone to help you lift and install your TV

4 | UNPACK AND PREPARE

• Broadband internet (to access Smart TV apps)

• Antenna cable (to watch live TV)

Important Tips

• Place the TV on a level surface.

• Place the TV away from any source that may generate heat or vibrations.

• Make sure there is enough space around vents for airflow.

• The remote control works up to 5 metres away from the TV.

• Unplug the TV before cleaning it.

• Clean using a dry cloth only - do not use water or chemicals.

• Use only the power supply provided.

• It is highly recommended to use safety straps for securing the TV in place.

• Keep liquid, children and pets away from the TV at all times.

UNPACK AND PREPARE | 5

Attaching the stand

1

• This TV is heavy! We recommend asking
someone to help you lift it.

• Unplug the TV from the power outlet before
installing or removing the stand.

• DO NOT place the TV standing upright without
its stand attached; it could damage the remote
sensor at the bottom of the TV.

• Only touch the frame, not the screen.

2

• It is highly recommended to use safety straps
for securing the TV.

Unless you are wall-mounting the TV, you will need to
attach its stand/legs.

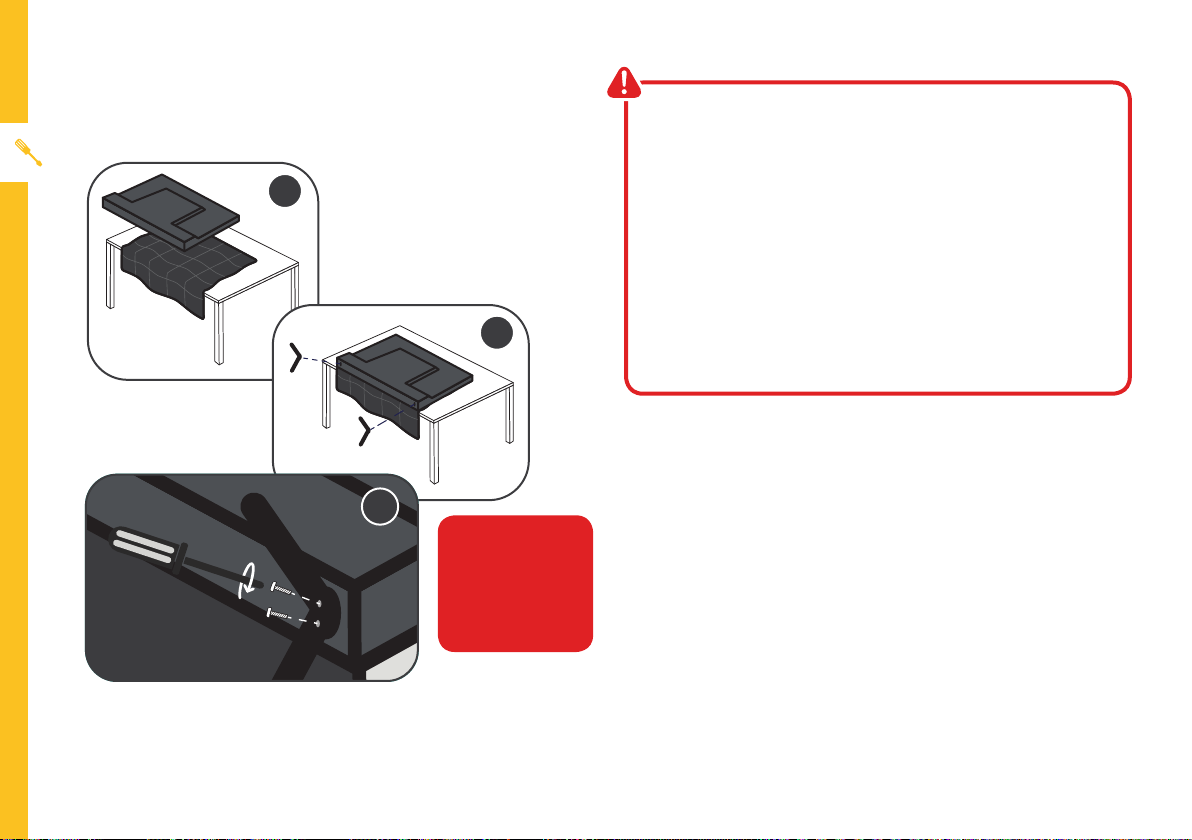

1. Lay the TV face-down on a soft, flat surface (like

3

the sofa, or a towel on a table).

6 | UNPACK AND PREPARE

CAUTION!

Do not apply

excessive force as

you might damage

the screw holes.

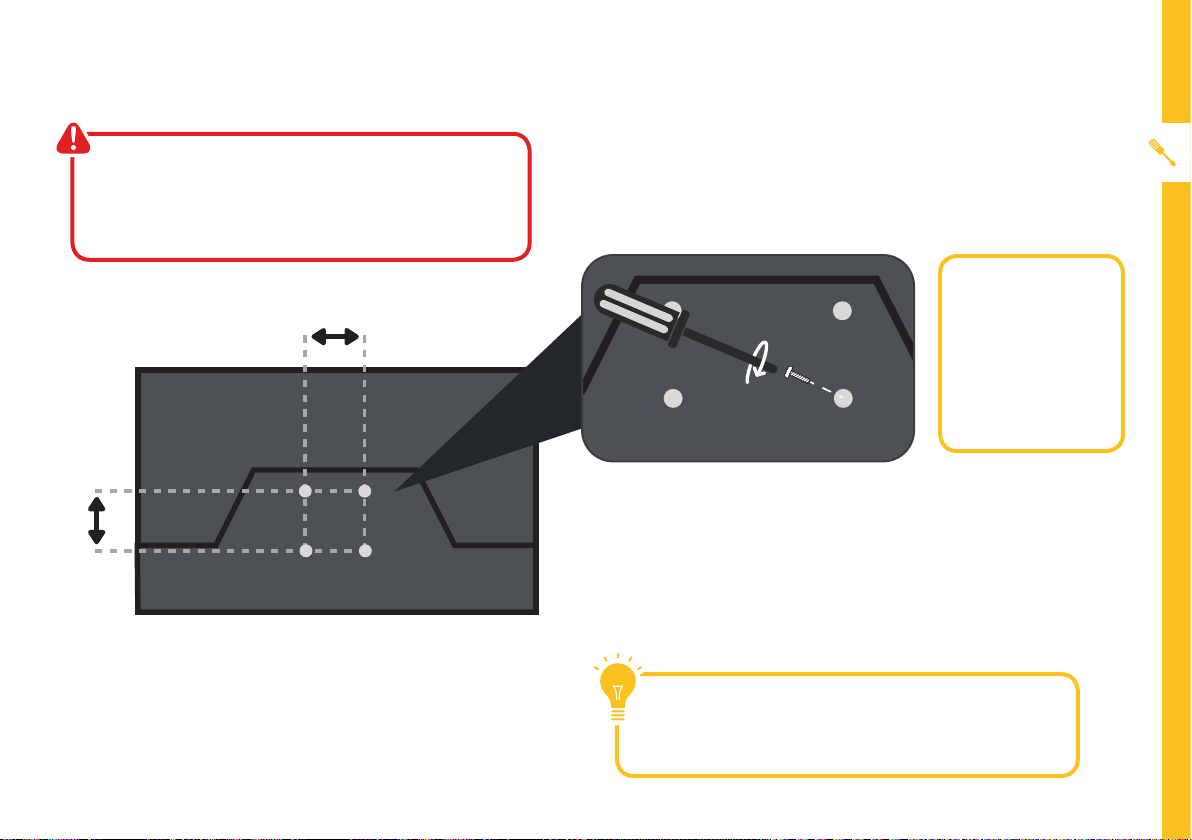

2. Match the legs to the installation points on the
underside of the TV.

3. Attach the stand to the TV at the installation
points using the screws provided. (Grab a
screwdriver for this bit).

Wall-mounting the TV

• Unplug the TV from the power outlet
before wall-mounting.

• Contact a professional for assistance with
wall-mounting the TV.

Required:

200mm

200mm

Back of the TV

• VESA Mounting
Bracket

• 4 x M6*8mm
screws (or
longer as
required)

The TV comes with holes on the back panel for use
with wall-mounting brackets (bracket not included).

Use four standard M6*8mm screws (or longer,
depending on the mounting bracket) to wall-mount
this TV (screws are not included).

The screws in the package are for securing the TV
stand only. If you are wall-mounting the TV, consult a
qualified installer for advice on bracket support and
wall support.

UNPACK AND PREPARE | 7

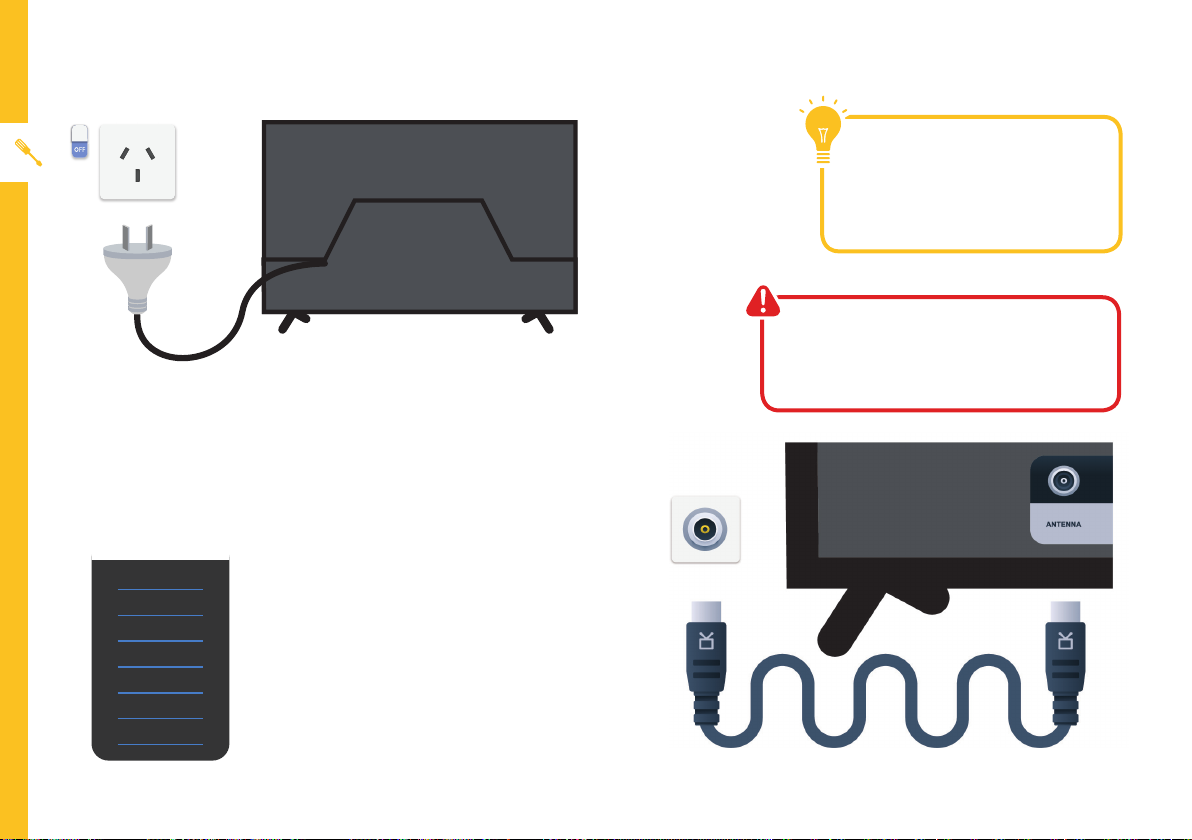

Connect to power

Example

Connect your antenna

Free-to-air TV in HD (High Denition)

High Definition (HD) channels
provide the best viewing quality
and are available with a digital
antenna connection.

TV channels in Ultra HD resolution are
not currently available in Australia.
Therefore when you watch HD
broadcast signals on an Ultra HD TV,
the picture can appear 'soft' and lacks
the detail you see when watching the
same content on an HD TV.

HD Channels

ABC HD

SBS ONE HD

7HD

9HD

10 HD

PRIME7 HD

WIN HD

Don't forget to plug in the
TV to the power outlet. Leave
the power switched off until
installation is finished.

Make sure the TV is switched off at
the power outlet until you have finished
connecting your cables.

Antenna cable not included.

8 | UNPACK AND PREPARE

Controls and Connections

Get to know your TV

On/Standby indicator and
Remote sensor

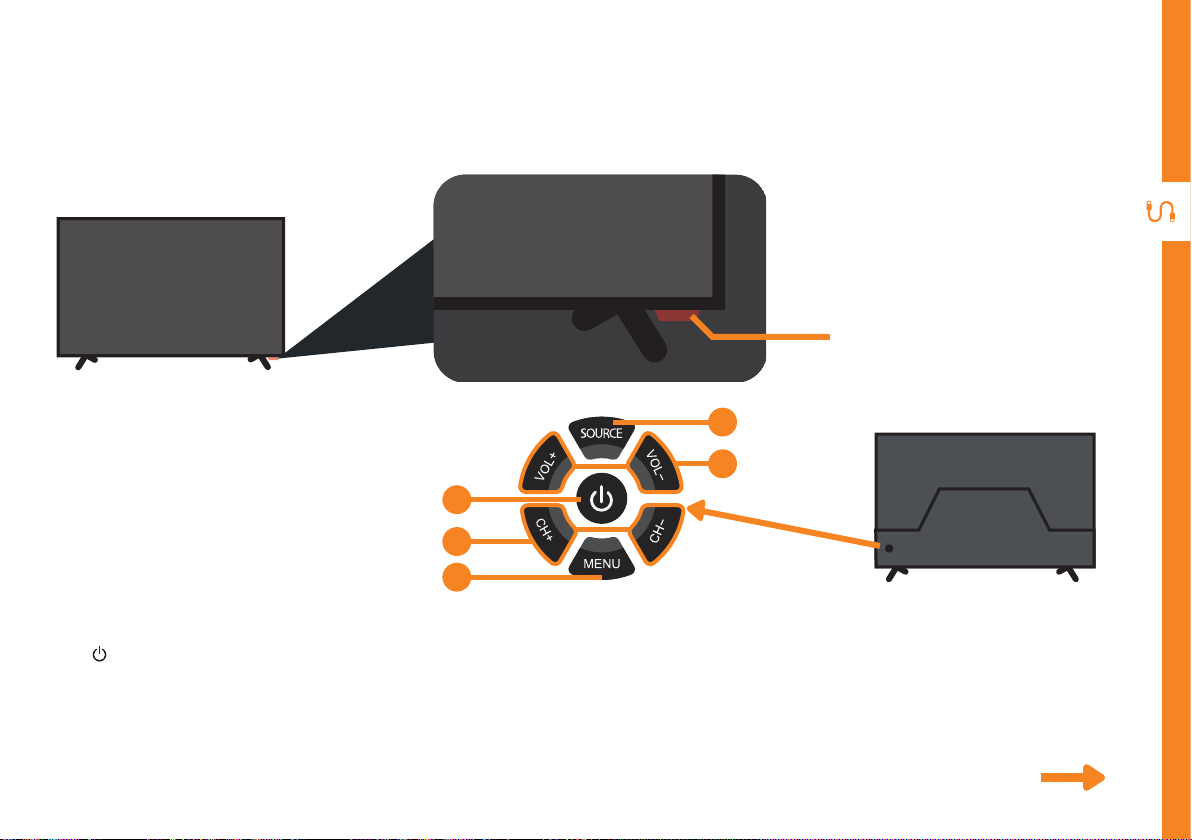

Buttons on the TV

1

2

3

1. (ON/OFF): Switch the TV to On or Standby.

2. CH + / CH - : Select the next or previous channel,
or move up or down.

3. MENU: Enter the settings menu.

5

4

4. VOL + / VOL - : Increase or decrease the volume
level, or move left or right.

5. SOURCE: Select the input source.

See next page for more info on the connections.

CONTROLS AND CONNECTIONS | 9

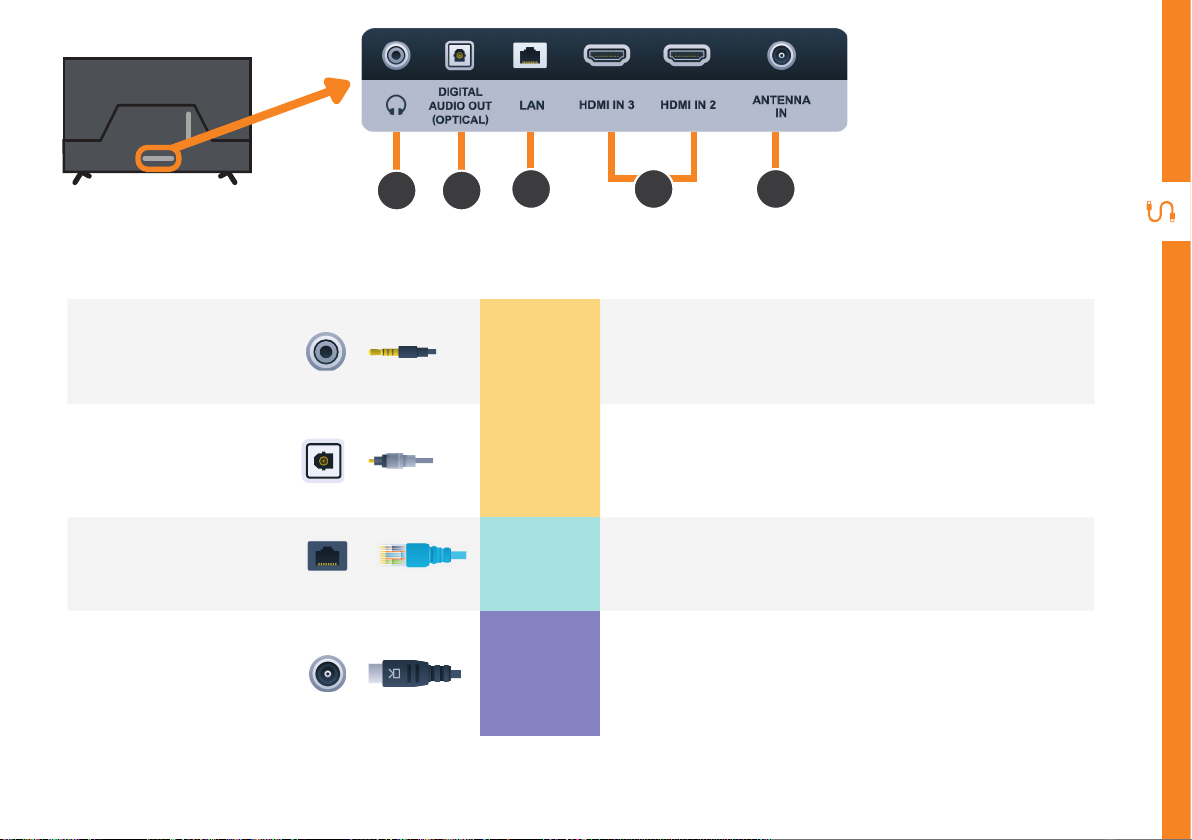

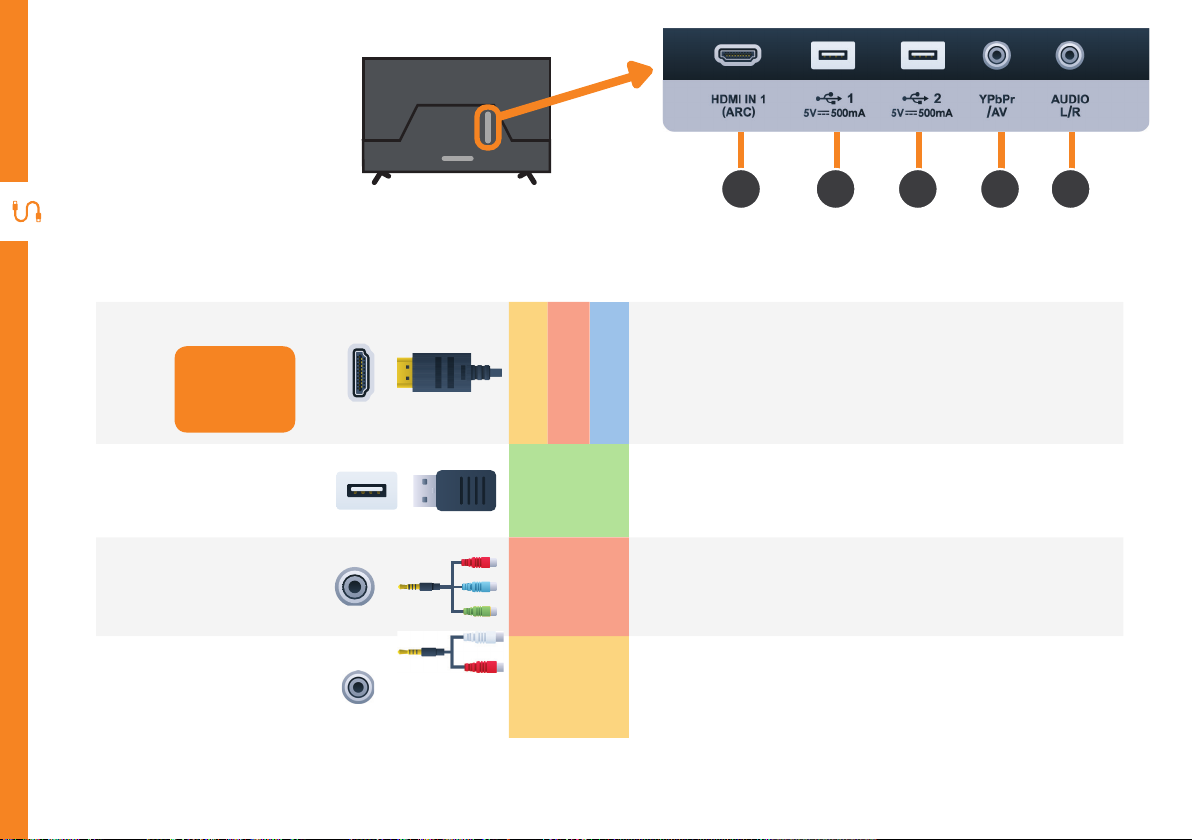

Ports on the TV

HDMI

Use a high

1

2

3

speed HDMI
cable for best
picture and
sound quality.

USB

YPbPr/AV

SOUND


STORAGE


1 2 2 3 4

All-digital connection between the TV and any HDMI device.
Supports 4K UHD. Requires an HDMI cable (not included).

COMPUTER

Plug in a USB stick/drive to PVR record and pause live TV. Play
media files stored on your USB storage device (supported file
codecs and extensions may vary). Update the TV software via
USB.

You can use this to connect your DVD player. Supports HD
Definition picture quality. (Mini Video adapter included.) Use
the green socket for AV connection. You will also need to use
the Mini Audio adapter for audio input (included).

4

10 | CONTROLS AND CONNECTIONS

Audio L/R

SOUND

You can use this to connect audio from your DVD player using
the Mini Audio adapter (included).

5

6

7 1

8

Headphone

5

Digtal Audio

6

Out (Optical)

7

8

Jack

LAN

Antenna

SOUND

SOUND

INTERNET

TV

FREE-TO-AIR

Connect to your headphones, amplifier, soundbar or audio
device, using an AUX cable (not included).

Connect an external digital audio device. Use an Optical cable
(not included) to connect the unit with an amplifier, soundbar
or other audio decoding device for digital audio signal output.

Connect to your broadband modem using a network cable
(not included).

Connect your antenna for live TV. (Antenna cable not
included.)

CONTROLS AND CONNECTIONS | 11

Remote Control

AAA size
batteries
included

Setup

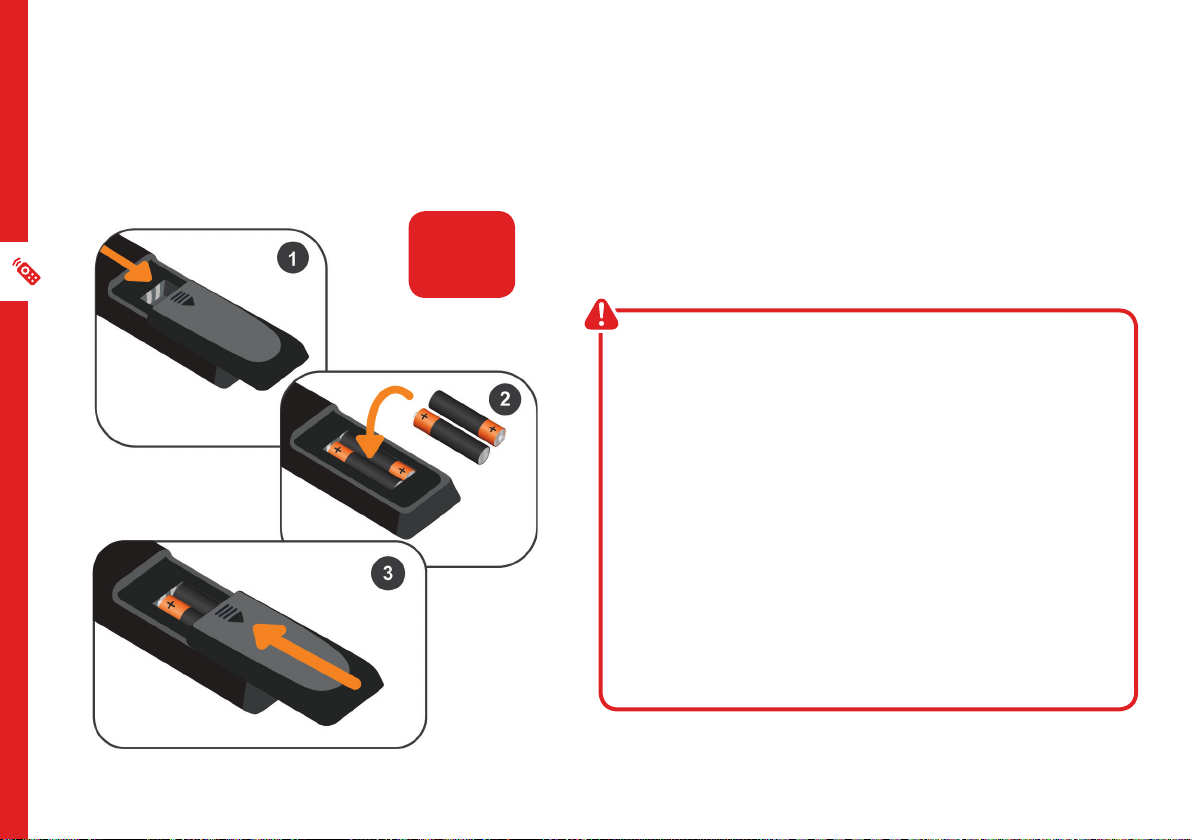

Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure
the batteries are correctly aligned and properly
pushed into place.

Precautions When Using Batteries

• Do not use old and new batteries together.

• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.

• Remove the batteries from the remote if you do
not intend to use it for a long time.

• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.

• Keep batteries away from children and pets.

• Never throw batteries into a fire or expose them
to extreme heat.

12 | REMOTE CONTROL

Using the Remote Control

To use the remote, point it towards the remote sensor
at the front of the TV. The remote will not operate if its
path is blocked.

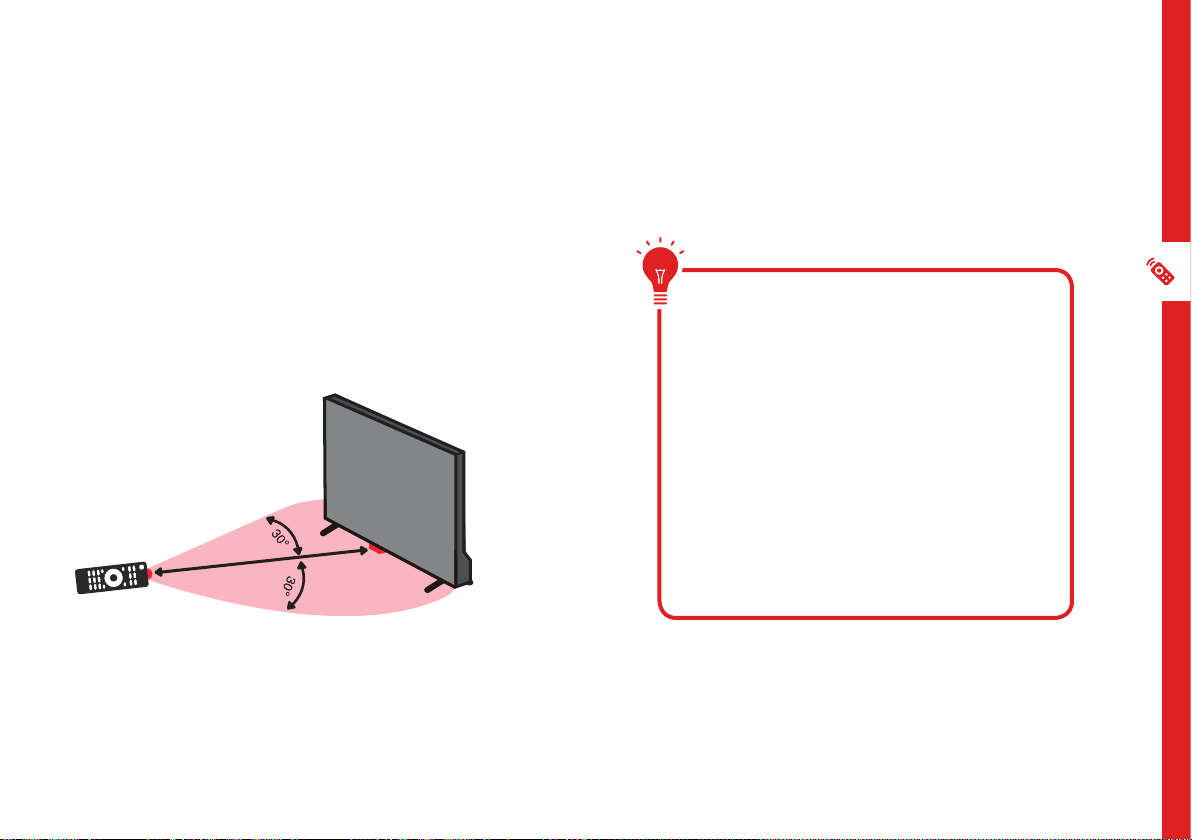

The remote has a range of up to about 5 metres from
the TV at an angle of up to 30 degrees to either side of
the sensor, as illustrated below.

Image is an
example

5m

only.
Remote
sensor
location on
TV may vary.

Remote Hints and Tips

• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.

• Do not place objects between the
remote control and the remote
sensor.

• Do not use this remote control
while simultaneously operating a
remote control for other devices.

REMOTE CONTROL | 13

Remote Control

1 2

4

7 8

INFO

QMENU

MENU EXIT

GUIDE

3

5

6

9

AUDIO

0

OK

LIST

SOURCE

REC

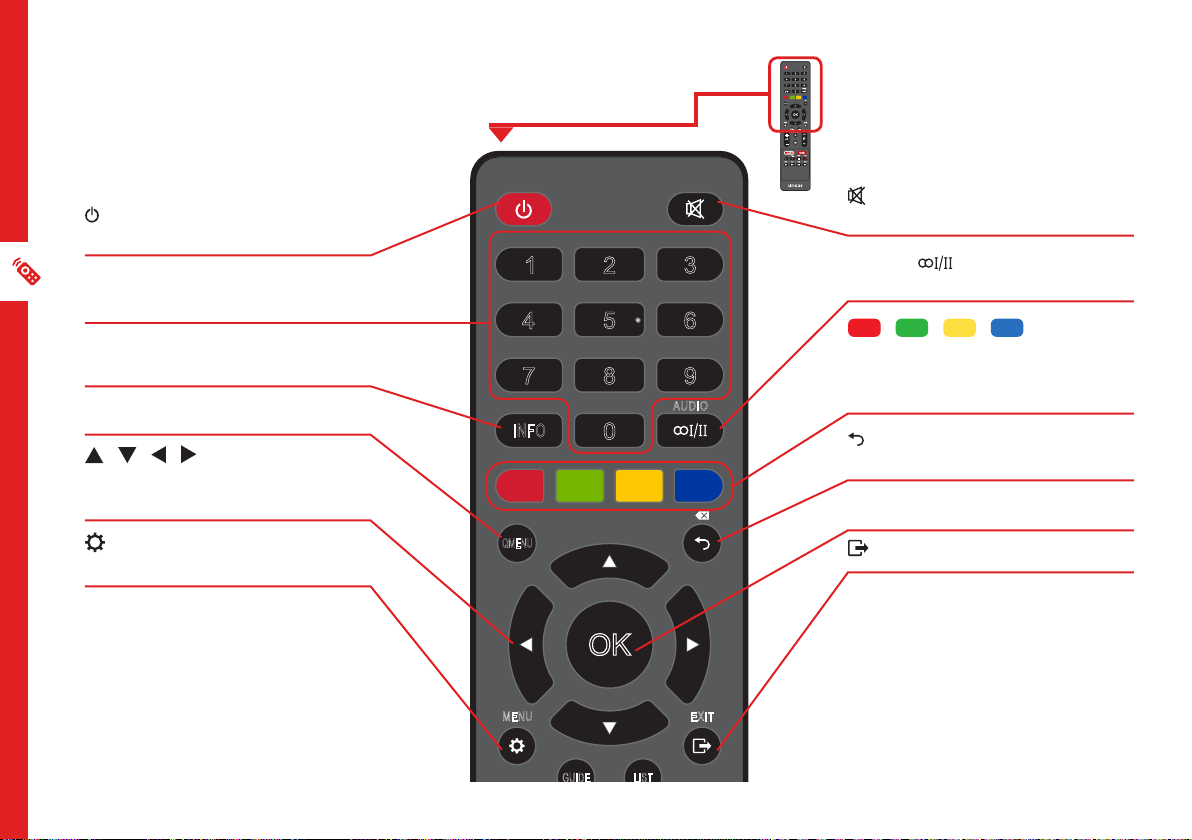

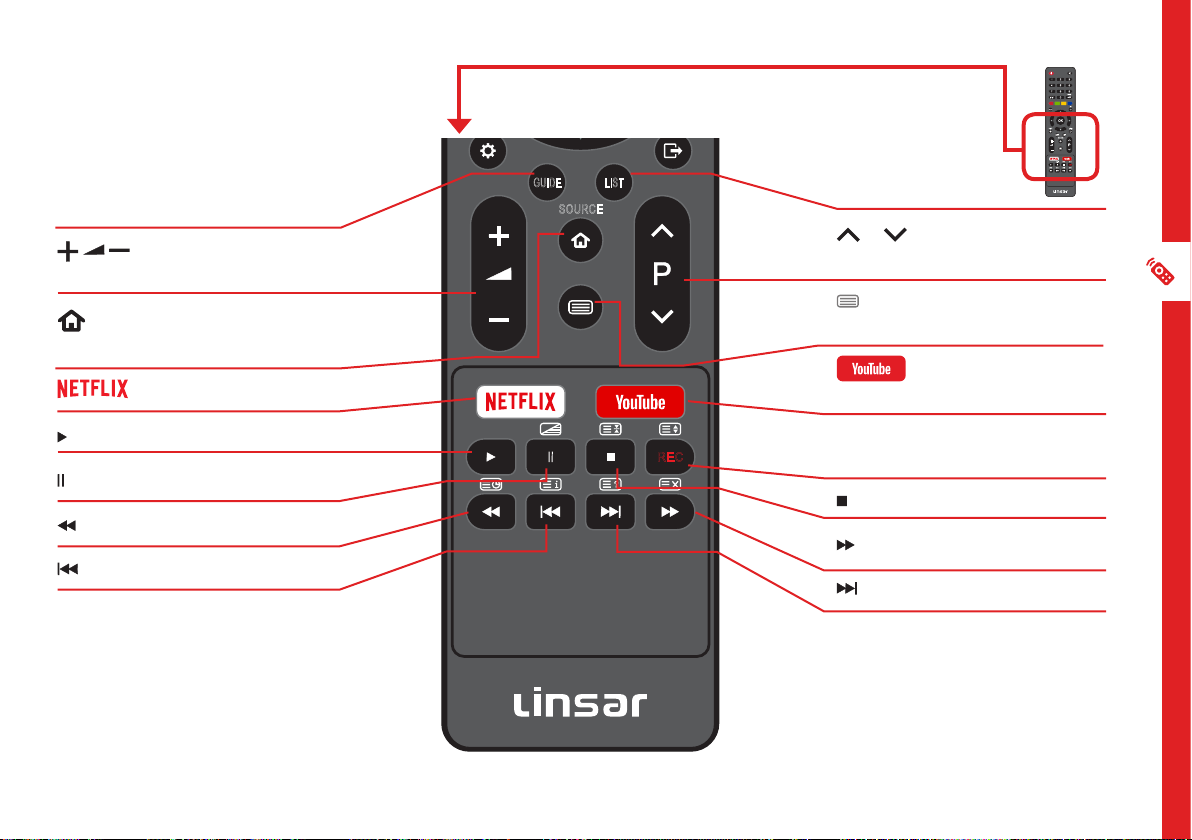

ON: Switch the TV to On or

Standby.

NUMBER BUTTONS: Key in a
TV channel number.

INFO: Display program
information.

QMENU: Enter the Quick Menu.

/ / / : Press the UP/

DOWN/LEFT/RIGHT buttons to
navigate.

(MENU): Enter the main

settings menu.

14 | REMOTE CONTROL

1 2

4

7 8

IN FO

QMENU

5

0

3

6

9

AU DI O

OK

ME NU EX IT

GU ID E

LI ST

SO UR CE

(MUTE): Mute or restore

sound.

AUDIO : Select an audio
language (if available).

/ / / RED/

GREEN/YELLOW/BLUE:
Functions are according to the
on-screen display.

: Return to the previous screen

or channel.

OK: Confirm your selection.

: Exit/Quit the current screen.

QMENU

GUIDE: Launch the TV Guide.

: Turn the volume up or

down.

(SOURCE): Access the input

source and smart apps list.

: Launch the Netflix app.

OK

ME NU EX IT

GU ID E

LI ST

SO UR CE

LIST: Display or exit
the channel list.

P : Go to the next or

previous channel.

: Teletext (not available in

Australia).

: Launch the YouTube

app.

1 2

4

7 8

INFO

QMENU

MENU EXIT

GUIDE

3

5

6

9

AUDIO

0

OK

LIST

SOURCE

REC

: Play.

: Pause.

: Rewind.

: Skip backwards.

RE C

REC (RECORD): Record a TV

program.

: Stop.

: Fast forward.

: Skip forwards.

REMOTE CONTROL | 15

On-Screen Set Up

Make sure equipment is properly connected (as shown on
pages 10-11) before connecting the TV to power.

On/Standby light is RED
in standby mode.

On/Standby light is off
when the TV is on.

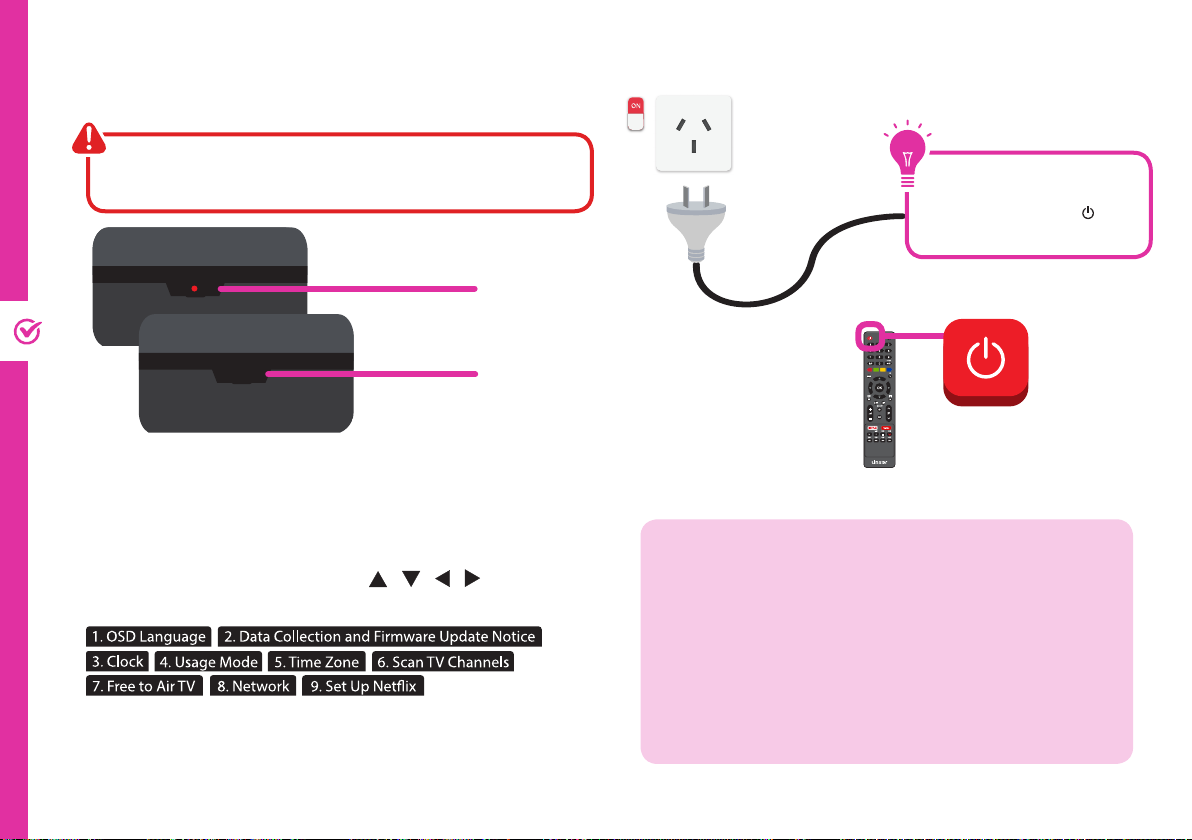

First Time Setup menu

When you turn the TV on for the first time, the First Time
Setup menu will appear.

Follow the prompts using the / / / / OK buttons to
select your preferences. You will be guided through:

If you make an error, you can update your preferences in
the settings menu later.

Make sure the TV is plugged
in at the power socket and
switched on. Press the (ON)
button to turn on the TV.

3

1 2

5

6

4

7 8

9

AUDIO

INFO

0

QMENU

OK

MENU EXI T

GUIDE

LIST

SOURCE

REC

If you are using a wired network, connect an ethernet cable
to the TV and select 'LAN'. The TV will automatically connect
to the Internet.

If you are using a wireless connection, select 'Wi-Fi'. The TV
will scan for nearby wireless networks. Make sure that the
TV is within the range of your wireless modem/router, and
you have your Wi-Fi password handy.

Or, you can connect to the internet later by going to the
User Menu settings.

16 | ON-SCREEN SET UP

Networking

You can set up your TV so that it can access the Internet
through your home network using a wired or wireless
connection.

Connecting to a Wireless Network

• Press the MENU button on the remote to select

Option > Network Configuration.

• Select the Wi-Fi tab, then select 'Scan AP'. The TV
will automatically search nearby Wi-Fi access points.
When done, it will display a list of available networks.

• In the list of networks, press the / button to select
your home network, then press the OK button.

• When the Wi-Fi password entry screen appears, press
the OK button to bring up the on-screen keyboard.

Use the / / / buttons on the remote control to
select a character and press OK to enter it.

• Input the correct password, select 'Return' and press
OK to close the on-screen keyboard. Select ‘Connect’
and press the OK button to connect to the network. If
conection is successful, a tick will appear next to your
Wi-Fi networks's name.

If the TV isn't
connecting to the
internet check the
troubleshooting
section for more info!

NETWORKING | 17

Connecting to a Wired Network

• Connect an ethernet cable to the LAN port on the
back of the TV.

• Press the MENU button on your remote to
select Option > Network Configuration.

• Change the Connection Type setting to 'LAN'. The
TV will automatically pick up the network setting
from the modem and connect to the network. If
connection is successful, you will see 'Connected'
on-screen.

• Enter your personal network settings, select
'Connect' and press OK. If connection is
successful, you will see 'Connected' on-screen.

• Press the EXIT button to close the menu.

Make sure you have
an ethernet cable on
hand if you want to
connect to a wired
network

18 | NETWORKING

TV Setting Menus

Menu Navigation Buttons

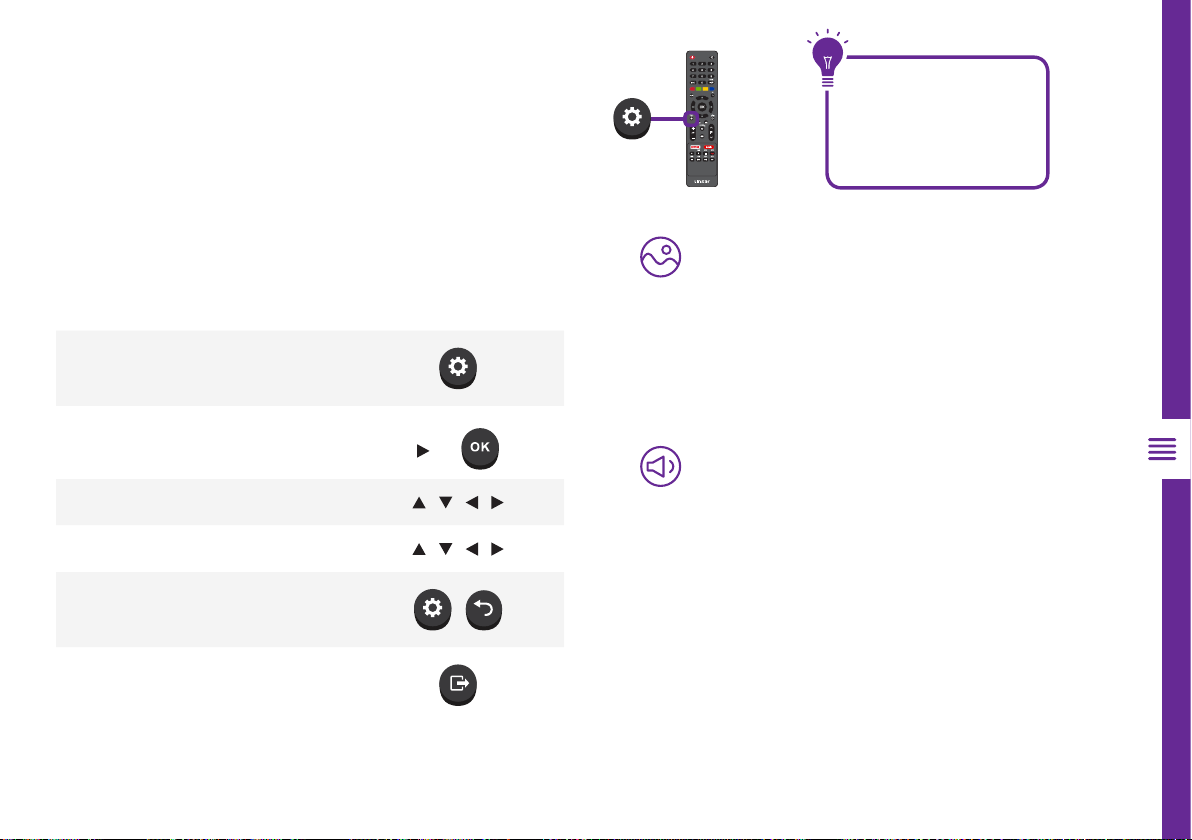

Press the MENU button to display the TV settings
menu. See the guide below for all the other buttons
you'll need to use to adjust and change your settings.

3

1 2

5

6

4

7 8

9

AUDIO

INFO

QMENU

MENU EXI T

GUIDE

0

OK

LIST

SOURCE

REC

Once you have
programmed any settings,
the unit will retain them
in its memory until you
change them, even after
turning the TV off.

Menus Index

Picture 21

Function Remote Button

Display the main menu

Enter a sub menu

Select an option

Adjust a value

Return to the previous menu

Exit a menu

OR

/ / /

/ / /

/

• Picture Mode

• Picture Settings:

• Contrast, Brightness, Colour,
Sharpness, Tint

• Backlight

• Colour Temp

Sound 22

• Sound Mode

• Equaliser

• Balance

• AVL

• Surround Sound

• AD Switch

• Digital Audio Output

• Audio Language

• DAP

• Audio Type

TV SETTING MENUS | 19

Function 23

• Noise Reduction

• MPEG Noise Reduction

• Aspect Ratio

• PVR File System

• HDMI_CEC

• HDR

• HDMI EDID

• Netflix deactivate

• Terminate Netflix

• Netflix ESN

• Netflix version

PVR Settings 24

• Select disk

• Time Shift Size

• Format

• Speed Check

Time 26

• Off Time

• On Time

• Sleep Timer

• Auto Sleep

• Auto Sync

• Clock

• Time Zone

Option 27

• OSD Language

• OSD Time

• Reset

• Network Configuration

• Software Update

• Internet Update Check

• Usage Mode

• Info

• Network Update
Information

• View End User License

• Subtitle

• HBBTV

Lock 28

• Lock System

• Set Password

• Parental Guidance

Channel 29

• Auto Tuning

• Program Edit

• DTV Manual Search

• ATV Manual Search

• Signal Information

• Software Update (OAD)

• OAD Scan

QMenu 31

Q

20 | TV SETTING MENUS


Picture Mode

Dynamic

Bright Room

Personal

: Enhanced brightness with lower contrast, colour depth and edges.

Home

: Default picture settings for viewing in a home environment.

: Enhanced picture brightness for bright home environments

: Adjust settings to best suit your viewing environment and content.

Personal Mode settings

Option Description

To adjust the
brightness, change
the Picture Mode to
User and modify the
Brightness setting.

Contrast

Brightness

Colour

Sharpness

Tint

Adjust the contrast of the bright and dark areas of the picture. The closer to 100, the higher the contrast.

Adjust the overall screen brightness. The closer to 100, the brighter the picture.

Adjust the saturation. The closer to 100, the deeper the colour.

Adjust the sharpness of the picture. The closer to 100, the sharper and clearer the image.

Adjust the colour balance between red and green. (Only available with NTSC video standard. Australia uses PAL video
standard.)

Backlight

Adjust the screen brightness by adjusting the backlight. The closer to 100, the brighter the screen.

Colour Temp

Adjust the on-screen colour temperature.

TV SETTING MENUS | 21

Sound

Option Description

Sound Mode

Equaliser

Balance

AVL

Surround
Sound

AD Switch

Digital Audio
Ouput

Audio
Language

DAP

Audio Type

22 | TV SETTING MENUS

Standard Music Movie Sports Personal

Adjust selected audio frequencies. This is only adjustable in "User" mode

Adjust the audio output between the left and right speakers.

Adjust the increase or decrease of audio when you change channels, video sources or
content.

Adjust surround sound effect from your TV speakers.

Audio Description (AD) provides an additional audio track for visually challenged
persons (DTV only, subject to programme).

Set the digital audio output. Options: Auto, PCM.

Set the first and second audio language.

Turn Dolby Audio Process Settings On or Off.

Adjust hearing impaired or visual impaired settings.

Want to set

up your TV

with HDMI-

ARC? See

page 25 for

details.

Function

Option Description

Noise
Reduction

MPEG Noise
Reduction

Aspect ratio

PVR File
System

HDMI_CEC

HDR

HDMI EDID

Netflix
deactivate

Terminate
Netflix

Netflix ESN

Netflix version

Reduces screen noise/static.

Reduces MPEG (video) noise to improve picture quality.

Adjust the video size. The available video size may be different for different input source.

See the next page for more details.

See page 25 for more details.

Turn HDR On/Off

Send the TV resolution info to your connected HDMI devices.

Logout of your Netflix account

If you select yes, Netflix will clear pre-existing login information, and will launch as first time use (note that the app takes longer
to initialise upon first start-up).

Check the Netflix ESN number.

Check the Netflix software version.

TV SETTING MENUS | 23

PVR Settings

To make changes to PVR (Personal Video Recording), ensure your USB drive is
inserted into the TV. Check the troublehsooting section if you're having problems
setting up your USB device.

Option Description

Select Disk

Time Shift Size

Format

Speed Check

24 | TV SETTING MENUS

Select a disk used for PVR.

Select the memory size for the Time Shift function.
Options: 512MB, 1 GB, 2GB, 4GB.

Format the connected USB disk. USB device (WARNING: this will delete all data on the device!)

Checks the speed of the storage device.

HDMI CEC Setup

This feature allows for your TV and your connected HDMI device to be controlled by one
remote control. It also means you can turn them both on or off simultaneously.

Press the SOURCE button on the unit or remote control to select the HDMI input source.

Option Description

Enable Link

Auto Power On

Auto Standby

HDMI-ARC

Turn HDMI CEC On/Off.

When this is set to On, turning on the TV will also turn on the connected device.

When this is set to On, turning off the TV will also turn off the connected device.

If this function is enabled, sound from the TV can be sent to an HDMI-ARC supported external
audio device.

TV SETTING MENUS | 25

Time

Option Description

Off T ime

On Time

Sleep Timer

Auto Sleep

Auto Sync

Clock

Time Zone

Schedule when the TV will automatically turn Off.

Schedule when the TV will automatically turn On.

Select the desired Auto Sleep (Standby) duration.

Options:

Turn On/Off to set the TV to sleep after 10 minutes of no signal.

If enabled, this will automatically set the time based on DTV.

Manually adjust the time.

Adjust your timezone.

26 | TV SETTING MENUS

Option

Option Description

OSD Language

OSD Time

Reset

Network Configuration

Software Update

Internet Update Check

Usage Mode

Info

Network Update
Information

View End User License

Subtitle

HBBTV

Select the system language

Select the duration of the On Screen Display.

Reset your TV back to factory defaults.

Settings for your network configuration.

Update the TV software via USB.

Check online for TV software updates.

Change between Home and Store modes

Display the Network Update Information

Check for OTA software update.

View the usage license.

Change subtitle settings

Turn HBBTV functionality On/Off

Keep it simple for easy
setup!
If an item isn't required,
just leave it on the default
setting.

TV SETTING MENUS | 27

Lock

Enter the factory password '0000' using the number buttons
on the remote and select 'OK' on-screen. If you changed
your password but forgot it, you can still use the master
password.

Option Description

Factory Password: 0000

Master Password: 4711

Lock System

Set Password

Parental

Guidance

28 | TV SETTING MENUS

Turn system lock on/off.

Enter the old password, then enter your new password twice. Select 'OK' on-screen
to confirm.

This item is used to block access to specific program ratings. See options below.

Channel

Option Description

Auto Search

Program Edit

DTV Manual
Search

ATV Manual
Search

Signal
Information

Software
Update (OAD)

OAD Scan

Automatically tunes all available free-to-air TV channels. Adjust settings (default
settings are set for Australia), select 'Search' and press OK.

See the next page for more information.

Manually select the broadcast channel frequency and tune digital TV channels.

Manually select and tune analog TV channels. (Analog TV is no longer supported
in Australia.)

Display current signal information (DTV mode only).

When there is a special broadcast stream, upgrade software will be automatically
detected and updated.

Search for channel information under all frequency points.

TV SETTING MENUS | 29

Program Edit

Press MENU then select Channel > Program Edit then use the / buttons to highlight a channel.

Option Description

Delete

Block

Skip

Fav

Menu

Info

30 | TV SETTING MENUS

Press RED to delete the highlighted channel.

Press GREEN to block a channel.

Press BLUE to skip the highlighted channel.

Press YELLOW add a channel to the favourites list.

Press MENU to exit the menu

Press INFO to move the channel up or down. Use / to move it to the position
you want, then press INFO to save the new location.

QMenu

The QMenu gives you access to selected menu settings without the hassles of

navigating through the full menu. Press on your remote to access this.

Q

Option Description

Audio Languages

Picture Mode

Sound Mode

Aspect ratio

Sleep Timer

Select the audio language

Select the picture best suited to the content you are viewing.

Dynamic Home PersonalBright Room

Select the sound mode best suited to the content you are viewing.

Standard Music Movie Sports Personal

Adjust the video size. The available video size may be different for different input source.

Set the sleep timer. The TV will turn off after the specified time has elapsed.

TV SETTING MENUS | 31

High Dynamic Range (HDR)

About the HDR feature

High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are
perceived in real life by the human eye.

By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then
combining several different exposures.

HDR promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and
other improvements.

It delivers the look that the filmmakers intended to achieve, showing the hidden areas of dark shadows and
sunlight with full clarity, colour and detail.

HDR on your TV

HDR is supported in HDMI and USB input sources and by Netflix app.

When the TV is displaying HDR media, the information banner (press the INFO button on the remote) will
display ‘HDR’.

NOTE: When watching HDR content, make sure the Menu > System > HDMI-EDID setting is set to 4K. This
requires an HDR playback-capable external media player and HDR optimised media content. Use a High-Speed
HDMI cable when connecting to an external media player.

32 | TV SETTING MENUS

Smart TV

Smart TV Applications

Before you start using apps, your TV must be
connected to the internet.

The speed of your internet connection determines
the quality of your audio/video experience when
you watch streaming content.

Accessing internet content may count towards
your download limit and may incur fees from
third parties such as your internet service provider
(ISP).

Function Remote Button

Display the Home/App screen

Select different Apps

Open your desired App

/

• Netflix

• YouTube

• Twitter

• Facebook

You cannot download any extra apps on this TV.

Netflix is a streaming service that offers unlimited
viewing of a wide variety of award-winning TV shows,
movies and documentaries.

A paid subscription is required.

This TV can play Netflix content in 4K UHD resolution,
however the playback resolution may be lower
depending on your subscription level and your
network speed.

Streaming Netflix content will count towards the data
usage of your broadband plan.

• Screencast

• NetRange app portal

• Foxxum app portal

• Zeasn app portal

SMART TV | 33

Screencast App Portals

The Screencast feature enables you to echo the
display from a compatible Android device like a
smartphone or tablet on the TV screen by connecting
your mobile device directly to the TV wirelessly. In
order to use this feature, your device must support
Wi-Fi Display technology.

Apple iOS operating system is not supported.

To start using the Screencast feature, select the
Screencast icon and press OK to load the app.

Turn on Wi-Fi and Wireless Display (a.k.a. Wi-Fi
Display, Wi-Fi Direct, Cast Screen) function on your
smart phone or tablet (Please refer to your device’s
user manual for information on how to turn on
wireless display).

Your mobile device will display a list of available
devices. Choose the DeviceID name shown on
the bottom right corner of the TV and click on it to
connect.

NetRange, Foxxum and Zeasn app portals gives
you access to number of other content and service
providers.

Some apps may require a paid subscription.

Streaming content will count towards the data
usage of your broadband plan.

Your mobile device will connect to the TV and will
display the device screen on the TV.

Use your device to disconnect.

34 | SMART TV

TV Guide

(Free to air TV)

TV Guide Functions

Function Remote Button

Select a Channel, Time or
Programme

Schedule selected programme for
recording

View the list of programs scheduled
for recording

Show program information INFO

Set program reminder

Exit TV Guide menu

/ / /

RED

BLUE

To access the TV guide, press the
Guide button on the remote.

To activate the TV Channels use
the / buttons to select a
channel in the left column, then
press OK to confirm.

1 2

4

7 8

INFO

QMENU

MENU EXI T

GUIDE

3

5

6

9

AUDIO

0

OK

LIST

SOURCE

REC

TV GUIDE | 35

PVR Recording

Important Tips:

• Back-up your personal data before plugging in your USB to the TV. We do
not assume liability for any loss of data due to misuse or malfunction.

• You cannot change channels while in recording mode.

• If the signal is interrupted while in recording mode, the recording will stop
until the signal is established.

• Do not turn the TV off while it is in time-shift mode.

• The file recorded can only be used on this TV. Do not copy it to any other
device.

Back-up your
personal data
before inserting
into the TV.

• When connecting or disconnecting the USB storage device, ensure the TV
is not in USB mode, otherwise the USB device or the files stored on it may
be damaged.

36 | RECORDING AND USB MODE

1 2

3

4

5

7 8

0

AUDIO

6

9

INFO

1 2

3

4

5

7 8

0

AUDIO

6

9

INFO

QMENU

OK

1 2

3

4

5

7 8

0

AUDIO

6

9

INFO

QMENU

OK

Before you can record with this TV
(including time-shift recording), you
must insert your USB storage device
into the USB port.

Recording Live TV

MENU EXI T

GUIDE

LIST

SOURCE

REC

MENU EXI T

GUIDE

LIST

SOURCE

REC

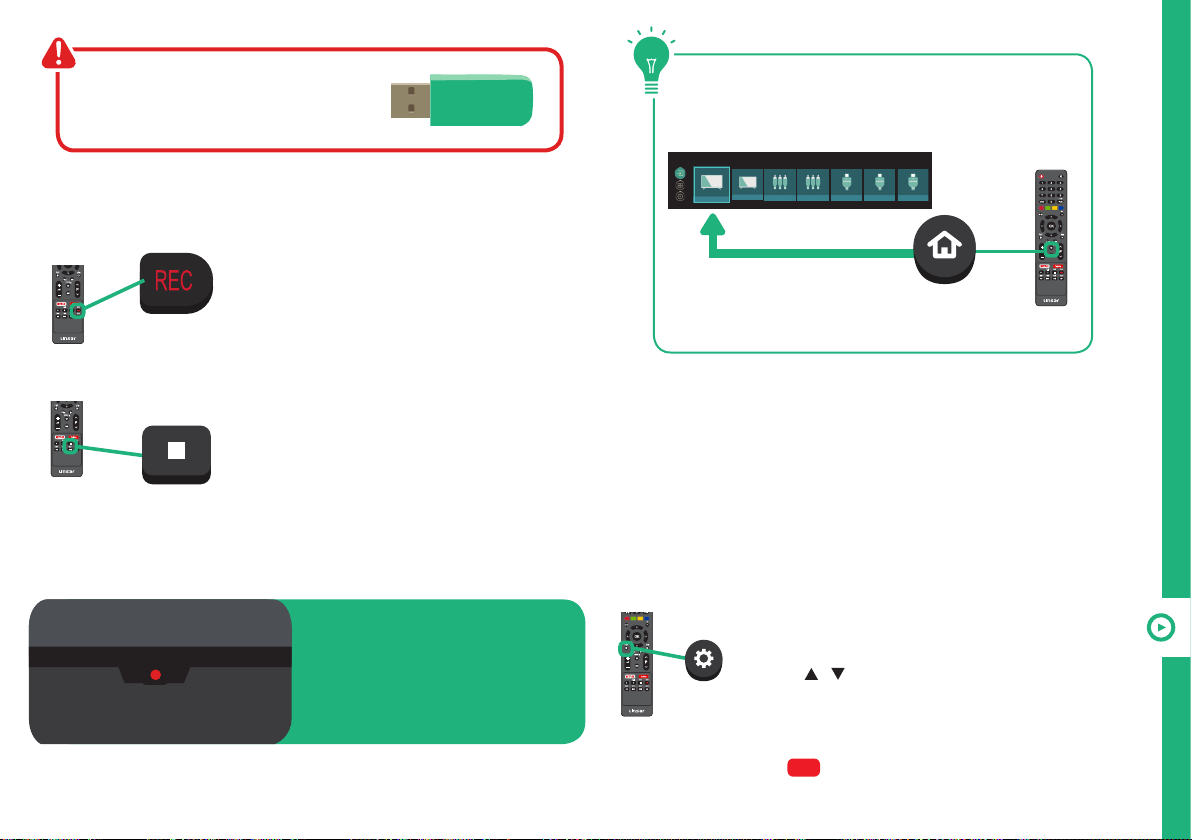

Start Recording

Press REC - display the dialogue box.

Select START RECORD and press OK to
start recording.

Stop Recording

Press STOP once - display the dialogue
box.

Select YES to stop recording.

Select NO to continue recording.

When a program is being
recorded in the background
(while the TV is in standby
mode), the Standby/ON
light will flash red.

Recording, scheduled recording and pause
live TV functions only work in DTV mode
(free-to-air).

SOURCE

3

1 2

5

6

4

7 8

ATV

Component

DTV

AV

HDMI1H DMI2

HDMI3

INFO

QMENU

MENU EXI T

GUIDE

9

AUDIO

0

OK

LIST

SOURCE

REC

Scheduled recording

See TV Guide Functions on page 35 to schedule
recordings and manage schedules.

Playback

Press the REC button to show the PVR Options

QMENU

MENU EXI T

GUIDE

OK

LIST

SOURCE

REC

menu. Select 'Recorded Files' to display the list
of recorded programs.

Use the / buttons to select a recorded file.

Press the OK button to start playback in Full
Screen Mode.

Press RED to delete the selected file.

RECORDING AND USB MODE | 37

1 2

3

4

5

7 8

0

AUDIO

6

9

INFO

QMENU

OK

MENU EXI T

Pause Live TV (Time-shift)

1 2

3

4

5

7 8

0

AUDIO

6

9

INFO

QMENU

OK

MENU EXI T

Temporarily pause the live TV signal, then resume
playback at your convenience.

Recording, scheduled recording and pause
live TV functions only work in DTV mode
(free-to-air).

Before you can record with this TV
(including time-shift recording), you
must insert your USB storage device
into the USB port.

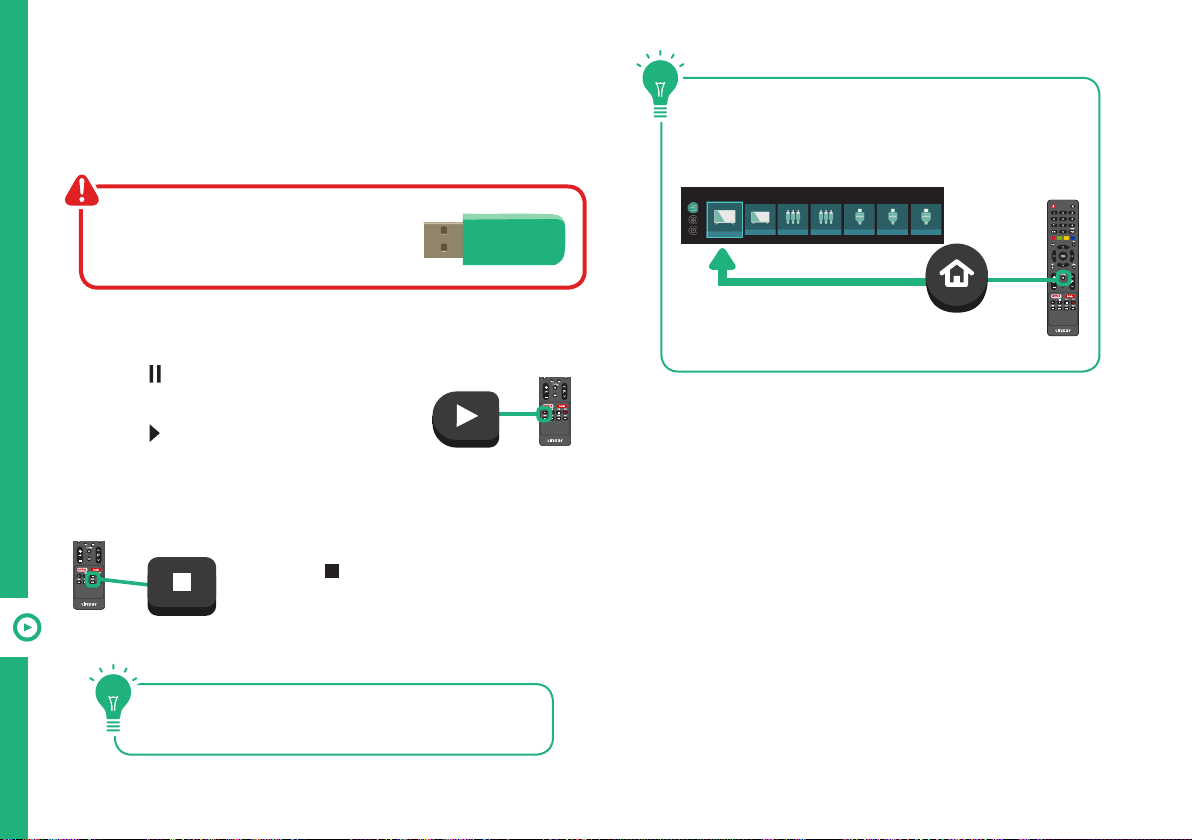

Start Time-shift

Press the button on the remote to
enter time-shift mode.

Press the or OK buttons to resume
playing the program.

Stop Time-shift

Press the STOP button to exit
time-shift.

GUIDE

LIST

SOURCE

REC

The USB storage device won't retain recorded
data after you exit the time-shift function.

SOURCE

ATV

Component

DTV

GUIDE

LIST

SOURCE

REC

AV

HDMI1H DMI2

HDMI3

1 2

4

7 8

INFO

QMENU

MENU EXI T

GUIDE

3

5

6

9

AUDIO

0

OK

LIST

SOURCE

REC

38 | RECORDING AND USB MODE

1 2

3

4

5

7 8

0

AUDIO

6

9

INFO

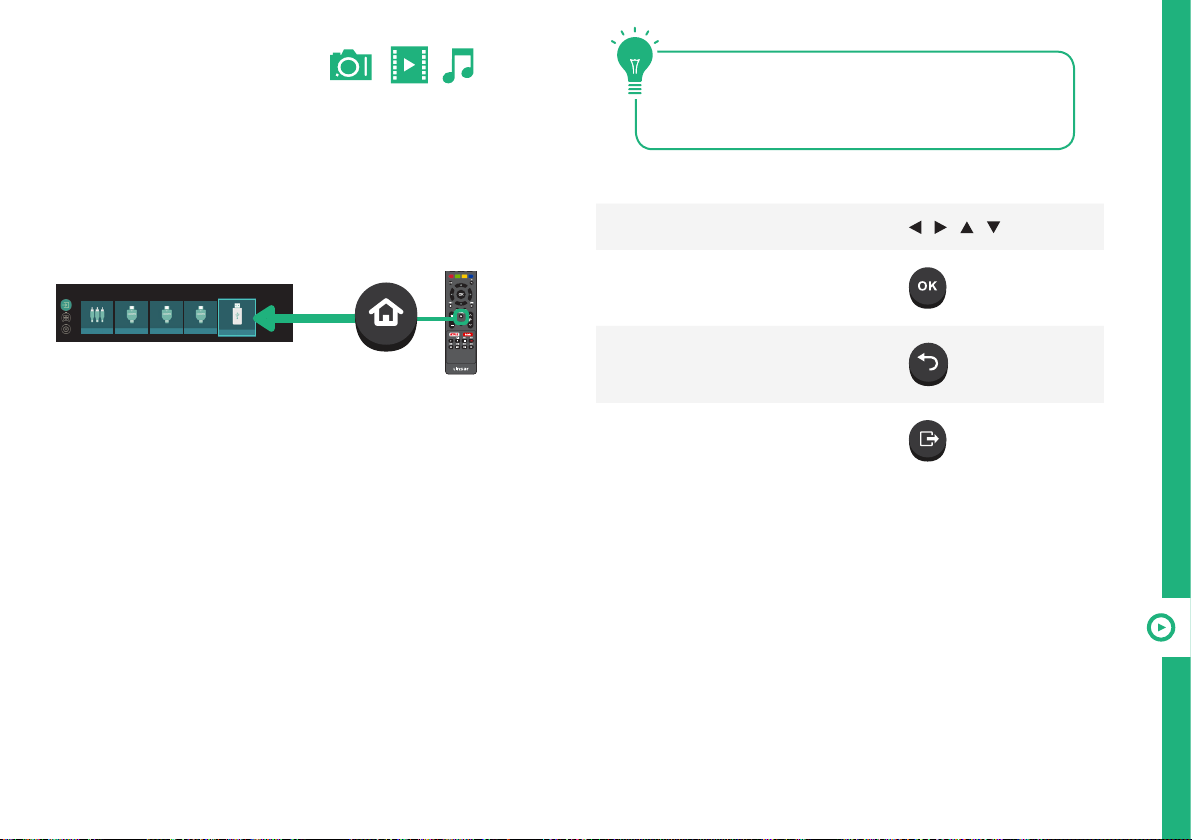

USB Mode

Set up

Insert your USB into a USB port on the TV.

Press the SOURCE button to select 'Media' mode.

You can only play Photos in the Photo category,
Music in the Music category and so on. Make sure
you select the correct category for the file you wish
to play.

Function Remote Button

Choose a Source or File

/ / /

SOURCE

Component

HDMI1H DMI2H DMI3

QMENU

OK

MENU EXI T

GUIDE

LIST

SOURCE

USB

REC

Start playing your media

Return to previous screen

Exit media mode

RECORDING AND USB MODE | 39

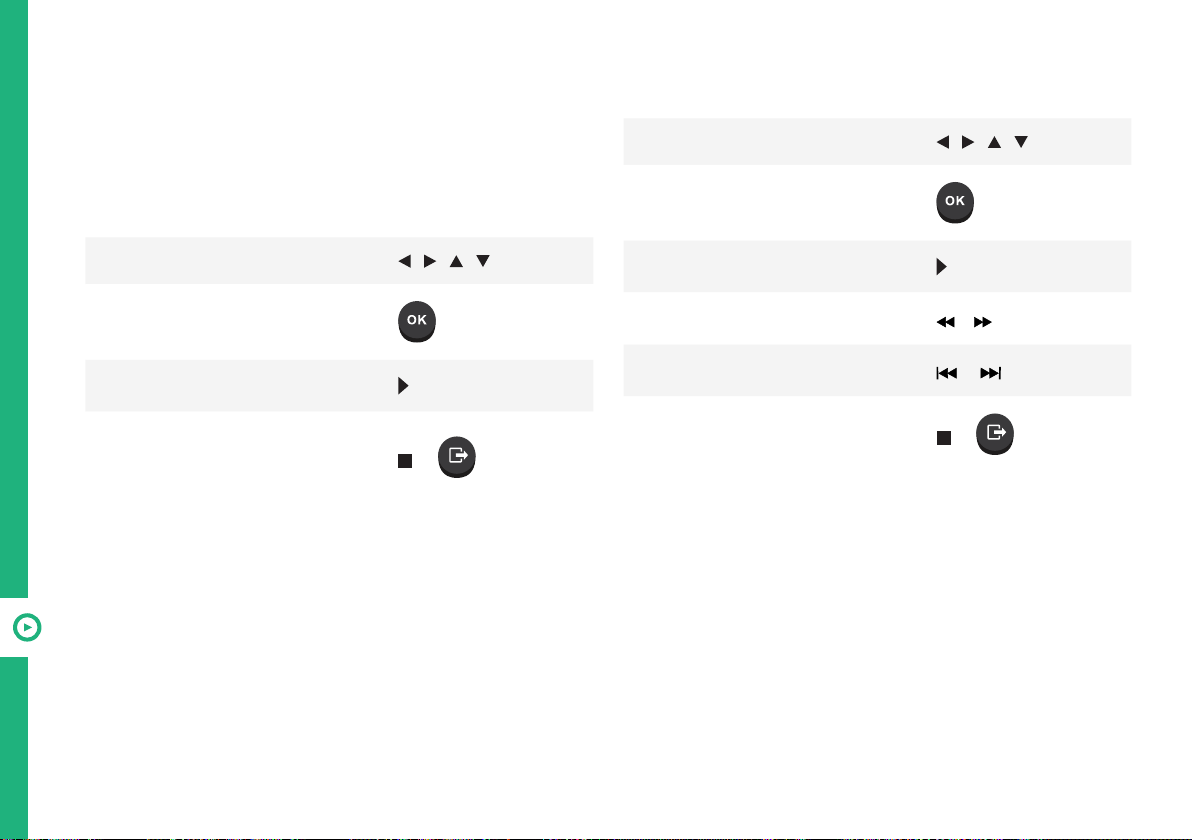

Playback Functions

Music

Playback of different media types have different
controls.


Function Remote Button

Navigate to a folder or file

Select photos

Display the selected photos

Return to file list

/ / /

or

Function Remote Button

Navigate to a folder or file

Select tracks to play

Play the selected track

Fast forward or rewing the track

Skip or restart the current track

Return to file list

/ / /

/

/

or

40 | RECORDING AND USB MODE

Video

Function Remote Button

Navigate to a folder or file

Play your video

Pause the video

Resume playback

Stop playback

Fast forward or rewing the track

Skip or restart the current track

Return to file list

/ / /

/

/

Only supported file types will be
displayed. See the specifications
table for supported file types.

RECORDING AND USB MODE | 41

Troubleshooting

If you have problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649.

Problem Solution

Check the power outlet is turned on.

No power

Picture issues

Network
connection issues

42 | TROUBLESHOOTING

If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly,
plug the TV’s power plug directly to a wall outlet and observe its operation.

Try to power on using the button on your TV set.

Ensure that all equipment is connected properly. If you are using an external device, turn it off, then turn it
on again. If it says there is no signal on the screen, choose the correct source input.

Adjust the antenna position.

Move the TV away from electronic equipment or devices that could cause interference.

Auto-tune free-to-air TV channels again.

Try another channel.

If the image keeps flickering when trying to connect the HDMI cable, make sure the cable is correctly
connected to the port; and not faulty (bent or broken).

Adjust menu > Function > HDMI EDID setting.

Turn off the modem and the router (if used). Wait for 2 minutes and then turn them back on.

If you are connecting using Wi-Fi, make sure you enter the Wi-Fi password correctly.

If you are using a static IP, enter the IP address and other network addresses directly.

If you are using an ethernet cable, use one rated CAT 5 or higher. Make sure it is plugged in at both ends.

If the problem persists, contact your Internet Service Provider or modem manufacturer.

Problem Solution

Ensure that the equipment is connected properly.

Ensure that the input setting for the TV is correct.

Ensure audio settings on the external device are set correctly.

Ensure the volume is not muted. If it is, press the MUTE button to restore the sound.

Sound issues

If earphones are connected, unplug them.

Adjust the volume to a suitable level by pressing the VOL+ / VOL- button.

If you are using an external audio device, check that the Menu > Sound > Digital Audio Output setting is
'PCM'.

If you are using an external audio device via an HDMI cable, make sure the audio device supports HDMI­ARC.

Check the batteries are correctly installed.

No operations can
be performed with
the remote control
unit

Button operation
is not effective
(unit and/or remote
control)

The batteries may be exhausted: replace them.

Make sure to point the remote control at the remote control sensor and try it again.

Make sure to use the remote control at a distance of no more than 5m from the sensor.

Remove any obstacles between the remote control and remote control sensor.

Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning,
static electricity or other factors.)

TROUBLESHOOTING | 43

Problems relating to your USB media storage device

Problem Solution

First, refer to the instructions describing how to use USB devices with this TV.

If the problem still occurs, your USB device may not be compatible.

My TV does not
recognise my
USB device or my
external hard disk

'Disk not ready'
error

My media is
loading slowly

There is an
'unsupported file'
message

44 | TROUBLESHOOTING

This TV has been tested with the majority of Flash memory-based devices and hard disks (media players
with HDD) on the market; however, it may not be compatible with certain devices, in particular external self­powered hard disks.

Some USB storage devices may not be compatible with this TV.

Only use a USB storage device formatted in a FAT32 file system provided with the Windows operating
system. If it is formatted by a different utility program that is not supported by Windows, it may not be
recognised.

When you are in time-shift recording mode, without removing the USB recording device, you may
experience some difficulty with a scheduled recording. You will need to remove the USB device as it is
required to reset after each recording to protect the device from damage. If you see the message ‘DISK NOT
READY’ displayed, remove the device, reconnect and proceed with your recording.

For large file sizes and large capacity storage devices, the loading speed may be slower. The recognition
speed of a USB storage device may vary depending on the device.

If an “Unsupported File” message is displayed, it means the file extension, video codec, image resolution or
frame rate is unsupported.

For Technical and Warranty Support

1300 886 649
www.tempo.org
[email protected]
Distributed by Tempo (Aust) Pty Ltd,

PO Box 6056, Frenchs Forest DC 2086

Specications

Active screen size (diagonal)

Resolution

Refresh rate

Aspect ratio

Multimedia playback

formats (USB mode)

USB output

USB drive

Power source

Power consumption

Dimensions
(W x H x D)

Net 10.9 kg

Weight

Gross 14.4 kg

146 cm

3840 x 2160

60Hz

16:9

Video

Music AAC, M4A, OGG, MP3, WAV.

Photo JPEG, JPG, BMP, PNG, GIF.

DC 5V 500mA

4TB max., FAT32 format

AC 100-240V~, 50/60Hz

138W

With stand: 1297.6 x 814.9 x 254.9 mm

Without stand: 1297.6 x 760.1 x 81.2 mm

MJPEG, 3GP, AVI, DAT, HDR, H265, H264, MKV, MOV, MP4,
MPEG-2, MPEG-4, VP8, VOB, TP, TS, MPG, WMV, MPEG.

SPECIFICATIONS | 45

Compliance and Responsible Disposal

Packaging

The packaging of your product has been

selected from environmentally friendly
materials and can usually be recycled. Please
ensure these are disposed of correctly. Plastic
wrapping can be a suffocation hazard for babies
and young children, please ensure all packaging
materials are out of reach and are safely disposed
of. Please recycle these materials rather than
throwing them away.

Product

At the end of its working life, do not throw
this product out with your household rubbish. An
environmentally friendly method of disposal will
ensure that valuable raw materials can be recycled.
Electrical and electronic items contain materials
and substances which, if handled or disposed of
incorrectly, could potentially be hazardous to the
environment and human health.

National Television and Computer Recycling
Scheme

The careful disposal of e-waste is important
because many televisions and computers contain
materials which are hazardous to people and the
environment. There are no fees for householders or
small businesses disposing of e-waste at a scheme
collection service.

Individuals can contact their local council for
information on local e-waste management
services, find scheme services listed on Planet Ark’s
website at www.recyclingnearyou.com.au, or call
Planet Ark on 1300 733 712.

Compliance

This product complies with the Australian Safety
Standard AS/NZS 60065 to ensure the safety of the
product.

46 | TROUBLESHOOTING

Notes

47
