Linsar 55UHD110 User Manual

55” LED Smart TV

MODEL NO.: 55UHD110

USER MANUAL

Please read this manual carefully before using,

and keep it for future reference.

1

SAFETY INSTRUCTIONS

The lightning flash and

arrow head within the

triangle is a warning

sign alerting you of

“dangerous voltage”

inside the product.

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK. DO NOT

REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation

point within the

triangle is a warning

sign alerting you of

important

instructions

accompanying the

product.

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

SERIOUS PERSONAL INJURY:

● If the cord is damaged, have it repaired by the manufacturer, its service or a similarly

qualified person in order to avoid any hazard.

● The cord should always be readily accessible.

● The apparatus shall not be exposed to dripping or splashing of water or liquids and that

no objects filled with liquids such as flowers vases shall be placed on the product.

● The normal ventilation of the product shall not be impended for intended use.

● Always leave a minimum distance of 10 cm around the unit to ensure sufficient

ventilation.

● Naked flame sources, such as candles, should not be placed on top of the device.

● The device is intended for use only in a temperate climate.

● Situate this product away from heat sources such as radiators, heat registers, stoves, or

other appliances (including amplifiers) that produce heat.

● Clean the product only as recommended by the manufacturer (see “Maintenance”

section for details). Unplug the power plug from the wall outlet before cleaning,

● Unplug the power plug from the wall outlet when left unused for an extended period.

● Prevent objects/liquids from falling or spilled on the product.

● Operate the product only with the supplied power cord. Route power cords so they are

not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to plugs, convenience receptacles, and the point where they exit from
the product.

● Where the MAINS plug or an appliance coupler is used as the disconnect device, the

disconnect device shall remain readily operable.

IMPORTANT INSTRUCTIONS

2

● Do not operate this product under the following conditions.

- When the power-supply cord or plug is damaged.

- If liquid has been spilled into or objects have fallen into the product.

- If the product has been exposed to rain or water.

- If the product does not operate when used according to the operating instructions.

- If the product has been dropped or damaged in any way.

● Do not attempt to service the product; take it to the electronics repair shop of your choice

for any servicing or repair.

● Do not overload wall outlets, extension cords, or integral convenience receptacles.

● Connect this product to the power outlet which has protective earth connection.

CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR

PRODUCT/PROPERTY DAMAGE:

● This product is intended solely for non-commercial, non-industrial, personal use as a

television. Do not use this product for any other purpose.

● Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of

direct sunlight.

● Keep the product away from magnetic objects, motors, and transformers.

● Do not use outdoors in inclement weather.

● Do not use the TV while driving; this is dangerous and is illegal in some areas.

BATTERY HANDLING AND USAGE:

● CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the

same type or equivalent.

● The battery should not be exposed to excessive heat such as sunshine, fire or similar.

● Different types of batteries, new and used batteries should not be mixed.

● The battery must be installed according to the polarity.

● If the battery is worn, it must be removed from the product.

● The battery must be disposed of safely. Always use the collection bins provided (check

with your dealer) to protect the environment.

● Keep batteries away from children and pets. Only adults should handle batteries.

● Never throw batteries into a fire or expose them to fire or other heat sources.

● Follow the battery safety and usage instructions.

3

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be collected separately in order to
optimize the recovery and recycling of the materials they contain, and reduce the impact on
human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that

when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the
correct disposal of their old appliance.

User Manual……………………………………………………………………………………1
Remote Control……………..………………………………………………………………… 1
YPbPr Adaptor Cable……………………..…..……………………………………………………1
AV Adaptor Cable……………………..…..……..…………………………………………………1

All the pictures in this manual are just for your reference, appearance and display are
subject to the final product.

ACCESSORIES

To avoid possible hearing damage, do not listen at
high audio volume for long periods of time.

4

TABLE OF CONTENTS

GETTING STARTED

IMPORTANT INSTRUCTIONS...................................................................................1-3

ACCESSORIES……….......................................................................................................3

FEATURES....................................................................................................................5-6

GENERAL PARTS..............................................................................................................7-8

REMOTE CONTROL.................................................................................... .................9-10

REMOTE CONTROL PREPARATION.................................................................................11

BASIC CONNECTION....................................................................................................12-16

OPERATIONS

BASIC OPERATIONS.............................. ........ ....... ............ ........... ..... ....................17-22

MAIN MENU...........................................................................................................23 -34

FIRST TIME INSTALLATION………………………………………………..……………23-24

SMART HUB…………………………………………………………………………………....24

DTV MODE.........................................................................................................25-34

ATV AND OTHER MODES.............................................................................................34

FOR REFERENCE

MAINTENANCE..................................................................................................................35

WALL MOUNTING………………………………………………………………………………...35
STAND INSTALLATION…………………………………………………………………………..36

SPECIFICATIONS...............................................................................................................37

TROUBLESHOOTING.........................................................................................................38

5

55” LED Display

This unit has a built-in LED display window to provide clear vision and low
radiation.

Compatible with Smart TV

Support Digital Broadcasting Reception

Support H.264 \ H.265 High Definition Display

Support Multiple OSD Languages

Support Full Function Remote Control

Support LAN, HDMI, YPbPr, CVBS and AUDIO L/R Input

Support Earphone, Optical and Coaxial Output

Support Auto TV Scanning

NOTE: For detailed operations, please refer to the guide on Page 27.

Support TV Guide

NOTE: For detailed operations, please refer to the guide on Page 18.

FEATURES

6

Support USB Multimedia Playback

NOTE: For detailed operations, please refer to the guide on Page 21.

Support PVR Function

NOTE: For detailed operations, please refer to the guide on Page 20.

Support TIME SHIFT Function

NOTE: For detailed operations, please refer to the guide on Page 20.

With Detachable Stand Holder

With External Antenna Jack

With Built-in Speakers

With Noise Reduction Function

Warm Tips: For detailed formats that your memory device supports,
please refer to the specifications on Page 37.

FEATURES

7

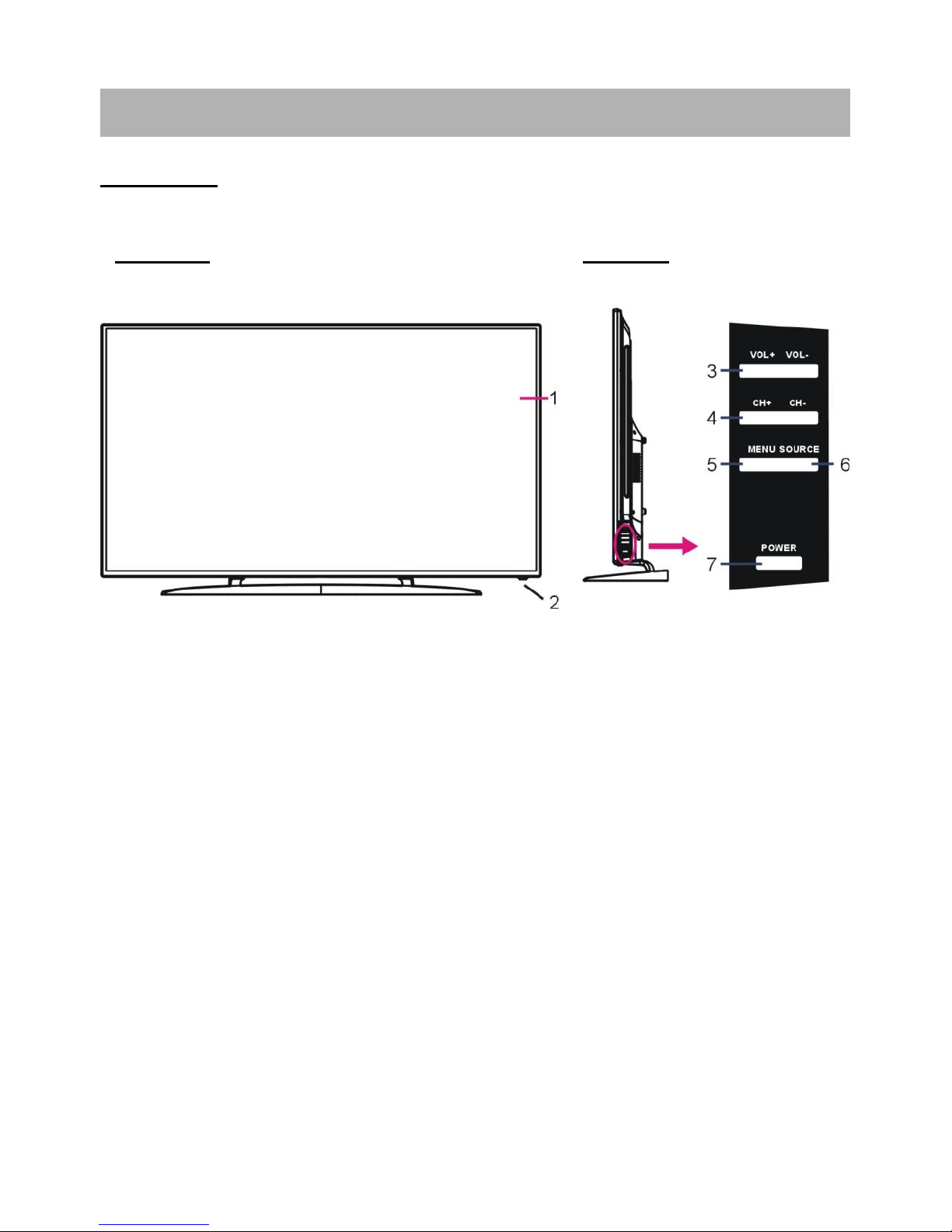

MAIN UNIT

1. LED display screen

2. Remote control sensor / Power indicator- In standby mode the indicator light is red; when
switching on the unit the indicator light is blue color.

3. VOL +/- button- To increase/decrease the volume level or move left/right.

4. CH +/- button- To select next/previous channel or move up/down.

5. MENU button- To enter menu setting page.

6. SOURCE button- To select the input source.

7. POWER button- To turn the TV ON/OFF.

GENERAL PARTS

Front View

Side View

8

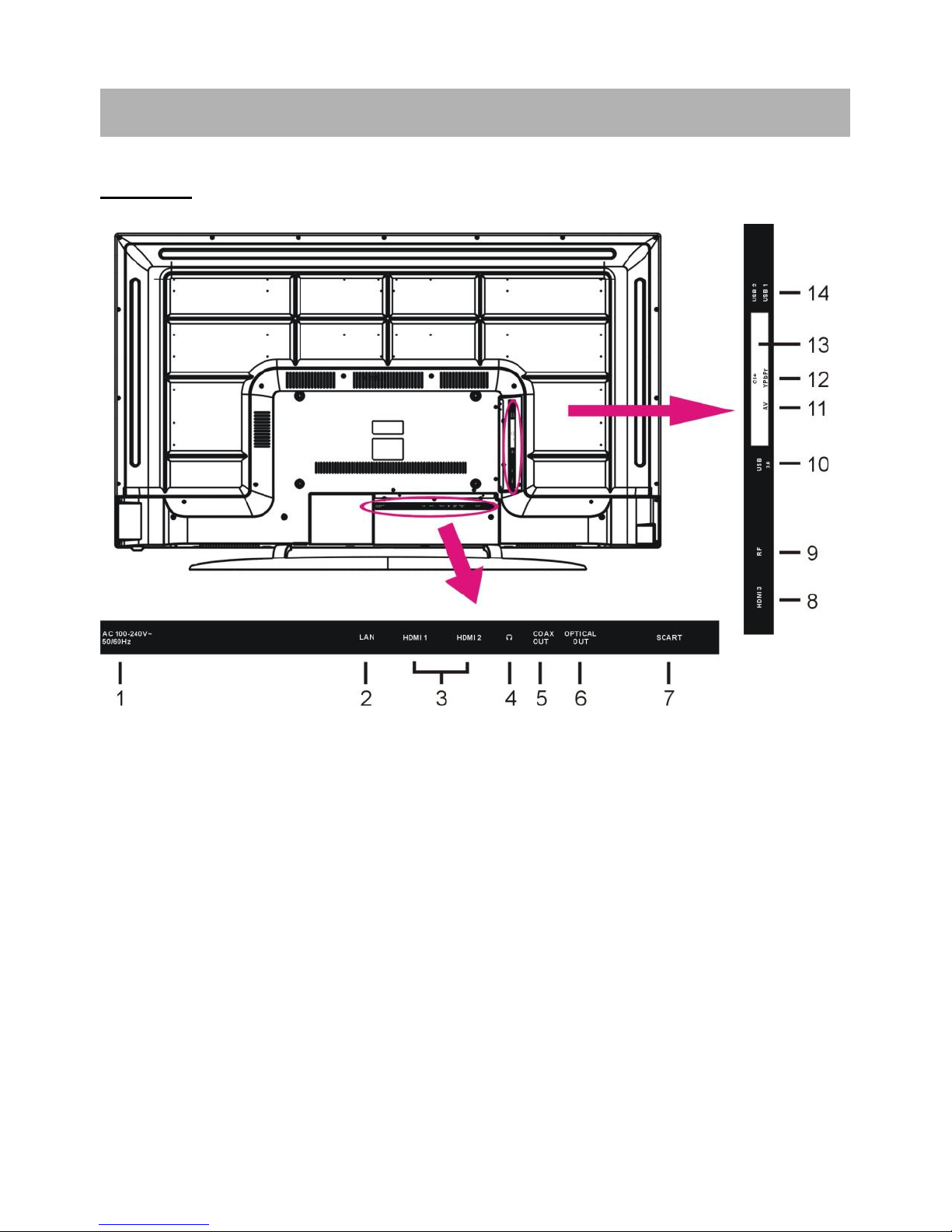

1. Power Input (AC power cord)

2. LAN (RJ45) input

3. HDMI 1/2 inputs
Note: “ARC” for HDMI 2 port only!

4. Headphones output

5. Coaxial S/PDIF output

6. OPTICAL output

7. SCART input

8. HDMI 3 input

9. Antenna input

10. USB input (version 3.0)

11. Mini AV input

12. Mini YPbPr input

13. CI+ input

14. USB 1/2 input (version 2.0)

Back View

GENERAL PARTS

9

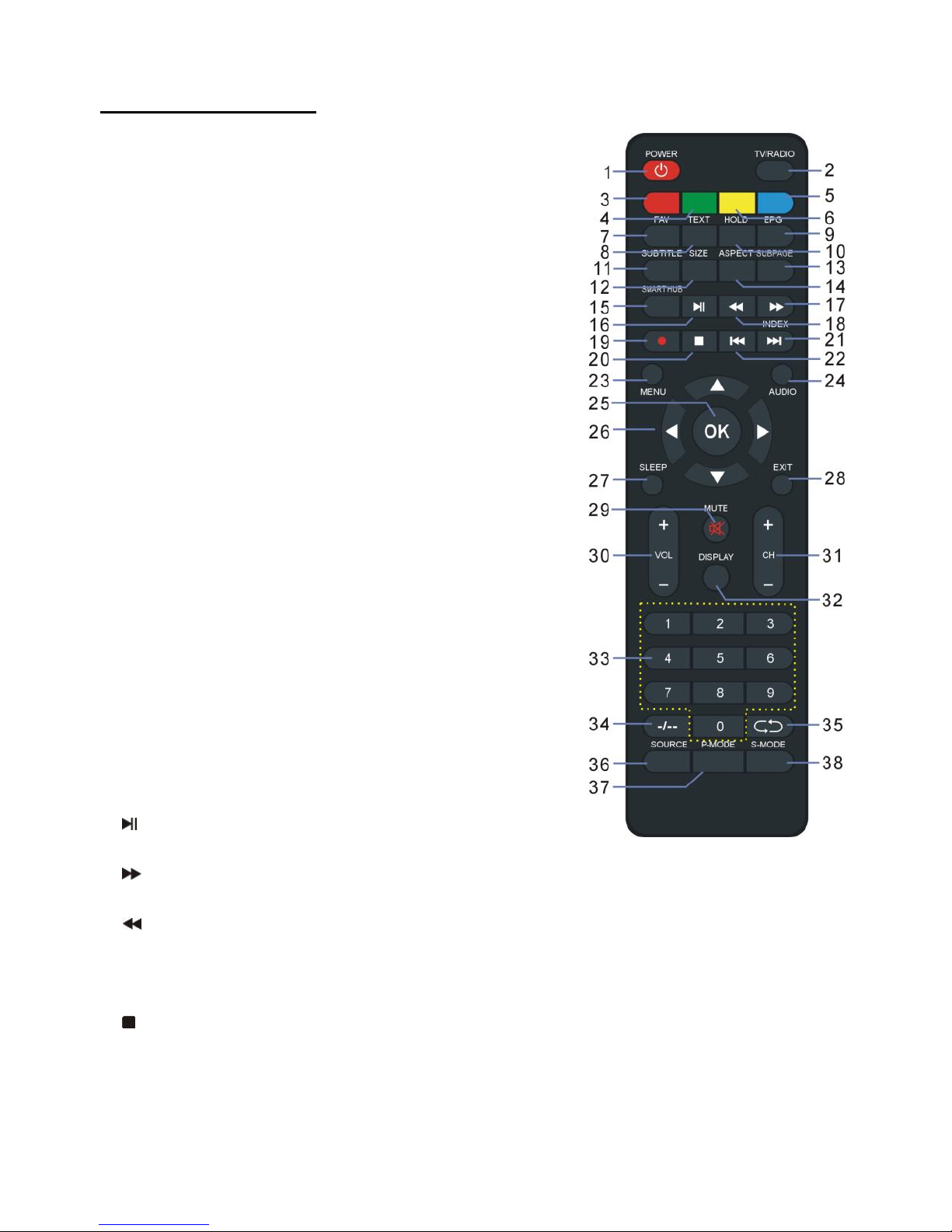

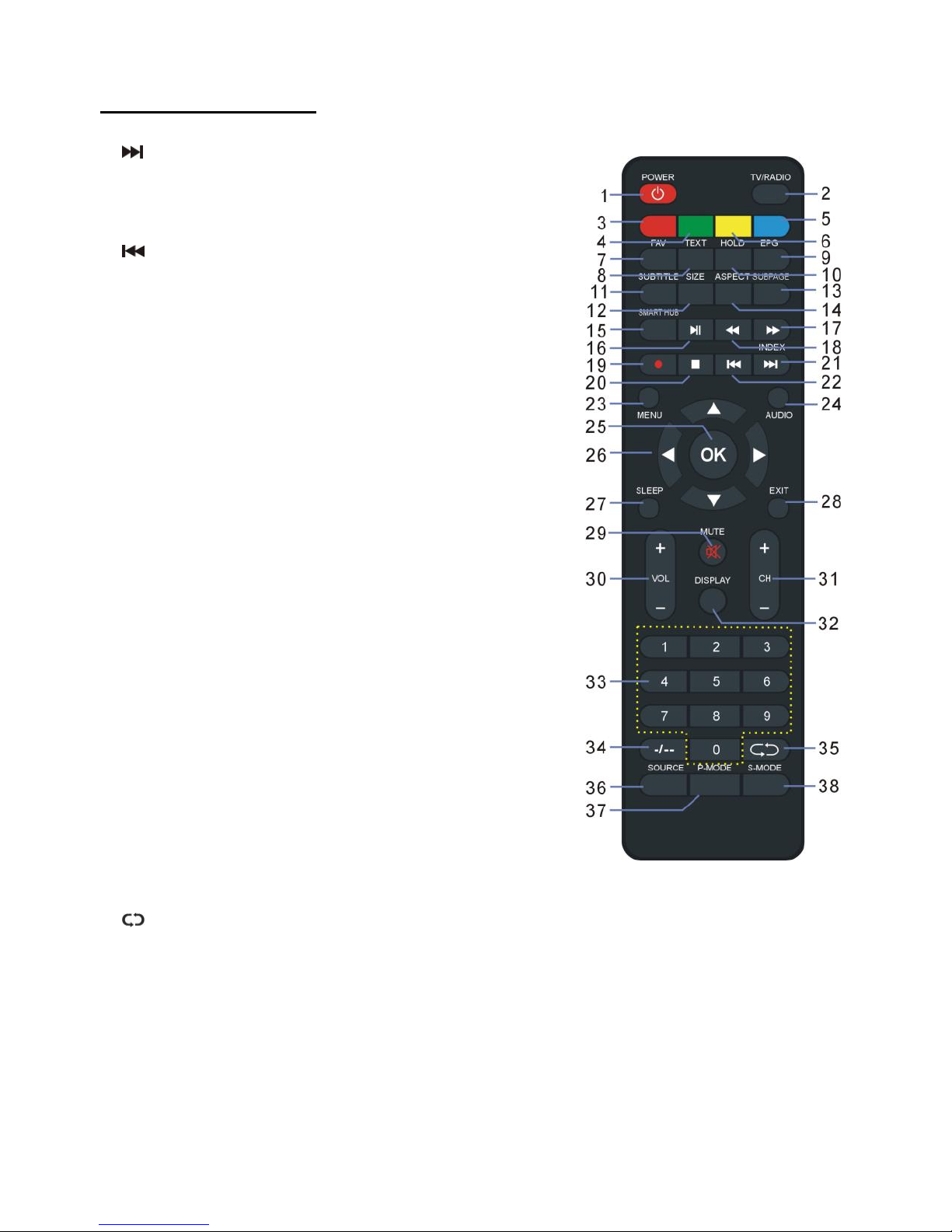

REMOTE CONTROL

1 POWER

Set the unit in standby mode; press it again to switch it
on.

2 TV/RADIO

Switch the unit between TV and Radio.

3 RED button
4 GREEN button
5 BLUE button
6 YELLOW button
7 FAV

Display the favorite channels list.

8 TEXT

Display the available Teletext.

9 TVG

Display electronic program guide.

10 HOLD

Hold the Teletext.

11 SUBTITLE

Enable/disable subtitles.

12 SIZE

Switch Teletext size.

13 SUBPAGE

Enter Teletext sub-page.

14 ASPECT

Press it repeatedly to select desired screen size.

15 SMART HUB

Enter SMART HUB directly.

16

Start/pause playing.

17

Move fast forward.

18

Move fast backward.

19 ● (DTV)

Start RECORDING when watching available digital programs.

20

Stop playing.

10

REMOTE CONTROL

21

Play the next file.

INDEX

Display the record list or Teletext index.

22

Play the previous file.

23 MENU

Call out the main menu or return to previous menu.

24 AUDIO

Switch the available sound-track.

25 OK

Confirm selection.

26 ▲/▼/◄/►

Navigation buttons

27 SLEEP

Set desired sleep time.

28 EXIT

Exit the menu page.

29 MUTE

Mute the sound.

30 VOL +/-

Increase/decrease the volume level.

31 CH +/-

Play the next/previous program.

32 DISPLAY

Display the available program information.

33 Number buttons (0-9)

Input the number information, such as channel
number and so on.

34 -/--

Switch the digit when watching TV programs.

35

Return to previous channel.

36 SOURCE

Select desired input source.

37 P-MODE

Switch the picture mode.

38 S-MODE

Switch the sound mode.

REMOTE CONTROL

11

REMOTE CONTROL PREPARATION

BATTERY INSTALLATION

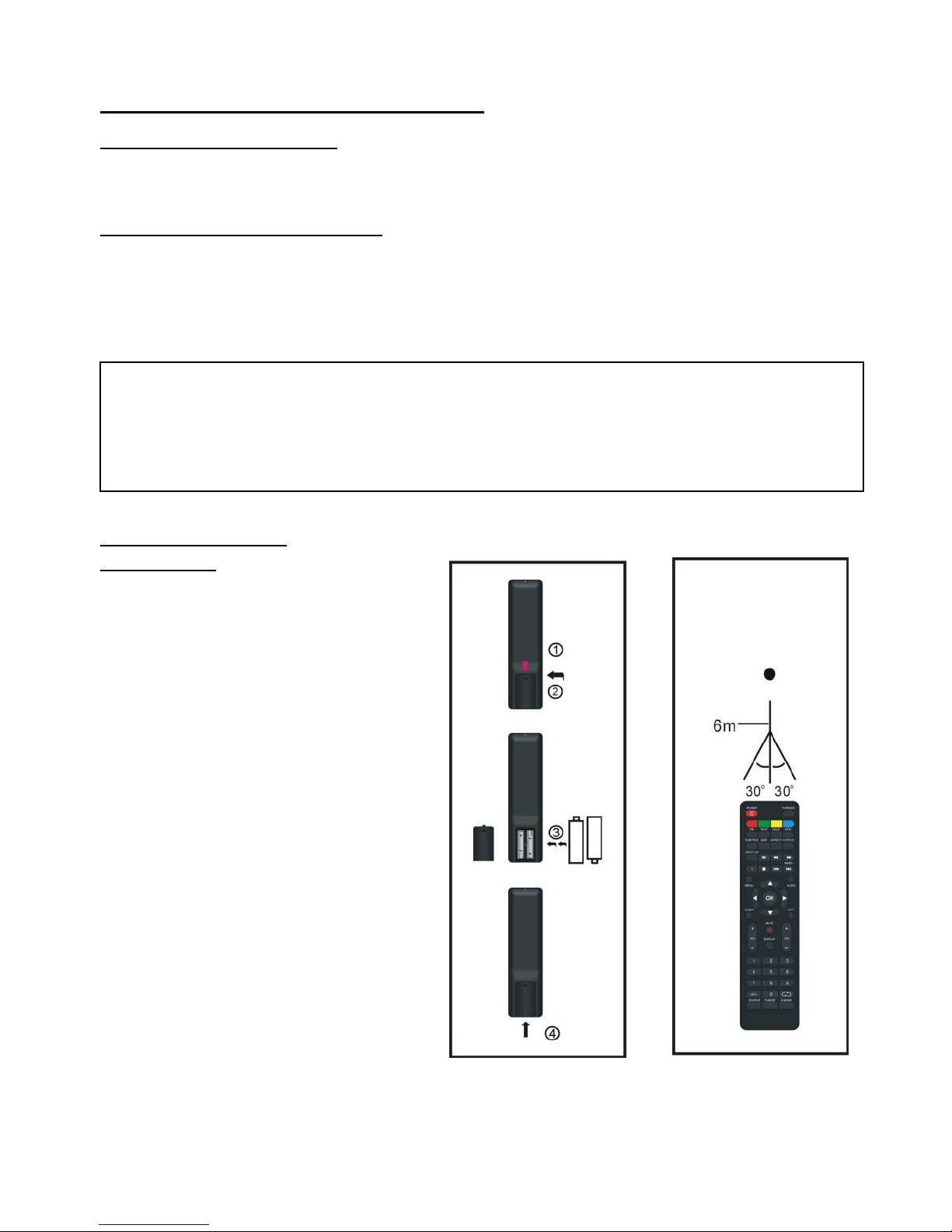

Install the batteries as the following pictures. Be sure + and – terminals are positioned
as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

- The batteries normally last for one year although this depends on how often the
remote control is used.

- If the remote control fails to work even when it is operated near the player, replace the
batteries.

- Use two size AAA dry batteries (not included).

NOTE:

● Do not drop, step on or otherwise impact the remote control. This may damage the

parts or lead to malfunction.

● If the remote control is not going to be used for a long time, remove the batteries.

REMOTE CONTROL
OPERATION

Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).

NOTES:

- The operating distance may vary
according to the brightness of the
room.

- Do not point bright light at remote
control sensor.

- Do not place objects between the
remote control and the remote control
sensor.

- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.

Fig1 Fig2

Remote Control

Sensor

Push

Open

Press

12

● Ensure all the cables are disconnected from the main unit before connecting to AC
power source.

● Read through the instructions before connecting other equipments.

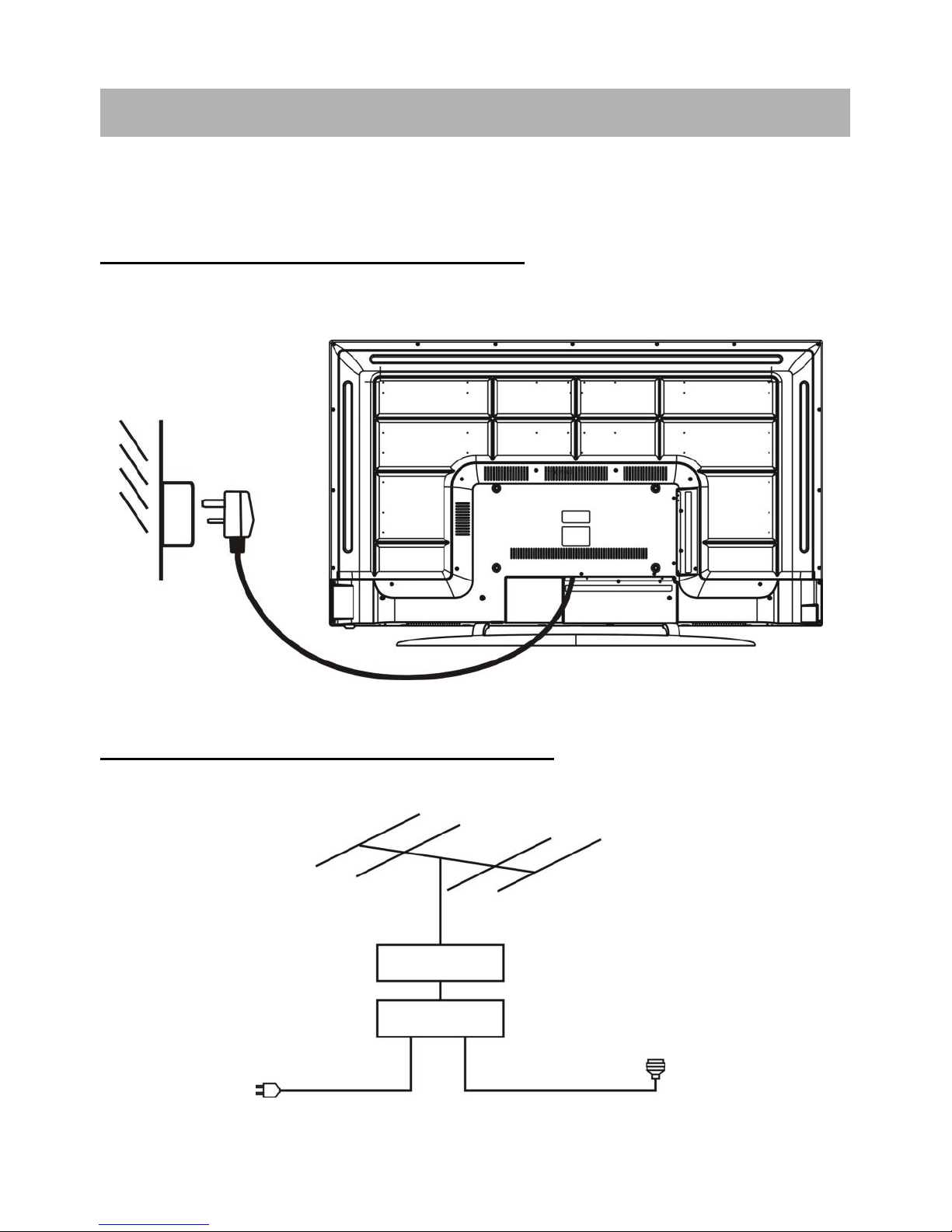

CONNECTING TO AC POWER SOURCE

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

BASIC CONNECTION

Antenna

Outdoor
antenna
amplifier

Indoor
antenna
amplifier

Power plug
of antenna
amplifier

75 OHM
antenna
plug

To power
outlet

13

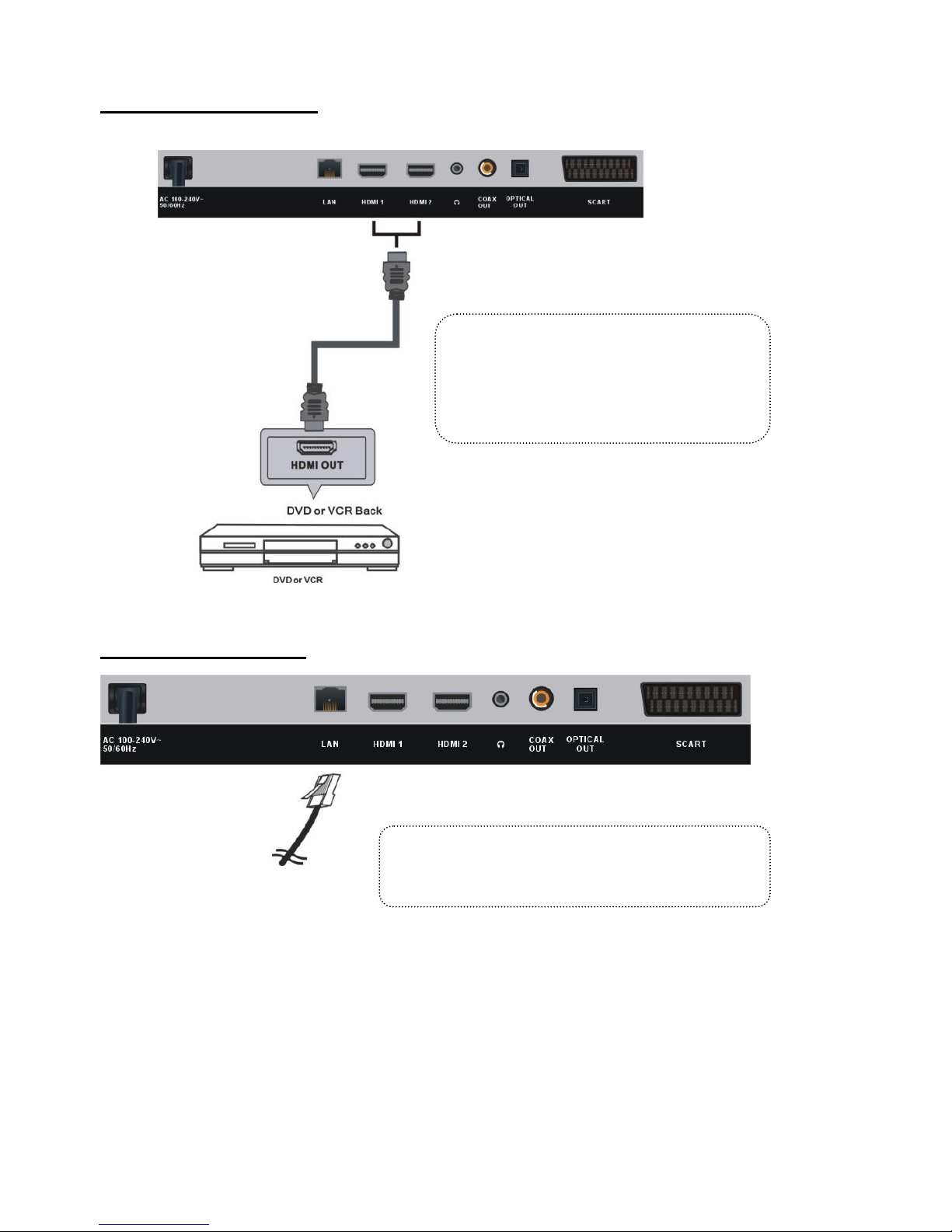

HDMI CONNECTION

LAN CONNECTION

HDMI cable
(Not included)

Use HDMI cable to connect the unit
with other devices to receive
high-definition multimedia signal.

Use a LAN cable (not included) to connect
this TV with available network.

14

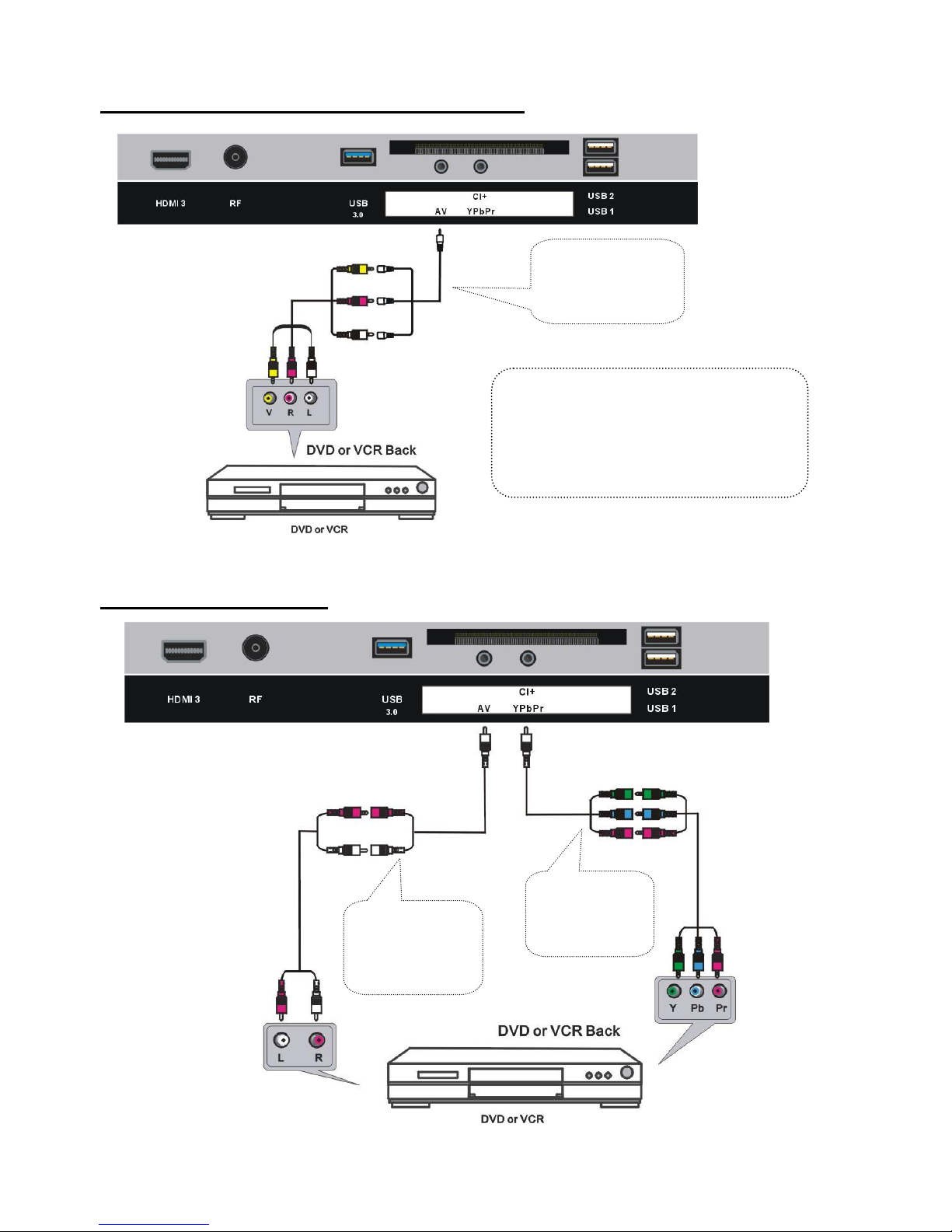

AV (COMPOSITE VIDEO) CONNECTION

YPbPr CONNECTION

For basic connection, use the
composite Audio L/R (white/red) and
CVBS (yellow) cable to connect the
unit with other devices.

AV cable
(Not included)

Audio L/R of AV Cable
(Not Included)

YPbPr cable
(Not included)

Adaptor cable for
Mini AV
(Included)

Adaptor cable
for Mini AV
(Included)

Adaptor cable
for Mini YPbPr
(Included)

15

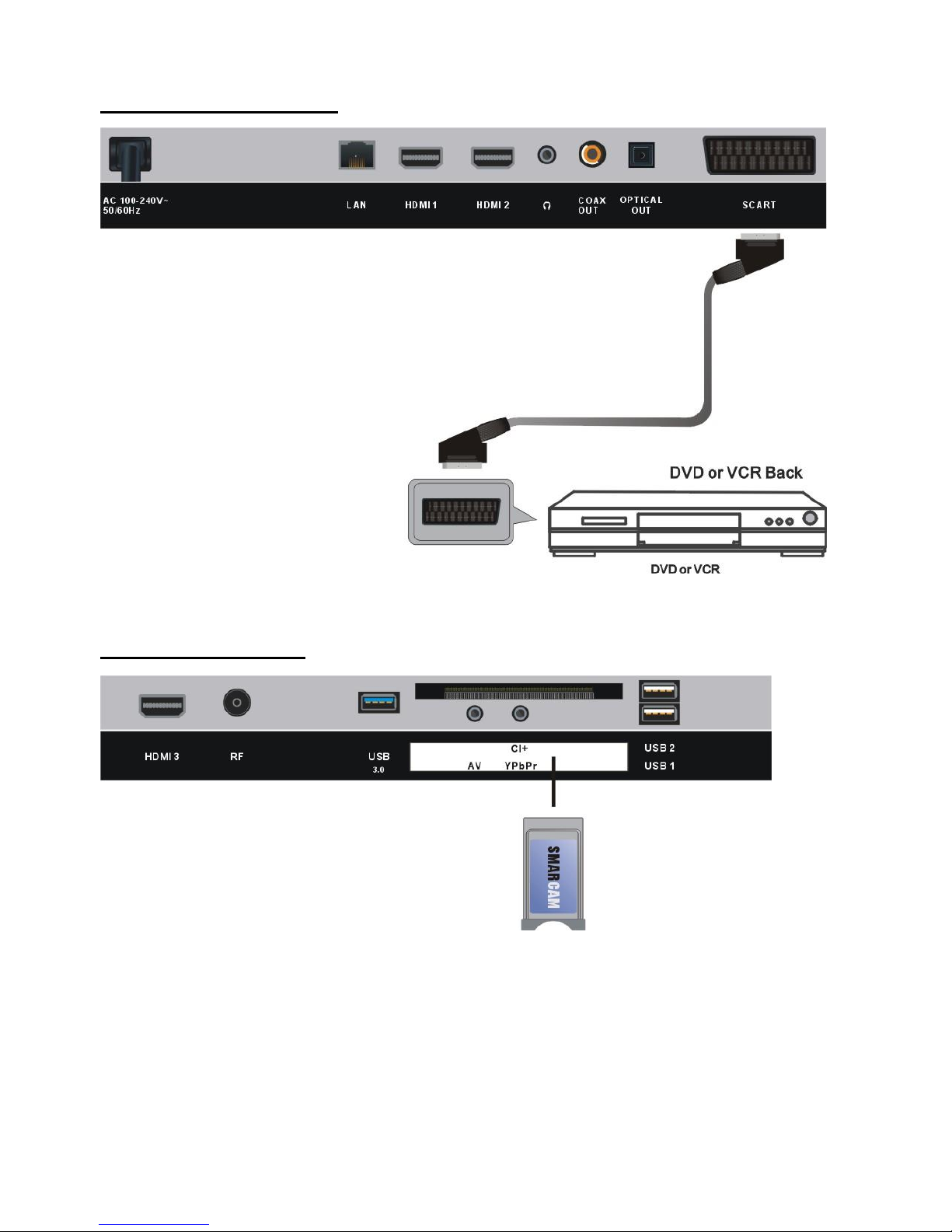

SCART CONNECTION

INSERT A CI CARD

SCART cable
(Not included)

CI slot

(CI card is not included)

16

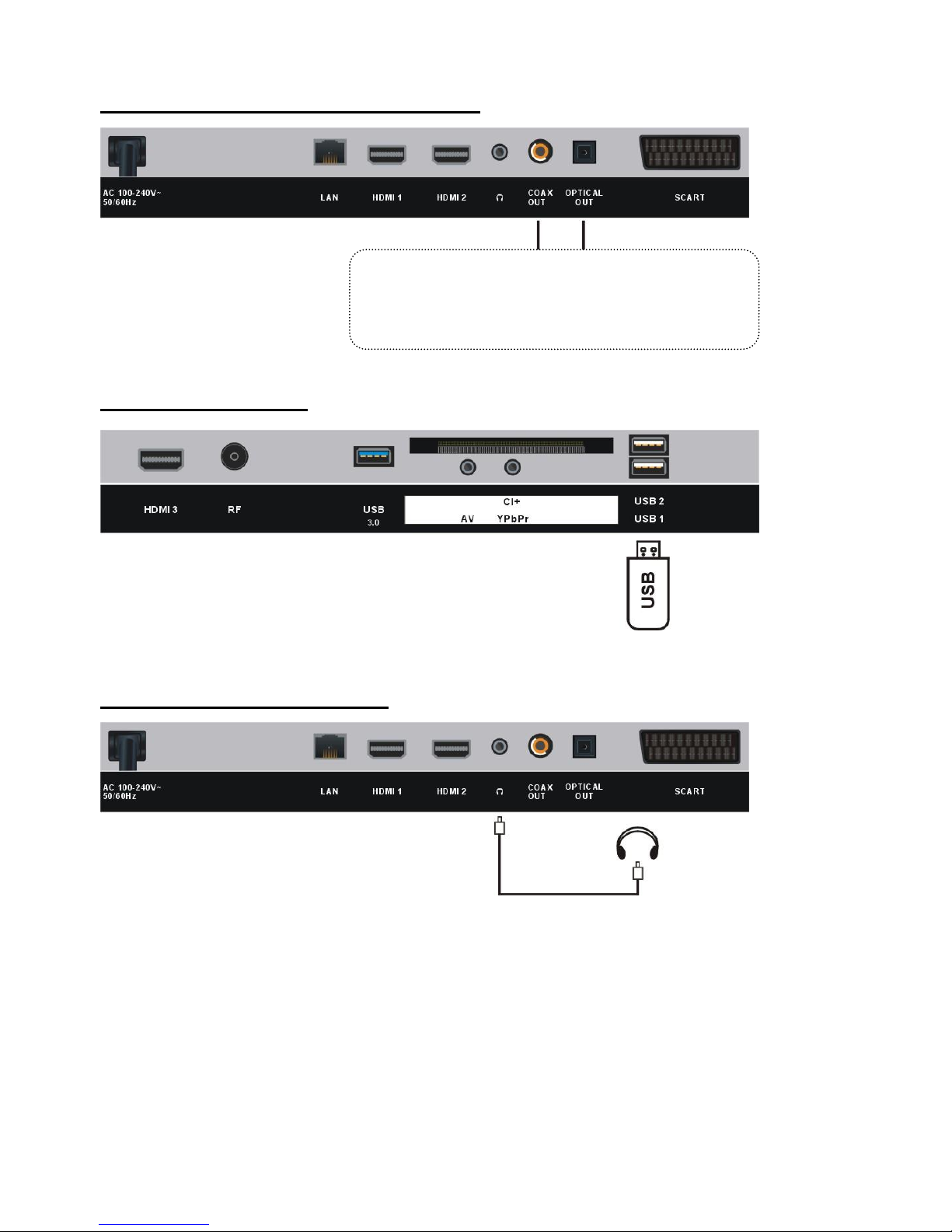

COAXIAL \ OPTICAL CONNECTION

USB CONNECTION

EARPHONE CONNECTION

Earphone cable
(Not included)

USB Memory Device
(Not included)

Use a Coaxial \ Optical cable (not included) to
connect the unit with amplifier or other audio
decoding devices for audio signal output.

17

MAKE SURE ALL THE EXTERNAL EQUIPMENT AND POWER PLUGS

ARE CONNECTED PROPERLY TO THE TV. THE TV MUST BE IN THE

CORRECT SOURCE MODE IN ORDER TO VIEW THE CHOSEN INPUT.

- Press POWER button on the unit or remote control to power ON the unit (indicator
will glow blue); press it again to power OFF (standby mode) the unit (indicator will
glow red).

- Press SOURCE button on the unit or remote control to switch the unit to ATV or DTV
mode.

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.

2. Press CH- button to play previous channel.

3. Press number buttons on remote control directly to select desired program.

NOTE: Press -/-- button repeatedly to switch the digit.

VOLUME CONTROL

- Press VOLUME +/- to adjust the level of current volume.
Available range: 0-100.

MUTE CONTROL

- Press MUTE button to mute the sound, press it again to turn on the sound.

SOURCE SETTING

- Press SOURCE button on the unit or remote control to display the sources list.

- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
Available options: DTV,ATV (Analogue TV), AV, YPbPr, HDMI 1/2/3

PICTURE MODE

- Press P-MODE button on remote control repeatedly to select desired PICTURE mode
directly.
Available options: Standard, Mild, Movie, Personal, Dynamic.

SOUND MODE

- Press S-MODE button on remote control repeatedly to select SOUND mode directly.
Available options: Standard, Music, Movie, Sports, Personal.

BASIC OPERATIONS

18

INFORMATION DISPLAY

- Press INFO button on remote control to display information of current program.

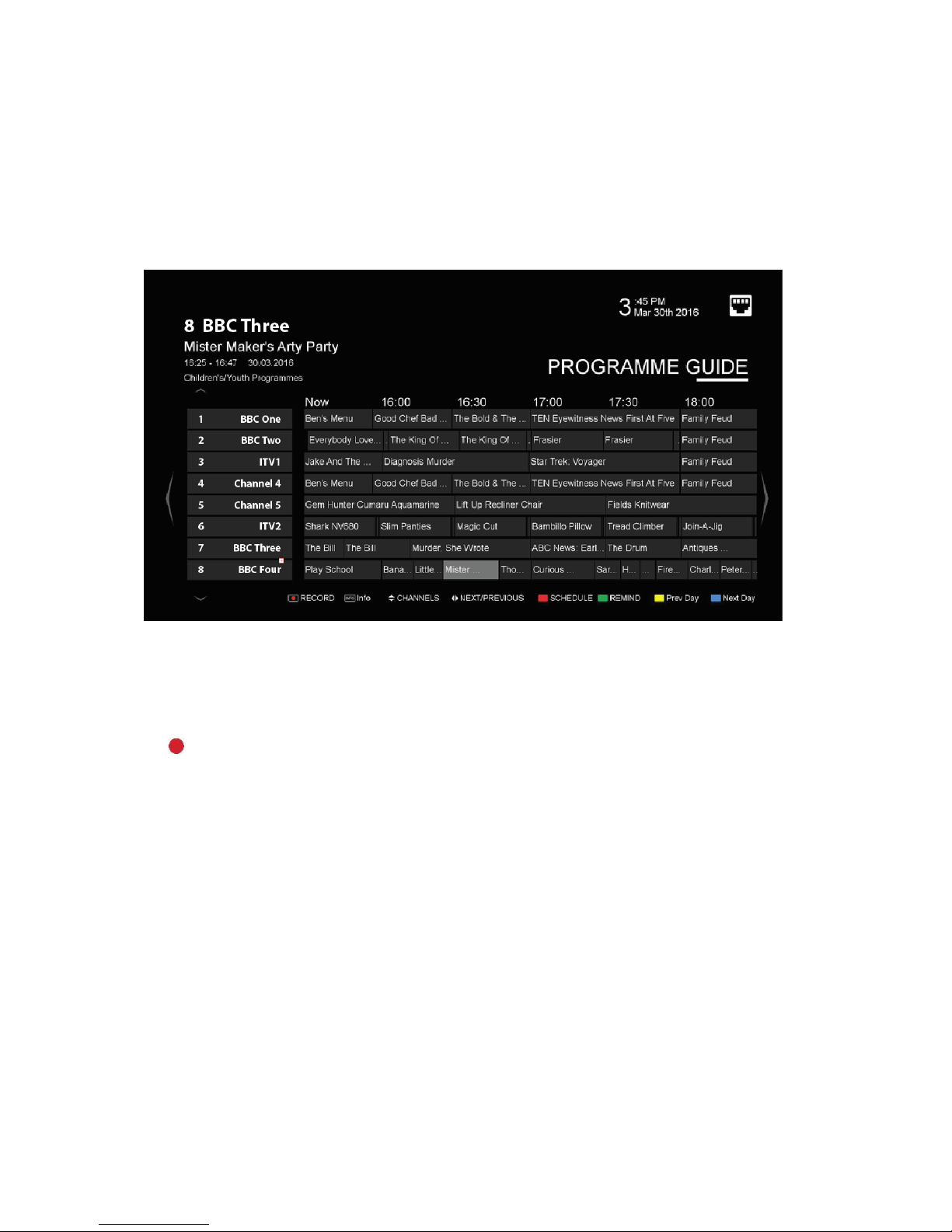

TV GUIDE (FOR DTV MODE ONLY)

- Press EPG button on remote control to enter EPG menu page.

- Press UP/DOWN navigation button to select preferred program

- Press LEFT/RIGHT navigation button to switch between left and right column.

- Press (RECORD) button to record a program when USB device is plugged into USB

port on TV back.

- Press INFO button to display program information.

- Press RED button to enter schedule list page.

- Press GREEN button to enter remind setting page.

- Press YELLOW button to watch the program guide of previous day.

- Press BLUE button to watch the program guide of next day.

19

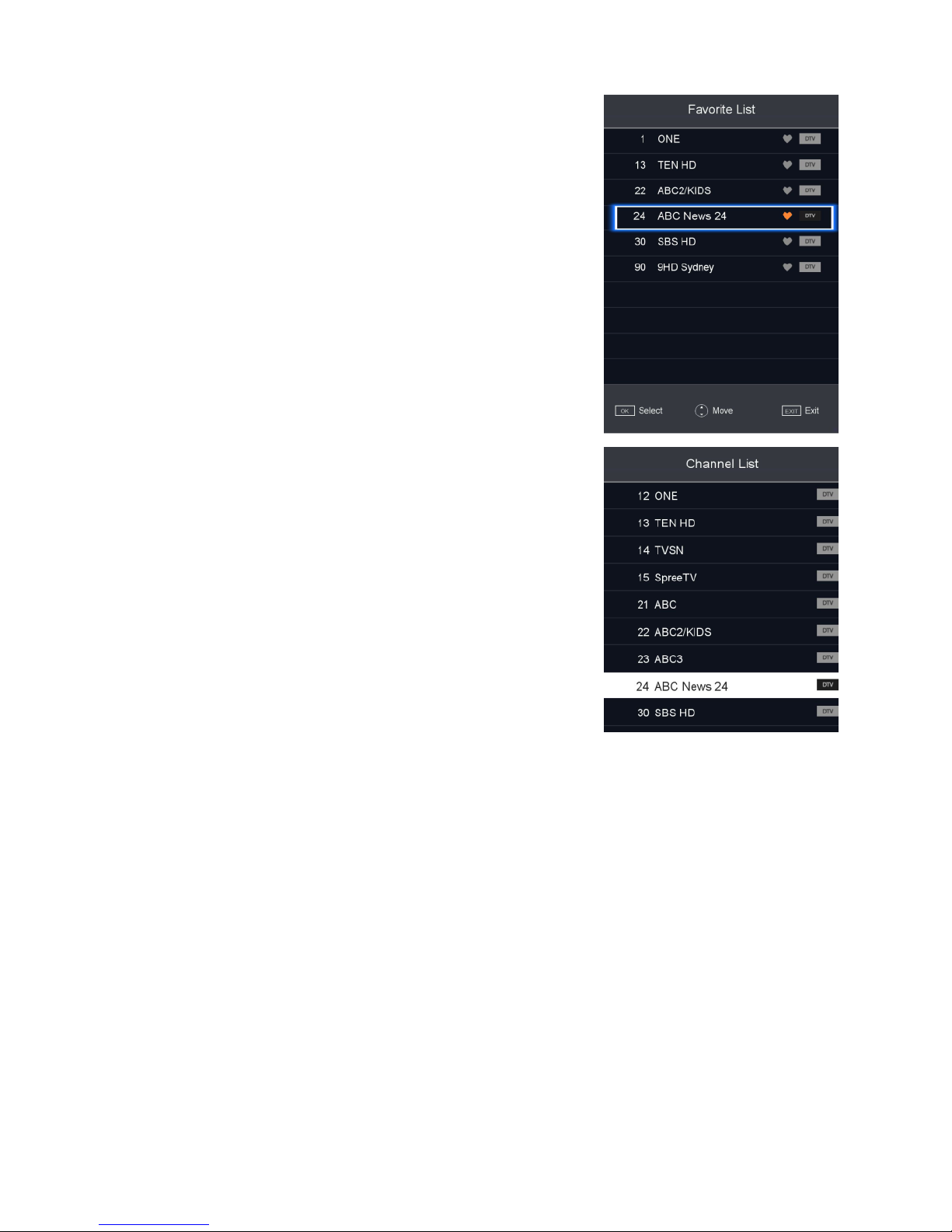

FAVORITE LIST

When viewing an available channel, press FAV button on
remote control to enter Favorite List menu page.

- Press UP or DOWN navigation button to select preferred
channel.

- Press OK button to confirm selection.

Note: To add a channel to the Favorite List or remote it,

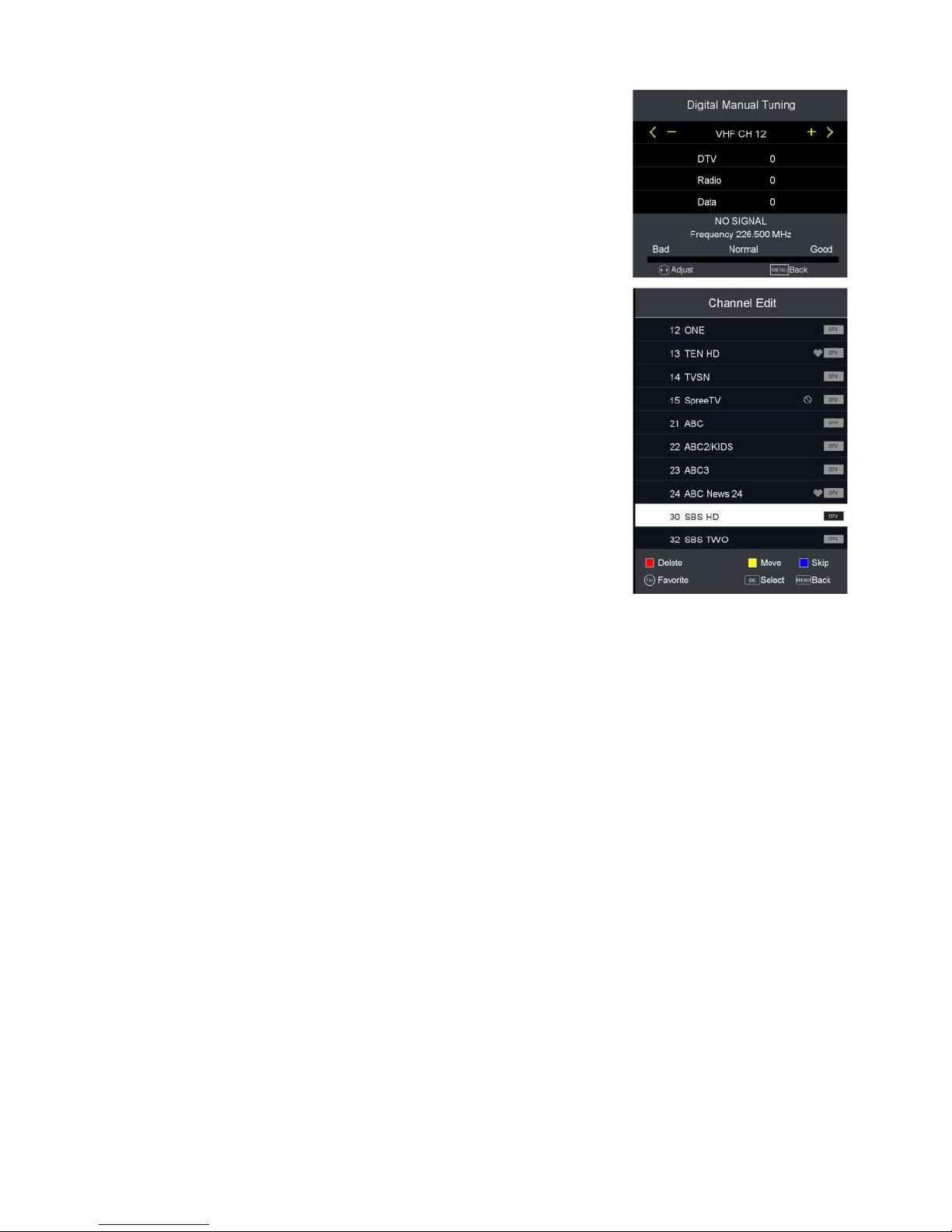

press MENU and go to Channel→Channel Edit.
Then use UP/DOWN navigation button to highlight a
preferred channel and press FAV button.

CHANNEL LIST

When viewing an available channel, press CH.LIST button
on remote control to enter Channel List menu page.

- Press UP or DOWN navigation button to select preferred
channel.

- Press OK button to confirm selection.

TV/RADIO (FOR DTV MODE ONLY)

- Press TV/RADIO button on remote control to switch the unit
between TV and radio mode.

SUBTITLE

- Press SUBTITLE button on remote control to display subtitle menu and then you can
select desired subtitle using navigation buttons.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-subtitle.

20

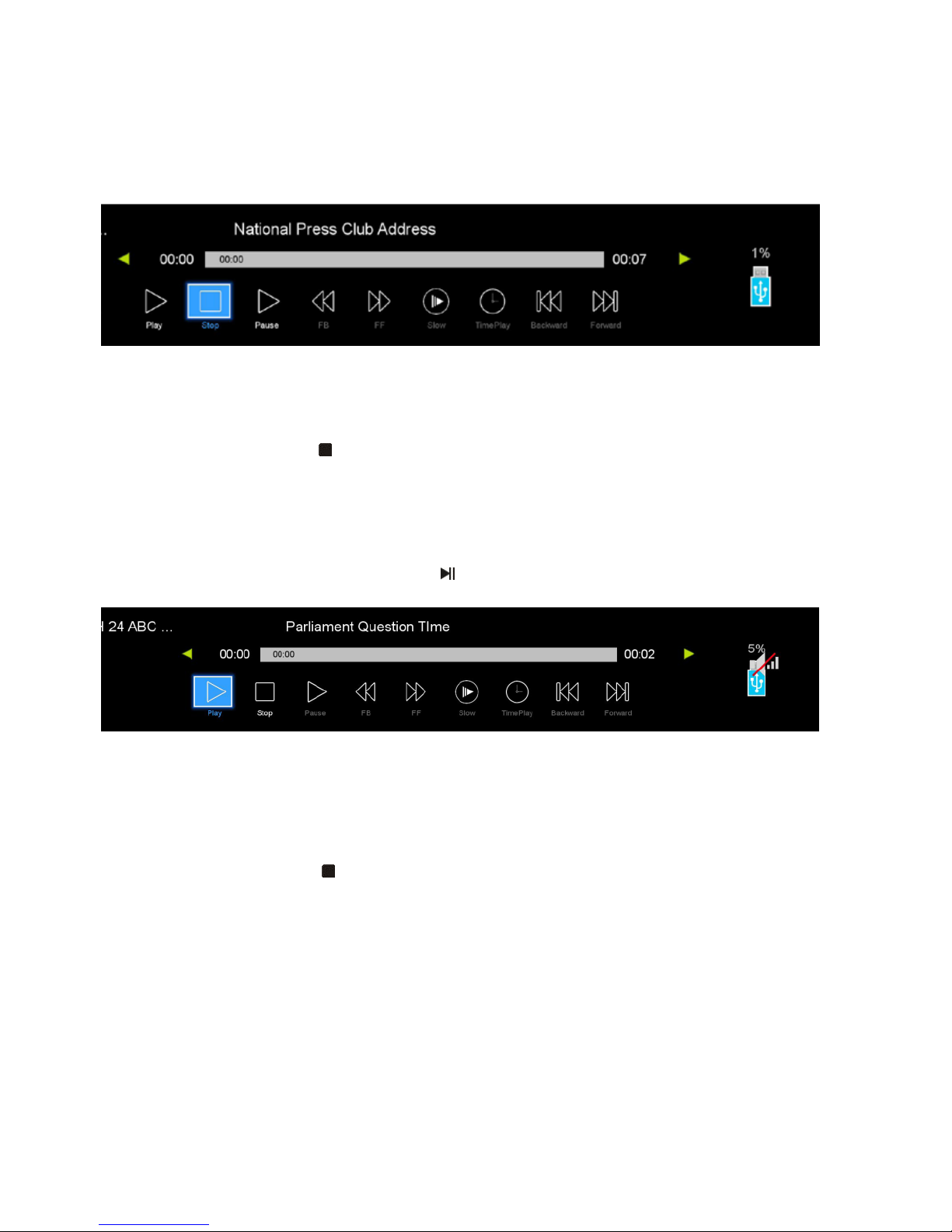

RECORDER (FOR DTV MODE ONLY)

- Insert your USB memory device into USB slot first.

- When watching digital programs, press ● button on remote control and below tool bar
will appear on the screen:

- Press LEFT or RIGHT navigation button to select desired option. Press OK button to
confirm selection.

- If the tool bar disappeared, press OK button on remote control to display it again.

- To stop recording, press button and a message will pop up. Then you can stop
recording accordingly.

TIMESHIFT (FOR DTV MODE ONLY)

- Insert your USB memory device into USB slot first.

- When watching digital programs, press button to enable TIMESHIFT function.

- Highlight “Play” in the tool bar and press OK to start playback.

- Press LEFT or RIGHT navigation button to select desired option. Press OK button to
confirm selection.

- If the tool bar disappeared, press OK button on remote control to display it again.

- To stop Time-shift, press button and then you can stop it accordingly.

21

MEDIA PLAYBACK

- Insert a USB memory device into USB slot before following operations.

- Press the SMART HUB button on remote control to call out the Smart Hub directly.

- Press LEFT/RIGHT navigation button to select “Media” and press OK to enter it.

- Press EXIT button to return to previous page. When selecting a file, use navigation buttons
to highlight “Return” and press OK to return to Media home page.

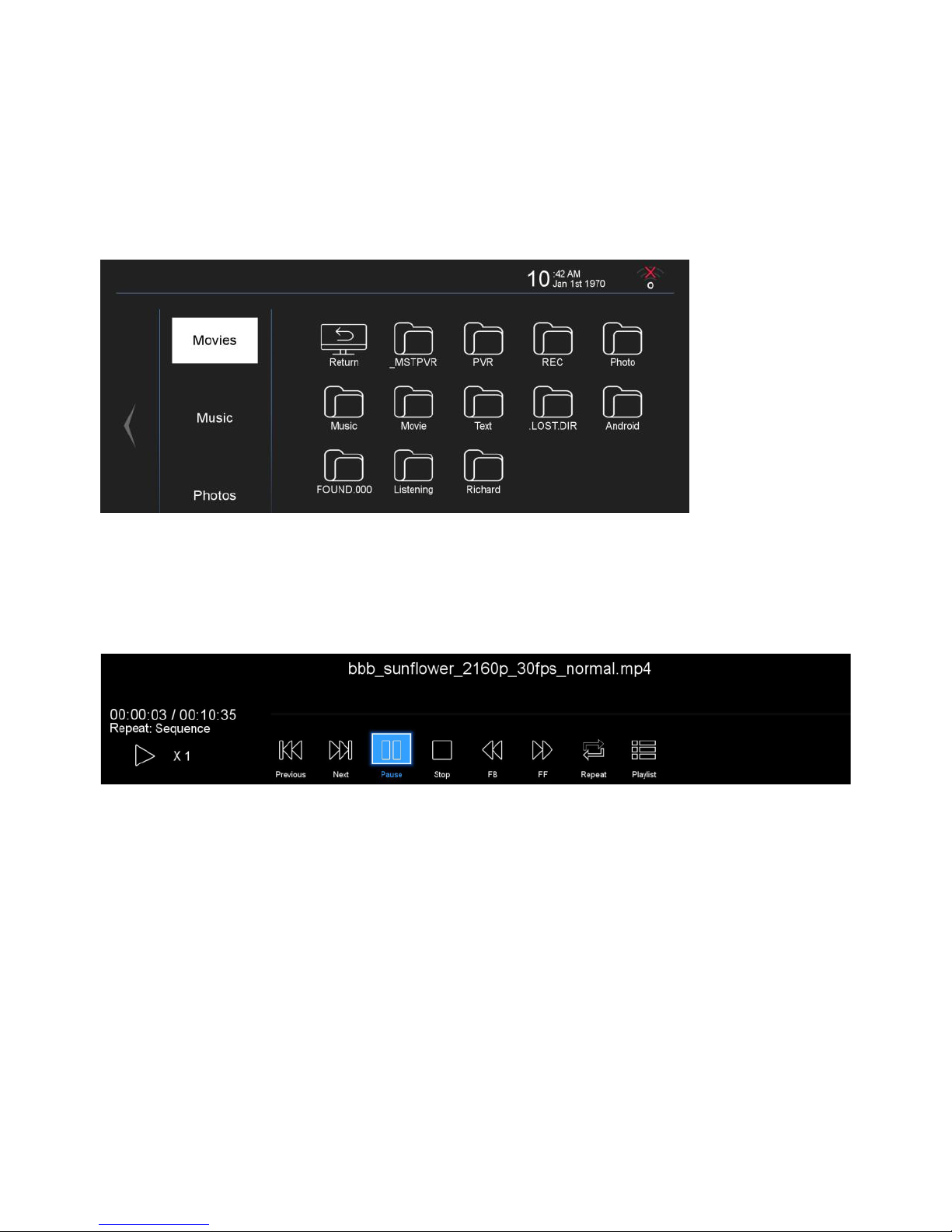

1. Movie

- Press UP/DOWN navigation button to select Movie in the main menu and press OK button
to enter it.

- Use navigation buttons to select desired folder or file and press OK to start playback.

- Press MENU button to dismiss/recall the tool bar. Use navigation buttons to select desired
option and press OK to confirm it.

- Press EXIT button to return.

2. Music

- Press UP/DOWN navigation button to select Music in the main menu and press OK button
to enter it.

- Use navigation buttons to select desired folder or file and press OK to start playback.

22

- Press LEFT/RIGHT navigation button to select desired option and press OK button to
confirm it.

- Press EXIT button to return.

3. Photo

- Press UP/DOWN navigation button to select Photo in the main menu and press OK button
to enter it.

- Use navigation buttons to select desired folder or file and press OK to start playback.

- Press EXIT button to dismiss the tool bar.

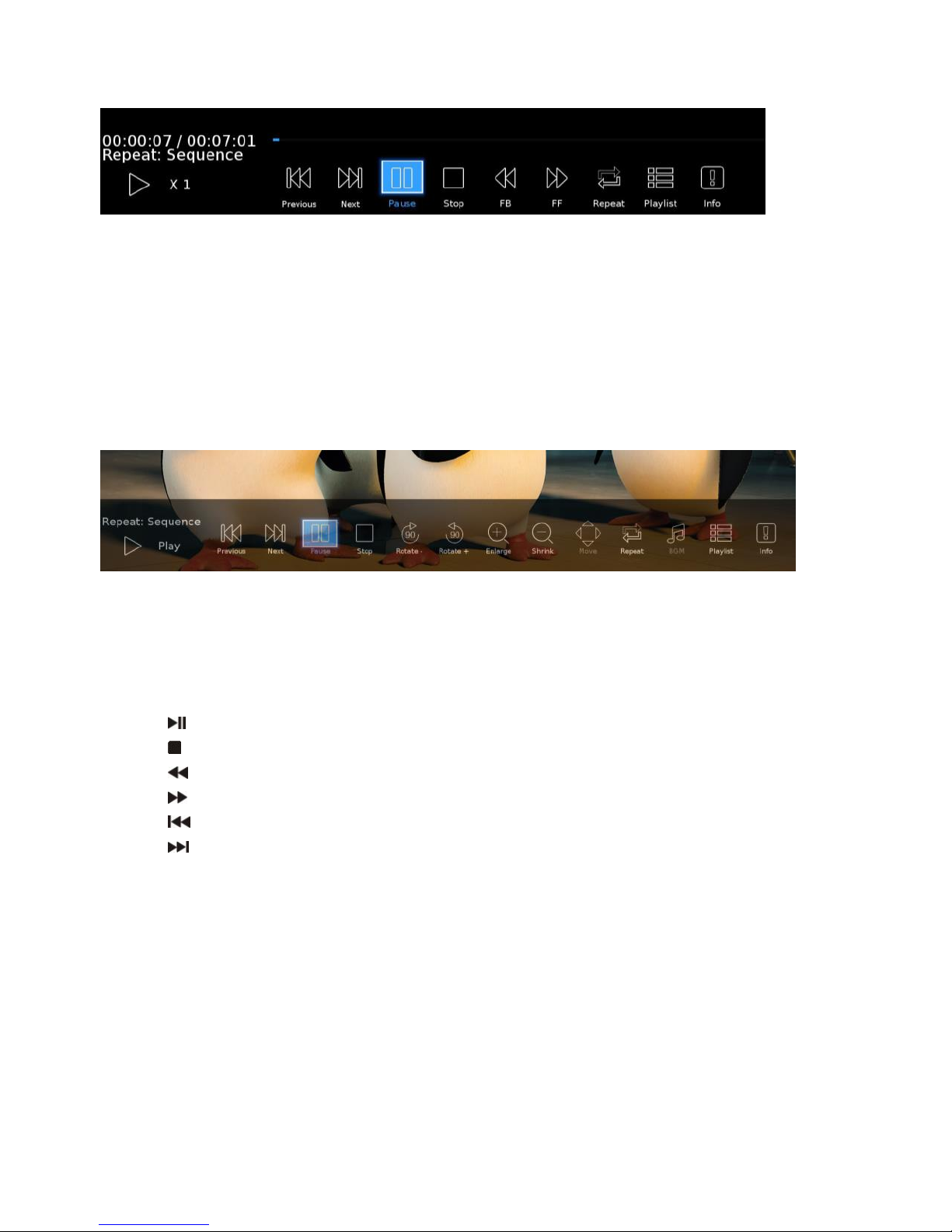

Remote operations when playing multimedia files:

- Press button on remote control to play or pause playing.

- Press button on remote control to stop playing.

- Press button on remote control to move fast backward.

- Press button on remote control to move fast forward.

- Press button on remote control to play previous file.

- Press button on remote control to play next file.

NOTE: To play your multimedia files, make sure you have selected correct icon in the main
menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item,
Music files in MUSIC item and so on.

23

● The unit contains different setting menus. Once the initial programming is entered, it will
be remembered in the memory until changed, and the unit can always be operated under
the same conditions.

● This setting will be remembered in the memory until the settings are changed even after
setting the player to standby mode.

Common procedure for initial settings

- Press MENU button on the unit or remote control to display the main menu.

- Press LEFT or RIGHT navigation button to select different menus.

- Press UP or DOWN navigation button to move the cursor.

- Press OK button to enter adjusting menu page.

- Press MENU button to save current setting and return to previous menu page.

- Press EXIT button to exit menu page.

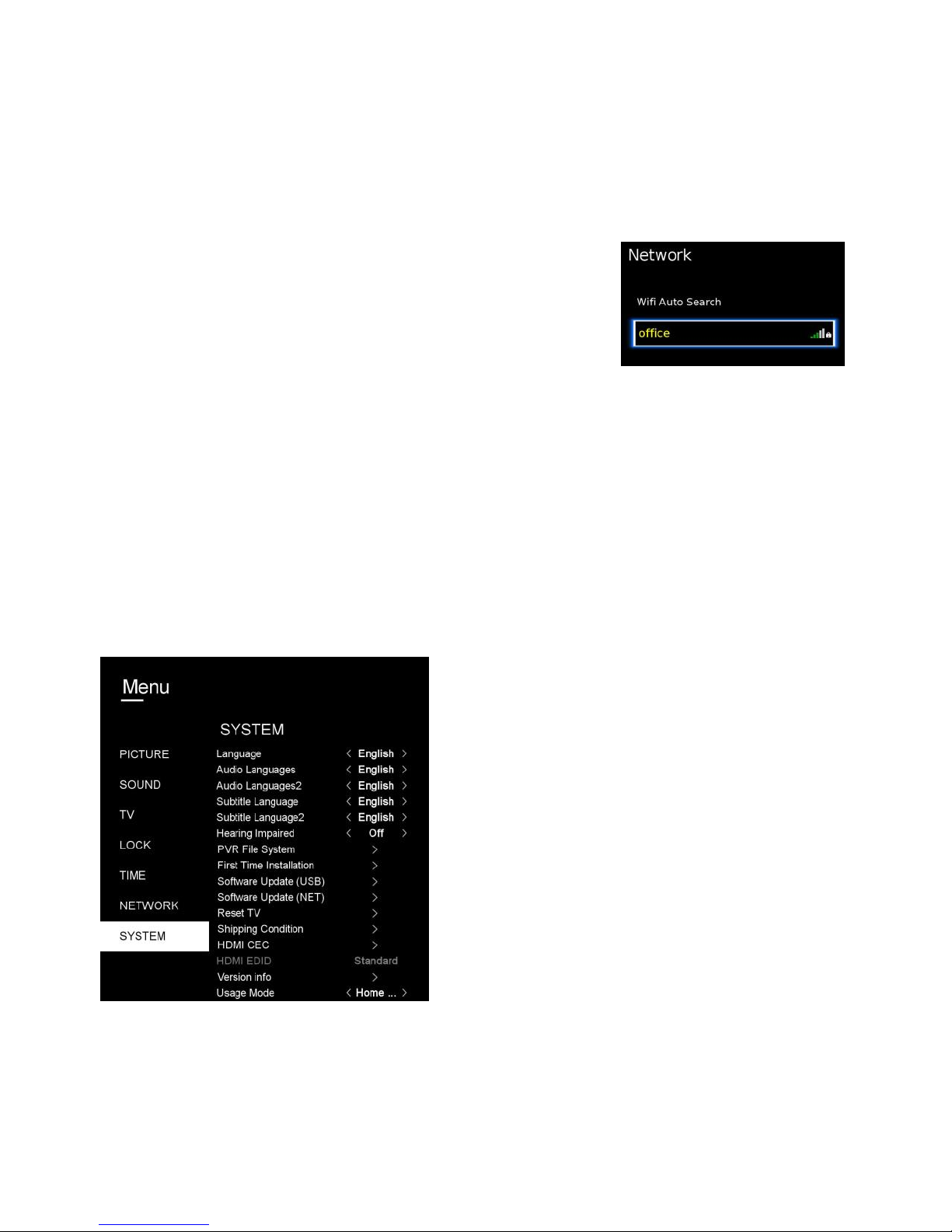

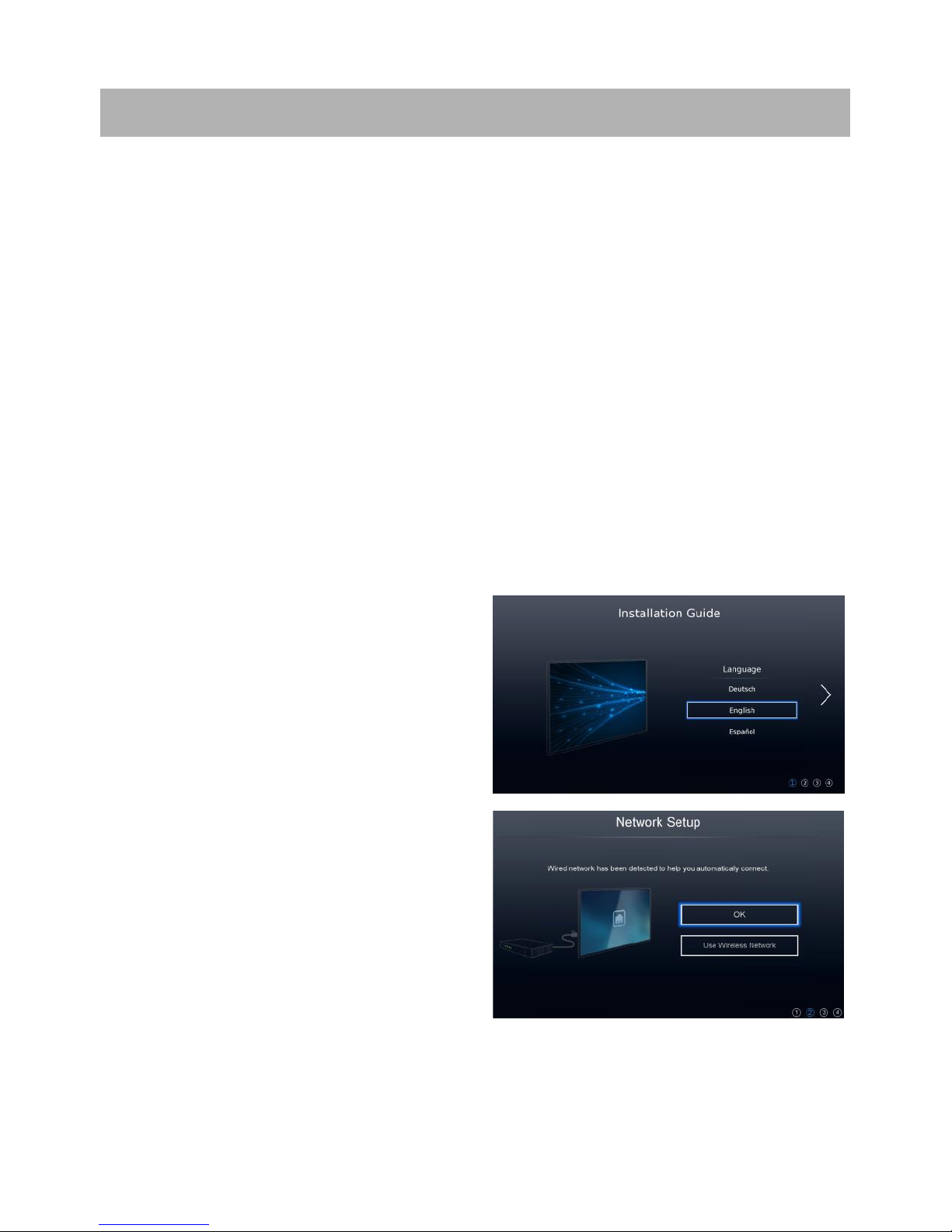

First Time Installation

- Connect to power source and turn on this TV, then below setup page will display on the
screen:

Language

- Press UP/DOWN navigation button to select
desired on-screen display language.

- Press OK to confirm selection and enter
next page.

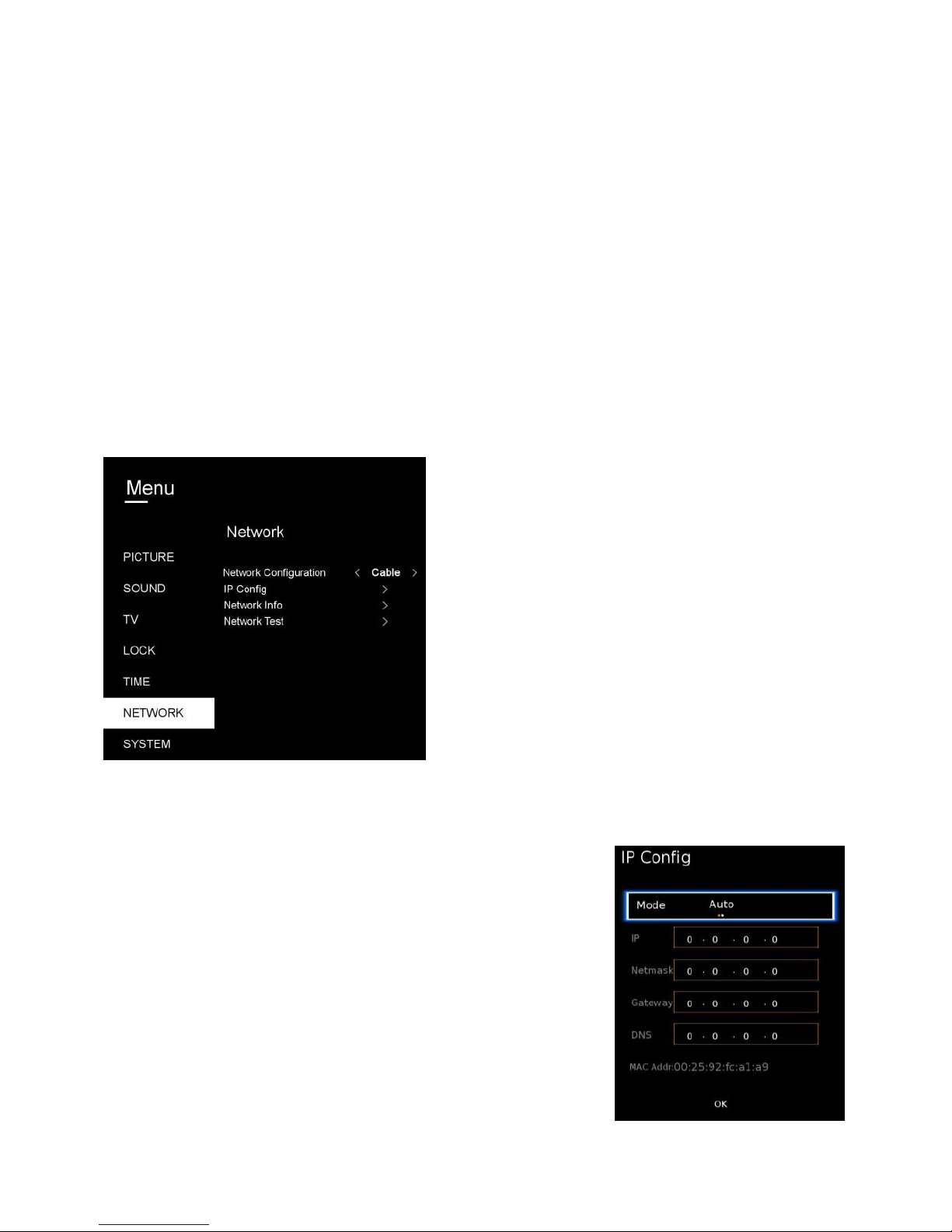

Network

- Choose LAN or wireless network if
available.

- If network connection is saved successfully,
press OK to confirm selection and enter next
page.

Note: The on-screen display may vary for
different network connection.

MAIN MENU

24

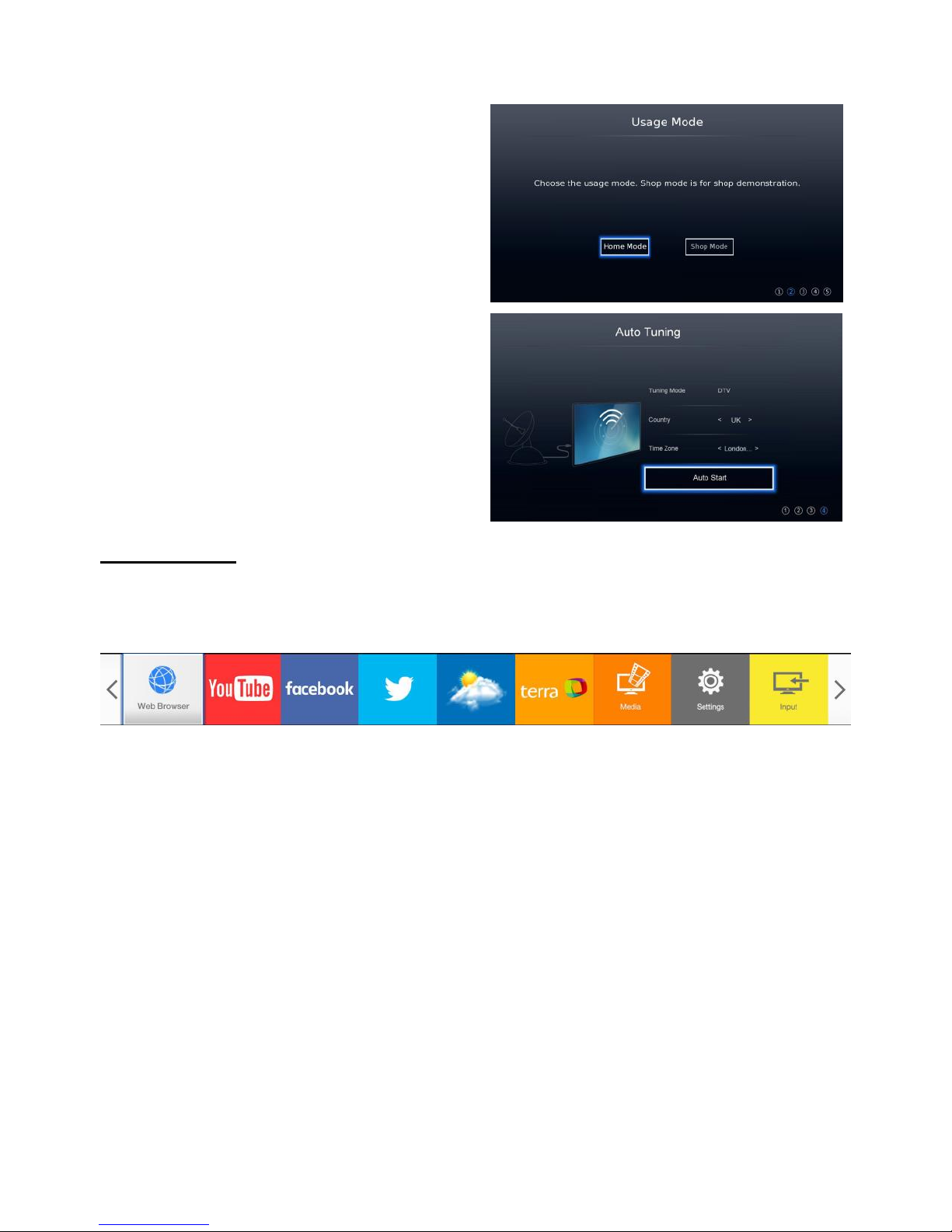

Usage Mode

- Press LEFT/RIGHT navigation button to
select Home or Shop mode.

- Press OK to confirm selection and enter
next page.

Auto Tuning

- Press navigation buttons to select the
tuning mode, country and time zone.

- Then highlight “Auto Start” and press OK to
start auto tuning.

Smart Hub

- Press the SMART HUB button on remote control to call out the Smart Hub directly. You
can access pre-installed applications.

● Web Browser

● Terra

● YouTube

● Media

● Facebook

● Settings

● Twitter

● Input

● Weather

- Press LEFT/RIGHT navigation button to select an option.

- Press OK button to enter an application.

Note: To use Internet, YouTube, Facebook and so on apps, please connect an available
LAN cable or WiFi network first.

25

DTV mode

- Press SOURCE button on remote control to select DTV input source.

- Press MENU button on remote control to call out on-screen menu.

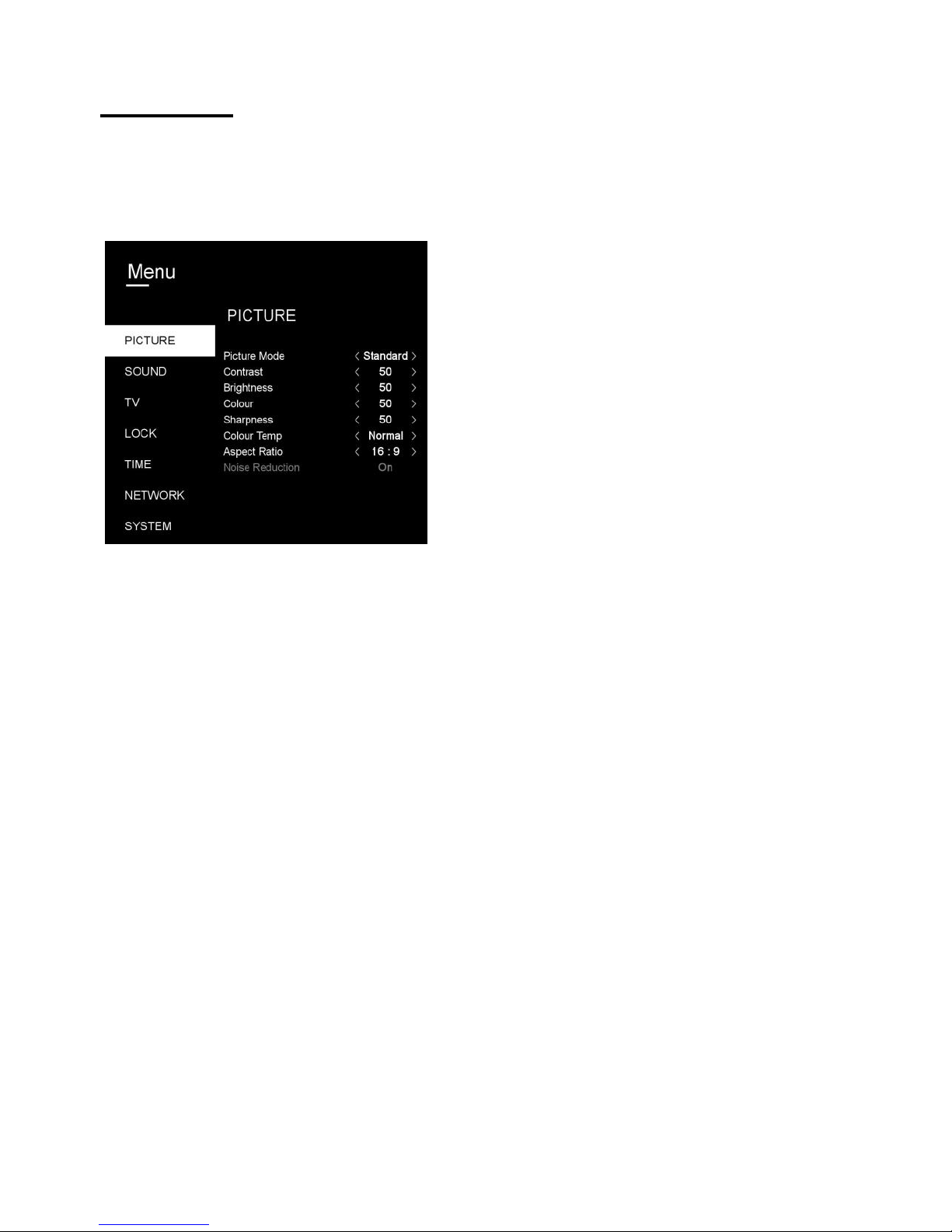

1. PICTURE

1.1 Picture Mode

- When highlighted, press LEFT/RIGHT navigation button to select an option.
Available options: Standard, Mild, Movie, Personal, Dynamic.
Contrast / Brightness / Colour / Sharpness: adjustable value: 0-100.
NOTE: When the value of Contrast / Brightness / Colour / Sharpness is changed, Picture
Mode will turn to “Personal” automatically.

1.2 Colour Temp

This item is used to adjust the optimum color temperature for suitable viewing.
Available options: Normal, Warm, Cold.

1.3 Aspect Ratio

This item is used to adjust the video size.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: The available video size may be different for different input source.

1.4 Noise Reduction

This item is used to turn on/off Noise Reduction function.

26

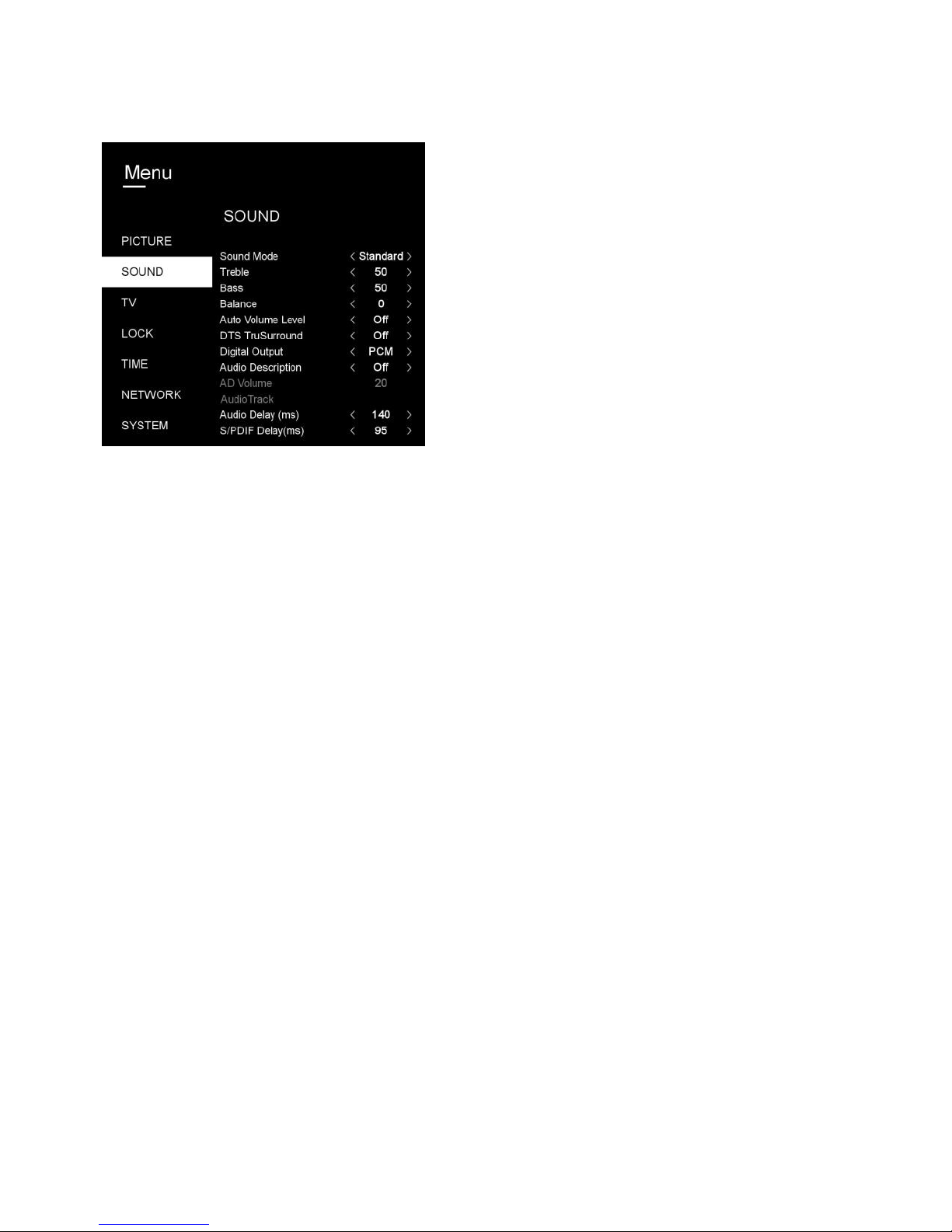

2. SOUND

2.1 Sound Mode

- When highlighted, press LEFT/RIGHT navigation button to select an option.
Available options: Standard, Music, Movie, Sports, Personal.
Treble / Bass: adjustable value: 0-100.
NOTE: When the value of Treble or Bass is changed, Sound Mode will turn to “Personal”
automatically.

2.2 Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

2.3 Auto Volume Level

This item is used to turn on/off Auto Volume Level function.

2.4 DTS TruSurround

This item is used to turn on/off DTS TruSurround function.

2.5 Digital Output

Available options: Auto, PCM, Off.

2.6 Audio Description

This item is used to turn on/off Audio Description function.
NOTE: For Visually Impaired users, this function can help to know a certain scene or action
through the narration, instead of see it. This function works only when you are viewing
programs that contain related narration information.

27

2.7 AD Volume

Select desire volume level when “Audio Description” is turned on.

2.8 Audio Track

Select available audio track.

2.9 Audio Delay

Adjust this item if you found Picture and Sound are not totally synchronized.

2.10 S/PDIF Delay

Adjust this item if you found Picture and Sound are not totally synchronized, when
connected to external amplifier.

3. CHANNEL

3.1 Auto Tuning

- Press OK or RIGHT navigation button to enter it.

- Use navigation buttons to set the Tuning Mode and Country

- Then highlight “Auto Tuning” and press OK to start auto tuning.

3.2 Analogue Manual Tuning (ATV input source only)

- Press OK or RIGHT navigation button to enter it.

Storage To: select the channel number to be saved.
System: select available sound system.
Current CH: select current channel.
Search: search available programs.
Fine Tune: fine tune the frequency.

28

3.3 Digital Manual Tuning

- Press OK or RIGHT navigation button to enter it.

- Use LEFT/RIGHT navigation button to select the channel.
Then press OK button to start searching.

3.4 Channel Edit

- Press OK or RIGHT navigation button to enter it.

- Press UP/DOWN navigation button to highlight desired
channel.

- Press RED button on remote control to delete highlighted
channel.

- Press YELLOW button on remote control to enter MOVE
mode. Then use UP/DOWN navigation button to select
preferred position and press YELLOW button again to move it.

- Press BLUE button on remote control to skip highlighted
channel.

- Press FAV button to set current channel as a favorite channel,
and press FAV button again to set it as a normal channel.

3.5 Signal information

This item is used to display signal details, for example:
channel number and strength.

3.6 CI information

When an available CAM (Conditional Access Module) card is connected to the CI slot,
users can view related information or manage the CAM card.

3.7 Recorded List

Scheduled recordings are shown in this list and users can watch all recorded
programs here.

- Use navigation buttons to select a program.

- Press OK to play the highlighted program.

3.8 Schedule List

If a reminder is set through the EPG menu, users can watch all preset programs here.

- Press GREEN button to edit preset reminder.

- Press BLUE button to sort by Time or Channel Name.

- Press RED button to delete highlighted option.

29

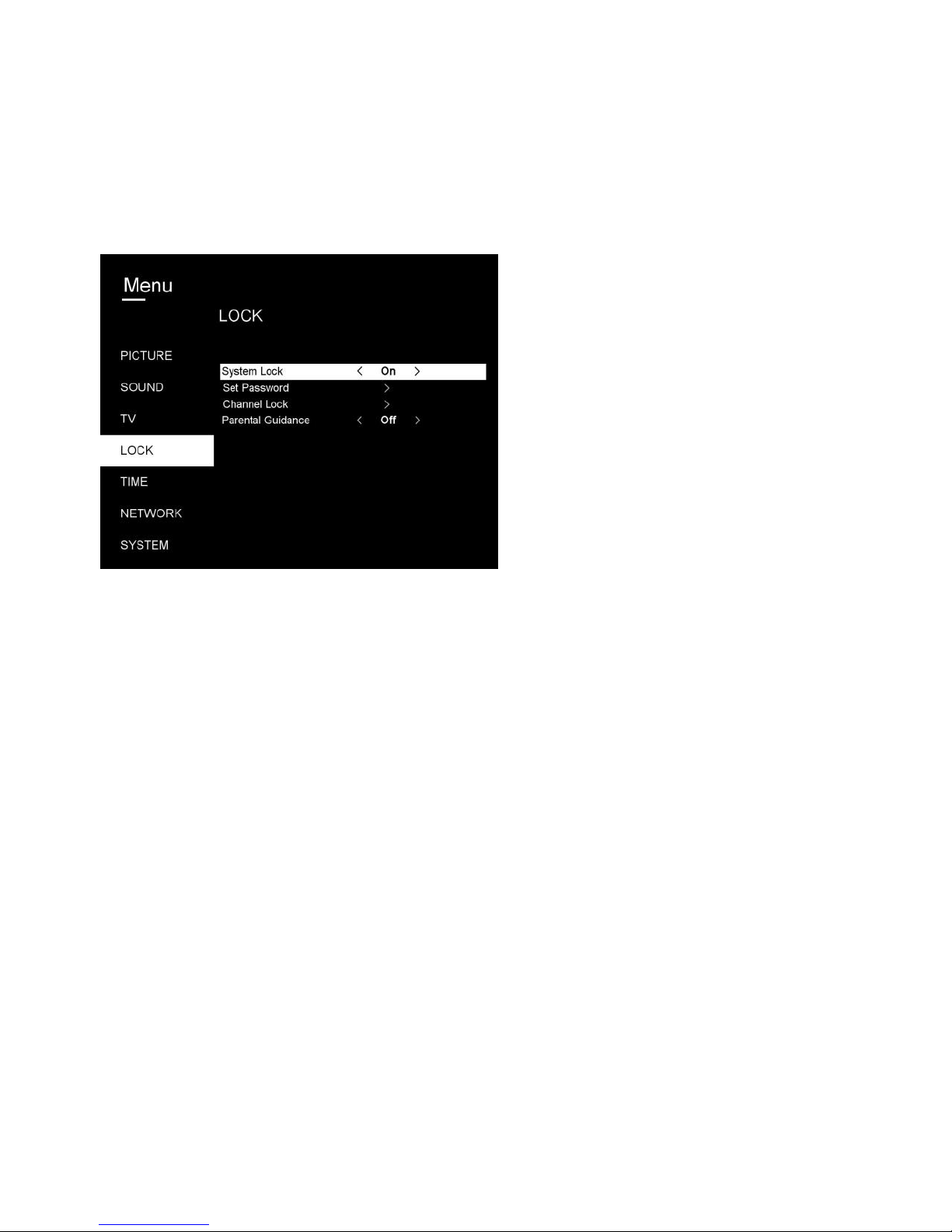

4. LOCK

- Press OK or RIGHT navigation button to enter it.

- Input the factory default password “0000” using number buttons on remote control.

- Press UP/DOWN navigation button to select preferred item.

NOTE: If you forget the password, please use the universal password “4711”.

4.1 System/Hotel Lock

This item is used to turn on/off Lock System.

4.2 Set Password

- Input the old password using number buttons on remote control and then input your private
password twice to finish it.

4.3 Channel Lock

- Press OK or RIGHT navigation button to enter it.

- Press UP/DOWN navigation button to select the channel which you want to lock.

- Press GREEN button repeatedly to lock/unlock the highlighted channel.

4.4 Parental Guidance

This item is used to select desired program rating.
Available options: Off, 4 to 18.

30

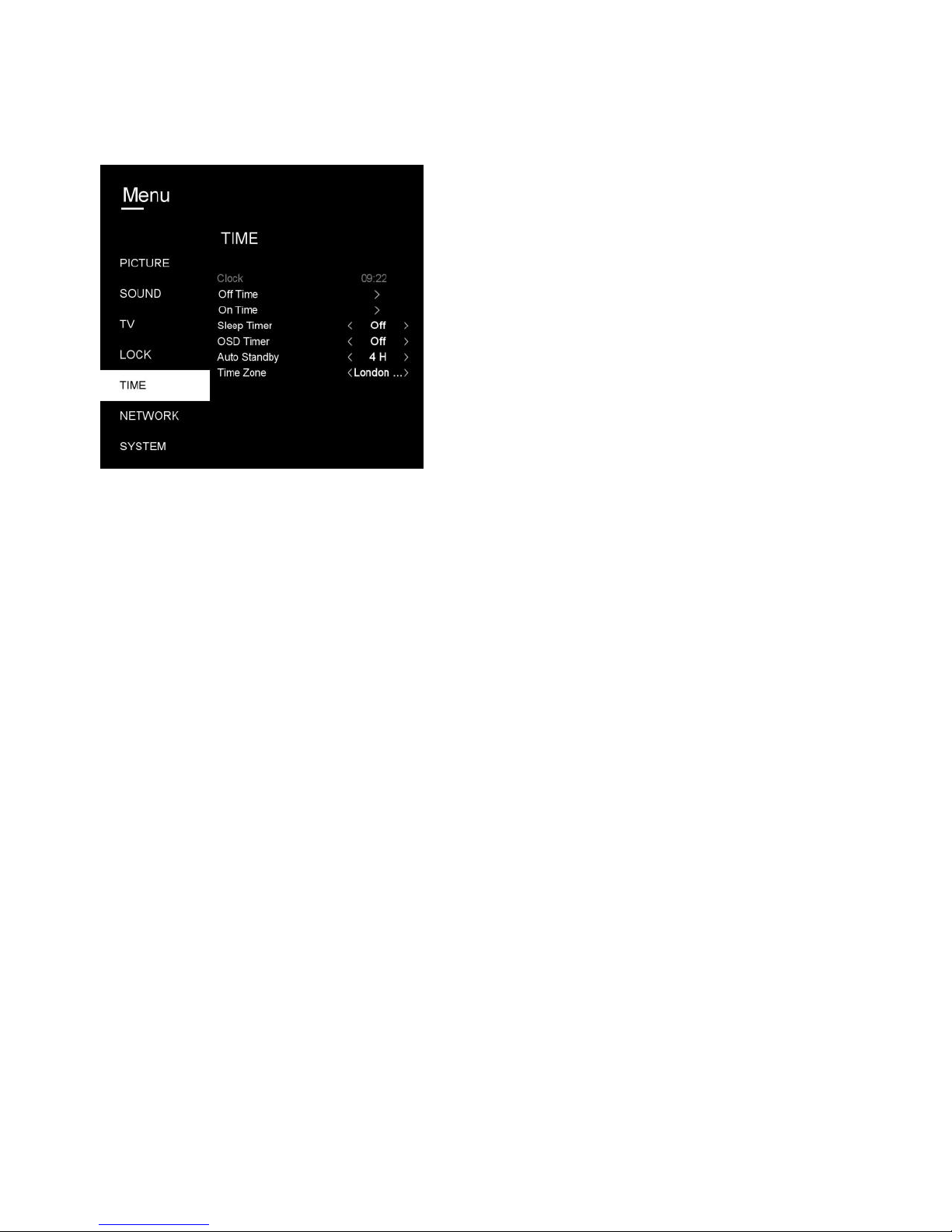

5. TIME

5.1 Clock

It displays current system time when an available channel was saved.

5.2 Off Time

- Press OK or RIGHT navigation button to enter it.

- Use navigation buttons to select an option or adjust the value.

- When “Time” is highlighted, use LEFT/RIGHT button to move the cursor and use 0 to 9
numeric buttons on remote to input the data.

Off Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.
Hour / Minute: press OK button to enter adjusting mode and use navigation buttons to

adjust the Hour / Minute when Off Time is not “Off”.

5.3 On Time

- Press OK or RIGHT navigation button to enter it.

- Use navigation buttons to select an option or adjust the value.

- When “Time” is highlighted, use LEFT/RIGHT button to move the cursor and use 0 to 9
numeric buttons on remote to input the data.

On Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.
Time / Input Source / Channel / Volume: use navigation buttons to adjust these items

when On Time is not “Off”.

5.4 Sleep Timer

This item is used to set the automatic sleep timer.
Available options: Off, 10/20/30/60/90/120/180/240 minutes.

31

5.5 OSD Timer

This item is used to select desired OSD menu duration.
Available options: Off, 5/15/30/60 seconds.

5.6 Auto Standby

This item is used to select desired Auto Sleep (standby) duration when there has been no
input from the remote control for a period of time.
Available options: Off, 3, 4 or 5 hours.

5.7 Time Zone

This item is used to select desired time zone.

6. NETWORK

6.1 Network Configuration

- Select your network connection method.
Available options: Cable (LAN), Wireless.

6.2 IP Config (Network Configuration is “Cable)

Notice: Connect your local network using a LAN cable first.

- Press OK or RIGHT navigation button to enter it.

- Press UP/DOWN navigation button to highlight desired
option.
Mode: select Auto to gain IP address automatically; select
Manual to configure IP manually.
IP / Netmask / Gateway / DNS: press OK button to enter
adjusting mode and use numeric buttons on remote control
to input the data.

32

MAC Addr: show the MAC address.

When above settings are finished, highlight “OK” on this menu and press OK button on
remote to finish configuration.

Wireless Config (Network Configuration is
“Wireless”)

- Press OK or RIGHT navigation button to enter it.

- Press UP/DOWN navigation button to highlight desired
option.
Wifi Auto Search: search all available Wifi network nearby.
Note: If a Wi-Fi point has a security password, please enter the password using on-screen
keypad.

6.3 Network Info

This item is used to show IP Address, Mask, Gateway and so on information.

6.4 Network Test

This item is used to test the network condition.

7. SYSTEM

7.1 Language

This item is used to select desired on-screen display language.

7.2 Audio Languages

33

This item is used to select desired audio languages.

7.3 Audio Languages 2

This item is used to select desired second audio languages.

7.4 Subtitle Language

This item is used to select available subtitle languages.

7.5 Subtitle Language 2

This item is used to select desired second subtitle languages.

7.6 Hearing Impaired

This item is used to turn on/off Hearing Impaired function. For Hearing Impaired users, this
function can assist help to know a certain scene or action through the caption, instead of
hearing it.
NOTE: Hearing Impaired function works only when you are viewing programs that contain
related caption information.

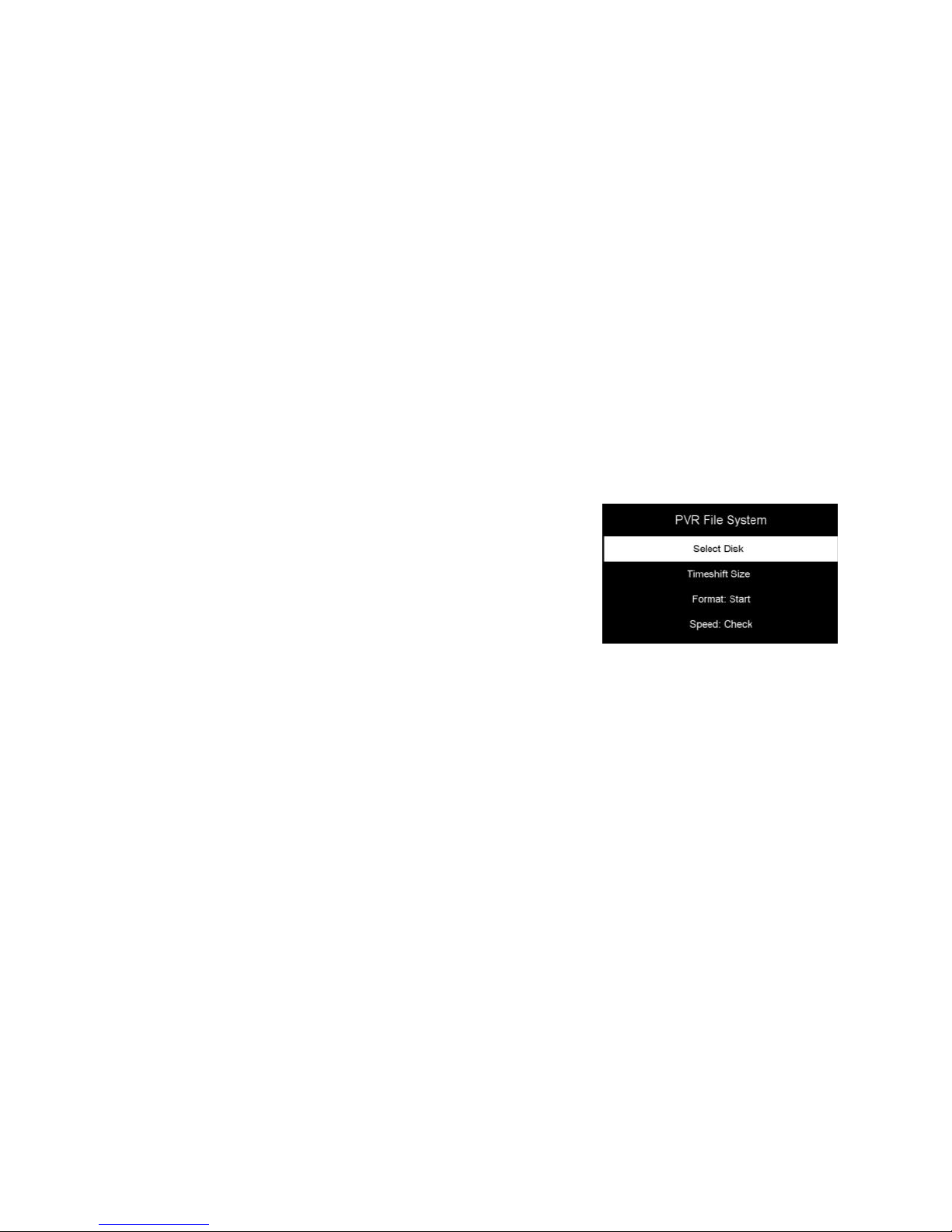

7.7 PVR File System

- Press OK or RIGHT navigation button to enter it.

- Press UP/DOWN navigation button to select desired option and press LEFT/RIGHT
navigation button to adjust it.

- Press OK button to enter submenu or confirm setting.

In this part, you can select desired disk, check speed, format your USB memory device or
set desired Timeshift size.

7.8 First Time Installation

This item is used to recall First Time installation menu.

7.9 Software Update (USB)

This item is used to update software through USB memory device.

7.10 Software Update (NET)

This item is used to update software through the Internet.

7.11 Reset TV

This item is used to reset to factory default settings.

7.12 Shipping Condition

This item is used to reset this TV to shipping condition.

34

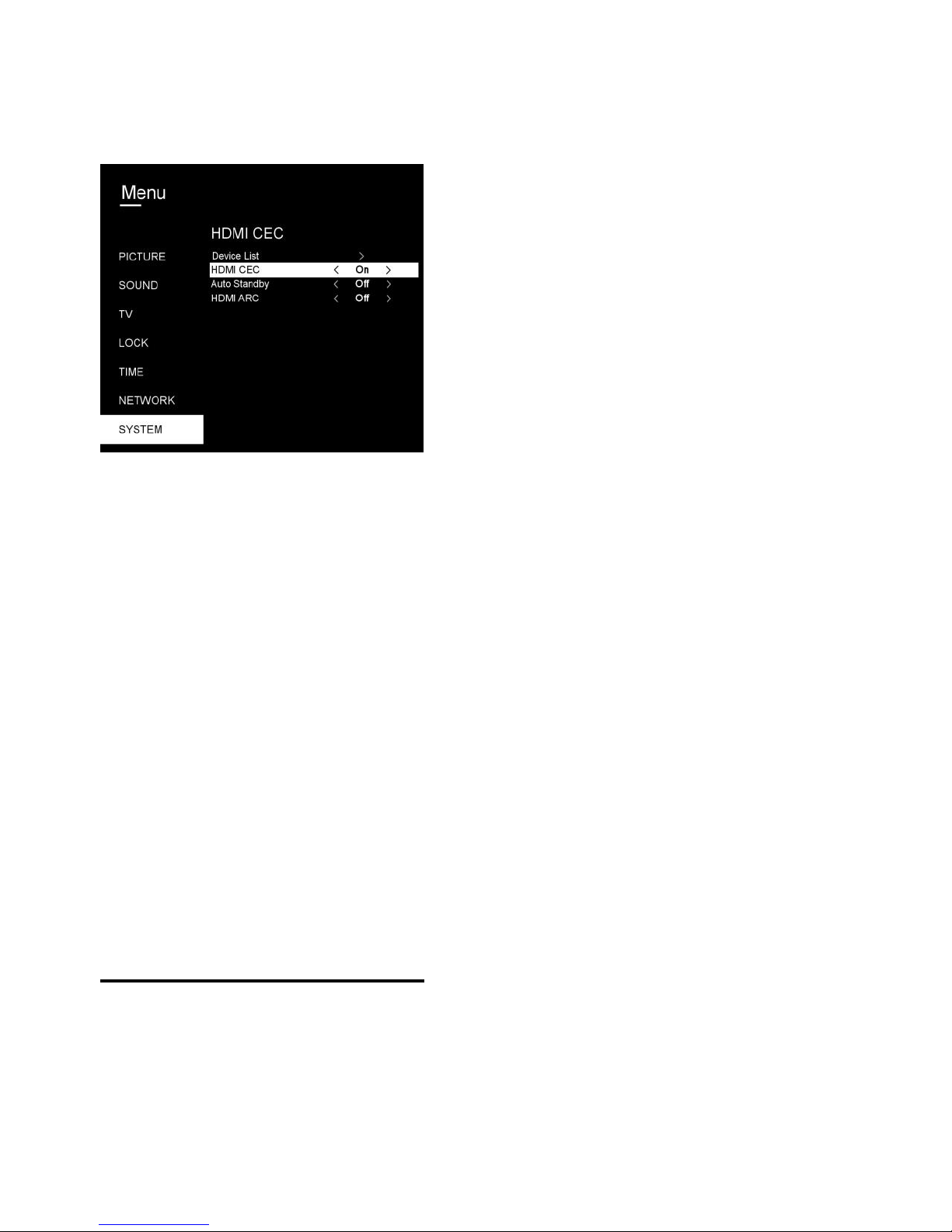

7.13 HDMI CEC

To use HDMI CEC function:

- Make sure the HDMI device (Amplifier, etc.) is connected correctly.

- Press SOURCE button on the unit or remote control to select HDMI input source.

Device List: display all available devices.
HDMI CEC: turn on/off HDMI CEC.
Auto Standby: turn on/off Auto Standby function
HDMI ARC: turn on/off ARC function (for HDMI 2 port only)

7.14 HDMI EDID

Select correct HDMI EDID when connecting external HDMI multimedia device.

7.15 Version info

Display related version information of this device.

7.16 Usage Mode

Select Home or Shop mode according to personal usage.

ATV AND OTHER MODES

- Press SOURCE button on the unit or remote control to select desired input source.

- For these modes, please refer to the menu operations of DTV mode.

35

● Be sure to press POWER button to set the player to the standby mode and disconnect
the power plug before maintaining the player.

● Wipe the player with a dry, soft cloth.

● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak

soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use
compressed air to remove dust.

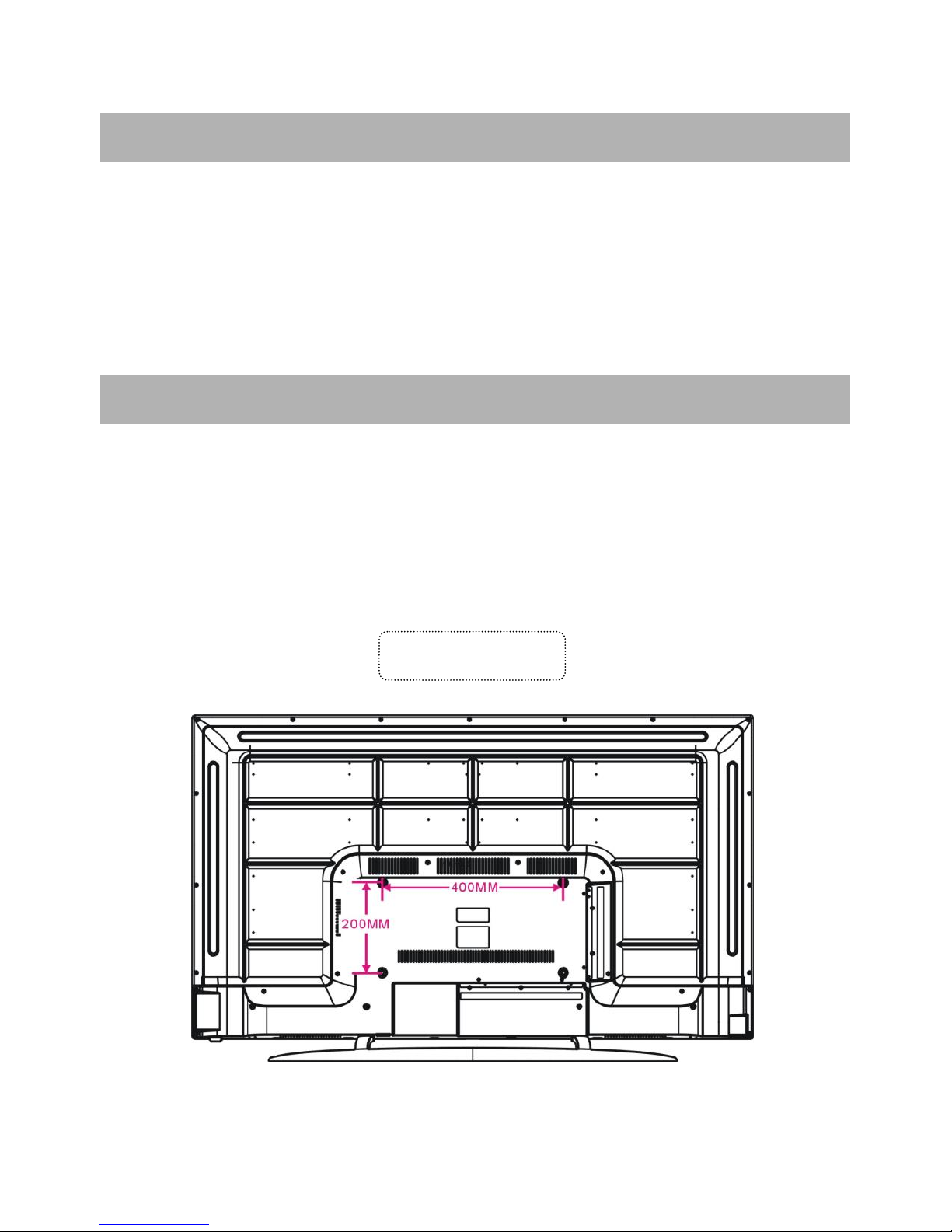

● Contact a professional for assistance when wall mounting your TV. We are not
responsible for any damage to the product or injury to yourself, if you mount the TV on your
own.

● Do not wall mount the TV while TV is turned on. It may cause personal injury due to
electric shock.

● Use standard M6*12mm screws (4 pieces) to mount this TV.

MAINTENANCE

WALL MOUNTING

Back of your TV

36

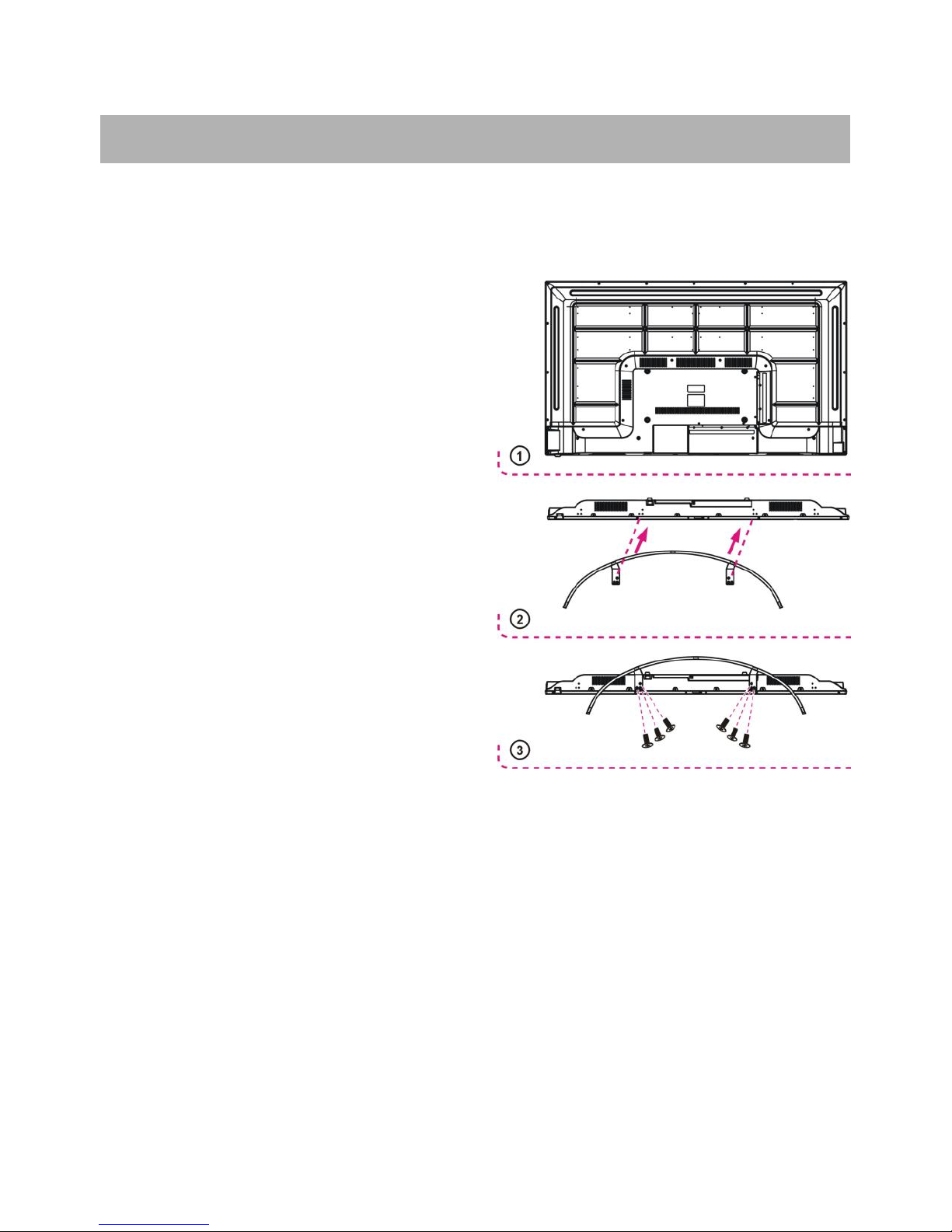

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV,
please carry out the Stand Installation according to the instructions below.

Step 1

Place the TV faced down on a soft cloth or
cushion to prevent the panel from being
damaged.

Step 2

Align the stand and TV bottom and then force
the end of stand until the TV is fully seated on
the stand.

Step 3

Tighten the included screws with a screw
driver.

* Caution:

- Unplug the power plug first when installing or
removing the TV Stand.

- To avoid any damage to this TV, you will find
it easier to ask for assistance when installing
or removing the TV stand.

STAND INSTALLATION

37

Display Device

55 inch LED TV

Resolution

3840×2160

Display Colors

16.7M

Contrast Ratio

4800:1

Aspect Ratio

16:9

USB Multimedia
Playback Format

Movie: AVI, MPEG, TS, MKV, RMVB

Music: MP3, WAV, AAC

Photo: JPG/JPEG

Text: TXT

Power Source

AC 100-240V, 50/60Hz

Power Consumption

<185W

Operation Temperature

-5℃ to 45℃

Measurement

1240(W)×238(D)×766(H)mm – With Stand
1240(W)×90(D)×716(H)mm – Without Stand

Weight

Approx. 14.5 kg – With Stand
Approx. 13.3 kg – Without Stand

Specifications are subject to change without notice.

SPECIFICATIONS

38

Check the following points before assuming the unit has malfunctioned:

Symptom[COMMON]

Remedy

No power.

Insert the power plug securely into the power outlet.

No picture.

Ensure that the equipment is connected properly.

● No sound.

● Distorted sound.

● Ensure that the equipment is connected properly.

● Ensure that the input setting for the TV and stereo system are

correct.

● Adjust the master volume to a suitable volume by pressing
VOLUME +/- button.

No operations can be
performed with the
remote control unit.

● Check the batteries are installed with the correct polarities.

● The batteries are exhausted: replace them with new ones.

● Point remote control at the remote control sensor and operate

it again.

● Operate the remote control unit at a distance of no more than
6m from the remote control sensor.

● Remove the obstacles between the remote control and
remote control sensor.

No key operation (by the
main unit and/or the
remote control unit) is
effective.

Disconnect the power plug and then reconnect it.(The player may
not be operating properly due to lightning, static electricity or
some other factors.)

Symptom[TV]

Remedy

No or poor picture.

● Adjust antenna or use an external antenna.

● Relocate the unit near a window (if inside a building).

● Move units away from this product that causes interference.

● Do Auto Tuning again.

● Try another channel.

No sound or poor sound.

● Check the audio settings.

● Press MUTE button on remote control to cancel mute

function.

● Unplug the headphone.

Noise or other interface.

Electronic equipment near the unit is causing interface. Relocate
the unit or move the equipment.

GENERAL TROUBLESHOOTING
