Linsar 22LED2000ST Operating Instructions Manual

English - 1 -

Contents

Safety Precautions ................................................. 2

Environmental Information ..................................... 3

Accessories included .............................................. 3

TV - Features ......................................................... 4

Viewing the TV ...................................................... 4

TV Control button & Operation ............................... 5

DVD - Control buttons ............................................ 5

Remote Control ...................................................... 6

Viewing remote control - DVD ................................ 7

Using a Conditional Access Module ....................... 9

Standby Notications .............................................. 9

Inserting the Batteries to the Remote ................... 10

Connect Power & Antenna ................................... 10

Switching On/Off ................................................... 10

First Time Installation............................................ 10

Media Playback via USB Input ..............................11

Changing Image Size: Picture Formats ................ 12

Using the Channel List ......................................... 12

Quick Menu .......................................................... 12

Menu Features and Functions .............................. 14

Menu Features and Functions .............................. 15

Menu Features and Functions .............................. 16

Electronic Programme Guide (EPG) .................... 17

Recording a Programme ...................................... 17

Timeshift Recording ............................................. 18

Instant Recording ................................................. 18

Watching Recorded Programmes ....................... 18

Recording Conguration ....................................... 18

Wired Connectivity................................................ 18

Wireless Connectivity .......................................... 19

Other Information.................................................. 20

Connectivity Troubleshooting ............................... 21

DLNA ................................................................... 21

Internet Portal ....................................................... 22

Digital Teletext ...................................................... 23

Specications .............................................................23

DVD MODE .......................................................... 24

How to watch a DVD ............................................ 24

DVD Mode Conguration...................................... 25

Other Functions – Button Combinations (During

playback) .............................................................. 26

Software Upgrade................................................. 27

Troubleshooting & Tips ......................................... 27

Licence Notications............................................. 28

Getting Started with Skype ................................... 31

Appendix: PC Input Typical Display Modes .......... 36

Appendix: Supported File Formats for USB Media

Browser ................................................................ 37

Appendix: Supported DVI Resolutions ................. 38

Appendix : SKY Remote Control Code ................. 38

Appendix: AV and HDMI Signal Compatibility (Input

Signal Types) ........................................................ 39

Appendix: DVD Mode Supported le formats ....... 40

Compatible disc types .......................................... 40

Important Instruction ............................................. 41

English - 2 -

WARNING: Never let people (including

children) with reduced physical, sensory or mental
abilities or lack of experience and / or knowledge
use electrical devices unsupervised.

Children may not recognize dangers of incorrect
use! The swallowing of batteries can be fatal. Keep
batteries always out of reach of small children. If
a battery is swallowed, immediately seek medical

attention. Keep the packaging lms out of reach of

children to prevent the risk of suffocation.

Power source

• The TV should be operated only from a 220-240 V
AC, 50 Hz outlet.

• Warning: Do not leave your TV in standby or
operating mode when you leave your house.

Positioning the TV

• For ventilation, please leave a clear space of at least
10cm all around the TV.

• Do not block the ventilation openings.

• Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

• To prevent damage to the TV, do not place any objects
on top of the TV.

• Only use the TV in moderate climates.

Power cord and plug

• The power cord plug should be easily accessible. If
there is lightning or storms, or if the TV is not going
to be used for a while (e.g. if going away on holiday),
disconnect the TV set from the mains.

• The mains plug is used to disconnect TV set from the
mains and therefore it must remain readily operable.

• Do not place the TV, furniture, etc. on the power cord
or pinch the cord.

• Handle the power cord by the plug, do not unplug the
TV by pulling the power cord.

• Never touch the power cord/plug with wet hands as this
could cause a short circuit or electric shock.

• Never make a knot in the power cord or tie it with
other cords.

• Power cords should be placed in such a way that they
are not likely to be stepped on or provide a trip hazard.

• A damaged power cord/plug can cause re or give you

an electric shock. When damaged it must be replaced,

this should only be done by qualied personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid
using in the bathroom or near the kitchen sink).

• Do not expose this TV to rain or water, as this may
be dangerous.

Safety Precautions

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

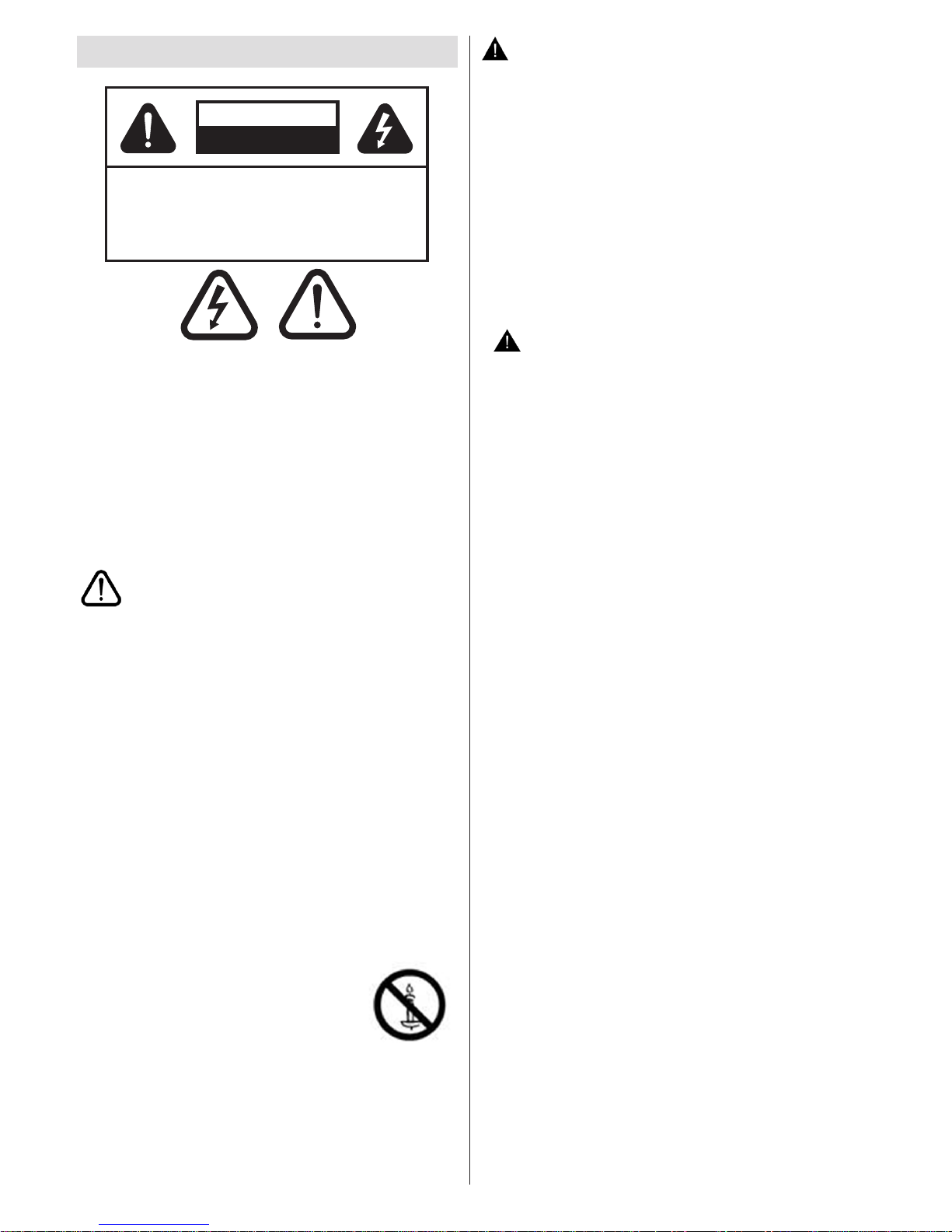

The lightning ash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufcient

magnitude to constitute a risk of electric shock of
persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Please read these instructions fully

before installing or operating.

Preparation

Place the device on a solid even surface. For
ventilation purposes, leave a free space of at least
10 cm all around the set. To prevent any fault and
unsafe situations, do not place any objects on top
of the set. Use this device in moderate climates.
Operation temperature and operation humidity:
0ºC up to 40ºC, 85% rel. humidity max. (Note: Don’t
block ventilation holes.).

Intended Use

This device is used to receive and display TV
programmmes , as well as to play CDs and DVDs (see
“This device compatible disc types”).The different
connection options make an additional expansion of
the reception and display sources possible (various
external devices). This device is only suitable for
the operation in dry interiors. This
appliance is intended solely for private
domestic use and may not be used for
industrial and commercial purposes.
We exclude liability in principle, if the
device is not used as intended, or unauthorized
modications have been made. To operate your TV
in extreme ambient conditions may cause damage
of the device.

English - 3 -

• Do not place objects lled with liquids, such as
ower vases, on top of the TV. Avoid from dripping

or splashing.

• If any solid object or liquid falls into the cabinet,
unplug the TV and have it checked by qualied

personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended
for ventilation and to ensure reliable operation.

• To prevent overheating, these openings must not be
blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other
heat sources.

• The TV should not be placed near to open ames or

sources of intense heat such as an electric heater.

• Ensure that no open ame sources, such as lit

candles, are placed on top of the TV.

Headphone Volume

• Excessive sound pressure from earphones and
headphones can cause hearing loss, please take
care.

Wall Mounting (optional)

• To prevent injury, this TV must be securely attached
to the wall in accordance with the installation
instructions (if the option is available).

Screen

• Occasionally, a few non-active pixels may appear
on the screen as a xed blue, green or red point.

Please note that this does not affect the performance
of your product.

• Take care not to scratch the screen with ngernails

or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall
socket.

• Do not use liquid or aerosol cleaners. Only use a
soft, dry cloth.

Servicing

• Warning: Risk of exposure to radiation from class
1/class 3b visible and invisible laser beams. Do not
open the TV and stare directly into beam.

• Warning: Risk of electric shock, do not attempt
to repair, service or modify this TV yourself. Contact
the manufacturer, their approved service agent

Environmental Information

This television is designed to consume less energy
to help save environment. You can not only help to
save the environment but you can also save money
by reducing your electricity bills thanks to the energy
efficiency feauture of this TV. To reduce energy
consumption, you should take the following steps:

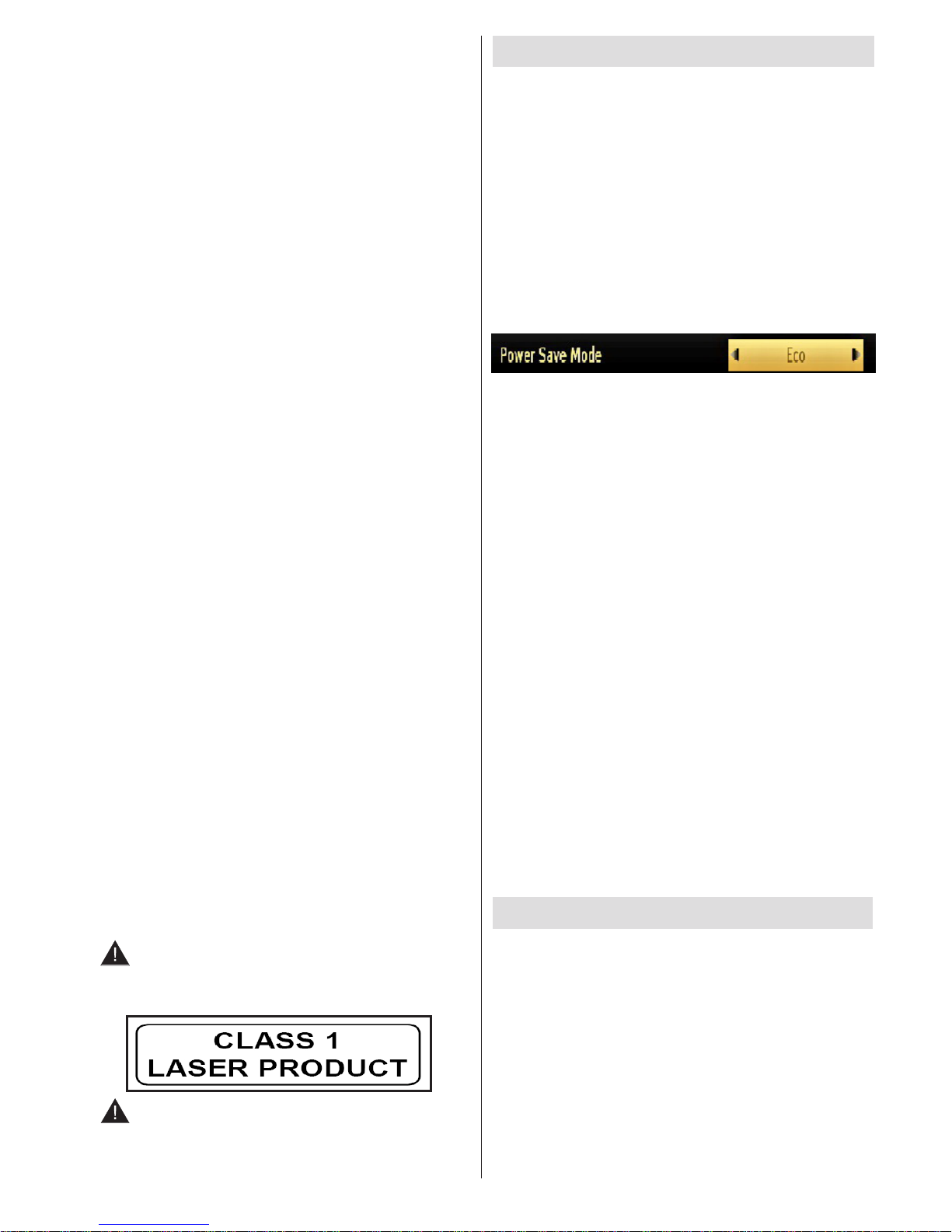

You can use the Power Save Mode setting, located
in the Picture Settings menu. If you set the Power
Save Mode as Eco, the TV will switch to energy­saving mode and the luminance level of TV set will
be decreased to the optimum level. Note that some
picture settings will be unavailable to be changed
when the TV is in Power Save Mode.

If Picture Off is selected, “Screen will be off in 15
seconds.” message will be displayed on the screen.
Select PROCEED and press OK to continue. The
screen will be off in 15 seconds. If you disable Power
Save Mode, Picture mode will be automatically set
to Dynamic.

When the TV is not in use, please switch off or
disconnect the TV from the mains socket. This will
also reduce energy consumption.

Disconnect power when going away for longer time.

It is highly recommended that you activate the
Power Save Mode setting to reduce your annual
power consumption. And also it is recommended
to disconnect the TV from the mains socket to save
energy more when you do not use.

Please helps us to save environment by following
these steps.

Repair Information

Please refer all servicing to qualied personnel. Only
qualied personnel must repair the TV. Please contact

your local dealer, where you have purchased this TV
for further information.

Accessories included

Remote Control
Batteries: 2 x AAA
Instruction Book
Side AV Connection Cable

Wi- USB dongle

USB Cable

English - 4 -

TV - Features

• Remote controlled colour LED TV.

• Fully integrated digital tuner.

• HDMI Inputs are for connecting a device that has

a HDMI socket.

• USB input.

• Programme recording.

• Programme timeshifting.

• 1000 programmes.

• OSD menu system.

• Scart socket for external devices (such as DVD Players,

PVR, video games, etc.).

• Teletext.

• Headphone connection.

• Manual tuning.

• Automatic power down after up to six hours.

• Sleep timer.

• Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

• AVL (Automatic Volume Limiting).

• PC input.

• Plug&Play for Windows 98, ME, 2000, XP, Vista,

Windows 7.

• Game Mode (optional).

• Ethernet (LAN) for Internet connectivity.

• 802.11n WiFi Support via USB dongle.

• DLNA.

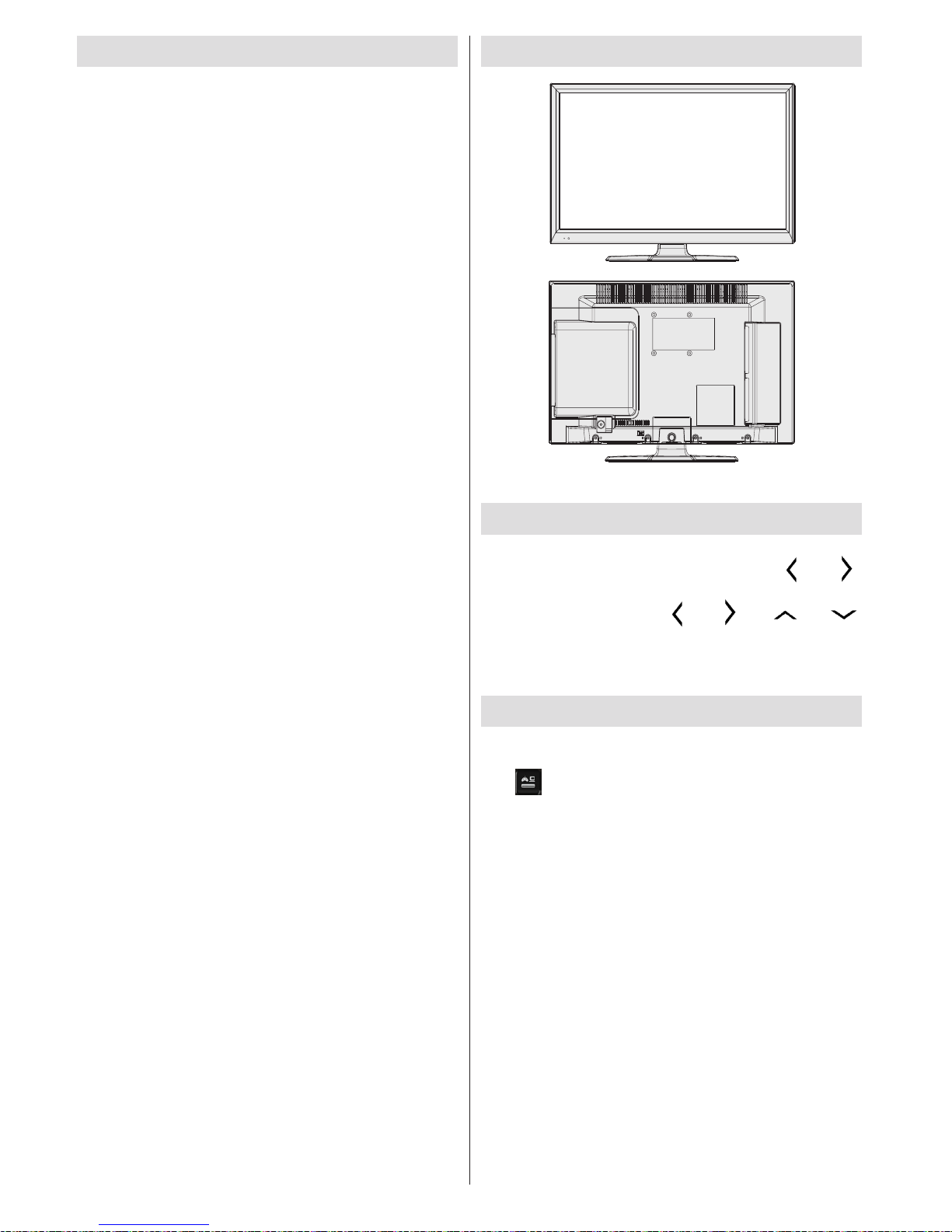

Viewing the TV

Menu Access

Press the MENU button on your remote control to

display the main menu screen. Use the “ ” or “ ”
buttons to select a menu tab and press the OK button

to select option. Use the “ ” or “ ” or “ ” or “ ”
buttons to select or set an item. Press BACK or EXIT
or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your
TV, you can switch to different input sources. Press

the (source) button on your remote control
consecutively to select the different inputs.

English - 5 -

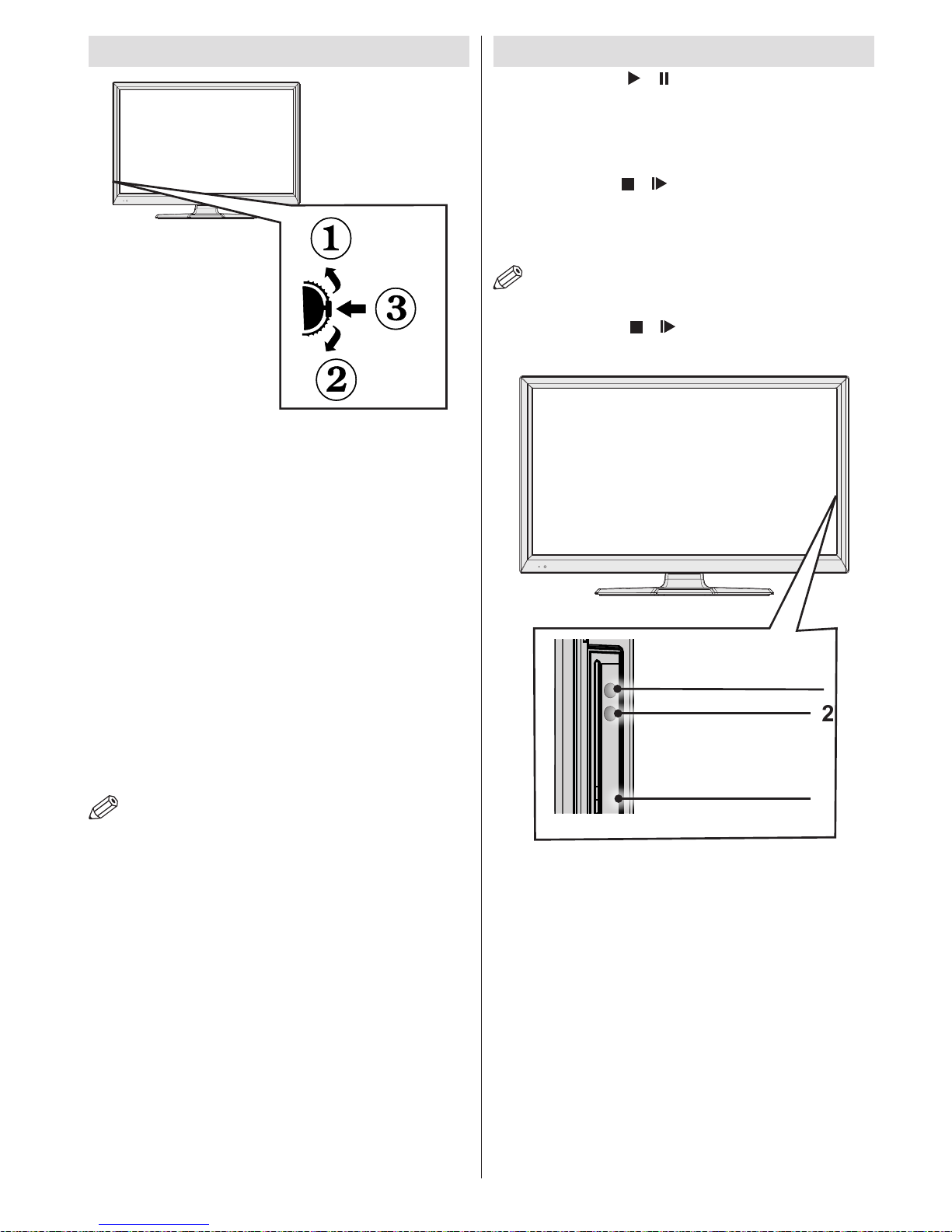

TV Control button & Operation

The Control button allows you to control the
Volume/ Programme/ Source and Standby-On
functions of the TV.

To change volume: Increase the volume by pushing
the button up. Decrease the volume by pushing the
button down.

To change channel: Press the middle of the button,
the channel information banner will appear on screen.
Scroll through the stored channels by pushing the
button up or down

To change source: Press the middle of the button
twice, the source list will appear on screen. Scroll
through the available sources by pushing the button
up or down.

To turn the TV off: Press the middle of the button and
hold it down for a few seconds, the TV will turn off
into standby mode.

NOTE: You can move the switch, upward or

downward to change the volume. If you want to
change the channel, press the middle of the switch
once (Position 3) and then move upward or downward.
If you press the middle of the switch once more, the
source OSD will be displayed. To select desired
source, move the switch upward or downward and
release. If you press the middle of the switch and
hold for a few seconds, the TV will switch to standby
mode. The Main menu OSD cannot be displayed via
the control buttons on the TV.

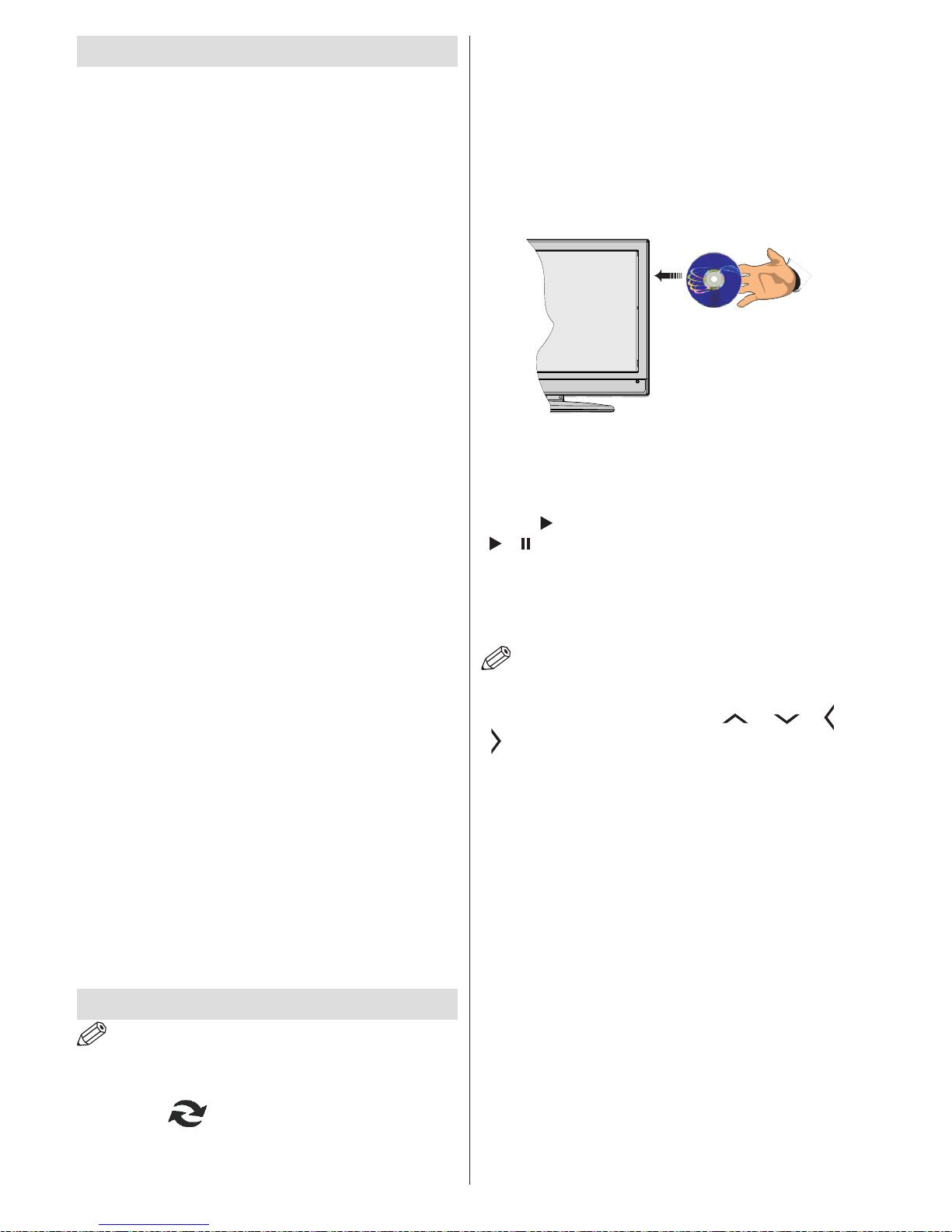

DVD - Control buttons

1. Play / Pause ( / ) button

Plays / pauses the disc. When DVD menu (root
menu) is active, this button functions as “button
select” (selects the highlighted item in menu) if
this is not prohibited by the disc).

2. Stop / Eject ( / ) button.
Stops the disc playing / Ejects or Loads the
disc.

3. Disc loader

NOTE: You cannot eject the disc via the remote

control. To eject while playing a le; you should press

the STOP button “ / ” (on the TV) three times.

2

3

1

English - 6 -

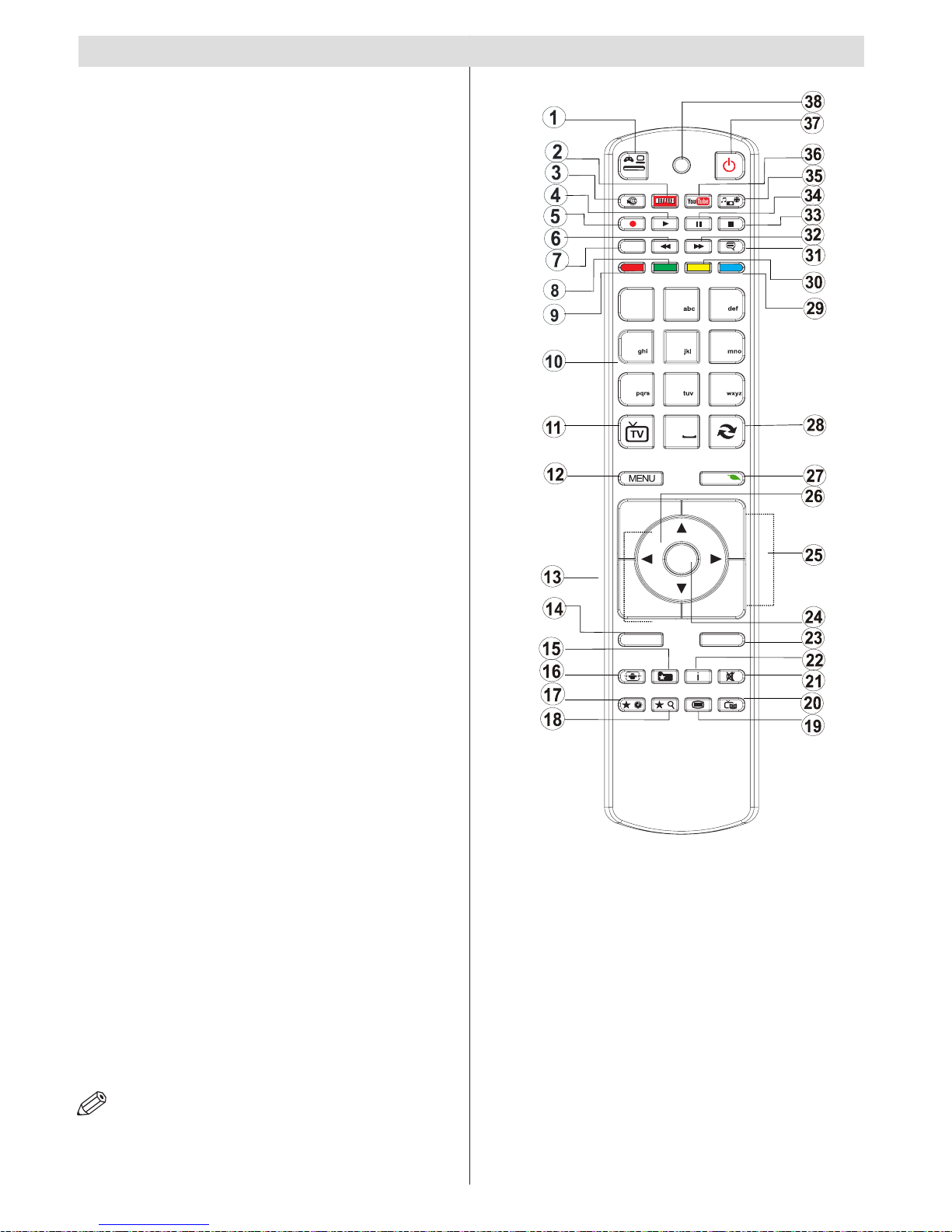

Remote Control

1. Source

2. Launches Netix Application

3. Internet Portal

4. Play ( in media browser mode )

5. Programme recording

6. Rapid reverse ( in media browser mode )

7. Mono/Stereo - Dual I-II / Current language (in DVB
channels)

8. Green button

9. Red button

10. Numeric buttons

11. Channel List/TV source

12. Menu

13. Volume up / down

14. Back (Return) / Index (in TXT mode)

15. Favourite channel list

16. Expand (in TXT mode) / Screen size

17. My button 1 / Youtube (**)

18. My button 2 (***)

19. Teletext / Mix

20. Electronic programme guide

21. Mute

22. Info / Reveal (in TXT mode)

23. Exit

24. Ok / Select / Hold (in TXT mode)

25. Programme up / down

26. Navigation buttons

27. Quick menu

28. Previous programme

29. Blue button

30. Yellow button

31. Subtitle on / off

32. Rapid advance ( in media browser mode )

33. Stop ( in media browser mode )

34. Pause (in media browser mode) / Timeshift
recording

35. Media browser

36. Launches Youtube

37. Standby button

38. Function LED

NOTE: The Remote Control range is approximately 7m

/ 23ft.

Using My button 1 (**)

This button’s main function is to run Youtube link.
However, if you want to change this function, you can

press MY BUTTON 1 for ve seconds when on a desired

source, channel or link, until the “MY BUTTON IS SET”

message is displayed on the screen. This conrms

that the selected MY BUTTON is now associated with

the selected function. Note that if you perform rst time

installation, MY BUTTON 1 will return to its default
function.

Using My Button 2 (***)

Press MY BUTTON 2 for ve seconds when on a

desired source, channel or link, until the “MY BUTTON
IS SET” message is displayed on the screen. This
confirms that the selected MY BUTTON is now
associated with the selected function.

4

7

8

9

0

1

.,/@

2

3

5

6

OK

Q.MENU

EXIT

BACK

LANG.

2

1

SOURCE

/

/

P+

P-

V+

V-

English - 7 -

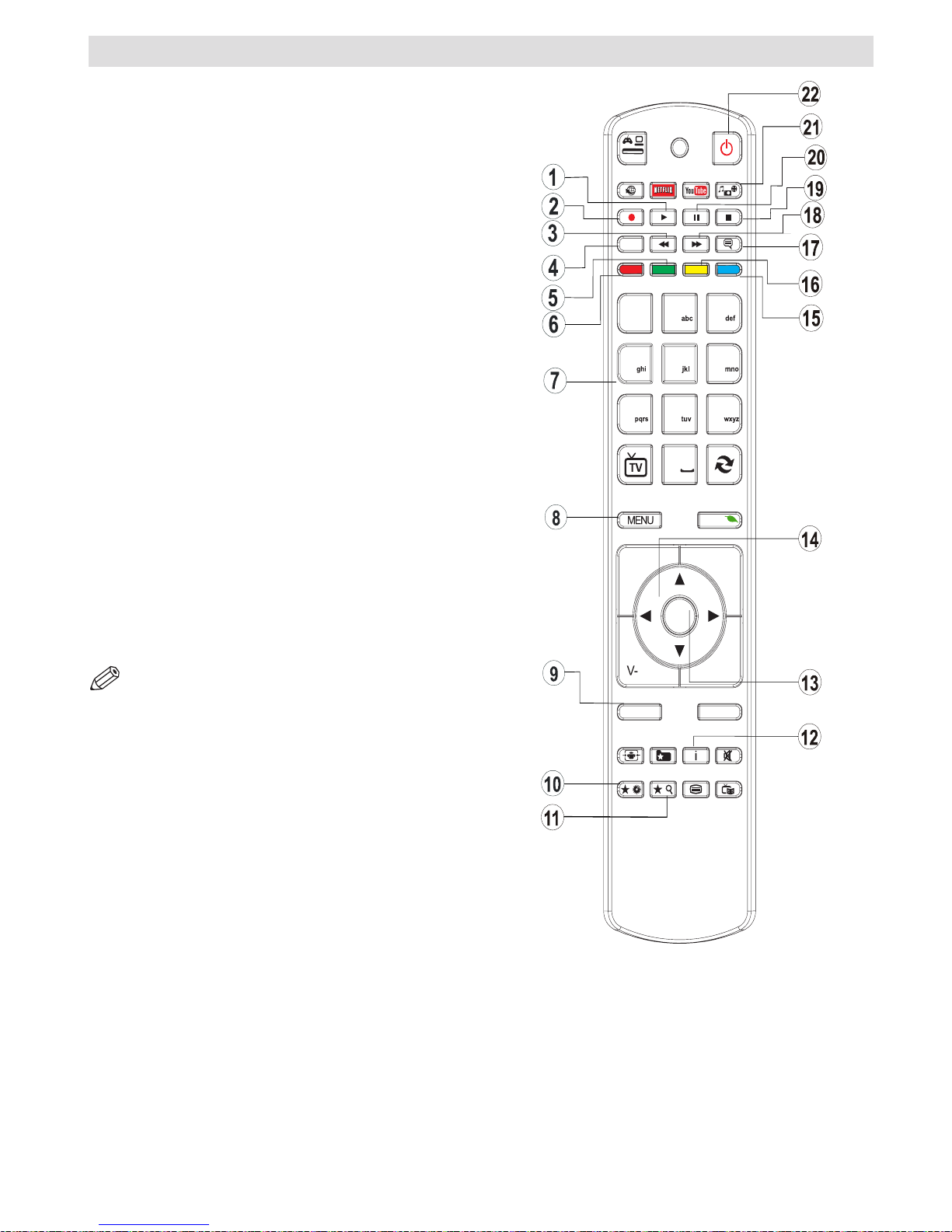

1. Play

2. No function

3. Rapid reverse

4. Language selection

5. Repeat

6. Zoom

7. Numeric buttons

8. TV Menu

9. Back

10. Display / DVD Menu

11. Search mode

12. Info

13. OK / Select

14. Navigation buttons

15. Title

16. Root

17. Subtitle

18. Rapid advance

19. Stop

20. Pause

21. Angle

22. Standby

NOTE: Remote Control buttons that are not indicated

with a number cannot be used in DVD mode.

The Remote Control range is approximately
7m / 23ft.

4

7

8

9

0

1

.,/@

2

3

5

6

OK

Q.MENU

EXIT

BACK

LANG.

2

1

SOURCE

/

/

P+

P-

V+

Viewing remote control - DVD

English - 8 -

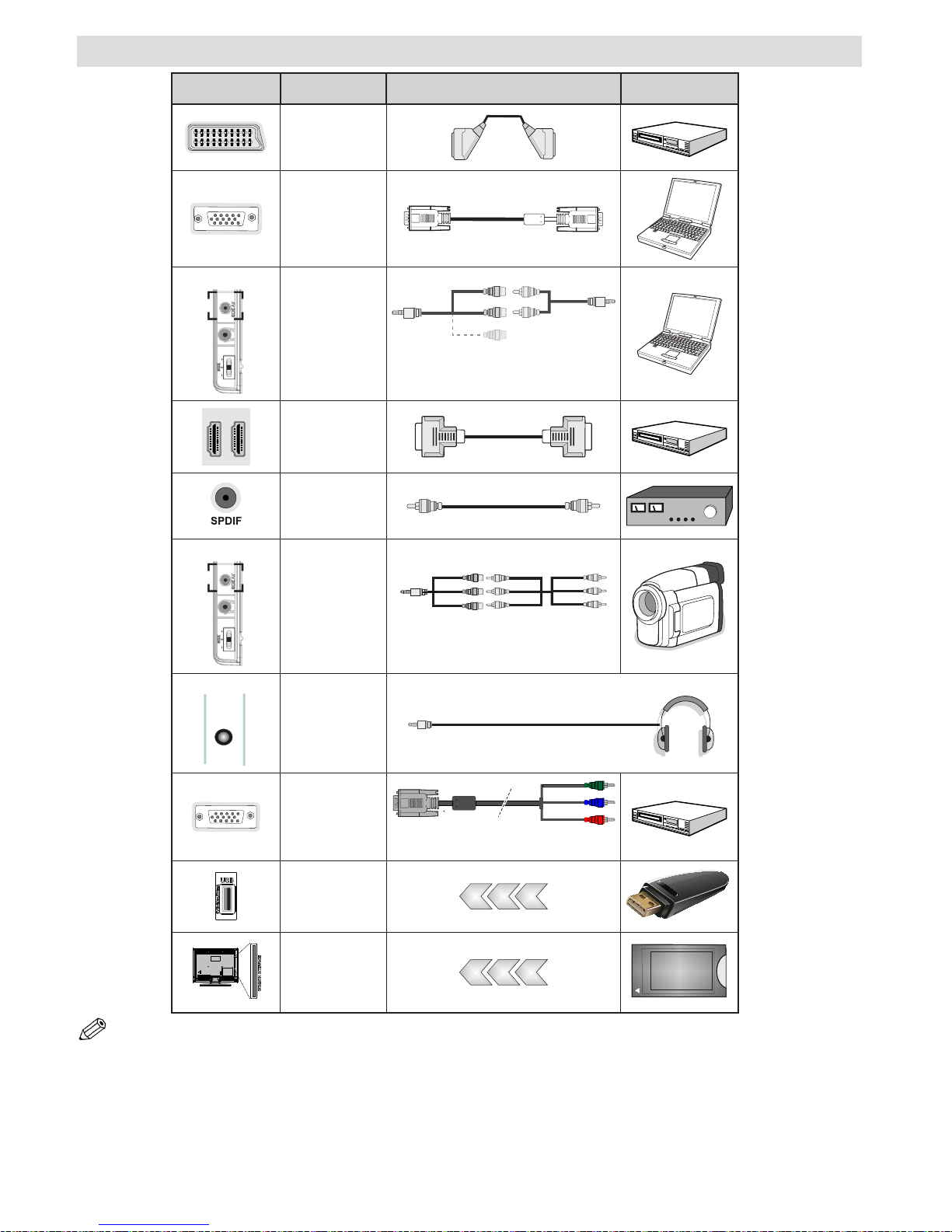

Viewing the Connections

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the
illustrations above. | YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable
(YPbPr to PC cable is not supplied). When the connection is made, switch to YPbPr source. To enable PC audio, you will need to use PC/YPBPR
AUDIO CONNECTION WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV
mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When
using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or
remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. Obtain
the Conditional Access Module (CAM) and the viewing card by subscribing to Digiturk or D-Smart. Insert the CAM and then the viewing card to
the slot that is located in the terminal cover at the rear side of the TV. The module should be correctly inserted, it is impossible to insert fully if
reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connector Type Cables Device

Scart

Connection

(back)

VGA

Connection

(back)

SIDE AV

PC/YPbPr

Audio

Connection

(side)

Side Audio/Video

Connection Cable

(Supplied)

PC Audio Cable

(Not supplied)

HDMI

Connection

(back)

SPDIF

Connection

(back)

SIDE AV

Side AV

Connection

(side)

AV Connection Cable

(supplied)

HEADPHONE

HEADPHONE

Headphone

Connection

(side)

YPbPr Video

Connection

(side)

YPbPr Connection

Cable (Not supplied)

USB

Connection

(side)

CI

Connection

(side)

CAM

module

English - 9 -

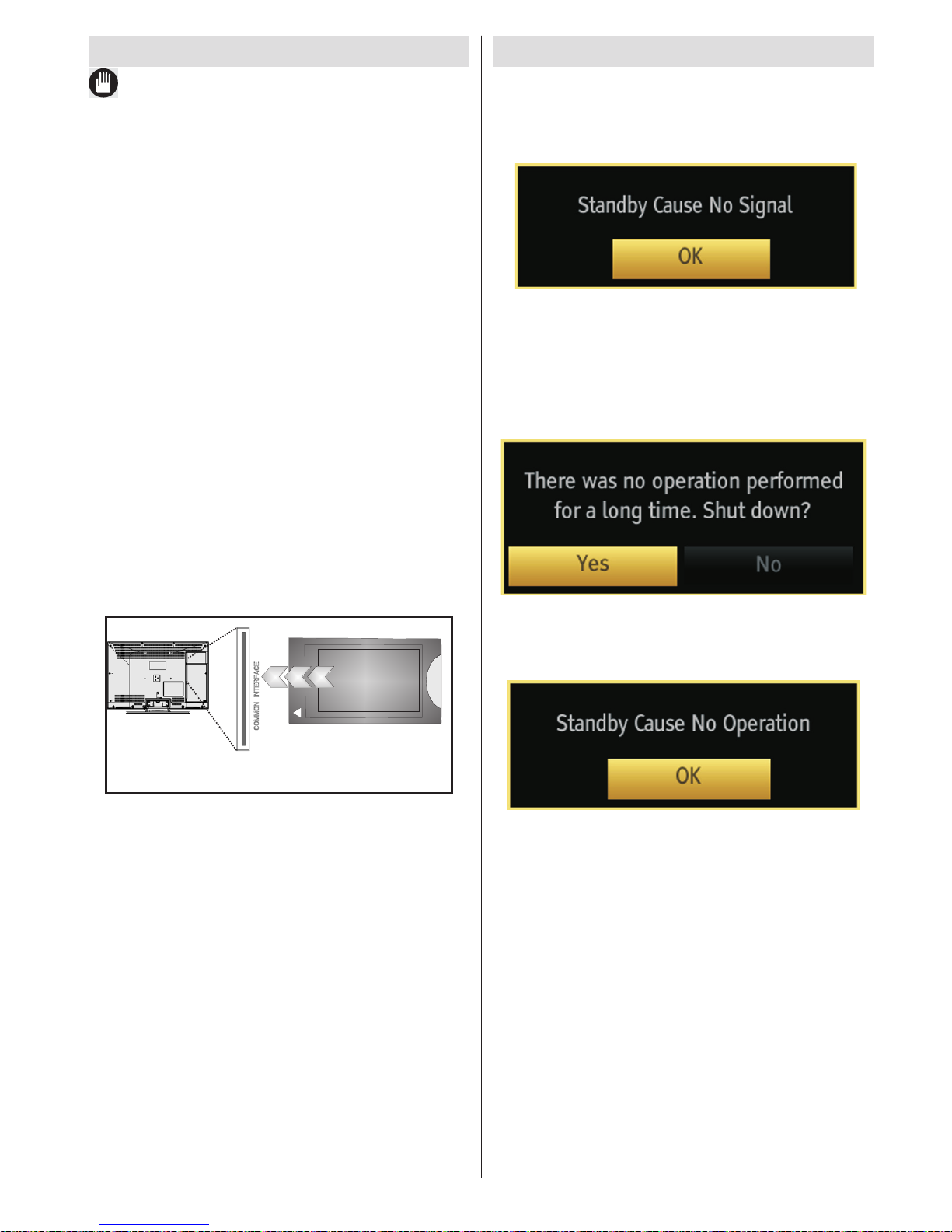

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only when

the TV is SWITCHED OFF.

In order to watch certain digital channels, a conditional
access module (CAM) can be necessary. This module
must be inserted in the CI slot of your TV.

1. Obtain the Conditional Access Module (CAM) and the
viewing card by subscribing to a pay channel company,
then insert those to the TV using the following procedure.

2. Insert the CAM and then the viewing card to the
slot that is located in the terminal cover at the rear
side of the TV.

3. The CAM should be correctly inserted, it is
impossible to insert fully if reversed. The CAM or
the TV terminal may be damaged if the CAM is
forcefully inserted.

4. Connect the TV to the mains supply, switch on
and then wait for few moments until the card is
activated.

5. When no module is inserted, “No Common
Interface module detected” message appears

on the screen.

You can refer to the module instruction manual for details
of the settings.

CAM

module

Standby Notications

If the TV does not receive any input signal (e.g. from
an aerial or HDMI source) for 5 minutes, the TV will go
into standby. When you next switch-on, the following
message will be displayed:

Press OK to continue.

When the Auto Tv Off timeout is reached, the following
message will be displayed on the screen. Select YES
to shut down the TV. Select NO to cancel. The TV
will switch off as well, if you do not make a selection
on this screen.

If the TV has been left on and not been operated for
4 hours, the TV will go into standby. When you next
switch-on, the following message will be displayed.

Press OK to continue.

English - 10 -

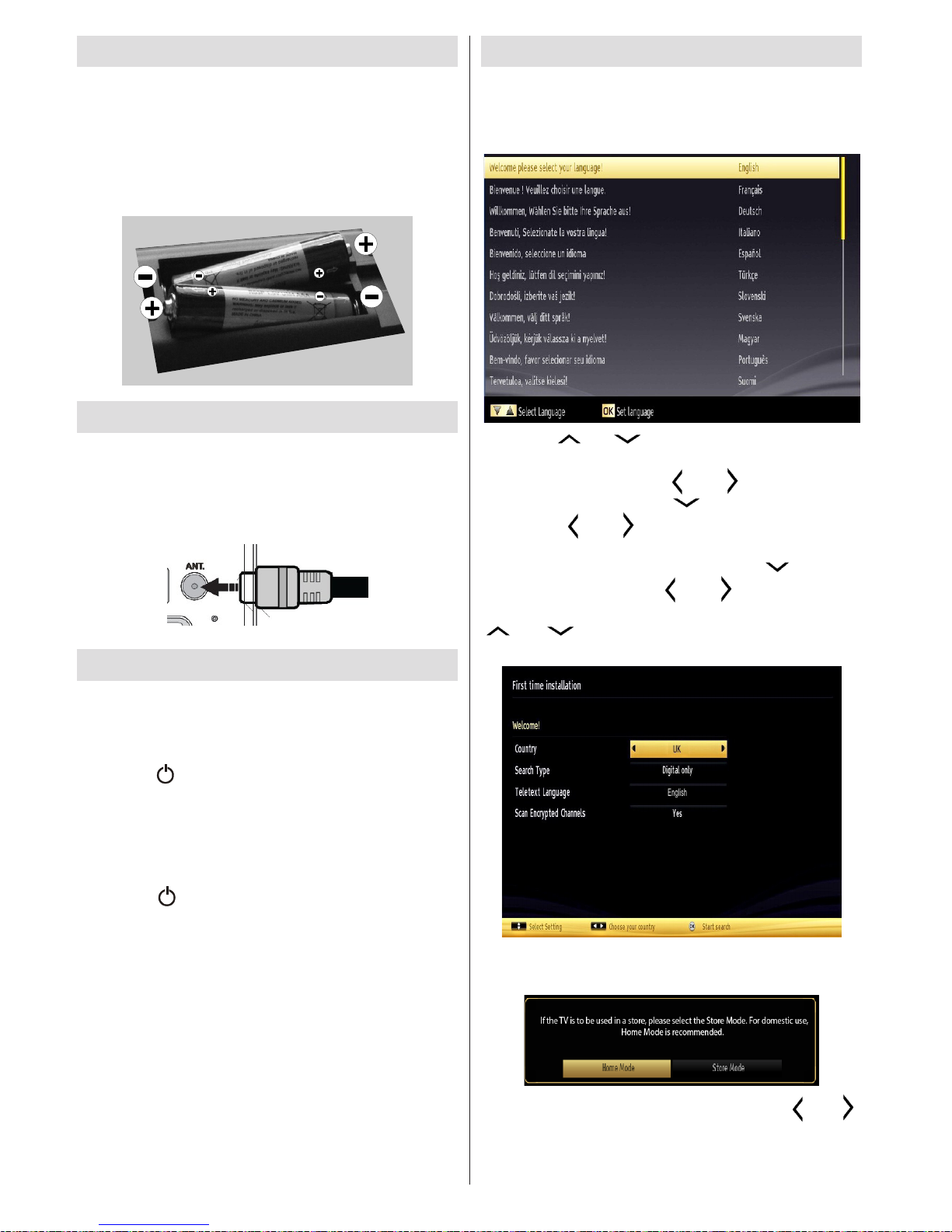

Inserting the Batteries to the Remote

1. Lift the cover on the back of the remote upward

gently.

2. Install two AAA batteries. Make sure to match the +
and - ends of the batteries in the battery compartment
(observe the correct polarity.)

3. Replace the cover.

Connect Power & Antenna

IMPORTANT: The TV set is designed to operate on

220-240V AC, 50 Hz socket. After unpacking, allow the
TV set to reach the ambient room temperature before
you connect the set to the mains. Plug the aerial cable
into the ANT socket on your TV.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

To switch on the TV from standby mode either:

Press the “ ” button, P+ / P- or a numeric button on
the remote control.

Press the side function switch until the TV comes on
from standby.

To Switch the TV Off

Press the “ ” button on the remote control or press
the side function switch until the TV switches to the
standby mode.

To power down the TV completely, unplug the power
cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED
can blink to indicate that features such as Standby Search,
Over Air Download or Timer is active. The LED can also blink
when you switch on the TV from standby mode.

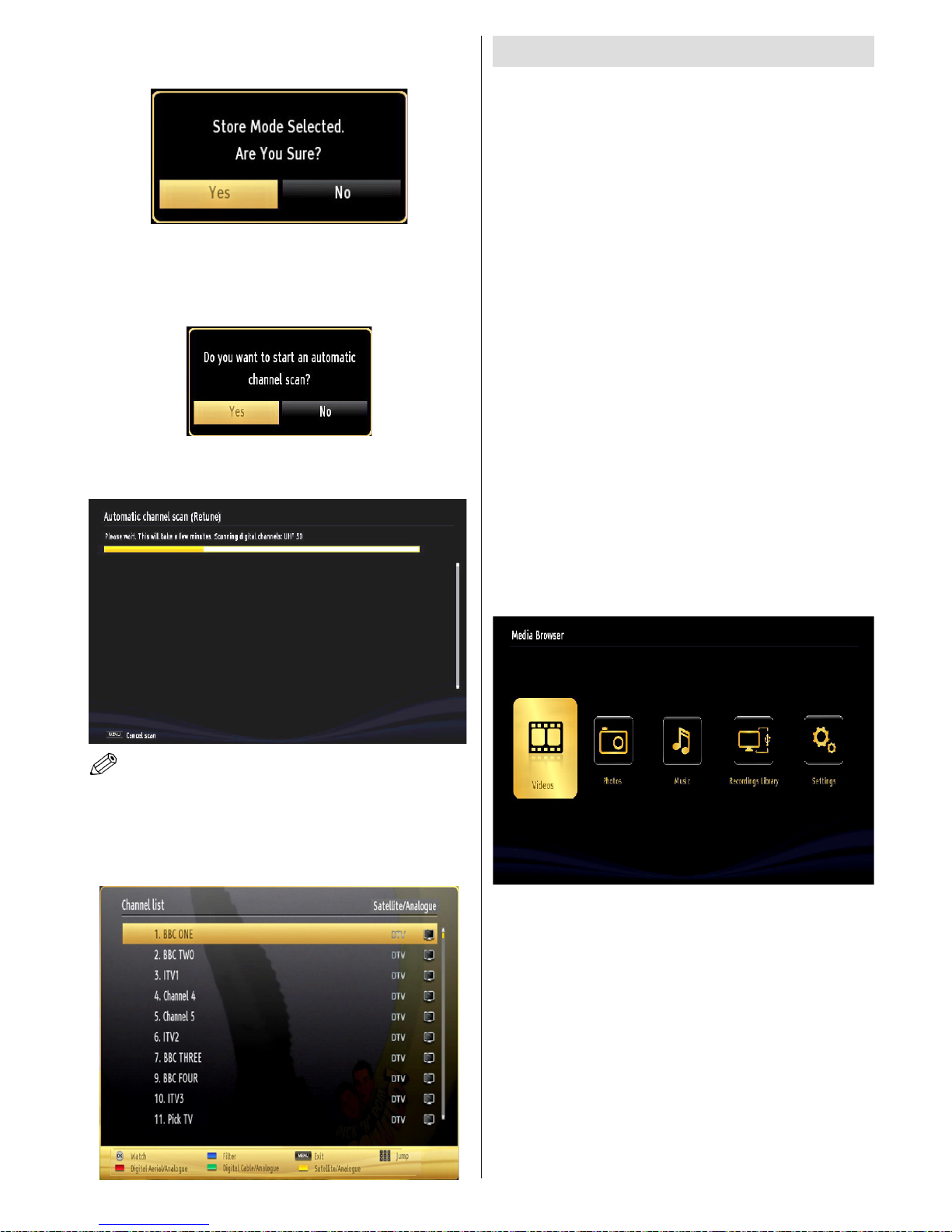

First Time Installation

When turned on for the rst time, the “language

selection” menu appears. The message “Welcome
please select your language!” is displayed and all

language options are listed alphabetically.

Press the “ ” or “ ” button to highlight the required
language, press OK button to select. “First Time

Installation” appears. Use “ ” or “ ” button to set the
required country, and press “ ” button to select Search

Type. Use “ ” or “ ” to set the desired search type.
Available search types are Digital and analog, digital
only and analog only. When set, press “ ” to select

Teletext Language. Use “ ” or “ ” button to set the
“Teletext Language” and select “Scan Encrypted” using
“ ” or “ ” button. You can set Scan Encrypted as
Yes if you want to scan coded stations.

Press OK button on the remote control to continue and the
following message will be displayed on the screen.

You can activate Store mode option by using “ ” or “ ”
button. If Store Mode is selected, Store mode option will be
available in other settings menu and your TV’s features will

be illustrated on the top of the screen. A conrmation

English - 11 -

screen will be displayed after selecting the Store
Mode. Select YES to proceed.

If Home Mode is selected, Store mode will not be
available after the First Time Installation. Press OK
button on the remote control to continue and the following
message will be displayed on the screen.

Select Yes and the television will search for digital
terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel

List will be displayed on the screen. If you are satised

with the order of channels, press the OK button to quit
the channel list and watch TV.

Media Playback via USB Input

You can connect a USB hard disk drive or USB
memory stick to your TV by using the USB inputs of

the TV. This feature allows you to play les stored in

a USB drive. 2.5” and 3.5” inch (hdd with external
power supply) external hard disk drives are supported.

IMPORTANT! You should back up your les before

making any connections to the TV set in order to avoid
any possible data loss. The Manufacturer will not be

responsible for any le damage or data loss. It is

possible that certain types of USB devices (e.g. MP3
Players) or USB hard disk drives/memory sticks may
not be compatible with this TV. The TV supports FAT32
and NTFS disk formatting but recording will not be
available with NTFS formatted disks. Note: While
formatting a USB hard disk that has 1TB (Tera Byte)

or more le capacity, you can experience problems

with the formatting process.

Quickly plugging and unplugging USB devices is a
very hazardous operation. This may cause physical
damage to the USB player and the USB device itself.

Do not pull out the USB module while playing a le.

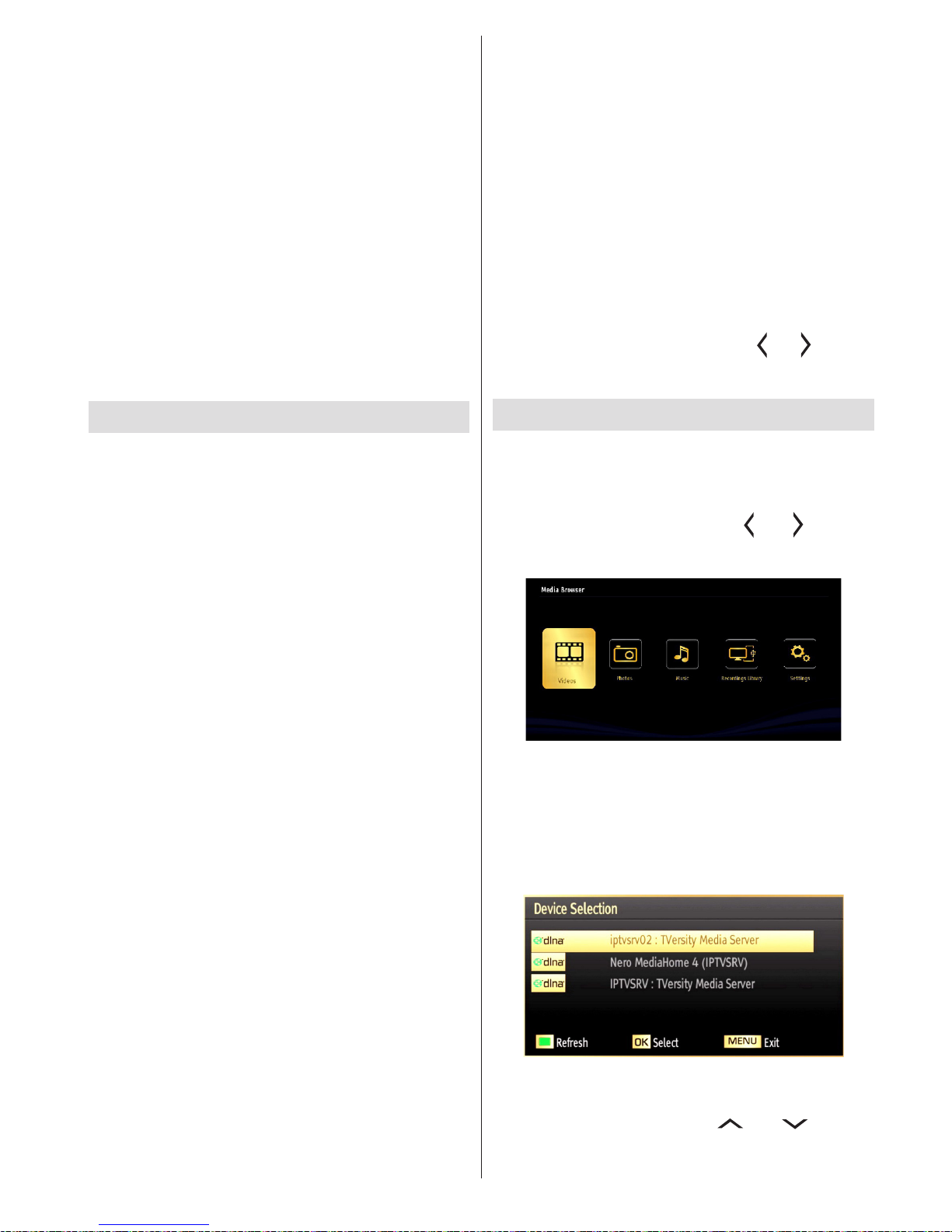

Media Browser Menu

You can play photo, music, and movie les stored

on a USB disk by connecting it to your TV. Connect
a USB disk to one of the USB inputs located on the
side of the TV.

The USB selection OSD will be displayed on the
screen. Press the MENU button and select the Media
Browser tab by using the Left/Right and OK buttons.
The Main media browser screen will be displayed.
You can display the approprite content by selecting
the Video, Music or Picture tab. Follow the button
indications under each on screen menu for media
playback features.

Pressing the MENU button while in the Media Browser
mode will access the Picture, Sound and Settings
menu options. Pressing the MENU button again will
exit from this screen.

You can set your Media Browser preferences by using
the Settings menu.

English - 12 -

Note: If two USB devices are connected to the TV at

the same time, the rst USB device connected to the

TV will be named USB drive 1. Select the drive by
using “ ” or “ ” buttons and press OK.

Changing Image Size: Picture Formats

Programmes can be watched in different picture
formats, depending on the transmission received. You
can change the aspect ratio (image size) of the TV for
viewing the picture in different zoom modes. Press the

button repeatedly to change the image size. You
can shift the screen up or down by using “ ” or “
” buttons while in, 14:9 Zoom, Cinema or Subtitle.

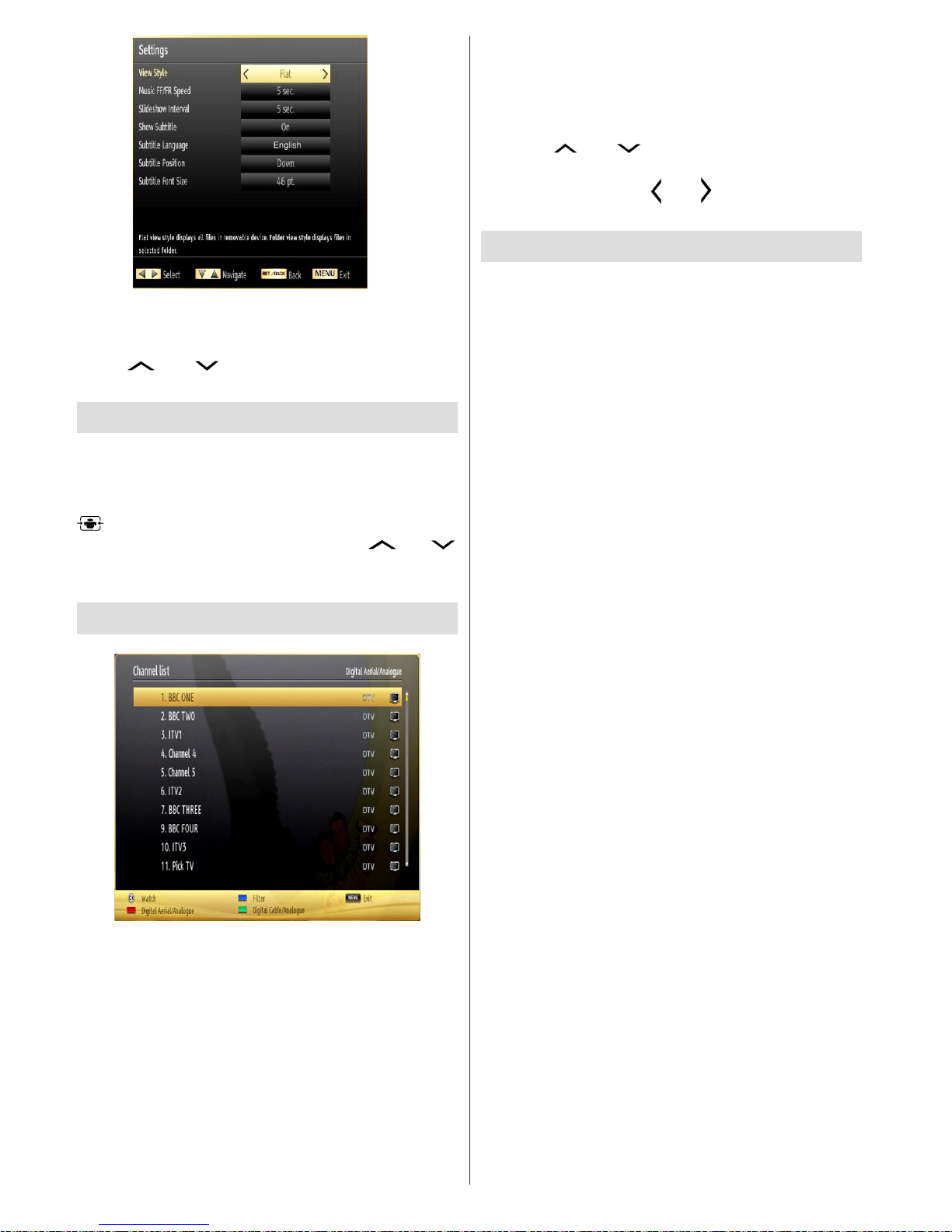

Using the Channel List

The TV sorts all stored stations in the Channel List.
You can edit this channel list, set favourites or set
active stations to be listed by using the Channel List
options. Press MENU button to view main menu.
Select Channel List item by using Left or Right button.
Press OK to view menu contents. Select Edit Channel
List to manage all stored channels. Use Up or Down
and OK buttons to select Edit Channel List. Press the
Up or Down button to select the channel that will be
processed. Press the Left or Right button to select a
function on the Channel List menu. Use P+/P- buttons
to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select which broadcasts will be listed in the

channel list. To display specic types of broadcast,

you should use the Active channel list setting. Select
the Active channel list from the Channel list menu
by using “ ” or “ ” button. Press the OK button
to continue. You can select a network type option

from the list by using “ ” or “ ” and OK buttons.

Quick Menu

The Quick Settings menu allows you to access some
options quickly. This menu includes Power Save

Mode,Picture Mode, Equalizer Settings, Favourites,
Sleep Timer, FollowMe TV, FollowMe TV to DMR,
CEC RC Passthrough and Information booklet

options. Press Q.MENU button on the remote control
to view the quick menu. See the following chapters for
details of the listed features.

FollowMe TV

With your mobile device you can stream the current
broadcast from your smart TV using the FollowMe

TV feature. Install the appropriate Smart Center
application to your mobile device. Start the application.

For further information on using this feature refer to
the instructions of the application you use.

Note: This application is not compatible with all mobile device.

FollowMe TV to DMR

This feature allows video streaming from your TV
to another TV or mobile devices, using proper
applications (e.g. UPnP - Universal Plug and Play ­applications like BubbleUPnP). Activate FollowMe TV
to DMR and timeshifting starts. Press the red button
and device selection menu will be displayed. Choose
your device and press OK.

Note: This feature works correlated with the PVR
feature and requires a connected USB storage
device with FAT32 format and enough space in it. HD
channels are not supported and both of the devices
must be connected to the same network.

E-Manual

You can nd instructions for your TV’s features in

the E-Manual.

To use E-Manual, press to the Info button while main
menu is displayed on the screen.

By using the navigation buttons select a desired
category. Every category includes a different topics.
Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit button.

Note: The contents of the E-Manual may vary
according to model.

English - 13 -

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled
devices, that are connected through HDMI ports by
using the remote control of the TV.

The CEC option in the Other Settings menu under

Settings menu should be set as Enabled at rst. Press

the Source button and select the HDMI input of the
connected CEC device from the Source List menu.
When new CEC source device is connected, it will
be listed in source menu with its own name instead
of the connected HDMI ports name(DVD Player,
Recorder 1 etc.).

The TV remote is automatically able to perform the
main functions after the connected HDMI source has
been selected.

To terminate this operation and control the TV
via the remote again, press and hold the “0-Zero”
button on the remote control for 3 seconds. Or press
Q.Menu button on the remote, highlight the CEC RC
Passthrough and set as Off by pressing Left or Right
button. This feature can also be enabled or disabled
under the Settings/Other Settings menu.

The TV supports also ARC(Audio Return Channel)
feature. This feature is an audio link meant to replace
other cables between the TV and the audio system
(A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio
outputs automatically. So you need to decrease TV
volume to zero manually, if you want to hear audio
from connected audio device only (same as other
optical or co-axial digital audio outputs). If you want
to change connected device’s volume level, you
should select that device from the source list. In that
case volume control keys are directed to connected
audio device.

System Audio Control

Allows an Audio Amplier/Receiver to be used with

the TV. The volume can be controlled using the
remote control of the TV. To activate this feature set
the Speakers option in the Settings>Other Settings
menu as Amplier. The TV speakers will be muted
and the sound of the watched source will be provided
from the connected sound system.

Note: The audio device should support System Audio Control
feature and CEC option should be set as Enabled.

English - 14 -

Menu Features and Functions

Picture Menu Contents

Mode

You can change the picture mode to suit your preference or requirements. The Picture
mode can be set to one of these options: Cinema,Game, Sports, Dynamic and Natural.

Contrast Sets the lightness and darkness values of the screen.

Brightness Sets the brightness value for the screen.

Sharpness Sets the sharpness value for the objects displayed on the screen.

Colour Sets the colour value, adjusting the colours.

Power Save

Mode

To set the Power Save Mode as Eco, Picture Off or Disabled. See the section, “Environmental
Information” in this manual for further information on the Power Save Mode.

Backlight
(optional)

This setting controls the backlight level and it can be set to Auto, Low, Medium,
High. The Backlight function will be inactive if the Power Save Mode is set to On. The

Backlight cannot be activated in VGA, Media Browser mode or while the picture mode
is set to Game.

Noise

Reduction

If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the
amount of noise. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

Advanced Settings

Dynamic
Contrast

You can change the contrast rate by using the dynamic contrast function. Dynamic contrast
can be set to one of these options: Low, Medium, High or Off.

Colour Temp Sets the desired colour tone: Normal, Warm or Cool.

Picture Zoom Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.

HDMI True
Black

While watching from a HDMI source, this feature will be visible in the Picture Settings
menu. You can use this feature to enhance the blackness in the picture.

Film Mode

Films are recorded at a different number of frames per second to normal television programmes. Turn this
feature on when you are watching films to see the fast motion scenes clearly.

Skin Tone Adjust the desired skin tone.

Colour Shift Adjust the desired colour tone.

RGB Gain

Press OK button to edit RGB gain. You can congure the colour temperature values
using the RGB Gain feature.

Auto Position
(in PC mode)

Automatically optimizes the display. Press OK to optimize.

H Position (in
PC mode)

This item shifts the image horizontally to the right hand side or left hand side of the screen.

V Position (in

PC mode)

This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock (in
PC mode)

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or text in smaller fonts.

Phase (in PC
mode)

Depending on the resolution and scan frequency that you input to the TV set, you may
see a hazy or noisy picture on the screen. In such a case you can use this item to get
a clear picture by using trial and error.

Reset Resets the picture settings to factory default.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to
the Picture Settings while in PC mode.

English - 15 -

Menu Features and Functions

Sound Menu Contents

Volume Adjusts the volume level.

Equalizer:

In the equalizer menu, the preset can be changed to Music, Movie, Speech, Flat,
Classic and User. Press the MENU button to return to the previous menu. Equalizer

menu settings can be changed manually only when the Equalizer Mode is in User.

Balance This setting is used for emphasizing left or right speaker balance.

Headphone/Lineout

When you connect an external amplier to your TV using the headphone jack, you

can select this option as Lineout. If you have connected headphones to the TV,
set this option as Headphone.

Sound Mode

You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel
supports that mode.

AVL

Automatic Volume Limiting (AVL) function sets the sound to obtain a xed output

level between programmes (For instance, volume level of advertisements tend to
be louder than programmes).

Dynamic Bass

Enables or disables the Dynamic Bass.

Surround Sound

(Optional)

Surround sound mode can be changed as On or Off.

Digital Out Sets digital audio output type.

Install and Retune Menu Contents

Automatic Channel

Scan (Retune)

Digital Aerial: Searches and stores aerial DVB stations.

Manual Channel
Scan

This feature can be used for direct broadcast entry.

First Time
Installation

Deletes all stored channels and settings, resets TV to factory settings and starts

rst time installation. You can follow the instructions in the First Time Installations

section for more information on this process.

Settings Menu Contents

Conditional Access Controls conditional access modules when available.

Language Congures language settings.

Parental

Enter correct password to change parental settings. You can easily adjust child
lock and set new pin number in this menu. Once the child lock is activated, open
browser app on the portal will be disabled, it can be enabled again by deactivating
the child lock..

Timers

Sets timers for selected programmes. (USB Record)

Recording

Conguration

Displays the recording conguration menu. (USB Record)

Date/Time Sets date and time.

Sources Enables or disables selected source options.

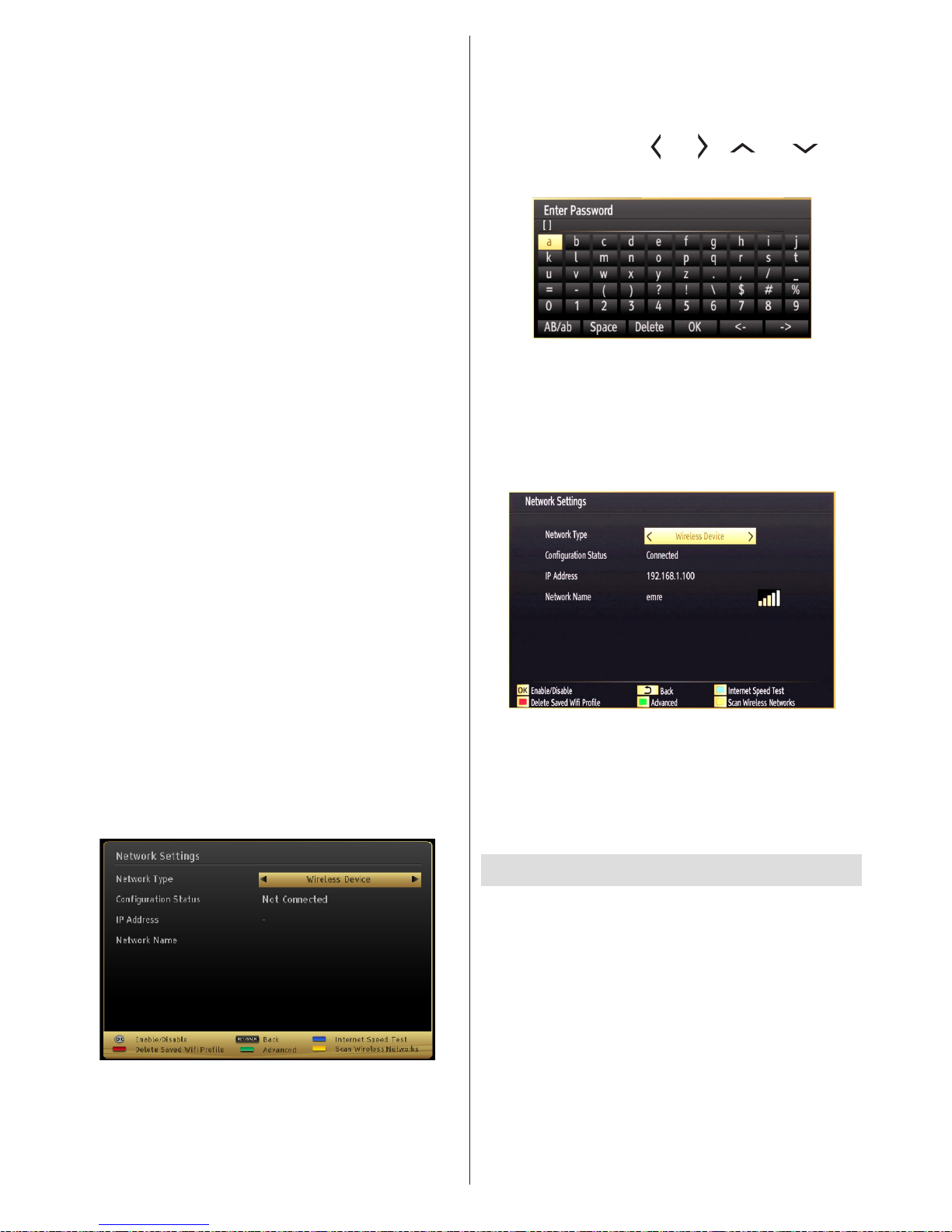

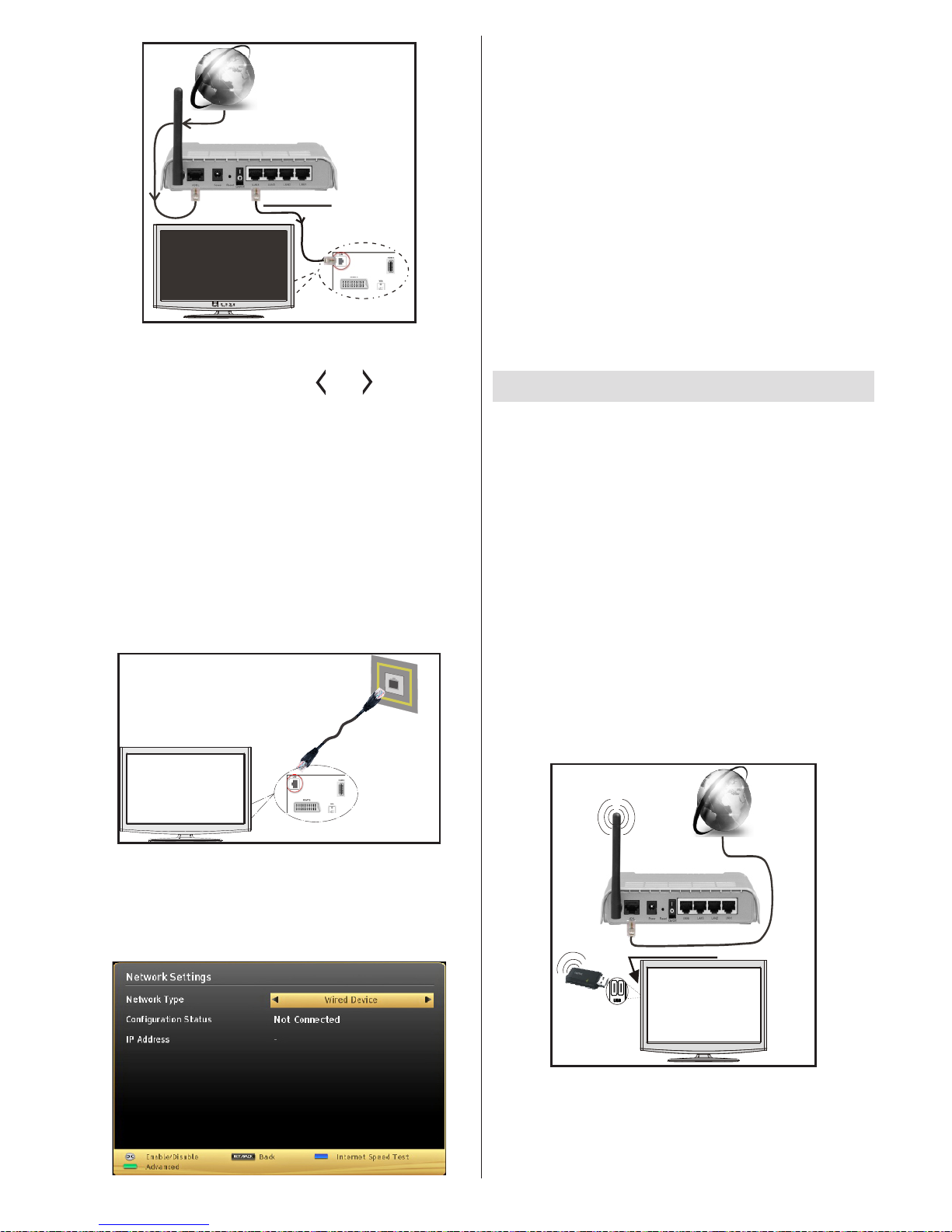

Network Settings Displays network settings.

English - 16 -

Menu Features and Functions

Other Settings: Displays other setting options of the TV set:

Menu Timeout Changes timeout duration for menu screens.

Scan Encrypted

When this setting is on, the search process will locate encrypted channels as well. If it is set as
Off, encrypted channels will not be located in automatic or manual searches.

Blue Background Activates or deactivates the blue background system when the signal is weak or absent.

Software Upgrade

To ensure that your TV always has the most up to date rmware. Please ensure

that the TV is set to standby mode with an aerial connected to pick up the over air
download.

Application
Version

Displays application version.

Hard of Hearing Enables any special feature sent from the broadcaster.

Audio Description

Audio description refers to an additional narration track for blind and visually impaired
viewers of visual media, including television and movies. You can use this feature,
only if the broadcaster supports the additional narration track.

Auto TV Off

You can set the timeout value of the auto off feature. After the timeout value is
reached and the TV has not been operated for a selected time, the TV will go into
standby mode.

Standby Search
(optional)

If you change Standby Search to Off, this function will be unavailable. To use Standby
search please make sure that you select Standby Search as On. If the Standby
Search is set to On, when the TV is in standby mode, available broadcasts will be
searched. If the TV locates any new or missing broadcasts, a menu screen will be
displayed, asking you whether or not to execute these changes. The Channel list
will be updated and changed after this process. Please activate the Standby Search
setting in order to enable your TV to automatically update the broadcast frequency

of the broadcaster, broadcast denition and other similar changes.

Store Mode
(Optional)

If you are displaying the TV in a store, you can activate this mode. Whilst Store
Mode is enabled, some items in the TV menu may not be available.

DLNA

DLNA feature allows you to share les stored on your smartphone. If you have a

DLNA compatible smartphone and the appropriate software is installed, you can play
photos on your TV. See instructions of your sharing software for more information.

Power Up Mode

Standby: The TV powers up into Standby mode when the TV is plugged into the
mains.

Last State: The TV powers up into On mode when the TV is plugged into the mains
and the last channel/source is selected.

Virtual Remote
(Optional)

Enable or disable the virtual remote feature.

CEC

With this setting you can enable and disable CEC functionality completely.
Press Left or Right button to enable or disable the feature.

Speakers

To hear the TV audio from the connected compatible audio device set as Amplier.
You can use the remote control of the TV to control the volume of the audio device.

Netix

You can view your ESN(*) number and deactivate Netix.(*) ESN number is an
unique ID number for Netix, created especially to identify your TV.

English - 17 -

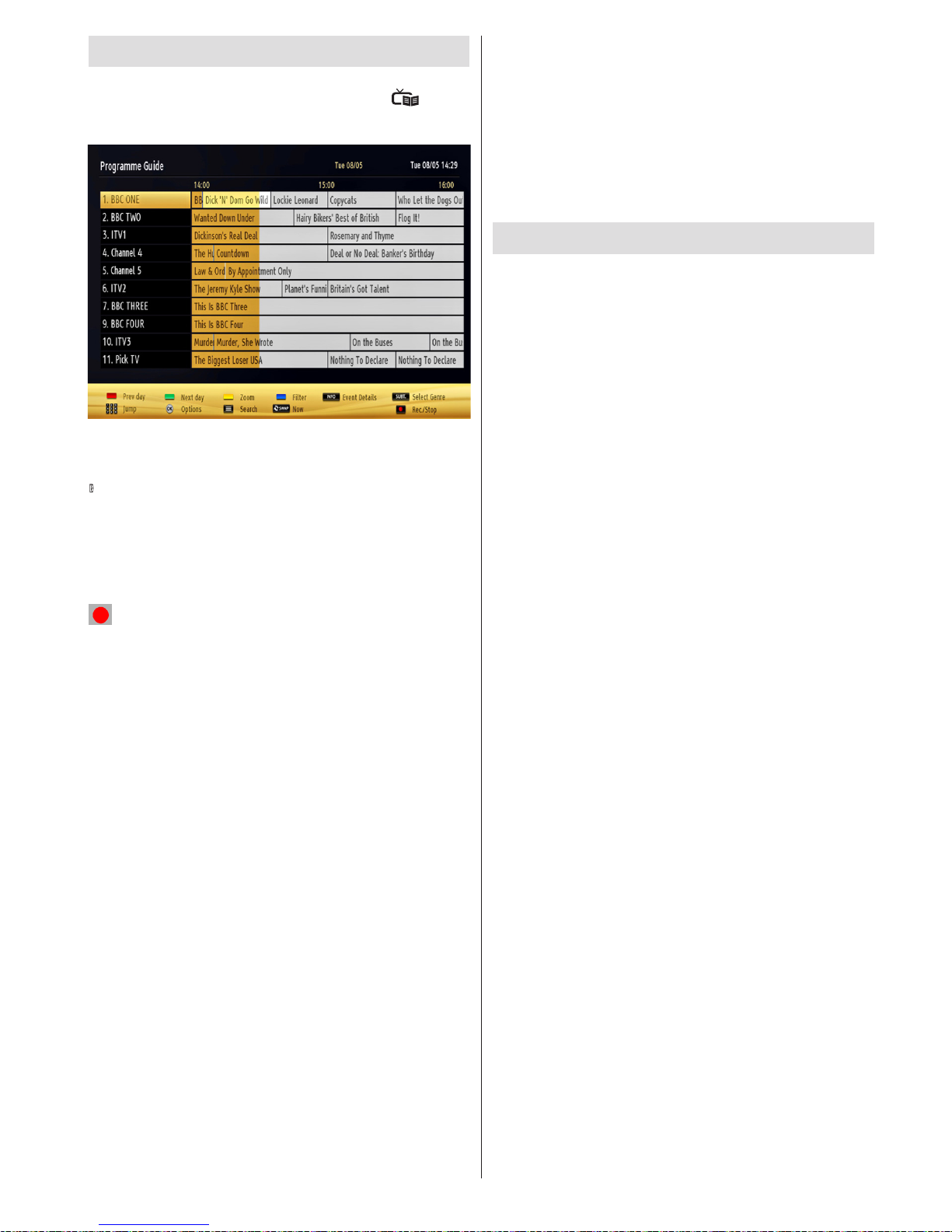

Electronic Programme Guide (EPG)

Some, but not all channels send information about the
current and next programmes. Press the button
to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

: Displays, in detail, information on the programme

selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: Displays ltering options.

(RECORD): The TV will start to record the selected

progamme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should rst connect

a USB disk to your TV while the TV is switched off. You should
then switch on the TV to enable the recording feature. Otherwise,
the recording feature will not be available.

Note: Switching to a different broadcast or source is not available
during a recording.

Programme Options

In the EPG menu, press the OK button to enter the

Event Options menu.

Select Channel

In the EPG menu, using this option, you can switch to
the selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu,
press the OK button and and the Options screen will be
displayed. Select the “Record” option and press the OK
button. After this operation, a recording will be scheduled
for the selected programme.

To cancel an already set recording, highlight that
programme and press the OK button and select the
option “Delete Rec. Timer”. The recording will be
cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu,
press the OK button and and the Options screen will
be displayed. Select the “Set Timer on Event” option
and press the OK button. You can set a timer for future
programmes. To cancel an already set timer, highlight
that programme and press the OK button. Then select
“Delete Timer” option. The timer will be cancelled.

Note: It is not possible to record two channels at the same time.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is

recommended that you rst format the disk using your TV’s

“Format Disk” option.

To record a programme, you should rst connect a USB

disk to your TV while the TV is switched off. You should
then switch on the TV to enable the recording feature.

To use the recording function, you need to connect a
USB disk or an external hard disk drive to the TV and
the connected USB disk should have at least 1 GB
capacity and should have 2.0 speed compatibility. If the
connected USB device does not support 2.0 speed, an
error message will be displayed.

Note: Recorded programmes are saved into the connected
USB disk. If desired, you can store/copy recordings onto a

computer; however, these les will not be available to be played

on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio

record is not supported. The TV can record programmes

up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not
sufcient, the recording may fail and the timeshifting
feaute may not be available.

Recordings of HD programmes can occupy more space
on the USB disk compared to SD programmes. For this
reason it is recommended to use USB hard disk drive
to record HD programmes.

Do not plug out the USB/HDD during a recording. This
may harm the connected USB/HDD.

Multipartiton support is available. A maximum of two
different partitions are supported. If the disk has more

than two partitions, a crash may occur. The rst partition

of the USB disk is used for PVR ready features. It also
must be formatted as the primary partition to be used
for PVR ready features.

Some stream packets may not be recorded because
of signal problems, so sometimes the video may freeze
during playback.

Record, Play, Pause, Display (for PlayListDialog) keys
can not be used when teletext is ON. If a recording starts
from timer when teletext is ON, teletext is automatically
turned off. Also teletext usage is disabled when there
is an ongoing recording or playback.

English - 18 -

Timeshift Recording

Press (PAUSE) button while watching a broadcast
to activate timeshifting mode. In timeshifting mode,
the programme is paused and simultaneously
recorded to the connected USB disk. Press (PLAY)
button again to resume the paused programme from
where you stopped. You will see the timeshift gap
between the real and the timeshifted programme in
the info bar.

Instant Recording

Press (RECORD) button to start recording an
event instantly while watching a programme. You can
press (RECORD) button on the remote control
again to record the next event on the EPG. In this
case, OSD will display the programmed events for
recording. Press (STOP) button to cancel instant
recording. Note: You can not switch broadcasts or
view the Media Browser during the recording mode.

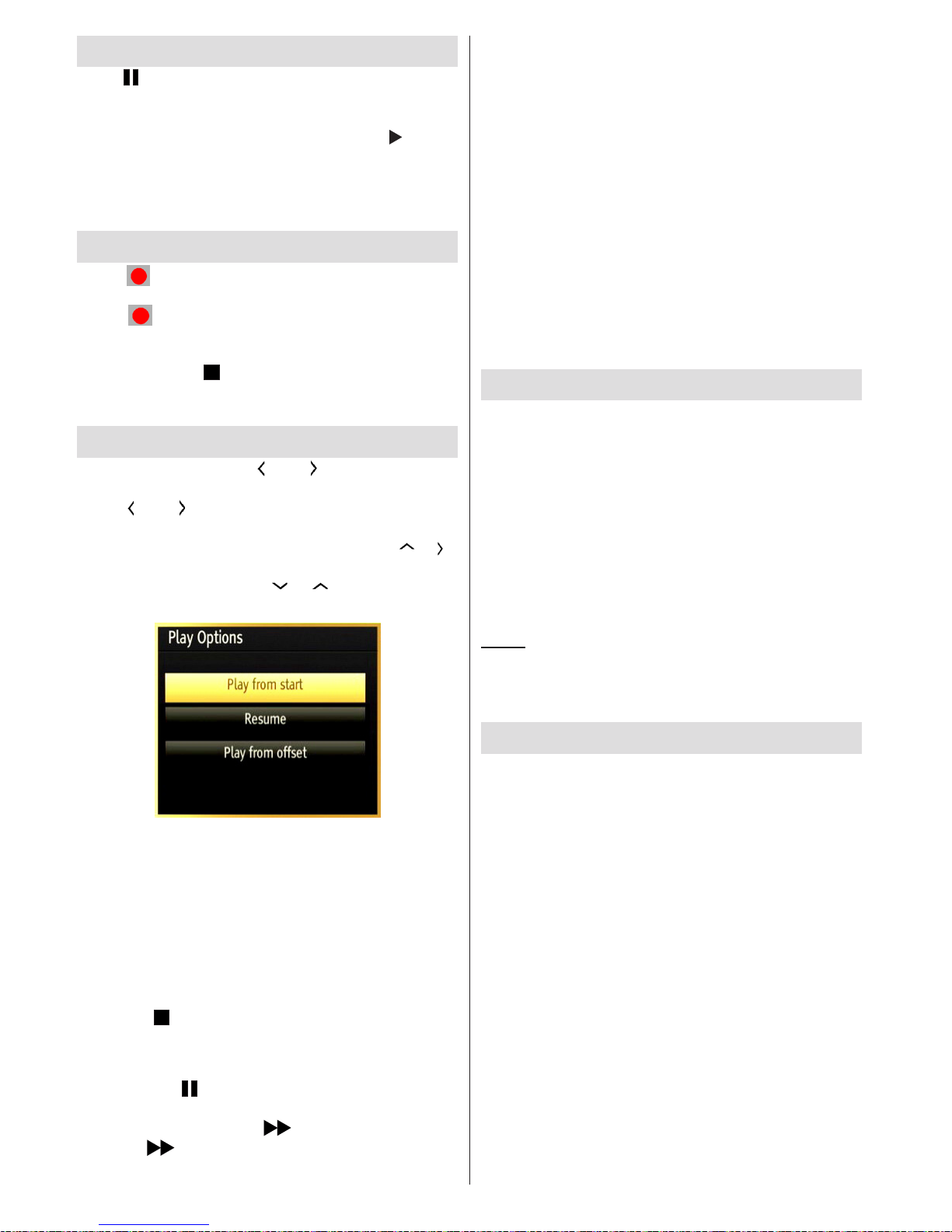

Watching Recorded Programmes

In the main menu, use “ ” or “ ” buttons to select
Media Browser. Highlight the Recordings Library
using “ ” or “ ” button and press the OK button to
enter the Recordings Library. Select a recorded item
from the list (if previously recorded) by using “ ” / “ ”
button. Press the OK button to view the Play Options.
Select an option by using “ ” / “ ” or OK buttons.

Available playback options:

• Play from start: Plays the recording from the

beginning.

• Resume: Resumes Playback from the point at which

you stopped playback previously.

• Play from offset: Species a playing point.

Note: Viewing main menu and menu items will not be available
during the playback.

Press the (STOP) button to stop a playback and
return to the Recordings Library.

Slow Forward

If you press (PAUSE) button while watching
recorded programmes, the slow forward feature will
be available. You can use button to slow forward.
Pressing button consecutively will change slow
forwarding speed.

Recordings Library

To view the list of recordings, select “Recordings
Library” and press the OK button. The Recordings

Library will then be displayed with available recordings.
All the recordings are kept in a list in the recordings
library.

RED button (Delete) :Erases the selected recording.

GREEN button (Edit): Makes changes on the

selected recording.

BLUE button (Sort): Changes the order of the
recordings. You can select from a wide range of
sorting options.

OK button: (Resume): Resume playback.

INFO (Details): Displays the programme information

details.

Recording Conguration

Select the Recording Configuration item in the

Settings menu to congure the recording settings.

Format Disk: You can use the Format Disk feature
for formatting the connected USB disk. IMPORTANT:
Note that ALL the data stored on the USB disk will
be lost and the disk format will be converted to
FAT32 if you activate this feature. If your USB disk
malfunctions, you can try formatting the USB disk. In
most cases formatting the USB disk will restore normal
operation; however, ALL the data stored on the USB
disk will be lost in such a case.

Note: If “USB is too slow” message is displayed on the
screen while starting a recording, try restarting the recording.
If you still get the same error, it is possible that your USB
disk does not meet the speed requirements. Try connecting
another USB disk.

Wired Connectivity

To Connect to a Wired Network

For connecting to a wired LAN, you should
perform the following steps:

• You must have a modem/router connected to an
active broadband connection.

• Ensure that Nero Media Home software is installed
to your PC (for DLNA function). See Appendix G for
more information on the installation process.

• Connect your PC to your modem/router. This can
be a wired or wireless connection.

• Connect your TV to your modem/router via an
ethernet cable. There is a LAN port at the rear
(back) of your TV.

English - 19 -

Lan(Ethernet cable)

Broadband ISP
Connection

Rear of TV

• To access and play shared les, you must select the

Media Browser. Press the Menu button and select

Media Browser by using the “ ” or “ ” buttons and
press OK to continue. Select the desired le type and
press OK. You must always use the Media Browser

screen to access and play shared network les.

• PC/HDD/Media Player or any other devices that are

DLNA 1.5 compatible should be used with a wired
connection for higher playback quality.

To congure wired settings please refer to the

Network Settings section in the Settings menu.

• You might be able to connect your TV to your LAN

depending on your network’s conguration. In such

a case, use an ethernet cable to connect your TV
directly to the network wall outlet.

The modem port
on the wall

Rear of TV

Conguring Wired Device Settings

The Network type can be selected as Wired or
Wireless, in accordance with the active connection to
the TV set. Select this as “Wired” if you are connecting
via an ethernet.

Conguration Status

This section displays the status of the connection.
Select Connected if you want to activate a connection.
Select as Not Connected to end an active connection.

IP Address

If an active connection is available, the IP address will

be displayed on this section. If you want to congure

an IP address preference, press the GREEN button
and switch to the advanced mode.

Conguring Wired Network Settings in

Advanced Mode

After pressing the GREEN button, the “Advanced
mode” will be available. While in Advanced Mode,
press the RED button to edit settings. When nished,
press OK to save, Press RETURN/BACK to cancel

Wireless Connectivity

Connecting to a Wireless Network

IMPORTANT: USB dongle (Supplied) is required to

use wireless network features.

• To use your TV with your wireless network, you need

a Wireless USB dongle. To make your modem’ s
SSID visible, you should change your SSID settings
via the modem’s software. The TV cannot connect
to the networks with a hidden SSID.

To Connect to a wireless LAN, you should perform
the following steps:

1. Ensure that Nero Media Home software is

installed to your PC (for DLNA function).

2. Then connect the wireless adaptor to one of the

USB inputs of the TV.

3. To congure your wireless settings please refer to

Network settings section in this manual.

Wireless Lan
Adaptor

USB Inputs (Side of the TV)

Broadband ISP
Connection

• A Wireless-N router (IEEE 802.11a/b/g/n) with

simultaneous 2.4 and 5 GHz bands is designed
to increase bandwidth. These are optimized for
smoother and faster HD video streaming, file
transfers, and wireless gaming.

English - 20 -

• Use a LAN connection for quicker file sharing
between other devices like computers.

• The frequency and channel differ depending on
the area.

• The transmission speed differs depending on the
distance and number of obstructions between the

transmission products, the conguration of these
products, the radio wave conditions, the line trafc,

and the products that you use. The transmission may
also be cut off or may get disconnected depending
on the radio wave conditions, DECT phones, or any
other WiFi 11b appliances. The standard values of
the transmission speed are the theoretical maximum
values for the wireless standards. They are not the
actual speeds of data transmission.

• The location where the transmission is most effective
differs depending on the usage environment.

• The Wireless LAN adaptor should be connected
directly to the TV’s USB port. USB hubs are not
supported.

• To congure wireless settings please refer to the

WiFi section in the Settings menu.

• You can plug your wi dongle into the supplied USB

extension cable In cases where network quality is

poor and the wi dongle needs to be placed to a

location with better signal quality.

• Wireless LAN adaptor supports 802.11 a,b,g &
n type modems. It is highly recommended that
you should use the IEEE 802.11n communication
protocol in order to avoid any possible problems
while watching videos.

• Use the other USB input, if you experience problems
with audio/video performance.

• You must change your modem’s SSID when there
are any other modems around with the same SSID.
You can encounter connection problems otherwise.
Use a wired connection if you experience problems
with a wireless connection.

To enable Wi-Fi features, plug in the Wi-Fi dongle to
one of the USB ports.

Press the YELLOW button to scan the wireless
networks from the network settings menu. A list of

available networks will be displayed. Please select
your desired network from the list.

If the selected network is protected with a password,
please enter the correct key by using the virtual
keyboard. You can use this keyboard via the

navigation buttons ( “ ” or “ ”, “ ” or “ ”) and
the OK button on the remote control.

Wait until the IP address is shown on the screen.

Press the GREEN button to switch to advanced
mode and then press the OK button to edit settings.
This means that the connection is now established.
To disconnect from a wireless network, you should
highlight Conguration Status and press OK.

You can navigate between menu tabs by pressing
left/right buttons. The help bar on the bottom of the
dialog shows features that you may use. Press the
BLUE button to check your internet connection speed.

You can check the signal strength by using the network
settings menu for the wireless device mode.

Other Information

Configuration Status: Displays Wi-Fi status as

connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks’ name will be

displayed.

Delete Saved WiFi Proles

Saved proles will be deleted if you press the Red

button while the wireless device selection OSD is
on the screen.

Connecting to your mobile Phone via WiFi

If your mobile phone has WiFi feature, you can
connect your mobile phone to your TV by using

English - 21 -

a WiFi connection via a router, in order to play
content from your phone. For this, your cell phone
must have appropriate sharing software.

• Connect to your router following the steps stated

above in the Wireless Connection section.

• Afterwards, engage your cell phone with the router

and then activate the sharing software on your cell

phone. Then, select les that you would like to share

with your TV.

• If the connection is established correctly, you should

now be able to access the shared les from your cell

phone via the Media Browser of your TV.

• Enter the Media Browser menu and the playback

device selection OSD will be displayed. Select your
mobile phone and press the OK button to continue.

Note: This feature may not be supported on all mobile
phones.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any rewalls of your network allow

the TV wireless connection.

• Ensure the USB WiFi dongle (Supplied) is

plugged in fully.

• If the wireless network does not function properly,

try using the wired network in your home. Refer
to the Wired Connection section for more
information on the process.

If the TV does not function using the wired connection,
check the modem (router). If the router does not
have a problem, check the internet connection of
your modem.

Try searching for wireless networks again, using the
Network Settings menu screen.

Connection is slow

See the instruction book of your wireless modem to get
information on the internal service area, connection
speed, signal quality and other settings. You need to
have a high speed connection for your modem.

Distruption during playback or slow
reactions

You could try the following in such a case:

Keep at least three meters distance from microwave
ovens, mobile telephones, bluetooth devices or any
other Wi-Fi compatible devices. Try changing the
active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard
that eases the viewing process of digital electronics
and makes them more convenient to use on a home
network. For further information, visit www.dlna.org.

The DLNA standard allows you to view and play
photos, music and videos stored in the DLNA media
server connected to your home network.

1. Nero Media Home Installation

The DLNA function cannot be used if the server
program is not installed on to your PC. Please
prepare your PC with the provided Nero Media
Home programme. For more information about the

installation, please refer to appendix H.

2. Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed

conguration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the “ ” or “ ” buttons
from the main menu and press OK. The Media
browser will then be displayed.

DLNA

DLNA support is only available in the Media Browser
folder mode. To enable folder mode, go to the
Settings tab in the main media browser screen and
press OK. In the settings options, highlight View Style

and change to Folder using the “ ” or “ ” buttons.
Select the desired media type and press OK.

If sharing congurations are set properly, the following

OSD message will be displayed after selecting the
desired media type. Select OK to display the selected
network or USB memory content. If you want to refresh
the device list, press the GREEN button. You can
press MENU to exit.

If available networks are found, they will be listed on
this screen. Select media server or network that you
want to connect to using the “ ” or “ ” buttons
and press OK.

English - 22 -

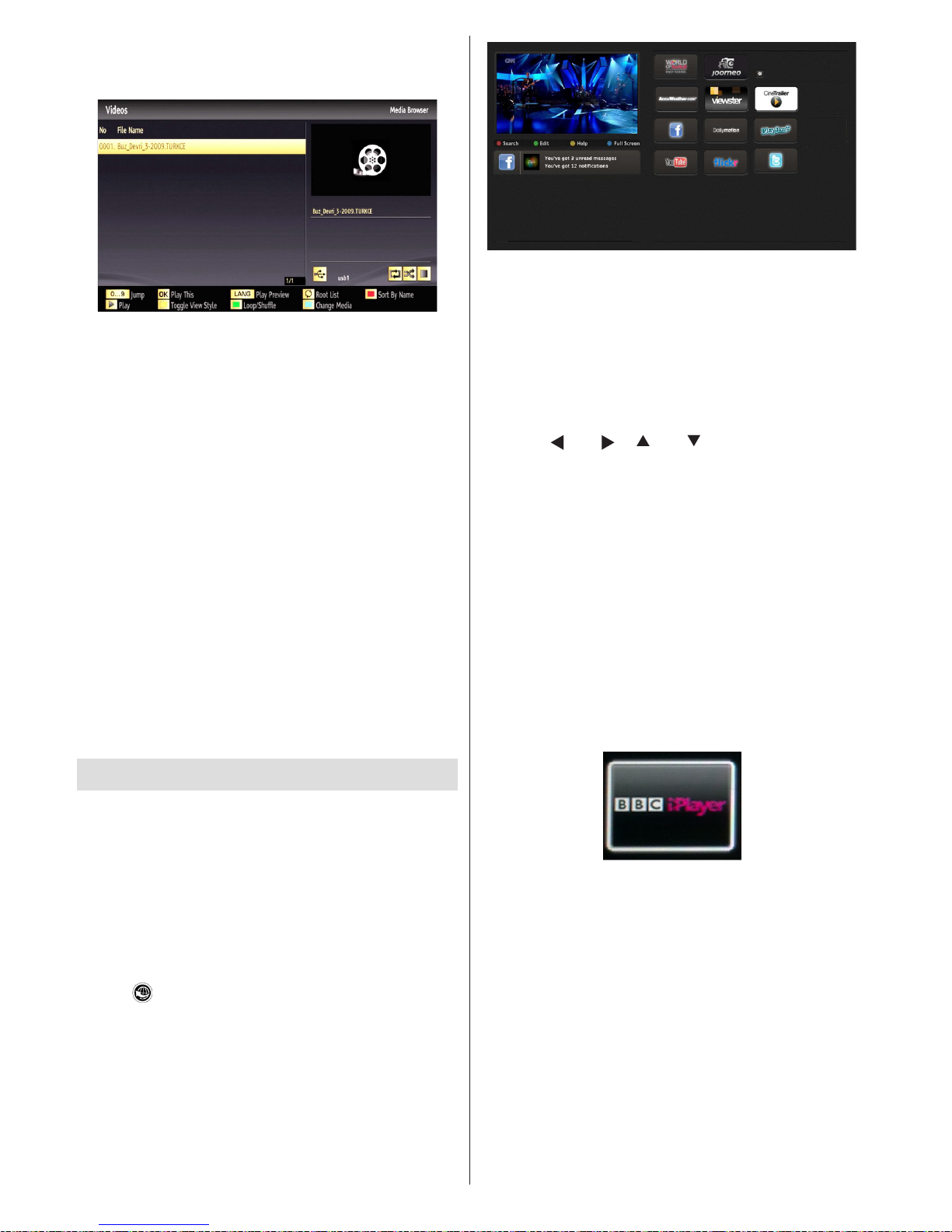

If you select the media type as Video and choose a
device from the selection menu, a new menu screen
will appear on the screen as below:

Select Videos from this screen to list all the available

video les from the selected network.

To play other media types from this screen, you must
go back to main Media Browser screen and select
the media type as desired and then perform the
network selection again. Refer to the Media Browser

USB Playback section for further information on le

playback.

Subtitle les do not work if you watch videos from your

network through DLNA.

You can connect only one television with DLNA to
the same network. If a problem occurs with the DLNA
network, please switch your television off at the wall
socket and back on again. Trick mode and jump are
not supported with the DLNA function.

Note: There may be some PC’s which may not be able
to utilize the DLNA function due to administrator and
security settings (such as business PC’s).

For best home network streaming with this TV, the
supplied Nero software should be installed.

Internet Portal

Ensure the TV is connected to a Wired/Wireless
Internet connection. After the connection is
established, you can select or view portal options.

Note: A Broadband Internet connection is required
for high quality viewing. Ensure that the internet
connection is made properly. You must set the
Country and Language data correctly in the First
Time Installation for the proper operation of the
internet portal.

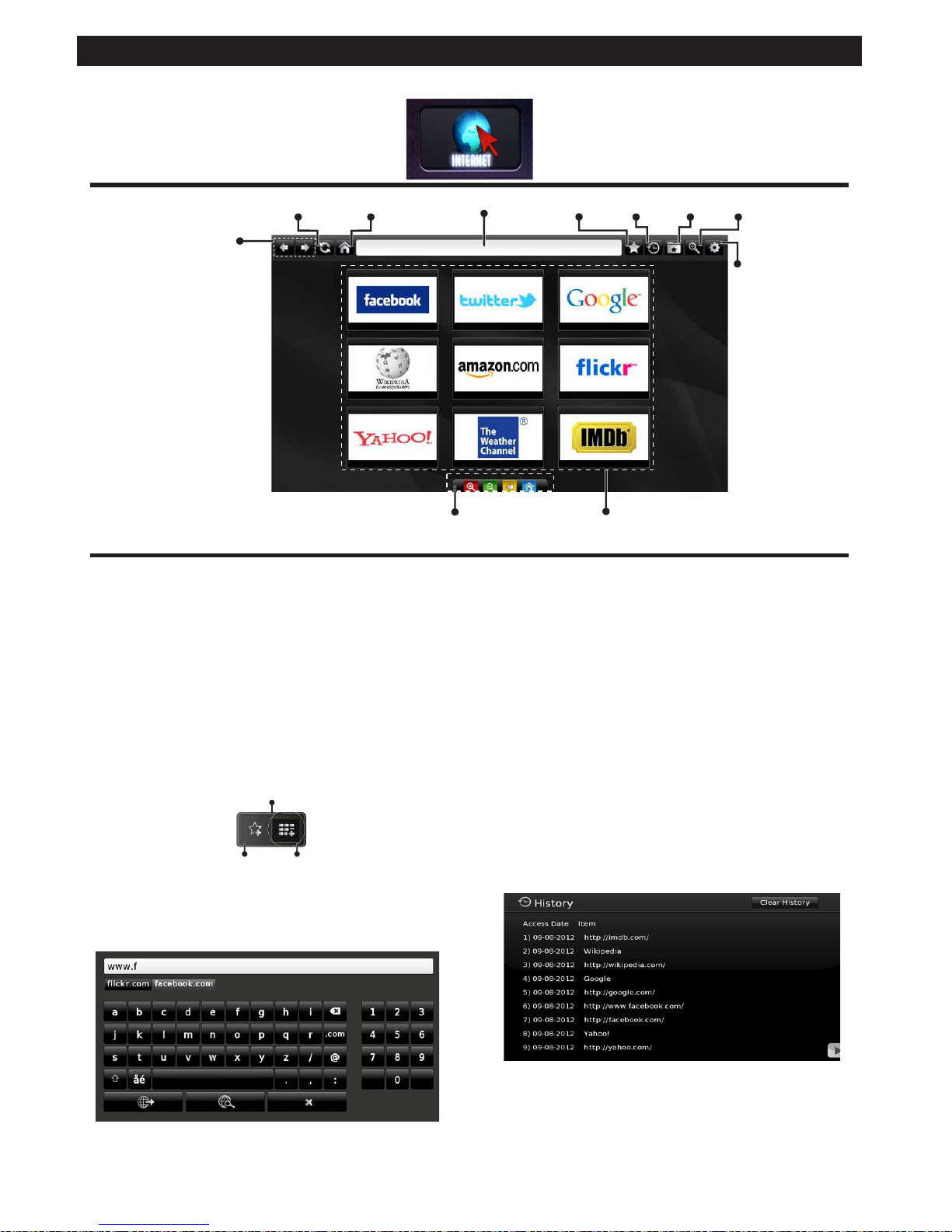

Press “ ” button on your remote control and the
portal application options will be displayed. The
application options will be displayed in a manner
similar to the template below.

Note on PIP Window

If you switch to portal mode while watching TV
channels, current programme will be displayed on
the PIP window. You can change channels using
P+/P- buttons.

Current HDMI content will be displayed on the PIP
window, if you switch to portal mode while watching
HDMI source.

Use the “ ” or “ ”, “ ” or “ ” to navigate between
the items on Portal screen. Press the OK button to

conrm your selection. Press the BACK button to go

to the previous screen.

Press the EXIT button to quit the Internet portal mode.

iPlayer Application

You can access BBC iPlayer using your TV. To do
this, an active internet connection is required. (See
connecting to a Wired/Wireless Network section to
connect your TV to internet). After the connection is
established, you can select BBC iPlayer among the
portal options. (See Internet Portal)

Press the OK button on your remote control to start
the BBC iPlayer application.

Note: Broadband internet connection (minumum
2mbps) is required for high quality viewing.

Playing a Programme via iPlayer

Select a programme and press OK button. The
programme playback will begin.

You can press the PAUSE button to pause playback.
Press the PLAY button to resume the playback.

Use the STOP button to stop the playback.

Press the EXIT button to exit iPlayer. Press the
RETURN button for going back to the previous screen.

Note: “Episode is unavailable.” message may be
displayed on the screen if a problem occurs during
the playback.

English - 23 -

Searching a Programme

Highlight the Search tab using the navigation buttons
and press the OK button. Use the virtual keyboard
to type the letters. Select letters and press the OK

button. When nished, highlight Search option and

press the OK button.

Note: Some applications might become disabled due
to changes made in the parental settings.

Digital Teletext

Press the “ ” button. The digital teletext information
appears. Operate it with the coloured buttons, cursor
buttons and the OK button.

The operation method may differ depending on the
contents of the digital teletext. Follow the instructions
displayed on digital teletext screen.

When the “ ” button is pressed again, the TV returns
to television broadcast.

Specications

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (for UK only)

DVB-C MPEG2

DVB-C MPEG4 HD

DVBT 2 MPEG2

DVBT 2 MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W

RMS.

) (10% THD) 2 x 2,5

POWER CONSUMPTION (W) 50 W (max)

PANEL 16:9

DIMENSIONS

DxLxH: 134 x 516 x 354 mm

Weight (with foot): 3,70 kg

DxLxH: 42 x 516 x 317 mm

Weight (Without foot): 3,50 kg

English - 24 -

DVD MODE

Handling Discs

• To keep the disc clean, only handle the disc by its
edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like
glue, remove before using it.

• Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, or leave it in a car
parked in direct sunlight as the temperature can rise
quickly and damage the disc.

• After playing, store the disc in its case.

Cleaning Discs

• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the centre out.

• Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPs.

DVD - Features

• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG
playback.

• NTSC / PAL playback (according to disc content).

• LPCM audio via coaxial and optical digital audio

outputs (optional).

• Multi-Audio (up to 8) support (according to disc
content).

• Multi-Subtitle (up to 32) support (according to disc
content).

• Multi-Angle (up to 9) support (according to disc
content).

• 8 level parental control.

• Fast forward and rewind - 5 different speeds:

2x, 4x, 8x, 16x, 32x.

• Slow motion playback - 4 different speeds:
1/2x, 1/4x, 1/8x, 1/16x forward.

• Frame by frame forward playback.

• Search Mode.

• Repeat.

• Coaxial audio output (optional).

• Copied disks may be incompatible.

How to watch a DVD

NOTE: DVD mode cannot be accessed unless a DVD

is inserted or a DVD control button is pressed.

If you switch to another source by pressing

SOURCE, “ ” or P+/P- buttons on the remote
control, DVD playback will be paused automatically.

You should press PLAY and resume the playback
manually when you switch to DVD mode.

1. Switch on the TV.

2. Switch to DVD source using the “SOURCE” button
on the remote control.

3. Insert a disc into the loader.

The disc MUST be facing you when looking at the
TV screen.

Most discs will be automatically loaded and play will
start automatically if the disc does not have any menus
recorded on it.

If play does not start automatically, press the play
button “ ” on the remote control, or the play button
“ / ” on the right side of the TV.

A menu may appear on the TV screen after a few

moments or the lm may start immediately after the

Film/TV Company introduction. This will depend on
the disc content and may differ on each disc.

NOTE: Steps 4 and 5 are only available when

a menu is recorded on the disc.

4. Press the navigation buttons “ ” , “ ” ,“ ” or

“ ” or the number button/s to select the required title.

5. Press the OK button. The selected item starts to play.

Notes on DVD Playback

a. No sound will be heard during Rapid advance or

Rapid reverse.

b. No sound will be heard during Slow motion play.

c. Reverse Slow motion play is not available.

d. In some cases, the subtitle language will not be

changed immediately to the selected one.

e. When the preferred language will not select, even
after pressing the button several times, it means the
language is not available on the disc.

f. When the DVD player is restarted or the disc
is changed, the subtitle selection is automatically
changed back to the initial settings.

g. If a language is selected that is not supported by
the disc, the subtitle language will automatically be
set to the disc’s priority (default) language.

English - 25 -

h. Usually a ‘circulation’ will happen while switching

to another language, this means you can cancel
the subtitle by pressing the same button a number
of times until “Subtitle Off” appears on the screen.

i. When the power is turned on or the disc is
removed, the language heard will be the one
selected at the initial settings.

j. Some DVDs may not contain root and/or title
menus.

k. Reverse stepping is not available.

l. For reference: If you attempt to enter a number

greater than the total time of the current title, the

time search box disappears and “Input Invalid
” message appears on top-left corner of screen.

m. The slide show is disabled when the ZOOM mode
is on.

DVD Mode Conguration

1. While in DVD source, press “ ” button to
access DVD Setup menu. This is only possible if
there is no playback.

2. This menu is operated using “ ” or “ ” and “
” or “ ” buttons.

TV Type

TV Type is only available as ‘PAL’. The TV set also
supports NTSC signal; however, the signal will be
converted to PAL when it appears on the screen.

Language Setup

This menu is used for setting language preferences
in DVD mode. Language menu contents are detailed
below:

OSD LANG

You can select the default OSD language of the
player menus

AUDIO

You can select the default audio language if supported
by the DVD disc.

DISC MENU

You can select the DVD’s disc menu language among
these languages. Disc menu appears in the selected
language, if supported by the DVD disc.

SUBTITLE

You can select the default subtitle language if
supported by the DVD disc.

Preferences: These are the DVD mode preferences.
Menu contents are detailed below:

DEFAULT

If you choose RESET and press SELECT, the factory­presets are loaded. Parental level and parental
password does not change.

DOWNMIX

This mode can be selected when the digital audio
output of the TV is used.

SURROUND

Surround sound output.

STEREO

Two channels stereo.

PARENTAL

Playing some DVDs can be limited depending on the
age of users. The “Parental Control” function allows
playback limitation level to be set by the parent.
Parental Level can be adjusted to one of the eight
levels. Level “8 ADULT” adjustment let you watch
all of the DVD titles ignoring the DVD disc’s parental
level. You can watch the DVD discs, which has the
same or lower parental level than the player’s level
only. Menu contents are detailed below:

PASSWORD

Using this item you can change the current password.
To change the password you will be prompted to
enter your old password. After you have entered
your old password, you can now enter the new 4-digit
password. You can use C key to delete the incorrect
entry.

NOTE: Factory preset of the password is “0000”.
You have to enter XXXX digital password every time
you want to change the parental level. If you forget
your password please contact technical service.

SPDIF OUTPUT

You can set Spdif Output as PCM or RAW. If you select
PCM from SPDIF Output in DVD menu and play DVD
with Dolby audio, you can get audio output with two
channels via the speakers and the SPDIF Out. If you
select RAW from SPDIF Output in DVD menu and
play DVD with Dolby audio, speakers will be muted
and you can get 5+1 Dolby audio via the SPDIF Out.

English - 26 -

DVD Controls

You can operate DVD, movie CD, music or picture CD’s content by using the correct buttons on your remote
control. Below are main functions of commonly used remote control buttons.

Buttons DVD Playback Movie Playback Picture Playback Music Playback

Play Play Play Play

Pause Pause Pause Pause

Stop Stop Stop Stop

/

Skip backward/forward Skip backward/forward Rotate Skip backward/forward

/

Highlights a menu item / Shifts the zoomed picture up or down (if available).

/

Rapid advance / Rapid reverse

Views the scene from different angles (if

available)

Changes slide effect

(depends on the

content)

X

Displays time / Views main setup menu

Time counter mode selection (during playback). Press repeatedly to switch between modes.

LANG. Auto language X X

MENU Displays TV menu.

OK Enter / View / Play

GREEN

BUTTON

Displays repeat options.

RETURN Returns back to the previous menu (if available).

YELLOW
BUTTON

Goes back to the root folder (if available).

Direct selection of scenes or time. Selects the desired file. Selects the desired file.

SUBTITLE Subtitle on-off. Press repeatedly to switch

between subtitle options.

X X

TITLE Displays disc menu

(if available).

Displays disc menu

(if available).

X X

ZOOM Zooms picture. Press repeatedly to switch between zoom options.

Other Functions – Button Combinations (During playback)

+

Slow forward

( +

) +

Sets slow forward speed

+

Sets rapid advance speed

+

Sets rapid reverse speed

+

Conrms stop command

English - 27 -

Software Upgrade

Your TV is capable of finding and updating
automatically via the Aerial signal or over the Internet.

Background search and upgrade mode

While the TV is connected to the Internet, if new
software is found, it downloads the upgrades
automatically when the TV next powers on from
standby.

3.00am search and upgrade mode

While the TV is connected to an aerial signal. If
Automatic scanning in the Upgrade Options menu
is enabled, the TV wakes up at 03:00 and searches
broadcast channels for new software upgrades. If
new software is found and downloaded successfully,
the next time the TV powers up , it will have the new
software version.

Note. If the TV fails to come on after the upgrade
unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

No power

If your TV has no power, please check the power cord
plug is connected to the mains power socket.

No picture

1. No Picture means that your TV is not receiving a

transmission. Have you selected the correct button on
the remote control? Try once more. Also make sure
the correct input source has been selected.

2. Is the aerial connected properly?

3. Are the plugs connected to the aerial socket?

4. Is the aerial cable damaged?

5. Are suitable plugs used to connect the aerial?

6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute,

press the “ ” button, or increase the volume level.

2. Sound is coming from only one speaker. Is the
balance set to one extreme? See Sound Menu
section.

Remote control - does not operate

Your TV no longer responds to the remote control.
The batteries may be exhausted, if so you may need
to replace the old battieries.

Input sources - can not be selected

1. If you cannot select an input source, it is possible

that no device is connected.

2. Check the AV cables and connections if you have
tried to connect a device.

Recording Unavailable

To record a programme, you should rst connect a

USB disk to your TV while the TV is switched off.
You should then switch on the TV to enable recording
feature. Otherwise, the recording feature will not be
available. If you cannot record, try switching off the
TV and then re-inserting the USB device while the
TV is switched off.

USB Is too Slow

If a “USB is too slow” message is displayed on
the screen while starting a recording, try restarting
the recording. If you still get the same error, it is
possible that your USB disk does not meet the speed
requirements. Try connecting another USB disk.

The DVD picture quality is poor

1. Make sure the DVD disc surface is not damaged

(no scratches, ngerprints etc.).

2. Clean the DVD disc and try again. See instructions
in “Cleaning Discs” to clean your disc properly.

3. Ensure that the DVD disc is in the loader with the
label facing you when looking at the TV screen.

4. A damp DVD disc or condensation may effect the
equipment. Wait for 1 to 2 hours in Stand-by mode to
dry the equipment.

The Disc does not play

1. No disc in the machine - Place a disc into the loader.

2. Disc is incorrectly loaded - Ensure that the DVD

disc is in the loader with the label facing you when
looking at the TV screen.

3. Wrong type of disc. The DVD player cannot play
CD-ROMS etc.

4. The region code of the DVD disc must match the
player.

Ensure that the DVD disc is in the loader with the label
facing to the front.

Wrong type of disc. The machine cannot play CD­ROMS with PC-Data.

Wrong OSD language

1. Select the language in the setup menu.

2. The language for the sound or subtitles on a DVD

disc cannot be changed.

3. Multilingual sound and/or subtitles are not
recorded on the DVD disc.

4. Try to change the sound or subtitles using
DVD’s title menu. Some DVD’s do not allow the
user to change these settings without using the
disc’s menu.

Angle, Zoom etc. functions do not work

1. These functions are not available on the DVD.

English - 28 -

2. Angle can only be changed when the angle symbol

is displayed.

If nothing works.

If you have tried the above solutions and none seem
to work, try switching your TV-DVD off and on again.
If this does not work, contact your supplier or TV-DVD
repair technician. Never attempt to repair a defective
TV-DVD yourself.

Internet Connection Not Available / DLNA Mode
Not Operating

If the MAC address (a unique identier number) of

your PC or modem has been permanently registered,
it is possible that your TV might not connect to
the internet. In such a case, the MAC address is
authenticated each time when you connect to the
internet. This is a precaution against unauthorized
access. Since your TV has its own MAC address,
your internet service provider cannot validate the MAC
address of your TV. For this reason, your TV cannot
connect to the internet. Contact your internet service
provider and request information on how to connect
a different device, such as your TV, to the internet.

It is also possible that the connection may not be
available due to a firewall problem. If you think
this causes your problem, contact your internet

service provider. A rewall might be the reason of a

connectivity and discovery problem while using the TV
in DLNA mode or while browsing via DLNA.

Invalid Domain

Ensure that you have already logged on to your PC
with an authorized username/password and also
ensure that your domain is active, prior to sharing

any les in your DLNA server program on your PC. If

the domain is invalid, this might cause problems while

browsing les in DLNA mode.

Information for Users on Disposal of Old
Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these
symbols should not be disposed of as general
household waste. If you want to dispose of the product
or battery, please consider the collection systems or
facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates

that this battery contains lead.

Licence Notications

TRADEMARK ACKNOWLEDGMENT

Manufactured under license from Dolby Laboratories.

and the double-D symbol are trademarks of Dolby
Laboratories.

“DLNA®, the DLNA Logo and DLNA CERTIFIED® are

trademarks, service marks, or certication marks of

the Digital Living Network Alliance.”

“HDMI, the HDMI logo and High-Denition Multimedia

Interface are trademarks or registered trademarks of HDMI
Licensing LLC.”

This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright
protection technology must be authorized by Rovi
Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized
by Rovi Corporation. Reverse engineering and
disassembly are prohibited.

English - 29 -

Nero MediaHome Installation

To install Nero MediaHome, please proceed as
follows:

Note: To use DLNA function, this software should be installed
to your PC.

1. Enter the link below completely in the adress­bar of your web browser.

http://www.nero.com/mediahome-tv

2. Click the Download button on the opening

page. The installation le will be downloaded

onto your PC.

3. After the download is completed, double click

on the installation le to start the installation.

The installation wizard will guide you through
the installation process.

4. The prerequisites screen will be displayed rst.

The installation wizard checks the availability
of required third-party software on your PC.
If applications are missing they are listed and
must be installed before continuing installation.

5. Click the Install button. The integrated serial
will be displayed. Please do not change the

displayed serial.

6. Click the Next button. The License Conditions
(EULA) screen will be displayed. Please read

the license agreement carefully and select the
appropriate check box if you agree to the terms
of the agreement. Installation is not possible
without this agreement.

7. Click the Next button. On the next screen you
can set your installation preferences.

8. Click the Install button. The installation begins

and nishes automatically. A progress bar will

indicate the state of the installation process.

9. Click the Finish button. The installation is
completed. You will be directed to the web site
of the nero software.

10. A shortcut is now placed on your desktop.

Congratulations! You successfully installed Nero

MediaHome on your PC.

Run Nero MediaHome by double clicking on the shortcut
icon.

English - 30 -

Internet Browser

Refresh

Previous
Next

Quick Access

Home Page

Address Bar

Add

History

Bookmarks

Zoom

Settings

Remote control shortcuts

(Zoom in-out/Back/Home)

• To navigate the web browser, use the arrow buttons
on the remote control. Press OK to continue.

• After First time installation, predened web sites and

logos will be displayed on the browser’s access page
(see image above). To add a desired web page to
the quick access page, whilst on the website you
wish to add, select the “Add” menu and select “Quick
Access” button.

• If you want to add bookmarks, select this item while
the desired web page is on the screen.

Quick
Access

Add

Bookmarks

• You can navigate the web browser in three ways.
First, enter any URL in the address bar.

• You can search keywords by clicking the search
button in the address dialog box or another way
to navigate to pages is by clicking on links on web

pages and these will take you to the appropriate
pages.

• When you scroll the pointer down to the middle of the
screen, the remote control’s shortcuts will be shown.

• Use the zoom shortcut buttons or the zoom menu
to zoom in or zoom out.

• You can clear cookies or clear all browser data from
the settings menu.

• Your TV is compatible with USB mice. Plug your
mouse or wireless mouse adaptor to the USB
input of your TV.

• To view your browsing history, click the history
button. You can also clear your browsing history
from here.

• The browser does not support multiple tabs.

• Some internet pages include ash content. These

are not supported by the browser.

• Your TV does not support any download processes
from the web browser.

To use the internet browser, please select the internet browser logo from the portal section.

English - 31 -

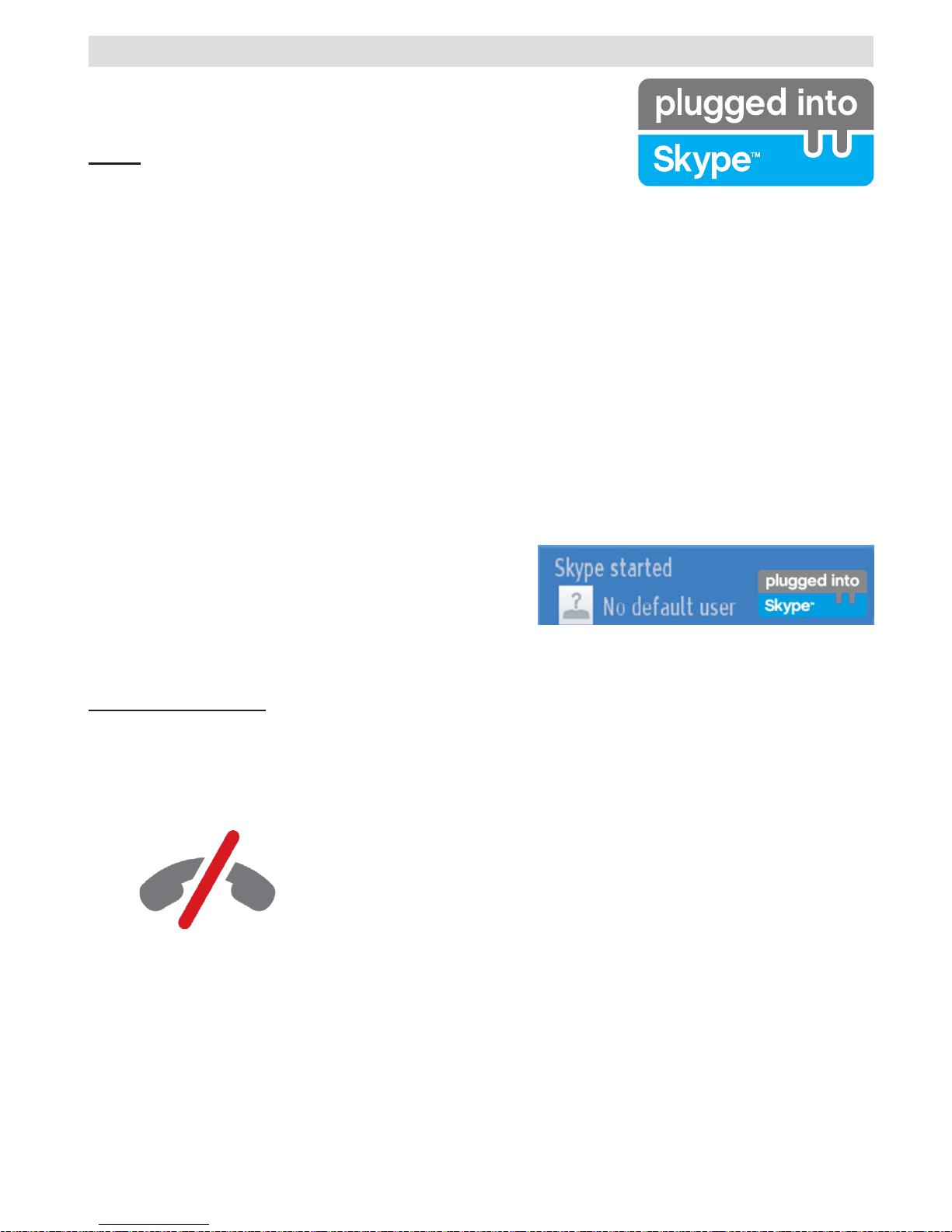

Getting Started with Skype

Make voice calls and video calls with Skype on your TV. Select the Skype
app from the portal section to start a conversation.

Follow the on screen instructions to see how to operate related features.

NOTE

• Connect your supported webcam directly to the USB port on your TV.

• If the camera is not working properly, switch off and unplug the TV. Connect

your camera again and turn the TV on.

• As soon as the TV is turned off, Skype disconnects.

• Voice level and sound quality are affected by environmental noise.

• Call quality can change with accordance to your internet connection.

• Please visit www.skype.com to learn more information and to see the Terms of Use about Skype.

• The TV must be connected to a network for Skype connection.

• The Skype app will alert you when someone calls whilst you are watching your TV or operating the Skype

application.

• A Skype camera (can be sold separately) is required to get the full benet of Skype’s features. If you do not
already have one, you will need to purchase a camera (compatible with Vesca100) to get the full benets

of Skype.

Note : When you turn on the TV and no users have been
set up for Skype, the image shown to the side will appear
on screen.

Licence Notication

Skype is a trade mark of Skype or its related companies. This product/application has not been approved or
endorsed by Skype, Skype Communications S.a.r.l. or any of their related companies.

No emergency calls with Skype

Skype is not a replacement for your ordinary telephone and can't be
used for emergency calling. Select the Skype app from the portal
section to start a conversation.

English - 32 -

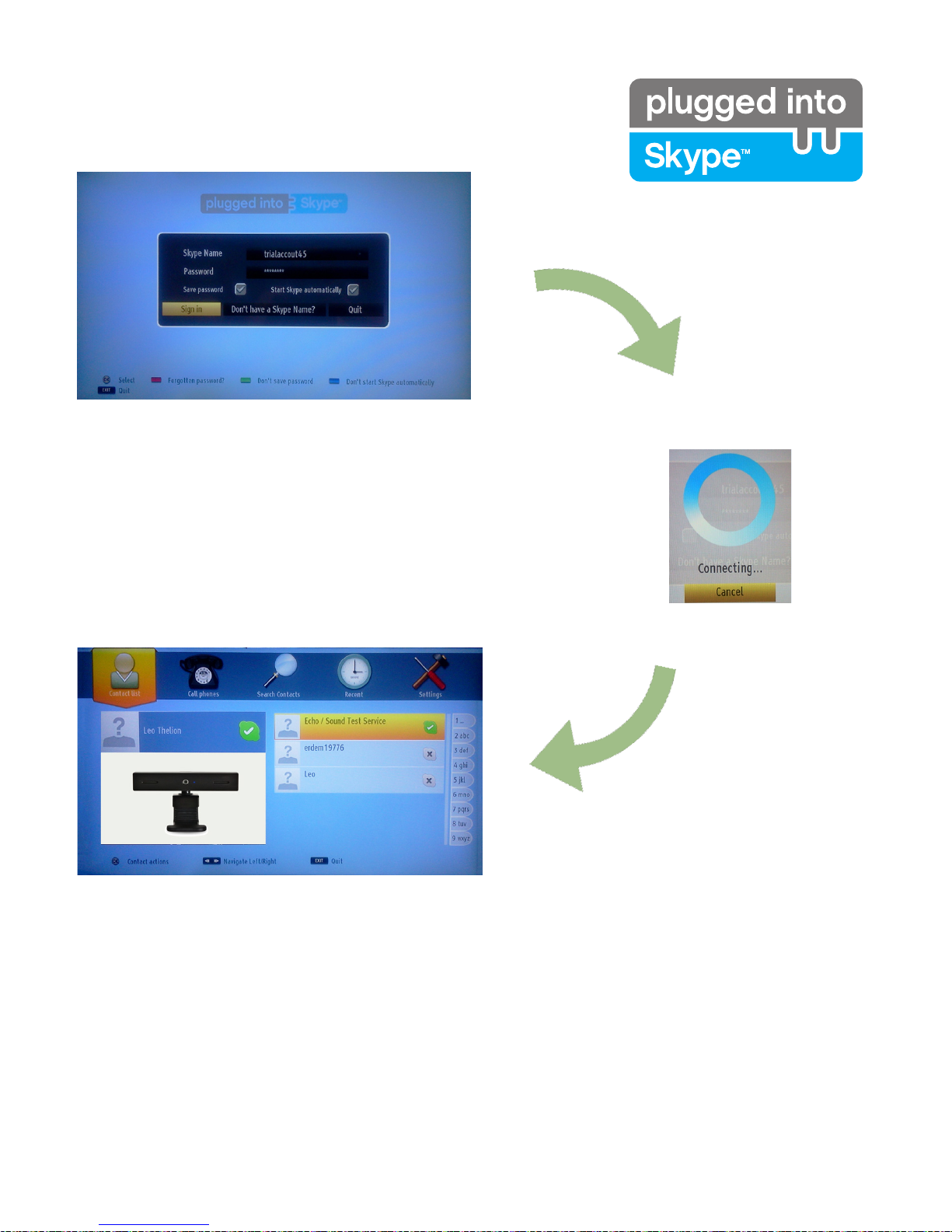

Sign In & Sign Up Now

To use the Skype application, you need a Skype account.

You can create a Skype account, using this app, in the ‘Sign In & Sign Up Now’
menu if you don’t already have one. If you already have a Skype account,
enter your name and password correctly. Select Sign In and press OK.

If you have a Skype account and you forgot your password, press the Red
button to view the “reset password” screen.

After successfully logging in to your account, the contact list will be displayed
on screen.

You can review your contact list on the right side of the screen. Your Skype name, mood message and your
camera preview (if connected) will be displayed on the left hand side of screen.

English - 33 -

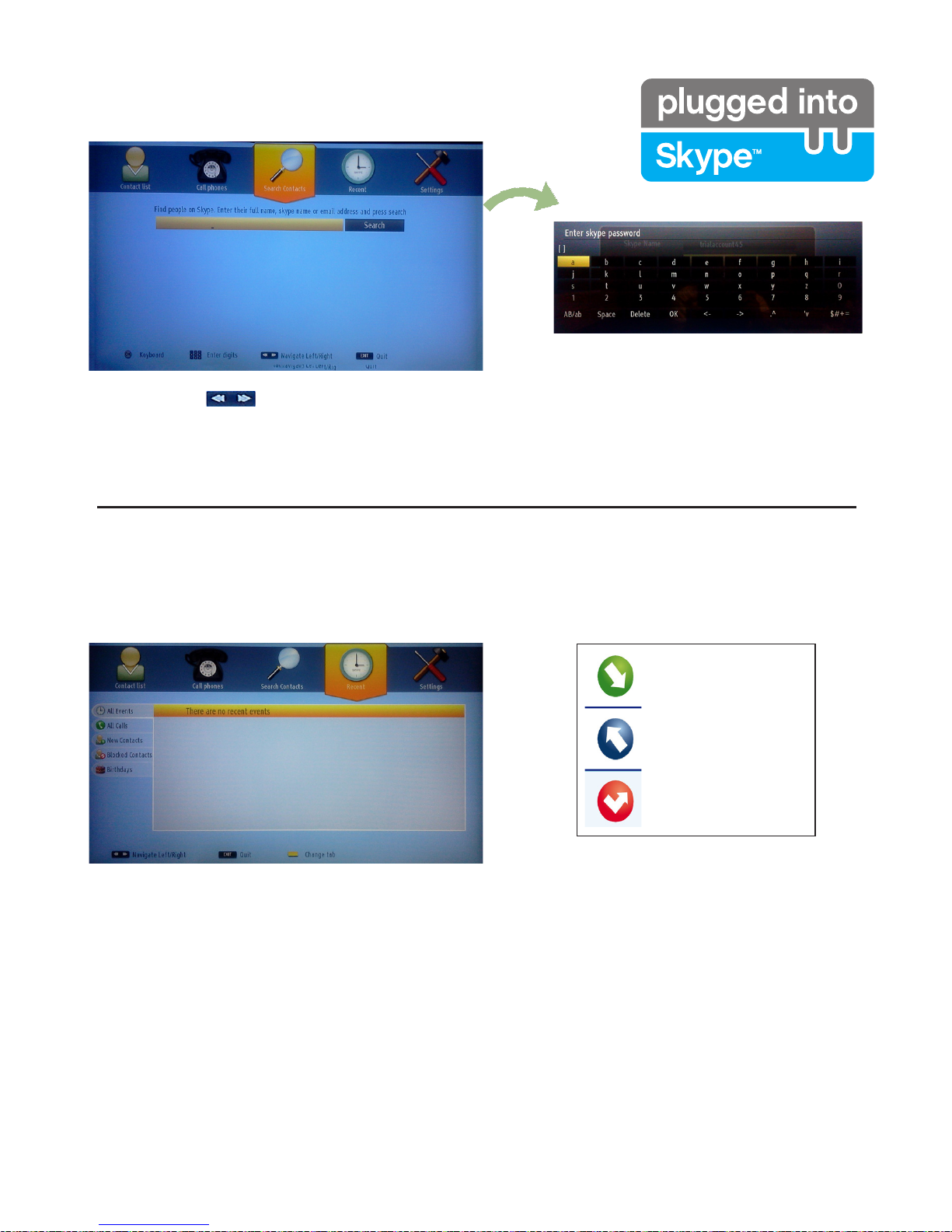

Adding a contact

By pressing the button select the “Search Contacts” option. Enter the full name, skype name or email

address of the contact you want to nd and add.

Use the remote control or virtual keyboard to enter a keyword.

Your Skype history can be seen in this section. To view recent history options, use the p+ and p- buttons.
To delete a conversation, press the Red button. When you press the OK button , the contact review will be

displayed. Also Prole information can be displayed in this section.

Recent history

Incoming call

Outgoing call

Missed call

Icon meaning

English - 34 -

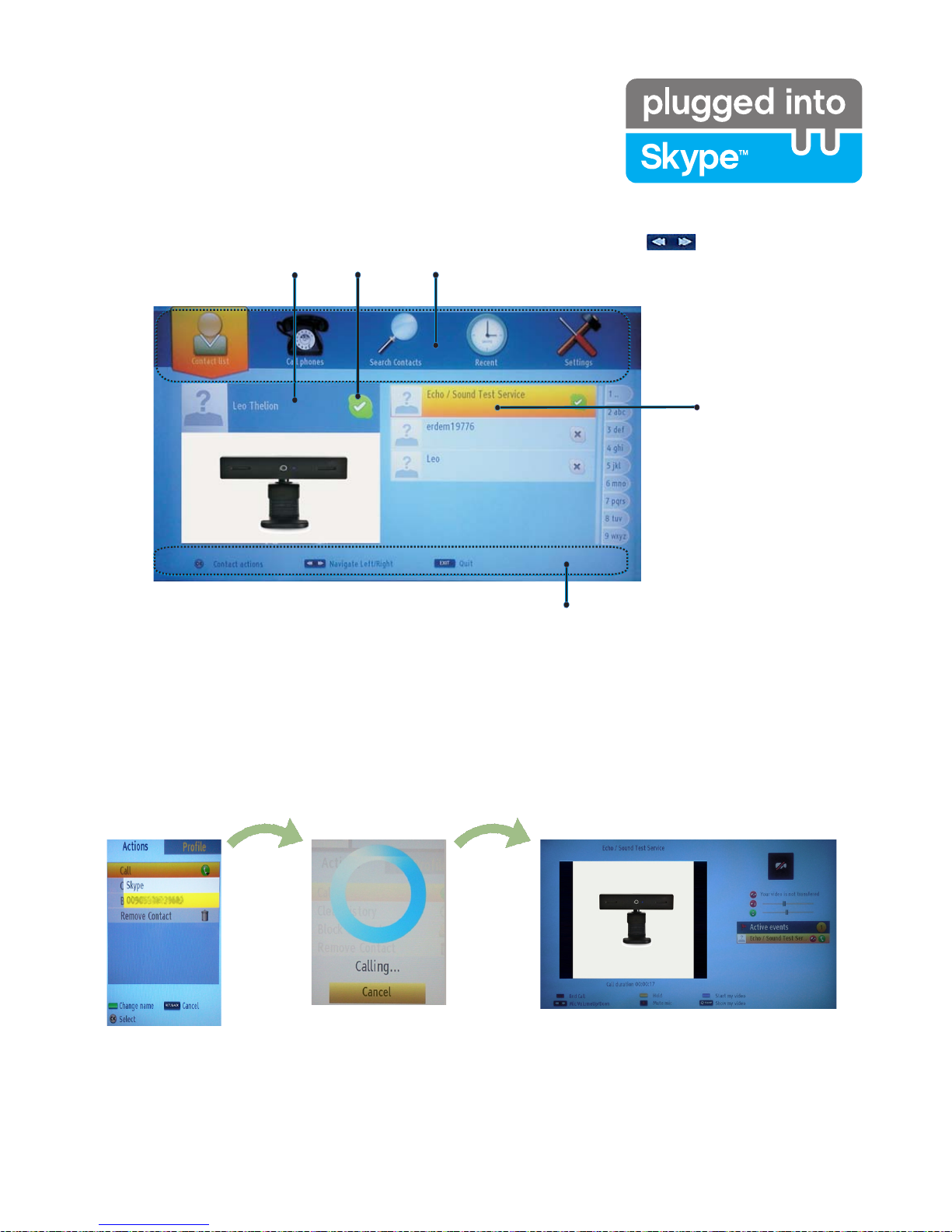

Actions

Select a person from the contact list screen and press OK. Choose an action from the list and then press OK
to start the selected process. Voice and video call is ready for your use.

If available you will see the thumbnail view of yours and the other person’s camera feed.

Help bar

Your contact list

(Press Ok to use
video&voice call)

Select a Menu by pressing the button.

Online
status

Account Name,
mood message and

prole picture.

When a conversation is active, you can mute the microphone or put the other person on the line on hold.
Press the Red button to end a call.

English - 35 -

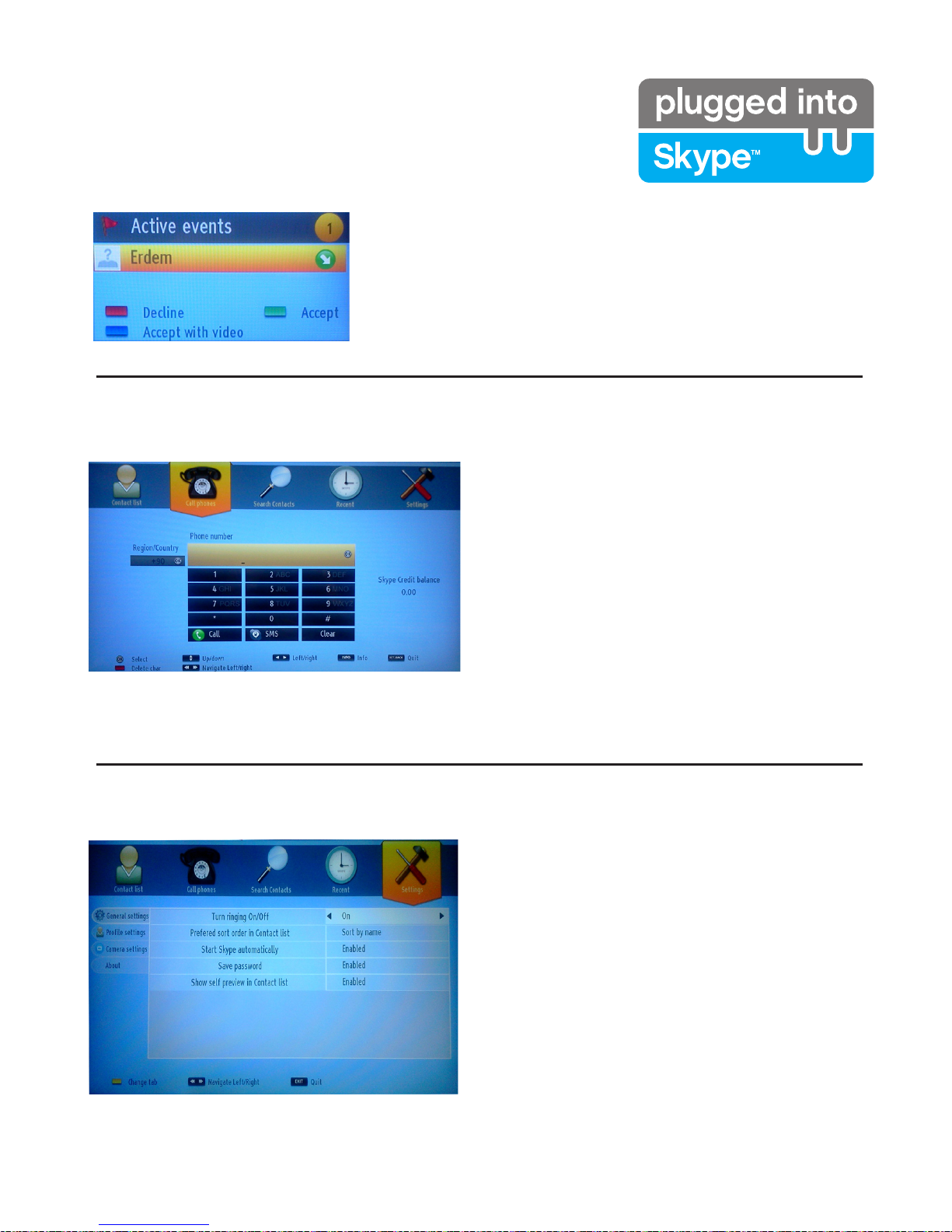

Dialing Phones

The option to call phones is available if you have

Skype Credit. Please buy credit rst. Afterwards,

select a country then enter a phone number which
you want to call.

Press the Yellow button to save an entered
telephone number. Press the Green button to start
a conversation.

The incoming call dialog is shown when you are logged into Skype
and when other users initiate a Skype call.

A small dialog box will appear in the lower right corner of the TV
screen whether the user watches TV or is browsing through Skype.
Use the remote control button and choose your action.

Incoming call

Settings

All your Skype settings can be changed by using
the Settings menu. Please use P+ and P- buttons
on the remote control to move up or down. Select
an option, then change the selected option by using
the navigation buttons. In the about section, please

nd the Skype terms and conditions.

Please read this notice carefully.

English - 36 -

Index Resolution Frequency

1 640x400 70Hz

2 640x350 85Hz

3 640x400 85Hz

4 640x480 60Hz

5 640x480 66Hz

6 640x480 72Hz

7 640x480 75Hz

8 640x480 85Hz

9 800x600 56Hz

10 800x600 60Hz

11 800x600 70Hz

12 800x600 72Hz

13 800x600 75Hz

14 800x600 85Hz

15 832x624 75Hz

16 1024x768 60Hz

17 1024x768 66Hz

18 1024x768 70Hz

19 1024x768 72Hz

20 1024x768 75Hz

21 1024x768 85Hz

22 1152x864 60Hz

23 1152x864 70Hz

24 1152x864 75Hz

25 1152x864 85Hz

26 1152x870 75Hz

27 1280x768 60Hz

28 1360x768 60Hz

29 1280x768 75Hz

30 1280x768 85Hz

31 1280x960 60Hz

32 1280x960 75Hz

33 1280x960 85Hz

34 1280x1024 60Hz

35 1280x1024 75Hz

36 1280x1024 85Hz

37 1400x1050 60Hz

38 1400x1050 75Hz

39 1400x1050 85Hz

40 1440x900 60Hz

41 1440x900 75Hz

42 1600x1200 60Hz

43 1680x1050 60Hz

44 1920x1080 60Hz

45 1920x1200 60Hz

Appendix: PC Input Typical Display Modes

The display has a maximum resolution of 1920 x 1080. The following table is an illustration of some of the
typical video display modes. Your TV may not support different resolutions. Supported resolution modes are
listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

English - 37 -

Appendix: Supported File Formats for USB Media Browser

Media Extension Format Notes

Video Audio

Movie dat, mpg,

mpeg

Mpeg1,2 MPEG1/2 Layer 1/2/3, AAC/HEAAC,

AC3/EAC3, LPCM/ADPCM

1080P@ 30fps 50Mbit/
sec

dat, mpg,
mpeg

MPEG2 ,H.264, VC1, AVS,
MVC

MPEG1/2 Layer 1/2/3, AAC/HEAAC,
AC3/EAC3, LPCM/ADPCM

H.264:1080Px2@25fps
1080P@ 50fps MVC:
1080P@ 24fps Other:
1080P@ 30fps” 50Mbit/
sec

.vob MPEG2 MPEG1/2 Layer 1/2/3, AC3, LPCM 1080P@ 30fps 50Mbit/

sec

.mkv MPEG1,2,4, XviD,

H.264,

VC1,WMV3,

Motion JPEG

MPEG1/2 Layer 1/2/3, AAC/HEAAC,

AC3/EAC3, LPCM

H.264:1080Px2@25fps
1080P@ 50fps
Other:1080P@ 30fps
50Mbit/sec

.mp4 .mov MPEG1/2 Layer 3, AAC/HEAAC,

AC3/EAC3, LPCM/ADPCM

H.264:
1080Px2@25fps
1080P@ 50fps Other:
1080P@ 30fps 50Mbit/
sec

.avi MPEG1,2,4

Xvid

H.264,

VC1,WMV3,

Sorenson H.263

Motion JPEG

MPEG1/2 Layer 1/2/3, AAC/HEAAC,
AC3/EAC3, LPCM/ADPCM, WMA

H.264:
1080Px2@25fps
1080P@ 50fps Other:
1080P@ 30fps”
50Mbit/sec

v H.264,

Sorenson H.263

MPEG1/2 Layer 3, AAC/HEAAC,
LPCM/ADPCM

H.264: 1080Px2@25fps
1080P@ 50fps Other:
1080P@ 30fps” 50Mbit/
sec

3gp,3g2 MPEG4, H.264 1920x1080 @ 30P

20Mbit/sec

asf, wmv MPEG2,4, XviD, H.264,

VC1,WMV3

MPEG1/2 Layer 1/2/3, AAC/HEAAC,
AC3/EAC3, LPCM, WMA

1080P@ 30fps 50Mbit/
sec

Music .mp3

-

MPEG1 Layer 1/2/3 (MP3)

.wav LPCM

WMA/ASF WMA, WMA Pro

.m4a/ .aac AAC, HEAAC

Photo .jpg .jpeg Baseline JPEG MAX WxH =

14592x12288

Up to 8 MegaByte

.png Progressive JPEG

.bmp non-interlace

.png

interlace

Subtitle

sub - -

srt - -

English - 38 -

Appendix: Supported DVI Resolutions

When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer
to the following resolution information.

56Hz 60Hz 66Hz 70Hz 72Hz 75Hz

640x400

þ

640x480

þ þ þ þ

800x600

þ þ þ þ þ

832x624

þ

1024x768

þ þ þ þ þ

1152x864

þ þ þ

1152x870

þ

1280x768

þ

1360x768

þ þ

1280x960

þ þ

1280x1024

þ þ

1400x1050

þ þ

1440x900

þ þ

1600x1200

þ

1680x1050

þ

1920x1080

þ

1920x1200

þ

The Sky Code is 0065:

1 Turn your TV on.

2 Press TV on your Sky remote control handset.

3 Hold down SELECT and the RED button together for about two seconds, until the red light on the Sky
remote control blinks twice.

4 Key in 0065. The light on the Sky remote control should blink twice.

5 Press the STANDBY button on your Sky remote control. If your TV switches off, press SELECT. The light
on the Sky remote control blinks twice. Now try the other functions.

Appendix : SKY Remote Control Code

English - 39 -

Appendix: AV and HDMI Signal Compatibility (Input Signal Types)

Source

Supported

Signals

Available

EXT-1
(SCART1)

PAL O

NTSC 60 O

RGB 50/60 O

SECAM O

Side AV

PAL 50/60 O

NTSC 60 O

SECAM O

YPbPr

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

HDMI1

HDMI2

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P

24Hz

25Hz

30Hz

50Hz

60Hz

O

(X: Not Available, O: Available)

In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency
with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem
please contact your dealer and also the manufacturer of the source equipment.

English - 40 -

Media File

Extension

Format Supported

(Maximum resolution/Bit

rate etc.)

Video Audio

Movie

.mpg/.dat/.vob

MPEG1 MPEG Layer

1/2/3

MPEG2 MPEG2

.avi

XviD/3ivx PCM/MP3 XviD Version up to:1.1.2

MPEG4 PCM/MP3

MS ISO

MPEG4

PCM/MP3 Support SP and ASP

Music

- - PCM Sample Rate: 8K ~ 48KHz

.mp3

-

MPEG 1/2

Layer 1/2/3 MP3

Sample Rate: 8K ~ 48KHz,
Bit Rate: 64K ~ 320Kbps


.jpg

Baseline JPEG

W x H = 8902 x 8902 up to 77
Mega-pixel Support format:
444/ 440/ 422/ 420/ Grayscale

Progressive JPEG Up to 4 Mega-pixel Support

format: 444/ 440/ 422/ 420/
Grayscale

External

Subtitles

.srt

Support Text File Format,
but do not support
Picture File Format

.smi

.sub

.ssa

.ass

Appendix: DVD Mode Supported le formats

Compatible disc types

Disc Types

(Logos)

Recording

Types

Disc
Size

Max.

Playing

Time

Characteristics

Audio

+

Video

12cm Single

sided; 240
min.

Double
sided; 480
min.

DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 System. Various
screen and audio functions can
be easily selected through the on
screen menu.

Audio 12cm 74 min. An LP is recorded as an analogue

signal with more distortion. CD is
recorded as a digital signal with
better audio quality, less distortion
and less deterioration of audio
quality over time.

Audio

(xxxx.mp3)

12cm Depends on

MP3 quality

MP3 is recorded as a digital
signal with better audio
quality, less distortion and
less deterioration of audio
quality over time.

Video

(still

picture)

12cm Depends on

JPG
quality

JPEG is recorded as a digital
signal with better picture
quality over time.

For proper operation, only 12 cm discs must be used.

English - 41 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

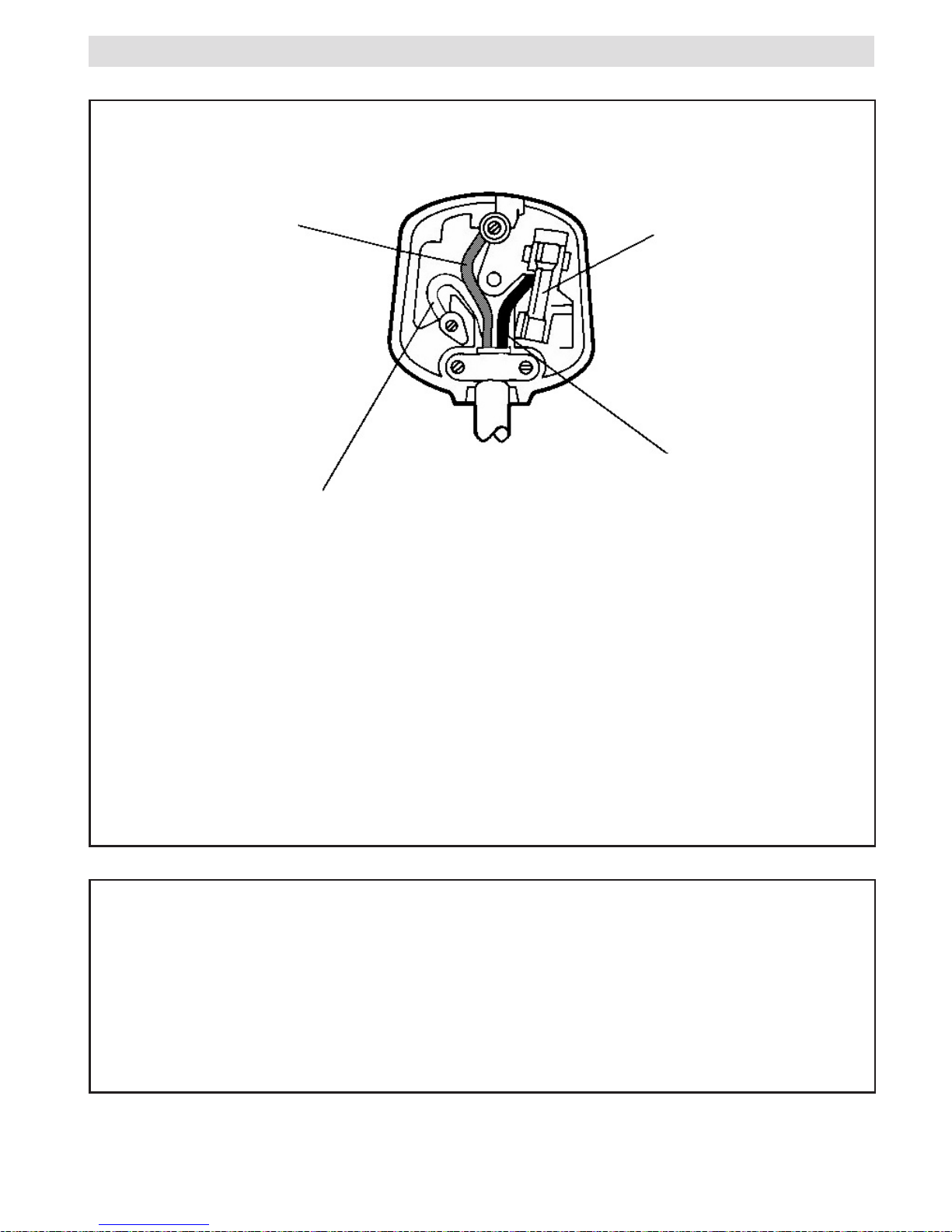

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.

For continued protection against risk of re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT
ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

GREEN

&

YELLOW

(Earth)

(if there is earth cable)

FUSE

BROWN

(Live)

BLUE

(Neutral)

English - 42 -

A

Product Fiche

B

Comercial Brand: LINSAR

C

Product No. 10091237

D

Model No. 22LED2000ST

E

Energy efciency class A

F

Visible screen size

(diagonal, approx.) (inch/cm)

22 inches 56 cm

G

On mode average power

consumption (Watt)

22

H

Annual energy consumption

(kWh/annum)

32

I

Standby power consumption

(Watt)

0,5

J

Off mode power consumption

(Watt)

0

K

Display resolution (px) 1920 x 1080
