Linksys WRTU54G-TM User Manual

2.4

GHz

802.11g

WIRELESS

Wireless-G

Broadband Router

User Guide

with 2 Phone Ports

Model No.

WRTU54G-TM

Wireless-G Broadband Router with 2 Phone Ports

Copyright and Trademarks

Specifications are subject to change without notice. Linksys, Cisco and the Cisco Logo are registered trademarks
or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2008
Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered
trademarks of their respective holders.

WARNING: This product contains chemicals, including lead, known
to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.

How to Use This User Guide

This User Guide has been designed to make understanding networking with the Wireless-G Broadband Router
easier than ever. Look for the following items when reading this User Guide:

This checkmark means there is a note of interest and
is something you should pay special attention to
while using the Wireless-G Broadband Router.

This exclamation point means there is a caution or
warning and is something that could damage your
property or the Wireless-G Broadband Router.

This question mark provides you with a reminder
about something you might need to do while using
the Wireless-G Broadband Router.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

WRTU54G-TM-UG-81009-B-BW-DF-JL

Wireless-G Broadband Router with 2 Phone Ports

Table of Contents

Chapter 1: Introduction 1

Welcome 1
What’s in this User Guide? 2

Chapter 2: Planning Your Wireless Network 4

Network Topology 4
Ad-Hoc versus Infrastructure Mode 4
Network Layout 4

Chapter 3: Getting to Know the Wireless-G Broadband Router 6

The Back Panel 6
The Front Panel 7

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports 8

Overview 8
Hardware Installation for Connection to Your Broadband Modem 8
Hardware Installation for Connection to An Existing Router 10
Placement Options 12
SIM Card Installation 13

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports 14

Overview 14
The Setup Tab - Basic Setup 15
The Setup Tab - DDNS 19
The Setup Tab - MAC Address Clone 20
The Setup Tab - Advanced Routing 21
The Wireless Tab - Basic Wireless Settings 22
The Wireless Tab - Wireless Security 23
The Wireless Tab - Wireless MAC Filter 26
The Wireless Tab - Advanced Wireless Settings 27
The Security Tab - Firewall 29
The Security Tab - VPN Passthrough 29
The Access Restrictions Tab - Internet Access 30
The Applications and Gaming Tab - Port Range Forward 32
The Applications & Gaming Tab - Port Triggering 33
The Applications and Gaming Tab - DMZ 34

Wireless-G Broadband Router with 2 Phone Ports

The Applications and Gaming Tab - QoS 34
The Administration Tab - Management 36
The Administration Tab - Log 36
The Administration Tab - Diagnostics 37
The Administration Tab - Factory Defaults 38
The Administration Tab - Firmware Upgrade 38
The Administration Tab - Config Management 38
The Status Tab - Router 39
The Status Tab - Local Network 40
The Status Tab - Wireless 41
The Status Tab - Voice 42

Appendix A: Troubleshooting 43

Common Problems and Solutions 43
Frequently Asked Questions 50

Appendix B: Wireless Security 57

Security Precautions 57
Security Threats Facing Wireless Networks 57

Appendix C: Upgrading Firmware 60
Appendix D: Windows Help 61
Appendix E: Finding the MAC Address and IP Address for Your
Ethernet Adapter 62

Windows 2000 or XP Instructions 62
Windows Vista Instructions 62
For the Router’s Web-based Utility 63

Appendix F: Glossary 64
Appendix G: Specifications 71
Appendix H: Warranty Information 73
Appendix I: Regulatory Information 74
Appendix J: Software License Agreement 81

Software in Linksys Products 81
Schedule 1 - Linksys Software License Agreement 81
Schedule 2 84
Schedule 3 89
Schedule 4 97

Appendix K: Contact Information 100

Wireless-G Broadband Router with 2 Phone Ports

List of Figures

Figure 3-1: The Router’s Back Panel 6
Figure 3-2: The Router’s Front Panel 7
Figure 4-1: Connecting Your Internet Connection 8
Figure 4-2: Connecting Your Network Devices 9
Figure 4-3: Connecting the Power 9
Figure 4-4: Connecting the Phone 9
Figure 4-5: Diagram for Connection to Another Router 10
Figure 4-6: Connecting to Another Router 10
Figure 4-7: Connecting Your Network Devices 10
Figure 4-8: Connecting the Power 11
Figure 4-9: Connecting the Phone 11
Figure 4-10: Measurement between Wall-Mount Slots 12
Figure 4-11: Slide Down the SIM Card Cover 13
Figure 4-12: Slide and Lift SIM Card Holder and Insert SIM Card 13
Figure 4-13: Fold Down the SIM Card Holder and Slide into Place 13
Figure 5-1: Password Screen 14
Figure 5-2: Setup Tab - Basic Setup 15
Figure 5-3: DHCP Connection Type 15
Figure 5-4: Static IP Connection Type 15
Figure 5-5: PPPoE Connection Type 16
Figure 5-6: PPTP Connection Type 16
Figure 5-7: L2TP Connection Type 17
Figure 5-8: Optional Settings 17
Figure 5-9: Router IP 18
Figure 5-10: Network Address Server Settings 18
Figure 5-11: Time Setting 18
Figure 5-12: Setup Tab - DDNS 19
Figure 5-13: Setup Tab - DDNS 19
Figure 5-14: Setup Tab - MAC Address Clone 20
Figure 5-15: Setup Tab - Advanced Routing (Router) 21
Figure 5-16: Setup Tab - Advanced Routing (Bridge) 21

Wireless-G Broadband Router with 2 Phone Ports

Figure 5-17: Wireless Tab - Basic Wireless Settings 22
Figure 5-18: Wireless Tab - Wireless Security (WPA Personal) 23
Figure 5-19: Wireless Tab - Wireless Security (WPA Enterprise) 23
Figure 5-20: Wireless Tab - Wireless Security (WPA2 Personal) 24
Figure 5-21: Wireless Tab - Wireless Security (WPA2 Enterprise) 24
Figure 5-22: Wireless Tab - Wireless Security (RADIUS) 25
Figure 5-23: Wireless Tab - Wireless Security (WEP) 25
Figure 5-24: Wireless Tab - Wireless MAC Filter 26
Figure 5-25: MAC Address Filter List 26
Figure 5-26: Wireless Tab - Advanced Wireless Settings 27
Figure 5-27: Security Tab - Firewall 29
Figure 5-28: Security Tab - VPN Passthrough 29
Figure 5-29: Access Restrictions Tab - Internet Access 30
Figure 5-30: Internet Policy Summary 30
Figure 5-31: List of PCs 30
Figure 5-32: Port Services 31
Figure 5-33: Applications and Gaming Tab - Port Range Forward 32
Figure 5-34: Applications and Gaming Tab - Port Triggering 33
Figure 5-35: Applications and Gaming Tab - DMZ 34
Figure 5-36: Applications and Gaming Tab - QOS 34
Figure 5-37: Administration Tab - Management 36
Figure 5-38: Administration Tab - Log 36
Figure 5-39: Administration Tab - Diagnostics 37
Figure 5-40: The Ping Test 37
Figure 5-41: The Traceroute Test 37
Figure 5-42: Administration Tab - Factory Defaults 38
Figure 5-43: Administration Tab - Firmware Upgrade 38
Figure 5-44: Administration Tab - Config Management 38
Figure 5-45: Status Tab - Router 39
Figure 5-46: Status Tab - Local Network 40
Figure 5-47: DHCP Clients Table 40
Figure 5-48: Status Tab - Wireless 41

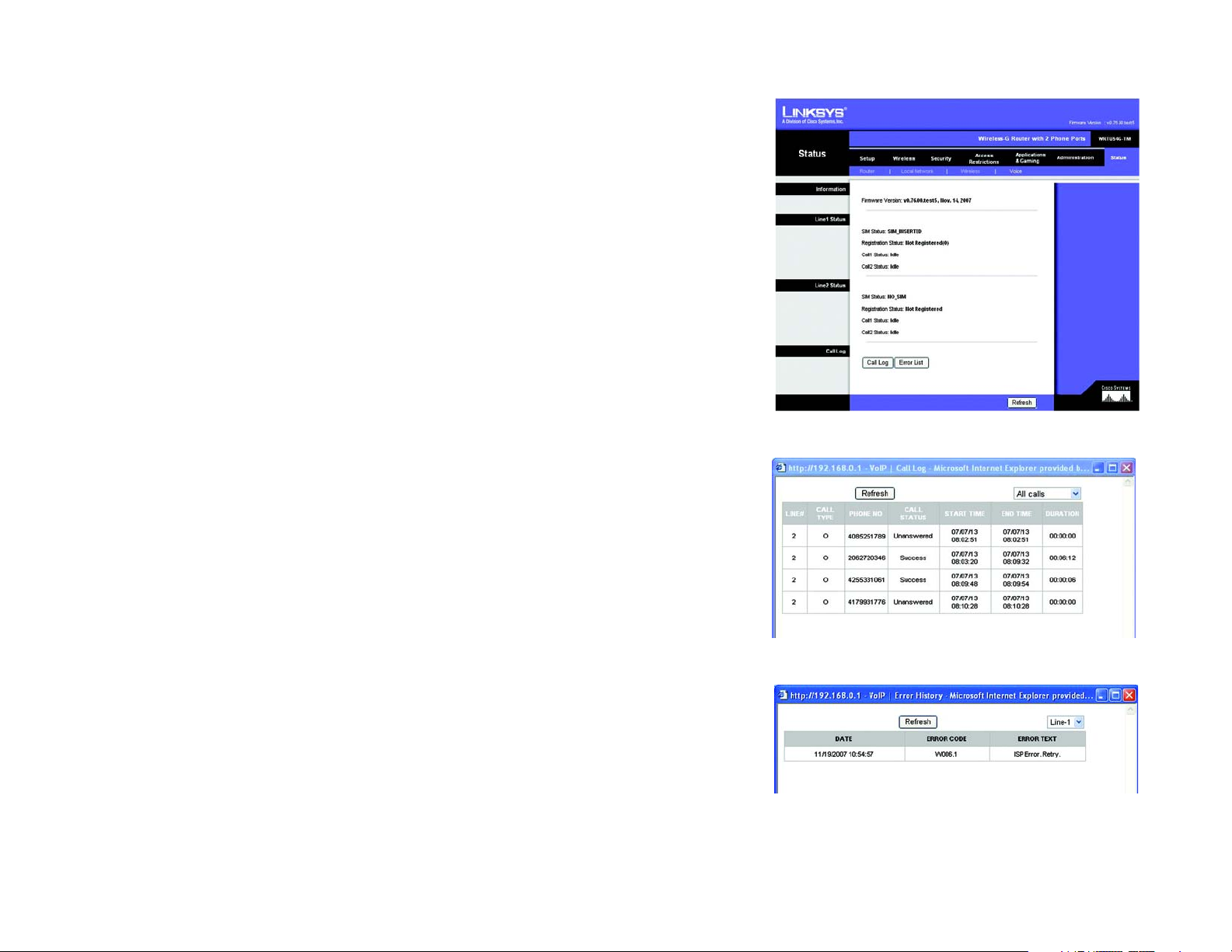

Figure 5-49: Status Tab - Voice 42
Figure 5-50: Status Tab - Voice - Call Log 42

Wireless-G Broadband Router with 2 Phone Ports

Figure 5-51: Status Tab - Voice - Error List 42
Figure C-1: Upgrade Firmware 60
Figure E-1: MAC Address/Physical Address 62
Figure E-2: MAC Address Filter List 62
Figure E-3: MAC Address Clone 63

Wireless-G Broadband Router with 2 Phone Ports

Chapter 1: Introduction

Welcome

Thank you for choosing the Linksys Wireless-G Broadband Router with 2 Phone Ports. The Wireless-G Broadband
Router with 2 Phone Ports will allow you to network wirelessly better than ever, sharing Internet access, files and
fun, easily and securely.

How does the Wireless-G Broadband Router with 2 Phone Ports do all of this? A router is a device that allows
access to an Internet connection over a network. With the Wireless-G Broadband Router with 2 Phone Ports, this
access can be shared over the four switched ports or via the wireless broadcast at up to 11Mbps for Wireless-B
or up to 54Mbps for Wireless-G.

Use the WPA standard to secure your wireless network while the whole network is protected through a Stateful
Packet Inspection (SPI) firewall and Network Address Translation (NAT) technology. Just run the Setup Wizard and
it will guide you through the steps to set up your network. You can also access the Router’s features through the
easy-to-use, browser-based utility.

But what does all of this mean?

Networks are useful tools for sharing computer resources. You can access one printer from different computers
and access data located on another computer's hard drive. Networks are even used for playing multiplayer video
games. So, networks are not only useful in homes and offices, they can also be fun.

NOTE: The Setup Wizard is not compatible with
Mac

® computers. Refer to Chapter 4: Connecting the

Wireless-G Broadband Router with 2 Phone Ports and
Chapter 5: Configuring the Wireless-G Broadband
Router with 2 Phone Ports.

wpa (wi-fi protected access): a wireless security
protocol using TKIP (Temporal Key Integrity Protocol)
encryption, which can be used in conjunction with a
RADIUS server.

spi (stateful packet inspection) firewall: a technology
that inspects incoming packets of information before
allowing them to enter the network.

firewall: Security measures that protect the
resources of a local network from intruders.

PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is
why the network is called “wired”.

PCs equipped with wireless cards or adapters can communicate without cumbersome cables. By sharing the
same wireless settings, within their transmission radius, they form a wireless network. This is sometimes called
a WLAN, or Wireless Local Area Network. The Wireless-G Broadband Router with 2 Phone Ports bridges wireless
networks of both 802.11b and 802.11g standards and wired networks, allowing them to communicate with each
other.

With your networks all connected, wired, wireless, and the Internet, you can now share files and Internet
access—and even play games. All the while, the Wireless-G Broadband Router with 2 Phone Ports protects your
networks from unauthorized and unwelcome users.

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run
the Setup Wizard on the Setup CD-ROM, then use the instructions in this Guide to help you connect the

Chapter 1: Introduction
Welcome

nat (network address translation): NAT technology
translates IP addresses of a local area network to a
different IP address for the Internet.

lan (local area network): The computers and
networking products that make up the network in
your home or office.

1

Wireless-G Broadband Router with 2 Phone Ports

Wireless-G Broadband Router with 2 Phone Ports, set it up, and configure it to bridge your different networks.
These instructions should be all you need to get the most out of the Wireless-G Broadband Router with 2 Phone
Ports.

What’s in this User Guide?

This user guide covers the steps for setting up and using the Wireless-G Broadband Router with 2 Phone Ports.

• Chapter 1: Introduction
This chapter describes the Router’s applications and this User Guide.

• Chapter 2: Planning Your Wireless Network
This chapter describes the basics of wireless networking.

• Chapter 3: Getting to Know the Wireless-G Broadband Router with 2 Phone Ports
This chapter describes the physical features of the Router.

• Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
This chapter instructs you on how to connect the Router to your network.

• Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
This chapter explains how to use the Web-based Utility to configure the settings on the Wireless-G Broadband
Router with 2 Phone Ports.

• Appendix A: Troubleshooting
This appendix describes some problems and solutions, as well as frequently asked questions, regarding
installation and use of the Wireless-G Broadband Router with 2 Phone Ports.

• Appendix B: Wireless Security
This appendix explains the risks of wireless networking and some solutions to reduce the risks.

• Appendix C: Upgrading Firmware
This appendix instructs you on how to upgrade the firmware on the Router should you need to do so.

• Appendix D: Windows Help
This appendix describes how you can use Windows Help for instructions about networking, such as installing
the TCP/IP protocol.

• Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter.
This appendix describes how to find the MAC address for your computer’s Ethernet adapter so you can use
the MAC filtering and/or MAC address cloning feature of the Router.

Chapter 1: Introduction
What’s in this User Guide?

2

Wireless-G Broadband Router with 2 Phone Ports

• Appendix F: Glossary
This appendix gives a brief glossary of terms frequently used in networking.

• Appendix G: Specifications
This appendix provides the technical specifications for the Router.

• Appendix H: Warranty Information
This appendix supplies the warranty information for the Router.

• Appendix I: Regulatory Information
This appendix supplies the regulatory information regarding the Router.

• Appendix J: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 1: Introduction
What’s in this User Guide?

3

Wireless-G Broadband Router with 2 Phone Ports

Chapter 2: Planning Your Wireless Network

Network Topology

A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each
computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same
frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the
same wireless network.

Ad-Hoc versus Infrastructure Mode

ssid (service set identifier): your wireless network’s name.

Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure
and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an
access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other.
Choosing between these two modes depends on whether or not the wireless network needs to share data or
peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral,
such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure
mode. The basis of Infrastructure mode centers around a wireless router or an access point, such as the
Wireless-G Broadband Router, which serves as the main point of communications in a wireless network. The
Router transmits data to PCs equipped with wireless network adapters, which can roam within a certain radial
range of the Router. You can arrange the Router and multiple access points to work in succession to extend the
roaming range, and you can set up your wireless network to communicate with your Ethernet hardware as well.

If the wireless network is relatively small and needs to share resources only with the other computers on the
wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless
transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or
access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to
communicate with computers on a wired network. And, of course, communication between the wireless­equipped computers is limited by the distance and interference directly between them.

Network Layout

The Wireless-G Broadband Router has been specifically designed for use with both your 802.11b and 802.11g
products. Now, products using these standards can communicate with each other.

infrastructure: a wireless network that is bridged
to a wired network via an access point.

ad-hoc: a group of wireless devices
communicating directly to each other (peer-to­peer) without the use of an access point.

Chapter 2: Planning Your Wireless Network
Network Topology

4

Wireless-G Broadband Router with 2 Phone Ports

The Wireless-G Broadband Router is compatible with all 802.11b and 802.11g adapters, such as the Notebook
Adapters (WPC54G, WPC11) for your laptop computers, PCI Adapter (WMP54G, WMP11) for your desktop PC, and
USB Adapter (WUSB54G, WUSB11) when you want to enjoy USB connectivity. The Broadband Router will also
communicate with the Wireless PrintServer (WPS54G) and Wireless Ethernet Bridges (WET54G, WET11).

When you wish to connect your wireless network with your wired network, you can use the Wireless-G
Broadband Router’s four LAN ports. To add more ports, any of the Wireless-G Broadband Router's LAN ports can
be connected to any of Linksys's switches (such as the SD205 or SD208).

With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about products that work with the Wireless-G Broadband Router.

Chapter 2: Planning Your Wireless Network
Network Layout

5

Wireless-G Broadband Router with 2 Phone Ports

Chapter 3: Getting to Know the Wireless-G Broadband Router

The Back Panel

The Router's ports, where the cables are connected, are located on the back panel.

Figure 3-1: The Router’s Back Panel

Internet The Internet port is where you will connect your broadband Internet connection.

Ethernet 1-4 These ports (1-4) connect the Router to your networked PCs and other Ethernet network

devices.

Phone1 /Phone2 You can connect a phone in each of these ports.

Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset Button, for

approximately five seconds, or restore the defaults from the Administration tab - Factory
Defaults in the Router's Web-based Utility.

Power The Power port is where you will connect the power adapter.

Chapter 3: Getting to Know the Wireless-G Broadband Router
The Back Panel

IMPORTANT: Resetting the Router will erase
all of your settings (Internet connection,
wireless security, and other settings) and
replace them with the factory defaults. Do not
reset the Router if you want to retain these
settings.

6

Wireless-G Broadband Router with 2 Phone Ports

The Front Panel

The Router’s LEDs are located on the front panel.

Figure 3-2: The Router’s Front Panel

Power Green. The Power LED lights up and will stay on while the Router is powered on. When the

Router goes through its self-diagnostic mode during every boot-up, this LED will flash. When
the diagnostic is complete, the LED will be solidly lit.

Ethernet 1-4 Green. These numbered LEDs, corresponding with the numbered ports on the Router’s back

panel, serve two purposes. If the LED is continuously lit, the Router is successfully connected
to a device through that port. A flashing LED indicates network activity over that port.

Wireless Green. The WLAN LED lights up whenever there is a successful wireless connection. If the LED

is flashing, the Router is actively sending or receiving data over the network.

Phone1/Phone2 Blue. This LED lights up blue when a SIM card is correctly installed and registered. It will blink

when you have new voicemail.

Internet Green. The Internet LED lights up when there is a connection made through the Internet port.

The LED flashes when there is traffic.

Pairing Green. The LED lights up green when wireless security is enabled. When the Pairing button is

pushed, the Pairing LED flashes amber, then when the pairing is done, the LED lights up green.

Chapter 3: Getting to Know the Wireless-G Broadband Router
The Front Panel

7

Wireless-G Broadband Router with 2 Phone Ports

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

Overview

This chapter includes two sets of connection instructions. If the Wireless-G Broadband Router with 2 Phone Ports
will be the only router in your network, follow the instructions in “Hardware Installation for Connection to Your
Broadband Modem.” If you want to install the Wireless-G Broadband Router with 2 Phone Ports behind an existing
router in your network, then follow the instructions in “Hardware Installation for Connection to an existing
Router.” Also included are Placement instructions, and SIM Card Installation instructions.

Hardware Installation for Connection to Your Broadband Modem

1. Power down your network devices.

2. Locate an optimum location for the Router. The best place for the Router is usually at the center of your
wireless network, with line of sight to all of your mobile stations.

3. Fix the direction of the antennas. Try to place the Router in a position that will best cover your wireless
network. Normally, the higher you place the antenna, the better the performance will be.

4. Connect a standard Ethernet network cable to the Router’s Internet port. Then, connect the other end of the
Ethernet cable to your cable or DSL broadband modem.

Figure 4-1: Connecting Your Internet Connection

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
Overview

8

Wireless-G Broadband Router with 2 Phone Ports

5. Connect your network PCs or Ethernet devices to the Router’s numbered ports using standard Ethernet
network cabling.

Figure 4-2: Connecting Your Network Devices

6. Connect the AC power adapter to the Router's Power port and the other end into an electrical outlet. Only use
the power adapter supplied with the Router. Use of a different adapter may damage the product.

IMPORTANT: Make sure you use the power
adapter that is supplied with the Router. Use of a
different power adapter could damage the Router.

Figure 4-3: Connecting the Power

7. Connect a standard telephone to the Router’s Phone1 port. If you have a second phone, connect the telephone to the
Router’s Phone2 port.

Figure 4-4: Connecting the Phone

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
Hardware Installation for Connection to Your Broadband Modem

IMPORTANT: Do not connect the Phone port to a
telephone wall jack. Make sure you only connect a
telephone to the Phone port. Otherwise, the Router or the
telephone wiring in your home or office may be damaged.

9

Wireless-G Broadband Router with 2 Phone Ports

Now that the hardware installation is complete, proceed to “Chapter 5: Configuring the Wireless-G

Broadband Router with 2 Phone Ports,” for directions on how to configure the Router.

Hardware Installation for Connection to An Existing Router

Your existing Router may have the same default IP address (192.168.0.1) as your new T-Mobile router. If this is
the case, the T-Mobile router’s IP address will change to 192.168.24.1.

1. Power down your network devices. Now you will begin the hardware installation of router.

2. Locate an optimum location for the Router. The best place for the router is usually at the center of your
wireless network, with line of sight to all of your mobile stations.

3. Fix the direction of the antennas. Try to place the Router in a position that will best cover your wireless
network. Normally, the higher you place the antenna, the better the performance will be.

4. Connect a standard Ethernet network cable to the T-Mobile router’s Internet port. Then, connect the other end
of the Ethernet cable to one of the numbered Ethernet ports on your existing router.

Internet

Router

Broadband

Modem

Figure 4-6: Connecting to Another Router

5. Decide which network computers or Ethernet devices you want to connect to the Router.

Figure 4-7: Connecting Your Network Devices

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
Hardware Installation for Connection to An Existing Router

Wireless-G
Broadband

Router

with 2 Phone

Ports

Multiple PCs

Figure 4-5: Diagram for Connection to Another Router

10

Wireless-G Broadband Router with 2 Phone Ports

6. Disconnect the selected computers or devices from the old router, and then connect them to the T-Mobile
router’s numbered ports using standard Ethernet network cabling.

7. Connect the AC power adapter to the T-Mobile router's power port and the other end into an electrical outlet.
Only use the power adapter supplied with the T-Mobile router. Use of a different adapter may result in product
damage.

Figure 4-8: Connecting the Power

8.

Connect a standard telephone to the Router’s Phone1 port. If you have a second phone, connect the telephone to the
Router’s Phone2 port.

IMPORTANT: Make sure you use the power
adapter that is supplied with the Router. Use of a
different power adapter could damage the Router.

Figure 4-9: Connecting the Phone

Now that the hardware installation is complete, proceed to “Chapter 5: Configuring the Wireless-G

Broadband Router with 2 Phone Ports,” for directions on how to configure the Router.

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
Hardware Installation for Connection to An Existing Router

IMPORTANT: Do not connect the Phone port to a
telephone wall jack. Make sure you only connect a
telephone to the Phone port. Otherwise, the Router or the
telephone wiring in your home or office may be damaged.

11

Wireless-G Broadband Router with 2 Phone Ports

Placement Options

There are three ways to place the Router. The first way is to place it horizontally on a surface, so it sits on its four rubber feet.
Another option is to install the stand onto the bottom of the Router, so the Router is in an upright position. Make sure to place
the Router’s bottom edge of the Cisco logo in between the stand’s prongs until tight. The third way is to mount it on a wall.This
option uses the Router’s four wall-mount slots on its bottom panel. The distance between two adjacent slots is 60 mm (2.36
inches).

To use the wall-mount option, follow these instructions:

1. Make sure you have four screws that are size #4—this indicates a diameter measurement of 2.845 mm (0.112 inches).

2. Determine where you want to mount the Router.

3. Drill four holes into the wall. Make sure adjacent holes are 60 mm (2.36 inches) apart.

4. Insert a screw into each hole, and leave 5 mm (0.2 inches) of its head exposed.

5. Maneuver the Router so the wall-mount slots line up with the four screws.

6. Place the wall-mount slots over the screws and slide the Router down until the screws fit snugly into the wall-mount
slots.

Proceed to

“Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports” for directions

on how to configure the Router.

60 mm

(2.36 inches)

Figure 4-10: Measurement between Wall-

Mount Slots

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
Placement Options

12

Wireless-G Broadband Router with 2 Phone Ports

SIM Card Installation

Two SIM cards are required for a 2-line configuration.

To install a SIM card, follow these steps:

1. Slide the SIM card cover down, then lift off.

2. Gently slide up the SIM card holder. Then from the bottom side, carefully lift up the SIM card holder. Do not lift
the holder until it is correctly in place or it could break.

3. Position the SIM card with the gold metal side up and towards the card slot opening. Carefully insert the SIM
card into the slot until it lines up with the bottom edge of the top piece of the holder and before it hits the
bottom piece of the holder or the SIM card or holder could break.

4. Fold down the SIM card holder and slide down into place.

1

Figure 4-11: Slide Down the SIM Card Cover

Bottom Piece
of Holder

Slide SIM in only this far
and not to the bottom

5. Replace the SIM card cover. You might need to push it hard to lock it in place.

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports
SIM Card Installation

Bottom Side

3

2

Slide up SIM card holder this
direction

Figure 4-12: Slide and Lift SIM Card Holder and Insert SIM Card

Top Piece of
Holder

4

Figure 4-13: Fold Down the SIM Card Holder and Slide into

Place

13

Wireless-G Broadband Router with 2 Phone Ports

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports

NOTE: For first-time installation, Linksys

Overview

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run
the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For
advanced users, you may configure the Router’s advanced settings through the Web-based Utility.

This chapter will describe each web page in the Utility and each page’s key functions. The utility can be accessed
via your web browser through use of a computer connected to the Router. For a basic network setup, most users
will use these two screens of the Utility:

• Basic Setup. On the Basic Setup screen, enter the settings provided by your ISP.

• Management. Click the Administration tab and then the Management tab. The Router’s default password is
admin. To secure the Router, change the Password from its default.

There are seven main tabs: Setup, Wireless, Security, Access Restrictions, Applications & Gaming, Administration,
and Status. Additional tabs will be available after you click one of the main tabs.

recommends using the Setup Wizard on the Setup
CD-ROM. If you want to configure advanced settings,
use this chapter to learn about the Web-based Utility.

HAVE YOU: Enabled TCP/IP on your PCs? PCs
communicate over the network with this protocol.
Refer to “Appendix D: Windows Help” for more
information on TCP/IP.

To access the Web-based Utility, launch Internet Explorer or Netscape Navigator, and enter the Router’s default IP
address, 192.168.0.1, in the Address field. Then press Enter.

A password request page, shown in Figure 5-1 will appear. (Non-Windows XP users will see a similar screen.)
Leave the User Name field blank. The first time you open the Web-based Utility, use the default password admin.
(You can set a new password from the Administration tab’s Management screen.) Then click the OK button.

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
Overview

Figure 5-1: Password Screen

14

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - Basic Setup

The first screen that appears displays the Setup tab. This allows you to change the Router's general settings.
Change these settings as described here and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

Internet Setup

The Internet Setup section configures the Router to your Internet connection. Most of this information can be
obtained through your ISP.

Internet Connection Type

Choose the type of Internet connection your ISP provides from the drop-down menu.

• DHCP. By default, the Router’s Internet Connection Type is set to Automatic Configuration - DHCP, which

should be kept only if your ISP supports DHCP or you are connecting through a dynamic IP address.

• Static IP. If you are required to use a permanent IP address to connect to the Internet, select Static IP.

Internet IP Address. This is the Router’s IP address, when seen from the Internet. Your ISP will provide you
with the IP Address you need to specify here.

Figure 5-2: Setup Tab - Basic Setup

Subnet Mask. This is the Router’s Subnet Mask, as seen by users on the Internet (including your ISP). Your ISP
will provide you with the Subnet Mask.

Gateway. Your ISP will provide you with the Gateway Address, which is the ISP server’s IP address.

DNS. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - Basic Setup

Figure 5-3: DHCP Connection Type

Figure 5-4: Static IP Connection Type

Static IP address: a fixed address
assigned to a computer or device
connected to a network.

15

Wireless-G Broadband Router with 2 Phone Ports

• PPPoE. Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet
connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use
PPPoE. If they do, you will have to enable PPPoE.

User Name and Password. Enter the User Name and Password provided by your ISP.

Connect on Demand: Max Idle Time. You can configure the Router to cut the Internet connection after it has
been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated
due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as
soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio
button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet
connection terminates.

• PPTP. Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe only.

Specify Internet IP Address. This is the Router’s IP address, as seen from the Internet. Your ISP will provide
you with the IP Address you need to specify here.

Subnet Mask. This is the Router’s Subnet Mask, as seen by users on the Internet (including your ISP). Your ISP
will provide you with the Subnet Mask.

Gateway. Your ISP will provide you with the Gateway Address.

User Name and Password. Enter the User Name and Password provided by your ISP.

Connect on Demand: Max Idle Time. You can configure the Router to cut the Internet connection after it has
been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated
due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as
soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio
button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet
connection terminates.

• L2TP. Layer 2 Tunneling Protocol (L2TP) is used by some ISPs in Europe.

Figure 5-5: PPPoE Connection Type

Figure 5-6: PPTP Connection Type

User Name and Password. Enter the User Name and Password provided by your ISP.

Specify IP Address of L2TP Server. Your ISP will provide you with the IP Address you need to specify here.

Connect on Demand: Max Idle Time. You can configure the Router to cut the Internet connection after it has
been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated
due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as
soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - Basic Setup

16

Wireless-G Broadband Router with 2 Phone Ports

button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet
connection terminates.

Optional Settings

Some of these settings may be required by your ISP. Verify with your ISP before making any changes.

Router Name. In this field, you can type a name of up to 39 characters to represent the Router.

Host Name/Domain Name. These fields allow you to supply a host and domain name for the Router. Some ISPs,

usually cable ISPs, require these names as identification. You may have to check with your ISP to see if your
broadband Internet service has been configured with a host and domain name. In most cases, leaving these
fields blank will work.

MTU. MTU is the Maximum Transmission Unit. It specifies the largest packet size permitted for Internet
transmission. The default setting, Manual, allows you to enter the largest packet size that will be transmitted.
The recommended size, entered in the Size field, is 1492. You should leave this value in the 1200 to 1500 range.
To have the Router select the best MTU for your Internet connection, select Auto.

Network Setup

The Network Setup section changes the settings on the network connected to the Router’s Ethernet ports.
Wireless Setup is performed through the Wireless tab.

Figure 5-7: L2TP Connection Type

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - Basic Setup

Figure 5-8: Optional Settings

17

Wireless-G Broadband Router with 2 Phone Ports

Router IP

This presents both the Router’s IP Address and Subnet Mask as seen by your network.

Network Address Server Settings (DHCP)

The settings allow you to configure the Router’s Dynamic Host Configuration Protocol (DHCP) server function. The
Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to
each computer on your network. If you choose to enable the Router’s DHCP server option, you must configure all
of your network PCs to connect to a DHCP server (the Router), and make sure there is no other DHCP server on
your network.

DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, or you
don’t want a DHCP server, then click the Disable radio button (no other DHCP features will be available).

Starting IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the
Router’s default IP address is 192.168.0.1, the Starting IP Address must be 192.168.0.2 or greater, but smaller
than 192.168.0.253. The default Starting IP Address is 192.168.0.100.

Maximum Number of DHCP Users. Enter the maximum number of PCs that you want the DHCP server to assign
IP addresses to. This number cannot be greater than 253. The default is 64.

Figure 5-9: Router IP

Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the

Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased”
this dynamic IP address. After the time is up, the user will be automatically assigned a new dynamic IP address.
The default is 0 minutes, which means one day.

Static DNS (1-3). The Domain Name System (DNS) is how the Internet translates domain or website names into
Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. If you wish to use
another, type that IP Address in one of these fields. You can type up to three DNS Server IP Addresses here. The
Router will use these for quicker access to functioning DNS servers.

WINS. The Windows Internet Naming Service (WINS) manages each PC’s interaction with the Internet. If you use
a WINS server, enter that server’s IP Address here. Otherwise, leave this blank.

Time Setting

Change the time zone in which your network functions from this pull-down menu. (You can even automatically
adjust for daylight savings time.)

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - Basic Setup

Figure 5-10: Network Address Server Settings

Figure 5-11: Time Setting

18

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - DDNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain
name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other
server behind the Router. Before you can use this feature, you need to sign up for DDNS service with a DDNS
service provider, www.dyndns.org or www.TZO.com. If you do not want to use this feature, keep the default
setting, Disable.

DDNS Service

If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your
DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary,
depending on which DDNS service provider you use.

DynDNS.org

DDNS Service. From this pull-down menu, enter the DDNS service with which you have membership.

User Name. Enter the User Name for your DDNS account

Password. Enter the Password for your DDNS account.

Host Name. The is the DDNS URL assigned by the DDNS service.

Figure 5-12: Setup Tab - DDNS

Internet IP Address. This is the Router’s current IP Address as seen on the Internet.

Status. This displays the status of the DDNS connection.

TZO.com

E-mail Address, TZO Password, and Domain Name. Enter the settings of the account you set up with TZO.

Internet IP Address. The Router’s Internet IP address is displayed here. Because it is dynamic, it will change.

Status. The status of the DDNS service connection is displayed here.

Change these settings as described here and click the Save Settings button to apply your changes or Cancel
Changes to cancel your changes.

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - DDNS

Figure 5-13: Setup Tab - DDNS

19

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - MAC Address Clone

A MAC address is a 12-digit code assigned to a unique piece of hardware for identification. Some ISPs will
require you to register a MAC address in order to access the Internet. If you do not wish to re-register the MAC
address with your ISP, you may assign the MAC address you have currently registered with your ISP to the Router
with the MAC Address Clone feature.

Enable/Disable. To have the MAC Address cloned, click the radio button beside Enable.

User Defined Entry. Enter the MAC Address registered with your ISP here.

Clone Your PC’s MAC Address. Clicking this button will clone the MAC address.

Change these settings as described here and click the Save Settings button to apply your changes or Cancel
Changes to cancel your changes.

Figure 5-14: Setup Tab - MAC Address Clone

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - MAC Address Clone

20

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - Advanced Routing

This tab is used to set up the Router’s advanced functions. Operating Mode allows you to select the type(s) of
advanced functions you use. Dynamic Routing will automatically adjust how packets travel on your network. Static
Routing sets up a fixed route to another network destination.

Operating Mode

connection to the Internet, select
chosen,

Dynamic Routing

Dynamic Routing

. Select the mode in which this Router will function. If this Router is hosting your network’s

Router.

If another Router exists on your network, select

Bridge

. When Bridge is

will be available as an option.

. This feature enables the Router to automatically adjust to physical changes in the network’s
layout and exchange routing tables with the other router(s). The Router determines the network packets’ route
based on the fewest number of hops between the source and the destination. This feature is
From the drop-down menu, you can also select
Ethernet and wireless networks. You can also select
the Internet. Finally, selecting

Static Routing

. To set up a static route between the Router and another network, select a number from the Static

Both

enables dynamic routing for both networks, as well as data from the Internet.

LAN & Wireless

WAN

, which performs dynamic routing with data coming from

, which performs dynamic routing over your

Disabled

by default.

Routing drop-down list. (A static route is a pre-determined pathway that network information must travel to reach a
specific host or network.) Enter the information described below to set up a new static route. (Click the

Entry

button to delete a static route.)

Enter Route Name

Destination LAN IP

. Enter a name for the Route here, using a maximum of 25 alphanumeric characters.

. The Destination LAN IP is the address of the remote network or host to which you want to

Delete This

assign a static route.

Subnet Mask

. The Subnet Mask determines which portion of a Destination LAN IP address is the network

portion, and which portion is the host portion.

Default Gateway

. This is the IP address of the gateway device that allows for contact between the Router and

the remote network or host.

Figure 5-15: Setup Tab - Advanced Routing (Router)

Interface

wireless networks), the

. This interface tells you whether the Destination IP Address is on the

WAN

(Internet), or

Loopback

(a dummy network in which one PC acts like a network—

necessary for certain software programs).

Click the

Change these settings as described here and click the

Changes

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Setup Tab - Advanced Routing

Show Routing Table

to cancel your changes.

button to view the Static Routes you’ve already set up.

Save Settings

button to apply your changes or

LAN & Wireless

(Ethernet and

Figure 5-16: Setup Tab - Advanced Routing (Bridge)

Cancel

21

Wireless-G Broadband Router with 2 Phone Ports

The Wireless Tab - Basic Wireless Settings

The basic settings for wireless networking are set on this screen.

Wireless Network Mode. From this drop-down menu, you can select the wireless standards running on your
network. If you have both 802.11g and 802.11b devices in your network, keep the default setting, Mixed. If you
have only 802.11g devices, select G-Only. If you have only 802.11b devices, select B-Only. If you do not have any

802.11g and 802.11b devices in your network, select Disable.

Wireless Network Name (SSID). The SSID is the network name shared among all devices in a wireless network.
The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 9
characters (use any of the characters on the keyboard). Make sure this setting is the same for all devices in your
wireless network. For added security, you should change the default SSID (linksys) to a unique name.

Wireless Channel. Select the appropriate channel from the list provided to correspond with your network
settings. All devices in your wireless network must be broadcast on the same channel in order to function
correctly.

Wireless SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with,
they will detect the SSID broadcast by the Router. To broadcast the Router's SSID, keep the default setting,
Enable. If you do not want to broadcast the Router's SSID, then select Disable.

Change these settings as described here and click the Save Settings button to apply your changes or Cancel

Changes to cancel your changes.

Figure 5-17: Wireless Tab - Basic Wireless Settings

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Wireless Tab - Basic Wireless Settings

22

Wireless-G Broadband Router with 2 Phone Ports

The Wireless Tab - Wireless Security

The Wireless Security settings configure the security of your wireless network. There are four wireless security
mode options supported by the Router: WPA Personal, WPA Enterprise, WPA2 Personal, WPA2 Enterprise, RADIUS,
and WEP. (WEP stands for Wired Equivalent Privacy, WPA stands for Wi-Fi Protected Access, which is a security
standard stronger than WEP encryption. WPA2 is stronger than WPA. WPA Enterprise is WPA used in coordination
with a RADIUS server. RADIUS stands for Remote Authentication Dial-In User Service.) These are briefly discussed
here. For detailed instructions on configuring wireless security for the Router, turn to “Appendix B: Wireless
Security.”

WPA Personal. WPA gives you two encryption methods, TKIP and AES, with dynamic encryption keys. Select the
type of algorithm, TKIP or AES. Enter a WPA Shared Key of 8-63 characters. Then enter a Group Key Renewal
period, which instructs the Router how often it should change the encryption keys.

WPA Enterprise. This option features WPA used in coordination with a RADIUS server. (This should only be used
when a RADIUS server is connected to the Router.) First, select the type of WPA algorithm you want to use, TKIP
or AES. Enter the RADIUS server’s IP Address and port number, along with a key shared between the Router and
the server. Last, enter a Key Renewal Timeout, which instructs the Router how often it should change the
encryption keys.

IMPORTANT: If you are using WPA, always
remember that each device in your wireless
network MUST use the same WPA method
and shared key, or else the network will not
function properly.

Figure 5-18: Wireless Tab - Wireless Security

(WPA Personal)

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports
The Wireless Tab - Wireless Security

Figure 5-19: Wireless Tab - Wireless Security

(WPA Enterprise)

23
