LINKSYS WRTU54G User Manual

2.4802GHz.11g	Wireless-G	User Guide
WIRELESS	Broadband Router	User Guide
WIRELESS	with 2 Phone Ports
	with 2 Phone Ports
Model No. WRTU54G

Wireless-G Broadband Router with 2 Phone Ports

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2007 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

How to Use This User Guide

This User Guide has been designed to make understanding networking with the Wireless-G Broadband Router easier than ever. Look for the following items when reading this User Guide:

This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Broadband Router.

This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Broadband Router.

This question mark provides you with a reminder about something you might need to do while using the Wireless-G Broadband Router.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

WRTU54G-TM-UG-70719-NC BW

Wireless-G Broadband Router with 2 Phone Ports

Table of Contents

Chapter 1: Introduction	1
Welcome	1
What’s in this User Guide?	2
Chapter 2: Planning Your Wireless Network	4
Network Topology	4
Ad-Hoc versus Infrastructure Mode	4
Network Layout	4
Chapter 3: Getting to Know the Wireless-G Broadband Router	6
The Back Panel	6
The Front Panel	7
Chapter 4: Connecting the Wireless-G Broadband Router	8
Overview	8
Hardware Installation for Connection to Your Broadband Modem	8
Hardware Installation for Connection to An Existing Router	10
Placement Options	12
Simm Card Installation	13
Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports	14
Overview	14
The Setup Tab - Basic Setup	15
The Setup Tab - DDNS	19
The Setup Tab - MAC Address Clone	20
The Setup Tab - Advanced Routing	21
The Wireless Tab - Basic Wireless Settings	22
The Wireless Tab - Wireless Security	23
The Wireless Tab - Wireless MAC Filter	26
The Wireless Tab - Advanced Wireless Settings	27
The Security Tab - Firewall	29
The Security Tab - VPN Passthrough	29
The Access Restrictions Tab - Internet Access	30
The Applications and Gaming Tab - Port Range Forward	32
The Applications & Gaming Tab - Port Triggering	33
The Applications and Gaming Tab - DMZ	34

Wireless-G Broadband Router with 2 Phone Ports
The Applications and Gaming Tab - QoS	34
The Administration Tab - Management	36
The Administration Tab - Log	36
The Administration Tab - Diagnostics	37
The Administration Tab - Factory Defaults	38
The Administration Tab - Firmware Upgrade	38
The Administration Tab - Config Management	38
The Status Tab - Router	39
The Status Tab - Local Network	40
The Status Tab - Wireless	41
The Status Tab - Voice	42
Appendix A: Troubleshooting	43
Common Problems and Solutions	43
Frequently Asked Questions	50
Appendix B: Wireless Security	57
Security Precautions	57
Security Threats Facing Wireless Networks	57
Appendix C: Upgrading Firmware	60
Appendix D: Windows Help	61
Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter	62
Windows 2000 or XP Instructions	62
Windows Vista Instructions	62
For the Router’s Web-based Utility	63
Appendix F: Glossary	64
Appendix G: Specifications	71
Appendix H: Warranty Information	73

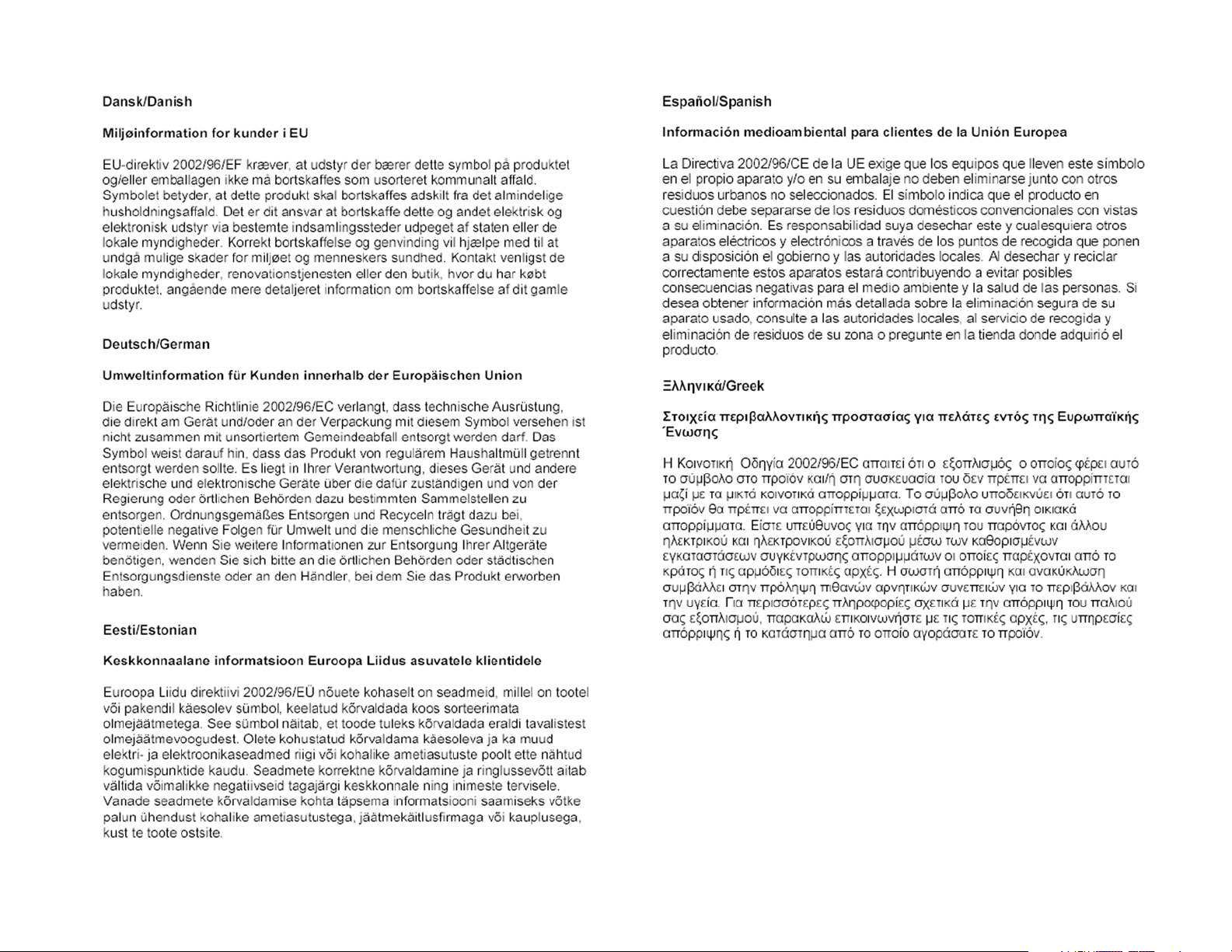

Appendix I: Regulatory Information	74
Appendix J: Contact Information	82

Wireless-G Broadband Router with 2 Phone Ports

List of Figures

Figure 3-1: The Router’s Back Panel	6
Figure 3-2: The Router’s Front Panel	7
Figure 4-1: Connecting Your Internet Connection	8
Figure 4-2: Connecting Your Network Devices	9
Figure 4-3: Connecting the Power	9
Figure 4-4: Connecting the Phone	9
Figure 4-5: Diagram for Connection to Another Router	10
Figure 4-6: Connecting Another Router	10
Figure 4-7: Connecting Your Network Devices	11
Figure 4-8: Connecting the Power	11
Figure 4-9: Connecting the Power	12
Figure 4-10: Measurement between Wall-Mount Slots	12
Figure 4-11: Slide Down the Simm Card Cover	13
Figure 4-12: Lift Simm Card Holder and Insert Simm Card	13
Figure 4-13: Fold Down the Simm Card Holder and Slide into Place	13
Figure 5-1: Password Screen	14
Figure 5-2: Setup Tab - Basic Setup	15
Figure 5-3: DHCP Connection Type	15
Figure 5-4: Static IP Connection Type	15
Figure 5-5: PPPoE Connection Type	16
Figure 5-6: PPTP Connection Type	16
Figure 5-7: L2TP Connection Type	17
Figure 5-8: Optional Settings	17
Figure 5-9: Router IP	18
Figure 5-10: Network Address Server Settings	18
Figure 5-11: Time Setting	18
Figure 5-12: Setup Tab - DDNS	19
Figure 5-13: Setup Tab - DDNS	19
Figure 5-14: Setup Tab - MAC Address Clone	20
Figure 5-15: Setup Tab - Advanced Routing (Router)	21
Figure 5-16: Setup Tab - Advanced Routing (Bridge)	21

Wireless-G Broadband Router with 2 Phone Ports
Figure 5-17: Wireless Tab - Basic Wireless Settings	22
Figure 5-18: Wireless Tab - Wireless Security (WPA Personal)	23
Figure 5-19: Wireless Tab - Wireless Security (WPA Enterprise)	23
Figure 5-20: Wireless Tab - Wireless Security (WPA2 Personal)	24
Figure 5-21: Wireless Tab - Wireless Security (WPA2 Enterprise)	24
Figure 5-22: Wireless Tab - Wireless Security (RADIUS)	25
Figure 5-23: Wireless Tab - Wireless Security (WEP)	25
Figure 5-24: Wireless Tab - Wireless MAC Filter	26
Figure 5-25: MAC Address Filter List	26
Figure 5-26: Wireless Tab - Advanced Wireless Settings	27
Figure 5-27: Security Tab - Firewall	29
Figure 5-28: Security Tab - VPN Passthrough	29
Figure 5-29: Access Restrictions Tab - Internet Access	30
Figure 5-30: Internet Policy Summary	30
Figure 5-31: List of PCs	30
Figure 5-32: Port Services	31
Figure 5-33: Applications and Gaming Tab - Port Range Forward	32
Figure 5-34: Applications and Gaming Tab - Port Triggering	33
Figure 5-35: Applications and Gaming Tab - DMZ	34
Figure 5-36: Applications and Gaming Tab - QOS	34
Figure 5-37: Administration Tab - Management	36
Figure 5-38: Administration Tab - Log	36
Figure 5-39: Administration Tab - Diagnostics	37
Figure 5-40: The Ping Test	37
Figure 5-41: The Traceroute Test	37
Figure 5-42: Administration Tab - Factory Defaults	38
Figure 5-43: Administration Tab - Firmware Upgrade	38
Figure 5-44: Administration Tab - Config Management	38
Figure 5-45: Status Tab - Router	39
Figure 5-46: Status Tab - Local Network	40
Figure 5-47: DHCP Clients Table	40
Figure 5-48: Status Tab - Wireless	41
Figure 5-49: Status Tab - Voice	42
Figure 5-50: Status Tab - Voice - Call Log	42

Wireless-G Broadband Router with 2 Phone Ports
Figure C-1: Upgrade Firmware	60
Figure E-1: MAC Address/Physical Address	62
Figure E-2: MAC Address Filter List	62
Figure E-3: MAC Address Clone	63

Wireless-G Broadband Router with 2 Phone Ports

Chapter 1: Introduction

Welcome

Thank you for choosing the Linksys Wireless-G Broadband Router with 2 Phone Ports. The Wireless-G Broadband Router with 2 Phone Ports will allow you to network wirelessly better than ever, sharing Internet access, files and fun, easily and securely.

How does the Wireless-G Broadband Router with 2 Phone Ports do all of this? A router is a device that allows access to an Internet connection over a network. With the Wireless-G Broadband Router with 2 Phone Ports, this access can be shared over the four switched ports or via the wireless broadcast at up to 11Mbps for Wireless-B or up to 54Mbps for Wireless-G.

Use the WPA standard to secure your wireless network while the whole network is protected through a Stateful Packet Inspection (SPI) firewall and Network Address Translation (NAT) technology. Just run the Setup Wizard and it will guide you through the steps to set up your network. You can also access the Router’s features through the easy-to-use, browser-based utility.

But what does all of this mean?

Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun.

PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called “wired”.

PCs equipped with wireless cards or adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. This is sometimes called a WLAN, or Wireless Local Area Network. The Wireless-G Broadband Router with 2 Phone Ports bridges wireless networks of both 802.11b and 802.11g standards and wired networks, allowing them to communicate with each other.

With your networks all connected, wired, wireless, and the Internet, you can now share files and Internet access—and even play games. All the while, the Wireless-G Broadband Router with 2 Phone Ports protects your networks from unauthorized and unwelcome users.

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then use the instructions in this Guide to help you connect the

Chapter 1: Introduction

wpa (wi-fi protected access): a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

spi (stateful packet inspection) firewall: a technology that inspects incoming packets of information before allowing them to enter the network.

firewall: Security measures that protect the resources of a local network from intruders.

nat (network address translation): NAT technology translates IP addresses of a local area network to a different IP address for the Internet.

lan (local area network): The computers and networking products that make up the network in your home or office.

Welcome

Wireless-G Broadband Router with 2 Phone Ports

Wireless-G Broadband Router with 2 Phone Ports, set it up, and configure it to bridge your different networks.

These instructions should be all you need to get the most out of the Wireless-G Broadband Router with 2 Phone

Ports.

What’s in this User Guide?

This user guide covers the steps for setting up and using the Wireless-G Broadband Router with 2 Phone Ports.

•Chapter 1: Introduction

This chapter describes the Router’s applications and this User Guide.

•Chapter 2: Planning Your Wireless Network

This chapter describes the basics of wireless networking.

•Chapter 3: Getting to Know the Wireless-G Broadband Router with 2 Phone Ports This chapter describes the physical features of the Router.

•Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports This chapter instructs you on how to connect the Router to your network.

•Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports

This chapter explains how to use the Web-based Utility to configure the settings on the Wireless-G Broadband Router with 2 Phone Ports.

•Appendix A: Troubleshooting

This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-G Broadband Router with 2 Phone Ports.

•Appendix B: Wireless Security

This appendix explains the risks of wireless networking and some solutions to reduce the risks.

•Appendix C: Upgrading Firmware

This appendix instructs you on how to upgrade the firmware on the Router should you need to do so.

•Appendix D: Windows Help

This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol.

•Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter.

This appendix describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Router.

Chapter 1: Introduction

What’s in this User Guide?

Wireless-G Broadband Router with 2 Phone Ports

•Appendix F: Glossary

This appendix gives a brief glossary of terms frequently used in networking.

•Appendix G: Specifications

This appendix provides the technical specifications for the Router.

•Appendix H: Warranty Information

This appendix supplies the warranty information for the Router.

•Appendix I: Regulatory Information

This appendix supplies the regulatory information regarding the Router.

•Appendix J: Contact Information

This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 1: Introduction

What’s in this User Guide?

Wireless-G Broadband Router with 2 Phone Ports

Chapter 2: Planning Your Wireless Network

Network Topology

A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the same wireless network.

ssid (service set identifier): your wireless network’s name.

Ad-Hoc versus Infrastructure Mode

Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other. Choosing between these two modes depends on whether or not the wireless network needs to share data or peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral, such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure mode. The basis of Infrastructure mode centers around a wireless router or an access point, such as the Wireless-G Broadband Router, which serves as the main point of communications in a wireless network. The Router transmits data to PCs equipped with wireless network adapters, which can roam within a certain radial range of the Router. You can arrange the Router and multiple access points to work in succession to extend the roaming range, and you can set up your wireless network to communicate with your Ethernet hardware as well.

If the wireless network is relatively small and needs to share resources only with the other computers on the wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to communicate with computers on a wired network. And, of course, communication between the wirelessequipped computers is limited by the distance and interference directly between them.

Network Layout

The Wireless-G Broadband Router has been specifically designed for use with both your 802.11b and 802.11g products. Now, products using these standards can communicate with each other.

infrastructure: a wireless network that is bridged to a wired network via an access point.

ad-hoc: a group of wireless devices communicating directly to each other (peer-to- peer) without the use of an access point.

Chapter 2: Planning Your Wireless Network

Network Topology

Wireless-G Broadband Router with 2 Phone Ports

The Wireless-G Broadband Router is compatible with all 802.11b and 802.11g adapters, such as the Notebook Adapters (WPC54G, WPC11) for your laptop computers, PCI Adapter (WMP54G, WMP11) for your desktop PC, and USB Adapter (WUSB54G, WUSB11) when you want to enjoy USB connectivity. The Broadband Router will also communicate with the Wireless PrintServer (WPS54G) and Wireless Ethernet Bridges (WET54G, WET11).

When you wish to connect your wireless network with your wired network, you can use the Wireless-G Broadband Router’s four LAN ports. To add more ports, any of the Wireless-G Broadband Router's LAN ports can be connected to any of Linksys's switches (such as the SD205 or SD208).

With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at

www.linksys.com for more information about products that work with the Wireless-G Broadband Router.

Chapter 2: Planning Your Wireless Network

Network Layout

Wireless-G Broadband Router with 2 Phone Ports

Chapter 3: Getting to Know the Wireless-G Broadband Router

The Back Panel

The Router's ports, where the cables are connected, are located on the back panel.

Figure 3-1: The Router’s Back Panel

Internet

The Internet port is where you will connect your broadband Internet connection.

Ethernet 1-4 These ports (1-4) connect the Router to your networked PCs and other Ethernet network devices.

Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset Button, for approximately five seconds, or restore the defaults from the Administration tab - Factory Defaults in the Router's Web-based Utility.

IMPORTANT: Resetting the Router will erase all of your settings (Internet connection, wireless security, and other settings) and replace them with the factory defaults. Do not reset the Router if you want to retain these settings.

Phone /Phone2 You can connect a phone in each of these ports.

Power

The Power port is where you will connect the power adapter.

Chapter 3: Getting to Know the Wireless-G Broadband Router

The Back Panel

Wireless-G Broadband Router with 2 Phone Ports

The Front Panel

The Router’s LEDs are located on the front panel.

	Figure 3-2: The Router’s Front Panel
Power	Green. The Power LED lights up and will stay on while the Router is powered on. When the
	Router goes through its self-diagnostic mode during every boot-up, this LED will flash. When
	the diagnostic is complete, the LED will be solidly lit.
Ethernet 1-4	Green. These numbered LEDs, corresponding with the numbered ports on the Router’s back
	panel, serve two purposes. If the LED is continuously lit, the Router is successfully connected
	to a device through that port. A flashing LED indicates network activity over that port.
Wireless	Green. The WLAN LED lights up whenever there is a successful wireless connection. If the LED
	is flashing, the Router is actively sending or receiving data over the network.

Phone1/Phone2 Blue. This LED lights up blue when a phone is connected to its port.

Internet	Green. The Internet LED lights up when there is a connection made through the Internet port.
Pairing	Green. The button lights up green when no mobile phone is paired with the Router. The button
	lights up white when pairing has been successfully complete.

Chapter 3: Getting to Know the Wireless-G Broadband Router

The Front Panel

Wireless-G Broadband Router with 2 Phone Ports

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

Overview

This chapter includes two sets of connection instructions. If the Wireless-G Broadband Router with 2 Phone Ports will be the only router in your network, follow the instructions in “Hardware Installation for Connection to Your Broadband Modem.” If you want to install the Wireless-G Broadband Router with 2 Phone Ports behind an existing router in your network, then follow the instructions in “Hardware Installation for Connection to an existing Router.” Also included are Placement instructions, and Simm Card Installation instructions.

Hardware Installation for Connection to Your Broadband Modem

1.Power down your network devices.

2.Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your mobile stations.

3.Fix the direction of the antennas. Try to place the Router in a position that will best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be.

4.Connect a standard Ethernet network cable to the Router’s Internet port. Then, connect the other end of the Ethernet cable to your cable or DSL broadband modem.

Figure 4-1: Connecting Your Internet Connection

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

Overview

Wireless-G Broadband Router with 2 Phone Ports

5.Connect your network PCs or Ethernet devices to the Router’s numbered ports using standard Ethernet network cabling.

Figure 4-2: Connecting Your Network Devices

6.Connect the AC power adapter to the Router's Power port and the other end into an electrical outlet. Only use the power adapter supplied with the Router. Use of a different adapter may damage the product.

Figure 4-3: Connecting the Power

7.Connect a standard telephone to the Router’s Phone1 port. If you have a second Internet phone or fax line, connect the telephone or fax machine to the Router’s Phone2 port.

Figure 4-4: Connecting the Phone

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

IMPORTANT: Make sure you use the power adapter that is supplied with the Router. Use of a different power adapter could damage the Router.

IMPORTANT: Do not connect the Phone port to a telephone wall jack. Make sure you only connect a telephone or fax machine to the Phone port. Otherwise, the Router or the telephone wiring in your home or office may be damaged.

Hardware Installation for Connection to Your Broadband Modem

Wireless-G Broadband Router with 2 Phone Ports

Now that the hardware installation is complete, proceed to “Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports,” for directions on how to configure the Router.

Hardware Installation for Connection to An Existing Router

Before you install the Router, you must change the default IP address of the existing router. This is mandatory because both routers may be set to the same IP address by default. If you do not change the other router’s default IP address, then you may not be able to set up the Router.

First, make sure the Router is NOT connected to your network. Then follow these instructions:

1.To access the other router’s Web-based Utility, launch Internet Explorer or Netscape Navigator, and enter the other router’s default IP address, 192.168.1.1, in the Address field. Then press Enter.

2.A password request page will appear. Leave the User Name field blank. In the Password field, enter the password you have set (the default password is admin). Then click the OK button.

3.The first screen that appears will display the Setup tab. In the Network Setup section, there is a setting called Local IP Address, which is set to 192.168.1.1. Change this to 192.168.2.1.

4.Click the Save Settings button to save your change, and then exit the Web-based Utility.

5.Power down your network devices. Now you will begin the hardware installation of Router.

6.Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your mobile stations.

7.Fix the direction of the antennas. Try to place the Router in a position that will best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be.

8.Connect a standard Ethernet network cable to the Router’s Internet port. Then, connect the other end of the Ethernet cable to one of the numbered Ethernet ports on your existing router.

Figure 4-6: Connecting to Another Router

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

NOTE: Steps 1-4 are instructions for a typical Linksys router; however, if you are using a nonLinksys router, refer to the other router’s documentation for instructions on how to change its local IP address to 192.168.2.1.

Broadband

Internet Modem

Router

Wireless-G Broadband Router with 2 Phone Ports

Multiple PCs

Figure 4-5: Diagram for Connection to Another Router

Hardware Installation for Connection to An Existing Router

Wireless-G Broadband Router with 2 Phone Ports

9.Decide which network computers or Ethernet devices you want to connect to the Router.

Disconnect the selected computers or devices from the other router, and then connect them to the Router’s numbered ports using standard Ethernet network cabling.

Figure 4-7: Connecting Your Network Devices

10.Connect the AC power adapter to the Router's Power port and the other end into an electrical outlet. Only use the power adapter supplied with the Router. Use of a different adapter may result in product damage.

Figure 4-8: Connecting the Power

IMPORTANT: Make sure you use the power adapter that is supplied with the Router. Use of a different power adapter could damage the Router.

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

Hardware Installation for Connection to An Existing Router

Wireless-G Broadband Router with 2 Phone Ports

11.Connect a standard telephone to the Router’s Phone1 port. If you have a second Internet phone or fax line, connect the telephone or fax machine to the Router’s Phone2 port.

Figure 4-9: Connecting the Power

Now that the hardware installation is complete, proceed to “Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports,” for directions on how to configure the Router.

Placement Options

There are two ways to place the Router. The first way is to place it horizontally on a surface, so it sits on its four rubber feet. The second way is to mount it on a wall. This option uses the Router’s four wall-mount slots on its bottom panel. The distance between two adjacent slots is 62 mm (2.44 inches).

To use the wall-mount option, follow these instructions:

1.Make sure you have four screws that are size #4—this indicates a diameter measurement of 2.845 mm (0.112 inches).

2.Determine where you want to mount the Router.

3.Drill four holes into the wall. Make sure adjacent holes are 60 mm (2.36 inches) apart.

4.Insert a screw into each hole, and leave 5 mm (0.2 inches) of its head exposed.

5.Maneuver the Router so the wall-mount slots line up with the four screws.

6.Place the wall-mount slots over the screws and slide the Router down until the screws fit snugly into the wall-mount slots.

Proceed to “Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports” for directions on how to configure the Router.

Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports

60 mm

(2.36 inches)

Figure 4-10: Measurement between Wall-

Mount Slots

Placement Options

Wireless-G Broadband Router with 2 Phone Ports

SIM Card Installation

To install a SIM card, follow these steps:

1.Slide the SIM card cover down, then lift off.

2.Gently slide up the SIM card holder. Then from the bottom side, carefully lift up the SIM card holder. Do not lift the holder until it is correctly in place or it could break.

3.Position the SIM card with the gold metal side up and towards the card slot opening. Carefully insert the SIM card into the slot until it lines up with the bottom edge of the top piece of the holder and before it hits the bottom piece of the holder or the SIM card or holder could break.

4.Fold down the SIM card holder and slide down into place.

5.Replace the SIM card cover. You might need to push it hard to lock it in place.

Figure 4-11: Slide Down the SIM Card Cover

Bottom Piece		Slide SIM in only this far
of Holder		and not to the bottom
of Holder		and not to the bottom

Bottom Side

Slide up SIM card holder this	Top Piece of
direction	Holder

Figure 4-12: Slide and Lift SIM Card Holder and Insert SIM Card

	Figure 4-13: Fold Down the SIM Card Holder and Slide into
Chapter 4: Connecting the Wireless-G Broadband Router with 2 Phone Ports	Place	13
		13

SIM Card Installation

Wireless-G Broadband Router with 2 Phone Ports

Chapter 5: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Overview

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For advanced users, you may configure the Router’s advanced settings through the Web-based Utility.

This chapter will describe each web page in the Utility and each page’s key functions. The utility can be accessed via your web browser through use of a computer connected to the Router. For a basic network setup , most users will use these two screens of the Utility:

•Basic Setup. On the Basic Setup screen, enter the settings provided by your ISP.

•Management. Click the Administration tab and then the Management tab. The Router’s default password is admin. To secure the Router, change the Password from its default.

There are seven main tabs: Setup, Wireless, Security, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs.

To access the Web-based Utility, launch Internet Explorer or Netscape Navigator, and enter the Router’s default IP address, 192.168.1.1, in the Address field. Then press Enter.

A password request page, shown in Figure 6-1 will appear. (Non-Windows XP users will see a similar screen.) Leave the User Name field blank. The first time you open the Web-based Utility, use the default password admin. (You can set a new password from the Administration tab’s Management screen.) Then click the OK button.

NOTE: For first-time installation, Linksys recommends using the Setup Wizard on the Setup CD-ROM. If you want to configure advanced settings, use this chapter to learn about the Web-based Utility.

HAVE YOU: Enabled TCP/IP on your PCs? PCs communicate over the network with this protocol. Refer to “Appendix D: Windows Help” for more information on TCP/IP.

Figure 5-1: Password Screen

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Overview

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - Basic Setup

The first screen that appears displays the Setup tab. This allows you to change the Router's general settings. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Internet Setup

The Internet Setup section configures the Router to your Internet connection. Most of this information can be obtained through your ISP.

Internet Connection Type

Choose the type of Internet connection your ISP provides from the drop-down menu.

•DHCP. By default, the Router’s Internet Connection Type is set to Automatic Configuration - DHCP, which should be kept only if your ISP supports DHCP or you are connecting through a dynamic IP address.

•Static IP. If you are required to use a permanent IP address to connect to the Internet, select Static IP.

Internet IP Address. This is the Router’s IP address, when seen from the Internet. Your ISP will provide you with the IP Address you need to specify here.

Subnet Mask. This is the Router’s Subnet Mask, as seen by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Gateway. Your ISP will provide you with the Gateway Address, which is the ISP server’s IP address. DNS. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Figure 5-2: Setup Tab - Basic Setup

Figure 5-3: DHCP Connection Type

Figure 5-4: Static IP Connection Type

Static IP address: a fixed address assigned to a computer or device connected to a network.

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

•PPPoE. Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable PPPoE.

User Name and Password. Enter the User Name and Password provided by your ISP.

Connect on Demand: Max Idle Time. You can configure the Router to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates.

Keep Alive Option: Redial Period. If you select this option, the Router will periodically check your Internet connection. If you are disconnected, then the Router will automatically re-establish your connection. To use this option, click the radio button next to Keep Alive. In the Redial Period field, you specify how often you want the Router to check the Internet connection. The default Redial Period is 30 seconds.

•PPTP. Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe only.

Specify Internet IP Address. This is the Router’s IP address, as seen from the Internet. Your ISP will provide you with the IP Address you need to specify here.

Subnet Mask. This is the Router’s Subnet Mask, as seen by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Gateway. Your ISP will provide you with the Gateway Address.

User Name and Password. Enter the User Name and Password provided by your ISP.

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Figure 5-5: PPPoE Connection Type

Figure 5-6: PPTP Connection Type

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

•L2TP. Layer 2 Tunneling Protocol (L2TP) is used by some ISP’s in Europe.

User Name and Password. Enter the User Name and Password provided by your ISP.

Specify IP Address of L2TP Server. Your ISP will provide you with the IP Address you need to specify here.

Optional Settings

Some of these settings may be required by your ISP. Verify with your ISP before making any changes.

Router Name. In this field, you can type a name of up to 39 characters to represent the Router.

Host Name/Domain Name. These fields allow you to supply a host and domain name for the Router. Some ISPs, usually cable ISPs, require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.

MTU. MTU is the Maximum Transmission Unit. It specifies the largest packet size permitted for Internet transmission. The default setting, Manual, allows you to enter the largest packet size that will be transmitted. The recommended size, entered in the Size field, is 1492. You should leave this value in the 1200 to 1500 range. To have the Router select the best MTU for your Internet connection, select Auto.

Network Setup

The Network Setup section changes the settings on the network connected to the Router’s Ethernet ports. Wireless Setup is performed through the Wireless tab.

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Figure 5-7: L2TP Connection Type

Figure 5-8: Optional Settings

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

Router IP

This presents both the Router’s IP Address and Subnet Mask as seen by your network.

Network Address Server Settings (DHCP)

The settings allow you to configure the Router’s Dynamic Host Configuration Protocol (DHCP) server function. The Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to each computer on your network. If you choose to enable the Router’s DHCP server option, you must configure all of your network PCs to connect to a DHCP server (the Router), and make sure there is no other DHCP server on your network.

DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, or you don’t want a DHCP server, then click the Disable radio button (no other DHCP features will be available).

Starting IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the Router’s default IP address is 192.168.1.1, the Starting IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.253. The default Starting IP Address is 192.168.1.100.

Maximum Number of DHCP Users. Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 64.

Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased” this dynamic IP address. After the time is up, the user will be automatically assigned a new dynamic IP address. The default is 0 minutes, which means one day.

Static DNS (1-3). The Domain Name System (DNS) is how the Internet translates domain or website names into Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. If you wish to use another, type that IP Address in one of these fields. You can type up to three DNS Server IP Addresses here. The Router will use these for quicker access to functioning DNS servers.

WINS. The Windows Internet Naming Service (WINS) manages each PC’s interaction with the Internet. If you use a WINS server, enter that server’s IP Address here. Otherwise, leave this blank.

Time Setting

Change the time zone in which your network functions from this pull-down menu. (You can even automatically adjust for daylight savings time.)4

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Figure 5-9: Router IP

Figure 5-10: Network Address Server Settings

Figure 5-11: Time Setting

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - DDNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router. Before you can use this feature, you need to sign up for DDNS service with a DDNS service provider, www.dyndns.org or www.TZO.com. If you do not want to use this feature, keep the default setting, Disable.

DDNS Service

If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary, depending on which DDNS service provider you use.

DynDNS.org

DDNS Service. From this pull-down menu, enter the DDNS service with which you have membership.

User Name. Enter the User Name for your DDNS account

Password. Enter the Password for your DDNS account.

Host Name. The is the DDNS URL assigned by the DDNS service.

Internet IP Address. This is the Router’s current IP Address as seen on the Internet.

Status. This displays the status of the DDNS connection.

TZO.com

E-mail Address, TZO Password, and Domain Name. Enter the settings of the account you set up with TZO.

Internet IP Address. The Router’s Internet IP address is displayed here. Because it is dynamic, it will change.

Status. The status of the DDNS service connection is displayed here.

Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Figure 5-12: Setup Tab - DDNS

Figure 5-13: Setup Tab - DDNS

The Setup Tab - DDNS

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - MAC Address Clone

A MAC address is a 12-digit code assigned to a unique piece of hardware for identification. Some ISPs will require you to register a MAC address in order to access the Internet. If you do not wish to re-register the MAC address with your ISP, you may assign the MAC address you have currently registered with your ISP to the Router with the MAC Address Clone feature.

Enable/Disable. To have the MAC Address cloned, click the radio button beside Enable.

User Defined Entry. Enter the MAC Address registered with your ISP here.

Clone Your PC’s MAC Address. Clicking this button will clone the MAC address.

Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes.

Chapter 6: Configuring the Wireless-G Broadband Router with 2 Phone Ports

Figure 5-14: Setup Tab - MAC Address Clone

The Setup Tab - MAC Address Clone

+ 62 hidden pages
