LINKSYS WRT600NV11, WRT600NV1 User Guide

Dual-Band

GHz

802.11a

WIRELESS

Model No.

GHz

802.11g

WRT600N

Wireless-N

Gigabit Router with

User Guide

Storage Link

Dual-Band Wireless-N Gigabit Router with Storage Link

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

How to Use This User Guide

This User Guide has been designed to make understanding networking with the Wireless-N Gigabit Router with Storage Link easier than ever. Look for the following items when reading this User Guide:

This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-N Gigabit Router with Storage Link.

This exclamation point means there is a caution or warning and is something that could damage the Router.

This question mark provides you with a reminder about something you might need to do while using the Wireless-N Gigabit Router with Storage Link.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

WRT600NN-UG-61122NC BW

Dual-Band Wireless-N Gigabit Router with Storage Link

Table of Contents

Chapter 1: Introduction 1

Welcome 1 What’s in this User Guide? 2

Chapter 2: Planning Your Wireless Network 4

Network Topology 4 Ad-Hoc versus Infrastructure Mode 4 Network Layout 5

Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link 6

The Back Panel 6 The Front Panel 7 The Top Panel 7

Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link 8

Hardware Installation 8

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link 9

Overview 9 How to Access the Web-based Utility 11 The Setup Tab - Basic Setup 11 The Setup Tab - DDNS 17 The Setup Tab - MAC Address Clone 19 The Setup Tab - Advanced Routing 20 The Wireless Tab - Basic Wireless Settings 22 The Wireless Tab - Wireless Security 24 The Wireless Tab - Wireless MAC Filter 27 The Wireless Tab - Advanced Wireless Settings 28 The Security Tab - Firewall 30 The Security Tab - VPN Passthrough 31 The Storage Tab - Disk 32 The Storage Tab - Media Server 33 The Storage Tab - FTP Server 34 The Storage Tab - Administration 36 The Access Restrictions Tab - Internet Access Policy 38 The Applications & Gaming Tab - Single Port Forwarding 40

Dual-Band Wireless-N Gigabit Router with Storage Link

The Applications & Gaming Tab - Port Range Forwarding 41 The Applications & Gaming Tab - Port Range Triggering 42 The Applications & Gaming Tab - DMZ 43 The Applications and Gaming Tab - QoS 44 The Administration Tab - Management 47 The Administration Tab - Log 49 The Administration Tab - Diagnostics 50 The Administration Tab - Factory Defaults 51 The Administration Tab - Firmware Upgrade 52 The Status Tab - Router 53 The Status Tab - Local Network 54 The Status Tab - Wireless 55

Appendix A: Troubleshooting 56

Common Problems and Solutions 56 Frequently Asked Questions 64

Appendix B: Wireless Security 70

Security Precautions 70 Security Threats Facing Wireless Networks 70

Appendix C: Upgrading Firmware 73 Appendix D: Windows Help 74 Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter 75

Windows 98SE or Me Instructions 75 Windows 2000 or XP Instructions 76 For the Router’s Web-based Utility 76

Appendix F: Glossary 77 Appendix G: Specifications 82 Appendix H: Warranty Information 84 Appendix I: Regulatory Information 85 Appendix J: Contact Information 91

Dual-Band Wireless-N Gigabit Router with Storage Link

List of Figures

Figure 3-1: The Router’s Back Panel 6 Figure 3-2: The Router’s Front Panel 7 Figure 3-3: The Router’s Top Panel 7 Figure 4-1: Connect the USB cable 8 Figure 4-2: Connect the internet 8 Figure 4-3: Connect the ethernet 8 Figure 4-4: Connect the power 8 Figure 5-1: Router Login 11 Figure 5-2: Setup Tab - Basic Setup (Automatic Configuration - DHCP) 11 Figure 5-3: Static IP 12 Figure 5-4: PPPoE 12 Figure 5-5: PPTP 13 Figure 5-6: Telstra Cable 14 Figure 5-7: L2TP 14 Figure 5-8: DHCP Reservation 16 Figure 5-9: Setup Tab - DynDDNS.org 17 Figure 5-10: Setup Tab - TZO.com 18 Figure 5-11: Setup Tab - MAC Clone 19 Figure 5-12: Setup Tab - Advanced Routing 20 Figure 5-13: Routing Table 21 Figure 5-14: Wireless Tab - Basic Wireless Settings 22 Figure 5-15: Wireless Tab - Wireless Security (WPA-Personal) 24 Figure 5-16: Wireless Security - WPA2-Personal 24 Figure 5-17: Wireless Security - WPA-Enterprise 25 Figure 5-18: Wireless Security - WPA2-Enterprise 25 Figure 5-19: Wireless Security - RADIUS 26 Figure 5-20: Wireless Security - WEP 26 Figure 5-21: Wireless Tab - Wireless MAC Filter 27 Figure 5-22: Wireless Client List 27 Figure 5-23: Wireless Tab - Advanced Wireless Settings 28 Figure 5-24: Security Tab - Firewall 30

Dual-Band Wireless-N Gigabit Router with Storage Link

Figure 5-25: VPN Passthrough 31 Figure 5-26: Storage Tab - Disk 32 Figure 5-27: Storage Tab - Shared Folder 32 Figure 5-28: Storage Tab - Media Server 33 Figure 5-29: Media Folder 33 Figure 5-30: Storage Tab - FTP Server 34 Figure 5-31: FTP Folder 34 Figure 5-32: Storage Tab - Administration 36 Figure 5-33: User Account 36 Figure 5-34: Group Account 37 Figure 5-35: Access Restrictions Tab - Internet Access Policy 38 Figure 5-36: Summary 38 Figure 5-37: List of PCs 39 Figure 5-38: Applications & Gaming Tab - Single Port Forwarding 40 Figure 5-39: Applications & Gaming Tab - Port Range Forwarding 41 Figure 5-40: Applications & Gaming Tab - Port Range Triggering 42 Figure 5-41: Applications & Gaming Tab - DMZ 43 Figure 5-42: DHCP Client Table 43 Figure 5-43: Applications & Gaming Tab - QoS (Applications) 44 Figure 5-44: QoS - Applications (Add a New Application) 45 Figure 5-45: QoS - Online Games 45 Figure 5-46: QoS - MAC Address 45 Figure 5-47: QoS - Ethernet 45 Figure 5-48: QoS - Voice Device 46 Figure 5-49: Administration Tab - Management 47 Figure 5-50: Administration Tab - Log 49 Figure 5-51: View Log 49 Figure 5-52: Administration Tab - Diagnostics 50 Figure 5-53: Ping Test 50 Figure 5-54: Traceroute Test 50 Figure 5-55: Administration Tab - Factory Defaults 51 Figure 5-56: Administration Tab - Firmware Upgrade 52 Figure 5-57: Status Tab - Router 53 Figure 5-58: Status Tab - Local Network 54

Dual-Band Wireless-N Gigabit Router with Storage Link

Figure 5-59: DHCP Client Table 54 Figure 5-60: Status Tab - Wireless Network 55 Figure C-1: Firmware Upgrade 73 Figure E-1: IP Configuration Screen 75 Figure E-2: MAC Address/Adapter Address 75 Figure E-3: MAC Address/Physical Address 75 Figure E-4: Wireless MAC Filter 76 Figure E-5: MAC Address Cloning 76

Dual-Band Wireless-N Gigabit Router with Storage Link

Chapter 1: Introduction

Welcome

The Dual-Band Wireless-N Gigabit Router with Storage Link is really four devices in one box. First, there's the Wireless Access Point, which lets you connect to the network without wires. There's also a built-in 4-port fullduplex 10/100 Switch to connect your wired-Ethernet devices together. The Router function ties it all together and lets your whole network share a high-speed cable or DSL Internet connection.

We've also included a Storage Link that lets you easily add gigabytes of storage space onto your network using readily available USB 2.0 hard drives -- or plug in a USB flash disk for a convenient way to access your portable data files. The built-in Media Server streams music, video, and photos from the attached storage device to any UPnP compatible media adapter. And you can get to your files from anywhere in the world through the Internet.

The Access Point built into the Router uses the very latest wireless networking technology, Wireless-N (draft

802.11n). By overlaying the signals of multiple radios, Wireless-N's "Multiple In, Multiple Out" (MIMO) technology multiplies the effective data rate. Unlike ordinary wireless networking technologies that are confused by signal reflections, MIMO actually uses these reflections to increase the range and reduce "dead spots" in the wireless coverage area. The robust signal travels farther, maintaining wireless connections up to 4 times farther than standard Wireless-G.

With Wireless-N, the farther away you are, the more speed advantage you get. It also works great with standard Wireless-A, Wireless-G and -B equipment, but when both ends of the wireless link are Wireless-N, the router can increase the throughput even more by using twice as much radio band, yielding speeds up to 12 times as fast as standard Wireless-G. But unlike other speed-enhanced technologies, Wireless-N can dynamically enable this double-speed mode for Wireless-N devices, while still connecting to other wireless devices at their respective fastest speeds. In congested areas, the "good neighbor" mode ensures that the Router checks for other wireless devices in the area before gobbling up the radio band.

To help protect your data and privacy, the Router can encode all wireless transmissions with industrial-strength 256-bit encryption. It can serve as your network's DHCP Server, has a powerful SPI firewall to protect your PCs against intruders and most known Internet attacks, and supports VPN pass-through. Configuration is a snap with the web browser-based configuration utility.

spi (stateful packet inspection) firewall: a technology that inspects incoming packets of information before allowing them to enter the network.

firewall: Security measures that protect the resources of a local network from intruders.

nat (network address translation): NAT technology translates IP addresses of a local area network to a different IP address for the Internet.

lan (local area network): The computers and networking products that make up the network in your home or office.

The incredible speed of Wireless-N makes it ideal for media-centric applications like streaming video, gaming, and Voice over IP telephony, and gives you plenty of headroom to run multiple media-intense data streams through the network at the same time, with no degradation in performance. With the Linksys Wireless-N Gigabit Router with Storage Link at the center of your home or office network, you can easily add storage, share a highspeed Internet connection, files, printers and multi-player games, and run media-intensive applications at faster than 10/100 wired network speeds, without the hassle of stringing wires!

Chapter 1: Introduction Welcome

Dual-Band Wireless-N Gigabit Router with Storage Link

What’s in this User Guide?

This user guide covers the steps for setting up and using the Wireless-N Gigabit Router with Storage Link.

• Chapter 1: Introduction This chapter describes the Router’s applications and this User Guide.

• Chapter 2: Planning Your Wireless Network This chapter describes the basics of wireless networking.

• Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link This chapter describes the physical features of the Router.

• Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link This chapter instructs you on how to connect the Router to your network.

• Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link This chapter explains how to use the Web-based Utility to configure the settings on the Wireless-N Gigabit Router with Storage Link.

• Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-N Gigabit Router with Storage Link.

• Appendix B: Wireless Security This appendix explains the risks of wireless networking and some solutions to reduce the risks.

• Appendix C: Upgrading Firmware This appendix instructs you on how to upgrade the firmware on the Router should you need to do so.

• Appendix D: Windows Help This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol.

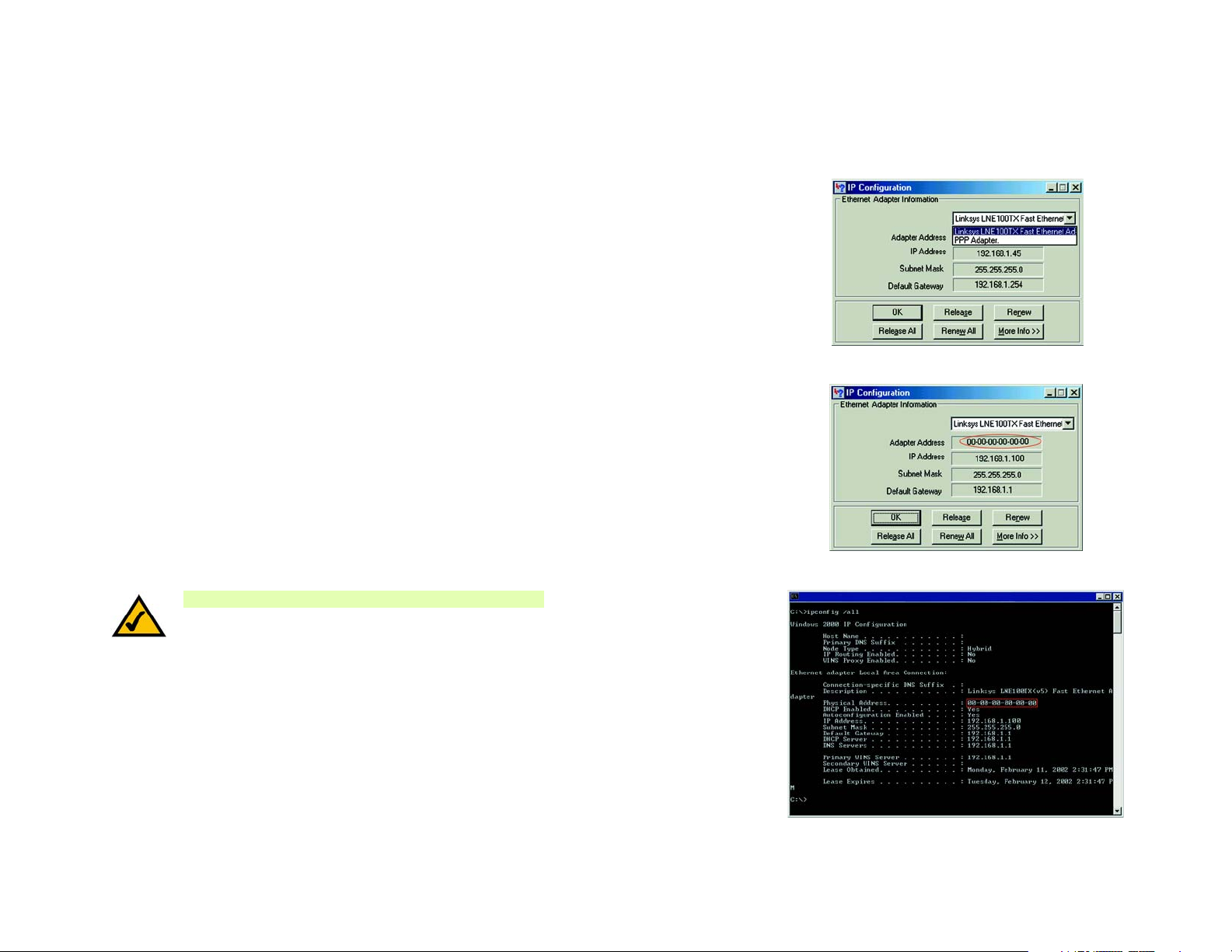

• Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter This appendix describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Router.

• Appendix F: Glossary This appendix gives a brief glossary of terms frequently used in networking.

Chapter 1: Introduction What’s in this User Guide?

Dual-Band Wireless-N Gigabit Router with Storage Link

• Appendix G: Specifications This appendix provides the technical specifications for the Router.

• Appendix H: Warranty Information This appendix supplies the warranty information for the Router.

• Appendix I: Regulatory Information This appendix supplies the regulatory information regarding the Router.

• Appendix J: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 1: Introduction What’s in this User Guide?

Dual-Band Wireless-N Gigabit Router with Storage Link

Chapter 2: Planning Your Wireless Network

Network Topology

A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the same wireless network.

Ad-Hoc versus Infrastructure Mode

ssid (service set identifier): your wireless network’s name.

Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other. Choosing between these two modes depends on whether or not the wireless network needs to share data or peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral, such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure mode. The basis of Infrastructure mode centers around a wireless router or an access point, such as the Wireless-N Gigabit Router with Storage Link, which serves as the main point of communications in a wireless network. The Router transmits data to PCs equipped with wireless network adapters, which can roam within a certain radial range of the Router. You can arrange the Router and multiple access points to work in succession to extend the roaming range, and you can set up your wireless network to communicate with your Ethernet hardware as well.

If the wireless network is relatively small and needs to share resources only with the other computers on the wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to communicate with computers on a wired network. And, of course, communication between the wirelessequipped computers is limited by the distance and interference directly between them.

infrastructure: a wireless network that is bridged to a wired network via an access point.

ad-hoc: a group of wireless devices communicating directly to each other (peer-topeer) without the use of an access point.

Chapter 2: Planning Your Wireless Network Network Topology

Dual-Band Wireless-N Gigabit Router with Storage Link

Network Layout

The Wireless-N Gigabit Router with Storage Link has been specifically designed for use with your Wireless-N, Wireless-G, and Wireless-B products. It will work with notebook adapters for your laptop computers, PCI adapters for your desktop computers, and USB adapters for your USB connectivity needs. The Router can also communicate with other devices, such as wireless print servers and bridges.

When you wish to connect your wireless network to your wired network, you can use the Router’s four local Ethernet ports. To add more ports, connect one of the Router's local ports to any Linksys switch.

With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about products that work with the Wireless-N Gigabit Router with Storage Link.

Chapter 2: Planning Your Wireless Network Network Layout

Dual-Band Wireless-N Gigabit Router with Storage Link

Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link

The Back Panel

The Router's ports, where the cables are connected, and Reset button are located on the back panel.

Figure 3-1: The Router’s Back Panel

USB The USB port connects your Router to your wired PC or other USB network devices.

INTERNET The Internet port is where you will connect your broadband modem.

ETHERNET 1, 2, 3, 4 These ports (1, 2, 3, 4) connect the Router to your wired PCs and other Ethernet network

devices.

Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset button,

for approximately five seconds, or restore the defaults from the Administration - Factory Defaults tab of the Router's Web-based Utility.

Power The Power port is where you will connect the power adapter.

Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link The Back Panel

IMPORTANT: Resetting the Router will erase all of your settings (Internet connection, wireless security, and other settings) and replace them with the factory defaults. Do not reset the Router if you want to retain these settings.

Dual-Band Wireless-N Gigabit Router with Storage Link

The Front Panel

The Router’s LEDs are located on the front panel.

Figure 3-2: The Router’s Front Panel

POWER Green. The POWER LED lights up and will stay on while the Router is powered on.

ETHERNET 1, 2, 3, 4 Green, Orange. These numbered LEDs, corresponding with the numbered ports on the

Router’s back panel, serve three purposes: (1) The green LED lights up when the Router is connected to a device through the corresponding port at 10/100, (2) The orange LED lights up when you are connected at 1,000 Mbps (1 Gigabit), and (3) If the LED is flashing, then the Router is sending or receiving data over that port.

INTERNET Green. The INTERNET LED lights up when there is a connection through the Internet port.

Button

WIRELESS Green. The WIRELESS LED lights up when there is a wireless connection. If the LED is

flashing, the Router is sending or receiving data over the wireless network.

USB Green. The USB LED lights up when a USB drive is connected through the USB port. If the

LED is flashing, the Router is actively sending or receiving data over the USB connection.

SECURITY Green. The SECURITY LED indicates when wireless security is enabled.

The Top Panel

The Router has a button reserved for a future function.

Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link The Front Panel

Figure 3-3: The Router’s Top Panel

Dual-Band Wireless-N Gigabit Router with Storage Link

Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link

Hardware Installation

1. Make sure that all of your hardware is powered off, including the broadband modem and PCs.

2. Connect your USB cable tot he Router’s USB port.

Figure 4-1: Connect the USB cable

3. Connect your broadband modem’s Ethernet cable to the Router’s Internet port.

4. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the Router. Connect the other end to an Ethernet port on a network device, e.g., a PC, print server, or switch.

Repeat this step to connect more PCs or other network devices to the Router.

5. Power on the broadband modem.

6. Connect the included power adapter to the Router’s Power port, and then plug the power adapter into an electrical outlet. The Power LED on the front panel will light up when the adapter is connected properly.

Figure 4-2: Connect the internet

7. Power on your PC(s).

8. Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your wireless devices.

Proceed to “Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link”.

IMPORTANT: Make sure you use the power

adapter that is supplied with the Router. Use of a different power adapter could damage the Router.

Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link Hardware Installation

Figure 4-3: Connect the ethernet

Figure 4-4: Connect the power

Dual-Band Wireless-N Gigabit Router with Storage Link

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link

Overview

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For advanced users, you may configure the Router’s advanced settings through the Web-based Utility.

This chapter will describe each web page on the Utility and each page’s key functions. The Utility can be accessed via your web browser through use of a computer connected to the Router. For a basic network setup, most users only have to use the following screens of the Utility:

• Basic Setup. On the Basic Setup screen, enter the Internet connection settings provided by your Internet Service Provider (ISP). If you do not have this information, you can call your ISP to request the settings. When you have the setup information, then you can configure the Router.

• Management. Click the Administration tab and then the Management tab. The Router’s default password is admin. To secure the Router, change the Password from its default.

• Wireless. On the Basic Wireless Settings screen, set the basic configuration for your wireless network.

There are eight main tabs: Setup, Wireless, Security, Storage, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs.

Setup

• Basic Setup. Enter the Internet connection and network settings on this screen.

• DDNS. Enable the Router’s Dynamic Domain Name System (DDNS) feature on this screen.

• MAC Address Clone. If you need to clone a MAC address onto the Router, use this screen.

• Advanced Routing. Use this screen to alter dynamic and static routing configurations.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link Overview

Dual-Band Wireless-N Gigabit Router with Storage Link

Wireless

• Basic Wireless Settings. Enter the basic settings for your wireless network on this screen.

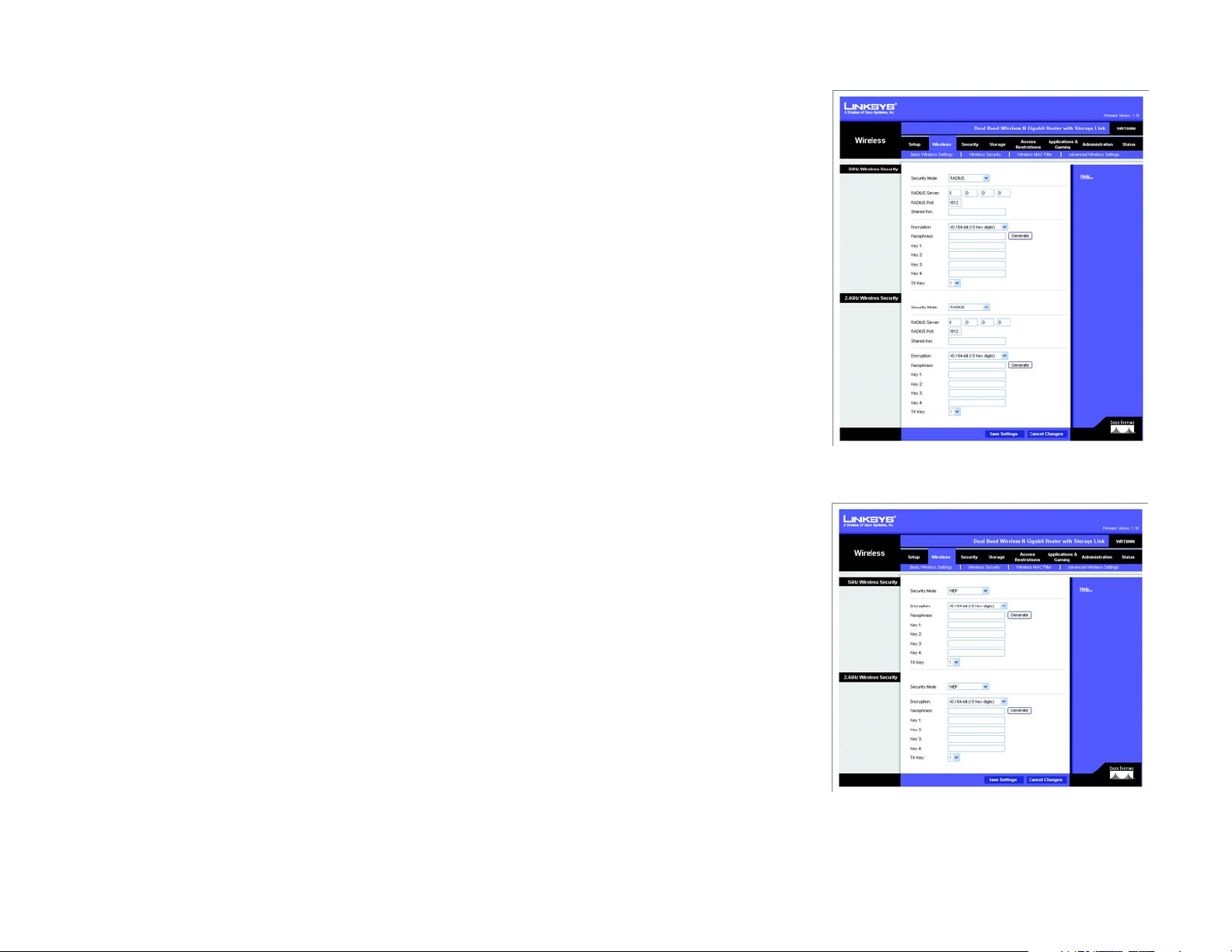

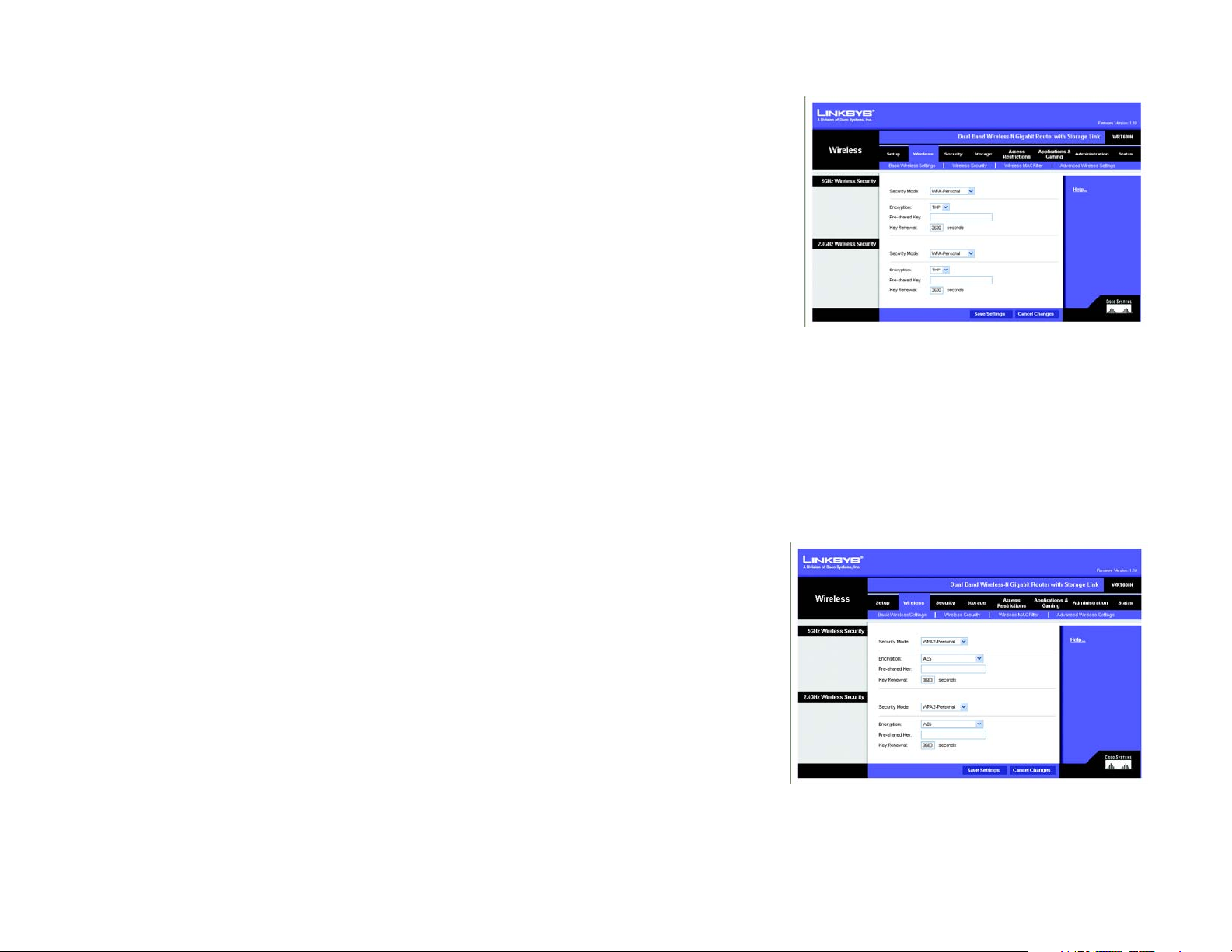

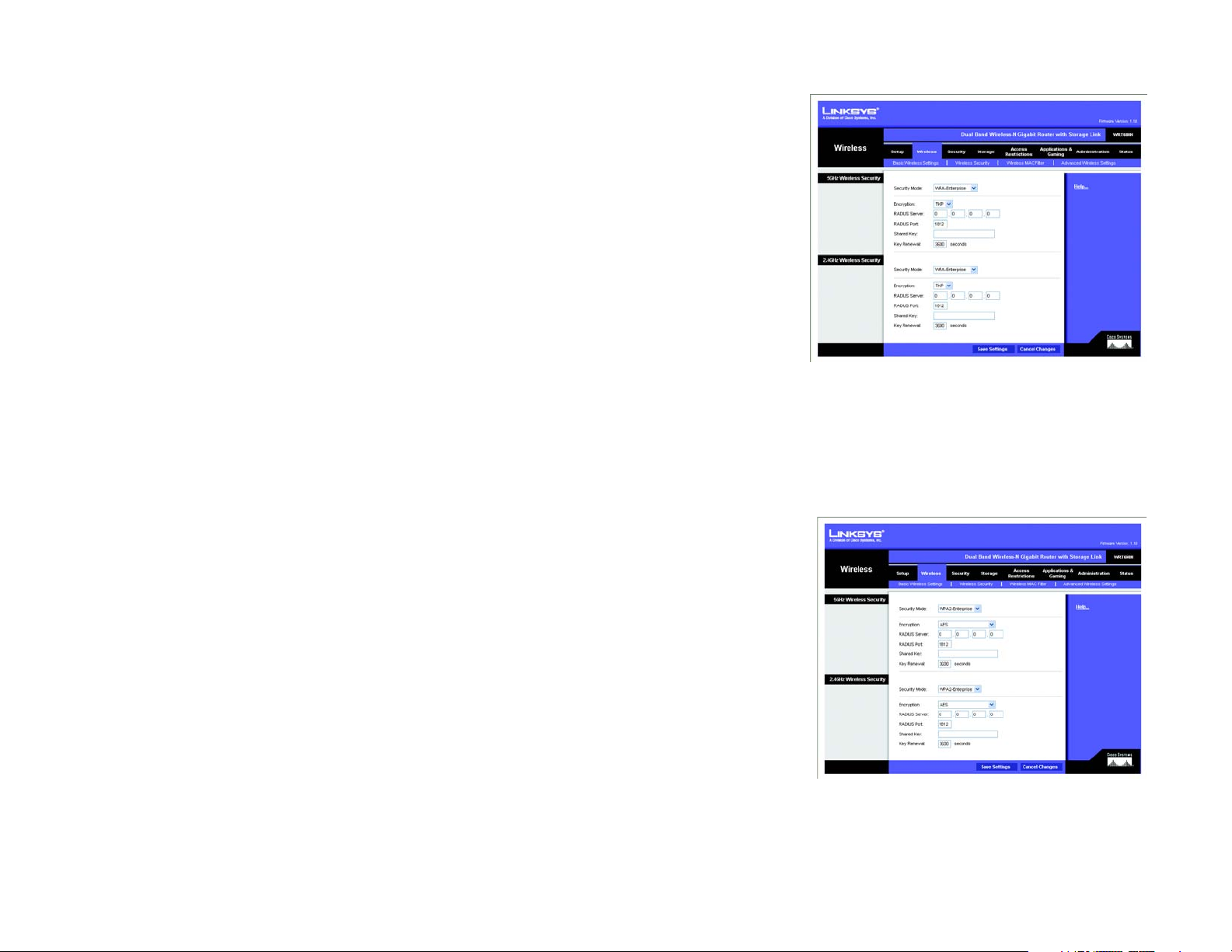

• Wireless Security. Enable and configure the security settings for your wireless network.

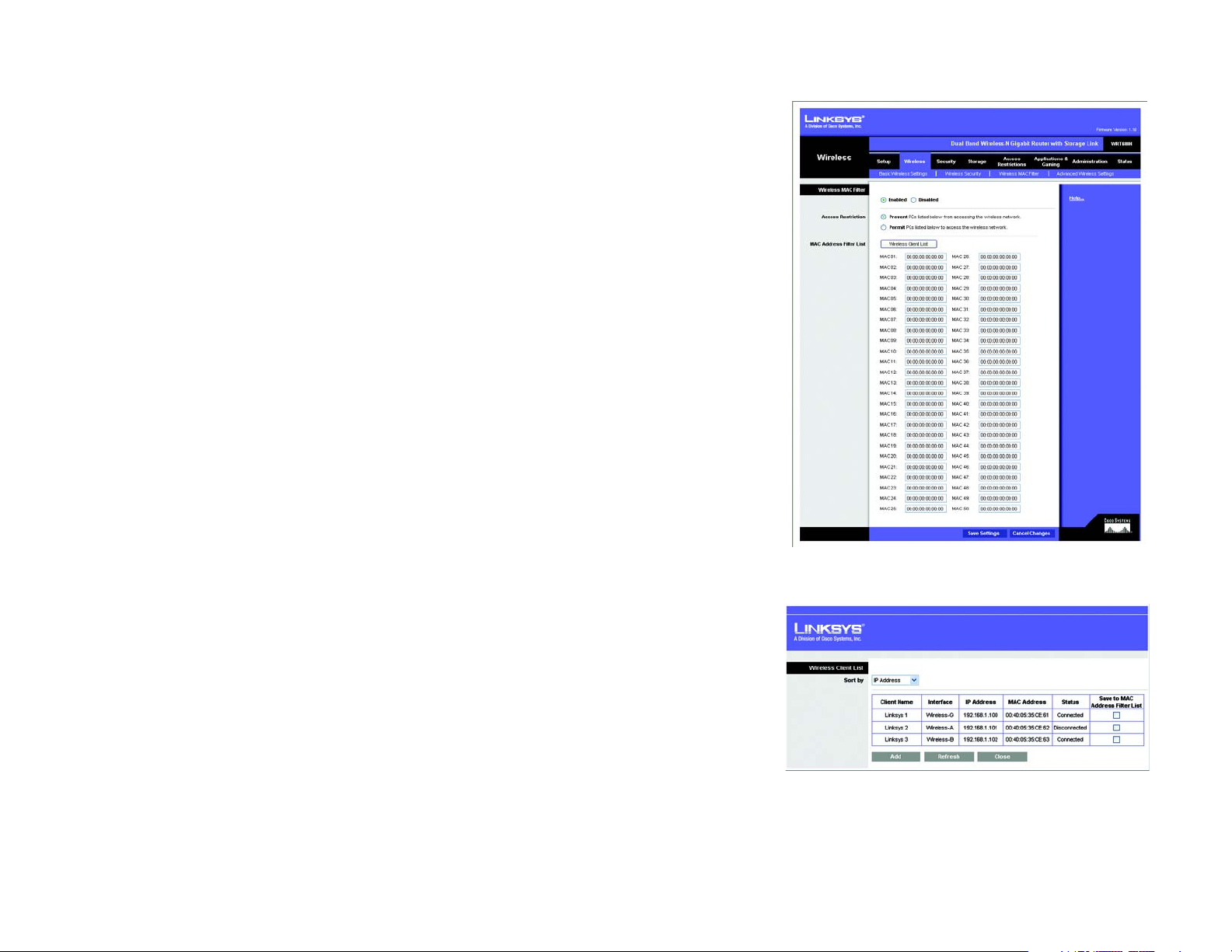

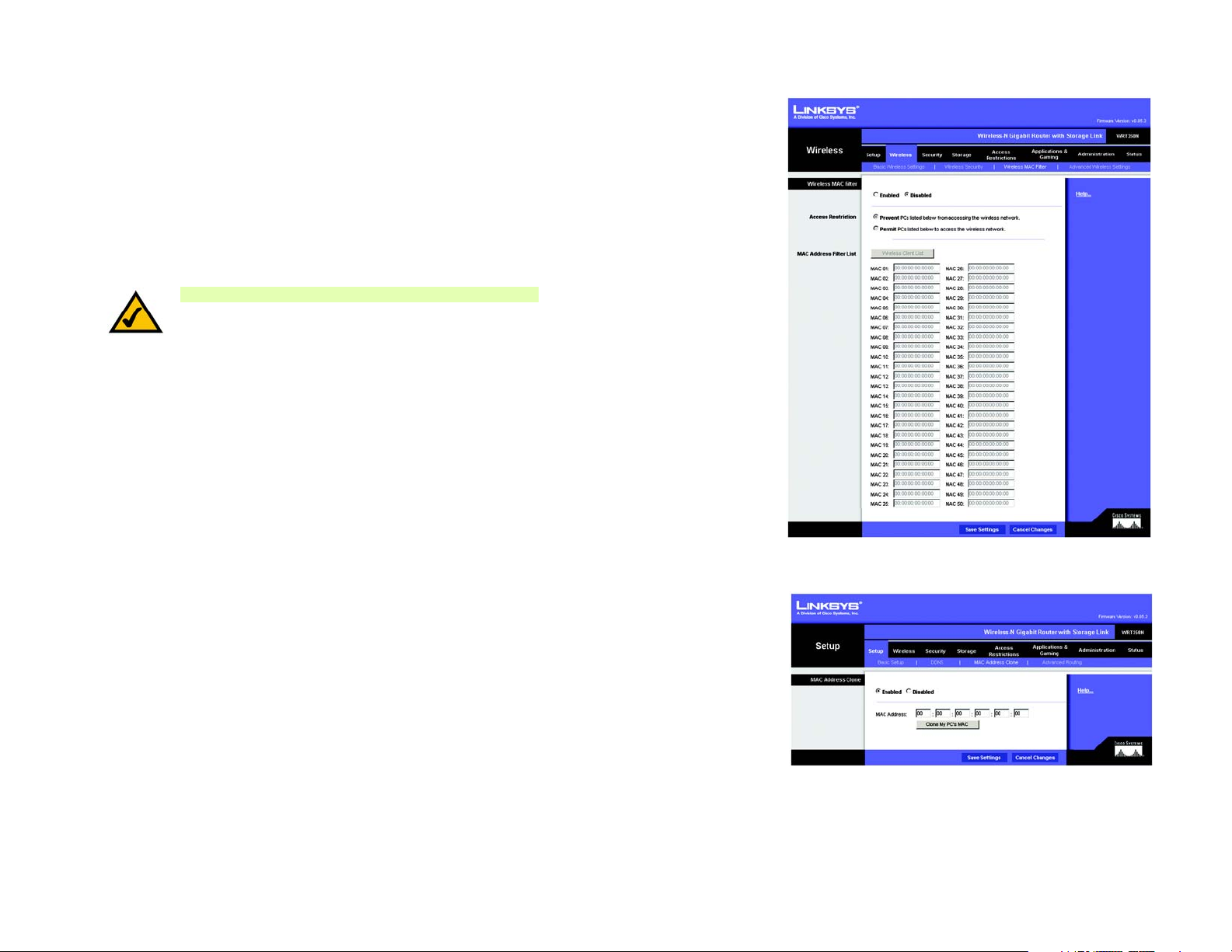

• Wireless MAC Filter. Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting within your network’s radius.

• Advanced Wireless Settings. For advanced users, you can alter data transmission settings on this screen.

Security

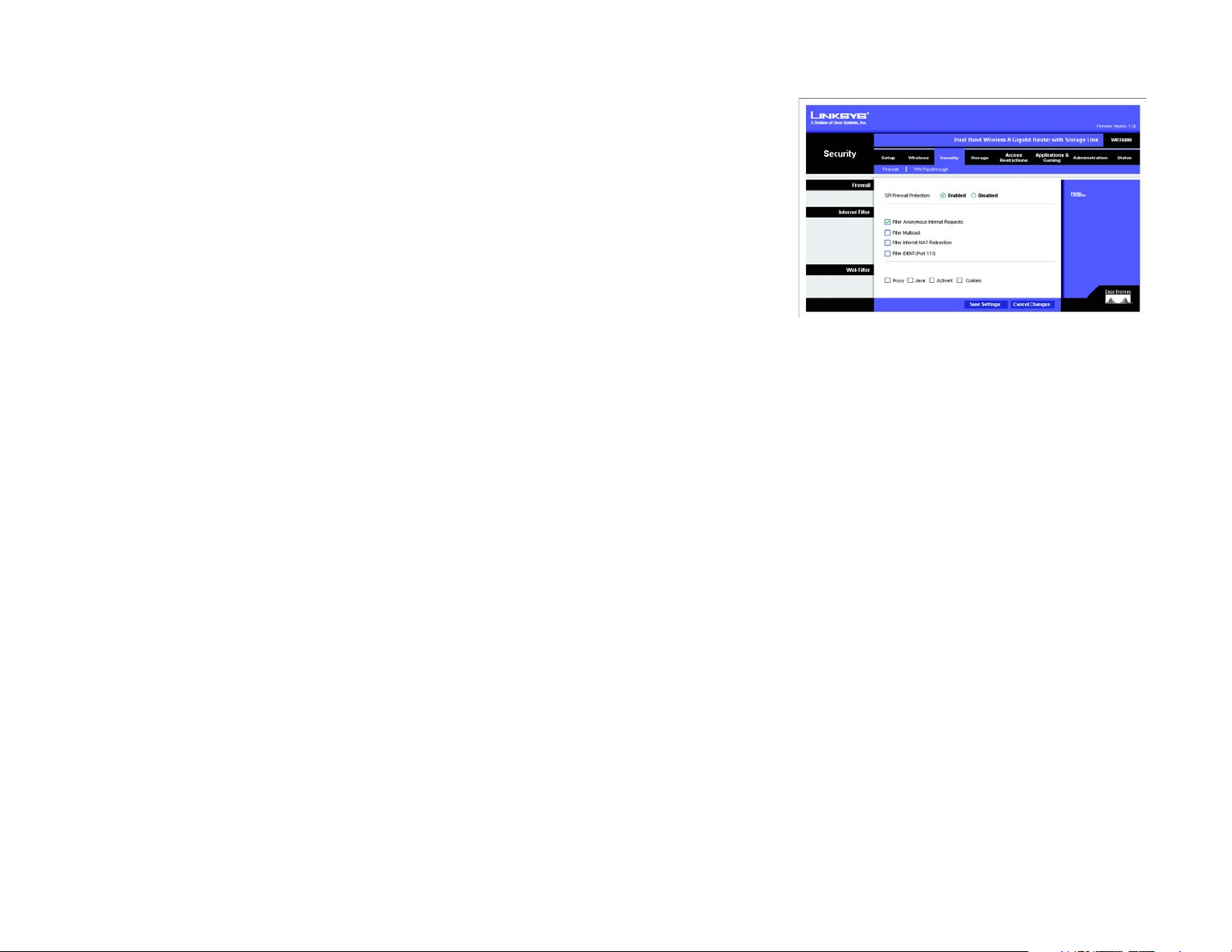

• Firewall. You can enable or disable the Router’s firewall, as well as various filters.

• VPN Passthrough. To enable or disable IPSec, L2TP, and/or PPTP Passthrough, use this screen.

Storage

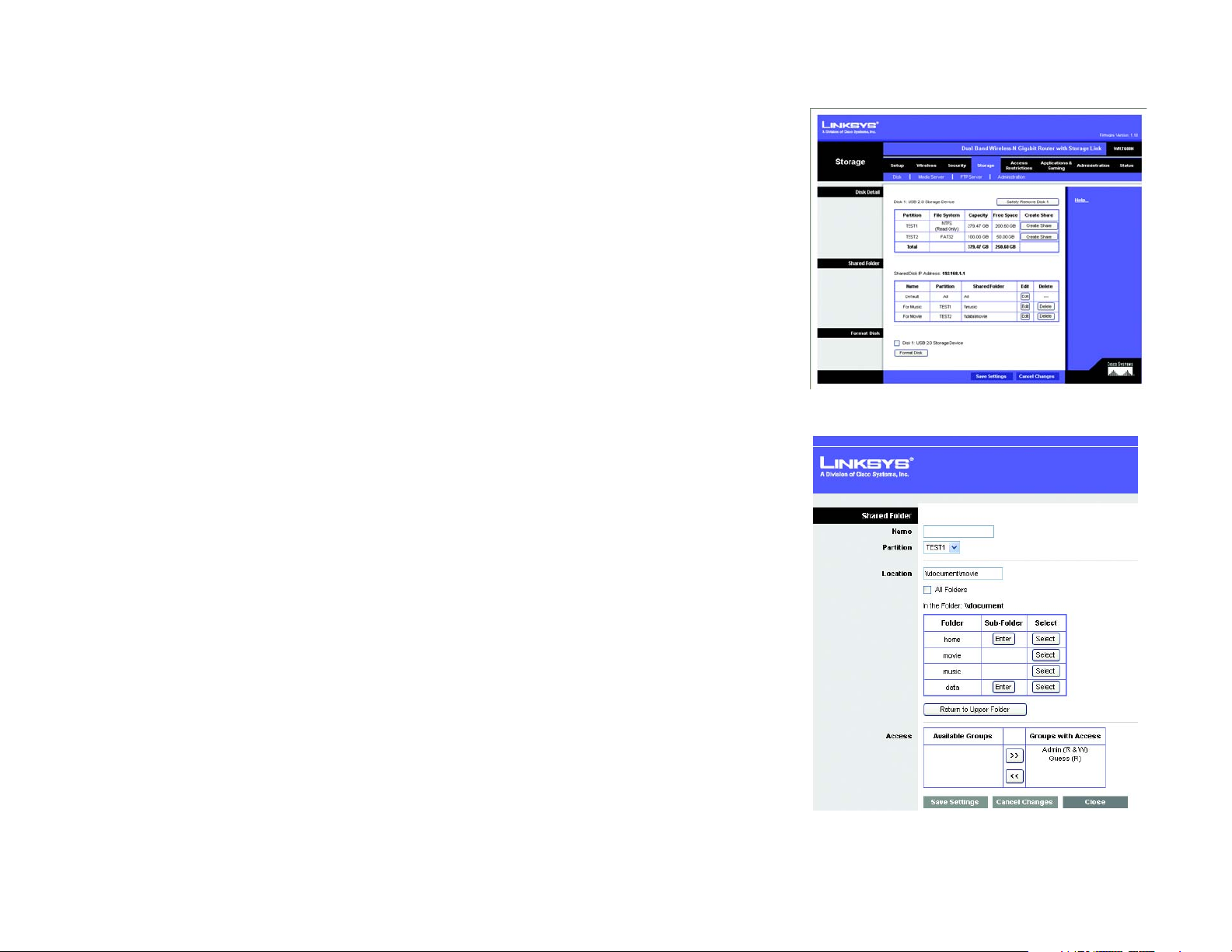

• Disk. Describes the disk currently attached to the Router.

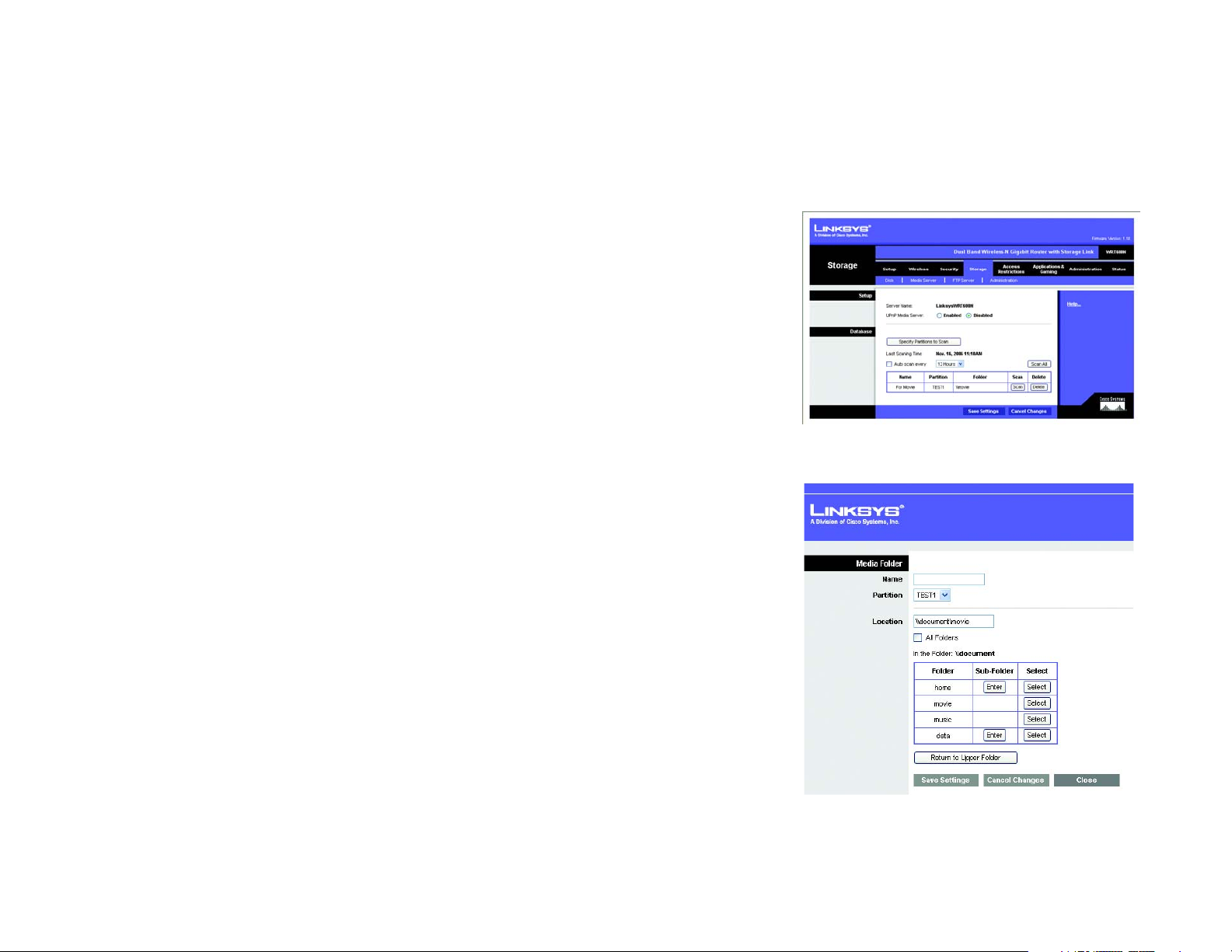

• Media Server. Scans for contents using a built-in media server.

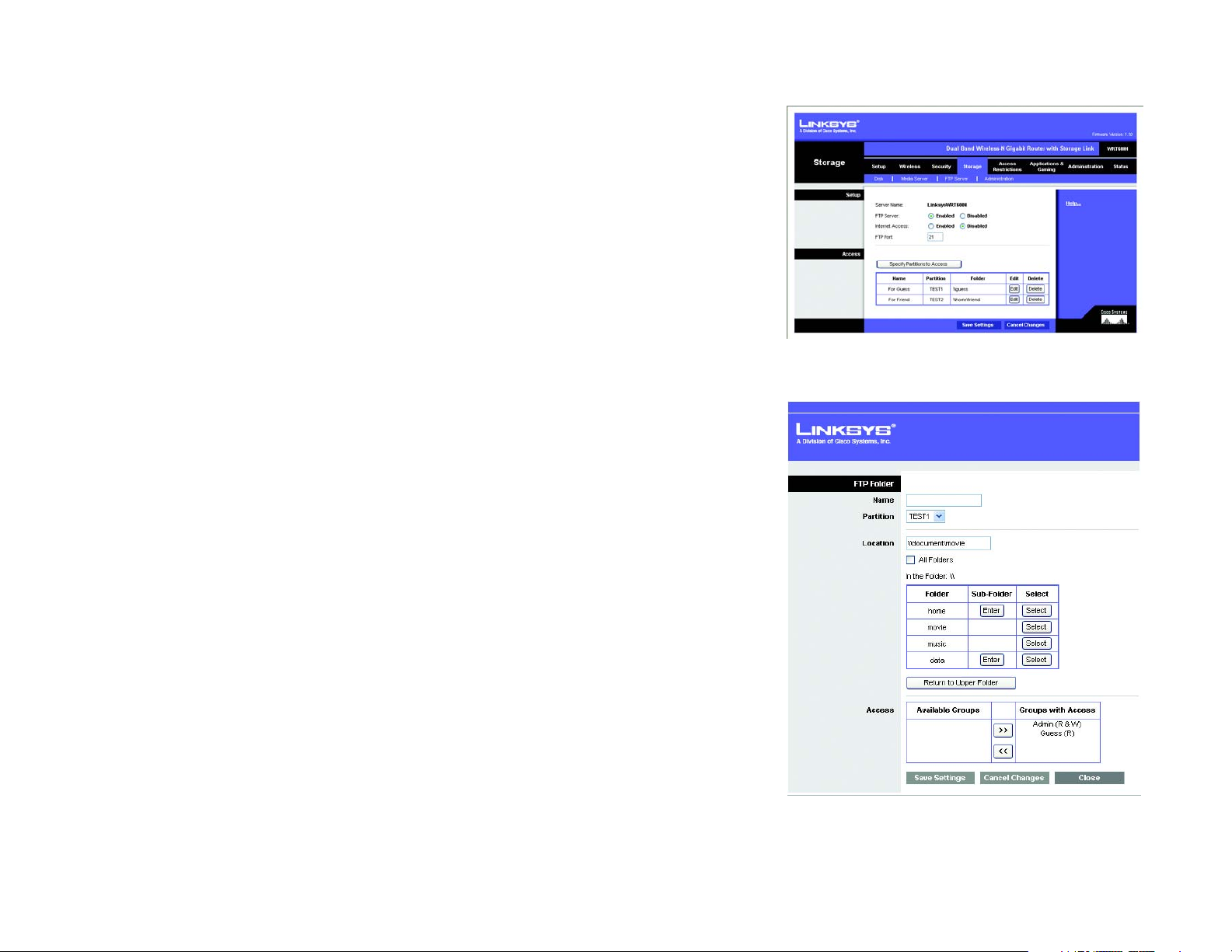

• FTP Server. Creates an FTP server that can be accessed through the Internet.

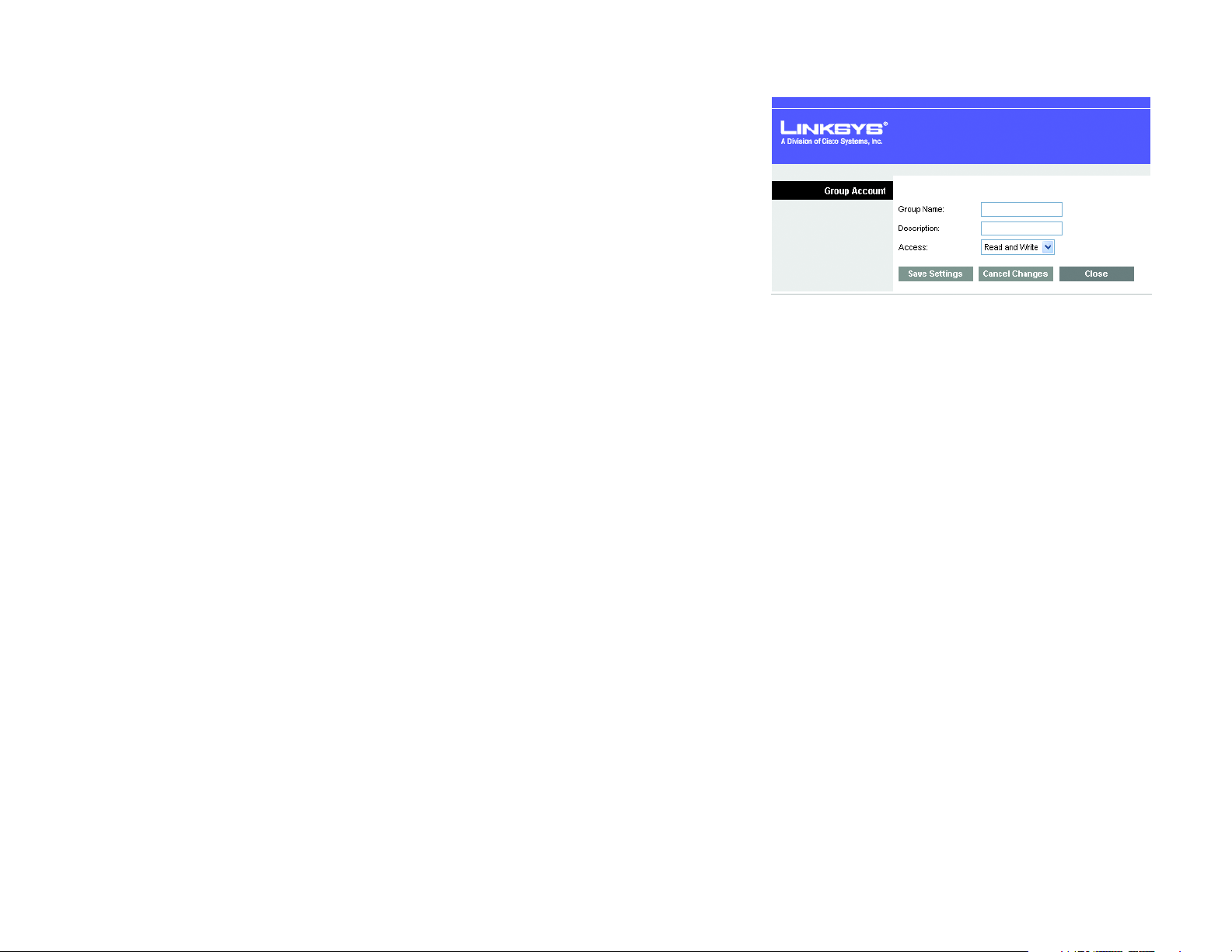

• Administration. Manages the user and groups of users that can access the shares.

Access Restrictions

Internet Access Policy. Create policies to control Internet access for your local network users.

Applications & Gaming

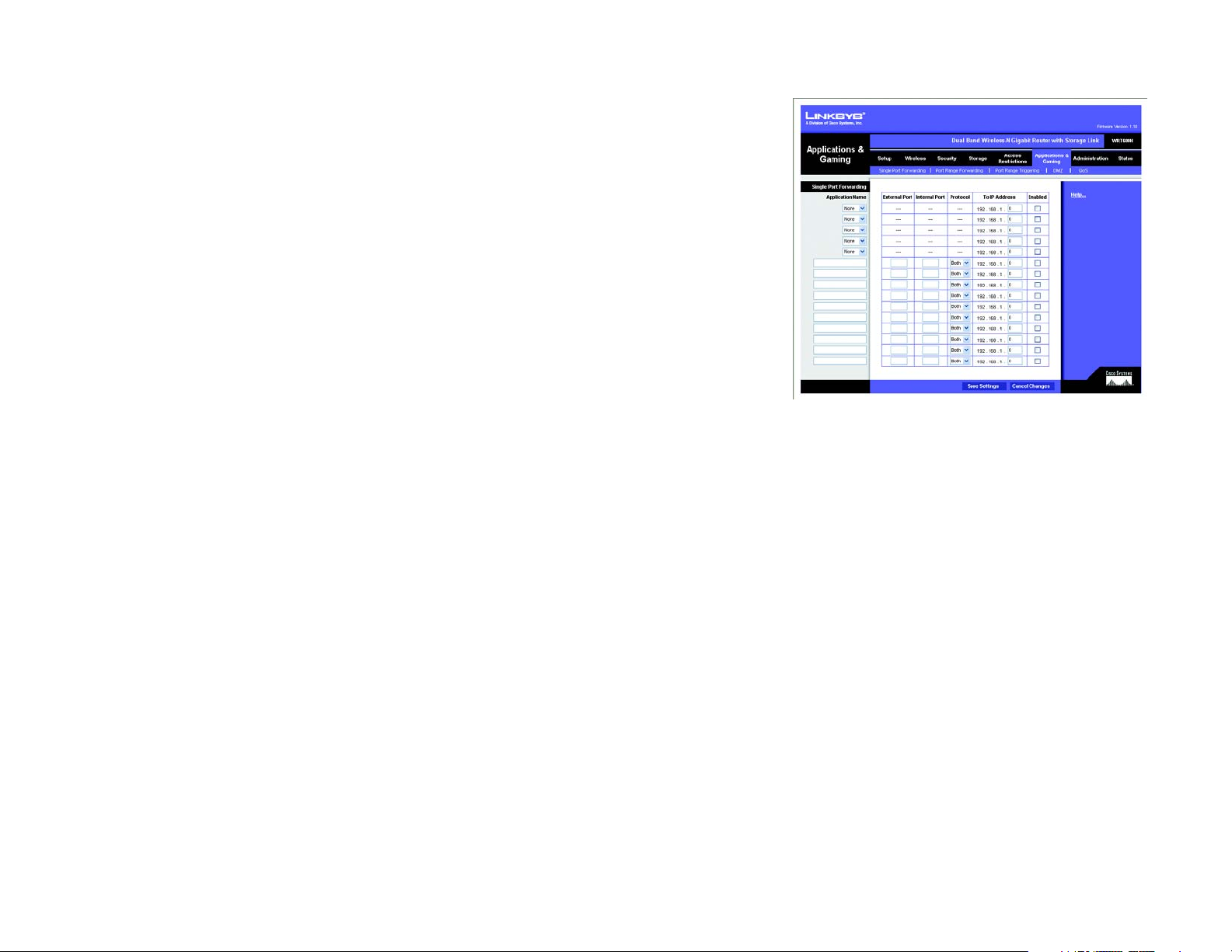

• Single Port Forwarding. This allows you to do port mapping and forwarding for a single service port.

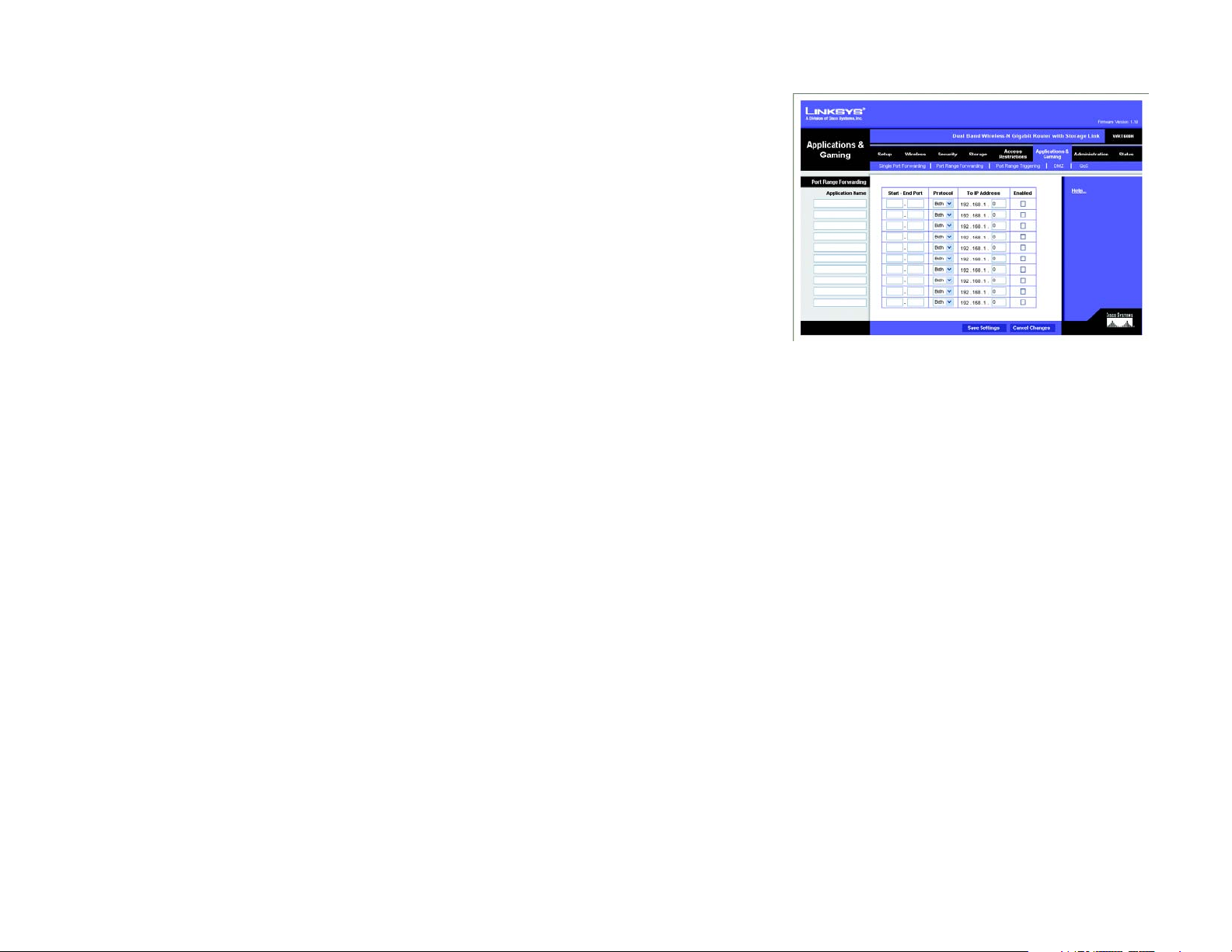

• Port Range Forwarding. Set up public services or other specialized Internet applications on your network.

• Port Range Triggering. Configure the Router to watch outgoing data for specific port numbers.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link Overview

Dual-Band Wireless-N Gigabit Router with Storage Link

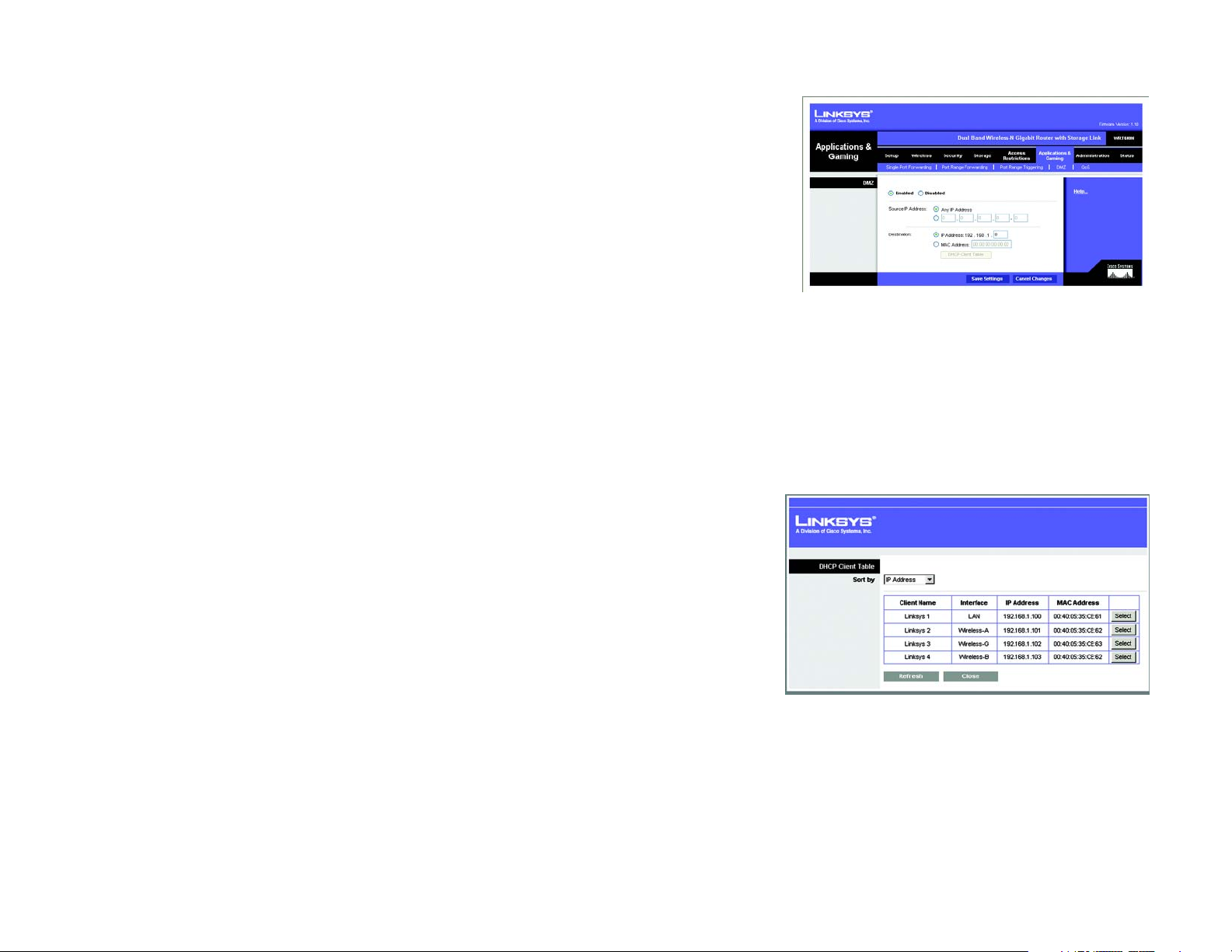

• DMZ. Click this tab to allow one local user to be exposed to the Internet for use of special-purpose services.

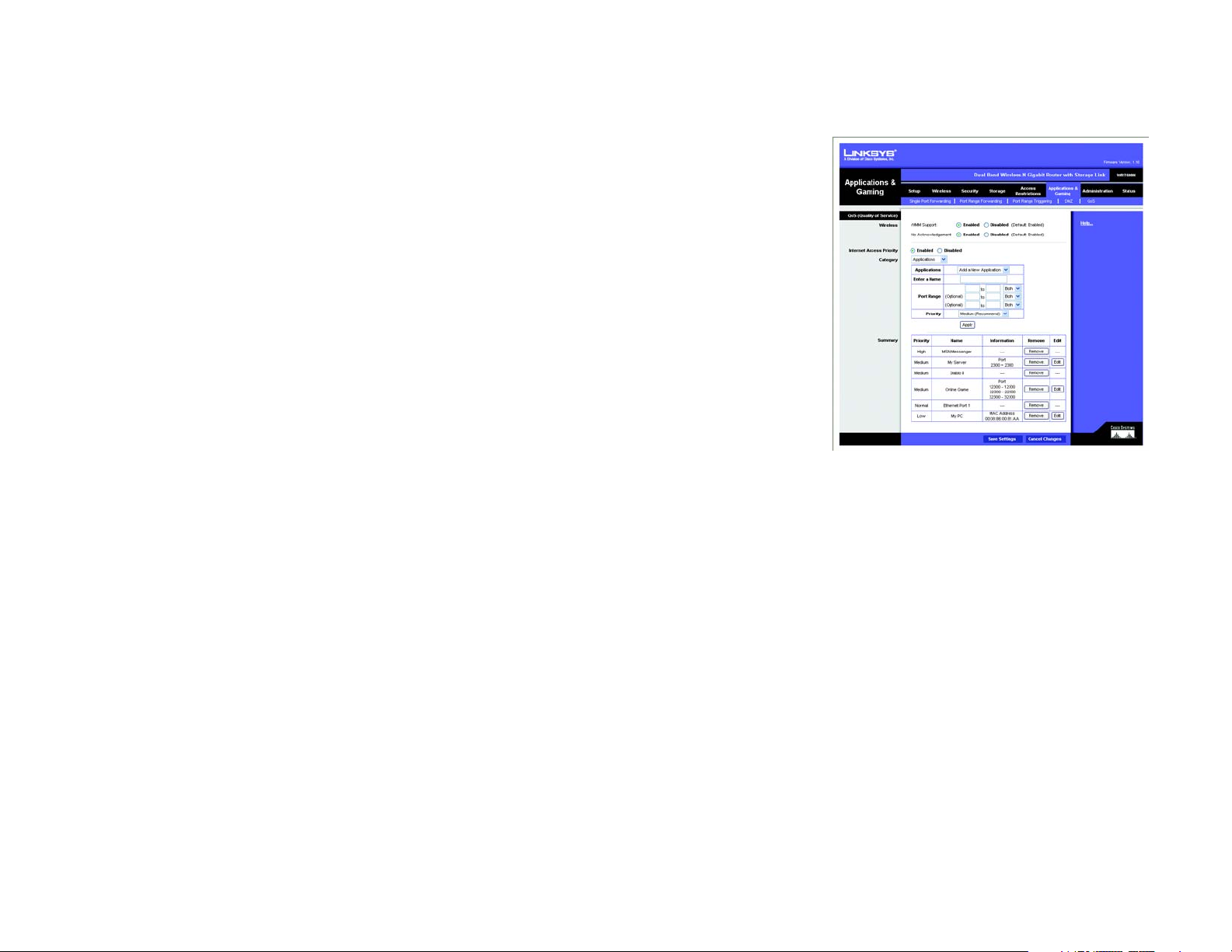

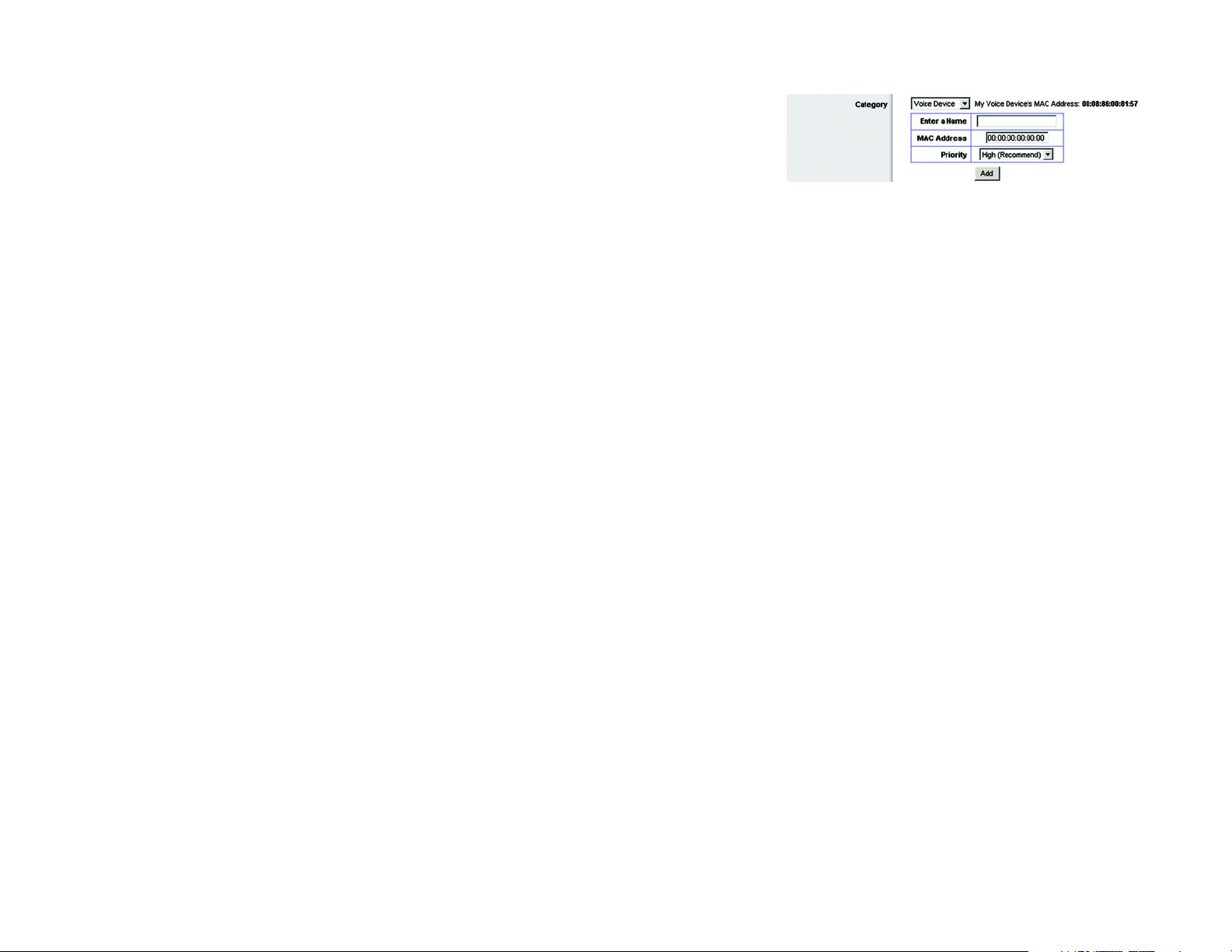

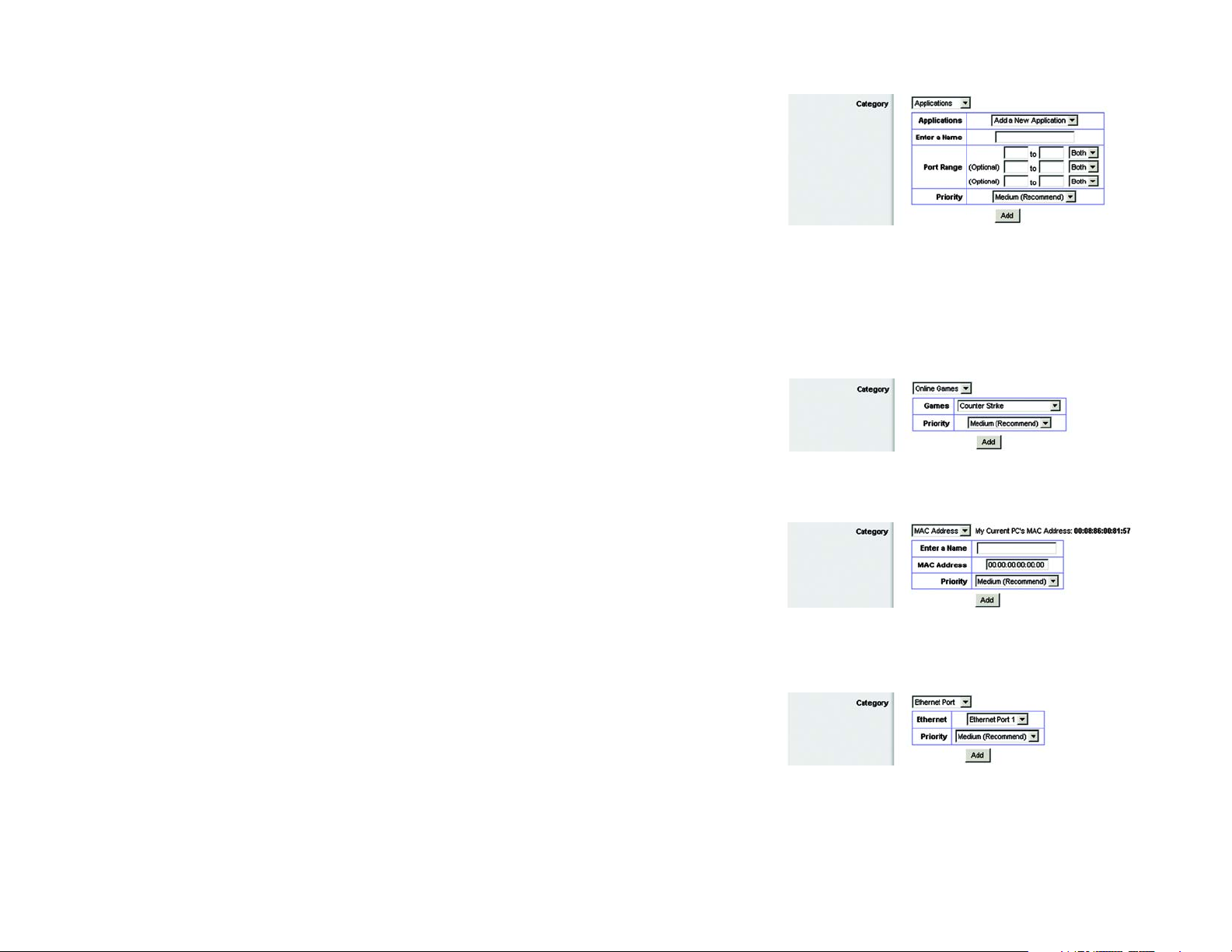

• QoS. Quality of Service (QoS) ensures better service to high-priority types of network traffic.

Administration

• Management. On this screen, alter the Router’s password, access privileges, and UPnP settings. You can also use this screen to back up and restore the Router’s configuration file.

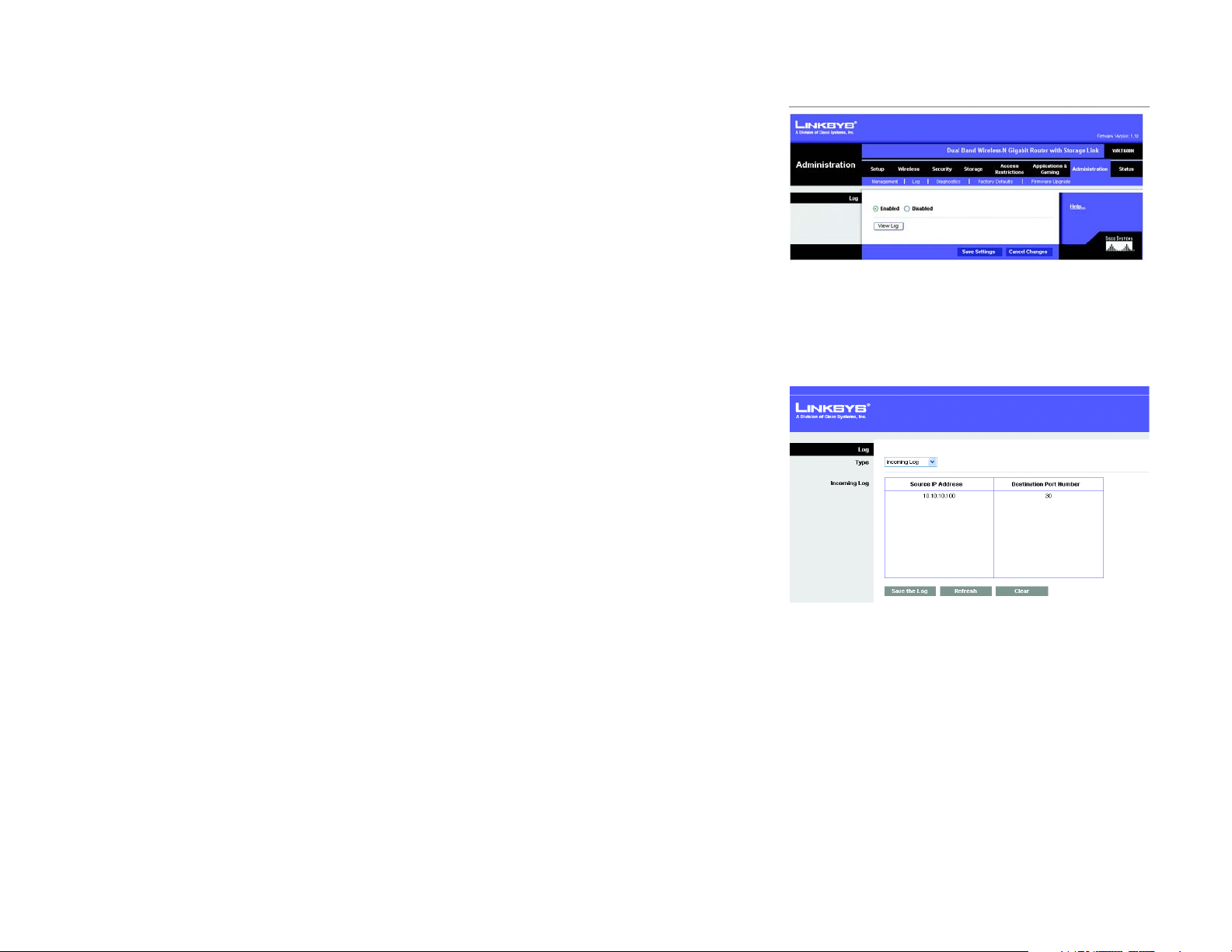

• Log. If you want to view or save activity logs, click this tab.

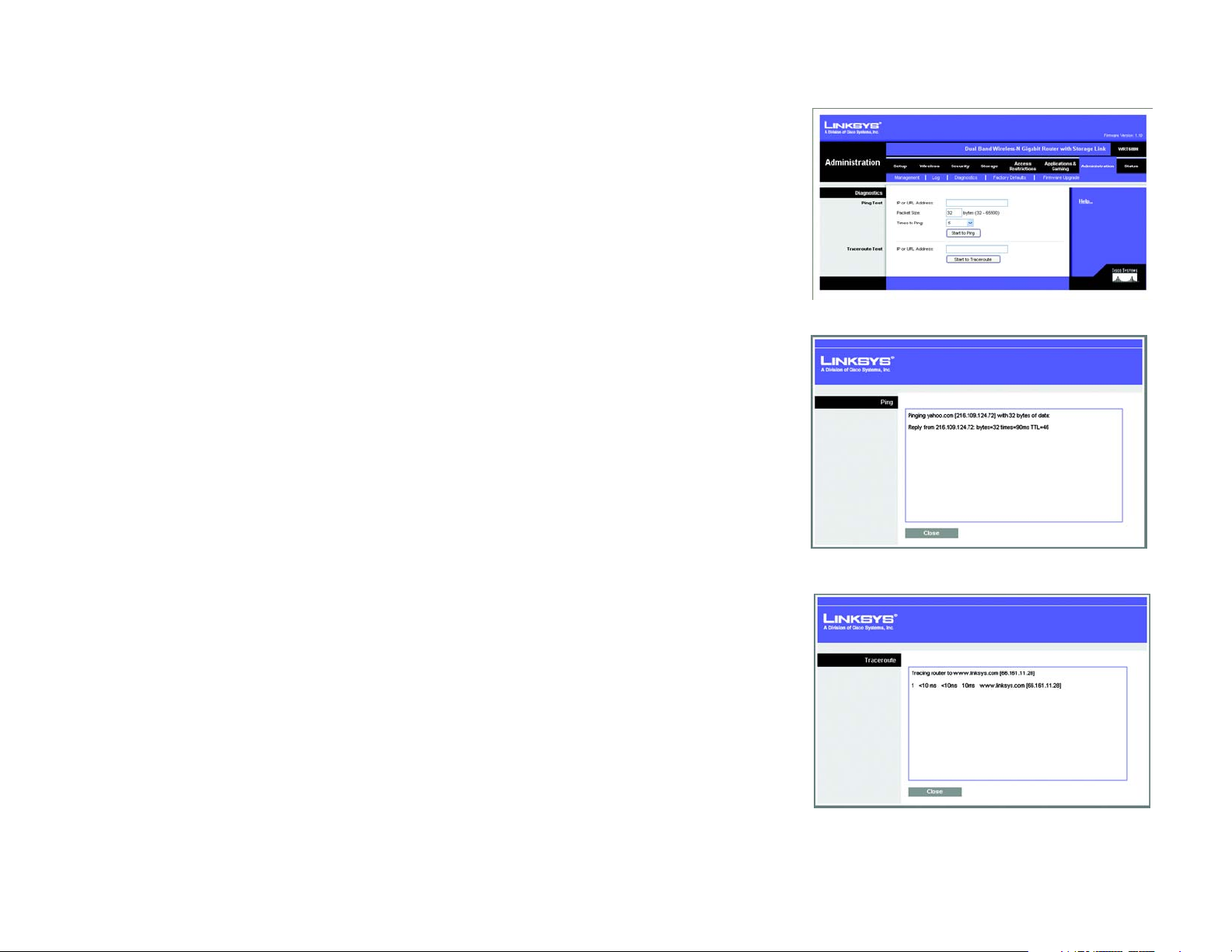

• Diagnostics. If you want to run a ping or traceroute test, then use this screen.

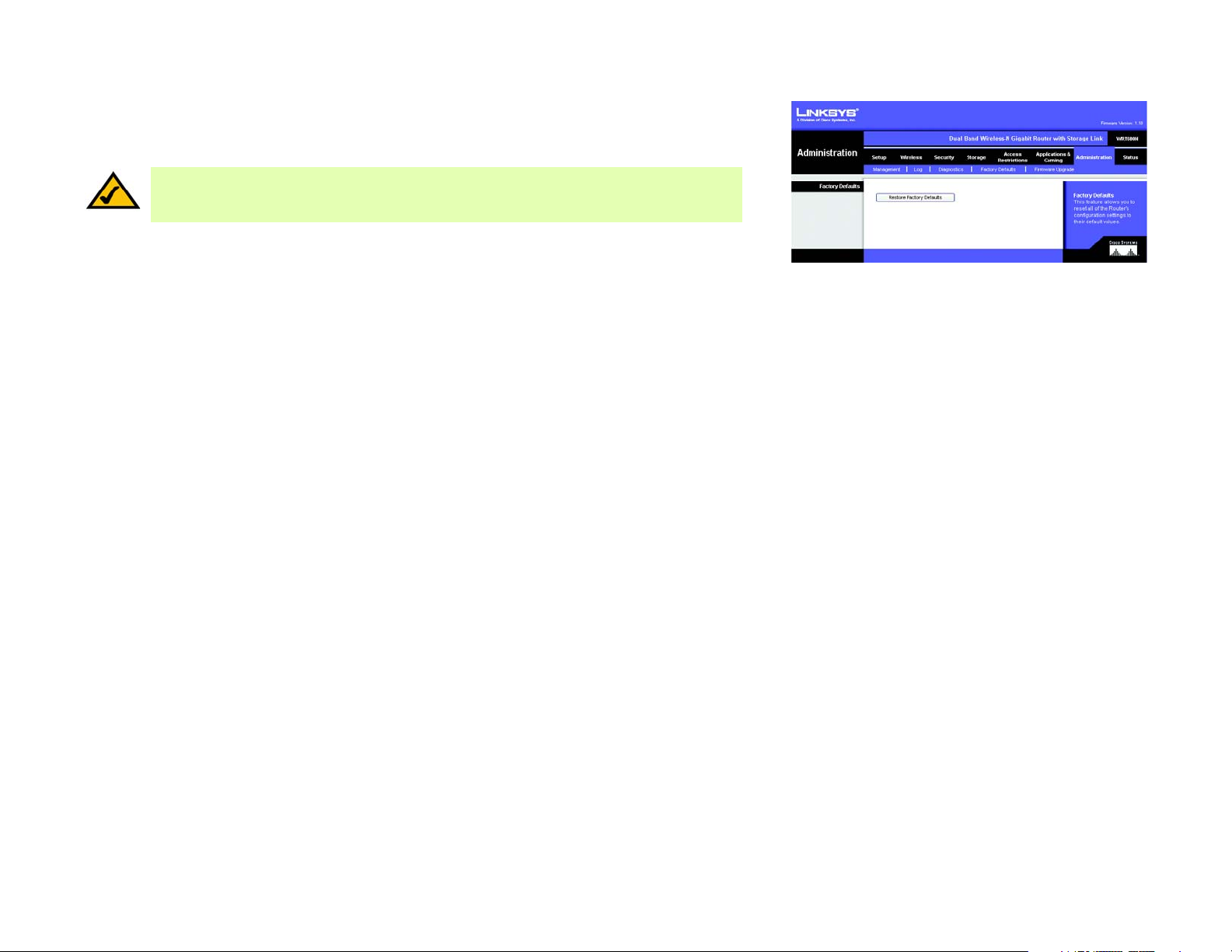

• Factory Defaults. If you want to restore the Router’s factory defaults, then use this screen.

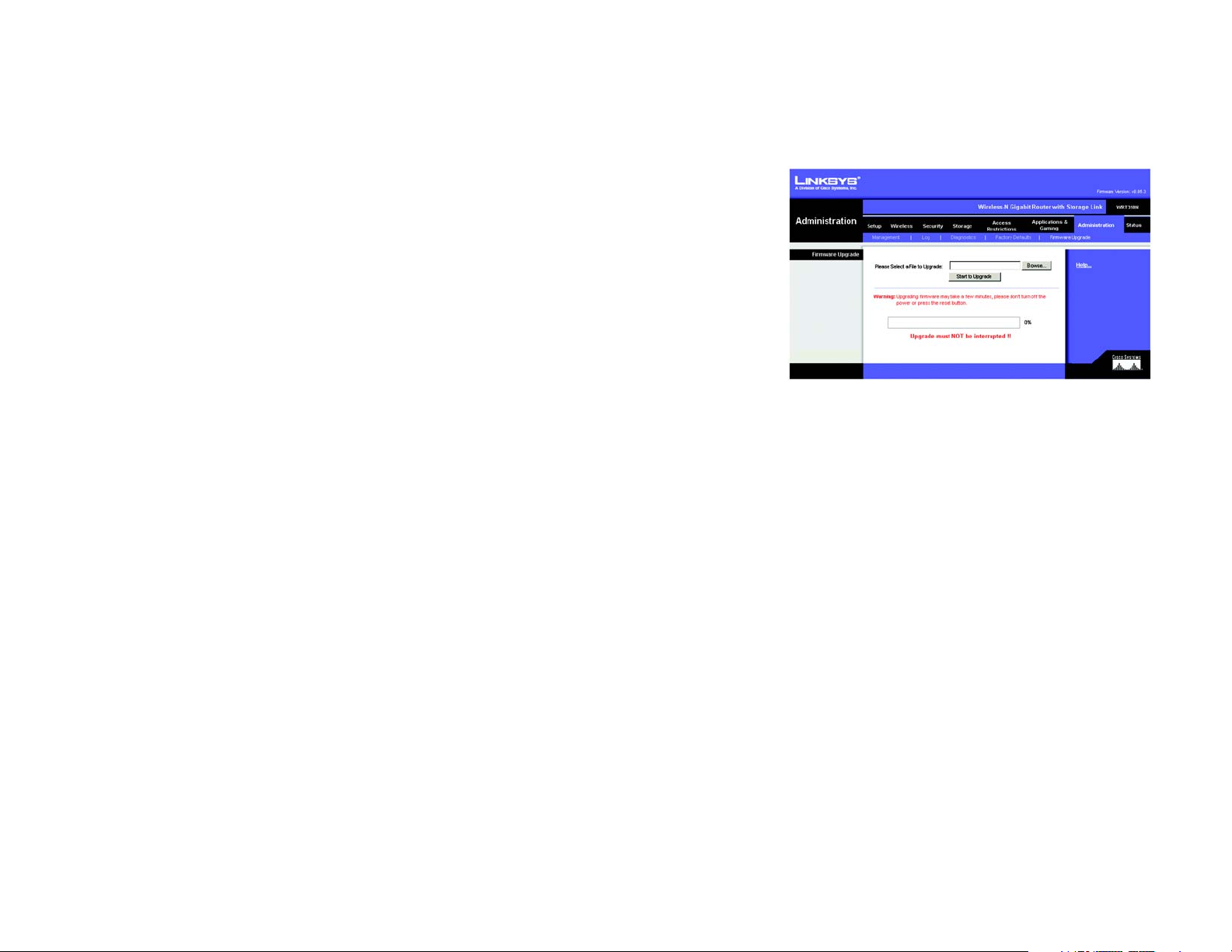

• Firmware Upgrade. Click this tab if you want to upgrade the Router’s firmware.

Status

• Router. This screen provides status information about the Router.

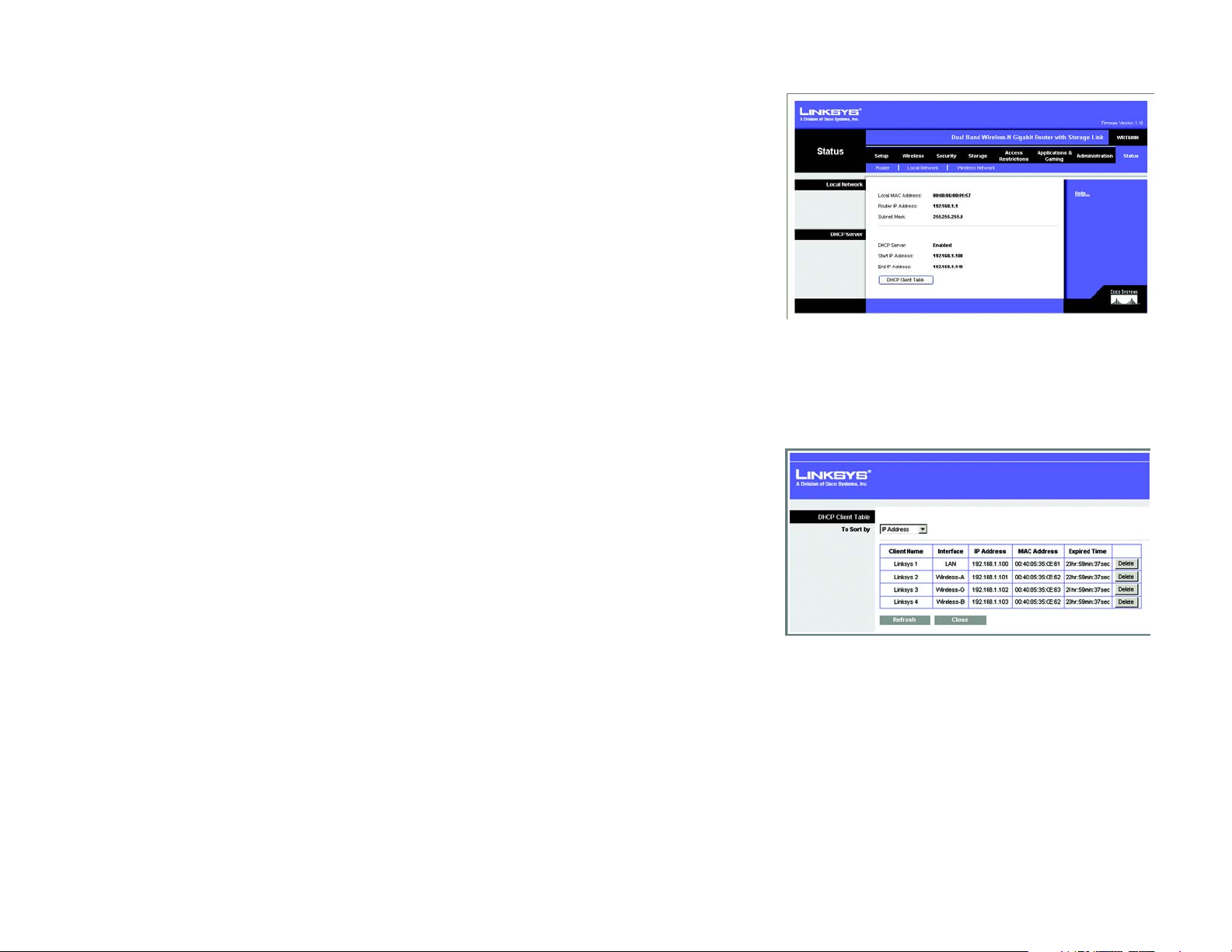

• Local Network. This provides status information about the local network.

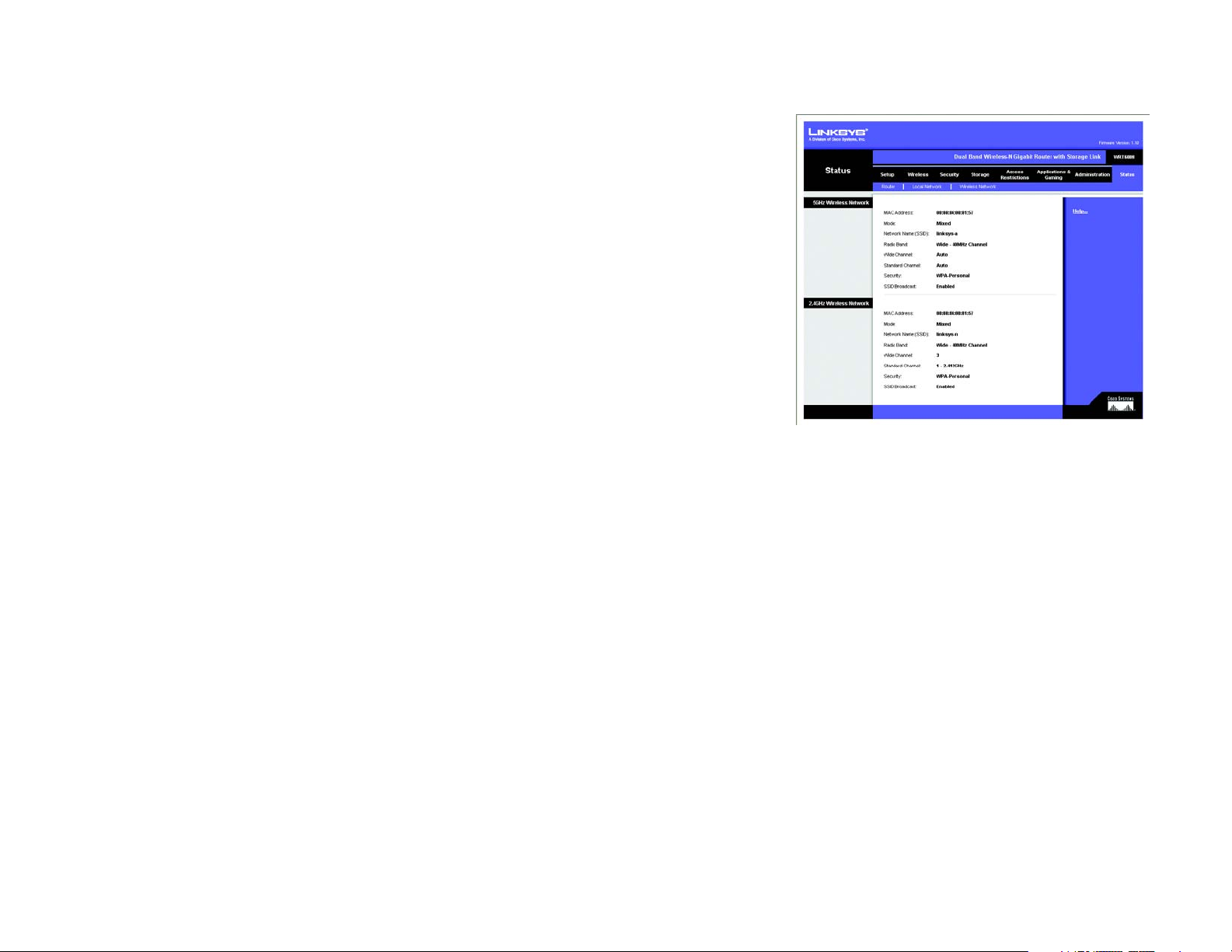

• Wireless Network. This provides status information about the wireless network.

How to Access the Web-based Utility

To access the Web-based Utility of the Router, launch Internet Explorer or Netscape Navigator, and enter the Router’s default IP address, 192.168.1.1, in the Address field. Press the Enter key.

A screen will appear asking you for your User name and Password. Leave the User Name field blank. Enter admin in the Password field. Then click the OK button.

Make the necessary changes through the Utility. When you have finished making changes to a screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For information on a tab, click Help.

The Setup Tab - Basic Setup

The Basic Setup screen is the first screen you see when you access the Web-based Utility.

Figure 5-1: Router Login

Figure 5-2: Setup Tab - Basic Setup

(Automatic Configuration - DHCP)

NOTE: Some of these connection types may not

be available in your area.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link How to Access the Web-based Utility

Dual-Band Wireless-N Gigabit Router with Storage Link

Internet Setup

The Internet Setup section configures the Router for your Internet connection type. This information can be obtained from your ISP.

Internet Connection Type

The Router supports six connection types: Automatic Configuration - DHCP, Static IP, PPPoE, PPTP, Telstra Cable, and L2TP. Each Basic Setup screen and available features will differ depending on what kind of connection type you select.

Automatic Configuration - DHCP

By default, the Router’s Internet Connection Type is set to Automatic Configuration - DHCP, and it should be used only if your ISP supports DHCP or you are connecting through a dynamic IP address.

Static IP

If you are required to use a permanent IP address, then select Static IP.

Internet IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will provide you with the IP address you need to specify here.

Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Default Gateway. Your ISP will provide you with the Default Gateway Address.

DNS 1-3. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

PPPoE

Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections for end-users. If you use a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable it.

Figure 5-3: Static IP

static ip address: a fixed address assigned to a computer or device connected to a network.

subnet mask: an address code that determines the size of the network

default gateway: a device that forwards Internet traffic from your local area network

Figure 5-4: PPPoE

User Name and Password. Enter the User Name and Password provided by your ISP.

IMPORTANT: For DSL users, if you need to enable PPPoE support, remember to remove any

PPPoE applications that are installed on your PCs.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Basic Setup

pppoe: a type of broadband connection that provides authentication (username and password) in addition to data transport

Dual-Band Wireless-N Gigabit Router with Storage Link

Service Name. If provided by your ISP, enter the Service Name.

Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it

has been inactive for a specific period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. To use Connect on Demand, click the radio button. If you want your Internet connection to remain on at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects.

Keep Alive and Redial Period. This option keeps your Internet access connected indefinitely, even when it sits idle. If you select this option, the Router will periodically check your Internet connection. If the connection is down, then the Router will automatically re-establish the connection. To use this option, click the radio button next to Keep Alive. The default Redial Period is 30 seconds.

Click the Save Settings button. Then click the Status tab, and click the Connect button.

PPTP

Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe and Israel only.

Server IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will provide you with the IP address you need to specify here.

Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Figure 5-5: PPTP

Default Gateway. Your ISP will provide you with the Default Gateway Address.

User Name and Password. Enter the User Name and Password provided by your ISP.

Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Basic Setup

Dual-Band Wireless-N Gigabit Router with Storage Link

Click the Save Settings button. Then click the Status tab, and click the Connect button.

Tels tra C able

Telstra Cable is a service used in Australia only. Check with your ISP for the necessary setup information.

Server IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will provide you with the IP address you need to specify here.

User Name and Password. Enter the User Name and Password provided by your ISP.

Click the Save Settings button. Then click the Status tab, and click the Connect button.

L2TP

Layer 2 Tunneling Protocol (L2TP) is a service that tunnels Point-to-Point Protocol (PPP) across the Internet. It is used mostly in European countries. Check with your ISP for the necessary setup information.

Server IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will provide you with the IP address you need to specify here.

User Name and Password. Enter the User Name and Password provided by your ISP.

Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after it

Figure 5-6: Telstra Cable

Figure 5-7: L2TP

packet: a unit of data sent over a network.

Click the Save Settings button. Then click the Status tab, and click the Connect button.

Optional Settings

Some of these settings may be required by your ISP. Verify with your ISP before making any changes.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Basic Setup

Dual-Band Wireless-N Gigabit Router with Storage Link

Host Name and Domain Name. Some ISPs require these names as identification. You may have to check with

your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.

MTU. The MTU (Maximum Transmission Unit) setting specifies the largest packet size permitted for network transmission. To manually set a value, select Manual and enter the value desired in the Size field. You should leave this value in the 1200 to 1500 range. Most DSL users should use the value 1492. The default is Auto, which allows the Router to select the best MTU for your Internet connection.

Network Setup

The Network Setup section allows you to change the Router’s local network settings.

Router IP

The Router’s Local IP Address and Subnet Mask are shown here. In most cases, you should keep the defaults.

Local IP Address. The default value is 192.168.1.1.

Subnet Mask. The default value is 255.255.255.0.

DHCP Server Setting

The Router can be used as a Dynamic Host Configuration Protocol (DHCP) server for your network. A DHCP server automatically assigns an IP address to each computer on your network. Unless you already have one, it is highly recommended that you leave the Router enabled as a DHCP server.

DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, set the Router’s DHCP option to Disabled. If you disable DHCP, remember to assign a static IP address to the Router.

Start IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the default IP address for the Router is 192.168.1.1, the Start IP Address must be 192.168.1. 2 or greater, but smaller than

192.168.1.254. The default Start IP Address is 192.168.1.100.

Maximum Number of Users (Optional). Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 50.

Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased” this dynamic IP address. After the dynamic IP address has expired, the user will be automatically assigned a new dynamic IP address. The default is 0 minutes, which means one day.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Basic Setup

dynamic ip address: a temporary IP address assigned by a DHCP server.

Dual-Band Wireless-N Gigabit Router with Storage Link

Static DNS 1-3. The Domain Name System (DNS) is how the Internet translates domain or website names into

Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. You can enter up to three DNS Server IP Addresses here. The Router will use these for quicker access to functioning DNS servers.

WINS. The Windows Internet Naming Service (WINS) converts NetBIOS names to IP addresses. If you use a WINS server, enter that server’s IP address here. Otherwise, leave this field blank.

DHCP Reservation. Click the DHCP Reservation button if you want to assign a fixed local IP address to a MAC address. You will see a list of DHCP clients with the following information: Client Name, Interface, IP Address, and MAC Address. Click the Select checkbox to reserve a client’s IP address. Then click the Add Clients button.

If you want to manually assign an IP address, enter the client’s name in the Enter Client Name field. Enter the IP address you want it to have in the Assign IP Address field. Enter its MAC Address in the To This MAC Address field. Click the Add button.

A list of DHCP clients and their fixed local IP addresses will be displayed at the bottom of the screen. If you want to remove a client from this list, click the Remove button.

When you have finished your changes, click the Save Settings button to save your changes. Click the Cancel Changes button to cancel your changes. To view the most up-to-date information, click the Refresh button. To exit this screen, click the Close button.

Time Setting

Time Zone. Select the time zone in which your network functions. If you want the Router to automatically adjust the clock for daylight savings, then select the checkbox.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Basic Setup

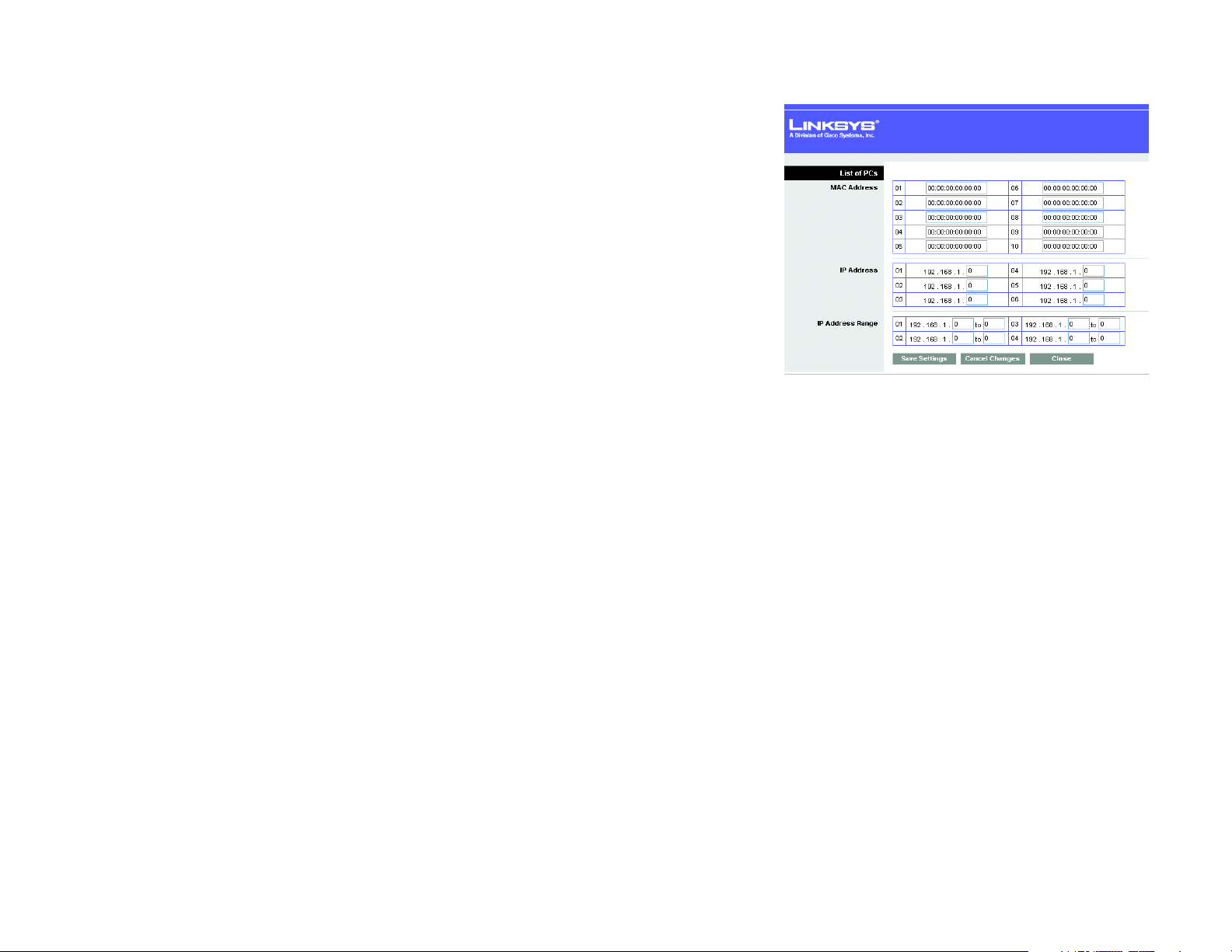

Figure 5-8: DHCP Reservation

NOTE: To test your settings, connect to the

Internet now.

Dual-Band Wireless-N Gigabit Router with Storage Link

The Setup Tab - DDNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router.

Before you can use this feature, you need to sign up for DDNS service at one of two DDNS service providers, DynDNS.org or TZO.com. If you do not want to use this feature, keep the default setting, Disable.

DDNS

DDNS Service

If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary, depending on which DDNS service provider you use.

DynDNS.org

Username, Password, and Host Name. Enter the settings of the account you set up with DynDNS.org.

System. Select the DynDNS service you use: Dynamic, Static, or Custom.

Figure 5-9: Setup Tab - DynDDNS.org

Mail Exchange (Optional). Enter the address of your mail exchange server, so e-mails to your DynDNS

address go to your mail server.

Backup MX. This feature allows the mail exchange server to be a backup. To enable this feature, keep the default, Enabled. To disable the feature, select Disabled. If you are not sure which setting to select, keep the default, Enabled.

WildCard. This setting enables or disables wildcards for your host. For example, if your DDNS address is myplace.dyndns.org and you enable wildcards, then x.myplace.dyndns.org will work as well (x is the wildcard). To enable wildcards, keep the default, Enabled. To disable wildcards, select Disabled. If you are not sure which setting to select, keep the default, Enabled.

Status. The status of the DDNS service connection is displayed here.

Update. To manually trigger an update, click this button.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - DDNS

Dual-Band Wireless-N Gigabit Router with Storage Link

TZO.com

E-mail Address, TZO Password, and Domain Name. Enter the settings of the account you set up with TZO.

Internet IP Address. The Router’s Internet IP address is displayed here. Because it is dynamic, it will change.

Status. The status of the DDNS service connection is displayed here.

Update. To manually trigger an update, click this button.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.

Figure 5-10: Setup Tab - TZO.com

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - DDNS

Dual-Band Wireless-N Gigabit Router with Storage Link

The Setup Tab - MAC Address Clone

A MAC address is a 12-digit code assigned to a unique piece of hardware for identification, like a social security number. Some ISPs will require you to register a MAC address in order to access the Internet. If you do not wish to re-register the MAC address with your ISP, you may assign the MAC address you have currently registered with your ISP to the Router with the MAC Address Clone feature.

MAC Address Clone

To use MAC address cloning, select Enabled. Otherwise, keep the default, Disabled.

MAC Address. Enter the MAC Address registered with your ISP.

Clone My PC’s MAC. If you want to clone the MAC address of the PC you are currently using to configure the

Router, then click this button. The Router will automatically detect your PC’s MAC address, so you do NOT have to call your ISP to change the registered MAC address to the Router’s MAC address. It is recommended that the PC registered with the ISP is used to open the MAC Address Clone screen.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.

Figure 5-11: Setup Tab - MAC Clone

mac address: the unique address that a manufacturer assigns to each networking device.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - MAC Address Clone

Dual-Band Wireless-N Gigabit Router with Storage Link

The Setup Tab - Advanced Routing

The Advanced Routing screen allows you to configure the dynamic and static routing settings.

Advanced Routing

NAT

If this Router is hosting your network’s connection to the Internet, select network, select

Disabled

. When the NAT setting is disabled, dynamic routing will be enabled.

Enabled

. If another Router exists on your

Dynamic Routing

This feature enables the Router to automatically adjust to physical changes in the network’s layout and exchange routing tables with the other router(s). The Router determines the network packets’ route based on the fewest number of hops between the source and the destination. To use dynamic routing, select

Disabled

. When the NAT setting is disabled, dynamic routing will be enabled.

Enabled

. Otherwise, select

Static Routing

A static route is a pre-determined pathway that network information must travel to reach a specific host or network. Use this feature to set up a static route between the Router and another network (you can have up to 20 static routes). To create a static route, alter the following settings:

Route Entries. Select the number of the static route from the drop-down menu.

Enter Route Name. Enter a name for the static route, using a maximum of 25 alphanumeric characters.

Destination LAN IP. The Destination LAN IP Address is the address of the remote network or host to which

you want to assign a static route. Enter the IP address of the host for which you wish to create a static route.

Subnet Mask. The Subnet Mask determines which portion of a Destination IP address is the network portion, and which portion is the host portion.

Figure 5-12: Setup Tab - Advanced Routing

Default Gateway. This is the IP address of the gateway device that allows for contact between the Router and

the remote network or host.

Interface. Select LAN & Wireless or WAN (Internet), depending on the location of the final destination.

Delete This Entry. To delete a route, select its number from the drop-down menu, and click this button.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Advanced Routing

Dual-Band Wireless-N Gigabit Router with Storage Link

Show Routing Table. Click the Show Routing Table button to open a screen displaying how data is routed

through your local network. For each route, the Destination LAN IP address, Subnet Mask, Gateway, and Interface are displayed. Click the Refresh button to update the information. Click the Close button to exit this screen.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.

Figure 5-13: Routing Table

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Setup Tab - Advanced Routing

Dual-Band Wireless-N Gigabit Router with Storage Link

The Wireless Tab - Basic Wireless Settings

The basic settings for wireless networking are set on this screen.

5GHz Wireless Settings

Network Mode. If your network devices have multiple modes, keep the default setting, Mixed. If you have Wireless-A only, select Wireless-A. If you have Wireless-N only, select Wireless-N. If you do not have any wireless devices in your network, select Disabled.

Network Name (SSID). The SSID is the network name shared among all points in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 characters (use any of the characters on the keyboard). Make sure this setting is the same for all points in your wireless network. For added security, you should change the default SSID (linksys) to a unique name.

Radio Band. For best performance in a network using Wireless-A and Wireless-N (5GHz) devices, keep the default, Auto, and the Wide Channel and Standard Channel will be selected automatically.

Wide Channel. If you selected Wide - 40MHz Channel for the Radio Band setting, then this setting will be available for your primary Wireless-N (5GHz) channel. Select any channel from the drop-down menu.

Standard Channel. Select the channel for Wireless-A and Wireless-N (5GHz) networking. If you selected Wide – 40MHz Channel for the Radio Band setting, then the Standard Channel will be a secondary channel for WirelessN (5GHz).

SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. To broadcast the Router's SSID, keep the default setting, Enabled. If you do not want to broadcast the Router's SSID, then select Disabled.

Figure 5-14: Wireless Tab - Basic Wireless Settings

NOTE: If you select Wide - 40MHz Channel for the

Radio Band setting, then Wireless-N can use two channels: a primary one (Wide Channel) and a secondary one (Standard Channel). This will enhance Wireless-N performance.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.

2.4 GHz Wireless Settings

Network Mode. If your network devices have multiple modes, keep the default setting, Mixed. If you have Wireless-B only, select Wireless-B. If you have Wireless-G only, select Wireless-G. If you have Wireless-N only, select Wireless-N. If you do not have any wireless devices in your network, select Disabled.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Wireless Tab - Basic Wireless Settings

Dual-Band Wireless-N Gigabit Router with Storage Link

(use any of the characters on the keyboard). Make sure this setting is the same for all points in your wireless network. For added security, you should change the default SSID (linksys) to a unique name.

Radio Band. For best performance in a network using Wireless-N (2.4GHz), Wireless-G and Wireless-B devices, keep the default, Auto, and the Wide Channel and Standard Channel will be selected automatically.

Wide Channel. If you selected Wide - 40MHz Channel for the Radio Band setting, then this setting will be available for your primary Wireless-N (2.4GHz) channel. Select any channel from the drop-down menu.

Standard Channel. Select the channel for Wireless-N (2.4 GHz), Wireless-G, and Wireless-B networking. If you selected Wide – 40MHz Channel for the Radio Band setting, then the Standard Channel will be a secondary channel for Wireless-N (2.4GHz).

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For more information, click Help.

Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link The Wireless Tab - Basic Wireless Settings

+ 69 hidden pages
