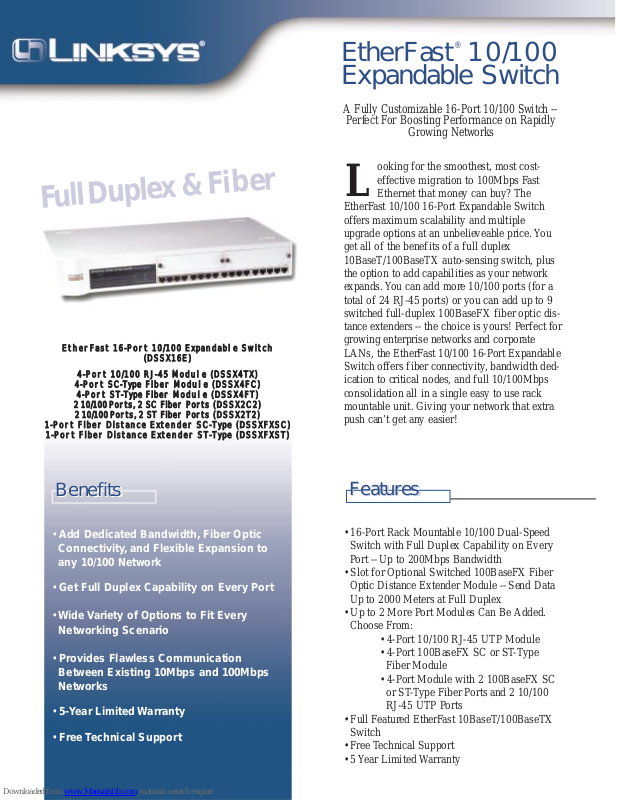

Linksys EtherFast DSSX16E Specifications

EtherFast®10/100
Expandable Switch

ooking for the smoothest, most cost­effective migration to 100Mbps Fast

Ethernet that money can buy? The
EtherFast 10/100 16-Port Expandable Switch
offers maximum scalability and multiple
upgrade options at an unbelieveable price. You
get all of the benefits of a full duplex
10BaseT/100BaseTX auto-sensing switch, plus
the option to add capabilities as your network
expands. You can add more 10/100 ports (for a
total of 24 RJ-45 ports) or you can add up to 9
switched full-duplex 100BaseFX fiber optic dis­tance extenders -- the choice is yours! Perfect for
growing enterprise networks and corporate
LANs, the EtherFast 10/100 16-Port Expandable
Switch offers fiber connectivity, bandwidth ded­ication to critical nodes, and full 10/100Mbps
consolidation all in a single easy to use rack
mountable unit. Giving your network that extra
push can’t get any easier!

• 16-Port Rack Mountable 10/100 Dual-Speed

Switch with Full Duplex Capability on Every
Port -- Up to 200Mbps Bandwidth

• Slot for Optional Switched 100BaseFX Fiber

Optic Distance Extender Module -- Send Data
Up to 2000 Meters at Full Duplex

• Up to 2 More Port Modules Can Be Added.

Choose From:

• 4-Port 10/100 RJ-45 UTP Module

• 4-Port 100BaseFX SC or ST-Type
Fiber Module

• 4-Port Module with 2 100BaseFX SC
or ST-Type Fiber Ports and 2 10/100
RJ-45 UTP Ports

• Full Featured EtherFast 10BaseT/100BaseTX
Switch

• Free Technical Support

• 5 Year Limited Warranty

• Add Dedicated Bandwidth, Fiber Optic

Connectivity, and Flexible Expansion to
any 10/100 Network

• Get Full Duplex Capability on Every Port

• Wide Variety of Options to Fit Every

Networking Scenario

• Provides Flawless Communication

Between Existing 10Mbps and 100Mbps
Networks

• 5-Year Limited Warranty

• Free Tec hnical Support

EEtthheerrFFaasstt 1166--PPoorrtt 1100//110000 EExxppaannddaabbllee SSwwiittcchh

((DDSSSSXX1166EE))

44--PPoorrtt 1100//110000 RRJJ--4455 MMoodduullee ((DDSSSSXX44TTXX))

44--PPoorrtt SSCC--TTyyppee FFiibbeerr MMoodduullee ((DDSSSSXX44FFCC))

44--PPoorrtt SSTT--TTyyppee FFiibbeerr MMoodduullee ((DDSSSSXX44FFTT))

221100//110000PPoorrttss,, 22 SSCC FFiibbeerr PPoorrttss ((DDSSSSXX22CC22))

221100//110000PPoorrttss,, 22 SSTT FFiibbeerr PPoorrttss ((DDSSSSXX22TT22))

11--PPoorrtt FFiibbeerr DDiissttaannccee EExxtteennddeerr SSCC--TTyyppee ((DDSSSSXXFFXXSSCC))

11--PPoorrtt FFiibbeerr DDiissttaannccee EExxtteennddeerr SSTT--TTyyppee ((DDSSSSXXFFXXSSTT))

L

A Fully Customizable 16-Port 10/100 Switch --

Perfect For Boosting Performance on Rapidly

Growing Networks

F ull Duplex & Fiber

Features

Features

Benefits

Benefits

Specifications

Standards IEEE 802.3 and IEEE 802.3u
Protocol CSMA/CD
Ports 12, 16 or 24 Straight-Through

10BaseT/100BaseTX Dual-Speed Auto­Sensing RJ-45 Ports. One port can be used as
an Uplink (Shared)

Expansion Slots 2 in front, 1 in back (Non-interchangeable

and Shared with Uplink Port)

Speed 10Mbps or 100Mbps (Half Duplex)

20Mbps or 200Mbps (Full Duplex)

MAC Addressing 16, 384 Unicast Entries

Unlimited Multicast Broadcast Addresses

Max Frame Size 1536 Bytes
Memory Buffer 64K per Port
LEDs Power, Full Duplex/Collision per Por t,

Link/Activity per Port, 100/10 per Port

Environmental

Dimensions 17.3” x 9.8” x 2.6”
Unit Weight 6.8 lbs
Power Input 90-250V AC, 50-60Hz
Certifications FCC Class A

CE Mark, Commercial
UL and CSA Listed

Operating T emp. 32ºF to 131ºF (0ºC to 55ºC)
Storage T emp. -40ºF to 158ºF (-40ºC to 70ºC)
Operating Hum. 10% to 85% Non-Condensing
Storage Hum. 5% to 90% Non-Condensing

Expansion Modules

• RJ-45

4-Port 10/100 RJ-45 Module

(Model No.: DSSX4TX)

• 100BaseFX

4-Port Fiber Optic Distance
Extender Module (SC-Type)

(Model No.: DSSX4FC)

Sales [phone]
Support [phone]
Fax [phone]
Email [e-mail]
Web www.linksys.com

• 100BaseFX

4-Port Fiber Optic Distance
Extender Module (ST-Type)

(Model No.: DSSX4FT)

• 100BaseFX & RJ-45

2 Fiber Optic Distance Extender
Ports (SC-Type) and 2 10/100
RJ-45 Ports

(Model No.: DSSX2C2)

• 100BaseFX & RJ-45

2 Fiber Optic Distance Extender
Ports (ST-Type) and 2 10/100
RJ-45 Ports

(Model No.: DSSX2T2)

• 100BaseFX

(for

BACK of switch only)

1-Port Fiber Optic Distance
Extender Module (SC-Type)

(Model No.: DSSXFXSC)

• 100BaseFX

(for

BACK of switch only)

1-Port Fiber Optic Distance
Extender Module (ST-Type)

(Model No.: DSSXFXST)
