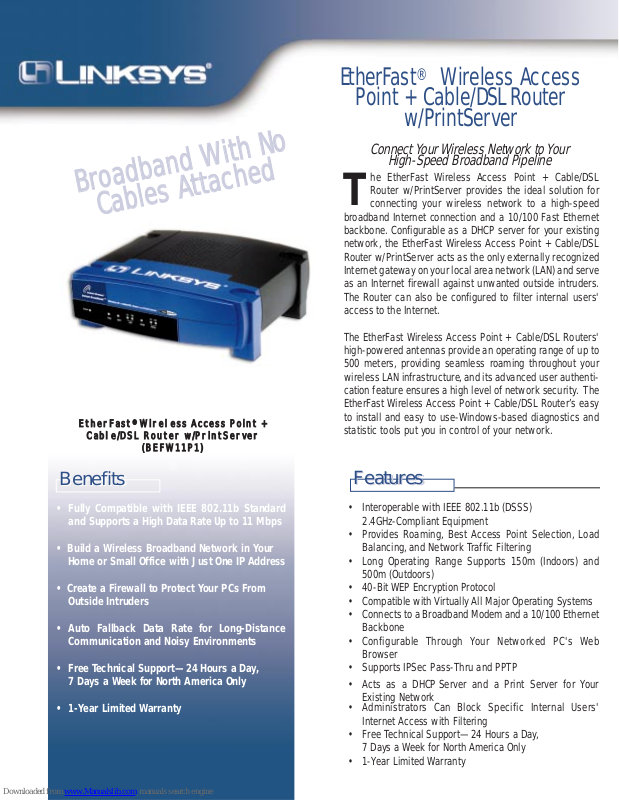

Linksys EtherFast BEFW11P1 Specifications

EtherFast

®

Wireless Access

Point + Cable/DSL Router

w/PrintServer

he EtherFast Wireless Access Point + Cable/DSL
Router w/PrintServer provides the ideal solution for

connecting your wireless network to a high-speed
broadband Internet connection and a 10/100 Fast Ethernet
backbone. Configurable as a DHCP server for your existing
network, the EtherFast Wireless Access Point + Cable/DSL
Router w/PrintServer acts as the only externally recognized
Internet gateway on your local area network (LAN) and serve
as an Internet firewall against unwanted outside intruders.
The Router can also be configured to filter internal users'
access to the Internet.

The EtherFast Wireless Access Point + Cable/DSL Routers'
high-powered antennas provide an operating range of up to
500 meters, providing seamless roaming throughout your
wireless LAN infrastructure,and its advanced user authenti­cation feature ensures a high level of network security. The
EtherFast Wireless Access Point + Cable/DSL Router’s easy
to install and easy to use-Windows-based diagnostics and
statistic tools put you in control of your network.

• Interoperable with IEEE 802.11b (DSSS)

2.4GHz-Compliant Equipment

• Provides Roaming, Best Access Point Selection, Load
Balancing,and Network Traffic Filtering

• Long Operating Range Supports 150m (Indoors) and
500m (Outdoors)

• 40-Bit WEP Encryption Protocol

• Compatible with Virtually All Major Operating Systems

• Connects to a Broadband Modem and a 10/100 Ethernet
Backbone

• Configurable Through Your Networked PC's Web
Browser

• Supports IPSec Pass-Thru and PPTP

• Acts as a DHCP Server and a Print Server for Your
Existing Network

• Administrators Can Block Specific Internal Users'
Internet Access with Filtering

• Free Technical Support—24 Hours a Day,
7 Days a Week for North America Only

• 1-Year Limited Warranty

• Fully Compatible with IEEE 802.11b Standard
and Supports a High Data Rate Up to 11 Mbps

• Build a Wireless Broadband Network in Your
Home or Small Office with Just One IP Address

• Create a Firewall to Protect Your PCs From
Outside Intruders

• Auto Fallback Data Rate for Long-Distance
Communication and Noisy Environments

• Free Technical Support—24 Hours a Day,
7 Days a Week for North America Only

• 1-Year Limited Warranty

EEtthheerrFFaasstt®®WWiirreelleessss AAcccceessss PPooiinntt ++

CCaabbllee//DDSSLL RRoouutteerr ww//PPrriinnttSSeerrvveerr

((BBEEFFWW1111PP11))

T

Connect Y our Wireless Network to Your

High-Speed Broadband Pipeline

Features

Features

Benefits

Benefits

BBrrooaaddbbaanndd WWiitthh NNoo

CCaabblleess AAttttaacchheedd

Package ContentsSpecifications

Model Number: BEFW11P1
Standards: IEEE 802.3 (10BaseT), IEEE 802.3u

(100BaseTX), IEEE 802.11b (Wireless)

Protocol:

CSMA/CD

Ports:

WAN: One 10Base-T RJ-45 Port for Cable/DSL Modem

LAN: One Shared Uplink Port
Printer:

One Parallel Port

Cabling Type: UTP Category 5 or better,Standard Printer Cable
Operating Range Indoors: 50M (164 ft.) @ 11 Mbps

(Wireless): 80M (262 ft.) @ 5.5 Mbps

120M (393 ft.) @ 2 Mbps
150M (492 ft.) @ 1 Mbps

Outdoors: 250M (820 ft.) @ 11 Mbps

350M (1148 ft.) @ 5.5 Mbps
400M (1312 ft.) @ 2 Mbps
500M (1640 ft.) @ 1 Mbps

LEDs: Power,Diag,WAN

LAN: 10/100
WLAN,Act
Printer:Err/Act

Environmental

Dimensions: 7.44” x 6.16” X 2.64” (186mm x 154mm x 48mm)
Unit Weight: 17.5 oz. (0.5 Kg)

Power: External, 5V DC, 3A

Certifications: FCC Class B,CE Mark Commercial
Operating Temp: 0ºC to 40ºC (32ºF to 104ºF)

Storage Temp: -20ºC to 70ºC (-4ºF to 158ºF)
Operating Humidity: 10% to 85%, Non-Condensing
Storage Humidity: 5% to 90%, Non-Condensing

EtherFast®Wireless Access Point +

Cable/DSL Router w/PrintServer

• One EtherFast Wireless Access Point +
Cable/DSL Router w/PrintServer

• One AC Power Adapter

• One User Guide and Registration Card

Model Number: BEFW11P1
