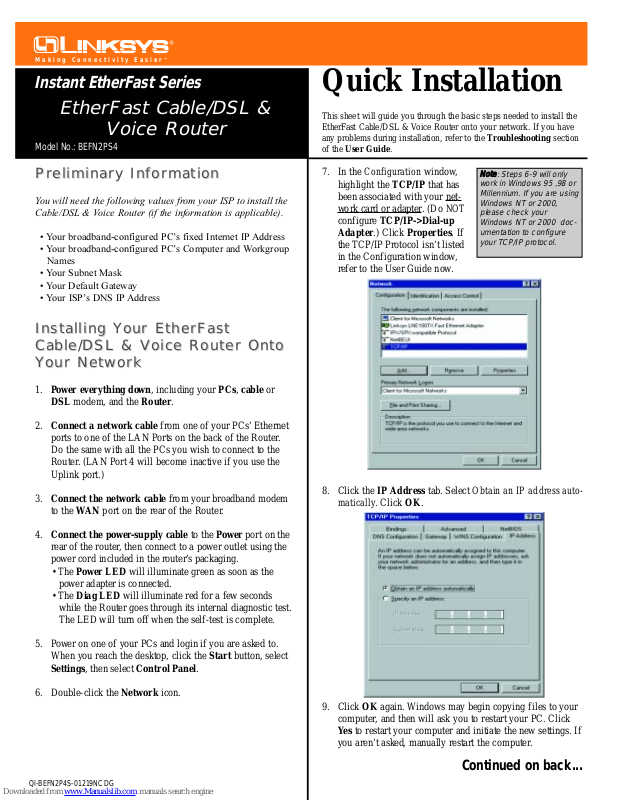

This sheet will guide you through the basic steps needed to install the
EtherFast Cable/DSL & Voice Router onto your network. If you have
any problems during installation, refer to the Troubleshooting section
of the User Guide.
PrPreliminary Information
eliminary Information
You will need the following values from your ISP to install the
Cable/DSL & Voice Router (if the information is applicable).
Your broadband-configured PCs fixed Internet IP Address
Your broadband-configured PCs Computer and Workgroup
Names
Your Subnet Mask
Your Default Gateway
Your ISPs DNS IP Address
Installing Y
Installing Y
our EtherFast
our EtherFast
Cable/DSL & V
Cable/DSL & V
oice
oice
Router Onto
Router Onto
YYour Network
our Network
1. Power everything down, including your PCs, cable or
DSL modem, and the Router.
2. Connect a network cable from one of your PCs’ Ethernet
ports to one of the LAN Ports on the back of the Router.
Do the same with all the PCs you wish to connect to the
Router. (LAN Por t 4 will become inactive if you use the
Uplink port.)
3. Connect the network cable from your broadband modem
to the WAN port on the rear of the Router.
4. Connect the power-supply cable to the Power por t on the
rear of the router, then connect to a power outlet using the
power cord included in the router’s packaging.
• The Power LED will illuminate green as soon as the
power adapter is connected.
• The Diag LED will illuminate red for a few seconds
while the Router goes through its internal diagnostic test.
The LED will turn off when the self-test is complete.
5. Power on one of your PCs and login if you are asked to.
When you reach the desktop, click the Start button, select
Settings, then select Control Panel.
6. Double-click the Network icon.

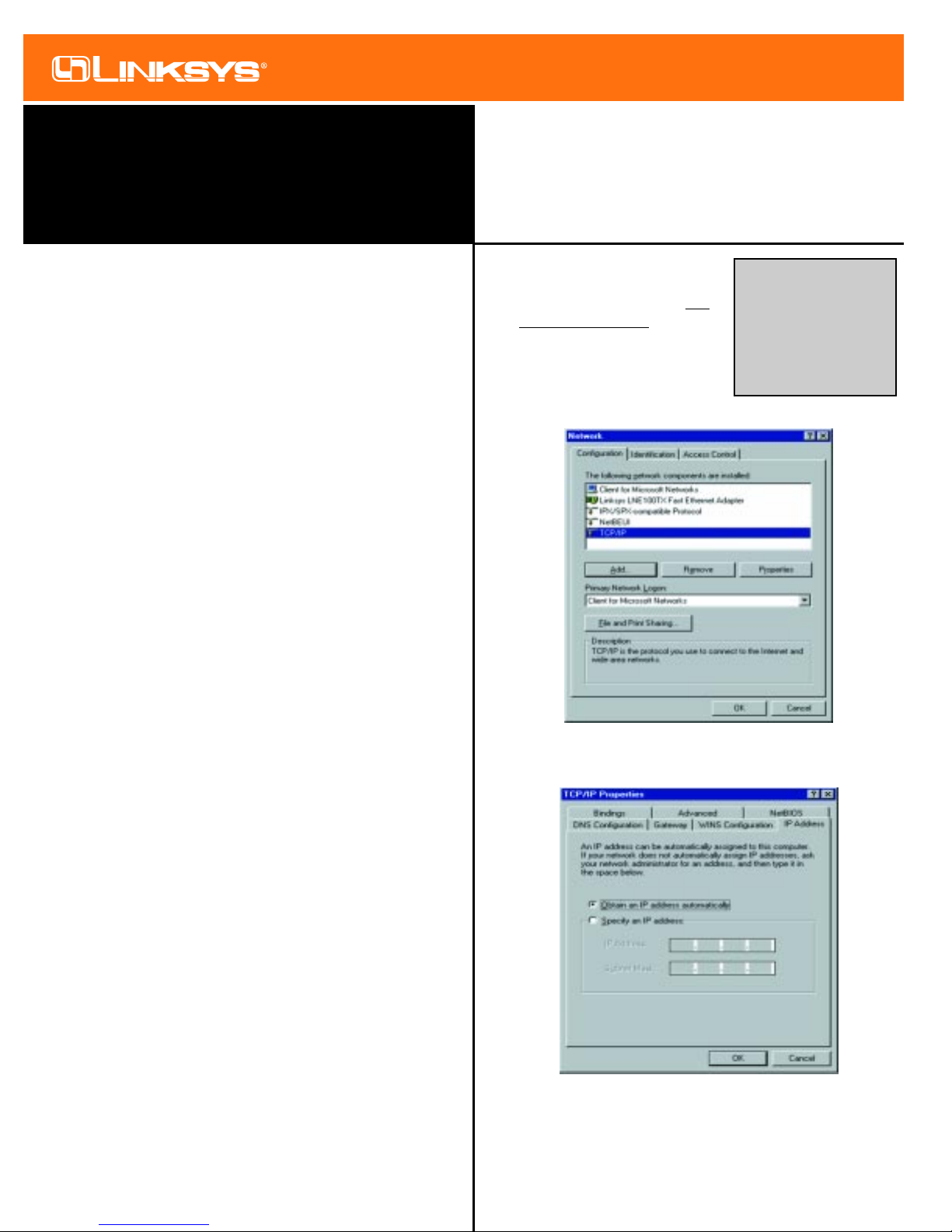

7. In the Configuration window,
highlight the TCP/IP that has
been associated with your net
-
w
ork card or adapter. (Do NOT
configure TCP/IP->Dial-up
Adapter.) Click Properties. If
the TCP/IP Protocol isn’t listed
in the Configuration window,
refer to the User Guide now.
8. Click the IP Address tab. Select Obtain an IP address auto-
matically. Click OK.
9. Click OK again. Windows may begin copying f iles to your
computer, and then will ask you to restart your PC. Click
Yes to restart your computer and initiate the new settings. If
you aren’t asked, manually restart the computer.
Model No.:BEFN2PS4
EtherFast Cable/DSL &
Voice Router
Instant EtherFast Series
Quick Installation
Making Connectivity Easier
™
Continued on back...
NNoottee
: Steps 6-9 will only
work in Windows 95 ,98 or
Millennium. If you are using
Windows NT or 2000,
please check your
Windows NT or 2000 documentation to configure
your TCP/IP protocol.
QI-BEFN2P4S-01219NC DG
Page 2

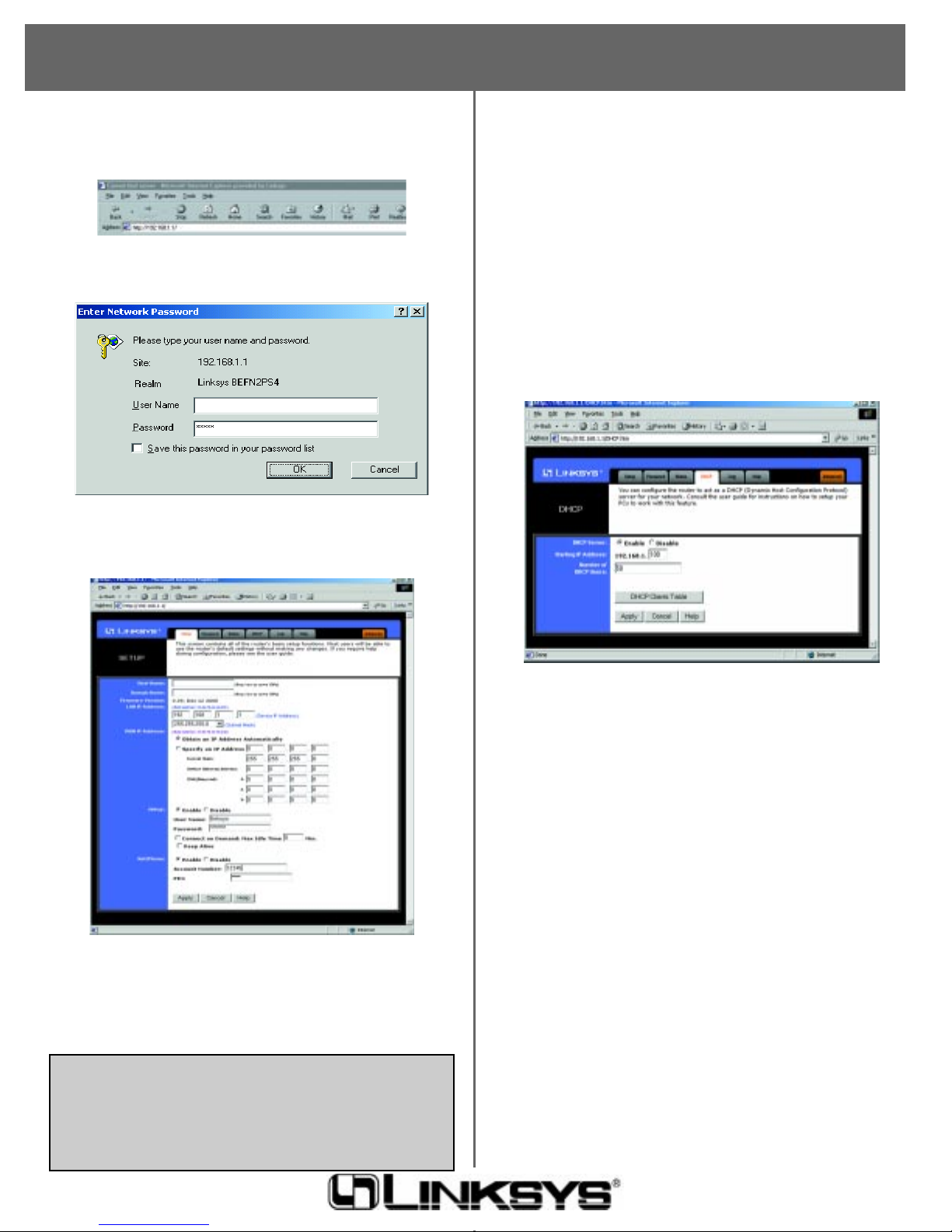

10. Open your PC’s web browser and type http://192.168.1.1 in
