Linksys AC2600 User Manual

AC

MUMIMO GIGABIT ROUTER

USER GUIDE

Model# EA85 00

ii

Linksys EA8500

ii

Table of Contents

Product overview

EA8500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Setting Up Your Router

Where to find more help. . . . . . . . . . . . . . . . . . . . . . . . . .3

How to install your router . . . . . . . . . . . . . . . . . . . . . . . . .3

How to connect to Linksys Smart Wi-Fi 4
How to change router settings 4

Troubleshooting

Your router was not successfully set up . . . . . . . . . . . . . . . .7

Windows XP Service Pack update . . . . . . . . . . . . . . . . . . . .7

Your Internet cable is not plugged in message . . . . . . . . . . . . .8

Cannot access your router message. . . . . . . . . . . . . . . . . . . .8

Specifications

Linksys EA8500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

1

Linksys EA8500

Product overview

EA8500

Front view

• Power Indicator — The Linksys logo stays on steadily while connected

to the Internet. It flashes or pulses slowly during bootup, self-testing and
firmware upgrades. It flashes quickly when indicating connection errors.

Back view

• Adjustable external antennas—This router ships with four adjustable

external antennas that should be connected to the router before
powering it on. To connect the antennas, twist the antenna clockwise
onto the antenna connector on the router.

NOTE

For best performance, position the side antennas vertically as
shown in the picture.

• USB 3.0 port—Connect and share a USB drive or USB printer on your

network or on the Internet.

• USB 2.0/eSATA combo port—Connect and share a USB/eSATA drive or

a USB printer on your network or on the Internet.

1

Product overview

Power Indicator

Combo USB 2.0/
eSATA Port

Power Indicator

USB 3.0 Port

Internet Port Power Port

Wi-Fi On/Off

Button

Ethernet Ports

Wi-Fi Protected

Reset Button

Power Switch

4x Adjustable External Antennas

Setup Button

2

Linksys EA8500

Product overview

• Ethernet ports—Connect Ethernet cables (also called network or Internet

cables) to these Gigabit Ethernet (10/100/1000) ports and to other wired
devices on your network.

• Ethernet activity indicators—Green light is on when there is a wired

connection. Yellow light blinks while the router is sending or receiving data.

• Internet port—Connect an Ethernet cable to this port and to your modem.

• Internet activity indicators—Green light is on when there is a wired

connection. Yellow light blinks while the router is sending or receiving data.

• Wi-Fi button—Press to enable/disable the wireless function.

• Wi-Fi indicator—Lights up green when wireless function is on.

• Wi-Fi Protected Setup™ (WPS) button—Press to easily configure wireless

security on Wi-Fi Protected Setup-enabled network devices. For more
information, see “Wireless Security” on page 6.

• Wi-Fi Protected Setup™ (WPS) indicator—LED blinks slowly while accepting

Wi-Fi Protected Setup connections. LED blinks quickly when there is a Wi-Fi
Protected Setup error.

• Reset button—Press and hold until all port lights blink at the same time to

reset the router to its factory defaults.

• Power—Connect the included AC power adapter to this port.

• Power switch—Press | (on) to power on the router.

3

Linksys EA8500

Setting Up Your Router

Where to find more help

• Linksys.com/support/EA8500 (documentation, downloads, FAQs,
technical support, live chat, forums)

• Linksys Smart Wi-Fi (linksyssmartwifi.com; click Help at the top of
the screen)

NOTE

Licenses and notices for third party software used in this product may
be viewed on http://support.linksys.com/en-us/license. Please contact
http://support.linksys.com/en-us/gplcodecenter for questions or GPL
source code requests.

How to install your router

Note: If replacing an existing router, disconnect that router first.

1. Connect the antennas (if included) and plug in the router to a power

source. Press power switch to | (on) to power on the router. (Not all
routers have power switches.)

2. Connect the Internet cable from your modem to the yellow Internet port

on the back of your router. Wait until the power indicator on your router
is solid.

3. Connect to the secure wireless name shown in the Quick Start Guide that

came with your router. (You can change these details later.) Select the
option to automatically connect to this network in the future. You will not
have Internet access until you complete router setup (see Step 4).

4. Open a web browser to launch the Linksys Smart Wi-Fi Router setup

instructions. If you don’t see the instructions, type linksyssmartwifi.com in
the address bar.

At the end of setup, follow the on-screen instructions to set up your Linksys
Smart Wi-Fi account. Use Linksys Smart Wi-Fi to manage your router’s settings,
including:

• Change your router’s name and password

• Set up guest access

• Configure parental controls

• Connect devices to your network

• Test your Internet connection speed

NOTE

As part of Linksys Smart Wi-Fi account setup, you will be sent a
verification e-mail. Make sure that you open the e-mail from Linksys
and click the provided link, and log in from a device connected directly
to the router.

Setting Up Your Router

4

Linksys EA8500

Setting Up Your Router

How to connect to Linksys Smart Wi-Fi

1. Open a web browser and go to www.linksyssmartwifi.com.

2. Enter the e-mail address and password you set up earlier and click Sign in.

How to change router settings

NOTE

For additional help on any menu, click Help at the top of the screen.

• Open Linksys Smart Wi-Fi and log in to your account.

• In the menu on the left, click an option:

Network Map — Lets you display and manage all network devices connected
to your router. You can view devices on your main network and your guest
network, or display information about each device.

Guest Access — Lets you configure and monitor a network that guests can
use without accessing all of your network resources.

Parental Controls — Lets you block web sites and set Internet access times.

5

Linksys EA8500

Setting Up Your Router

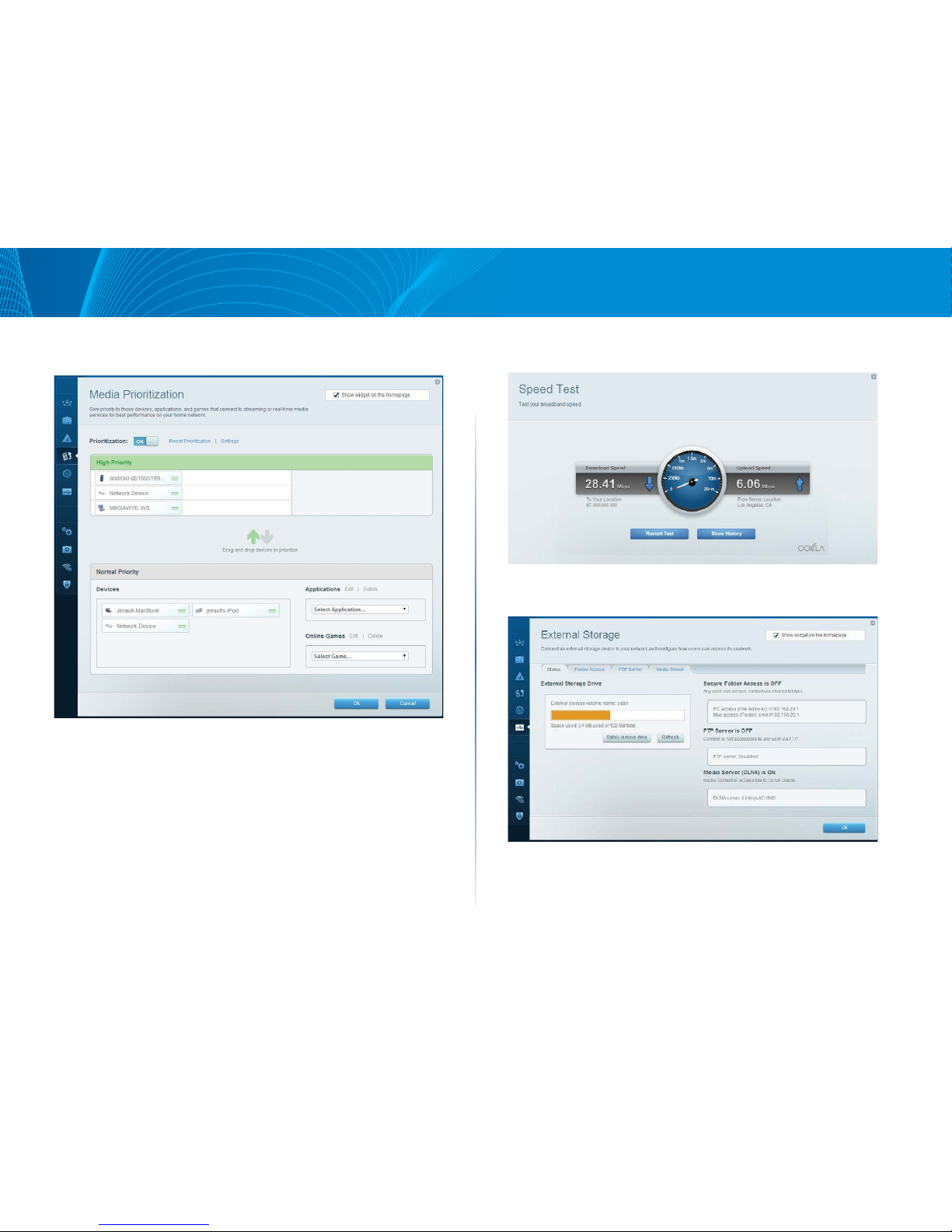

Media Prioritization — Lets you set which devices and applications have top
priority for your network traffic.

Speed Test — Lets you test your network’s Internet connection speed.

External Storage — Lets you access an attached USB drive (not

included) and set up file sharing, a media server, and FTP access.

6

Linksys EA8500

Setting Up Your Router

Connectivity — Lets you configure basic and advanced network settings.

Troubleshooting — Lets you diagnose problems with your router and check

the status of the network.

Wireless — Lets you configure your router’s wireless network. Among the
settings you may change are network name (SSID), security mode, password,
MAC filtering, and connect devices using Wi-Fi Protected Setup.

Security — Lets you configure your router’s wireless security. You can set
up the firewall, VPN settings, and make custom settings for applications
and games.

7

Linksys EA8500

Troubleshooting

This chapter can help you solve common setup issues and connect to the
Internet. You can find more help from our award-winning customer support at
linksys.com/support.

Your router was not successfully set up

If Linksys Smart Wi-Fi did not complete the setup, you can try the following:

Press and hold the Reset button on your router with a paperclip or pin until
the LED starts flashing (about 10 seconds), then install the router again.

If you still haven’t set up the router, find another computer, and use that
computer to install the router again.

Windows XP Service Pack update

On Windows XP computers, Linksys Smart Wi-Fi requires Service Pack 3. If the
currently installed Service Pack is older than version 3, you need to download
and install Service Pack 3.

NOTE

To temporarily connect to the Internet and download the required Service
Pack, you can use the included Ethernet cable to connect your computer
directly to your modem.

To Install Service Pack 3:

1. Connect to the Microsoft Update website
(update.microsoft.com/windowsupdate).

2. Follow the instructions on the website or contact Microsoft if you need
further help.

3. After downloading and installing Service Pack 3, install the router again.

Troubleshooting

Reset Button

8

Linksys EA8500

Troubleshooting

Your Internet cable is not plugged in
message

If you get a “Your Internet cable is not plugged in” message when trying to set
up your router, follow these troubleshooting steps.

Make sure that an Ethernet cable (or a cable like the one supplied with your
router) is securely connected to the yellow Internet port on the back of the
router and to the appropriate port on your modem. This port on the modem
is usually labeled Ethernet.

Internet Port

Reset Button

Back view of router

Internet Port

Reset Button

Back view of cable modem

Back view of c able modem

Internet Port

Reset Button

Back view of DSL modem

Make sure that your modem is connected to power and is turned on. If it has a
power switch, make sure that it is set to the ON or l position.

If your Internet service is cable, verify that the cable modem’s CABLE port is
connected to the coaxial cable provided by your ISP.

Or, if your Internet service is DSL, make sure that the DSL phone line is
connected to the modem’s DSL port.

If your computer was previously connected to your modem with a USB cable,
disconnect the USB cable.

Install the router again.

Cannot access your router message

To access your router, you must be connected to your own network. If you
have wireless Internet access, the problem may be that you have accidentally
connected to a different wireless network.

To fix the problem on Windows computers:

1. On your Windows desktop, right-click the wireless icon in the system tray.
The icon can differ depending on your version of Windows.

2. Click View Available Wireless Networks. A list of available networks
appears.

9

Linksys EA8500

Troubleshooting

3. Click your own network name, and click Connect. In the example below,
the computer was connected to another wireless network named
JimsRouter. The name of the Linksys EA8500 network, BronzeEagle in this
example, is shown selected.

4. If you are prompted to enter a network key, type your password (Security
Key) into the Network key and Confirm network key fields. Click
Connect.

5. You should be able to access the router.

To fix the problem on Mac computers:

In the menu bar across the top of the screen, click the Wi-Fi icon. A list of
wireless networks appears. Linksys Smart Wi-Fi has automatically assigned
your network a name.

In the example below, the computer was connected to another wireless
network named JimsRouter. The name of the Linksys EA8500 network,
BronzeEagle in this example, is shown selected.

Click the wireless network name of your Linksys EA8500 (BronzeEagle in the
example).

Type your wireless network password (Security Key) into the Password field,
and click OK.

10

Linksys EA8500

Specifications

Linksys EA8500

Model Name Linksys AC2600 MU-MIMO Gigabit Router
Model Number EA8500
Switch Port Speed 10/100/1000 Mbps (Gigabit Ethernet)
Radio Frequency 2.4 GHz and 5 GHz
# of Antennas 4 external adjustable antennas,

1 internal antenna
Ports Power, Internet, Ethernet (1-4),

USB 3.0, USB 2.0 / eSATA combo
Buttons Reset, Wi-Fi Protected Setup, Wi-Fi, Power
LEDs Power, Internet, Ethernet (1-4), Wi-Fi,

Wi-Fi Protected Setup
UPnP Supported
Security Features WEP, WPA2, RADIUS
Security Key Bits Up to 128-bit encryption
Storage File Systems Support

FAT, NTFS, and HFS+

Browser Support Latest versions of Google Chrome, Firefox,

Safari (for Mac and iPad), and Internet Explorer
versions 8 and newer

Environmental

Dimensions 10.09” x 2.21” x 7.22”
(256.3 x 56.2 x 183.5 mm) without antennas

Unit Weight 20.67 oz (586 g) without antennas

25.22 oz (715 g) with antennas
Power 12V, 3.5A
Certifications FCC, IC, CE, Wi-Fi (IEEE 802.11a/b/g/n/ac),

Windows 7, Windows 8, DLNA
Operating Temp. 32 to 104°F (0 to 40°C)
Storage Temp. -4 to 140°F (-20 to 60°C)
Operating Humidity 10 to 80% relative humidity,

non-condensing
Storage Humidity 5 to 90% non-condensing

Notes

For regulatory, warranty, and safety information, see the CD that
came with your router or go to Linksys.com/support.

Specifications are subject to change without notice.

Maximum performance derived from IEEE Standard 802.11
specifications. Actual performance can vary, including lower
wireless network capacity, data throughput rate, range and
coverage. Performance depends on many factors, conditions and
variables, including distance from the access point, volume of
network traffic, building materials and construction, operating
system used, mix of wireless products used, interference and other
adverse conditions.

Specifications

Visit linksys.com/support for award-winning
technical support

BELKIN, LINKSYS and many product names and logos are trademarks
of the Belkin group of companies. Third-party trademarks mentioned are
the property of their respective owners.© 2015 Belkin International,
Inc. and/or its affiliates. All rights reserved.

LNKPG-00215 Rev. C00
