User Guide

AC1750 Dual-Band Wireless Access Point

LAPAC1750

Contents

Chapter 1 – Quick Start Guide ........................................................................... 4

Package Contents ................................................................................................................................... 4

Physical Details ........................................................................................................................................ 4

Mounting Guide ........................................................................................................................................ 5

Chapter 2 – Quick Start ........................................................................................ 7

Overview ..................................................................................................................................................... 7

Setup using a web browser .................................................................................................................. 7

Setup Wizard ............................................................................................................................................. 8

Chapter 3 – Configuration ................................................................................ 12

Administration ....................................................................................................................................... 12

LAN ............................................................................................................................................................ 21

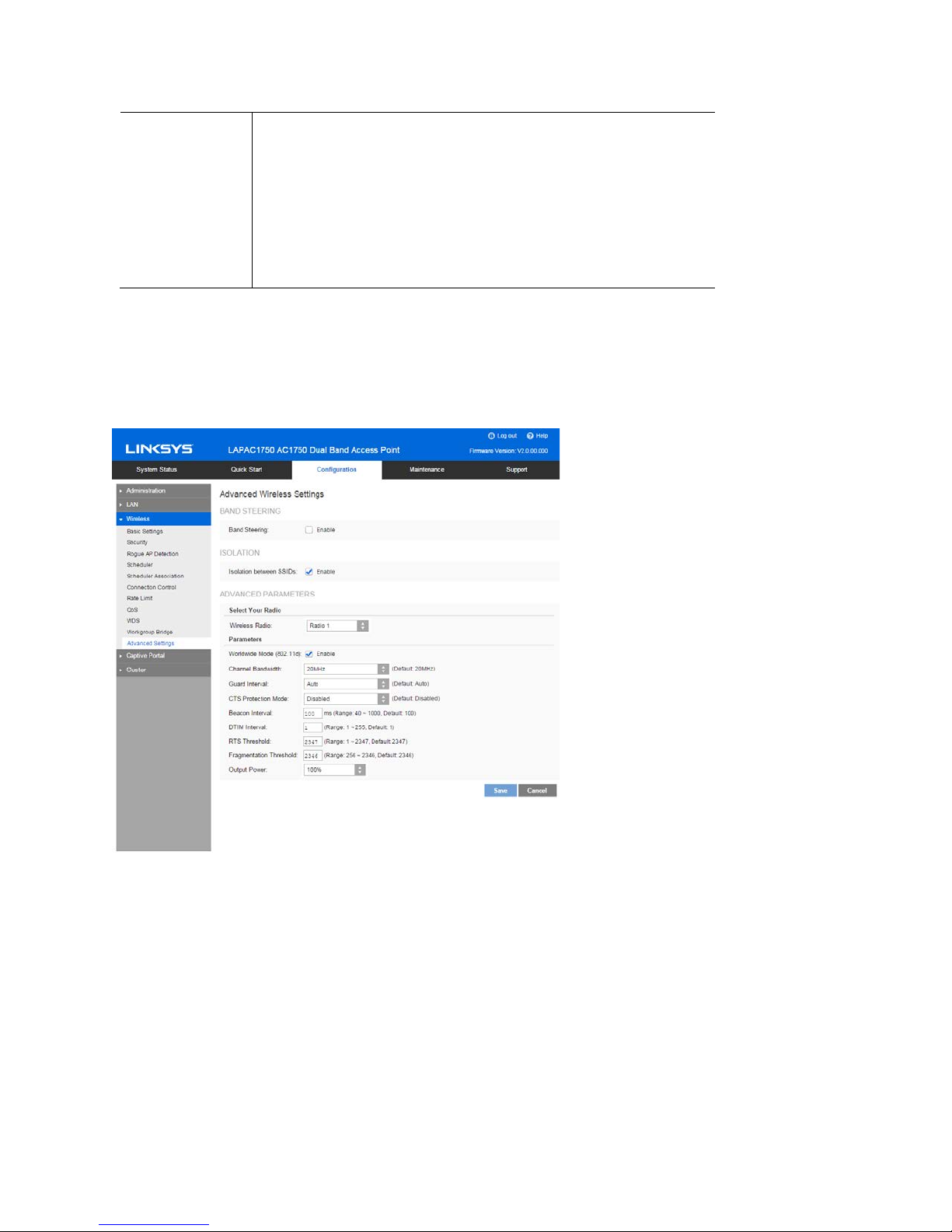

Wireless .................................................................................................................................................... 27

Captive Portal ........................................................................................................................................ 60

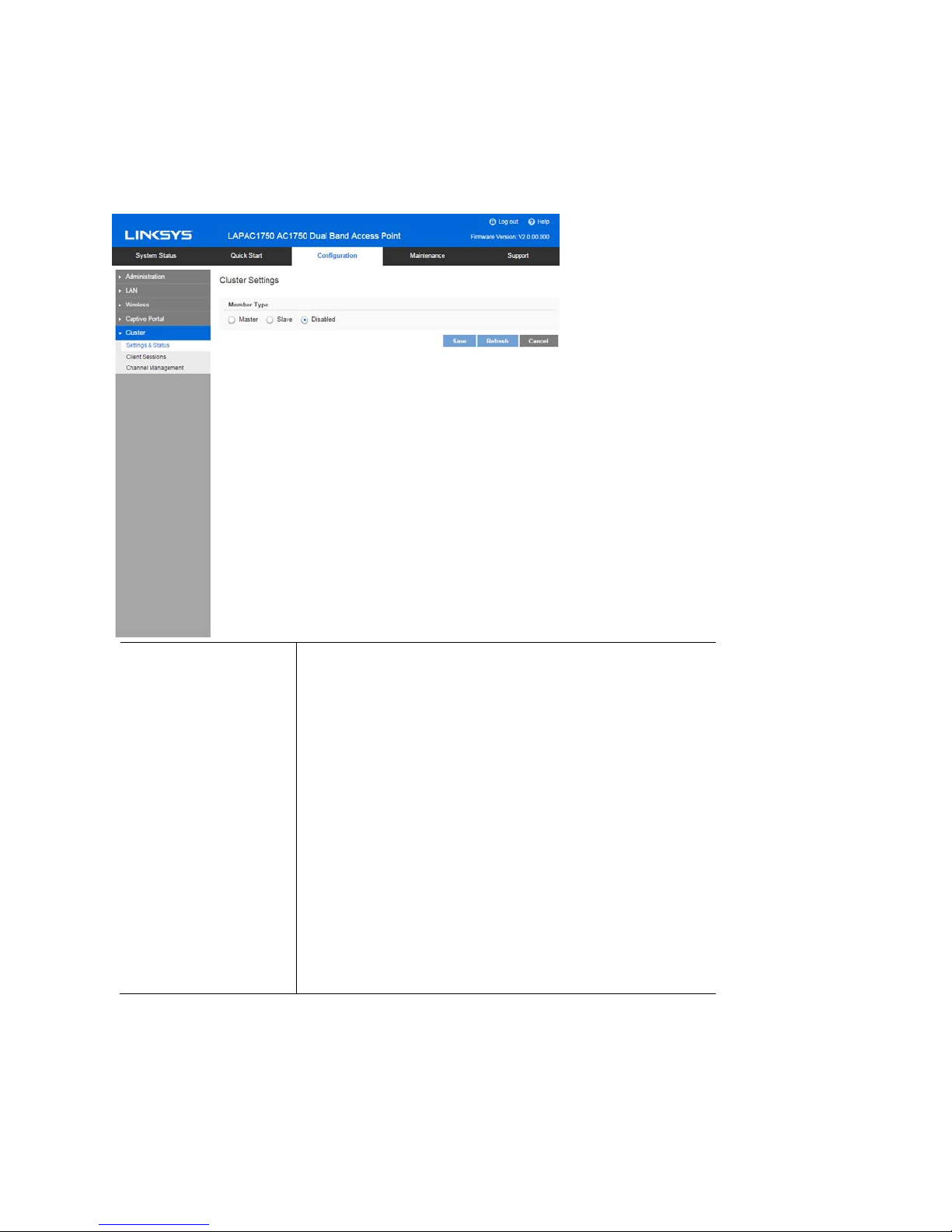

Cluster ...................................................................................................................................................... 72

Chapter 4 - System Status .............................................................................. 80

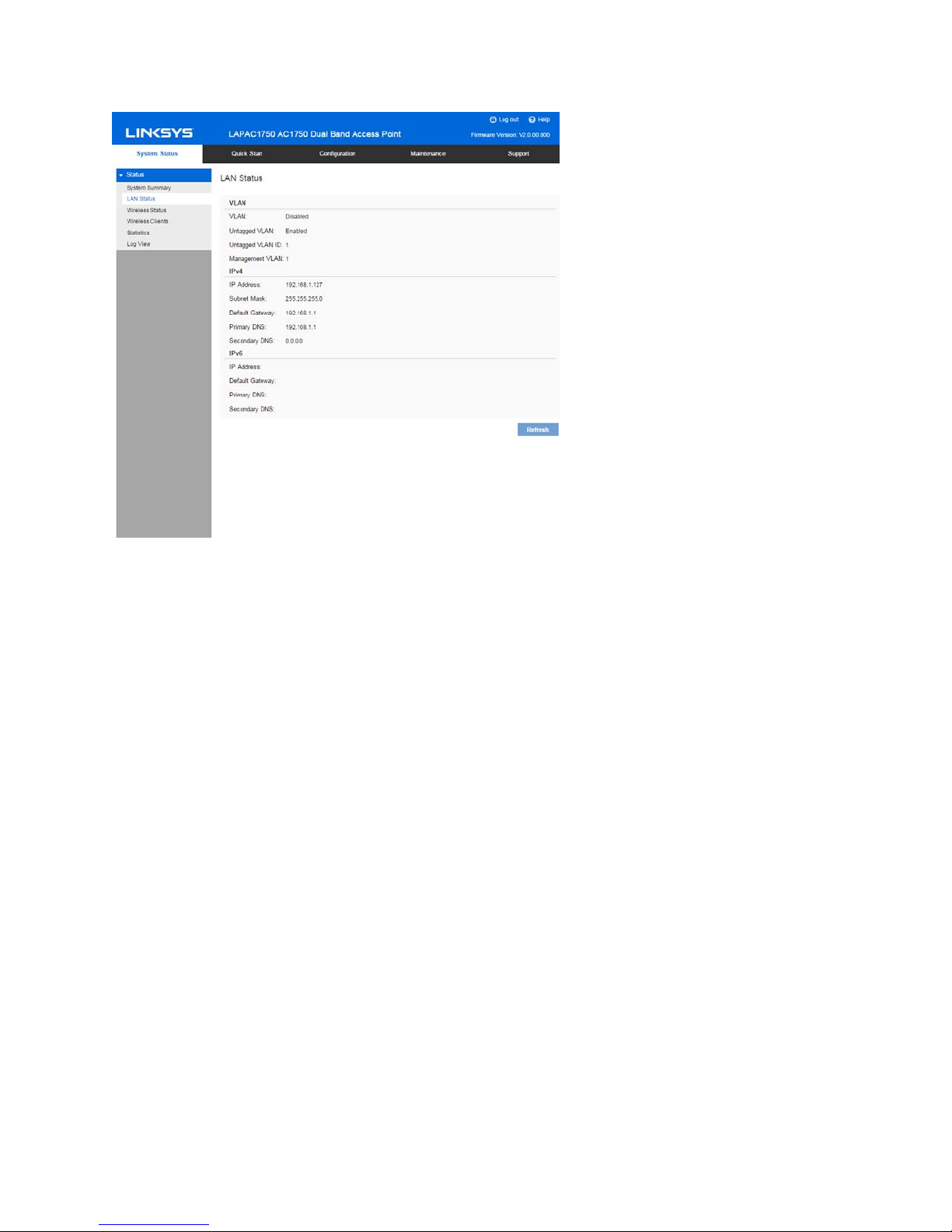

Status ....................................................................................................................................................... 80

Chapter 5 – Maintenance .................................................................................. 91

Maintenance ........................................................................................................................................... 91

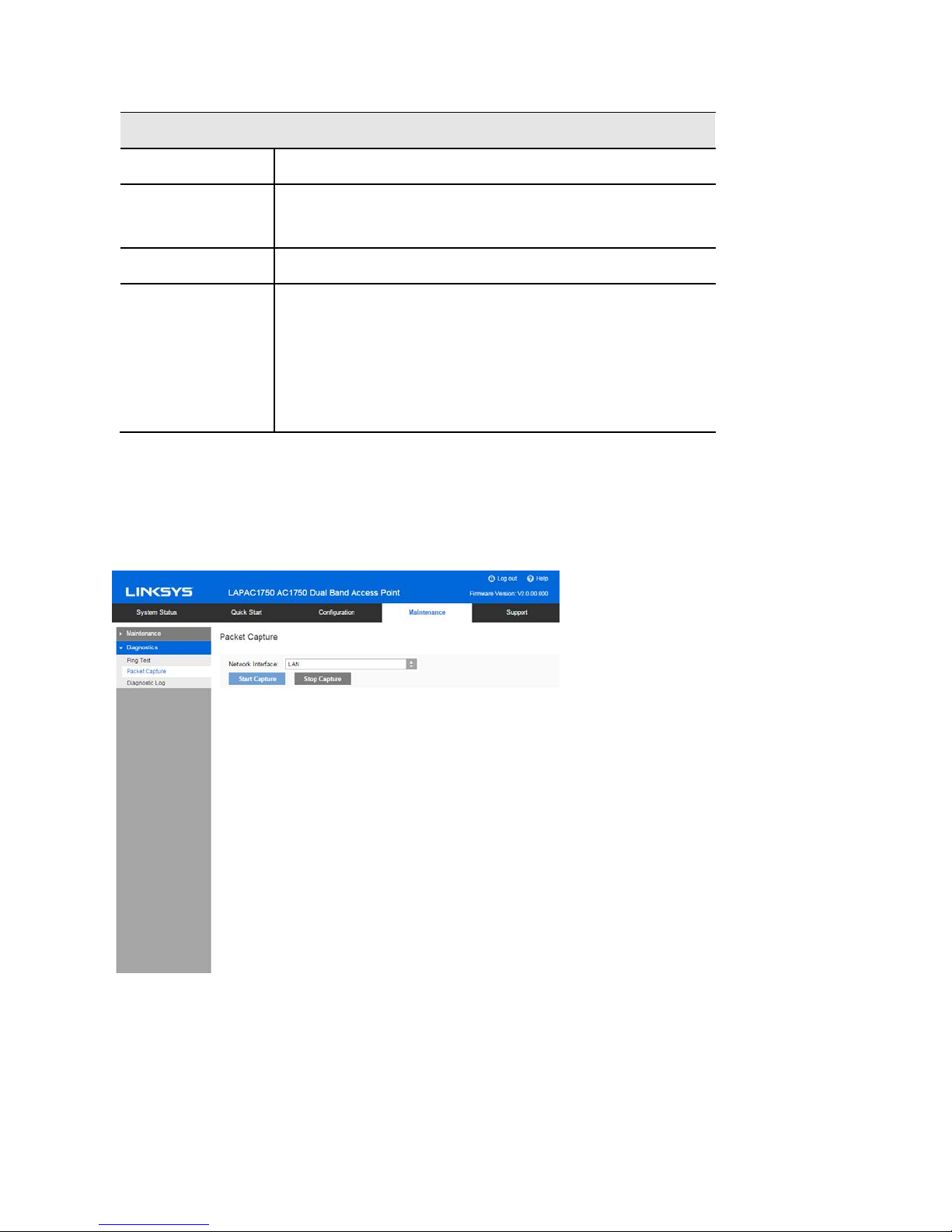

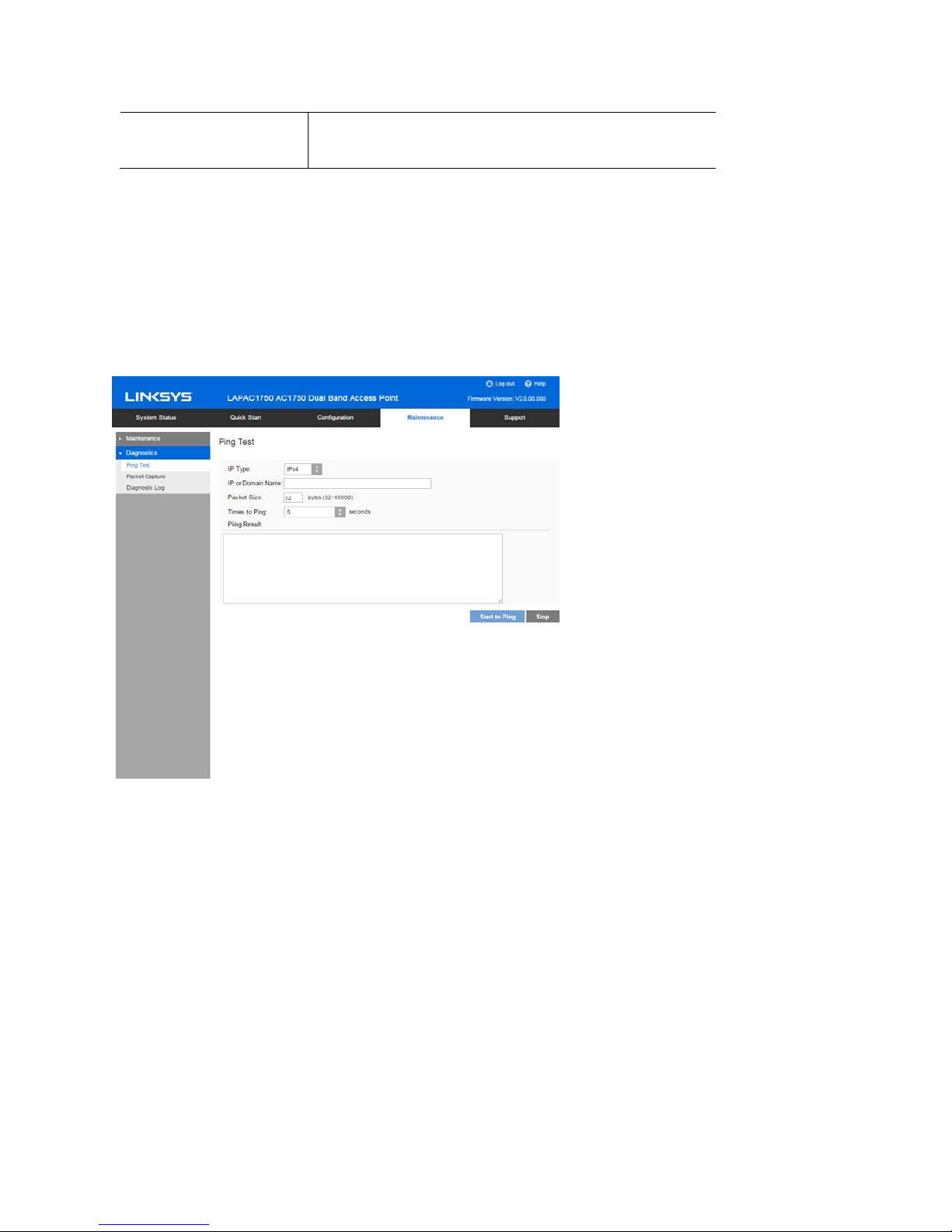

Diagnostics ............................................................................................................................................. 95

Appendix A - Troubleshooting ......................................................................... 98

Overview .................................................................................................................................................. 98

General Problems ................................................................................................................................. 98

Appendix B - About Wireless LANs ..............................................................100

Overview ............................................................................................................................................... 100

Wireless LAN Terminology ............................................................................................................. 100

Appendix C - PC and Server Configuration ..............................................104

Overview ............................................................................................................................................... 104

Using WEP ............................................................................................................................................ 104

Using WPA2-PSK .............................................................................................................................. 105

Using WPA2-Enterprise .................................................................................................................. 105

802.1x Server Setup (Windows 2000 Server) ....................................................................... 106

802.1x Client Setup on Windows XP ......................................................................................... 117

Using 802.1x Mode (without WPA) ............................................................................................. 123

Chapter 1 - -- Quick Start Guide

Solid

System is normal; at least one wireless device connected.

required.

Package Contents

•

Linksys Wireless Access Point

•

Quick Start Guide

•

Ethernet Cable

•

AC Power Adapter

•

CD with Documentation

•

Mounting Bracket

•

Mounting Kit

•

Ceiling Mount Back Plate

•

Drilling Layout Template

Physical Details

There is one LED.

LED behavior

LED Color Activity Status

Green

Blue

Red Solid

Blinking System is booting.

Solid System is normal; no wireless devices connected.

Blinking Software upgrade in process.

Booting process or update failed; hard reset or service

Ports and Button

Power Port—Connect the AC power adapter to this port.

Note—Use only the adapter that came with your access point.

Ethernet Port—Connect a wired network device to this port. This port supports PoE (Power over Ethernet) with a PoE switch or PoE injector. LAPAC1750 can be powered on from an 802.3at (PoE+) compliance source. Using CAT5e or better cable is highly recommended.

Note—When both PoE and AC power adapter are connected to access point, device will get power from PoE as higher precedence.

Reset Button—Press and hold this button for less than 15 seconds to power cycle device. Press and hold for longer than 15 seconds to reset the device to factory default settings.

Mounting Guide

To avoid overheating, do not install your access point if ambient temperatures exceed 104°F (40°C). Install on a flat, stable surface, near the center of your wireless coverage area making sure not to block vents on the sides of the device enclosure.

Wall Installation

1. Position drilling layout template at the desired location.

2. Drill four screw holes on the mounting surface. If your Ethernet cable is routed behind the wall, mark Ethernet cable hole as well.

3. Secure the mounting bracket on the wall with anchors and screws.

4. If your Ethernet cable is routed behind the wall, cut or drill the Ethernet cable hole you marked in Step 2. Feed the Ethernet cable through the hole.

5. Connect the Ethernet cable and/or AC power adapter to your device.

6. Slide the device into the bracket. Turn clockwise until it locks into place.

Ceiling Installation

1. Select ceiling tile for mounting and remove tile.

2. Position drilling layout template at the desired location.

3. Drill four screw holes and Ethernet cable hole on the surface of ceiling tile.

4. Place back plate on the opposite side of ceiling tile. Secure mounting bracket to the ceiling tile with flathead screw and nut. Route the Ethernet cable through the Ethernet cable hole.

5. Replace tile in ceiling.

6. Connect the Ethernet cable and/or AC power adapter to your device

7. Slide the device into the bracket. Turn access point clockwise until it locks.

IMPORTANT—Improper or insecure mounting could result in damage to the device or personal injury. Linksys is not responsible for damages caused by improper mounting.

Chapter 2 - -- Quick Start

Overview

This chapter describes the setup procedure to connect the wireless access point to your LAN, and configure it as an access point for your wireless stations.

Wireless stations may also require configuration. For details, see Appendix C - Wireless Station Configuration (p. 104

The wireless access point can be configured using a web browser.

Setup using a web browser

Your browser must support JavaScript. The configuration program has been tested on the following browsers:

•

Firefox 3.5 or later, Chrome 8 or later, Safari 5 or later

•

Internet Explorer 8 or later

Setup Procedure

Make sure device is powered on before you continue setup. If LED light is off, check that AC power adapter, or PoE cable, is properly connected on both ends.

Access device’s browser-based setup:

1. Use the included cable to connect the access point to your network via a network switch or router.

2. Open a web browser on a computer connected to your network. Enter the IP address of your access point. By factory default, the IP address will be assigned by a DHCP server (usually the network router). If there is no DHCP server on your network, the default IP address is 192.168.1.252/255.255.255.0.

Note—Use a computer hardwired to the same network as your access point for browser-based setup access. Access to browser-based setup via Wi-Fi is disabled by default.

3. Type in default username: “admin”, and password: “admin”.

4. Click Log in to launch the browser-based setup and follow the on-screen instructions.

If you can't connect:

It is likely that your PC’s IP address is incompatible with the wireless access point’s IP address. This can happen if your LAN does not have a DHCP Server. If there is no DHCP server in your network, the access point will fall back to its default IP address: 192.168.1.252, with a network mask of 255.255.255.0.

Or, if your PC’s IP address is not compatible with this, you must change your PC’s IP address to an unused value in the range 192.168.1.1 ~ 192.168.1.254, with a network mask of

255.255.255.0. See Appendix A - Windows TCP/IP (p. 98

Setup Wizard

If you are setting up the access point as a standalone device, run the Setup Wizard. If the access point will be part of a cluster – master or slave - go to Configuration > Cluster > Settings & Status page instead.

1. Click the Quick Start tab on the main menu.

) for details for this procedure.

2. On the first screen, click Launch...

3. Set the password on the Device Password screen, if desired.

4. Configure the time zone, date and time for the device on System Settings screen.

5. On the IPv4 Address screen configure the IP address of the device ( then click Next.

Static

Automatic

)

6. Set the SSID information on the Wireless Network screen. Click Next. If you want to

configure more than four SSIDs, go to Configuration > Wireless > Basic Settings. The

access point supports up to eight SSIDs per radio.

7. On the Wireless Security Screen, configure the wireless security settings for the device. Click Next. If you are looking for security options that are not available in the wizard, go to Configuration > Wireless Security page. The access point supports more sophisticated security options there.

8. On the Summary screen, check the data to make sure they are correct and then click Submit to save the changes.

9. Click Finish to leave the wizard.

Chapter 3 - -- Configuration

Administration

User Accounts

Go to Configuration > Administration and select User Accounts to manage user accounts. The access point supports up to five users: one administrator and four normal users.

User Account Table

User Name

User Level

New Password

Confirm New

Password

Enter the User Name to connect to the access point’s admin interface. User Name is effective once you save settings.

User Name can include up to 63 characters. Special characters are allowed.

Only administrator account has Read/Write permission to the access point’s admin interface. All other accounts have Read Only permission.

Enter the Password to connect to the access point’s admin interface.

Password must be between 4 and 63 characters. Special characters are allowed.

Re-enter password.

Time

Go to Configuration > Administration and select Time to configure system time of the device.

Time

Current Time

Manually

Automatically

Time Zone

Start Time

End Time

Offset

NTP

NTP Server 1

Display current date and time of the system.

Set date and time manually.

When enabled (default setting) the access point will get the current time from a public time server.

Choose the time zone for your location from the drop-down list. If your location observes daylight saving time, enable “Automatically adjust clock for daylight saving changes.”

Specify the start time of daylight saving.

Specify the end time of daylight saving.

Select the adjusted time of daylight saving.

Enter the primary NTP server. It can be an IPv4 address or a domain name.

Valid characters include alphanumeric characters, "_", "-" and ".". Maximum length is 64 characters.

NTP Server 2

Enter the secondary NTP server. It can be an IPv4 address or a domain name.

Valid characters include alphanumeric characters, "_", "-" and ".". Maximum length is 64 characters.

Log Settings

Go to Configuration > Administration and select Log Settings to configure logs. Logs record various types of activity on the access point. This data is useful for troubleshooting, but enabling all logs will generate a large amount of data and adversely affect performance.

Log Types

The Username can include up to 32 characters. Special

The default is 20 messages. When messages reach the

Log Types

Email Alert

SMTP Server

Data Encryption

Port

Username

Password

Select events to log. Checking all options increase the size of the log, so enable only events you believe are required.

Enable email alert function.

Enter the e-mail server that is used to send logs. It can be an IPv4 address or a domain name.

Valid characters include alphanumeric characters, "_", "" and ".". Maximum length is 64 characters.

Enable if you want to use data encryption.

Enter the port for the SMTP server. The port is a value from 1 to 65535 and default is 25.

Enter the Username to login to your SMTP server.

characters are allowed.

Enter the Password to login to your SMTP server.

Email Address for

Logs

Log Queue Length

Log Time

Threshold

Syslog

Syslog Notification

IP Type

Server IP Address

The Password can include up to 32 characters. Special characters are allowed.

Enter the email address the log messages are to be sent to.

Valid characters include alphanumeric characters, "_", "", "." and "@". Maximum length is 64 characters.

Enter the length of the queue: up to 500 log messages.

set length the queue will be sent to the specified email address.

Enter the time threshold (in seconds) used to check if the queue is full. It’s a value from 1 to 600 and default is 600 seconds.

Enable Syslog notification.

Select the IP type of the syslog server: IPv4 or IPv6.

Enter the IPv4 or IPv6 address of syslog server here.

Management Access

Go to Configuration > Administration and select management methods of the access point.

Management Access

page to configure the

Web Access

HTTP

HTTP Port

HTTP to HTTPS

Redirect

HTTPS

HTTPS Port

HTTP (Hyper Text Transfer Protocol) is the standard for transferring files (text, graphic images and other multimedia files) on the World Wide Web.

Enable to allow Web access by HTTP protocol.

Specify the port for HTTP. It can be 80 (default) or from 1024 to 65535.

Enable to redirect Web access of HTTP to HTTPS automatically.

This field is available only when HTTP access is disabled.

HTTPS (Hypertext Transfer Protocol Secure) can provide more secure communication with the SSL/TLS protocol, which support data encryption to HTTP clients and servers.

Enable to allow Web access by HTTPS protocol.

Specify the port for HTTPS. It can be 443 (default) or from 1024 to 65535.

From Wireless

Access Control

SNMP Settings

SNMP

Contact

Enable wireless devices to connect to access point’s admin page. Disabled by default.

By default, no IP addresses are prohibited from accessing the device’s admin page. You can enable access control and enter specified IP addresses for access. Four IPv4 and four IPv6 addresses can be specified.

Simple Network Management Protocol (SNMP) is a network monitoring and management protocol.

Enable or disable SNMP function here. Disabled by default.

Enter contact information for the access point.

The contact includes 1 to 32 characters. Special characters are allowed.

Location

SNMP v1/v2 Settings

Enter the area or location where the access point resides.

The location includes 1 to 32 characters. Special characters are allowed.

Get Community

Set Community

SNMP v3 Settings

Enter the name of Get Community. Get Community is used to read data from the access point and not for writing data into the access point.

Get Community includes 1 to 32 characters. Special characters are allowed.

Enter the name of Set Community. Set Community is used to write data into the access point.

The Set Community includes 1 to 32 characters. Special characters are allowed.

Configure the SNMPv3 settings if you want to use SNMPv3.

Username: Enter the username. It includes 0 to 32 characters. Special characters are allowed.

Authentication Protocol: None or HMAC-MD5.

Authentication Key: 8 to 32 characters. Special characters are allowed.

Access Control

SNMP Trap

Trap Community

Trap Destination

Privacy Protocol: None or CBC-DES.

Privacy Key: 8 to 32 characters. Special characters are allowed.

When SNMP is enabled, any IP address can connect to the access point MIB database through SNMP. You can enable access control to allow specified IP addresses. Two IPv4 and two IPv6 addresses can be specified.

Enter the Trap Community server. It includes 1 to 32 characters. Special characters are allowed.

Two Trap Community servers are supported: can be IPv4 or IPv6.

SSL Certificate

Go to Configuration > Administration and select SSL Certificate to manage the SSL certificate used by HTTPS.

Export/Restore to/from Local PC

Export SSL

Certificate

Install Certificate

Export to TFTP Server

Destination File

TFTP Server

Export

Restore from TFTP Server

Source File

TFTP Server

Install

Click to export the SSL certificate.

Browse to choose the certificate file. Click Certificate.

Enter the name of the destination file.

Enter the IP address for the TFTP server. Only support IPv4 address here.

Click to export the SSL certificate to the TFTP server.

Enter the name of the source file.

Enter the IP address for the TFTP server. Only support IPv4 address here.

Click to install the file to the device.

Install

LAN

Network Setup

Go to Configuration > LAN > Network Setup to configure basic device settings, VLAN settings and settings for the LAN interface, including static or dynamic IPv4/IPv6 address assignment.

TCP/IP

LAN port is untagged when the following conditions are met: 1) VLAN

Enter an unused IP address from the address range used on your LAN.

ptional. If entered, this DNS will be used if the Primary DNS does not

Host Name

VLAN

Untagged

VLAN

Untagged

VLAN ID

Assign a host name to this access point. Host name consists of 1 to 15 characters. Valid characters include A-Z, a-z, 0-9 and -. Character cannot be first and last character of hostname and hostname cannot be composed of all digits.

Enables or disables VLAN function.

Enables or disables VLAN tagging. If enabled (default), traffic from the

ID is equal to Untagged VLAN ID and 2) untagged traffic can be accepted by LAN port. If disabled, traffic from the LAN port is always tagged and only tagged traffic can be accepted from LAN port.

By default all traffic on the access point uses VLAN 1, the default untagged VLAN. All traffic will be untagged until you disable the untagged VLAN, change the untagged traffic VLAN ID, or change the VLAN ID for a SSID.

Specifies a number between 1 and 4094 for the untagged VLAN ID. The default is 1. Traffic on the VLAN that you specify in this field is not be tagged with a VLAN ID when forwarded to the network.

Untagged VLAN ID field is active only when untagged VLAN is enabled.

VLAN 1 is the default for both untagged VLAN and management VLAN.

Management

VLAN

IPv4/v6

IP Settings

IP Address

Subnet Mask

Default

Gateway

Primary DNS

Secondary

DNS

The VLAN associated with the IP address you use to connect to the access point. Provide a number between 1 and 4094 for the Management VLAN ID. The default is 1.

Select Automatic Configuration or Static IP Address.

Enter the subnet mask for the IP address above.

Enter the gateway for the IP address above.

Enter the DNS address.

O respond.

Advanced

Go to Configuration > LAN > Advanced this screen to configure advanced network settings of the access point.

Port Settings

Auto Negotiation is disabled. The option can be 10M, 100M

Auto

Negotiation

Operational

Auto

Negotiation

Port Speed

Operational

Port Speed

Duplex Mode

Operational

Duplex Mode

If enabled, Port Speed and Duplex Mode will become grey and cannot be configured. If disabled, Port Speed and Duplex Mode can be configured.

Current Auto Negotiation mode of the Ethernet port.

Select the speed of the Ethernet port. Available only when

or 1000M (default).

Displays the current port speed of the Ethernet port.

Select the duplex mode of the Ethernet port. Available only when Auto Negotiation is disabled. The option can be Half or Full (default).

Displays the current duplex mode of the Ethernet port.

Flow Control

Enable or disable flow control of the Ethernet port.

802.1x Supplicant

802.1x

Supplicant

Enable if your network requires this access point to use

802.1X authentication in order to operate.

Authentication

Enter the login name. The name includes 1 to 63

witch by LLDP protocol. Information such as

This feature supports following two kinds of authentication:

•

Authentication via MAC Address Select this if you want to use MAC Address for authentication. The access point uses lowercase MAC address for Name and Password, like xxxxxxxxxxxx.

•

Authentication via Name and Password

Select this if you want to use name and password for authentication.

Discovery Settings

Bonjour

Enable if administrator wants the access point to be discovered by Bonjour enabled devices automatically. If VLAN is enabled, the discovery packets will be sent out via management VLAN only. The access point supports http and https services.

LLDP

Enable if administrator wants the access point to be discovered by s product name, device name, firmware version, IP address, MAC address and so on will be advertised.

LLDP-MED

Enable if administrator wants the access point to be discovered by switch by LLDP-MED protocol. Information such as product name, device name, firmware version, IP address, MAC address and so on will be advertised.

Name characters. Special characters are allowed.

Password - Enter the desired login password. The password includes 4 to 63 characters. Special characters are allowed.

IGMP/MLD Snooping

IGMP

The access point supports IGMPv1, IGMPv2 and IGMPv3 in

group (destination address). The access point maintains the

Snooping

IGMP (Internet Group Management Protocol) is a communications protocol used by hosts and adjacent routers on IP networks to establish multicast group memberships. IGMP is an integral part of IP multicast.

IGMP snooping streamlines multicast traffic handling by examining (snooping) IGMP membership report messages from interested hosts, multicast traffic is limited to the subset of ports on which the hosts reside.

IGMP snooping is enabled by default in the access point

IGMP Snooping.

MLD Snooping

Wireless

Basic Settings

MLD (Multicast Listener Discovery) is a component of the Internet Protocol Version 6 (IPv6) suite. MLD is used by IPv6 routers for discovering multicast listeners on a directly attached link, much like IGMP is used in IPv4.

Multicast Listener Discovery (MLD) Snooping provides multicast containment by forwarding traffic only to those clients that have MLD receivers for a specific multicast

MLD group membership information by processing MLD reports and generating messages so traffic can be forwarded to ports receiving MLD reports.

MLD snooping is enabled by default in the access point

The access point supports MLDv1 and MLDv2 in MLD Snooping.

Go to Configuration > Wireless > Basic Settings to configure your wireless radio and SSIDs. Advanced wireless settings such as Band Steering, Channel Bandwidth, are on the Advanced Settings screen.

Basic Wireless Settings

Wireless

Radio

Enable Radio

Wireless

Mode

Select the wireless radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Enable or disable the wireless radio.

Select the desired option for radio 1:

G only - allow connection by 802.11G wireless stations only.

N only - allow connection by 802.11N wireless stations only.

B/G-Mixed - allow connection by 802.11B and G wireless stations only.

B/G/N-Mixed (Default) - allow connections by 802.11N,

802.11B and 802.11G wireless stations.

Select the desired option for radio 2:

N/A-Mixed - allow connection by 802.11A and N wireless stations only.

N only - allow connection by 802.11N wireless stations only.

Wireless

Channel

SSID Settings

SSID Name

AC only - allow connection by 802.11AC wireless stations only.

A/N/AC-Mixed - allow connection by 802.11A, 802.11N and 802.11AC wireless stations.

Select wireless channel of the radio.

If Auto is selected, the access point will select the best available channel when device boots up.

If you experience lost connections and/or slow data transfers, experiment with manually setting different channels to see which is the best.

Enter the desired SSID Name. Each SSID must have a unique name. The name includes 1 to 32 characters

Broadcast

Enable or disable the broadcast of the SSID.

When the access point does not broadcast its SSID, the network name is not shown in the list of available networks on a client station. Instead, you must enter the exact network name manually into the wireless connection utility on the client so that it can connect.

Isolation

VLAN ID

Max Clients

Enable or disable isolation among clients of the SSID. If enabled, wireless clients cannot communicate with others in the same SSID.

It’s disabled by default.

Enter the VLAN ID of the SSID.

Used to tag packets which are received from the wireless clients of the SSID and sent from Ethernet or WDS interfaces.

Applicable only when VLAN function is enabled. VLAN function can be configured in Configuration -> LAN -> Network Setup screen.

Enter the number of clients that can connect to the SSID. The range is from 0 to 32 and 0 means no limit.

Security

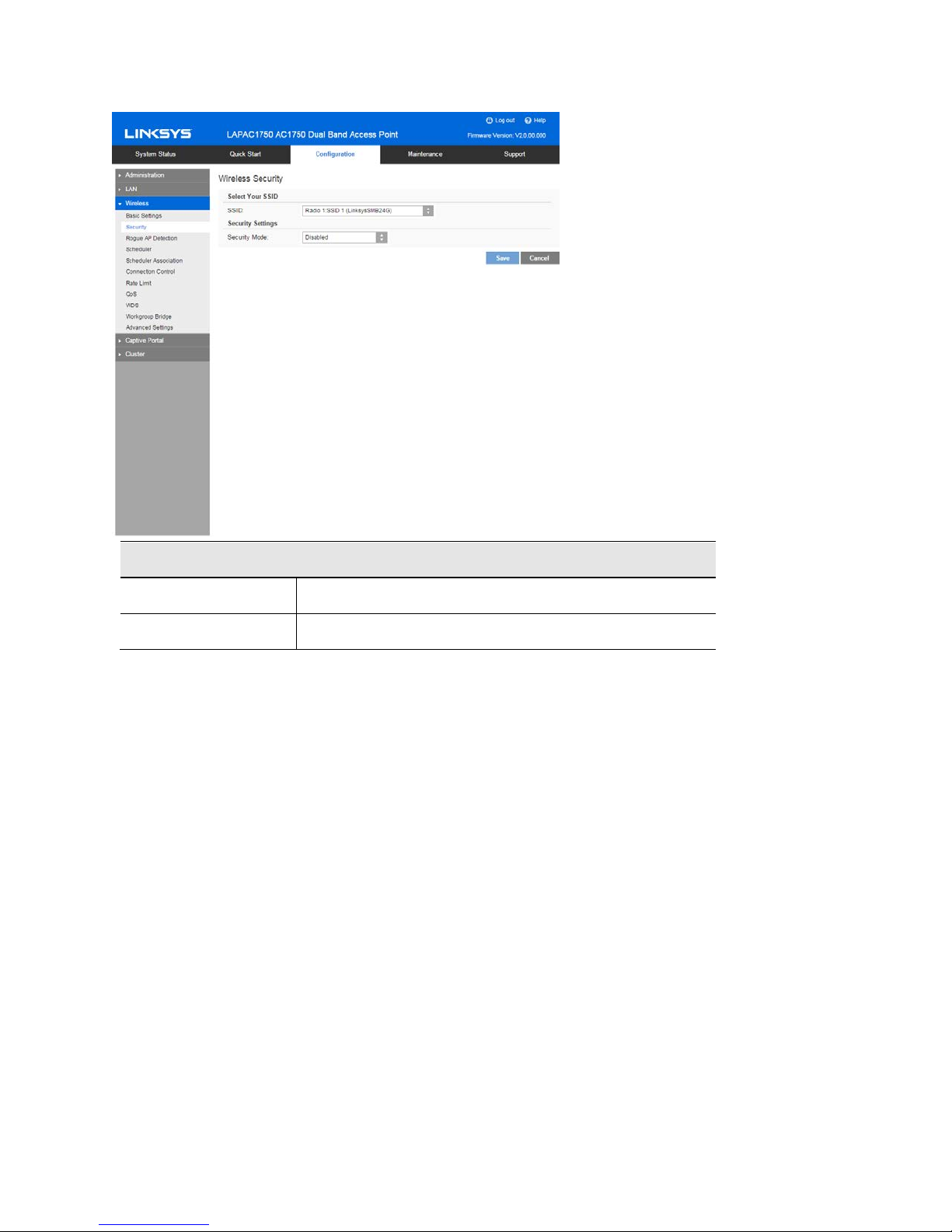

Go to Configuration > Wireless > Security to configure security settings of SSIDs to provide data protection over the wireless network.

Security

Select SSID

Security Mode

•

Disabled - No security. Anyone using the correct SSID can connect to your network.

•

WEP - The 802.11b standard. Data is encrypted before transmission, but the encryption system is not very strong.

•

WPA2-Personal - This is a further development of WPA-PSK, and offers even greater security, using the AES (Advanced Encryption Standard) method.

•

WPA/WPA2-Personal - This method, sometimes called Mixed Mode, allows clients to use either WPA-Personal (with TKIP) or WPA2-Personal (with AES).

•

WPA2-Enterprise - Requires a RADIUS Server on your LAN to provide the client authentication according to the 802.1x standard. Data transmissions are encrypted using the WPA2 standard.

If this option is selected:

Select the desired SSID from the drop-down list.

Select the desired security method from the list.

This access point must have a client login on the RADIUS Server.

Each user must authenticate on the RADIUS Server. This is usually done using digital certificates.

Each user's wireless client must support 802.1x and provide the RADIUS authentication data when required.

All data transmission is encrypted using the WPA2 AES standard. Keys are automatically generated, so no key input is required.

•

WPA/WPA2-Enterprise – This method, sometimes called Mixed Mode, allows clients to use either WPA-Enterprise (with TKIP) or WPA2-Enterprise (with AES).

•

RADIUS - RADIUS mode utilizes RADIUS server for authentication and dynamic WEP key generation for data encryption.

WEP

This is the 802.11b standard. Data is encrypted before transmission, but the encryption system is not very strong.

WEP

Authentication

Default

Transmit Key

WEP Encryption

Passphrase

Key Value

Select Open System or Shared Key. All wireless stations must use the same method.

Select a transmit key.

Select an encryption option, and ensure your wireless stations have the same setting:

64-Bit Encryption - Keys are 10 Hex characters.

128-Bit Encryption - Keys are 26 Hex characters.

Generate a key or keys, instead of entering them directly. Enter a word or group of printable characters in the Passphrase box and click the Generate button to automatically configure the WEP key. It consists of 1 to 30 characters.

Enter a key in hexadecimal format.

Note--Due to hardware limitation, one set of WEP key is supported per radio.

WPA2-Personal

This is a further development of WPA-Personal, and offers even greater security.

WPA2-Personal

WPA automatically changes secret keys after a certain

WPA Algorithm

Pre-shared Key

Key Renewal

The encryption method is AES. Wireless stations must also use AES.

Enter the key value. It is 8 to 63 ASCII characters or 64 HEX characters. Other wireless stations must use the same key.

Specify the value of Group Key Renewal. It’s a value from 600 to 36000 and default is 3600.

period of time. The group key interval is the period of time in between automatic changes of the group key, which all devices on the network share.

Constantly keying the group key protects your network against intrusion, as the would-be intruder must cope with an ever-changing secret key.

WPA/WPA2-Personal

This method, sometimes called Mixed Mode, allows clients to use either WPA-Personal or WPA2Personal.

WPA/WPA2-Personal

WPA automatically changes secret keys after a certain

WPA Algorithm

Pre-shared Key

Key Renewal

The encryption method is TKIP or AES.

Enter the key value. It is 8 to 63 ASCII characters or 64 HEX characters. Other wireless stations must use the same key.

Specify the value of Group Key Renewal. It’s a value from 600 to 36000, and default is 3600.

period of time. The group key interval is the period of time in between automatic changes of the group key, which all devices on the network share.

Constantly keying the group key protects your network against intrusion, as the would-be intruder must cope with an ever-changing secret key.

WPA2-Enterprise

This version of WPA2-Enterprise requires a RADIUS Server on your LAN to provide the client authentication. Data transmissions are encrypted using the WPA2 AES standard.

WPA2-Enterprise

Primary Server

Primary Server Port

Primary Shared

Secret

Backup Server

Backup Server Port

Backup Shared

Secret

WPA Algorithm

Key Renewal

Timeout

Enter the IP address of the RADIUS Server on your network.

Enter the port number used for connections to the RADIUS Server. It is a value from 1 to 65534, and default is 1812.

Enter the key value to match the RADIUS Server. It consists of 1 to 64 characters.

The Backup Authentication Server will be used when the Primary Authentication Server is not available.

Enter the port number used for connections to the Backup RADIUS Server. It’s a value from 1 to 65534, and default is 1812.

Enter the key value to match the Backup RADIUS Server. It consists of 1 to 64 characters.

The encryption method is AES.

Specify the value of Group Key Renewal. It is a value from 600 to 36000, and default is 3600.

WPA automatically changes secret keys after a certain period of time. The group key interval is the period of time in between automatic changes of the group key, which all devices on the network share.

Constantly keying the group key protects your network against intrusion, as the would-be intruder must cope with an ever-changing secret key.

WPA/WPA2-Enterprise

WPA/WPA2-Enterprise requires a RADIUS Server on your LAN to provide the client authentication. Data transmissions are encrypted using WPA/WPA2 standard.

WPA/WPA2-Enterprise

Primary Server

Primary Server Port

Primary Shared

Secret

Backup Server

Backup Server Port

Backup Shared

Secret

WPA Algorithm

Key Renewal

Timeout

Enter the IP address of the RADIUS Server on your network.

Enter the port number used for connections to the RADIUS Server. It is a value from 1 to 65534, and default is 1812.

Enter the key value to match the RADIUS Server. It consists of 1 to 64 characters.

The Backup Authentication Server will be used when the Primary Authentication Server is not available.

Enter the port number used for connections to the Backup RADIUS Server. It is a value from 1 to 65534, and default is 1812.

Enter the key value to match the Backup RADIUS Server. It consists of 1 to 64 characters.

The encryption method is TKIP or AES.

Specify the value of Group Key Renewal. It is a value from 600 to 36000, and default is 3600 second.

WPA automatically changes secret keys after a certain period of time. The group key interval is the period of time between automatic changes of the group key, which all devices on the network share.

Constantly keying the group key protects your network against intrusion, as the would-be intruder must cope with an ever-changing secret key.

RADIUS

Use RADIUS server for authentication and dynamic WEP key generation for data encryption.

Authentication Server

Primary Server

Primary Server Port

Primary Shared

Secret

Backup Server

Backup Server Port

Backup Shared

Secret

Rogue AP Detection

Enter the IP address of the RADIUS Server on your network.

Enter the port number used for connections to the RADIUS Server. It is a value from 1 to 65534, and default is 1812.

Enter the key value to match the RADIUS Server. It consists of 1 to 64 characters.

The Backup Authentication Server will be used when the Primary Authentication Server is not available.

Enter the port number used for connections to the Backup RADIUS Server. It is a value from 1 to 65534, and default is 1812.

Enter the key value to match the Backup RADIUS Server. It consists of 1 to 64 characters.

Go to Configuration > Wireless > Rogue AP Detection to detect the unexpected or unauthorized access point installed in a secure network environment.

Radio

Wireless Radio

Rogue AP

Detected Rogue AP List

Action

MAC Address

SSID

Channel

Security

Signal

Trusted AP List

Action

MAC Address

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Enable or disable Rogue AP Detection on the selected radio.

Click Trust to move the AP to the Trusted AP List.

The MAC address of the Rogue AP.

The SSID of the Rogue AP.

The channel of the Rogue AP.

The security method of the Rogue AP.

The signal level of the Rogue AP.

Click Untrust to move the AP to the Rogue AP List.

The MAC address of the Trusted AP.

SSID

Channel

Security

Signal

New MAC

Address

The SSID of the Trusted AP.

The channel of the Trusted AP.

The security method of the Trusted AP.

The signal level of the Trusted AP.

Add one trusted AP by MAC address.

Scheduler

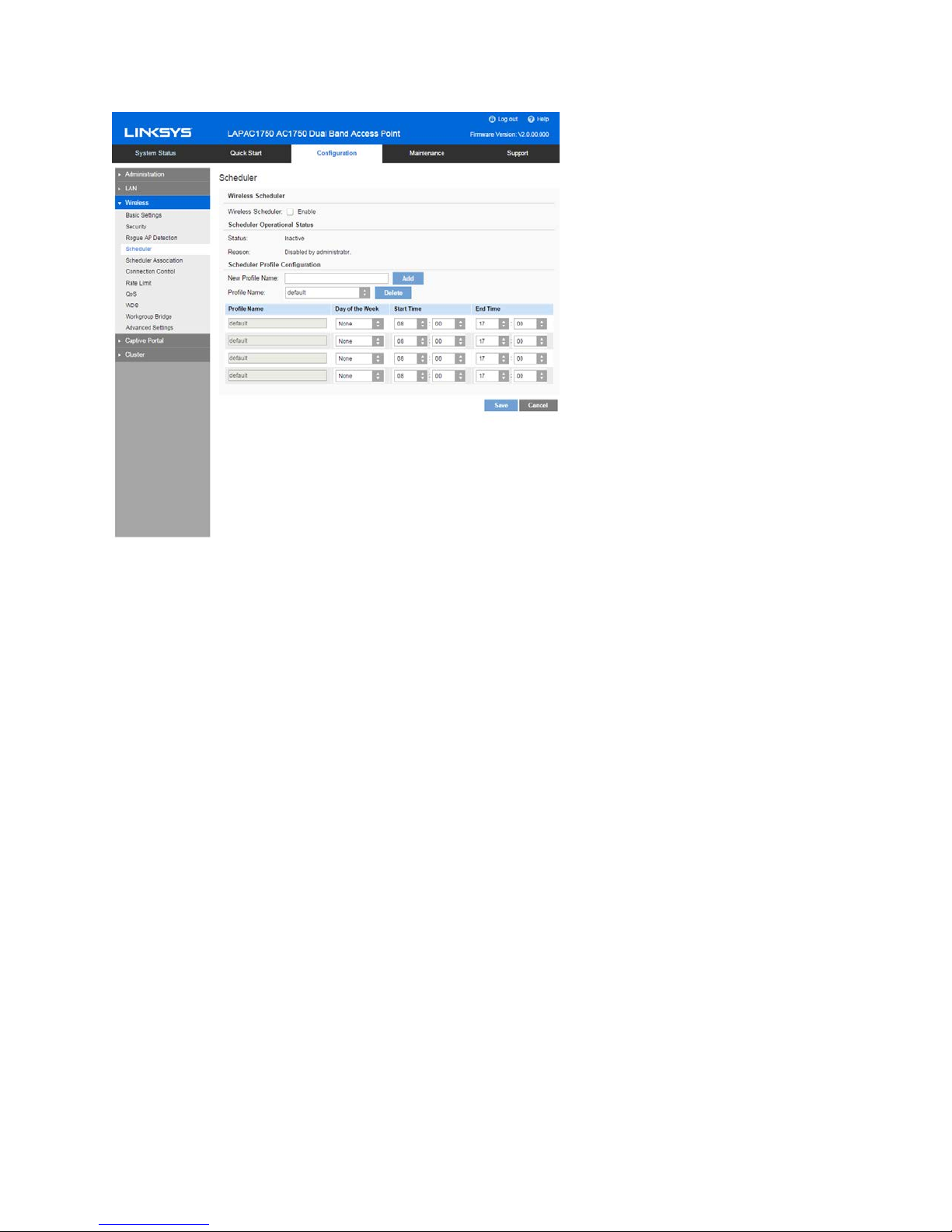

Go to Configuration > Wireless > Scheduler to configure a rule with a specific time interval for SSIDs to be operational. Automate enabling or disabling SSIDs based on the profile definition. Support up to 16 profiles and each profile can include four time rules.

Scheduler

Wireless

Scheduler

Scheduler Operational Status

Status

Reason

Scheduler Profile configuration

Enable or disable wireless scheduler on the radio. It is disabled by default.

If disabled, even if some SSIDs are associated with profiles, they will be always active.

The operational status of the scheduler.

The detailed reason for the scheduler operational status. It includes the following situations.

•

System time is outdated.

Scheduler is inactive because system time is outdated.

•

Administrative Mode is disabled.

Scheduler is disabled by administrator.

•

Active

Scheduler is active.

New Profile Name

Profile Name

Day of the Week

Start Time

Finish Time

Enter the name for new profile.

Select the desired profile from the list to configure.

Select the desired day from the list.

Option “None” means this time rule is disabled.

Choose the start time.

Choose the finish time.

Scheduler Association

Go to Configuration > Wireless > Scheduler Association to associate defined scheduler profiles with SSIDs.

Radio

Wireless Radio

Scheduler Association

SSID

SSID Name

Profile Name

Interface Status

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

The index of SSID.

The name of the SSID.

Choose the profile that is associated with the SSID.

If the profile associated with the SSID is deleted, then the association will be removed.

Option ”None” means no scheduler profile is associated.

The status of the SSID. It can be Enabled or Disabled.

Scheduler only works when the SSID is enabled.

Connection Control

Go to Configuration > Wireless > Connection Control to define whether listed client stations may authenticate with the access point.

SSID

Select the desired SSID from the list.

Control Type

Select the option from the drop-down list as desired.

•

Local: Choose either “Allow only following MAC addresses to connect to wireless network” or “Prevent following MAC addresses from connection to wireless network.” You can enter up to 20 MAC addresses of wireless stations or choose the MAC address.

•

RADIUS

Primary/Backup RADIUS Server - Enter the IP address of the RADIUS Server.

Primary/Backup RADIUS Server Port – Enter the Port number of the RADIUS Server.

Primary/Backup Shared Secret - This is shared between the wireless access point and the RADIUS Server while authenticating the device attempting to connect.

•

Disabled

Rate Limit

Go to Configuration > Wireless > Rate Limit to limit downstream and upstream rate of SSIDs.

Radio

Wireless Radio

Rate Limit

SSID

SSID Name

Upstream

Rate

Downstream

Rate

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

The index of SSID.

The name of the SSID.

Enter a maximum upstream rate for the SSID. The range is from 0 to 300 Mbps for Radio 1 and from 0 to 800 Mbps for Radio 2; 0 means no limitation.

Enter a maximum downstream rate for the SSID. The range is from 0 to 300 Mbps for Radio 1 and from 0 to 800 Mbps for Radio 2; 0 means no limitation.

QoS

Go to Configuration > Wireless > QoS (Quality of Service) to specify priorities for different traffic coming from your wireless client. Lower priority traffic will be slowed down to allow greater throughput or less delay for high priority traffic.

QoS Setting

voice, video, best effort, and background. For an application

Wireless Radio

QoS Settings

SSID

SSID Name

VLAN ID

Priority

WMM

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

The index of SSID.

The name of the SSID.

The VLAN ID of the SSID.

Select the priority level from the list. VLAN must be enabled in order to set priority.

The 802.1p will be included in the VLAN header of the packets which are received from the SSID and sent from Ethernet or WDS interface.

Enable or disable WMM.

WMM (Wi-Fi Multimedia) is a component of the IEEE

802.11e wireless LAN standard for QoS.

WMM provides prioritization of wireless data packets from different applications based on four access categories:

to receive the benefits of WMM QoS, both it and the client running that application have to have WMM enabled. Legacy applications that do not support WMM and applications that do not require QoS, are assigned to the best effort category, which receives a lower priority than voice and video.

WMM is enabled by default.

WDS

Go to Configuration > Wireless > WDS (Wireless Distribution System) to expand a wireless network through multiple access points instead of linking them with a wired backbone.

WDS only works and interacts with LAPN300, LAPN600, LAPAC1200 or LAPAC1750 devices.

The access point can act as WDS Root or WDS Station:

•

WDS Root - Receives WDS connections from remote WDS Stations.

•

WDS Station - Connects to remote WDS Root. Supports up to 4 WDS Stations on each wireless radio.

Spanning Tree (recommended if you configure WDS connections)

Spanning Tree

WDS Settings

Radio

WDS Root

Interface

Status

When enabled, STP helps prevent switching loops.

Select the desired radio from the list. Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Enable or Disable the WDS Root.

Be sure the following settings on WDS Root device are determined and configured. The WDS Station must use the same settings as Root afterwards.

•

Radio

•

IEEE 802.11 Mode

•

Channel Bandwidth

•

Channel

Note--It is highly recommended that static channel is configured on both APs. Do not use Auto channel option

Local SSID

Local MAC

Address

Local Channel

when you enable WDS, as both APs in a WDS link must be on the same radio channel. If Auto option is configured, there is chance two access points run on different channels and WDS link cannot establish.

Workgroup Bridge and WDS will not work at the same time on one wireless radio. When Workgroup Bridge is enabled, WDS will be disabled automatically on the same radio.

Enter name of the WDS Root SSID (used when connected by WDS Stations).

MAC address of the WDS Root SSID.

The channel used by WDS Root SSID. WDS stations must use same channel as the WDS Root.

Channel can be changed in "Basic Settings" page.

Allowed VLAN

there is chance two access points run on different channels

List

Enter the list of VLANs accepted by the WDS Root.

When VLAN is enabled, WDS Root receives from WDS Stations only packets in the VLAN list. Packets not in the list will be dropped.

The VLAN list is only applicable when VLAN is enabled.

The VLAN list includes 1 to 16 VLAN IDs separated by "," such as "100,200,300,400,500,600,700,800".

Security

Settings

WDS Station

Interface

Status

Setting can be Disabled, WPA-Personal, WPA2-Personal, WPA2-Enterprise or WPA/WPA2-Enterprise.

Enable or disable the WDS Station.

Before configuring a WDS Station, be sure the following settings of the device are identical to the WDS Root that will be connected.

•

Radio

•

IEEE 802.11 Mode

•

Channel Bandwidth

•

Channel

Note--It is highly recommended that static channel is configured on both APs. Do not use Auto channel option when you enable WDS, as both APs in a WDS link must be on the same radio channel. If Auto option is configured,

and WDS link cannot establish.

Workgroup Bridge and WDS will not work at the same time on one wireless radio. When Workgroup Bridge is enabled, WDS will be disabled automatically on the same radio.

Remote SSID

Enter the name of the Root’s SSID. Click Site Survey button and choose from the list. You must do this for WDS Station to connect to a remote WDS Root.

Remote MAC

Address

MAC address of the access point on the other end of the WDS link. Optional

WDS Station connects to remote WDS Root by matching SSIDs. When there is more than one remote WDS Root with the same SSID, the WDS Station can differentiate them by MAC address.

The format is xx:xx:xx:xx:xx:xx.

VLAN List

Security Mode

Status

Enter the list of VLANs that are accepted by the WDS Station.

When VLAN is enabled, the WDS Station forwards to the remote WDS Root only packets in the VLAN list. Packets not in the VLAN list cannot be forwarded to the remote WDS Root.

The VLAN List is only applicable when VLAN is enabled.

The VLAN list includes 1 to 8 VLAN IDs separated by "," such as "100,200,300,400,500,600,700,800".

The type of encryption to use on the WDS link. It must be unique to the access point on the other end of the WDS link.

The options are Disabled, WPA Personal, WPA2 Personal, WPA Enterprise or WPA2 Enterprise.

Status of the WDS interface. It can be Disabled, Connected or Not Connected.

Workgroup Bridge

Go to Configuration > Wireless > Workgroup Bridge to extend the accessibility of a remote network. In Workgroup Bridge mode, the access point acts as a wireless station (STA) on the wireless LAN. It can bridge traffic between a remote wired network and a wireless LAN.

When Workgroup Bridge is enabled, SSID configuration still works to provide wireless services to clients.

All access points participating in Workgroup Bridge must have the identical settings for Radio interface, IEEE 802.11 mode, Channel Bandwidth, Channel (Auto is not recommended).

Workgroup Bridge

Before configuring Workgroup Bridge, make sure all devices

Workgroup Bridge link must be on the same radio channel. If

Radio

Workgroup Bridge Status

Status

Select the desired radio from the list. Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Enable or disable Workgroup Bridge function.

in Workgroup Bridge have the following identical settings.

•

Note--It is highly recommended that static channel is configured on both APs. Do not use Auto channel option when you enable Workgroup Bridge, as both APs in a

Auto option is configured, there is chance two access

Radio

IEEE 802.11 Mode

Channel Bandwidth

Channel

points run on different channels and Worgroup Bridge link cannot establish.

Remote AP Settings

SSID

Remote MAC

Address

Enter the name of the SSID to which Workgroup Bridge will connect. Click Site Survey button to choose from the list. You must do this for Workgroup Bridge to connect to a remote access point.

Normally, Workgroup Bridge connects to a remote access point by matching SSID. When more than one remote access point has the same SSID, Workgroup Bridge can connect to different remote access points.

Optional: You can specify the MAC address of the remote access point to limit Workgroup Bridge’s connection to a specific remote access point.

The format is xx:xx:xx:xx:xx:xx.

Security Mode

Select the desired mode from the list.

•

Disabled

•

WPA-Personal

•

WPA2-Personal

•

WPA-Enterprise

•

WPA2-Enterprise

Advanced Settings

Go to Configuration > Wireless > Workgroup Bridge to configure advanced parameters of wireless radios.

Band Steering

Isolation

Isolation between

SSIDs

Advanced Parameters

Wireless Radio

Worldwide Mode

(802.11d)

Enable or disable Band Steering function.

Band Steering is a technology that detects whether the wireless client is dual-band capable. If it is, band steering pushes the client to connect to the lesscongested 5 GHz network. It does this by actively blocking the client’s attempts to connect with the

2.4GHz network.

Define whether to isolate traffic between SSIDs. If enabled, wireless clients in different SSIDs cannot communicate with each other. Enabled by default.

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Worldwide Mode (802.11d) enables the access point to direct connected wireless devices to radio settings specific to where in the world the devices are in use.

Channel Bandwidth

Guard Interval

Select the designed channel bandwidth for the wireless radio.

20MHz - Select if you are not using any 802.11n wireless devices.

20/40MHz - Select if you are using both 802.11n and non-802.11n wireless devices.

20/40/80MHz - Select if you are using 802.11ac,

802.11n and non-802.11n wireless devices.

Select the guard interval manually for Wireless-N connections. The two options are Short (400 nanoseconds) and Long (800 nanoseconds). The default is Auto.

CTS Protection

able to transmit to the access point in an environment

Mode

CTS (Clear-To-Send) Protection Mode boosts the access point's ability to catch all Wireless-G transmissions, but it severely decreases performance. By default, CTS Protection Mode is disabled, but the access point will automatically enable this feature when Wireless-G devices are not

with heavy 802.11b traffic.

Beacon Interval

DTIM Interval

The access point transmits beacon frames at regular intervals to announce the existence of the wireless network. Enter the interval between the transmissions of beacon frames. The value range is between 40 and 1000 milliseconds and default is 100 milliseconds.

Enter the Delivery Traffic Information Map (DTIM) period, an integer from 1 to 255 beacons. The default is 1 beacon.

The DTIM message is an element included in some beacon frames. It indicates which client stations, currently sleeping in low-power mode, have data buffered on the access point awaiting pickup.

The DTIM period that you specify indicates how often the clients served by this WAP device should check for buffered data still on the access point awaiting pickup.

For example, if you enter 1, clients check for buffered data on the access point at every beacon. If you enter 10, clients check on every 10th beacon.

RTS Threshold

The RTS threshold indicates the number of octets in a

If the packet being transmitted is equal to or less than

Enter the Request to Send (RTS) Threshold value, an integer from 1 to 2347. The default is 2347 octets.

Medium Access Control Protocol Data Unit (MPDU) below which an RTS/CTS handshake is not performed.

Changing the RTS threshold can help control traffic flow through the access point, especially one with a lot of clients. If you specify a low threshold value, RTS packets are sent more frequently, which consumes more bandwidth and reduces the throughput of the packet. However, sending more RTS packets can help the network recover from interference or collisions that might occur on a busy network, or on a network experiencing electromagnetic interference.

Fragmentation

Threshold

Output Power

Enter the fragmentation threshold, an integer from 256 to 2346. The default is 2346.

The fragmentation threshold is a way of limiting the size of packets (frames) transmitted over the network. If a packet exceeds the fragmentation threshold you set, the fragmentation function is activated and the packet is sent as multiple 802.11 frames.

the threshold, fragmentation is not used. Setting the threshold to the largest value (2,346 bytes, which is the default) effectively disables fragmentation.

Fragmentation involves more overhead because of the extra work of dividing up and reassembling of frames it requires, and because it increases message traffic on the network. However, fragmentation can help improve network performance and reliability if properly configured.

Select the output power of the access point. If many access points exist, lower power can reduce the signal interference among them.

Captive Portal

Captive Portal is a method of securing access to the Internet from within a wireless network. Users must enter authentication credentials before their wireless client devices can access the Internet.

Global Configuration

Go to Configuration > Captive Portal > Global Configuration to change settings and modify captive portal authentication access port number if needed.

Captive Portal

Enable or Disable Captive Portal function globally. Captive Portal is disabled by default.

Authentication

Timeout

Additional HTTP

Port

HTTP Port

Additional HTTPS

Port

HTTPS Port

The number of seconds the access point keeps an authentication session open with a wireless client. If the client fails to enter authentication credentials within the timeout period, the client may need to refresh the web authentication page.

The range is from 60 to 600 seconds. Default is 300.

HTTP portal authentication uses the HTTP management port by default. You can configure an additional port for that process.

Once Additional HTTP Port is enabled, define an additional port for HTTP protocol. The value can be 80 or 1024 to 65535 and is 80 by default. The HTTP Port must be different from the HTTP port in

Administration > Management Access

HTTPS portal authentication uses the HTTPS management port by default. You can configure an additional port for that process.

Once Additional HTTPS Port is enabled, define an additional port for HTTPS protocol. The value can be 443 or 1024 to 65535 and is 443 by default. The additional HTTPS Port must be different from the HTTPS port in page.

Administration > Management Access

page.

Portal Profiles

Go to Configuration > Captive Portal > Portal Profiles to define detailed settings for Captive Portal profile. Create up to two profiles.

Portal Profiles

Assigns an existing group to the profile. All users who

Captive Portal

Profile

Protocol

Authentication

Landing Page

Select a profile to configure.

Select the protocol used to access the Portal Authentication web server. It can be HTTP or HTTPS.

Select an authentication method for clients.

Local - The access point uses a local database to authenticated wireless clients.

Radius - The access point uses a database on a remote RADIUS server to authenticate wireless clients. The RADIUS server must support EAP-MD5.

Password Only - Wireless clients only need a password. Username is unnecessary.

No Password - Wireless clients accept defined terms to access the wireless network. Password and username both are unnecessary.

Enable Landing Page to determine where authenticated wireless clients will be directed after logging in at Captive Portal. Choose

Promotion URL

Original URL

Redirect to Original

URL

Promotion URL

Session Timeout

Local Authentication

Group Name

If Landing Page is enabled, this setting redirects authenticated wireless clients from the Captive Portal login screen to the URL the user typed in.

Enter a URL to which authenticated clients will be redirected from the Captive Portal login page. Landing Page must be enabled and Redirect to Original URL must be disabled.

Set the session time in minutes. The access point will disconnect authenticated clients when the session time expires. Session time can range from 0 to 1440 minutes. The default is 0 minutes, which means no timeout.

belong to the group are permitted to access the network through this portal. The option 'Default' means a group which includes all users.

Radius Authentication

Primary Server

Primary Server Port

Primary Shared

Secret

Backup Server

Backup Server Port

Backup Shared

Secret

Password Only Authentication

Password

Enter the IP address of the RADIUS Server on your network.

Enter the port number used for connections to the RADIUS Server.

Enter the key value to match the RADIUS Server.

The Backup Authentication Server will be used when the Primary Authentication Server is not available.

Enter the port number used for connections to the Backup RADIUS Server.

Enter the key value to match the Backup RADIUS Server.

The password for the profile. Wireless clients only need one password to access the wireless network.

Local User

Go to Configuration > Captive Portal > Local User to configure user settings for Captive Portal. Up to 128 users are supported.

User Name

Password

Confirm Password

Enter the name of the user account.

The user name includes 1 to 32 characters. Special characters except ':' and ';' are allowed.

Enter the password of the user account.

The password must be between 4 and 32 characters in length. Special characters except ':' and ';' are allowed.

Re-enter the password to confirm it.

Local Group

Go to Configuration > Captive Portal > Local Group to configure group settings. Groups include multiple local users and are mapped to Captive Portal profiles. Up to two groups are supported.

Other users which don't belong to the selected group.

Group Name

Group Selection

Members

Other Users

Enter the name of the new group.

The group name includes 1 to 32 characters. Special characters except ':' and ';' are allowed.

Click Add.

Select one group to delete or configure its user members.

User members of the selected group. You can select one user and click ">>" button to remove it.

You can select one user and click "<<" button to add it into the group.

Web Customization

Go to Configuration > Captive Portal > Web Customization to customize the authentication web page of Captive Portal.

Profile

Select a profile to configure.

New Logo Upload

Logo Selection

Background Color

Font Color

Welcome Title

Logos display in the web page. Select an image file from your local PC and click Upload.

Formats .gif, .png and .jpg are supported. File size cannot exceed 5KB.

One profile can support one default and one new logo image. If a second new logo is uploaded, it will replace the first new logo.

Select a logo image from the list.

The HTML code for the background color in 6-digit hexadecimal format. The default is #0073BA.

The HTML code for the font color in 6-digit hexadecimal format. The default is #FFFFFF.

Customize text to go with your logo. The default is

Welcome to the Wireless Network.

Customize text to go with the login box. Default text for different authentication options:

Local Authentication/Radius Authentication You can log in using your username and password.”

User Label

Password Label

Button Name

Button Color

Password Only Authentication You can log in using your password.

Local Authentication Click Connect to log in.

Customize the username text box. Enter up to 16 characters. The default is "Username".

Customize the user password text box. Enter up to 16 characters. The default is "Password".

Customize the text that appears in the log in button. Enter up to 12 characters. The default is "Connect".

The HTML code for the background color of the button in 6-digit hexadecimal format. The default is #70A0D4.

Customize the text to go with the checkbox. Enter up to 128 characters. The default is "Check here to indicate that you have read and accepted the following Terms of Use."

Customize the text to go with Terms of Use. Enter up to 512 characters. The default is "Terms of Use".

Success Text

Failure Text

Customize the text that shows when the client has been authenticated. The default is "You have logged on successfully! Please keep this window open when using the wireless network."

Customize the text that shows when authentication fails. Enter up to 128 characters. The default is "Bad username or password"

Profile Association

Go to Configuration > Captive Portal > Profile Association to associate defined Captive Portal profiles with SSIDs.

SSID

A list of available SSIDs.

SSID Name

Profile Name

The name of the SSID.

Choose the profile that is associated with the SSID.

If the profile associated with the SSID is deleted, then the association will be removed.

None

is selected, it means no profile is associated.

Client Information

Go to Configuration > Captive Portal > Client Information to view the status of wireless clients that are authenticated by Captive Portal.

MAC Address

MAC address of the client.

IP Address

User Name

SSID Name

Online Time

Away Timeout

Session Timeout

IP address of the client.

User name used by the client to log in.

Name of the SSID to which the client is connected.

How long the client has been online. Measured in seconds.

An authenticated client that has been disconnected from the access point has a specific amount of time within which it may reconnect without reauthentication. The timer starts when the client disconnects from the SSID. After the time reaches zero, the client is de-authenticated. If the timeout is set to 0, the client is not de-authenticated. Measured in seconds.

The remaining time of the authenticated session. The timer starts when the client is authenticated. After the time reaches zero, the client is de-authenticated. If the value is fixed to 0, the session won't time out. Measured in seconds.

Cluster

The cluster function provides a centralized method to administer and control wireless services across multiple devices. When access points are clustered, you can view, deploy, configure, and secure the wireless network as a single entity.

Note- Firmware version 1.1.0 or above support cluster feature. If your device has legacy firmware installed, download the latest one from www.linksys.com/support

The access points within a cluster must have the same management VLAN configured. A cluster can support 16 LAPAC1750 access points as long as they are same model number.

In each cluster, one access point must be manually configured as the master access point. There can only be one master in a cluster. This master will propagate configuration information, such as wireless settings, time settings etc. to the other team members within a cluster. Log in to the master access point to change sharable parameter settings instead of slaves.

When firmware is upgraded on the master, all slaves within the same cluster will receive the upgrade.

Clustered access points share these configurations:

•

User Accounts

•

Time Settings

•

Log Settings

•

Management Access

•

Discovery Settings

•

IGMP/MLD Snooping

•

Wireless Network Mode

These configurations are not shared by clustered access points:

•

IP Settings

•

WDS

•

Output Power

•

SSID Settings

•

Wireless Security

•

Rogue AP Detection

•

Wireless Scheduler

•

Wireless Scheduler Association

•

Wireless Connection Control

•

Hostname

•

Workgroup Bridge

•

Rate Limit

•

QoS

•

Advanced Wireless Settings

•

Captive Portal Settings

•

Ethernet Port Settings

•

VLAN Settings

•

Wireless Channel

•

802.1x Supplicant

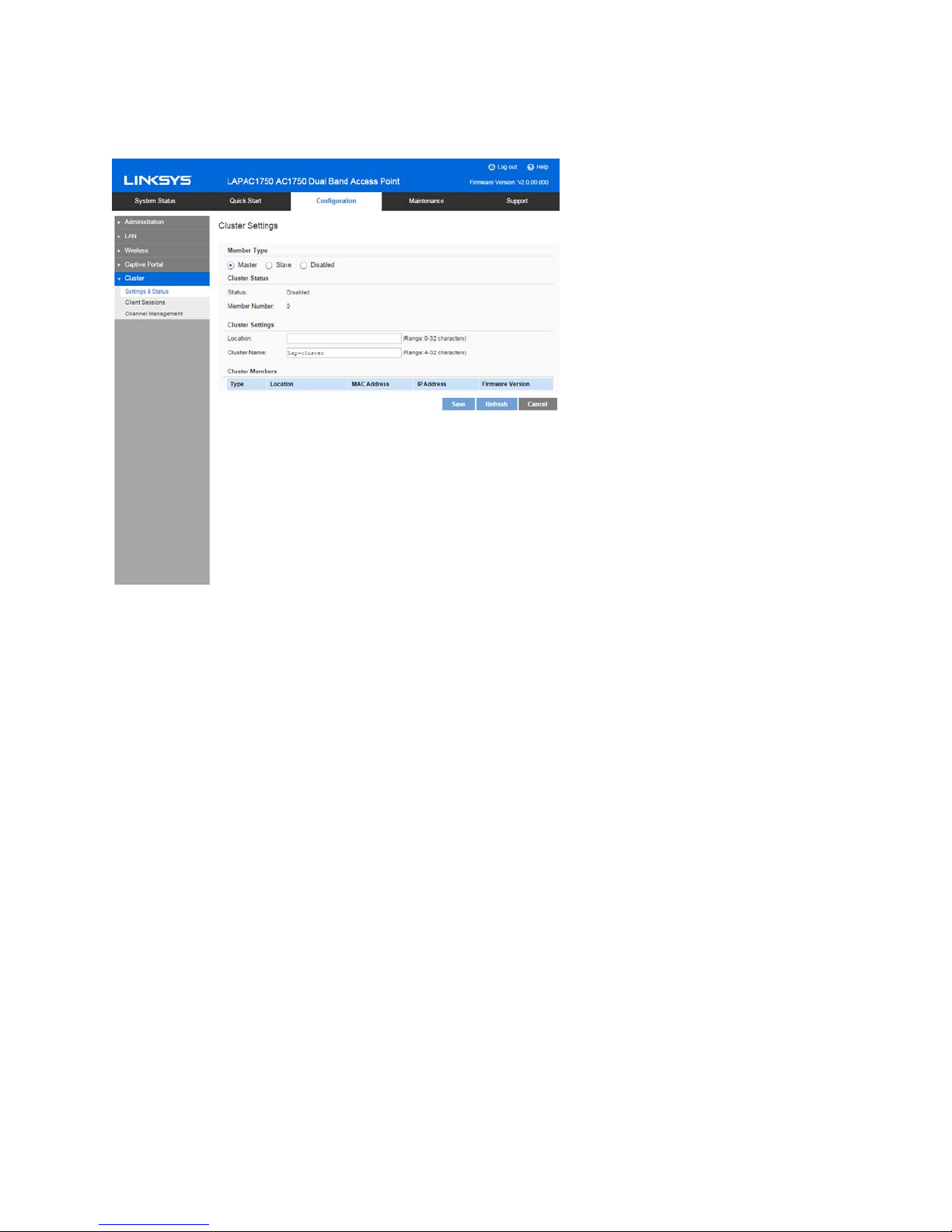

Settings & Status

Go to

Configuration > Cluster > Settings & Status

Choose a member type.

to manage the AP cluster function.

Type

Disabled—Disable the cluster function.

Master—Enable the cluster function and assign the access point to be the master.

Note— If system detects there is one Master already existed in the same cluster, the new access point that likes to become master will be assigned to slave automatically.

Slave—Enable the cluster function and assign the access point to be the slave.

Note—When the cluster function is enabled, WDS and workgroup bridge will be disabled automatically.

Master

Status

Cluster function is enabled and backup master

Disabled—Cluster function is disabled.

Active—Cluster function is enabled and master is active.

Active (Backup Master)— is active.

Inactive (Cannot reach the master)—Cluster function is enabled but it's inactive because device cannot reach the master.

Member Number

Location (Optional)

Cluster Name

Backup Master

Client Sessions

Number of the members active in the cluster. If an access point joins the cluster but is powered off or cannot reach the master, it is not counted.

Where the access point is physically located; for example, Reception. Length is from 0 to 32 bytes.

Name of the cluster for the LAP device to join; for example, “lab cluster”. All access points with the same cluster name belong to the same cluster. Length of this value is from 4 to 32 bytes and special characters are allowed. This is a mandatory field if the cluster function is turned on.

When an access point works as a cluster slave, it can be enabled as a backup master. When master gets offline, it will take the role of master. When the backup master begins to work, it will send advertisements and slaves will send keep-alive and report sessions to it. When shareable settings are modified in it, it will share them to all slaves. When master gets online again, this backup master AP will stop the master function and let original master AP take over master role.

Go to Configuration > Cluster > Client Sessions to see the status of wireless clients within the cluster.

The session is the period of time in which a user on a client device (station) with a unique MAC

ent has been online since it is

address maintains a connection with the wireless network. The session begins when the WLAN client logs on to the network, and the session ends when the WLAN client either logs off intentionally or loses the connection for some other reason.

When one wireless client of Captive Portal roams from one access point to another in the same cluster, it need not re-authenticate.

IP Address

Location

SSID

User MAC

Online Time

Link Rate

Signal

Rx Total

Tx Total

IP address of the access point to which the client connects.

Location of the access point to which the client connects.

SSID name of the access point to which the client connects.

MAC address of the client.

Displays how long this cli authenticated. Unit is second.

Indicates the link rate of the client. Unit is Mbps.

The signal strength of the client is displayed. Unit is dBm.

The total bytes which are received from the client by the access point. Unit is Byte.

The total bytes which are sent to the client by the access point. Unit is Byte.

Rx Rate

Tx Rate

Current transfer rate of the data which are received from the client by the access point. Unit is Kbps.

Current transfer rate of the data which are sent to the client by the access point. Unit is Kbps.

Channel Management

Go to Configuration > Cluster > Channel Management to manage the channel assignments for access points within a cluster.

When channel management is enabled, the access point automatically assigns radio channels within a cluster. Auto channel assignment reduces mutual interference (or interference with other access points outside of its cluster) and maximizes Wi-Fi bandwidth to help maintain efficient communication over the wireless network.

Auto Channel

changes the channel if better network performance is

Auto Channel

Scan Day

Scan Time

Scan Trigger

Access point scans available Wi-Fi channels and

possible. Disabled by default.

Choose the day of the week when Auto Channel scans Wi-Fi channels. You may choose specific days or have the access point scan and select the best channel daily.

Choose the time of day when Auto Channel performs scan.

Because Auto Channel will change the channel if it finds a better one, you can choose when to allow a scan.

•

Immediately – Scan according to the day/time specified.

•

No Clients – Scan only if no clients are connected to the wireless radio. If there are clients connected, the access point will complete the Auto Channel operation the next scheduled time when no clients are connected.

Current Channels

Type

Location

IP Address

Wireless Radio

Status

Channel

Locked

Member type of the access point. It can be Master, Slave or Backup Master.

Where the access point is physically located

IP address of the access point.

1 stands for 2.4Ghz radio, and 2 stands for 5Ghz radio.

Status of the wireless radio. It can be Active or Inactive.

Current channel number of the wireless radio.

Select if you feel the current channel is the best for that radio.

Chapter 4 - System Status

Status

System Summary

Go to System Status > Status > System Summary for status of the access point.

System Summary

Device SKU

Firmware Version

Firmware

Checksum

Hardware Version

Local MAC

Address

Serial Number

Host Name

System Up Time

System Time

Power Source

The SKU is often used to identify device model number and region.

The version of the firmware currently installed.

The checksum of the firmware running in the access point.

The version of the hardware.

The MAC (physical) address of the wireless access point.

The serial number of the device.

The host name assigned to the access point.

How long the system has been running since the last restart or reboot.

The current date and time.

The power source of the access point. It can be Power over Ethernet (PoE) or Power Adapter. When two power sources are plugged in, Power Adaptor will be displayed.

Buttons

Refresh

Click to update the data on the screen.

LAN Status

Go to System Status > Status > LAN Status to see settings and status of LAN interface.

VLAN

Untagged traffic can be accepted by LAN ports. If

VLAN

Untagged VLAN

Management

VLAN

Enabled or disabled (default).

Enabled (default) or disabled.

When enabled, and if its VLAN ID is equal to Untagged VLAN ID, all traffic is untagged when sent from LAN ports. disabled, traffic is always tagged when sent from LAN port and only tagged traffic can be accepted from LAN port.

By default all traffic on the access point uses VLAN 1, the default untagged VLAN. This means that all traffic is untagged until you disable the untagged VLAN, change the untagged traffic VLAN ID, or change the VLAN ID for a SSID.

Displays the untagged VLAN ID. Traffic on the VLAN that you specify in this field is not be tagged with a VLAN ID when forwarded to the network. VLAN 1 is the default ID for untagged VLAN and management VLAN.

Displays the Management VLAN ID. The VLAN associated with the IP address you use to connect to the access point. Provide a number between 1 and 4094 for the Management VLAN ID. The default is 1.

This VLAN is also the default untagged VLAN. If you already have a management VLAN configured on your network with a different VLAN ID, you must change the VLAN ID of the management VLAN on the access point.

IPv4/v6

IP Address

The IP address of the wireless access point.

Subnet Mask

Default Gateway

Primary DNS

Secondary DNS

The Network Mask (Subnet Mask) for the IP address above.

Enter the gateway for the LAN segment to which the wireless access point is attached (the same value as the PCs on that LAN segment).

The primary DNS address provided by the DHCP server or configured manually.

The secondary DNS address provided by the DHCP server or configured manually.

Wireless Status

Go to System Status > Status > Wireless Status to see settings and status of wireless radios and SSIDs.

Radio Status

Wireless Radio

Radio Status

Mode

Channel

Bandwidth

SSID Status

Interface

SSID Name

Status

MAC Address

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Indicates whether the radio is enabled.

Current 802.11mode (a/b/g/n/ac) of the radio.

The channel currently in use.

Current channel bandwidth of the radio.

When set to 20 MHz, only the 20 MHz channel is in use. When set to 20/40 MHz, Wireless-N connections will use 40 MHz channel, but Wireless-B and Wireless-G will still use 20 MHz channel.

SSID index.

Name of the SSID.

Status of the SSID: Enabled or Disabled.

MAC Address of the SSID.

VLAN ID

Priority

Scheduler

State

VLAN ID of the SSID.

The 802.1p priority of the SSID.

•

N/A—No scheduler is enabled on the SSID, or the SSID is disabled by administrator.

•

Active—The SSID is enabled.

•

Inactive—The SSID is disabled.

WDS Root

Status

Local SSID

Local MAC

VLAN List

WDS Station

Interface

Status

Local MAC

Remote SSID

Remote MAC

Status of the WDS Root: Enabled or Disabled.

Name of the WDS Root.

MAC Address of the WDS Root.

VLAN List of the WDS Root.

When VLAN function is enabled, WDS Root only receives packets in the VLAN list from WDS Stations and packets not in the list will be dropped.

The index of WDS Station.

Status of the WDS Station: Enabled or Disabled.

MAC Address of the WDS Root.

SSID of the destination access point which is on the other end of the WDS link to which data is sent or handed-off and from which data is received.

MAC Address of the destination access point which is on the other end of the WDS link to which data is sent or handed-off and from which data is received.

Connection

Status

Status of the WDS Station: Disabled, Connected or Not Connected.

Workgroup Bridge Status

Status

Local MAC

Remote SSID

Status of the Workgroup Bridge: Enabled or Disabled.

MAC address of the Workgroup Bridge.

SSID of the destination access point on the other end of the Workgroup Bridge link to which data is sent and from which data is received.

Remote MAC

MAC address of the destination access point on the other end of the Workgroup Bridge link to which data is sent and from which data is received.

Connection

Status

Status of the Workgroup Bridge: Disabled, Connected or Not Connected.

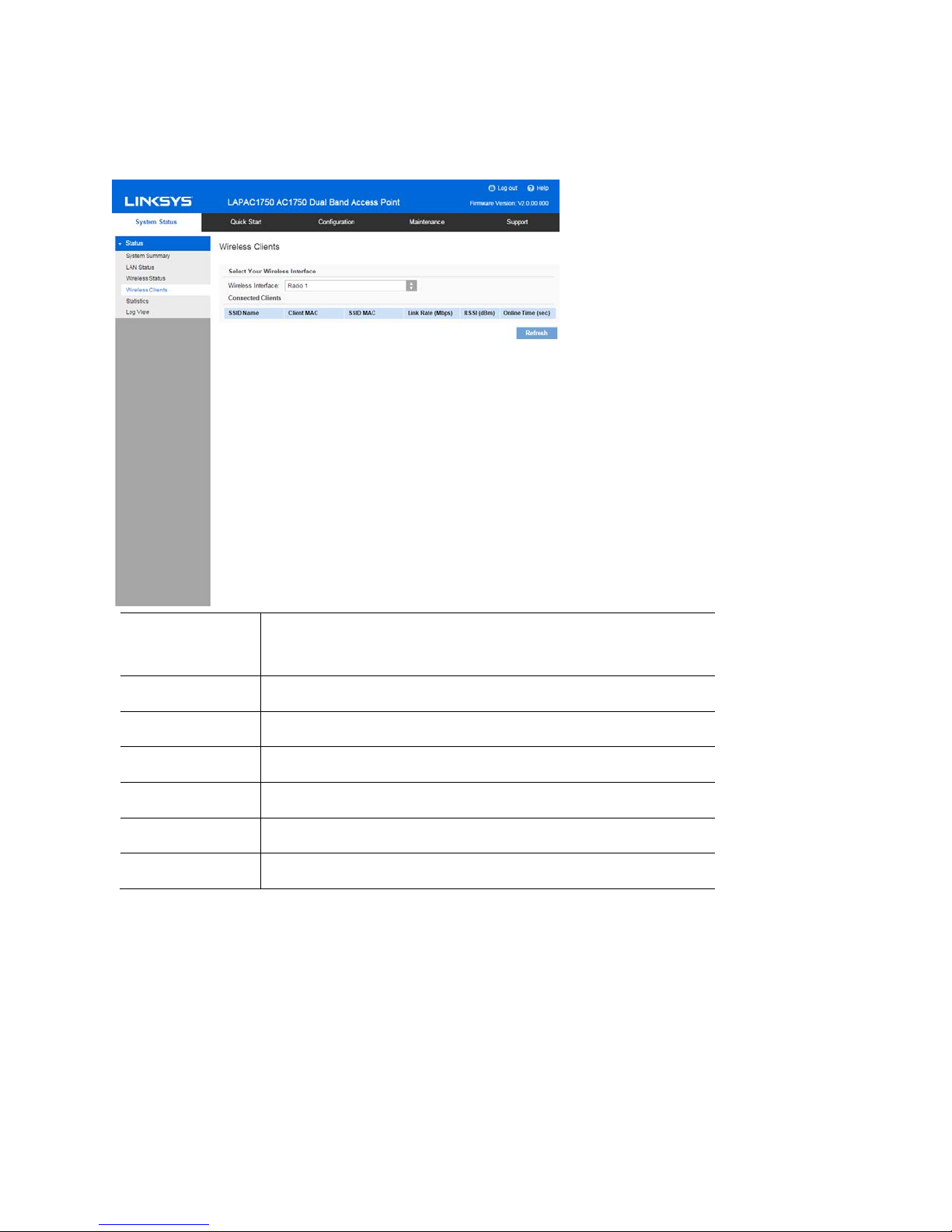

Wireless Clients

Go to System Status > Status > Wireless Clients to see connected clients based on each wireless interface.

Wireless

Interface

SSID Name

Client MAC

SSID MAC

Link Rate

RSSI

Online Time

Select the desired interface from the list. The interfaces include eight SSIDs per radio.

Name of the SSID to which the client connects.

The MAC address of the client.

MAC of the SSID to which the client connects.

The link rate of the client. Unit is Mbps.

The signal strength of the client. Unit is dBm.

How long this client has been online. Unit is seconds.

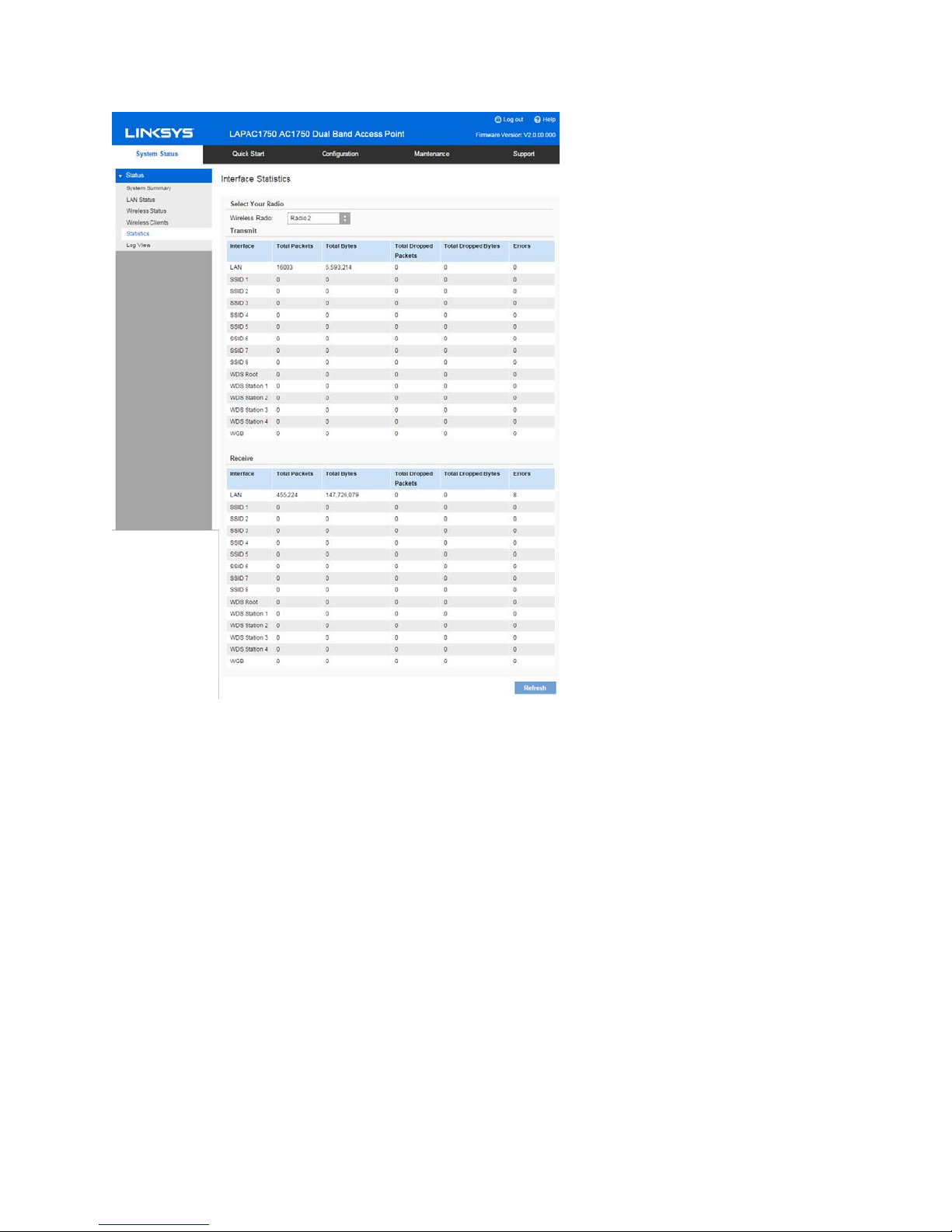

Statistics

Go to System Status > Status > Statistics to see real-time statistics on data transmitted and received based on each SSID per Radio, and LAN interface.

Wireless Radio

Select the desired radio from the list.

Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.

Transmit/Receive

•

Total Packets—The total packets sent (in Transmit table) or received (in Received table) by the interface.

•

Total Bytes—The total bytes sent (in Transmit table) or received (in Received table) by the interface.

•

Total Dropped Packets—The total number of dropped packets sent (in Transmit table) or received (in Received table) by the interface.

•

Total Dropped Bytes—The total number of dropped bytes sent (in Transmit table) or received (in Received table) by the interface.

•

Errors—The total number of errors related to sending and receiving data on this interface.

Log View

Go to System Status > Status > Log View to see a list of system events such as login attempts and configuration changes.

Log Messages

Buttons

Refresh

Save

Clear

Show the log messages.

Update the data on screen.

Save the log to a file on your PC.

Delete the existing logs from device.

Chapter 5 - -- Maintenance

Maintenance

Firmware Upgrade

Go to Maintenance > Maintenance > Firmware Upgrade to upgrade the firmware in the wireless access point by using HTTP/HTTPS, or TFTP.

Check the Linksys support website (http://www.linksys.com/support firmware release to a storage device or PC. Perform the firmware upgrade by following the steps below.

If an access point works as master of an AP cluster, all slaves within the same cluster will be updated, as well.

Do not power off the device or disconnect the Ethernet cable during the upgrade. The access point will reboot automatically after the upgrade is complete.

) and download the latest

To perform the firmware upgrade from local PC:

1. Click Choose File to navigate to the location of the upgrade file.

2. Select the upgrade file. Its name will appear next to the Choose File button.

3. Click Upgrade.

To perform the firmware upgrade from TFTP server:

1. Enter the IP address of the TFTP server and the source file. The source file is the firmware filename you stored in your TFTP server. Only IPv4 addresses are supported.

2. Click Upgrade.

To perform a firmware upgrade from the Internet:

1. Click Check for Upgrade to see if there is new firmware available.

2. Click the OK on the popup dialogue box to start the firmware download and upgrade if a new version of firmware is available.

Configuration Backup/Restore

Go to Maintenance > Maintenance > Configuration Backup/Restore to download the configuration file from the device. You can save it to external storage, e.g., your PC, or network storage. You can also upload a previously saved configuration file from external storage to the device. It is highly recommended you save one extra copy of the configuration file to external storage after you are done with access point setup.

Backup/Restore to/from Local PC

Backup

Configuration

Restore

Configuration

Backup/Restore to/from TFTP server

Backup

Configuration

Once you have the access point working properly, you should back up the settings to a file on your computer. You can later restore the access point's settings from this file, if necessary.

To create a backup file of the current settings:

•

Click Backup.

•

If you don't have your browser set up to save downloaded files automatically, locate where you want to save the file, rename it if you like, and click Save.

To restore settings from a backup file:

1. Click Choose File.

2. Locate and select the previously saved backup file.

3. Click Restore.

To create a backup file of the current settings:

1. Enter the destination file name you plan to save in TFTP server.

2. Enter the IP address for the TFTP server. Only IPv4 addresses are supported.

3. Click Backup.

Restore

Configuration

To restore settings from a backup file:

1. Enter the source file name stored in TFTP server.

2. Enter the IP address for the TFTP server. Only IPv4 addresses are supported.

3. Click Restore.

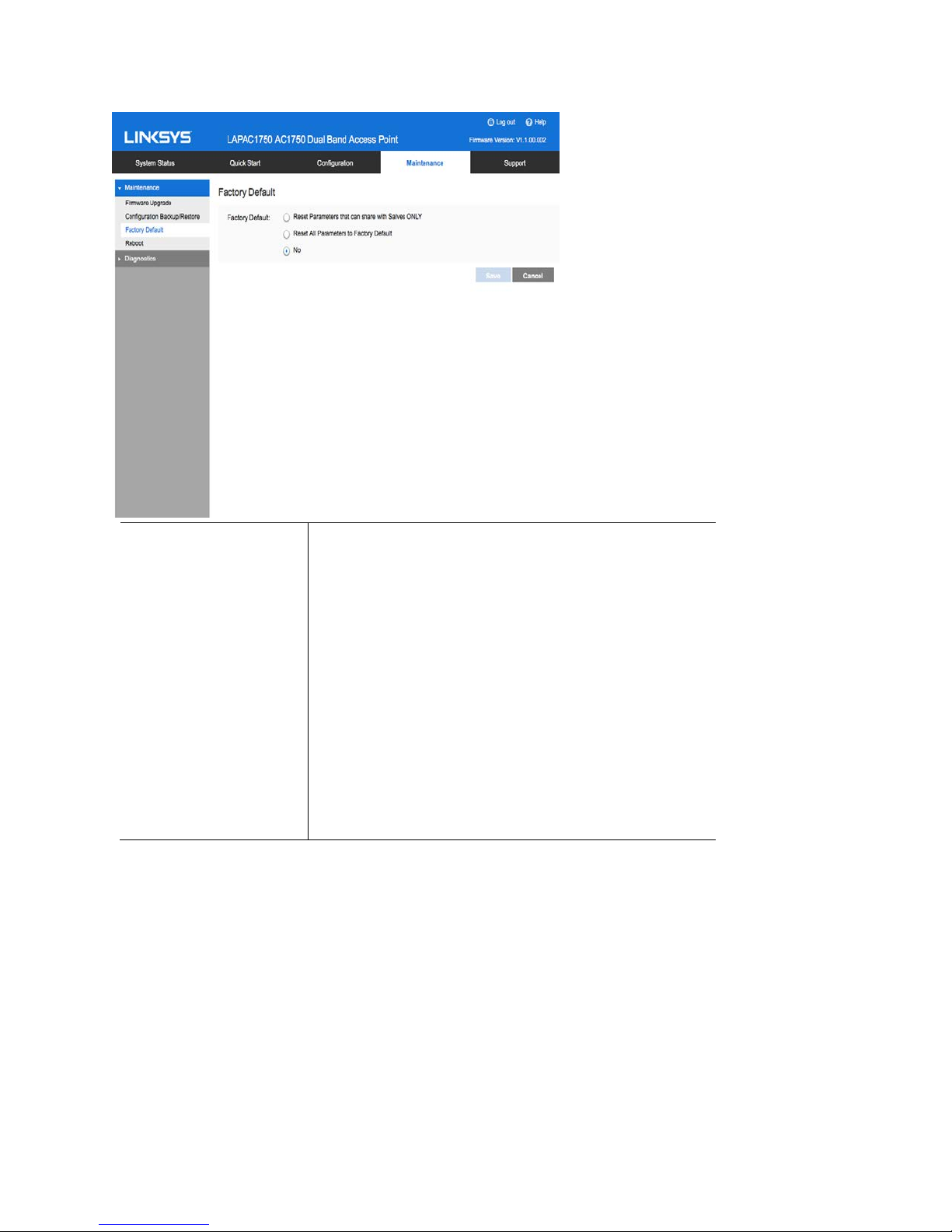

Factory Default

It’s highly recommended you save your current configuration file before you restore to factory default settings. To save your current configuration file, click Maintenance > Configuration Backup/Restore.

Factory Default

To restore your access point to its factory defaults, select an option and click Save.

•

Reset Parameters that can share with Slaves ONLY

When current AP is a master of a cluster, select this option to restore all sharable parameters of current AP and its slaves to factory defaults. Cluster settings and nonsharable parameters will not reset.

•

Reset All Parameters to Factory Default

•

Don’t restore to factory defaults.

Reboot

Go to Maintenance > Maintenance > Reboot to power cycle the device. The current configuration file will remain after reboot.

Device Reboot

If you click Save when the Yes selected, the device will power cycle.

radio button is

Diagnostics

Ping Test

Go to Maintenance > Diagnostics > Ping Test to determine the accessibility of a host on the network.

General

IP Type

IP or URL

Address

Packet Size

Times to Ping

Enter the IP type of destination address.

Enter the IP address or domain name that you want to ping.

Enter the size of the packet.

Select the desired number from the drop-list.

•

Unlimited

Packet Capture

Go to Maintenance > Diagnostics > Packet Capture to capture and store 802.3 packets received and transmitted by the access point based on one specified network interface. The network interface can be radio, SSID or LAN.

Network Interface

Select the desired network interface from the dropdown list. The interface can be Radio, SSID or Ethernet.

Start Capture

Stop Capture

Click to start the capture. You will be asked to specify a local file to store the packets.

Click to stop the capture.

Diagnostic Log

Go to Go to Maintenance > Diagnostics > Diagnostic Log to get system detail information, such as configuration file, system status and statistics data, hardware information, operational status. The information is useful in troubleshooting and working with technical support.

Click Download to download the device diagnostic log into a local file.

Appendix A - Troubleshooting

Overview

This chapter covers some common problems encountered while using the wireless access point, and some possible solutions to them. If you follow the suggested steps and the wireless access point still does not function properly, contact your dealer for further advice.

General Problems

I can't find new access point on my network.

Check the following:

•

The wireless access point is properly installed, LAN connections are OK, and it is powered ON. Check the LEDs for system and port status.

•

Ensure that your PC and the wireless access point are on the same network segment. (If you don't have a router, this must be the case.)

•

You can use the following method to determine the IP address of the wireless access point, and then try to connect using the IP address, instead of the name.

To find the access point's IP address:

1. Open a MS-DOS Prompt or Command Prompt Window.

2. Use the Ping command to ping the wireless access point. Enter “ping” followed by the default name of the wireless access point. Default name is “lap” followed by the last five characters of device MAC address (e.g., ping lap964d6).

3. Check the output of the ping command to determine the IP address of the wireless access point, as shown below.

If your PC uses a fixed (static) IP address, ensure that it is using an IP address that is in the network segment (subnet) with the wireless access point. On Windows PCs, you can use Control Panel > Network to check the properties for the TCP/IP protocol.

If there is no DHCP Server found, the wireless access point will roll back to an IP address and mask of 192.168.1.252 and 255.255.255.0.

My PC can't connect to the LAN via the wireless access point.

Check the following:

•

The SSID and security settings on the PC match the settings on the access point.

•

On the PC, the wireless mode is set to Infrastructure.

•

If using the Access Control feature, the PC's name and address is in the Trusted Stations list.

•

If using 802.1x mode, ensure the PC's 802.1x software is configured correctly. See Appendix C (p. 106 different client, refer to the vendor's documentation.

) for details of setup for the Windows XP 802.1x client. If using a

Appendix B - About Wireless LANs

Overview

Wireless networks have their own terms and jargon. You must understand many of these terms in order to configure and operate a wireless LAN.

Wireless LAN Terminology

Modes

Wireless LANs can work in either of two (2) modes:

•

Ad-hoc

•

Infrastructure

Ad-hoc Mode

Ad-hoc Mode does not require an access point or a wired (Ethernet) LAN. Wireless stations, e.g., notebook PCs with wireless cards, communicate directly with each other.

Infrastructure Mode

In Infrastructure Mode, one or more access points are used to connect wireless stations, e.g., notebook PCs with wireless cards, to a wired (Ethernet) LAN. The wireless stations can then access all LAN resources.

Note—Access points can only function in Infrastructure Mode, and can communicate only with wireless stations that are set to Infrastructure Mode.

SSID/ESSID

BSS/SSID

A group of wireless stations and a single access point, all using the same ID (SSID), form a Basic Service Set (BSS).

Using the same SSID is essential. Devices with different SSIDs are unable to communicate with each other.

100

Linksys LAPAC1750, AC1200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
