Linear TE Configuration Manual

PRINTER’S INSTRUCTIONS:

INSTR, TE FRONT PANEL GUIDE AND CONFIGURATION MANUAL,TELEPHONE ENTRY, 4.3” SCREEN MODEL - P/N: 10020847 A - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000” X 8.500” - TOL. +/-.125" - SCALE: 1-1 - FOLDING: 2-FOLD ALTERNATE - SIDE 1 OF 2

TE Front Panel Guide and

Conguration Manual

The HOME button will take
you “back” to a previous
screen.

Pressing HOME repeatedly
will eventually return you to
the WELCOME screen.

Use the Cursor buttons
(˄,˅,< or >) to highlight

an option, then press

to

make and/or save settings.

Use the Number buttons to
make numeric entries.

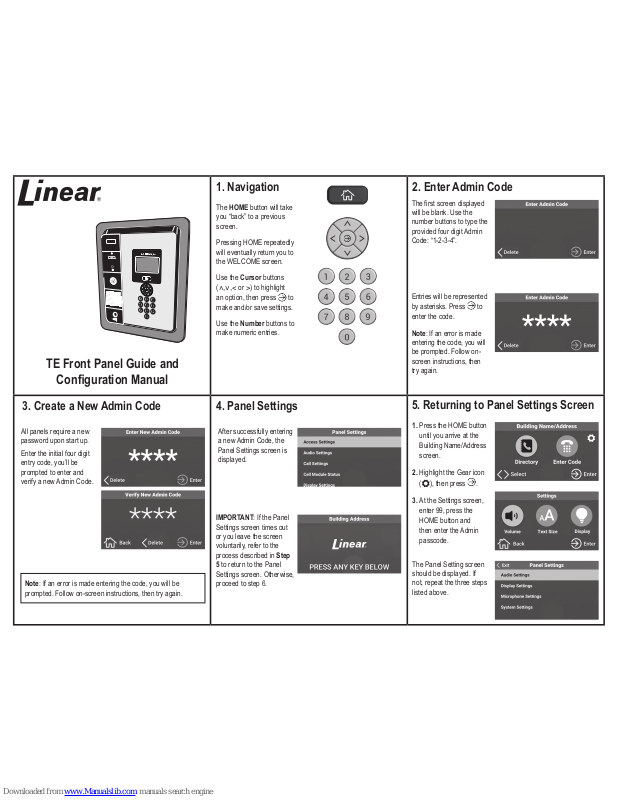

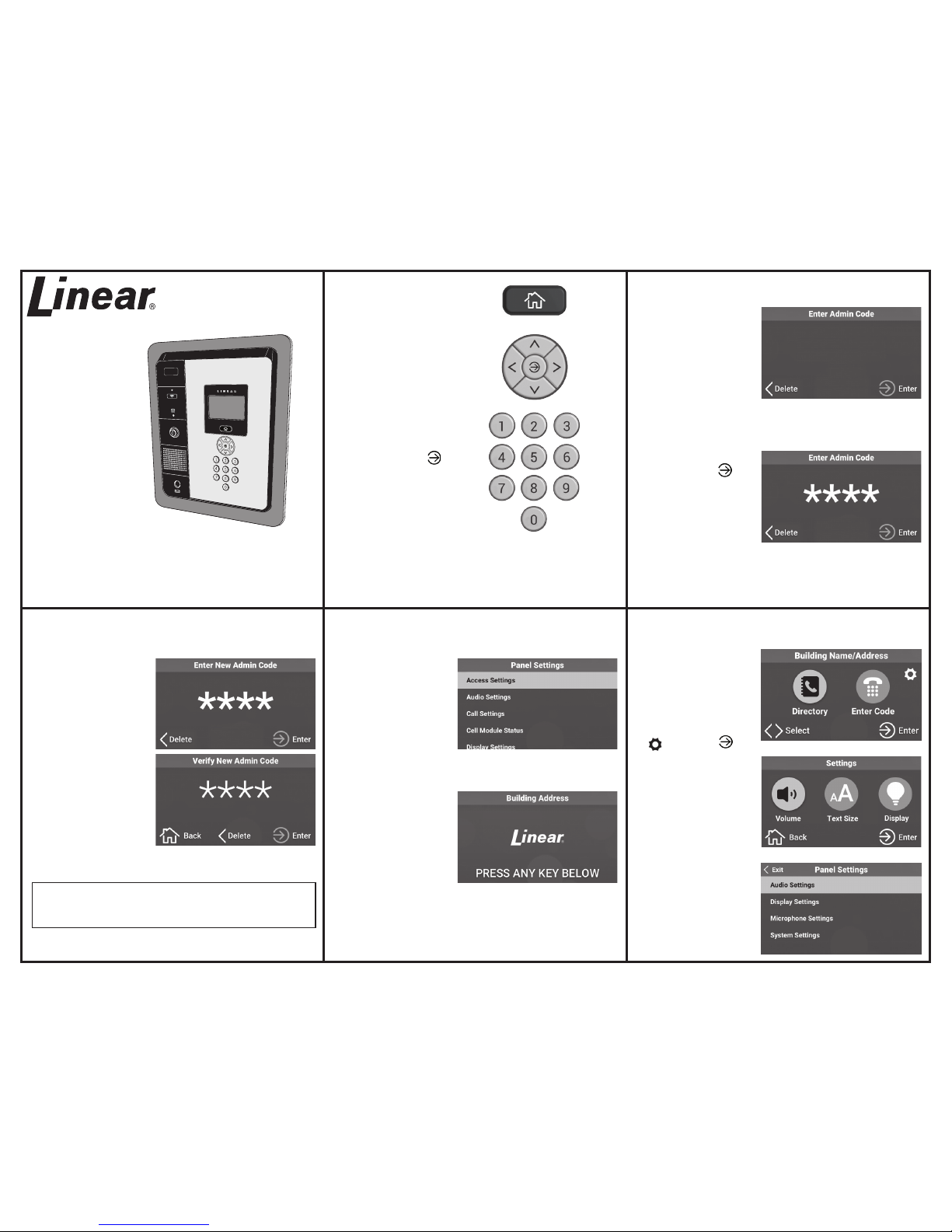

1. Navigation

4. Panel Settings

3. Create a New Admin Code

2. Enter Admin Code

The rst screen displayed

will be blank. Use the
number buttons to type the
provided four digit Admin
Code: “1-2-3-4”.

Entries will be represented
by asterisks. Press

to

enter the code.

Note: If an error is made
entering the code, you will
be prompted. Follow on­screen instructions, then
try again.

1. Press the HOME button
until you arrive at the
Building Name/Address
screen.

2. Highlight the Gear icon
(

), then press .

3. At the Settings screen,
enter 99, press the
HOME button and
then enter the Admin
passcode.

The Panel Setting screen
should be displayed. If
not, repeat the three steps
listed above.

5. Returning to Panel Settings Screen

All panels require a new
password upon start up.

Enter the initial four digit
entry code, you’ll be
prompted to enter and
verify a new Admin Code.

After successfully entering
a new Admin Code, the
Panel Settings screen is
displayed.

IMPORTANT: If the Panel
Settings screen times out
or you leave the screen
voluntarily, refer to the
process described in Step
5 to return to the Panel
Settings screen. Otherwise,
proceed to step 6.

Note: If an error is made entering the code, you will be
prompted. Follow on-screen instructions, then try again.

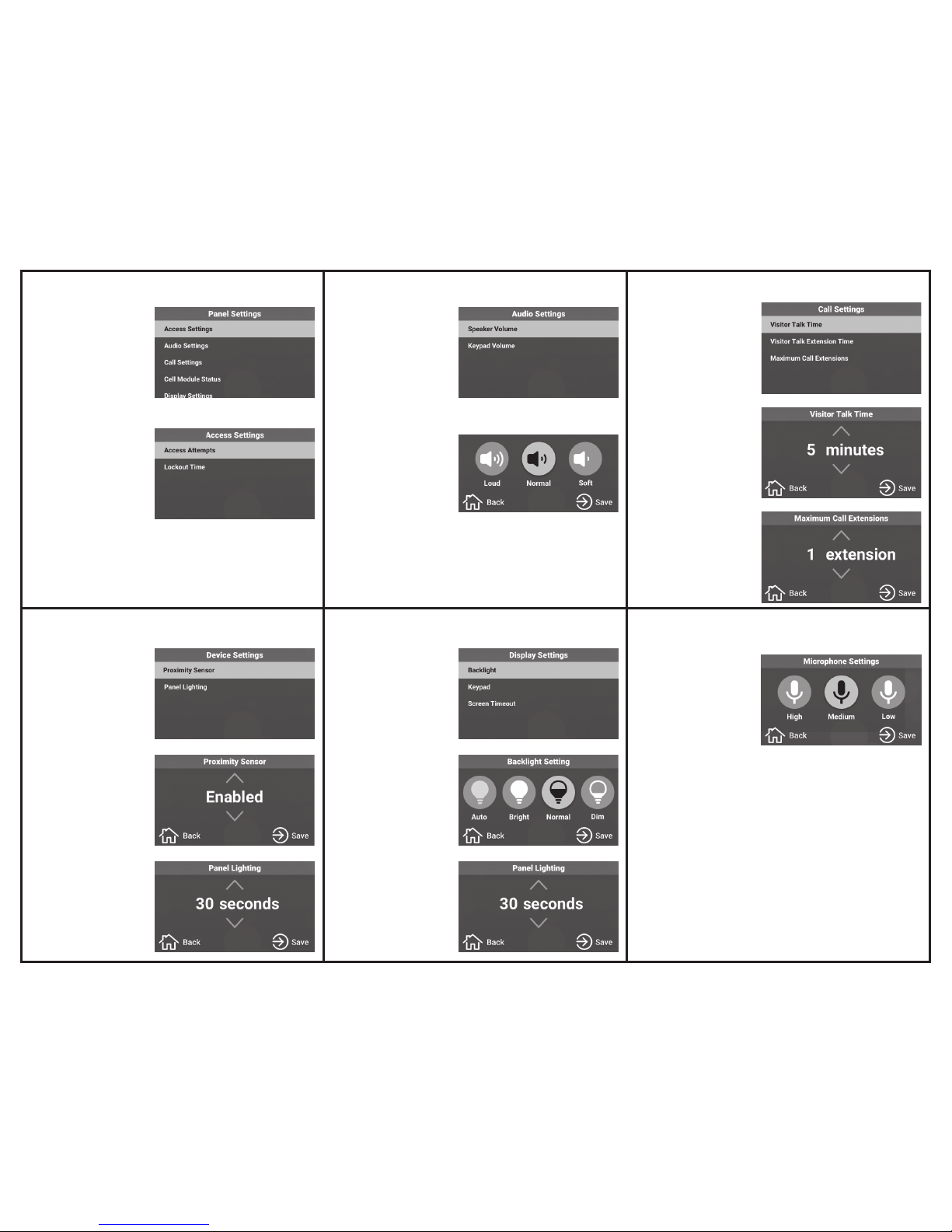

8. Call Settings

9. Device Settings 10. Display Settings 11. Microphone Settings

7. Audio Settings

6. Access Attempts Settings

Select Access Settings
from the Panel Settings
screen to view the
following options:

Select Audio Settings
from the Panel Settings
screen.

Access Attempts: Sets
the maximum number of
attempts before access
lockout. Default = 3.

Lockout Time: Sets
the lockout time for
maximum Access
Attempts reached.
Default = 30 Sec.

Speaker and Keypad
Volume: Both of these

volume options are
adjusted in the same
manner.

Set the volume option to
Loud, Normal or Soft.
Default = Normal.

Select Microphone
Settings from the Panel
Settings screen.

Set the microphone
sensitivity option to High,
Medium or Low.
Default = Medium.

Select Call Settings from
the Panel Settings screen.

Visitor Talk Time: Sets
a time limit for visitor
communication at the
console. Set from 30
seconds to 5 minutes.
Default is 60 Sec.

Visitor Talk Extension

Time: Extends the Visitor
Talk Time setting. Set from
10 seconds to 60 seconds.
Default = 30 Sec.

Maximum Call
Extensions: Select from 1

to 3 Extensions, or set to

Disable.
Default = 1 Extension.

Select Device Settings
from the Panel Settings
screen.

Select Display Settings
from the Panel Settings
screen.

Panel Lighting: Sets
panel light duration with
options ranging from 15
seconds to 5 minutes.
Default = 30 Sec.

Screen Timeout: Sets
screen panel light
timeout duration with
options ranging from 10
seconds to 60 minutes.
Default = 10 Sec.

Proximity Sensor:
Enables or disables the
Proximity Sensor.
Default = Enabled.

Backlight Setting and
Keypad Setting: Both

settings offer the same
options. Select Auto,
Bright, Normal or Dim.
Default = Auto.

Copyright © 2018 Nortek Security & Control LLC 10020847 A

NORTEK SECURITY & CONTROL LIMITED WARRANTY

This Nortek Security & Control product is warranted against defects in material
and workmanship for twelve (12) months. This warranty extends only to wholesale
customers who buy direct from Nortek Security & Control or through Nortek
Security & Control’s normal distribution channels. Nortek Security & Control does
not warrant this product to consumers. Consumers should inquire from their selling
dealer as to the nature of the dealer’s warranty, if any. There are no obligations or
liabilities on the part of Nortek Security & Control LLC for consequential damages
arising out of or in connection with use or performance of this product or other

indirect damages with respect to loss of property, revenue, or prot, or cost of

removal, installation, or reinstallation. All implied warranties, including implied

warranties for merchantability and implied warranties for tness, are valid only

until the warranty expires. This Nortek Security & Control LLC Warranty is in lieu
of all other warranties express or implied.

All products returned for warranty service require a Return Product Authorization
Number (RPA#). Contact Nortek Security & Control Returns at 1-855-546-3351 for
an RPA# and other important details.

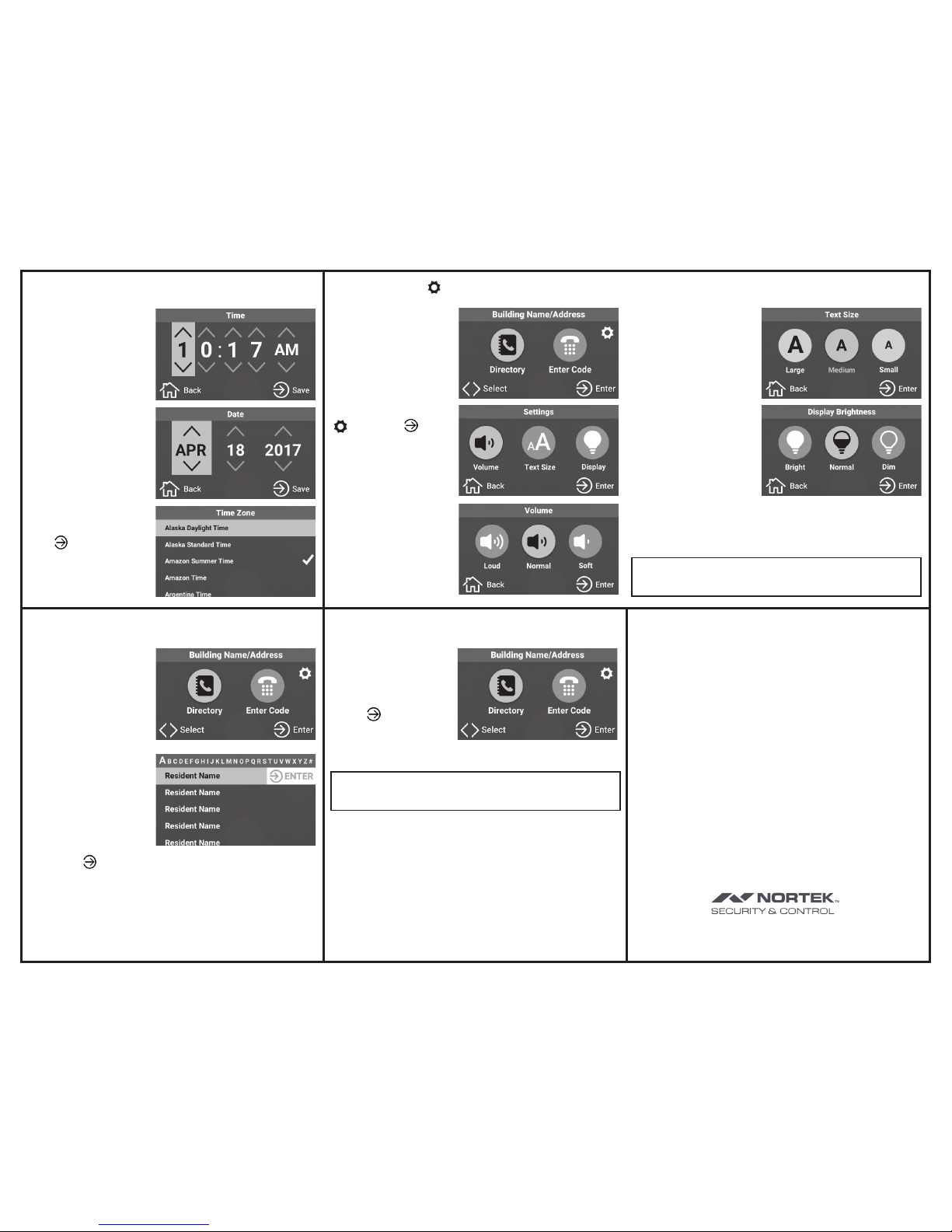

12. System Settings 13. Settings

(

)

14. Using the Directory 15. Entering a Code

Select System Settings
from the Panel Settings
screen.

Time and Date: Both
settings are set in the same
manner. Set to the current
Time and Date.

Time Zone: Scroll to nd

the correct time zone, then
press

.

Press the HOME button
until you arrive at the
Building Name/Address
screen.

Select the Gear icon
(

), then press to

access the Settings screen.

Volume: Set the console
speaker Volume option to
Loud, Normal or Soft.
Default = Normal.

Text Size: Set the console
text size option to Small,
Medium or Large.

Default = Medium.

Display: Set the LCD

display brightness to Bright,
Normal or Dim.

Default = Normal.

Press the HOME button
twice to return to the
Building Name/Address
screen.

Test the system.

Press the HOME button
until you arrive at the
Building Name/Address
screen.

Enter Code: If you
already know the
number of a resident to
call, enter the code and

press

.

Directory: To call a
resident, use the Cursor
buttons (< >) to select

the rst letter of the

resident’s last name,
Use the Cursor buttons
(˄˅) to select a name,

then press

to make

the call.

Note: Any Settings changes made will reset to defaults once
the Welcome screen times out.

Please consult the EN Series Programming Guide for
additional programming information.
