Page 1
PARTS MAP FOR
Valzer HEPA
©2005 Lindhaus USA All Rights Reserved.
Visit us on-line at www.lindhaus.com
Page 2
Page 3
LINDHAUS USA
Spare Parts List

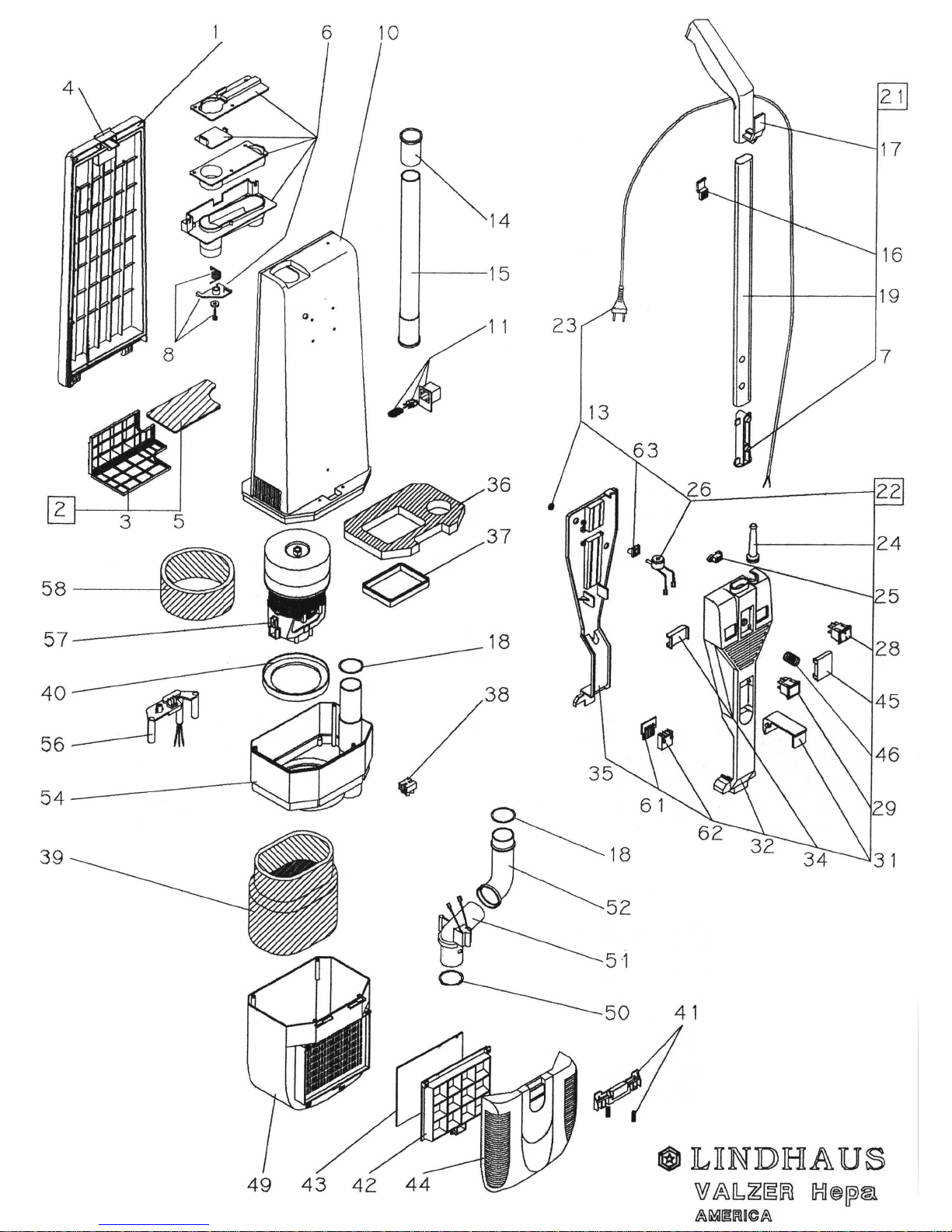

Suction Body
Valzer Hepa 120/60 (prior to New Age)
MAP NO.
PART NO.
DESCRIPTION
VH 01 080171481 BAG HOUSING COVER
VH 03 000160304 FILTER HOLDER
VH 04 082721481 BAG DOOR LATCH + SPRING
VH 05 011410316 FILTER, INTERNAL FOAM
VH 05 087170081 CARBON ACTIVE FILTER 5/PK
VH 06 084360081 BAG ENTRANCE + SUPPORT
VH 07 084520081 BUTTON+SUPPORT+SPRING 2 POSITION
VH 08 084580081 SAFETY SUPPORT KIT
VH 10 086271481 BAG HOUSING
VH 11 080790081 RELIEF VALVE KIT
VH 13 010260307 O-RING
VH 14 000150307 SLEEVE TUBE
VH 15 080840381 INTERNAL TUBE
VH 16 001690110 UPPER CORD HOOK
VH 17 080770281 HANDLE GRIP (ONLY)
VH 18 010270307 O-RING
VH 19 084590081 CHROMATE TUBE - 2 POSITION W/ BUTTON LOCK
VH 21 084430281 HANDLE TUBE ASSEMBLY
VH 22 083452980 ELECTRIC SYSTEM ASSY
VH 23 021950320 CORD 2x17 THIN, 2 PRONG, 2 WIRE
VH 24 000460307 STRAIN RELIEF
VH 25 000070305 CORD CLAMP
VH 26 021340000 VACUUM SENSOR
VH 28 021050300 MAIN SWITCH 15A 3 WAY
VH 29 020020000 INDICATOR LIGHT
VH 31 001880205 LOWER CORD HOOK LIGHT GREY
VH 32 086611481 HANDLE COVER
VH 34 001980306 COMB WIRE HOLDER
VH 35 001901401 FRAME HANDLE
VH 36 010600016 FILTER UPPER
VH 37 000200308 MOTOR GASKET
VH 38 020340400 TERMINAL BLOCK 3 POLES
VH 39 011790016 FOAM MOTOR FILTER
VH 40 000210308 MOTOR GASKET
VH 41 084440281 BOTTOM COVER KIT
VH 42 003360100 EXHAUST GRILL
VH 43 085350081 MICROFILTER 12 PACK
VH 44 083632981 FRONT GRILL
VH 45 005200201 BUTTON LIGHT GREY
VH 46 012980009 HANDLE SPRING
VH 49 003291401 VACUUM MOTOR HOUSING
VH 50 011810307 O-RING
VH 51 083620080 CURVE SUPPORT
VH 52 003390105 UPPER CURVE DP5 HEPA
VH 54 083800281 INNER VACUUM MOTOR HOUSING
VH 56 083480080 MOTOR CLAMP HPRO HEPA 3 WIRES
VH 57 050910080 VACUUM MOTOR R26 APSS V. 120/60 W. 750
VH 58 010220016 FILTER, FOAM MOTOR
VH 61 002480003 4 CONTACT HOUSING COVER
VH 62 002400003 4 CONTACT HOUSING
VH 63 003230001 VACUUM SENSOR ADAPTOR
022290000 CARBON BRUSH (CERAMIC), SET OF TWO
030620019 DH3 BAGS (10 BAGS + 2 MICROFILTERS)
030640000 HEPA FILTER
030650000 CARBON ACTIVE FILTER
083540100 BLOWER PORT
Page 4
Page 5
LINDHAUS USA
Spare Parts List

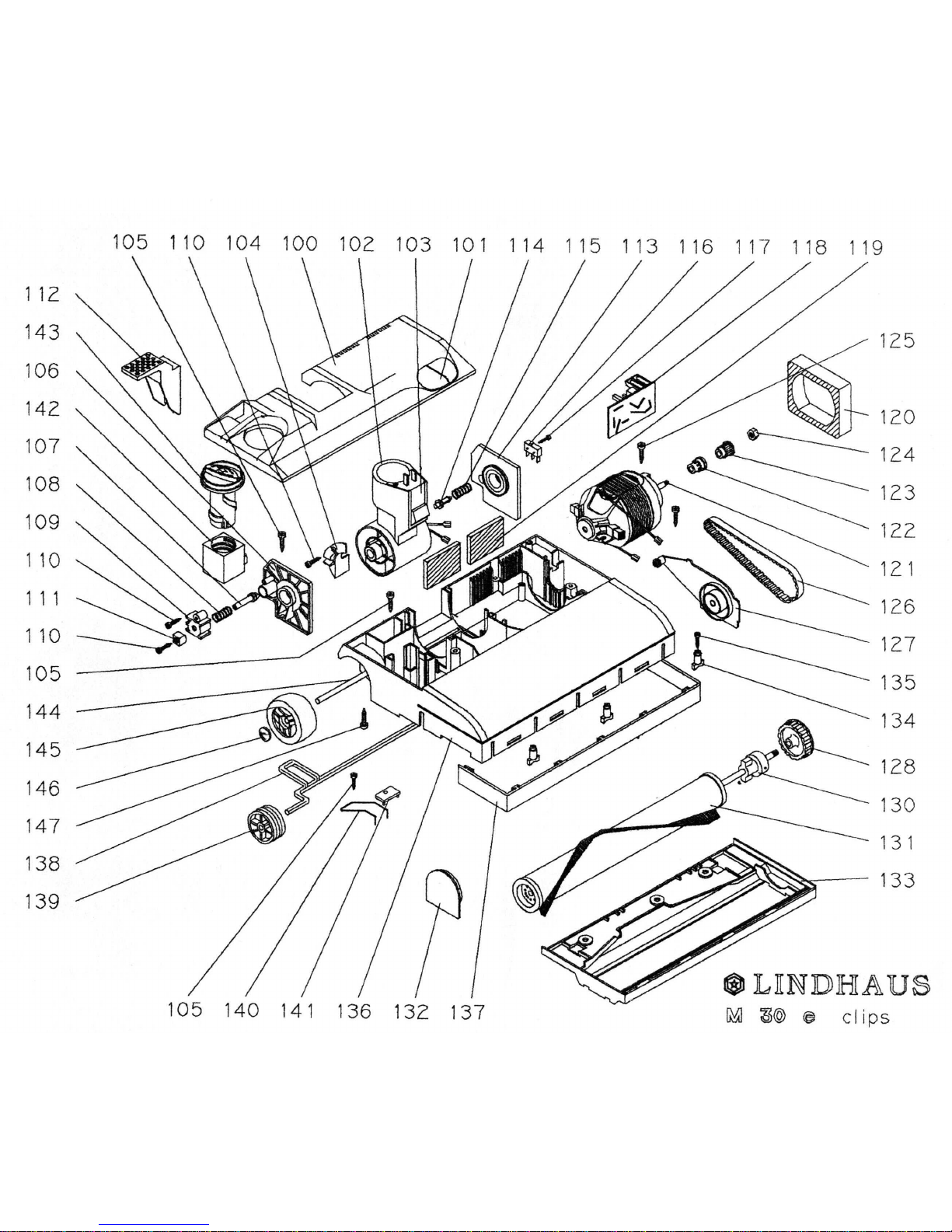

POWER NOZZLE 12" 120 V 150W
Valzer HEPA
MAP NO.
PART NO.
DESCRIPTION
PB 99 085150081 THROAT COVER, SPRING LOADED w/ FELT STRIP
PB 99A 011000017 THROAT COVER FELT STRIP ONLY
PB 100 083960181 MOTOR COVER DARK GREY HCP HEPA
PB 100 083960281 MOTOR COVER LIGHT GREY DP5
PB 100 083961481 MOTOR COVER GREEN VALZER
PB 101 083950081 LENS SET RED AND GREEN
PB 102 084170380
JOINT COMPLETE HEPA 2-WIRE
PB 103 083940080 KIT + BUTTON + FASTON + GUIDE + COVER
PB 104 002280305 JOINT PIN SLIDE (DP5, VALZER, HCH, HCPro-old)
PB 105 085590009 SCREW 3.9 X 13 PACK OF 20
PB 106 080430381 RIGHT CONNECTOR SUPPORT
PB 107 000840036 PLUNGER
PB 108 010390009 SPRING, DETENTE
PB 109 000650036 BUSHING
PB 110 085610009 SCREW 2.9 X 16 PACK OF 20
PB 111 000970305 SLIDE
PB 112 001920105 FOOT PEDAL DARK GREY
PB 112 001920205 FOOT PEDAL LIGHT GREY
PB 113 080440381 LEFT CONNECTOR SUPPORT
PB 114 000670036 SWITCH ACTIVATOR PIN
PB 115 010480009 SPRING SWITCH ACTIVATOR PIN
PB 116 020640000 MICROSWITCH
PB 117 086950009 SCREW 2.2 X 16 PACK OF 20
PB 118 020610000 CIRCUIT BOARD
PB 119 010720316 EXHAUST FILTER
PB 120 010580016 FILTER BRUSH MOTOR
PB 121 050030080 BRUSH MOTOR R73/25V 120V 180W
PB 122 002890029 METAL SPACER
PB 123 002880029 METAL PULLEY
PB 124 010340009 NUT ONLY, M6 BRUSH PULLEY
PB 124 010490009 NUT, PINION
PB 125 085560009 SCREW 3.9 X 16 PACK OF 20
PB 126 010400300 TIMING BELT 6mm
PB 127 080360011
TRANSMISSION LEFT SUPPORT WITH BEARING
PB 128 086160381 BRUSH PULLEY WITH METAL INSERT
PB 130 080880081 BRUSH SHAFT 12"
PB 131
PB 132 080370011
081730301 BRUSH 12”
RIGHT BRUSH SUPPORT WITH BEARING
PB 133 000570325 BRUSH SHOE PLATE 12"
PB 134 010360009 SCREW M6X9
PB 135 011640009 STAR WASHER
PB 136 080470181 BASE HOUSING 12” DARK GREY (Hpro Hepa)
PB 136 080470281 BASE HOUSING 12” LIGHT GREY (DP5)
PB 136 080471481 BASE HOUSING 12” GREEN (VALZER)
PB 137 000600112 BUMPER 12” DARK GREY
PB 137 000600212 BUMPER 12” LIGHT GREY
PB 138 011320029 FRONT AXLE
PB 139 002260000 FRONT WHEEL RUBBER
PB 140 010430009 SPRING
PB 141 000680036 SPRING STOP PLATE
PB 142 000990305 BRUSH HEIGHT ADJUSTER
PB 143 003750104 ADJUSTING KNOB DARK GREY
PB 143 003750204 ADJUSTING KNOB LIGHT GREY
Page 6
LINDHAUS USA
Spare Parts List
POWER NOZZLE 12" 120 V 150W
Valzer HEPA
MAP NO.
PART NO.
DESCRIPTION
PB 144 011380009 REAR AXLE
PB 145 002270000 REAR WHEEL RUBBER
PB 146 012840009 WHEEL RETAINER CAP
PB 147 086440009 SCREW 3.5 X 19 PACK OF 20
021260000 CARBON BRUSH, BRUSH MOTOR, SET OF TWO
