Page 1

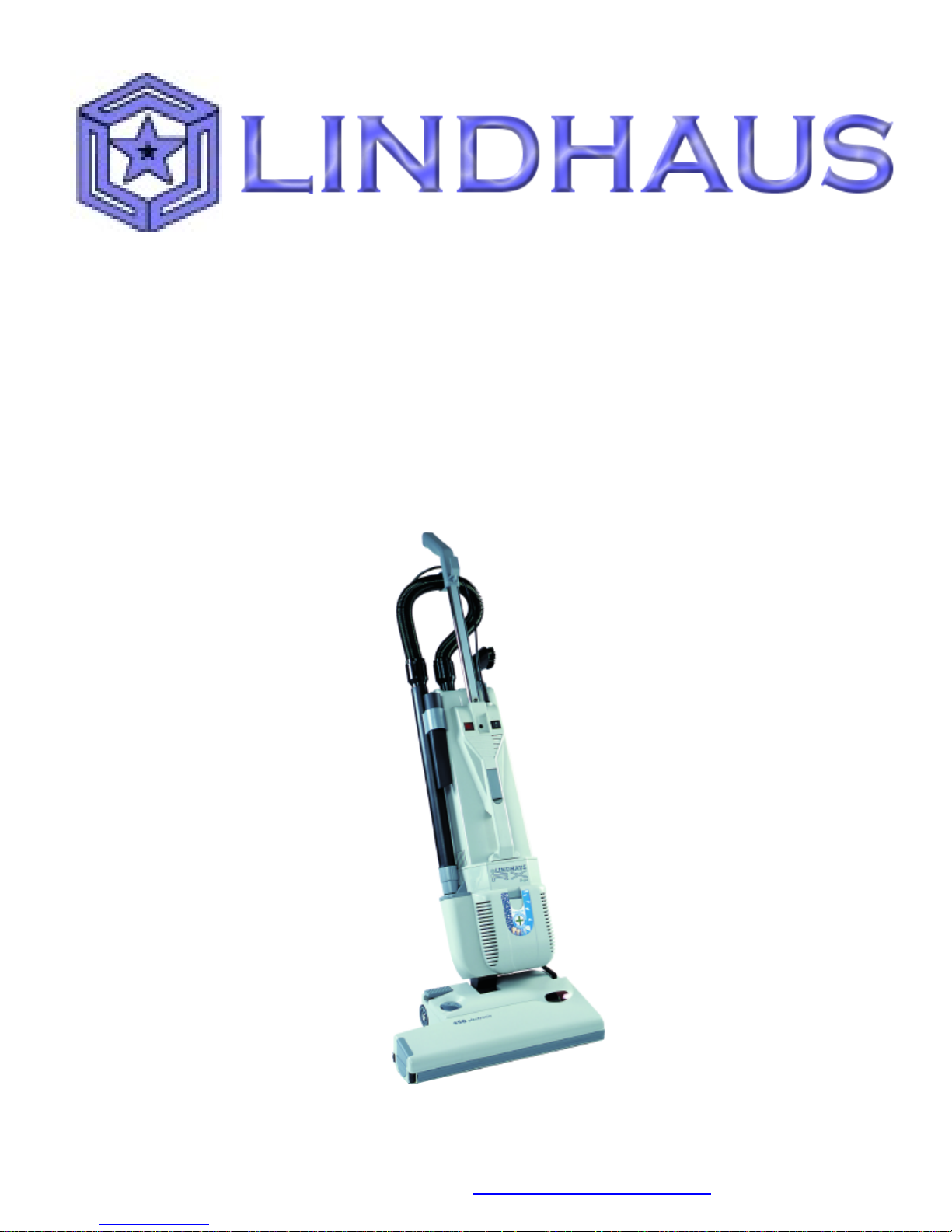

PARTS MAP FOR
RX HEPA
©2005 Lindhaus USA All Rights Reserved.
Visit us on-line at www.lindhaus.com
Page 2
Page 3

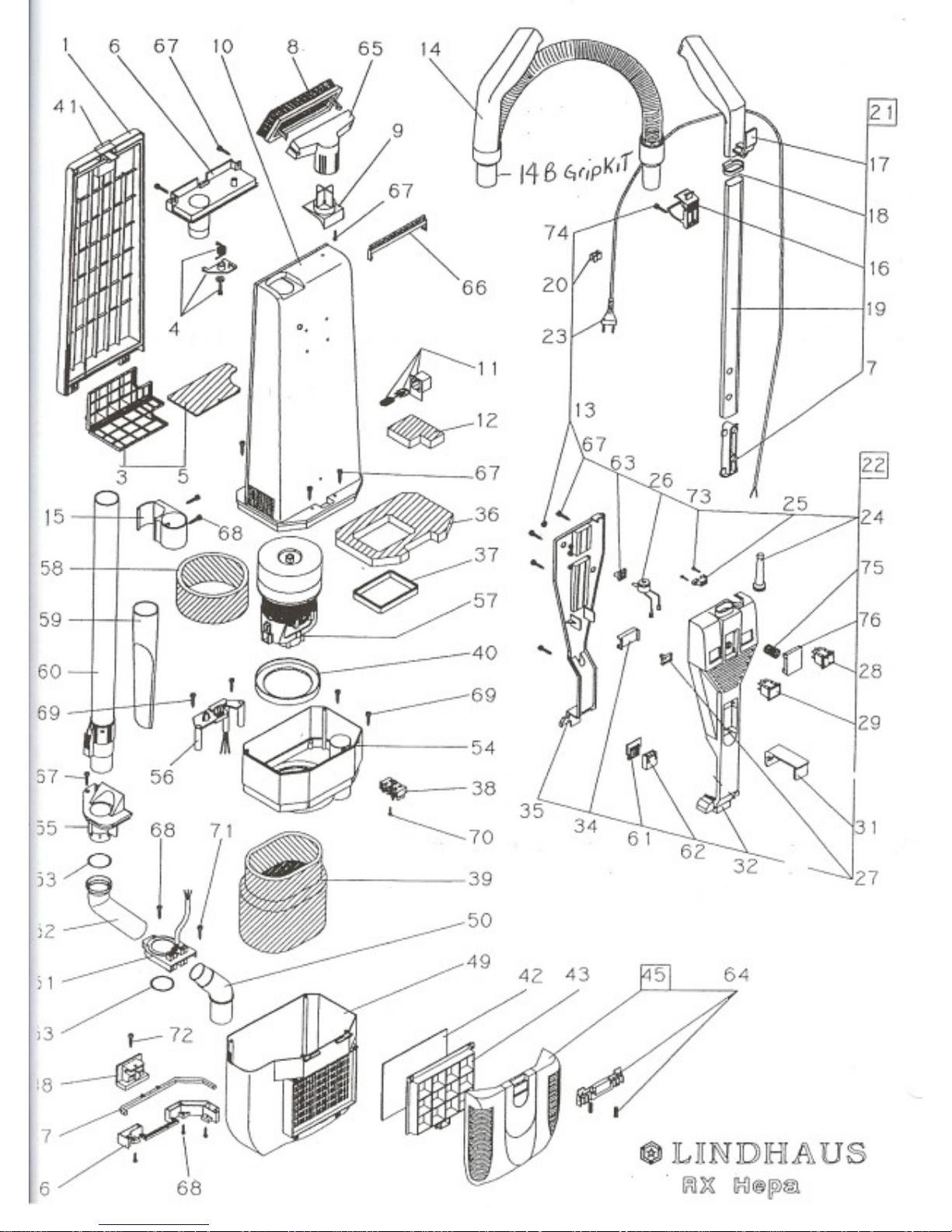

LINDHAUS USA
Spare Parts List
Suction Body
RX Hepa 120V
MAP NO.
PART NO.
DESCRIPTION
RX 01 080170281 BAG HOUSING COVER
RX 03 000160304 FILTER HOLDER
RX 04 084580081 SAFETY SUPPORT KIT
RX 05 011410316 FILTER, INTERNAL FOAM
RX 05 087170081 CARBON ACTIVE FILTER 5/PK
RX 06 084370081 BAG ENTRANCE WITH SAFETY SUPPORT
RX 07 084520081 BUTTON+SUPPORT+SPRING 2 POSITION
RX 08 030900300 UPHOLSTERY TOOL - NATURAL BRISTLE BRUSH ONLY
RX 09 001830205 DUST BRUSH SUPPORT
RX 10 083190281 BAG HOUSING COMPLETE - OLD MOTOR
RX 10 086270281 BAG HOUSING COMPLETE - NEW MOTOR
RX 11 080790081 RELIEF VALVE KIT
RX 12 011050016 VALVE FILTER
RX 13 010260307 O-RING
RX 14 086670381 HOSE, WITH HANDLE GRIP
RX 14B 087530381 HANDLE GRIP KIT FOR STRETCH HOSE
RX 14C 030860300 HOSE, 3 TO 1 STRETCH, WITH CUFFS
RX 15 002730104 WAND / CREVICE TOOL CLIP
RX 16 001950110 UPPER HOSE HOOK FOR FLEXIBLE HOSE
RX 17 080770181 HANDLE GRIP (ONLY)
RX 18 002870105 RETAINER
RX 19 084590081 CHROMATE TUBE - 2 POSITION W/ BUTTON LOCK
RX 21 084410181 HANDLE TUBE ASSEMBLY 2 POS.
RX 22 082522280 ELECT SYS ASSY- NON-VAR SPEED, 2-WAY SWITCH
RX 23 020410320 CORD 3X18, 3 PRONG, BLACK
RX 23 022480020 CORD 3X18, 3 PRONG,YELLOW
RX 24 010830307 STRAIN RELIEF
RX 25 000070305 CORD CLAMP
RX 26 021340000 VACUUM SENSOR
RX 27 001790006 COOLING VENT
RX 28 020390300 MAIN SWITCH 15A
RX 29 020020000 INDICATOR LIGHT
RX 31 001880105 LOWER CORD HOOK MEDIUM GREY
RX 32 086610281 HANDLE COVER WITHOUT ELECTRONIC
RX 34 001980306 COMB WIRE HOLDER
RX 35 001900201 FRAME HANDLE
RX 36 010200016 FILTER, FOAM UPPER
RX 37 000200308 MOTOR GASKET
RX 38 020340400 TERMINAL BLOCK 3 POLES
RX 38 020790400 TERMINAL BLOCK 4 POLES
RX 38 021000400 TERMINAL BLOCK 2 POLES
RX 39 011790016 FOAM MOTOR FILTER
RX 40 000210308 MOTOR GASKET
RX 41 082720281 BAG DOOR LATCH + SPRING
RX 42 085350081 MICROFILTER 12 PACK
RX 43 003360100 EXHAUST GRILL
RX 44 083632281 FRONT GRILL
RX 46 003980133 BLOCKING JOINT PIN SUPPORT
RX 47 010840009 JOINT PIN BLOCKING
RX 48 001500105 CONTROL PIN SLIDE
RX 49 003960233 VACUUM MOTOR HOUSING
RX 50 001760331 LOWER CURVE
RX 51 084610080 CURVE SUPPORT 3-WIRES
Page 4
LINDHAUS USA
Spare Parts List
Suction Body
RX Hepa 120V
MAP NO.
PART NO.
DESCRIPTION
RX 52 001750331 UPPER CURVE
RX 53 010270307 O-RING
RX 54 084600281 INNER VACUUM MOTOR HOUSING
RX 55 003970133 HOSE INLET
RX 56 082550080 MOTOR CLAMP 3 WIRES
RX 57 050910080 VACUUM MOTOR R26 APSS V. 120/60 W. 750
RX 58 010220016 FILTER, FOAM MOTOR
RX 59 030060310 CREVICE TOOL
RX 60 030550300 TELESCOPIC WAND
RX 61 002480003 4 CONTACT HOUSING COVER
RX 62 002400003 4 CONTACT HOUSING
RX 63 003230001 VACUUM SENSOR ADAPTOR
RX 64 084440181 BOTTOM COVER KIT
RX 65 031110300 UPHOLSTERY TOOL WITH NATURAL BRISTLE BRUSH
RX 66 030740300 UPHOLSTERY TOOL - CENTER STRIP ONLY
RX 67 010050009 SCREW 3.5 X 22
RX 68 010030009 SCREW 3.5 X 16
RX 69 085550009 SCREW 3.5 X 25 PACK OF 20
RX 70 086440009 SCREW 3.5 X 19 PACK OF 20
RX 71 085590009 SCREW 3.9 X 13 PACK OF 20
RX 72 087260009 SCREW 3.9 X 22 PACK OF 20
RX 73 085530009 SCREW 2.9 X 19 PACK OF 20
RX 74 085560009 SCREW 3.9 X 16 PACK OF 20
RX 75 012980009 HANDLE SPRING
RX 76 005200101 BUTTON DARK GREY
022290000 CARBON BRUSH (CERAMIC), SET OF TWO
030610019 PH4 BAGS (10 BAGS + 2 MICROFILTERS)
030640000 HEPA FILTER
030650000 CARBON ACTIVE FILTER
083540100 BLOWER PORT
Page 5
Page 6

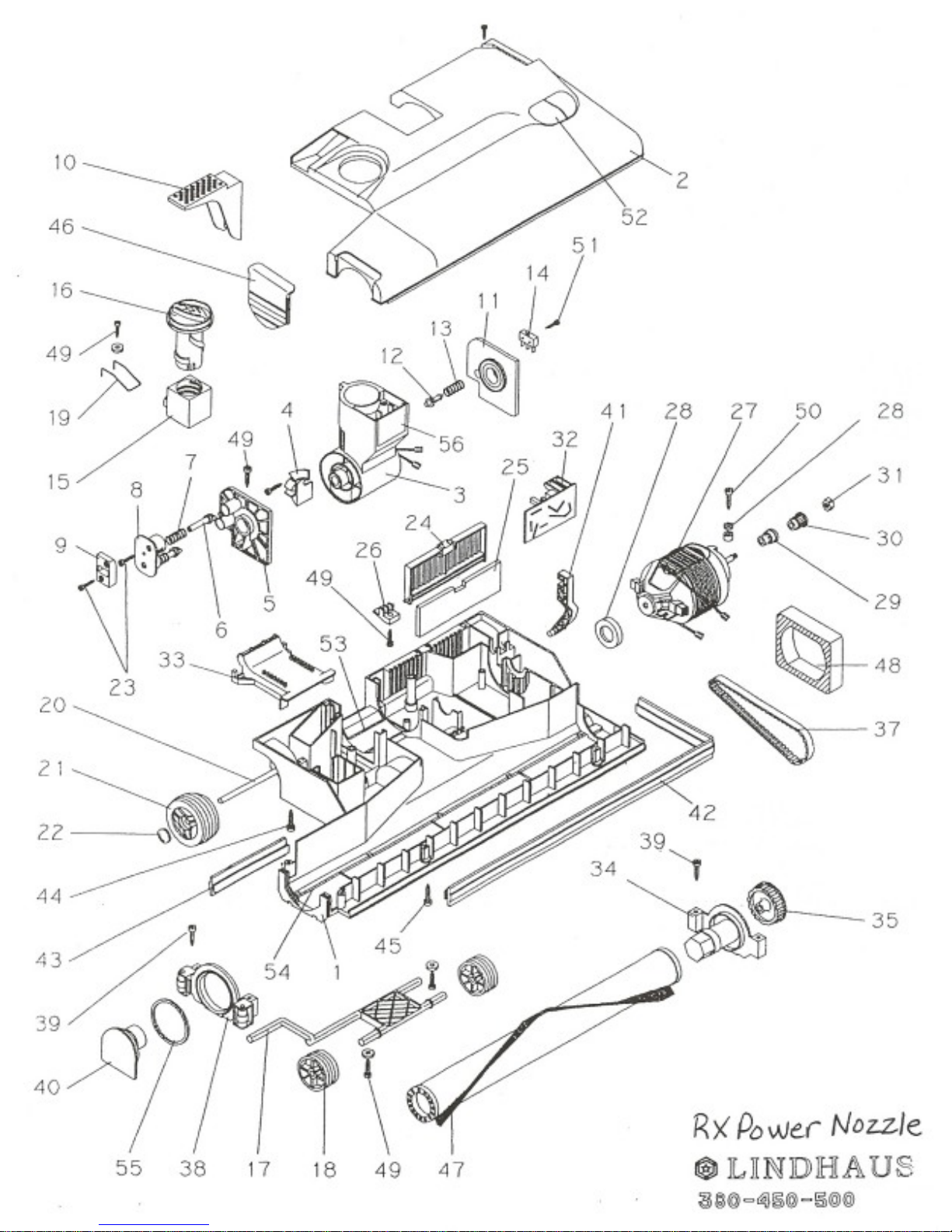

LINDHAUS USA
Spare Parts List
RX Power Brush 120V
MAP NO.
PART NO.
DESCRIPTION
RX 01 081990281 BASE HOUSING 380 (15”)
RX 01 082000281 BASE HOUSING 500 (20”)
RX 01 082850281 BASE HOUSING 450 (18”)
RX 02 082860281 BASE HOUSING COVER 380 (15”)
RX 02 082870281 BASE HOUSING COVER 450 (18”)
RX 02 082880281 BASE HOUSING COVER 500 (20”)
RX 03 083210380 JOINT COMPLETE 120V
RX 04 002290305 JOINT PIN SLIDE
RX 05 081910080 SUPPORT RIGHT JOINT
RX 06 001940036 PLUNGER
RX 07 010390009 SPRING, DETENTE
RX 08 001930036 DOUBLE PIN WASHER
RX 09 002180105 DOUBLE RELEASE PLATE
RX 10 002550105 FOOT PEDAL
RX 11 081920080 SUPPORT LEFT JOINT
RX 12 000670036 SWITCH ACTIVATOR PIN
RX 13 010480009 SPRING SWITCH ACTIVATOR PIN
RX 14 020640000 MICROSWITCH
RX 15 000990305 BRUSH HEIGHT ADJUSTER
RX 16 003130104 ADJUSTING KNOB
RX 17 011330029 FRONT AXLE
RX 18 002260000 FRONT WHEEL RUBBER
RX 19 011160009 SPRING BRUSH ADJUST
RX 20 011390009 REAR AXLE
RX 21 002270000 REAR WHEEL RUBBER
RX 22 012840009 WHEEL RETAINER CAP
RX 23 085610009 SCREW 2.9 X 16 PACK OF 20
RX 24 002140104 FILTER GRILL
RX 25 011240316 EXHAUST FILTER
RX 26 002160104 STOP GRILL PLATE
RX 27 050030080 BRUSH MOTOR 380 (15")
RX 27 050240080 BRUSH MOTOR 450-500 (18”-20”)
RX 28 082050381 MOTOR GASKET KIT
RX 29 002890029 METAL SPACER
RX 30 002880029 METAL PULLEY
RX 31 010490009 NUT, PINION
RX 32 020810000 CIRCUIT BOARD
RX 33 002170104 CHANNEL COVER
RX 34 082600081
TRANSMISSION SUPPORT WITH PULLEY
RX 35 086160381 BRUSH PULLEY WITH METAL INSERT
RX 36 010340009 NUT ONLY, M6 BRUSH PULLEY
RX 37 010790300 TIMING BELT 7mm
RX 38 081940081 WHEEL SUPPORT
RX 39 085560009 SCREW 3.9 X 16 PACK OF 20
RX 40 081950081 ROLLER SUPPORT
RX 41 002210304 SIDE LEVER
RX 42 002560112 FRONT BUMPER 380 (15”)
RX 42 002580112 FRONT BUMPER 450 (18”)
RX 42 002600112 FRONT BUMPER 500 (20”)
RX 43 002570112 BACK BUMPER GASKET 380 (15”)
RX 43 002590112 BACK BUMPER GASKET 450 (18”)
RX 43 002610112 BACK BUMPER GASKET 500 (20”)
RX 44 087270009 SCREW 4.8 X 50 PACK OF 20
Page 7
LINDHAUS USA
Spare Parts List
RX Power Brush 120V
MAP NO.
PART NO.
DESCRIPTION
RX 45 087280009 SCREW 3.5 X 38 PACK OF 20
RX 46 002150104 SIDE COVER
RX 47 003200301 BRUSH ROLLER 380 (15”)
RX 47 003250301 BRUSH ROLLER 450 (18)
RX 47 003260301 BRUSH ROLLER 500 (20”)
RX 48 010580016 FILTER BRUSH MOTOR
RX 49 085590009 SCREW 3.9 X 13 PACK OF 20
RX 50 010030009 SCREW 3.5 X 16
RX 51 086950009 SCREW 2.2 X 16 PACK OF 20
RX 52 082940081 LENS SET RED & GREEN
RX 53 011000017 THROAT COVER FELT STRIP ONLY
RX 54 082890000 BASE METAL GUIDES SET 380 (15”)
RX 54 082900000 BASE METAL GUIDES SET 450 (18”)
RX 54 082910000 BASE METAL GUIDES SET 500 (20”)
RX 55 011360307 O-RING
RX 56 082490080 MALE ELECTRICAL CONNECTION SET, 3 PRONG
021260000 CARBON BRUSH, BRUSH MOTOR, SET OF TWO
