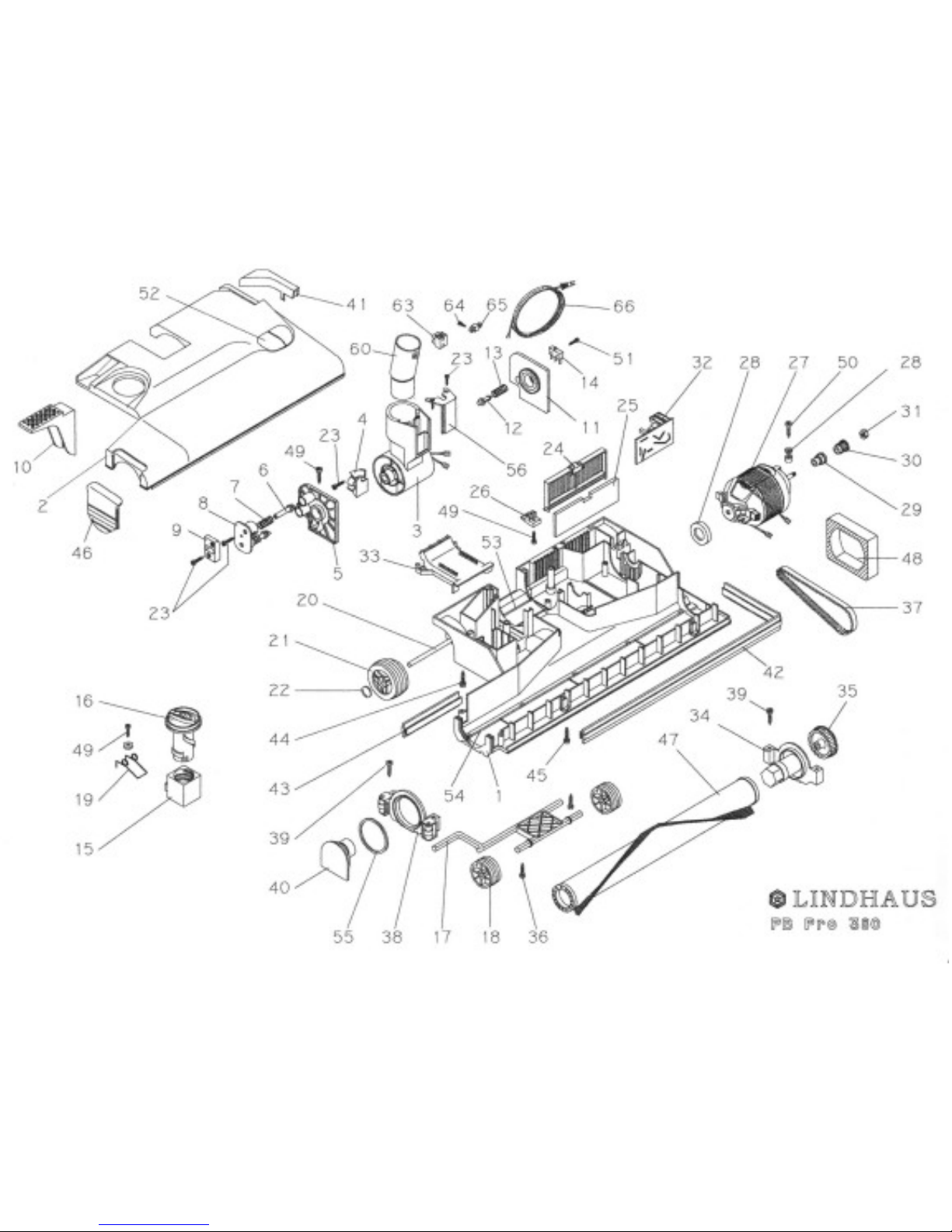

PARTS MAP FOR
PB14– PRO
©2005 Lindhaus USA All Rights Reserved.
Visit us on-line at www.lindhaus.com
Page 2
Page 3
LINDHAUS USA
Spare Parts List
Central PB14e Commercial
MAP NO.
PART NO.
DESCRIPTION
096972280 CENTRAL PB14e COMMERCIAL
PB 99 085150081 THROAT COVER, SPRING LOADED w/ FELT STRIP
PB 99A 011000017 THROAT COVER FELT STRIP ONLY
PBP 01 081990281 BASE HOUSING 380 (14”)
PBP 02 087410281 BASE HOUSING COVER 380 (14”)
PBP 03 086560380 JOINT COMPLETE 120V
PBP 04 002290305 JOINT PIN SLIDE
PBP 05 081910080 SUPPORT RIGHT JOINT
PBP 06 001940036 PLUNGER
PBP 07 010390009 SPRING, DETENTE
PBP 08 001930036 DOUBLE PIN WASHER
PBP 09 002180105 DOUBLE RELEASE PLATE
PBP 10 002550105 FOOT PEDAL
PBP 11 081920080 SUPPORT LEFT JOINT
PBP 12 000670036 SWITCH ACTIVATOR PIN
PBP 13 010480009 SPRING SWITCH ACTIVATOR PIN
PBP 14 020640000 MICROSWITCH
PBP 15 000990305 BRUSH HEIGHT ADJUSTER
PBP 16 003130104 ADJUSTING KNOB
PBP 17 011330029 FRONT AXLE
PBP 18 002260000 FRONT WHEEL RUBBER
PBP 19 011160009 SPRING BRUSH ADJUST
PBP 20 011390009 REAR AXLE
PBP 21 002270000 REAR WHEEL RUBBER
PBP 22 012840009 WHEEL RETAINER CAP
PBP 23 085610009 SCREW 2.9 X 16 PACK OF 20
PBP 24 002140104 FILTER GRILL
PBP 25 011240316 EXHAUST FILTER
PBP 26 002160104 STOP GRILL PLATE
PBP 27 050030080 BRUSH MOTOR R73/25V 120V 180W
PBP 28 082050381 MOTOR GASKET KIT
PBP 29 002890029 METAL SPACER
PBP 30 002880029 METAL PULLEY
PBP 31 010490009 NUT, PINION
PBP 32 020810000 CIRCUIT BOARD
PBP 33 002170104 CHANNEL COVER
PBP 34 082600081 TRANSMISSION SUPPORT WITH PULLEY
PBP 35 086160381 BRUSH PULLEY WITH METAL INSERT
PBP 36 086450009 SCREW 3.9 X 13 TG PACK OF 20
PBP 37 010790300 TIMING BELT 7mm
PBP 38 081940081
WHEEL SUPPORT
PBP 39 087260009 SCREW 3.9 X 22 PACK OF 20
PBP 40 081950081 ROLLER SUPPORT
PBP 41 005180201 SIDE LEVER
PBP 42 002560112 FRONT BUMPER 380 (14”)
PBP 43 002570112 BACK BUMPER GASKET 380 (14”)
PBP 44 087270009 SCREW 4.8 X 50 PACK OF 20
PBP 45 087280009 SCREW 3.5 X 38 PACK OF 20
PBP 46 002150104 SIDE COVER
PBP 47 003200301 BRUSH ROLLER 380 (14”)
PBP 48 010580016 FILTER BRUSH MOTOR
PBP 49 085590009 SCREW 3.9 X 13 PACK OF 20
PBP 50 085550009 SCREW 3.5 X 25 PACK OF 20
PBP 51 086950009 SCREW 2.2 X 16 PACK OF 20
PBP 52 082940081 LENS SET RED & GREEN
PBP 53 011000017 THROAT COVER FELT STRIP ONLY
PBP 54 082890000 BASE METAL GUIDES SET
PBP 55 011360307 O-RING
PBP 56 001080305 STOPCORD BRACKET
PBP 60 002790305 SWIVEL CONNECTOR 1.1/4 INCH.
PBP 63 021000400 TERMINAL BLOCK 2 POLES
PBP 64 087420009 SCREW 2.9 X 9.5 PACK OF 20
PBP 65 001100305 CORD CLAMP
PBP 66 021180320 CORD 2x18, 38"
021260000
CARBON BRUSH, BRUSH MOTOR, SET OF TWO
